MITWELL KUBER-2000-IT Series User Manual

KUBER-2000-IT Series

User Manual

Version 2.5

2021/10/06

MITWELL KUBER-2000-IT Series User Manual

Table of Contents

1REVISION....................................................................................................... 4

2PREFACE ........................................................................................................ 5

2.1 Copyright................................................................................................5

2.2 Acknowledgement .................................................................................5

2.3 Warranty ................................................................................................5

2.4 Declaration of conformity......................................................................6

2.5 Technical support...................................................................................6

3INTRODUCTION ............................................................................................. 7

3.1 Product overview ...................................................................................7

3.2 Safety Precautions..................................................................................8

3.3 Hardware Specification ..........................................................................9

3.4 Appearance ..........................................................................................11

3.4.1 KUBER-2110 .................................................................................11

3.4.2 KUBER-212A ............................................. 錯誤! 尚未定義書籤。

3.4.3 KUBER-212B ............................................. 錯誤! 尚未定義書籤。

3.4.4 KUBER-212D............................................. 錯誤! 尚未定義書籤。

3.4.5 KUBER-212E .................................................................................11

3.4.6 KUBER-212G............................................. 錯誤! 尚未定義書籤。

3.5 Interface ...............................................................................................12

3.5.1 USB 3.0 .........................................................................................12

3.5.2 DP .................................................................................................12

3.5.3 Ethernet .......................................................................................12

3.5.4 LED indicator ................................................................................12

3.5.5 COM .............................................................................................13

3.5.6 Power terminal.............................................................................13

3.5.7 M.2 and mini PCI-e card slot........................................................14

3.5.8 Antenna........................................................................................15

3.6 Dimensions...........................................................................................15

3.6.1 One layer......................................................................................15

3.6.2 Two layer ......................................................................................17

4SYSTEM INSTALLATION..................................................................................19

4.1 Wall mount...........................................................................................19

4.2 DIN-Rail mount.....................................................................................21

5INITIAL SETUP...............................................................................................23

MITWELL KUBER-2000-IT Series User Manual

5.1 Chassis Grounding................................................................................23

5.2 Connecting Power ................................................................................23

5.3 External Antenna installation...............................................................24

6BIOS Default Setting .....................................................................................25

6.1 Main .....................................................................................................25

6.2 Configuration .......................................................................................26

6.2.1 CPU Configuration........................................................................26

6.2.2 Chipset Configuration ..................................................................27

6.2.3 LAN Configuration........................................................................28

6.2.4 Graphics Configuration ................................................................29

6.2.5 PCI/PCIE Configuration.................................................................29

6.2.6 USB Configuration........................................................................30

6.2.7 Power Control Configuration .......................................................31

6.2.8 TPM Configuration .......................................................................31

6.2.9 Super I/O Configuration...............................................................32

6.2.10 H/W Configuration.......................................................................32

6.3 Security ................................................................................................32

6.4 Boot......................................................................................................33

6.5 Save & Exit............................................................................................34

7MAINTENANCE.............................................................................................35

7.1 M.2 2230 Wifi Module Installation ......................................................35

7.2 M.2 2242 and Mini PCI-e card installation...........................................37

7.3 Battery change .....................................................................................39

AAPPENDIX.....................................................................................................40

A.1 Naming rule..........................................................................................40

A.2 System ordering information ...............................................................41

A.3 Accessory ordering information...........................................................42

A.4 Jumper Setting .....................................................................................43

A.5 COM port setting..................................................................................44

A.6 Golden finger pin-out table .................................................................45

A.7 KUBER-212B GPIO Rating................................. 錯誤! 尚未定義書籤。

A.8 KUBER Series I/O Rating................................... 錯誤! 尚未定義書籤。

MITWELL KUBER-2000-IT Series User Manual

1REVISION

Revision Date Description

R1.8

20200107

-Update product information.

R2.0 20200430 - Update product picture

R2.2

20200511

-Update KUBER-212B GPIO & I/O rating

R2.4 20200302 - Update P13 LAN port table

-Update P45 COM port screen shot

MITWELL KUBER-2000-IT Series User Manual

2PREFACE

2.1 Copyright

This document is released and copyrighted are reserved by MiTwell, Inc. No parts of

this document may be copied, reproduced by mechanical, electronics or other means

in any form, for any purpose, without prior authorization by MiTwell, Inc.

The information contained within this user manual, including but not limited to any

other product specification, MiTwell, Inc reserves its right to modify them at any time

without notice.

2.2 Acknowledgement

Intel®, Core™ and Atom™ are the trademarks of Intel Corporation. Microsoft Windows

and MS-DOS are registered trademarks of Microsoft Corp. All other product names or

trademarks are properties of their respective owners. All product names, logos, brands,

trademarks and registered trademarks in this user’s manual or the MiTwell website

are the property of their respective owners.

2.3 Warranty

MiTwell warrants that each product failing to function properly under normal use for

12 months from the invoice date. Due to an effect in materials, workmanship or due

to nonconformance upon specifications, will be repaired or exchanged at MiTwell’s

option and expense.

For RMA and DOA goods, customers should follow the standard procedure and send

back the goods. For detail please see the warranty policy by below link:

http://rma.portwell.com.tw:10007/mitwellrma/Default.aspx

MITWELL KUBER-2000-IT Series User Manual

2.4 Declaration of conformity

CE (European Union)

This equipment is in conformity with the requirement of the following EU legislations

and harmonized standards. Product also complies with the Council directions.

(EN55024, EN55032)

FCC (Federal Communications Commission Radio Frequency Interface Statement)

This device complies with part 15 FCC rules. This equipment has been tested and found

to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. (CFR Title 47 Part15 Subpart B: 2018 Class A)

Operation is subject to the following two conditions: one is the device may not cause

harmful interference, and second is that the device must accept any interference

received including interference that may cause undesired operation.

2.5 Technical support

MiTwell are committed to provide the best support and service for our customers,

which can help customer implement and use MiTwell’s products easily.

We suggest that you download the latest documentation, utilities and drivers which

have been made available to assist you on MiTwell website. If you still require

assistance after visiting our website, you can contact your local sales and technical

support team for further assistance.

For more information on this and other products, please visit our websites at:

http://www.mitwell.com.tw

MITWELL KUBER-2000-IT Series User Manual

3INTRODUCTION

3.1 Product overview

KUBER-2000-IT series is a new generation of palm-sized, flexible and ready-to-use

industrial PC designed for a variety of applications in the industrial 4.0 world. Within 10cm

length, you can expect scalable Apollo Lake processors up to 4 cores, robust aluminum

housing and common industrial features.

The state-of-the-art expansion design ensures various I/O choices for different

applications are fulfilled with minimal investment. Leveraging KUBER-2000-IT ’s Eco

system, you can shorten the time to market when building your own solutions.

The product is open type, intended to be installed in and industrial control panel or an

enclosure. No matter to perform data collection and transition, edge computing or

communication tasks in applications like industrial automation, intralogistics or smart

retailers, KUBER-2000-IT series are proved to be your best choice.

MITWELL KUBER-2000-IT Series User Manual

3.2 Safety Precautions

Warning note

This symbol indicates hazards that could lead to personal injury. There are three signal

words indicating the severity of a potential injury. If the equipment is used in a manner

not specified by the manufacturer, the protection provided by the equipment may be

impaired.

DANGER

Indicates a hazard with a high risk

level. If this hazardous

situation is not avoided, it will result in death or serious injury.

WARNING

Indicates a hazard with a medium risk level. If this hazardous

situation is not avoided, it could result in death or serious injury.

CAUTION

Indicates a hazard with a low risk level. If this hazardous situation

is not avoided, it could result in minor or moderate injury.

This symbol together with the NOTE signal word alerts the reader

to a situation which may cause damage or malfunction to the

device, hardware/software, or surrounding property.

Here you will find additional information or detailed sources of

information.

MITWELL KUBER-2000-IT Series User Manual

3.3 Hardware Specification

Model Name KUBER-2110-IT KUBER-212E-IT

CPU Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP

Mass Storage 32GB onboard eMMC 5.0 flash; up to 256 GB (optional)

Memory 4GB onboard LPDDR4 w/ 2133MHz, up to 8GB (optional)

Power Input 24V VDC(+/-30%)

Indicator LED Power (Green), Run (Green)

Operating Systems Windows® 10 IoT Enterprise LTSB 2016 (64-bit) / Linux Yocto Warrior v2.7.1

Expansion 1 x M.2 Key E 2230

Basic I/O Interface

Power Connection 1 x 2-pin screw-type terminal block

Ethernet 2 x 10/100/1000 GbE (Intel® i210)

USB 2 x USB 3.0

Display 1 x DP v1.4 4096 x 2160 @ 60Hz

Environment

Operating Temperature

0°C ~ 40 °C with 0.5m/s air flow

Storage Temperature

-40 °C ~ 85 °C

Vibration Wall mount-MIL-STD-810G 514.7C-V Category-4 / Din Rail - 1G (DIN EN 60068-2-6)

Shock Wall mount - 40G (EN 60068-2-27)/ Din Rail - 15G (EN 60068-2-27)

Operating Altitude Up to 2000m

Certification CE, FCC

Mechanical

Degree of Protection IP30

Dimension (mm) 99x 46x 92 99 x 63 x 92

Net Weight (Kg) 0.55 0.65

Mounting Support DIN rail and wall mounting

Cooling Fanless

MITWELL KUBER-2000-IT Series User Manual

Extended I/O Interface

Model Name

KUBER - 212E

Additional

Power input (POE)

N/A

Ethernet/ POE N/A

COM/Console

1 x RS-232

1 x RS-232/422/485

(BIOS Configurable)

USB N/A

I/O N/A

Expansion Slot

1 x M.2 Key B 2242

1 x Mini-PCIe

MITWELL KUBER-2000-IT Series User Manual

3.4 Appearance

3.4.1 KUBER-2110-IT

Core interface with 2 x USB3.0, 1 x DisplayPort,

2 x GbE LAN, Power connectors

3.4.2 KUBER-212E-IT

Expanded interface with 1 x RS-232, 1 x RS-232/422/485 (BIOS Configurable)

MITWELL KUBER-2000-IT Series User Manual

3.5 Interface

3.5.1 USB 3.0

KUBER-2000-IT core computing part provides two USB Type-A 3.0 to connect

external device such as mouse, keyboard or external storage device. Two ports

are USB 3.0. USB 3.0 ports utilize a blue connector.

3.5.2 DP

DisplayPort (DP): These ports connect KUBER-2000-IT to external digital

displays with a corresponding DP++ connector.

3.5.3 Ethernet

KUBER-2000-IT series are equipped with Intel® i210 Gigabit LAN controller,

which fully compliant with 10/100/1000 Base-T Ethernet network. Two RJ45

connectors allow the computer to communicate on a 10/100/1000 Base-T

Gigabit LAN Ethernet network.

Speed LED Activity Link LED

Status

Description

Status

Description

Off 10 Mbps Off No link

Green

100Mbps

Green

Linked

Orange 1 Gbps Green(blink) Data activity

3.5.4 LED indicator

Two LEDs are provided on the KUBER-2000-IT. These LEDs provide operating

information.

MITWELL KUBER-2000-IT Series User Manual

Function* Status Description

Power

Power ON

Solid Green

Power Off Off

Run Status

(GPIO)

Run

Flash Green

off Off

*: Need to auto detection functionality while power applied

3.5.5 COM

Serial (COM): D-SUB 9 serial ports are available for use, which is configurable

as either RS-232, RS-422, or RS-485 by BIOS setting. The function of the pins

in the D-SUB 9 connector varies with the different configuration settings on

different model, please check it on the datasheet.

D-SUB 9 pin

RS-232

RS-422

RS-485

1 DCD TXD- TXD-/RXD-

RXD

TXD+

TXD+/RXD+

3 TXD RXD+ -

DTR

RXD-

5 GND GND GND

DSR

7 TRS - -

CTS

9 Ring indicator - -

3.5.6 Power terminal

A 2-position, screw-type terminal block (MC 1,5/ 2-STF-3,5) is

provided for connecting power to the KUBER-2000-IT.

MITWELL KUBER-2000-IT Series User Manual

Connect a power source to the included power connector. This connector

supports wire sizes from 0.2 to 1.5 mm² (AWG min.24). Use copper conductors

only, wiring cable maximum temperature should support at least 105˚C Tighten

the wire to a torque value 5 kgf-cm.Torque the wire-retaining screws in the

connector to 0.22Nm…0.25 Nm.

(Ce connecteur prend en charge des tailles de fil de 0,2 à 1,5 mm² (AWG

min.24). Utilisez uniquement des conducteurs en cuivre, la température

maximale du câble de câblage doit prendre en charge au moins 105˚C Serrez le

fil à un couple de 5 kgf-cm. Serrez les vis de retenue du fil dans le connecteur

à 0,22 Nm… 0,25 Nm.)

Pin No. Description

0 V DC

+ 24VDC

3.5.7 M.2 and mini PCI-e card slot

Release the screw and disassemble the chassis of KUBER-2000-IT, you can see

the M.2 and miniPCI-e card slot on the main board/carrier board. The slot

varies with the different models.

MITWELL KUBER-2000-IT Series User Manual

3.5.8 Antenna

A mini PCIe card/M.2 2230 card slot is available to allow KUBER-2000-IT to be

placed on a wireless network.

3.6 Dimensions

All dimensions shown in mm (millimeters)

3.6.1 One layer

Dimension: 99x 46x 92(mm)

MITWELL KUBER-2000-IT Series User Manual

Front view

Side view

Top view

MITWELL KUBER-2000-IT Series User Manual

3.6.2 Two layer

Dimension: 99 x 63 x 92 (mm)

Front view

Side view

MITWELL KUBER-2000-IT Series User Manual

Top view

MITWELL KUBER-2000-IT Series User Manual

4SYSTEM INSTALLATION

KUBER-2000-IT support two types of mounting: wall mount bracket and DIN-rail

mounting bracket. You can purchase mounting kit from MiTwell as an optional

accessory. This chapter provide step-by-step mounting guide for the mounting options.

Make sure to fasten the screw (M3 x 5L)with proper torque (5kgf-cm)

by torque wrench on KUBER-2000-IT. Improper torque may cause the

damage of screw thread on the aluminum chassis.

4.1 Wall mount

Installation

Fasten the Wall mount bracket by screws (M3 x 5L) on the KUBER-2000-IT.

1. See the dimensions as below, and mark the locations of the holes on the

mounting surface.

MITWELL KUBER-2000-IT Series User Manual

2. Use the correct anchor type for the mounting surface and securely attach the

KUBER-2000-IT series IPC on the mounting surface, like metal rack. Ensure that

the attaching hardware is in the small section of the keyholes.

Removal

1. Remove power and disconnect cables to the IPC.

2. Loosen and remove the screws securing the IPC to the mounting surface.

This manual suits for next models

Table of contents

Other MiTWell Industrial PC manuals

MiTWell

MiTWell KUBER-2000 Series User manual

MiTWell

MiTWell KUBE-5000 Series User manual

MiTWell

MiTWell KUBE-3000 Series User manual

Popular Industrial PC manuals by other brands

AXIOMTEK

AXIOMTEK eBOX560-900-FL-US user manual

Artila

Artila Matrix-522 user guide

ASROCK

ASROCK 4X4 BOX-5000 Series user manual

INNOSILICON

INNOSILICON T3S-39T BTC user manual

7starlake

7starlake SR800 user manual

Lenovo

Lenovo ThinkEdge SE30 user guide

Spectra

Spectra PowerBox 5000C Series user manual

Advantech

Advantech SKY-6200 Startup manual

Advantech

Advantech ITA-7220 Series user manual

DFI

DFI KS101P-EHL user manual

Advantech

Advantech ECU-4553 Series user manual

DFI

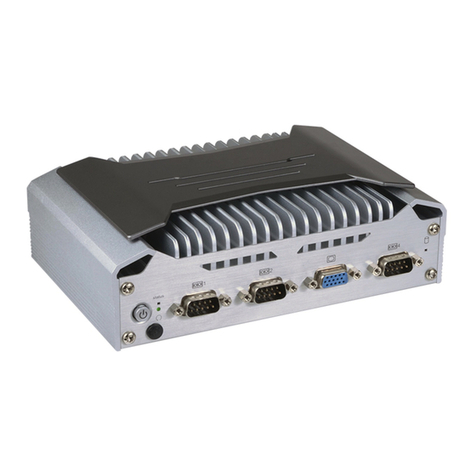

DFI EC70A-SU installation guide

Four-Faith

Four-Faith F-IPC100 user manual

Advantech

Advantech HIT-W183 user manual

Neousys Technology

Neousys Technology Nuvo-5095GC Series user manual

panel

panel PVG-FM Series user manual

IEI Technology

IEI Technology FLEX-BX210 user manual

AXIOMTEK

AXIOMTEK IPC950 user manual

MiTWell KUBER-2000-IT Series User manual

Popular Industrial PC manuals by other brands
