SUMMARY
1. USER MANUAL................................................................ p. 3
1.1. Importance of the manual ............................................p. 3
1.2. Receivers of the manual ..............................................p. 3
2. WARNING ......................................................................... p. 4
2.1. Safety ...........................................................................p. 4
2.2. Electric connection .......................................................p. 6
2.3. End-of-life of the product..............................................p. 6
3. YOUR MACHINE.............................................................. p. 7
3.1. Description ...................................................................p. 7
3.2. Technical characteristics ..............................................p. 7
3.3. Identication of the components ..................................p. 8
4. USE OF THE MACHINE .................................................. p.10
4.1. Prerequisites ................................................................p.10
4.2. Starting up....................................................................p.11
4.3. Error codes...................................................................p.11
5. MAINTENANCE................................................................ p.12
5.1. Cleaning procedure......................................................p.12
5.2. Check-up......................................................................p.12
6. DECLARATION OF CONFORMITY................................ p.13
7. WARRANTY CONDITIONS............................................. p.14

202303-648-ENG User manual - MIXER 70 P3
1. USER MANUAL
1.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
1.2. RECEIVERS OF THE MANUAL
This manual is intended to any sta󰀨 which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - MIXER 70 202303-648-ENGP4
2. WARNING
2.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.

202303-648-ENG User manual - MIXER 70 P5
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.
2. WARNING (continued)
2.1. SAFETY (continued)
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children
and animals.
• In case of installation of the machine on sca󰀨olding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
• After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it
blocking up. The storage of a not greased pump can damage it seriously.

User manual - MIXER 70 202303-648-ENGP6
2. WARNING (continued)
2.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a di󰀨erential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is su󰀩cient to support the machine when it
is working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
2.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake
to process the used EEEs according to the following provisions: applicable only to products on
the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products
of other brands sold by our company (upon presentation of the corresponding invoices),
products that operate using electrical energy (for example, thermal washers or compressors
do not fall into this category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points
in Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees
and directed to the most appropriate processing channels.
For any further information, please contact our hotline [phone] o [e-mail].

202303-648-ENG User manual - MIXER 70 P7
3. YOUR MACHINE
3.1. DESCRIPTION

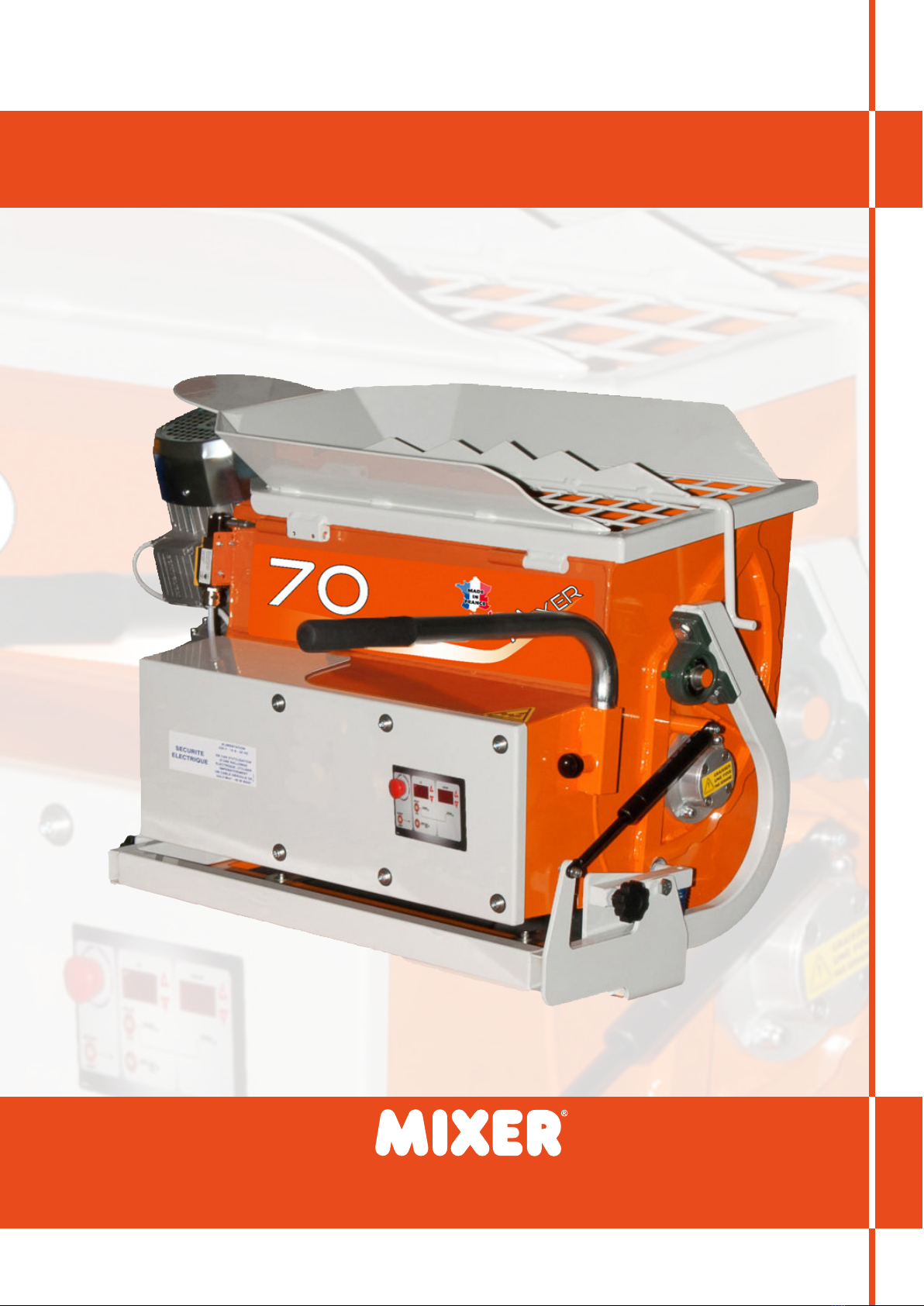

Practical and compact mixer for mortar.
A double helical paddle on a horizontal arm ensures rapid and homogeneous mixing. Mixer equipped
with a speed control, a rotation direction reversing function and a water doser.
Equipped with a digital control panel, allowing simplied adjustment of rotation speed, a water dosing
and display of the network voltage.
TO USE WITH
• All types of powder products.
• All bi-component products.
• Sand or lime to mix with water.
3.2. TECHNICAL CHARACTERISTICS
Mixing type sequential
Motor 1,1 kW
Forward / reverse rotation speed 28 to 80 RPM
Power supply 230 V - 10 A - 50 & 60 Hz
Tank capacity 70 L
Water meter integrated
Mixing paddle double helical paddle
Loading height 135 cm
Dimensions (L x w x h) 88 x 52 x 57 cm
Weight 75 kg
Do not use corrosive, acid or other types of products susceptible to damage the
tank or the blade.
The water distribution circuit is expected to be used only with water. The use of
another product, whatever it might be, can seriously damage the machine.

BE D
A
C
User manual - MIXER 70 202303-648-ENGP8
3. YOUR MACHINE (continued)
3.3. IDENTIFICATION OF THE COMPONENTS
ASafety grid
BFlip latch
CGeared electric motor
DLubricator
EControl panel (see next page)

1L1 L3 3 72 6
L2 L4
AU F4 85 9
G
202303-648-ENG User manual - MIXER 70 P9
3. YOUR MACHINE (continued)
3.3. IDENTIFICATION OF THE COMPONENTS (continued)

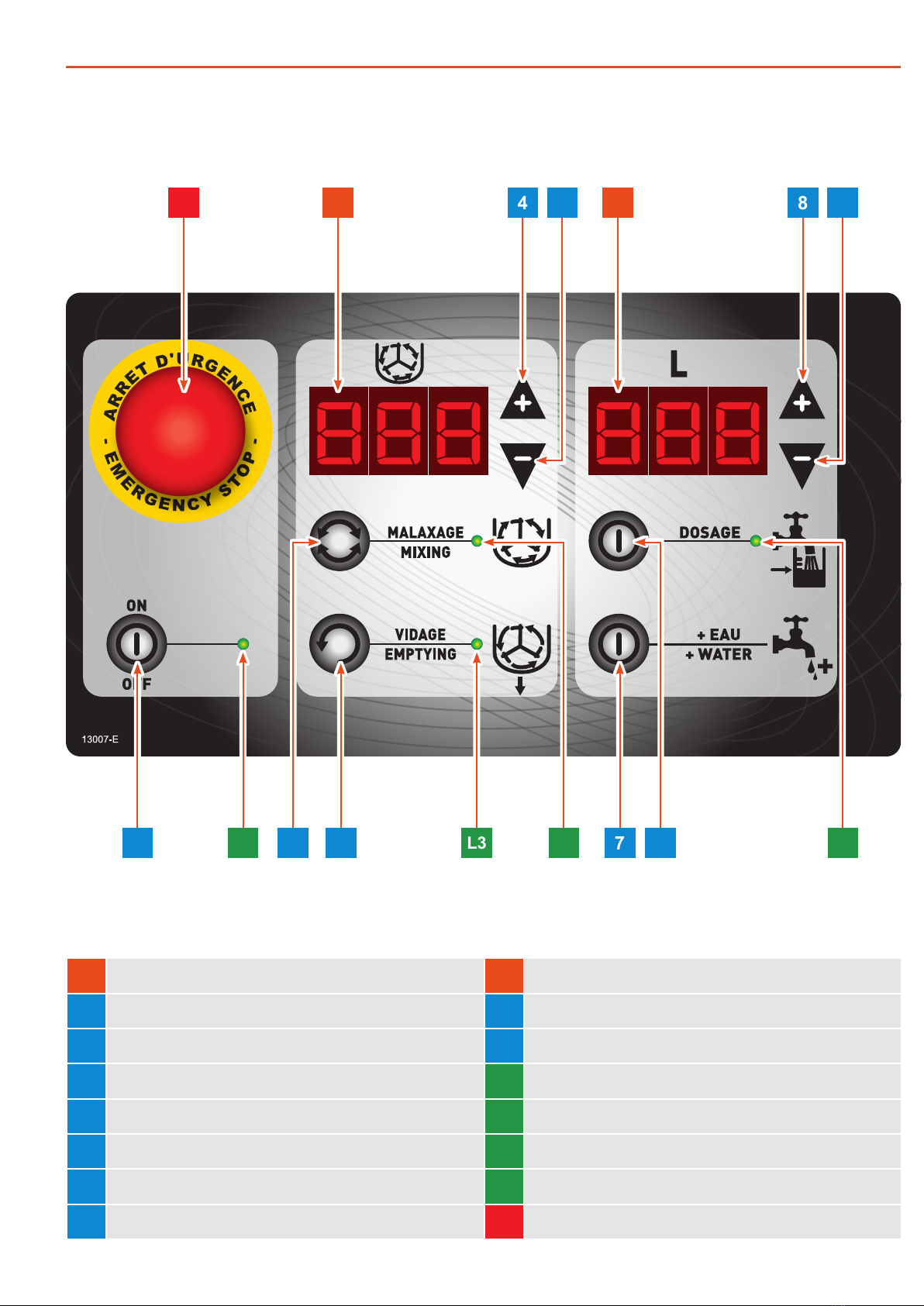

FMotor speed display in % GWater volume display in litres
1Start / Stop 8Increase of the preset water volume
2Start / Stop of the mixing 9Decrease of the preset water volume
3Start / Stop of the tank emptying L1 Power on light
4Increase the motor speed L2 Mixing process light
5Decrease the motor speed L3 Tank emptying process light
6Start / Stop of the water dosage L4 Water dosage process light
7Ajout d’eau par impulsion AU Emergency stop

User manual - MIXER 70 202303-648-ENGP10
4. USE OF THE MACHINE
4.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m
maximum, completely unreeled.
• The mixer is equipped with a security grid (A). If the grid is open, the display (F) shows SEC and the
mixer will not start. Close the grid to activate the mixer.
START / STOP
• Once the machine has been connected, the machine is in the stop mode, the display (F) shows
OFF.
• One push of the ON/OFF button (1), the display (F) shows the set value of the speed in %, the
warning light (L1) lights up, the machine is ready.
• When the machine is working (warning light (L1) is on), one push of the button ON/OFF (1) will
switch the machine o󰀨. The display (F) will show OFF and the warning light (L1) will switch o󰀨.
MIXING
• One push of the button MIXING (2) will provoke the start-up of the mixing (alternate rotation) and
the warning light (L2) lights up.
• The button (4) and (5) allow you to increase or to reduce the speed of rotation.
WATER DOSAGE
• Set the wanted water quantity with the buttons (8) and (9). The display (G) will show the set value
in liters. Once you have set the water quantity, the display (G) will once again show the last injected
water quantity
• One push of the button DOSAGE (6) starts the dosing of the water, the warning light (L4) lights up
during the duration of the dosing and the display (G) increments the injected water quantity. Once
the set amount has been reached, the water dosage stops automatically and the warning light (L4)
switches o󰀨.
• During the automatic cycle, one push of the button DOSAGE will pause the dosing. Another push
will re-start the cycle.
• One push of the button +WATER provokes a water ow as long as the button is kept pressed. The
display (G) will add the water quantity to the one previously shown. This function is only possible
outside of the automatic water dosing seen above.
In case of a dysfunction of the machine, one 3 second push on the ON/OFF (1) will
allow you to verify that the power supply is over 210 V.

202303-648-ENG User manual - MIXER 70 P11
4. USE OF THE MACHINE (continued)
4.2. STARTING UP
1. Once the machine is plugged in, the display (F) showsAU (emergency stop). Turn the red button (AU)
to deactivate it.
2. The display (F) shows OFF, push the button ON/OFF (1) to switch on the machine.
3. The display (F) corresponds to the mixing speed from 0 to 100%, the display (G) shows the water
dosage in litres.
4. Verify on the bag of the product to be mixed the water quantity and the necessary mixing time.
5. Using the arrows +/- (8) and (9), set the water quantity to the inferior value given by the product
manufacturer.
6. Press the button DOSAGE (6). The water starts to run into the tank.
7. Using the arrows +/- (4) and (5), set the mixing speed to 80% and activate the mixing by pressing on
the button MIXING (2).
8. Oncethe desiredwaterquantity isinthe tank(after the automaticstoppage ofthewater dosing),break
the bag of powder and empty it.
9. Mix the product for the time indicated by the product manufacturer.
10. If the product is too dry, use the +WATER button to add some water. The display (G) increments the
value of the injected water quantity.
11. If you had to add some water, correct the initially set quantity with help of the arrows +/- (8) and (9).
12. Unlock the latch (B) and tip over the mixer. Whilst tipping, the security grid opens itself and stops the
mixing.
13. Once the product has been emptied, tip the mixer back into its original position.
14. Press the button DOSAGE (6) to once again pour water into the tank, then press the button MIXING (2).
15. Once the automatic water dosing has stopped, break the bag of powder and empty it.
16. Mix the product for the amount of time indicated by the product manufacturer.
17. Repeat from step 12 as frequently as necessary.
4.3. ERROR CODES
The di󰀨erent error codes show up on the display (F).
CODES DEFINITION TO DO
No display. Plug the machine into the power supply, assure the power supply is
230 V, verify the fuse in the electric box.
Emergency stop is
on. Unlock the emergency stop button (AU).
Machine is in the
stop mode. Switch the machine on by pressing on the button (1).
Default control
engine. Set the machine to OFF for one minute and then switch it back on.
Default security
sensor. Verify that the security grid is closed.
If the problem persists or if in doubt on the good running of the machine, do not try
to repair it by yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline : [phone].

User manual - MIXER 70 202303-648-ENGP12
5. MAINTENANCE
5.1. CLEANING PROCEDURE
After every utilization of the machine :
Clean the tank with help of a water jet or high pressure washer, then tip it over to empty it.
For an optimal cleaning of the mixing blades, think of turning them during the procedure.
Also clean the security grid (A).
Once the operation is nished, close the security grid.
5.2. SERVICING
Once a week, lubricate the lubricator (D) with help of a grease pump (ref. 12566) as well as the engine
lubricator.
The direct projection of water under pressure onto the control panel has to be
stopped at the risk of water inltration into the electric box. Proceed by simply
cleaning with a humid sponge.

202303-648-ENG User manual - MIXER 70 P13
6. DECLARATION OF CONFORMITY
THE MANUFACTURER : MIXER TECHNOLOGY SRL
Via dei Carabinieri, 44/45
36040 Torri di Quartesolo, (VI) ITALIA
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW:
Trademark : MIXER
Type : Mixer
Model : MIXER 70
COMPLIES WITH THE DIRECTIVES:
• Machines 2006/42/CE
• Low voltage 2014/35/UE
• CEM 2014/30/UE
• ROHS 2011/65/UE
• Noise emissions 2005/88/CE
ROUSSET, JANUARY 20th 2023
Patrick BOREL
President
MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA
Tel. [phone] - Fax [phone] - P.I. 03725830248

User manual - MIXER 70 202303-648-ENGP14
7. WARRANTY CONDITIONS
Each equipment is delivered inspected and tested.
We exclude any warranty for visible defects, not notied by the customer within 48 hours.
The equipment sold is guaranteed during the manufacturer’s warranty from the date of purchase, as
specied on the original proof of purchase, and under the conditions dened by the manufacturer.
This warranty covers any equipment against any manufacturing or material defect, under normal
conditions of use. Insofar as the customer is presumed to be a professional of the same eld of specialty,
this warranty covers only the defect of conception of the equipment rendering it unt for its use, which
could not be detected by a professional buyer.
The defects or deteriorations caused by natural wear, external accident or a modication, use, storage
or treatment of the equipment not planned by the manufacturer, nor specied by ourselves, are excluded
from any warranty.
Are expressly excluded from the warranty the defects resulting from an improper use, the application of
abrasive or corrosive products, an inappropriate installation, the negligence, an insu󰀩cient maintenance
or cleaning, inappropriate conditions of storage, chemical, electronical or electric inuences, any change
in the normal process of use.
The following wearing parts are not covered by the warranty (non-exhaustive list): rotors, stators, driving
shafts, connecting rods, seals, cleaning balls, spray guns, lance, nozzle, hose, needle kits, cylinders,
piston rods, prime/spray valve assy, seal kits, membranes, suction and delivery valves, carding machine
vanes, lters, oils, chains and quick-release clip.
The warranty also excludes the equipment on which the serial number was erased or made illegible, on
which unauthorized people made attempts of repair, which were totally or partially dismantled.
The manufacturer’s warranty shall always be subject to the presentation of the purchase invoice.
If the defective equipment is covered by the manufacturer’s warranty, it shall be repaired or replaced at
our discretion free of charge.
If the defective equipment is not covered by the manufacturer’s warranty, we shall issue a quote for the
repair that we shall submit to the customer for approval.
Except as otherwise required by law, this manufacturer’s warranty is exclusive of all other warranties,
including the statutory warranty of hidden defects.
In case of intervention of our services on a breakdown caused by the customer or an incident excluded
in the conditions referred to above, the costs of repair and transport shall be invoiced to the customer.
We exclude all liability for indirect damages su󰀨ered by the customer, such as, but not limited to, loss
of income, turnover, loss of prots, loss of image, of any kind whatever.
Our equipment are covered by a manufacturer’s warranty (parts and labor) of 12 months
following the purchase date by the nal customer, without exceeding 24 months from the
date of purchase by the client.
This manufacturer’s warranty shall automatically cease if the customer does not resell the
equipment within 24 months of its purchase. The cases of exclusion of warranty mentioned
in articles above are also applicable to our own equipment.

202303-648-ENG User manual - MIXER 70 P15
7. WARRANTY CONDITIONS (continued)
In all cases, our liability shall be limited to the amount paid by the customer for non-compliant equipment.
Any legal action of the customer against us relating to the warranty of the equipment shall be barred
1 year after the date of discovery of the defect. The customer shall have to prove the date of this
discovery.
Request for Warranty
For any request related to the repair of an equipment covered by the manufacturer’s warranty, the
customer shall have to ll the warranty form, available on our website, under After-Sale Service.
For a full dossier, the following documents shall have to be attached:
• the purchase invoice of the nal user
• pictures of the defective parts of the equipment
• a description of the breakdown
• the quote of labor if the customer is certied by EUROMAIR for repairing the equipment
No invoice of labor shall be taken into account without our prior approval.
Analysis of the breakdown by our technical department
A le number shall be given to the customer and an answer shall be provided within 48 working hours
after reception, provided that the request for warranty is considered as full.
In the event the equipment is covered by the manufacturer’s warranty, we shall conrm the warranty to
the customer and send him a quote (without price) detailing the parts to be changed and any comments.
Return of replacement parts
Replacement parts must be ordered with a warranty agreement number and will be made available to
the customer at our factory.
The conditions of return of the equipment are detailed in our Delivery terms.
In the case of a warranty claim on an on-board component such as a Kohler, Honda or Vanguard
engine in a machine manufactured by us, only the manufacturer of the component is able to validate
the warranty coverage.
In this case, the request must be addressed directly to the manufacturer of the component or to its
nearest authorised representative. The Euromair, Euromair MPC or Mixer service centres may be
considered as the manufacturer’s representatives if they are the closest. As this principle also applies
to batteries, our supplier Parts Holding Europe, or one of its sister companies, remains your contact for
your requests (https://www.partsholdingeurope.com/).

MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA
Tel. [phone] - Fax [phone] - P.I. 03725830248
User manual - MIXER 70 202303-648-ENGP16
More information on www.mixersrl.com
