MLis MLB-E4203-28-F User manual

MLB-E4203-28-F,
MLB-E4204-28-G-F
28-Ports L2 Managed
(Gigabit) Switch
USER MANNUAL

2
Managed Switch series
MLB-E4203-28-F / MLB-E4204-28-G-F
Managed Industrial Ethernet Switch
User Manual
Part Number:
Issue: 01, May 2015

CONTENTS
i
[CONTENTS]
Preface................................................................................................................................................3
Scope................................................................................................................................................. 3
Audience............................................................................................................................................ 3
Safety Instructions.............................................................................................................................. 3
Documentation Conventions.............................................................................................................. 3
Overview.............................................................................................................................................7
Package Checklist.............................................................................................................................. 7
Safety Instructions.............................................................................................................................. 7
Model Layouts.................................................................................................................................... 8
Dimensions ...................................................................................................................................... 10
Technical Specifications....................................................................................................................11
Quick Installation.............................................................................................................................13
Mounting the RACK-MOUNT SWITCH ........................................................................................... 13
Ground Connecting.......................................................................................................................... 14
Alarm Relay Connecting.................................................................................................................. 15
Power Connecting............................................................................................................................ 15
Ethernet Interface Connecting (RJ45 Ethernet) .............................................................................. 15
Connecting the Ethernet Interface (Fiber)....................................................................................... 16
Console Connection......................................................................................................................... 17
Connect & Login to MLB-E4203-28-F / MLB-E4204-28-G-F .......................................................... 17
CLI Initialization & Configuration (Optional)..................................................................................... 18
SYSTEM RESET ............................................................................................................................. 18
LED STATUS INDICATIONS ........................................................................................................... 19
Web Interface Initialization (Optional).............................................................................................. 20
VLAN Application Guide.................................................................................................................22
Example 1: Default VLAN Settings.................................................................................................. 22
Example 2: Port-based VLANs........................................................................................................ 23
Example 3: IEEE 802.1Q Tagging................................................................................................... 26
Security Application Guide.............................................................................................................29
Case 1: ACL for MAC address......................................................................................................... 29
Case 2: ACL for IP address.............................................................................................................. 45
Case 3:ACL for L4 Port................................................................................................................... 45
Case 4: ACL for ToS......................................................................................................................... 45
Ring Version 2 Application Guide .................................................................................................46
Ring Version 2 Feature.................................................................................................................... 47
Configuration (Web Interface).......................................................................................................... 50
QoS Application Guide ...................................................................................................................56
SP/SPWRR/WRR............................................................................................................................ 56
Example 1: SPQ without Shaping (Default profile).......................................................................... 57
Example 2: SPQ with Shaping......................................................................................................... 59
Example 3: WRR.............................................................................................................................. 61
Example 4 SP-WRR ........................................................................................................................ 65
Link Fail Alarm Application Guide.................................................................................................73
Introduction ofAlarm function.......................................................................................................... 73
Link Fail Alarm in RACK-MOUNT SWITCH..................................................................................... 73
802.1x Authentication Application Guide.....................................................................................78
Introduction of 802.1x authentication function................................................................................. 78
802.1x Timer in RACK-MOUNT SWITCH........................................................................................ 78
Configuration in RADIUS Server ..................................................................................................... 78
Example ........................................................................................................................................... 79

CONTENTS
ii

1
Preface
Scope
Audience
Safety Instructions
Documentation Conventions

2

Preface
3
Preface
Scope
This document provides an overview on RACK-MOUNT SWITCH. It contains:
Descriptive material about the RACK-MOUNT SWITCH Quick Installation Guide.
Descriptive material about the RACK-MOUNT SWITCHApplication Guide.
Audience
The guide is intended for system engineers or operating personnel who want to have a basic
understanding of RACK-MOUNT SWITCH.
Safety Instructions
When a connector is removed during installation, testing, or servicing, or when an energized fiber is
broken, a risk of ocular exposure to optical energy that may be potentially hazardous occurs, depending
on the laser output power.
The primary hazards of exposure to laser radiation from an optical-fiber communication system are:
Damage to the eye by accidental exposure to a beam emitted by a laser source.
Damage to the eye from viewing a connector attached to a broken fiber or an energized fiber.
Documentation Conventions
The following conventions are used in this manual to emphasize information that will be of interest to the
reader.
Danger —The described activity or situation might or will cause personal injury.
Warning —The described activity or situation might or will cause equipment damage.
Caution —The described activity or situation might or will cause service interruption.
Note —The information supplements the text or highlights important points.

Preface
4

5
Overview
Overview
Panel Introduction
Technical Specifications

6

Quick Installation
7
Overview
This document provides quick installation on MLB-E4204-28-G-F.
Package Checklist
Please verify that the box contains the following items:
Item
Quantity
Rack-mount Ethernet switch
1
Rack-mount bracket
2
Screws (for bracket)
6
DC power terminal block (4-pin) –option for DC models
1
ALM terminal block (2-pin)
1
Quick Installation Guide
1
RJ45 Ethernet port Dust Cover
14
SFP Ethernet port Dust cover
2
Safety Instructions
When a connector is removed during installation, testing, or servicing, or when an energized fiber is
broken, a risk of ocular exposure to optical energy that may be potentially hazardous occurs,
depending on the laser output power.
The primary hazards of exposure to laser radiation from an optical-fiber communication system are:
Damage to the eye by accidental exposure to a beam emitted by a laser source.
Damage to the eye from viewing a connector attached to a broken fiber or an energized fiber.

Quick Installation
8

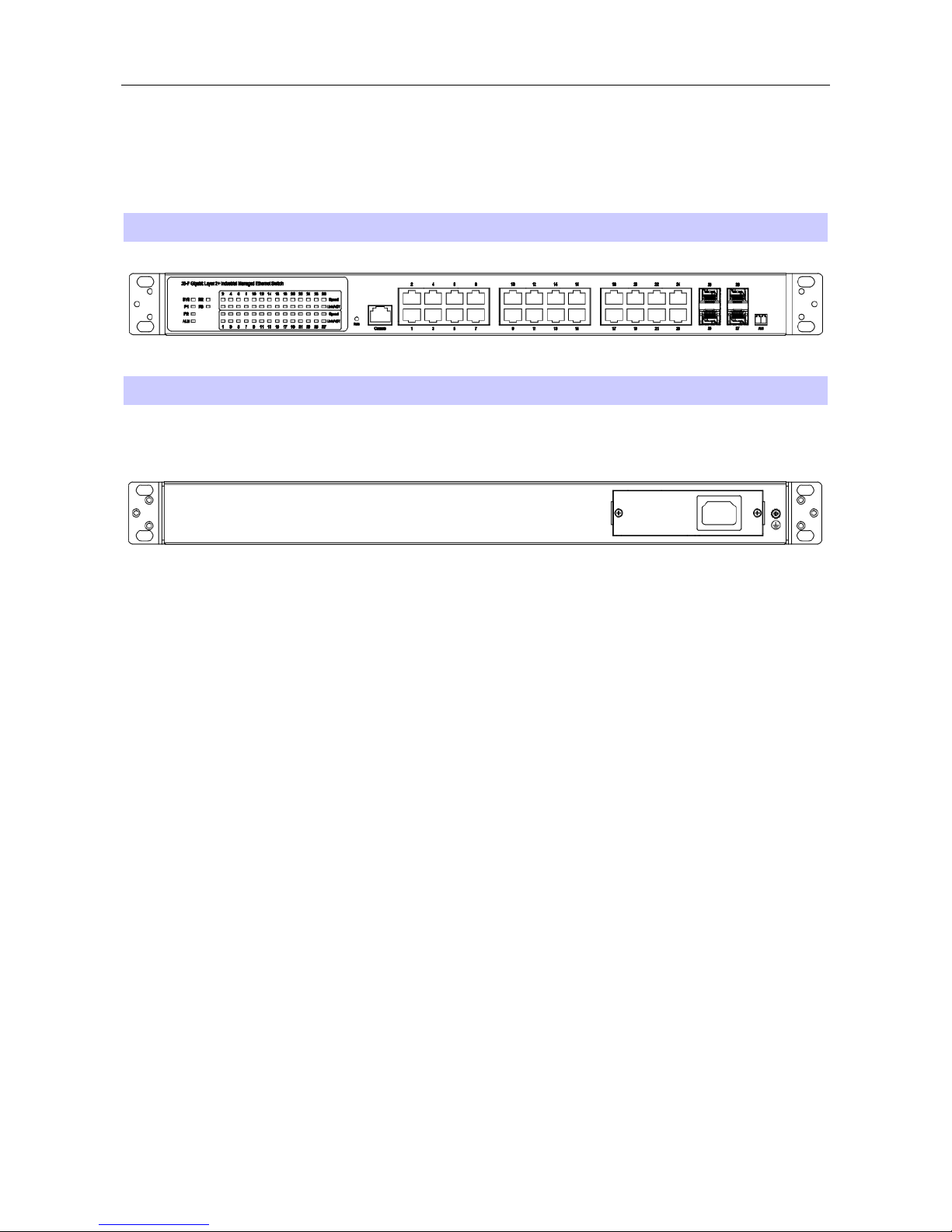

Model Layouts
Front Access Models
Front View
All Front Access models
Rear View
MLB-E4204-28-G-F

Quick Installation
9
Front view
Rear view

System Status Indicators (LED)

Port Status Indicators (LED)

Gigabit Copper RJ45 ports

100/1000BaseSFP slot (Port 25 & 26)
1000BaseSFP slot (Port 27 & 28)

Terminal block for Alarm Relay output

Grounding screw

DC terminal block (dual input)

AC supply socket

Console port

Reset Button











Quick Installation
10

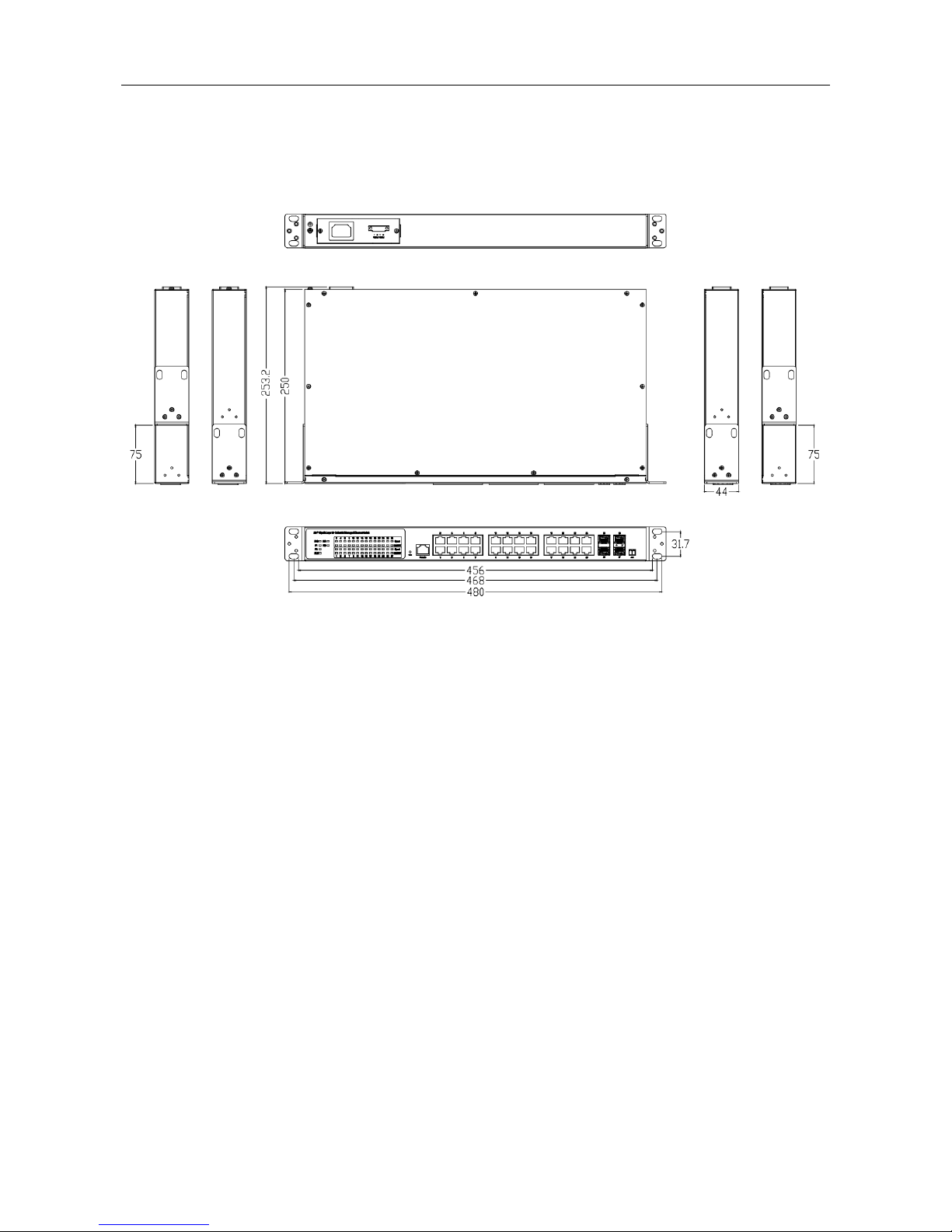

Dimensions
(unit = mm)

Quick Installation
11
Technical Specifications
Ethernet Interface
Ethernet Interface
24 Gigabit Copper ports plus 4 100FX / 1000BaseF
(SX/LX/LH/ZX/EZX)
Operating mode
Store and forward, L2 wire-speed/non-blocking switching engine
Copper RJ45 Ports
Speed
10/100/1000 Mbps
MDI/MDIX Auto-crossover
Support straight or cross wired cables
Auto-negotiating
10/100/1000 Mbps speed auto-negotiation; Full and half duplex
SFP (pluggable) Ports
Port types supported
Gigabit fiber multimode, fiber single mode, fiber long-haul
single mode 100/1000BaseF (SX/LX/LH/ZX/EZX)
Fiber port connector
LC typically for fiber (depends on module)
Power
Power input options
DC Redundant Input Terminals & Reverse power protection
Single/dual AC inputs
DC & AC dual inputs
Input voltage range
AC: 100/240 VAC, 50Hz ~ 60Hz
Power Consumption
24 W (Max.)
Environmental and Compliances
Operating temperature range
0 to 60°C or -40 to +75°C (cold startup at -40°C)
Storage temperature range
-40 to +85 °C
Humidity (non-condensing)
5 to 95% RH
Vibration, shock & freefall
Vibration: IEC60068-2-6; Shock: IEC60068-2-27; Free Fall:
IEC60068-2-32
Certification compliance
CE/FCC
RoHS and WEEE
RoHS (Pb free) and WEEE compliant
MTBF
> 25 years
Mechanical
Ingress protection
IP30
Dimensions
440 (W) x 44 (H) x 253 (D) mm
Weight
3.2 kg (Max.)
Installation option
19’’/23’’ rack mounting

Quick Installation
12
Quick Installation
Equipment Mounting
Cable Connecting
Equipment Configuration

Quick Installation
13
Quick Installation
Mounting the RACK-MOUNT SWITCH
When mounting the switch, practice good safety habits. Relay rack mounting normally requires at
least two people.
1. Obtain the tools required for the mounting hardware.
2. Attach the mounting brackets to the switch by using the screws in the accessory kit.
3. From the front of the relay rack, position the switch in its relay rack mounting location.
4. Secure the switch in its relay location on both left and right side of mounting bracket.
Position 1
Position 2

Quick Installation
14
Mounting Bracket Position 1 for Standard Mount
Mounting Bracket Position 2 for Standard Mount
Ground Connecting
MLB-E4204-28-G-F must be properly grounded for optimum system performance.

Quick Installation
15
Alarm Relay Connecting
The alarm relay output contacts with current carrying capacity of 30VDC, 1Aare a 2P terminal block.
The alarm relay contact is “Normal Open”, and it will be closed when detected any power failures.
Power Connecting
DC Power Connection
The switch can be powered from two power supply (input range 12V –58V). The DC power
connector is a 4Pterminal block; insert the positive and negative wires into V+ and V- contact on the
terminal block and tighten the wire-clamp screws to prevent the wires from being loosened.
After completing chassis installation, please apply power to the fused power distribution panel
feeding the chassis.
Note
The DC power should be connected to a well-fused power supply.
AC Power Connection
If you use AC power, connect the AC power cord to the AC supply socket on the rear panel, and
plug the cord into the external power source. The voltage must be 100 to 240 V (±10% tolerance).
Warning:
Ensure that all power sources to the chassis (power distribution panel) are turned off
during the connection.
Ethernet Interface Connecting (RJ45 Ethernet)
MLB-E4204-28-G-F provides two types of electrical (RJ45) and optical (mini-GBIC) interfaces.
Connecting the Ethernet interface via RJ45:
To connect to a PC, use a straight-through or a cross-over Ethernet cable,
To connect the switch to an Ethernet device, use UTP (Unshielded Twisted Pair) or STP
(Shielded Twisted Pair) Ethernet cables.

Quick Installation
16
Connecting the Ethernet Interface (Fiber)
For a 1000 Mbps fiber port available, please use the mini-GBIC SFP. These accept plug in fiber
transceivers that typically have an LC style connector.
For a 100 Mbps fiber port available, please prepare the LC connectors or SC connectors (with the
use of an optional SC-to-LC adapter).
They are available with multimode, single mode, long-haul or special-application transceivers.
Prepare a proper SFP module and install it into the optical port. Then you can connect fiber optics
cabling that uses LC connectors or SC connectors (with the use of an optional SC-to-LC adapter) to the
fiber optics connector.
Fiber optics cable with LC duplex
connector
Connect the optical fiber to the SFP
socket
DANGER:
Never attempt to view optical connectors that might be emitting laser energy.
Do not power up the laser product without connecting the laser to the optical fiber and
putting the cover in position, as laser outputs will emit infrared laser light at this point.
