Installation and Operating
BU 190(t) S 48
Movement for DCF / MSF time code
Please read this instructions carefully before installation.

© MOBATIME 2 / 8 800604.01
Content
1. Dimensions, Definitions ..............................................................................................................3
2. Function description ...................................................................................................................4
3. Mounting guidelines....................................................................................................................4
3.1 Mounting of movement series BU 190(t) S .............................................................................4
3.2 Mounting of hands and Starting-up.........................................................................................4
3.2.1 Mounting of hands ............................................................................................................................4
3.2.2 Starting-up and check of the hand position ......................................................................................5
4. Setting up / Connections.............................................................................................................5
4.1 Synchronization with DCF or MSF time code..........................................................................5
4.2 Connection / cascading ..........................................................................................................6
5. Technical specification ...............................................................................................................7
References to the User’s Manual
1. The information in this User’s Manual can be changed at any time without previous notice.
The current version is available for download on www.mobatime.com – Downloads.
2. This User’s Manual has been composed with utmost care, in order to explain all details in respect of the
operation of the product. Should you, nevertheless, have questions or discover errors in this Manual,
please contact us.
3. We do not answer for direct or indirect damages, which could occur, when using this Manual.
4. Please read the instructions carefully and start the setting-up of the product, only once you have correct-
ly understood all information for the installation and of the operation.
5. The installation must only be carried out by skilled staff.
6. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or an-
other, even part of it. The copyright remains with all the rights with MOSER-BAER AG, CH-3454 Sum-
iswald / Switzerland.

© MOBATIME 3 / 8 800604.01

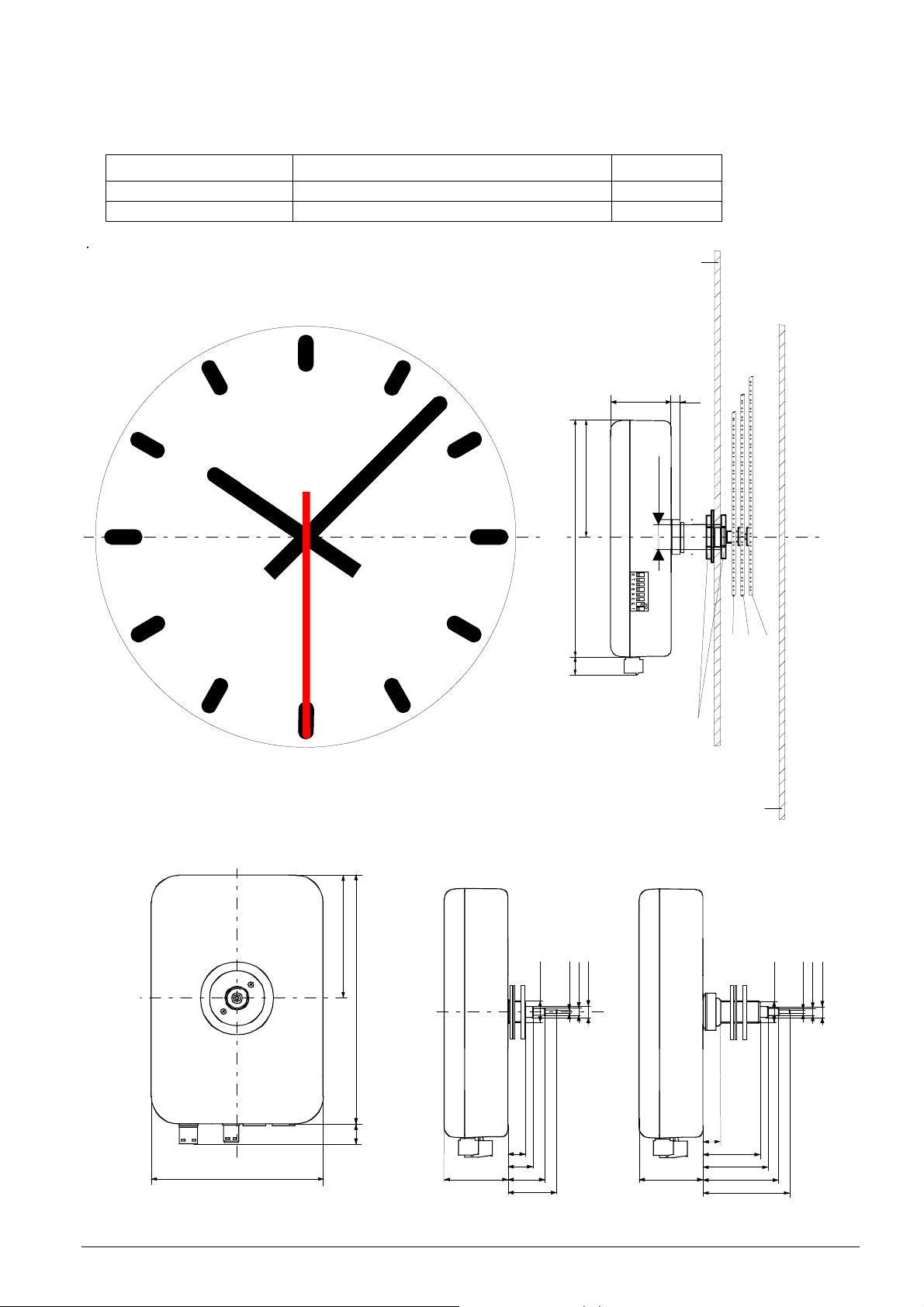

1. Dimensions, Definitions
Diameter Type Art.-No.
30 - 80 cm Movement: BU 190 S 48 200842
30 - 80 cm Movement: BU 190t S 48 200843
Second hand
Minute hand
Hour hand
Ø 12.3
BU 190t S 230
Cover glas
35 5
10 136.5
67.5
Disc nuts
Clock dial
Fig. 1
Fig. 2
11 136.5
67.5
94 35
9.4
13.7
20.2
26.6
M12x1
2
6 4
35
M12x1
2
6 4
9
32
36.5
42.4
48.6
BU 190 S 48 BU 190t S 48

© MOBATIME 4 / 8 800604.01
2. Function description
Self-setting movement with hour, minute and second display. For autonomous self-setting clocks for
indoor or outdoor use with dial diameters up to 80 cm, with or without illumination.
Connection compatible to SFA 130 / 140.
DCF-77 or MSF-60 radio control with automatic time take-over and daylight saving time
change-over by means of a connected radio time signal receiver.
Central-European time zones CET-1, CET and CET+1 selectable by DIP-switch.
Signalization of missing DCF/MSF time code reception after a period of one week by setting
the hands to 12 o'clock position.
Internal battery-less power reserve for at least 5 minutes operation (not for second hand).
Internal quartz clock for precise time display even without DCF/MSF radio reception.
Immediate resetting to the correct time after mains failure of up to 12 hours due to an internal
real-time-clock (battery-less powered).
Radio time signal output for the connection of a further movement. Up to 4 movements can be
connected to one radio receiver.
Different running modes of the second hand, selectable by means of a DIP-switch.
Possibility of connection of an MSF-60 radio receiver (Rugby) as well.
3. Mounting guidelines
3.1 Mounting of movement series BU 190(t) S
The dial must be sufficiently stable. The fixing hole must have a diame-
ter of 12.3 mm.
The movement must be fixed in vertical position.
Vide Fig. 3 for the position of mounting parts.
The disc nut (2*) M12 x 1 has to be tightened with a special wrench tool
(Art. No. 201998) and a torque wrench with a torque of 4.5 Nm +/- 0.2
Nm.
Attention:
The ring nut (5), the compensation ring (6) and the spring washer (7)
must not be removed.
After tightening of the disc nut (2*), the movement must not be
wrenched!
3.2 Mounting of hands and Starting-up
3.2.1 Mounting of hands
The shafts of the hour, minute and second hands are positioned ex-work on
the reference position (12 o’clock). The hands shall be carefully fixed and
tightened on the shafts. Enough space must be provided between the hands.
See Fig. 4.
The position 12 o’clock must be checked on each movement after the mount-
ing (Chap.3.2.2).

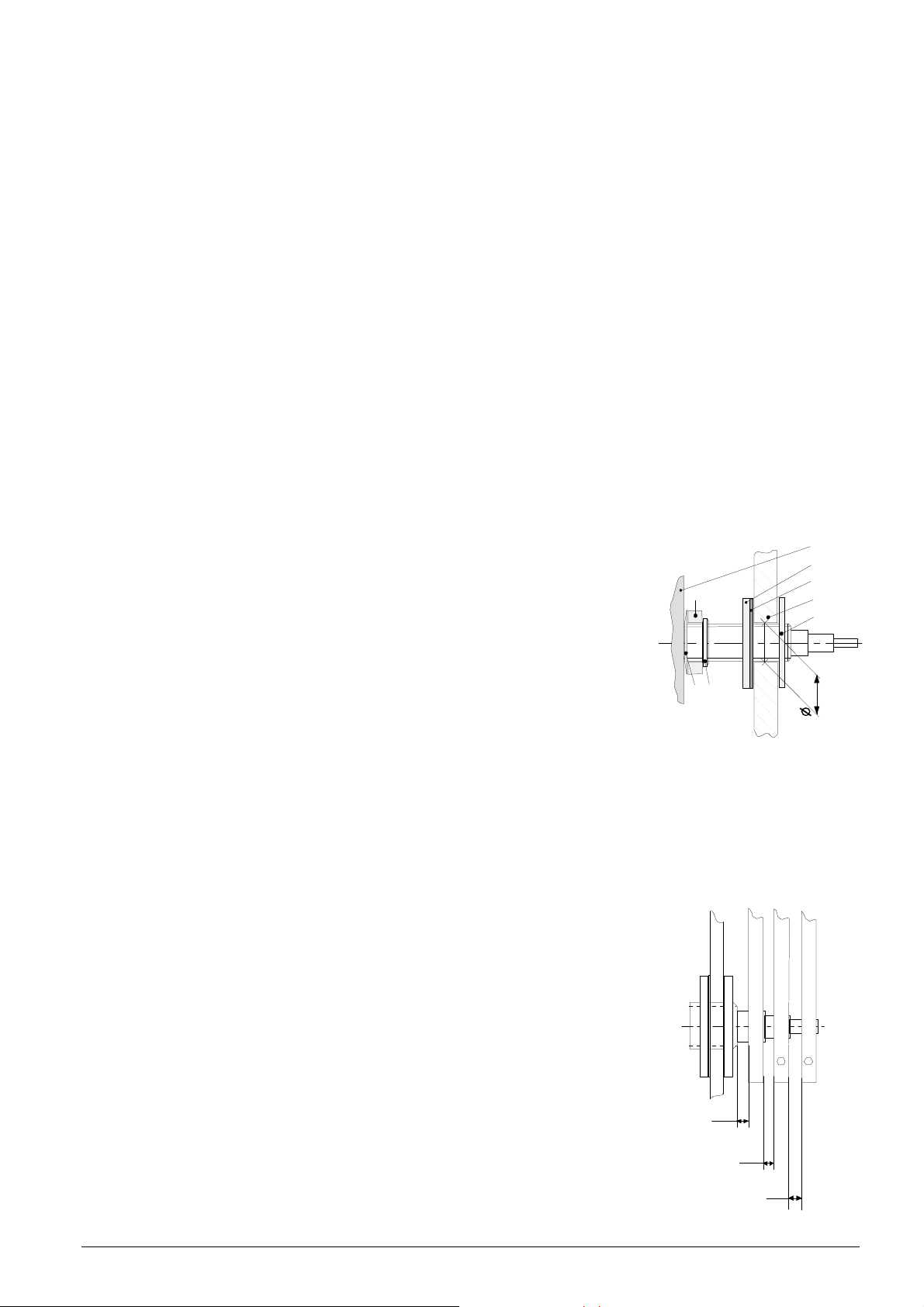

Fig. 3
1 Movement
2 Disc nut
3 Rubber washer
4 Dial
5 Ring nut
6 Compensation ring
7 Spring washer
Fig. 4
1
2
3
4
2*
190t
5
6
12.3
7
x
x
x

© MOBATIME 5 / 8 800604.01
3.2.2 Starting-up and check of the hand position
Set DIP switch 1to ON position (12:00 Position, Fig. 5)
Connect the 48V power supply to the "AC/DC 48V" plug (Fig. 6).
The clock runs to 12 o’clock position.
Position of hands OK?
If the hand position is wrong, carefully loosen the hand, adjust and tighten.
Reset DIP Switch 1to OFF position
Check the 12 o’clock position again (initialising by an interruption of the power supply).
If hand position OK, continue with chapter 4 for further setting-up.
On time
Step
With stop
DCF
MET
MET
reserved
reserved
12:00 Position
Continuos
Without stop
MSF
MET+1
MET-1
reserved
reserved
Hands:
Synchronization:
Second hand:
Time zone:
ON
1 2 3 4 5 6 7 8
4. Setting up / Connections
If the 12 o’clock position of the clock is OK, reset DIP Switch 1to OFF position (Fig. 5).
The movement can be synchronized with following time codes:
- DCF, MSF (see chapter 4.1)
DCF
+ / -
DCF out
DCF in 48 V
AC / DC
48V On time
Step
With stop
DCF
MET
MET
reserved
reserved
12:00 Position
Continuos
Without stop
MSF
MET+1
MET-1
reserved
reserved
Hands:
Synchronization:
Second hand:
Time zone:
ON
1 2 3 4 5 6 7 8
4.1 Synchronization with DCF or MSF time code
The Radio time signal receiver (DCF / MSF 450 (4500) must be connected to the terminals "DCF
in" and "48V GND" (see Fig. 6, 8, 9).
To ensure the reception quality, the designated pin of "AC / DC 48V" plug has to be connected with
earth potential (e.g. clock housing).
select time codes:
- For DCF set DIP-switch 4 to OFF position
- For MSF set DIP-switch 4 to ON position
Time: London local time (WET)
Select time zones:
Depending upon condition DCF can also be received in west Eu-
rope
(CET –1) (Greece, Portugal), or in east Europe (CET +1).
- for CET –1 set DIP-switch 6 to ON position
- for CET +1 set DIP-switch 5 to ON position

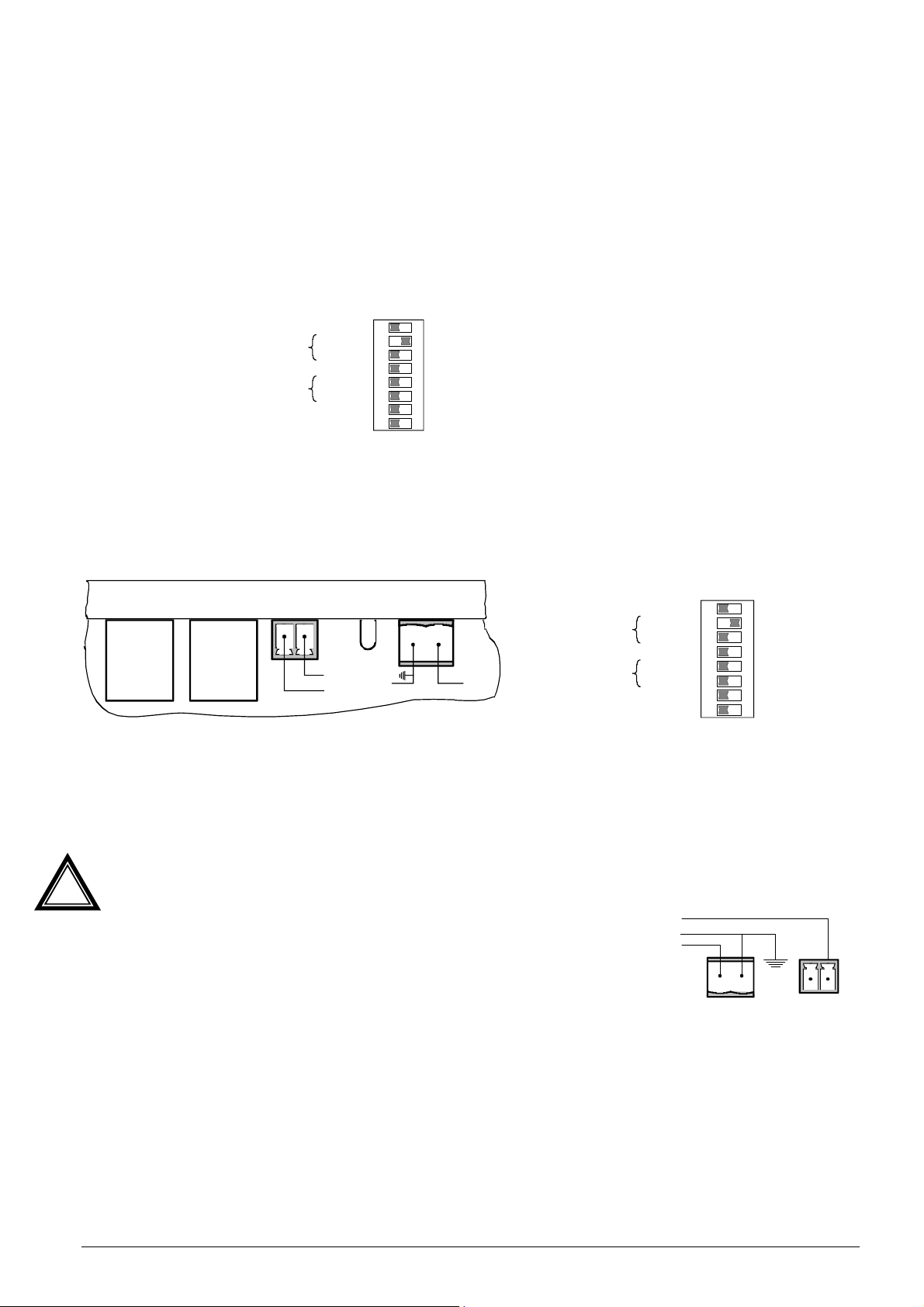

Fig. 5
Fig. 6 Fig. 7
!
DCF/MSF
DCF/MSF Receiver
48V
Fig. 8
To ensure the reception quality
the desig
nated pin of the "AC / DC
48V" plug has to be connected
with the earth potential (functional
earth, i.e. clock housing).

© MOBATIME 6 / 8 800604.01
Control of the reception quality:
The orientation of the radio time signal receiver should be chosen in a way, the LED of the receiver
flashes regularly (at good reception quality the LED in the receiver flashes regularly in second
rhythm), see also the instruction manual of the receiver.
When reception condition is OK, the movement starts after about 3 minutes and set itself automati-
cally on the exact time.
4.2 Connection / cascading
IF 487
LED
OFF ON
DCF
1 2 3 4 5 6 7 8
ON
M EZ - 1
MEZ +1
M SF
No ne s t op / o hne St o p
Cont. / Ko nt inuier lich
12. 00 P osi tion
15 -6 0 V; 50-6 0 H z; 25 mA
BU 190 S 48 A/N: 20 0 842.01
P/N: 05959667 015
DCF AC
48V
out
in 48V
0V
Option 2
Option 1
MEZ Time zone /Zeit zone
MEZ Time zon e / Zeitzo ne
DCF Antenna / Ant enn e
Stop Mod e Second hand /
Wobbling / S chritt Seku ndenzeig er
nor ma l Clock ha nds / Zeiger
1 2 3 4 5 6 7 8
ON
MEZ -1
M EZ +1
MSF
None stop / ohne Stop
Con t. / Kont inuier lich
12. 00 P osition
15 -60 V; 50-6 0 Hz; 25 mA
BU 190 S 48 A/N: 20 0 84 2.01
P/N: 05959667 015
DCF AC
48V
out
in 48V
0V
Option 2
Option 1
MEZ Ti me zone / Zeit zone
MEZ Time z one / Zeitzone
DCF Ante nna / Ant enne
StopMod e Second hand /
Wobbling /S ch ritt Sekundenzeiger
nor ma l Clock ha nds / Ze iger
40VAC 230VAC
TR48
BU 190(t) S 48
BU 190(t) S 48

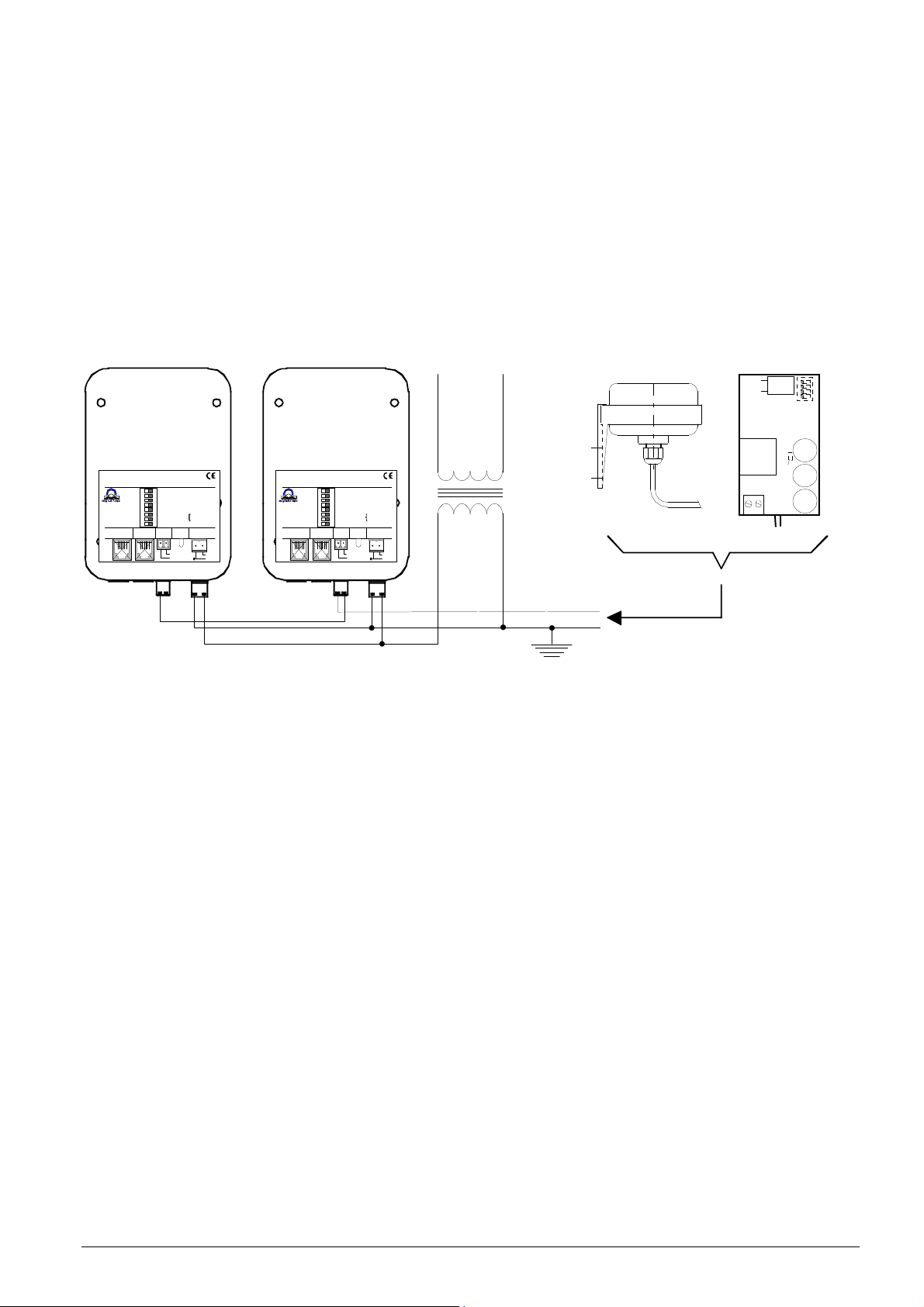

To connect the radio signal to a double sided clock (two movements), the time signal can be wired
from "DCF out" terminal of the master movement to the "DCF in" terminal of the slave movement
(Fig.9).
IRIG-B / AFNOR
DCF
-
FSK
DCF Radio
Receiver
Fig. 9
Attention:
Max. 2 movements per
transformer TR48.
To ensure the reception quality the desig
nated pin of the "AC
/ DC 48V" plug has to be connected with the earth potential
(functional earth, i.e. clock housing).

© MOBATIME 7 / 8 800604.01
5. Technical specification
BU 190 S 48
BU 190t S 48
Synchronisation DCF-77: with time signal receiver DCF 450, DCF 4500
MSF-60: with time signal receiver MSF 4500
Setting times:
Running time to reference pos.
Read in of time
Running time for new adjustment
Changes of daylight saving time
6 minutes maximum
serial: 3 – 5 seconds / radio signal: 3 – 5 minutes
10 seconds – 6 minutes
5.5 minutes maximum
Operation mode second shaft -Continuous
or
secondly pace shift (wobbling)
-1 revolution in 60 s or 1 revolution in 58 s with stop at
12.00 and start with the minute change
Operation mode minute shaft 1 step every 60 s
Operation mode hour shaft contimuous
Operation voltage 15 – 50 VAC (50 – 60Hz) / 20 – 60 VDC
Power consumption < 25 mA
Stand-by reserve at least 5 min. (hour / minute) / 0 min. (seconds)
Time keeping with internal quartz clock > 12 h
Number of motors 2 (hour / min. + sec.)
Dial diameter 25 – 80 cm
Max. dial thickness 4 mm 14.5 mm
Temperature range -30 ... +70°C
Weight 340 g 380 g
Standards EN 50121-4, EN 61000-6-3
Savety EN 60950-1, Protection class II
Technical data subject to change without notice
