Mobicool A-40 DC User manual

Absorber Cooler
Operating manual . . . . . . . . . . . . . . . 5
Absorber-Kühlbox
Bedienungsanleitung . . . . . . . . . . . 19
Glacière à absorption
Notice d’utilisation . . . . . . . . . . . . . . 35
Nevera con extractor
Instrucciones de uso. . . . . . . . . . . . 50
Frigorifero ad assorbimento
Istruzioni per l’uso . . . . . . . . . . . . . . 66
Absorptie-koelbox
Gebruiksaanwijzing. . . . . . . . . . . . . 81
Absorptionskøleboks
Betjeningsvejledning. . . . . . . . . . . . 96
Kylbox med
Bruksanvisning . . . . . . . . . . . . . . . 110
Absorbasjons-kjøleboks
Bruksanvisning . . . . . . . . . . . . . . . 124
Absorbtio-kylmälaatikko
Käyttöohje. . . . . . . . . . . . . . . . . . . 138
Geleira – elemento de absorção
Manual de instruções . . . . . . . . . . 153
Абсорбционный холодильник
Инструкция по эксплуатации . . . 168
Lodówka absorpcyjna
Instrukcja obsługi . . . . . . . . . . . . . 185
Absorpční chladicí box
Návod k obsluze . . . . . . . . . . . . . . 200
Absorpčný chladiaci box
Návod na obsluhu. . . . . . . . . . . . . 214
Abszorberes hűtőláda
Használati utasítás . . . . . . . . . . . . 229
EN
DE
FR
ES
IT
NL
DA
SV
NO
FI
PT
RU
PL
CS
SK
HU
A40
Pin code: 598 CO 439

A40
3
520
400
364
260
454
515
1
Temperature/Température
Low
faible
High
élevé
1
2
Off
Ignition
Allumage
Press
Appuyez
2

A40
4
1
3

EN
A40
5
Please read this operating manual carefully before starting the device. Keep
it in a safe place for future reference. If the device is passed on to another
person, this operating manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from
improper usage or incorrect operation.
Read manufacturer's instructions before use – this appliance shall be
installed according to the rules in force.
To be used only in a well-ventilated area, above ground and protected
from rain.
This appliance shall be installed according to the manufacturer's instructions.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Operating the cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

EN
Explanation of symbols A40
6
1 Explanation of symbols
D
!
!
A
I
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.

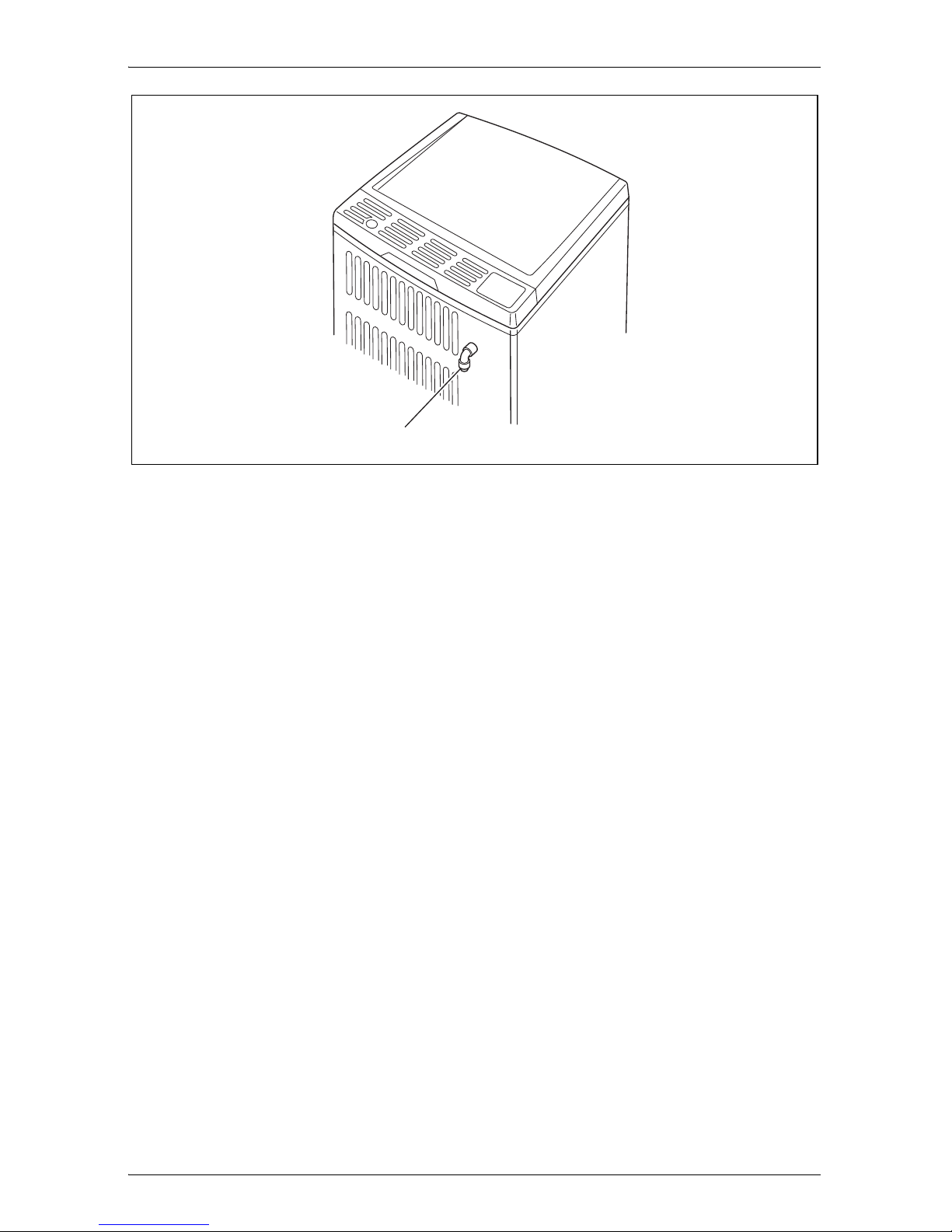

Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Safety instructions
2.1 General safety
DDANGER!
On boats: If the appliance is powered by the mains, ensure that
the power supply has a residual current circuit breaker.
DANGER!
Safety instruction: Failure to observe this instruction will cause
fatal or serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
A40 Safety instructions
7
!WARNING!
Do not operate the device if it is visibly damaged.
If this device's power cable is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
This device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
This device can be used by children aged 8 years or over, as
well as by persons with diminished physical, sensory or mental
capacities or a lack of experience and/or knowledge, providing
they are supervised or have been taught how to use the device
safely and are aware of the resulting risks.
Cleaning and user maintenance must not be carried out by
children without supervision.
Children must not play with the device.
Children must be supervised to ensure that they do not play with
the device.
Always keep and use the device out of the reach of children
under the age of 8 years.
Do not store any explosive substances such as spray cans with
a flammable propellant in the device.
!CAUTION!
Disconnect the device from the mains
– before each cleaning and maintenance
– after every use
Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
Check that the voltage specification on the type plate
corresponds to that of the energy supply.
Only connect the device as follows:
– With the DC cable to a DC plug socket in the vehicle (e. g.
cigarette lighter)
– Or with the 230 V connection cable to the 230 V AC mains
supply
Never pull the plug out of the socket by the cable.

EN
Safety instructions A40
8
If the cooler is connected to the DC socket: Disconnect the
cooler and other power consuming devices from the battery
before connecting the quick charging device.
If the cooler is connected to the DC socket: Disconnect the
cooler or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
The cooling device is not suitable for transporting caustic
materials or materials containing solvents.
2.2 Operating the device safely
DDANGER!
Do not touch exposed cables with your bare hands. This
especially applies when operating the device with an AC mains
power supply.
!CAUTION!
Before starting the device, ensure that the power supply line
and the plug are dry.
ANOTICE!
Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
Do not place the device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat that arises during operation does not build up. Make sure
that the device is sufficiently far away from walls and other
objects so that the air can circulate.
Ensure that the ventilation openings are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the device in water.
Protect the device and the cable against heat and moisture.
Ensure that the ventilation slots are not covered.
Keep to the following distances to the ventilation openings:
– a gap of at least 10 cm at the rear
– a gap of at least 5 cm on either side

EN
A40 Safety instructions
9
The appliance may be connected to more than one source of
energy.
2.3 Operating the device safely with 12 Vg
ANOTICE!
The cable between the battery and the cooler must be protected
by a fuse of max. 8 A.
Only use cables with the corresponding cable cross section
(see the table on page 13).
2.4 Operating the device safely with 220 V – 240 V
!WARNING!
Only use the connection cable supplied to connect the device
to the AC mains.
Never pull the plug out of the socket by the cable.
If the cable is damaged, it must be replaced by a cable with
the same technical specifications to prevent possible electrical
hazards.
Before starting the device, ensure that the power supply line
and the plug are dry.
Check that the voltage specification on the type plate corre-
sponds to that of the energy supply.
2.5 Operating the device safely with gas
!WARNING!
Only operate the device with gas outdoors.
Do not use gas to operate the device in cars, boats or enclosed
spaces.
When using the device in tents, awnings and on level patios,
ensure that there is sufficient air circulation and ventilation.
Never place the device near flammable materials (paper, dry
leaves, textiles).
Compare the pressure information on the type plate with the
pressure information on the propane or butane gas cylinder.

EN
Scope of delivery A40
10
Never store liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
Keep liquid gas cylinders away from direct sunlight.
The temperature must not exceed 50 °C.
3 Scope of delivery
4 Intended use
The cooler is suitable for cooling and freezing foodstuffs. The device is also
suitable for camping.
The cooler has been designed for operation with a 12 gvoltage source (e. g.
the cigarette lighter of a vehicle) or alternatively for operation with a mains
voltage of 220 – 240 Vw.
The cooler can be operated independently of a voltage supply with liquid gas
(propane or butane).
!
5 Technical description
The cooler is suitable for use when camping, on a patio, in the garden,
or anywhere where a 12 Vgpower connection (such as the cigarette lighter
in a vehicle) or a 220 V – 240 Vwmains voltage is available. You can also
operate the cooler with liquid gas.
You can cool goods to up to 20 °C below ambient temperature.
Quantity Description
1 Cooler
1 Tray with cover for making ice cubes
1 Instruction manual
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for
storing the food or medicine you wish to cool.

EN
A40 Operating the cooler
11
The device cools with a maintenance-free absorber circuit. Concentrated
ammoniac solution is heated in a boiler and then driven out in gaseous form.
The gas which is subjected to high pressure, is liquefied in a condenser and
then evaporated by adding hydrogen. This removes warmth in the cooling area.
6 Operating the cooler
!
I
6.1 Energy saving tips
Choose a well ventilated installation location which is protected against
direct sunlight.
Allow warm food to cool down first before placing it in the device to keep
cool.
Do not open the cooling device more often than necessary.
Do not leave the cooler unit open for longer than necessary.
Arrange the food in the cooler so that air can circulate inside.
6.2 Using the cooler
A
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
Before starting your new cooler for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 16).
NOTICE!
Ensure that the objects placed in the cooler are suitable for
cooling to the selected temperature.
Ensure that food or liquids in glass containers are not exces-
sively refrigerated. Liquids expand when they freeze and can
thus destroy the glass containers.

EN
Operating the cooler A40
12
I
➤Place the cooler on a firm and level base.
Check the horizontal position (±2°) with a spirit level if necessary.
➤Open the lid of the control panel (fig. 21, page 3) by pressing down on it.
Press down on the lid again to close it.
I
Connecting to 220 V – 240 Vw
!
➤Plug the earthed plug into a properly installed safety plug socket.
➤Set the thermostat control (fig. 22, page 3) to “HIGH”.
➤Wait until the temperature in the cooler has dropped.
➤Set the thermostat control (fig. 22, page 3) to the desired temperature
range.
➤To switch off the cooler, set the thermostat control (fig. 22, page 3) to
“0” and pull out the plug.
NOTE
Cool the cooler for about 24 hours before starting your journey
using gas or electricity from the mains. This way your cooler
will attain the required cooling capacity faster when you reach
your destination.
The cooling capacity can be influenced by:
– The ambient temperature
– The amount of food to be conserved
– The frequency with which the lid is opened.
NOTE
The further you turn the corresponding control towards “HIGH”,
the lower the refrigerating temperature.
WARNING!
Check that the voltage specification on the type plate corresponds
to that of the energy supply.

EN
A40 Operating the cooler
13
Connecting to 12 Vg
I
➤Make sure that the cable from the battery to the cooler is protected by
a fuse (max. 8 A).
➤Select a cable cross section for the cable between the battery and the
socket of the 12 V voltage supply in accordance with the following table:
➤Make sure that the thermostat control for 220 V – 240 V operation
(fig. 22, page 3) is in the “0” position.
➤Insert the plug of the connection cable into the 12 V socket
(e.g. cigarette lighter).
The polarity cannot be reversed.
➤To switch off the cooler, pull the plug out of the socket.
Connecting to a gas source
!
NOTE
You cannot set the temperature with the thermostat control
during battery operation. The device is simply switched on
and starts cooling.
Disconnect the cooler from the battery when the engine is not
running as otherwise the battery will be completely run down.
Cable length Cable cross section
Up to 2.5 m 2.5 mm²
2.5 m to 4.0 m 4.0 mm²
WARNING!
The operation of gas appliances whilst the vehicle is in motion
must be in accordance with national guidelines.
Only use propane or butane gas cylinders with an approved
pressure reduction valve and suitable top part.
Compare the pressure information on the type plate with the
pressure information on the propane or butane gas cylinder.
Never place the device near flammable materials (paper, dry
leaves, textiles).
Your connecting hose must be replaced in accordance with
national guidelines.
Only use approved hose lines (DIN 4815 part 2) with a maxi-
mum length of 1.5 m (in Finland 1.2 m).

EN
Operating the cooler A40
14
I
➤Position the gas cylinder vertically at a distance of at least 1 metre away
from the burner (on the back of the cooler).
➤Check if the valve on the gas cylinder is closed.
➤Connect the hose line to the head of the valve on the gas cylinder and the
cooler (fig. 31, page 4).
Use an open-ended spanner with the appropriate width for this.
➤Make sure that the hose line
– Is not crushed or kinked
– Is a safe distance from the burner.
➤Open the valve on the gas cylinder.
!
➤Check all connections with a leakage test spray.
There are no leaks if no bubbles form.
➤Ensure that
– The thermostat control for 220 V – 240 V operation (fig. 22, page 3)
is in the “0” position
– The battery plug is not connected.
➤Press in the rotary switch (fig. 22, page 3), turn it past the “ ” symbol
and hold it in for approx. 15 – 20 s to force out any air in the hose connec-
tion.
➤Turn the rotary switch towards “ ”, even if the flame is already burning.
✓You will hear a clicking noise: the Piezo ignition is trying to light the flame.
When the flame is burning, the cooler is ready for use.
➤If the flame does not ignite, repeat the procedure.
I
NOTE
The device is fitted with a pilot light. The gas supply is interrupted
when the flame goes out.
WARNING!
Never check for leaks with an open flame or near sources of igni-
tion.
NOTE
If it is not possible to light the gas with the Piezo lighter due to high
air humidity, you can light the gas burner with a match at the opening
in the back panel of the device when the rotary switch is pressed in.

EN
A40 Operating the cooler
15
➤Check that all hose lines and all connections are in a technically perfect
condition at regular intervals.
➤To switch off the cooler, first close the valve on the gas cylinder and then
turn the rotary switch (fig. 22, page 3) completely shut in a clockwise
direction.
Replacing the gas cylinder
!
➤Switch off the cooler by completely shutting the rotary switch (fig. 22,
page 3) by turning it clockwise.
➤Completely close the valve on the gas cylinder.
➤Unscrew the valve from the gas cylinder.
➤Check the condition of the hose line.
Replace the hose line if the material is brittle or porous.
➤Screw the pressure reduction valve tightly onto the new gas cylinder.
Defrosting the cooler
Humidity can form frost in the interior of the cooler. This reduces the cooling
capacity. Defrost the device in good time to avoid this.
A
To defrost the cooler, proceed as follows:
➤Take out the contents of the cooler.
➤Place them in another cooling device to keep them cool, if necessary.
➤Switch the cooler off.
➤Leave the cover open.
➤When everything has defrosted, empty the cooler and wipe it out.
WARNING!
Only change the gas cylinder in well ventilated areas.
Pay attention that when changing the gas container which
shall be carried out away from any source of ignition.
Only change the gas cylinder when the cooler is switched off.
NOTICE!
Never use hard or pointed tools to remove ice or to loosen objects
which have frozen in place.

EN
Cleaning and maintenance A40
16
Switching off and storing the cooler
If you do not intend to use the cooler for a long time, proceed as follows:
➤Switch the cooler off.
➤Disconnect the power supply or the hose line to the gas cylinder.
➤Clean the cooler (see chapter “Cleaning and maintenance” on page 16).
➤Leave the cover slightly open.
This prevents odours from building up.
7 Cleaning and maintenance
!
!
A
➤Occasionally clean the device interior and exterior with a damp cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any
dust and dirt, so that heat can be released and the device is not damaged.
8 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
WARNING!
Before cleaning the cooler disconnect the hose line.
WARNING!
Always disconnect the device from the mains before you clean
and service it.
NOTICE! Risk of damage
Never clean the cooler under running water or in dish water.
Do not use abrasive cleaning agents or hard objects during
cleaning as these can damage the cooler.

EN
A40 Troubleshooting
17
9 Troubleshooting
In the event of malfunction, please check the following:
Fault Possible cause Suggested remedy
The cooler does not
work.
The cooler is not prop-
erly connected to the
electricity supply.
Check if the voltage supply is in full work-
ing order.
Check if all electrical contacts are in full
working order.
Check if the voltage supply corresponds to
the value on the type plate.
Check if the thermostat control is
switched on.
Check if several energy sources are con-
nected at the same time.
The cooler is not prop-
erly connected to the
gas.
Check if the gas supply is in full
working order.
Check if the valve on the gas cylinder is
open.
Check if there is still gas in the cylinder.
Check if several energy sources are con-
nected at the same time.
Hold the rotary switch down longer
when igniting.
The cooler has not
been set up properly.
Check if the device is horizontal.
Check if the ventilation of the device
is sufficient.
The cooler has not
been filled properly.
Check if warm food has been put into
the device.
Check if the cooling space has been over-
filled or packed too densely.
The refrigerant circuit
is defective.
This can only be repaired by an authorised
customer services unit.
The cooler does not
start up after a long
period of inactivity.
– Disconnect the device from the energy
supply and turn the cooler upside down
and wait around five minutes.
Turn the cooler the right way up again
and switch it on again.

EN
Technical data A40
18
10 Technical data
A40
Capacity: 40 l
Gas consumption: 13 g/h 16 g/h
Category: I3+(28-30/37) I3B/P(30) I3B/P(50)
Gas type: Butane, propane Butane, propane
or their mixture
Butane, propane
or their mixture
Pressure: Propane:
28 – 30 mbar
Butane: 37 mbar
28 – 30 mbar 50 mbar
Destination country: BE, FR, IT, LU,
GB, PT, ES, CZ,
SK
LU, NL, DK, FI,
SE, CZ, SK, NO,
IT, HU
AT, DE, SK, CH,
LU
Connection to 220 V –
240 V:
Power consumption: 85 W
Connection to 12 V:
Power consumption: 90 W
Cooling temperature
range:
up to 20 °C below ambient temperature
Weight: approx. 19.5 kg
Testing/certification: Pin code
598 CO 439

DE
A40
19
Bitte lesen Sie diese Anleitung vor der Inbetriebnahme sorgfältig durch und
bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe des Gerätes
an den Nutzer weiter.
Der Hersteller haftet nicht für Schäden, die durch nicht bestimmungs-
gemäßen Gebrauch oder falsche Bedienung verursacht werden.
Lesen Sie die Anweisungen des Herstellers bevor Sie das Gerät verwenden.
Das Gerät muss nach den geltenden Regeln installiert werden.
Das Gerät darf nur in gut belüfteter Umgebung, oberhalb der Erdoberfläche
und gesschützt vor Niederschlägen verwendet werden.
Das Gerät muss entsprechend den Anweisungen des Herstellers installiert
werden.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6 Kühlbox bedienen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Reinigung und Pflege. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8 Entsorgung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9 Störungsbeseitigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DE
Erklärung der Symbole A40
20
1 Erklärung der Symbole
D
!
!
A
I
➤Handlung: Dieses Symbol zeigt Ihnen, dass Sie etwas tun müssen. Die
erforderlichen Handlungen werden Schritt für Schritt beschrieben.
✓Dieses Symbol beschreibt das Ergebnis einer Handlung.
Abb. 15, Seite 3: Diese Angabe weist Sie auf ein Element in einer Abbil-
dung hin, in diesem Beispiel auf „Position 5 in Abbildung 1 auf Seite 3“.
2 Sicherheitshinweise
2.1 Allgemeine Sicherheit
DGEFAHR!
Bei Booten: Sorgen Sie bei Netzbetrieb unbedingt dafür, dass
Ihre Stromversorgung über einen FI-Schalter abgesichert ist.
GEFAHR!
Sicherheitshinweis: Nichtbeachtung führt zu Tod oder schwerer
Verletzung.
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen
führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die
Funktion des Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
