ELECTRIC SCOOTER
USER MANUAL
ENGLISH | ITALIANO | ESPAÑOL | FRANÇAIS | DEUTSCH | POLISH | NEDERLANDS | PORTUGUÊS

USER MANUAL
ELECTRIC SCOOTER
ENGLISH

1. Package contents
2. Product overview
3. Assembly and set-up
4. Charging
5. AL e-mobility app set-up
6. How to ride the scooter
7. Brakes
8. Battery life
9. Storage and cleaning
10. Safety instructions
11. Battery
12. Responsibility
13. Folding, transport and opening
14. Daily maintenance and care
15. Technical specifications
16. Certifications and warnings
CONTENTS
01

With the scooter assembled, the handlebar is to be installed with the appropriate screws.
(6)
(4)
(1)
1. PACKAGE CONTENTS
03

Bell
control panel and power button
Brake lever
Closing hook
Rod
Quick release lever
Front fork
Drive wheel
Front light
Accelerator
LED/RGB ambient light
Rear fender/brake
Hooking point
Folding mechanism
Brake light
Battery
Kick standCharging port
(opposite side)
2. PRODUCT OVERVIEW
04

1. Speedometer: displays the current speed of the scooter.
2. Modes: there are three riding modes available. "Black" indicates Energy Saving mode (maxi-
mum speed 6 km/h, ideal for beginners), "S White" indicates Standard mode (maximum speed 15
km/h) and "S Red" indicates Sports mode (maximum speed 25 km/h, powerful, only recommen-
ded for experienced riders).
3. Bluetooth: the icon indicates that the scooter is connected with the mobile device.
4. Error: the spanner icon indicates that the scooter has detected an error.
5. Battery level: the battery level is indicated by 5 bars, each representing approximately 20%
of the battery.
6. Power button: press the button to turn the scooter on, to turn it off press and hold the button
for 3 seconds. After power on, press the button twice consecutively to turn the front light on/off
and press once to switch between modes.
1
3
2
CONTROL PANEL/CONTROL INFORMATION
5
6
4
05

After assembly, press the power button to verify that the scooter is working properly.
Pressing on
the fender
Handlebar rod
in an upright
Assemble it as shown
in the image
3. ASSEMBLY AND SET-UP
06

Lift the
rubber stopper
Insert the power
supply into the
charging port
After refilling,
put the rubber
cap back on
What can you do with the AL e-mobility APP?
• Start a self-diagnosis
• Set the riding modes
• Set the speed display units (km/mph)
• Set the start mode
• Set the Cruise Control function
• Set the LED ambient light colour (RGB)
• View the partial and total distance travelled
• View the remaining battery level
• Display cruising speed
• View speed modes
• View the drive wheel temperature
5. AL E-MOBILITY APP SET-UP
4. CHARGING
07

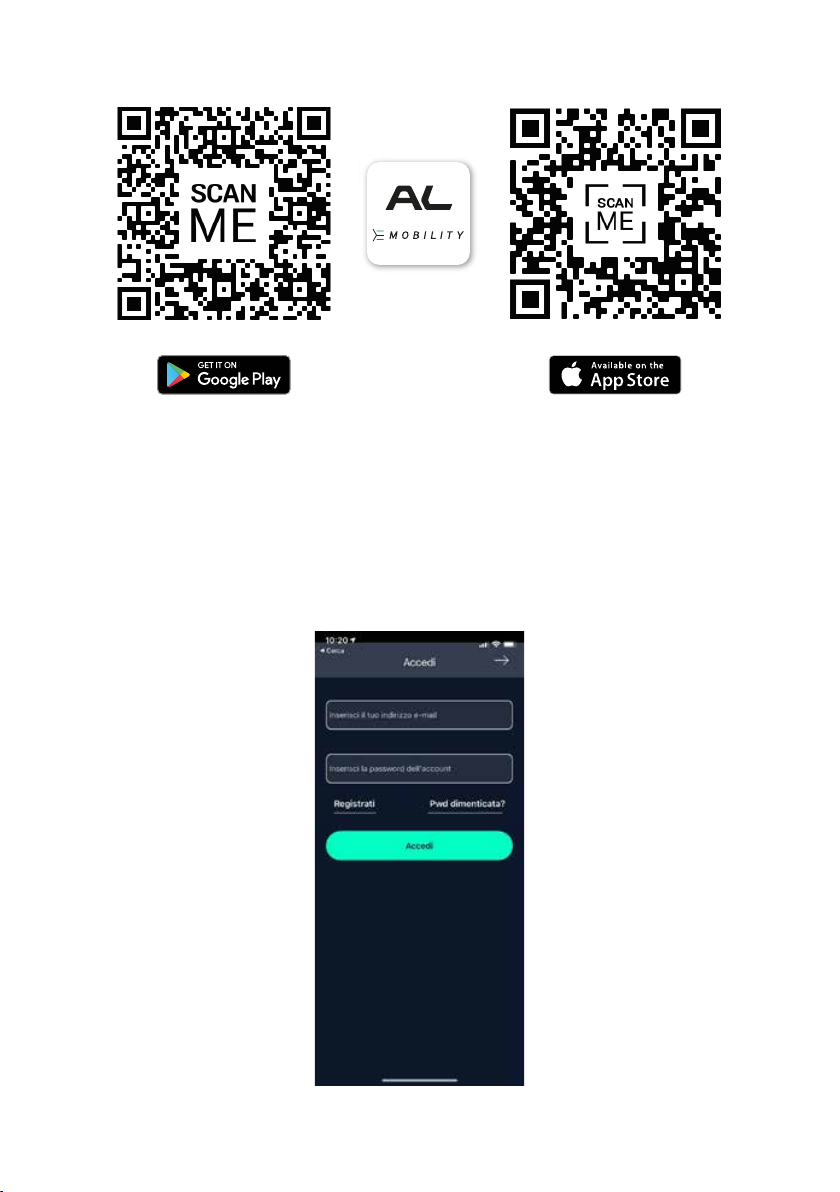

Scan the QR code or access the APP store to download and install the e-mobility AL APP:
1. Download the APP on your smartphone;
2. Turn on the scooter and activate Bluetooth on your smartphone;
3. Launch the APP and login*, connect to your scooter by Bluetooth within 1-2 metres from the
scooter;
* If this is your first time using this APP, * you will need to enter your mobile number or e-mail in
order to register and authenticate the verification code. The APP interface appears as below:
08

Main interface
Settings/Settings interface
Riding mode display
(cannot be changed by the user) Battery percentage
Usage time (Total)
Units of measurement
Start mode
Voltage settings
(cannot be changed by the user)
Diameter of the wheel supplied
(cannot be changed by the user)
Riding mode settings
(cannot be changed by the user)
Constant cruise speed activation
(Cruise Control)
Ambient LED settings
Main interface
Drive wheel temperature
Home
Settings
Scooter lock
Distance travelled (TRIP)
Travel speed in real time
Current level
speed limiter
Distance travelled (ODO)
APP user information
and backend services
APP user information
and backend services
Speed limiter/
level settings
09

Route log
Change password
Find my vehicle
Service centre
Other devices
Vehicle management
Disconnection
Information on the "Cruise Control":
Activate the "Cruise Control" function in the APP, keep your scooter at a constant speed (> 8
km/h) and press and hold the accelerator lever (right) for 5 seconds. An acoustic signal will
indicate that "Cruise Control" is active, so it will not be necessary to hold down the accelerator
lever (right). Press the accelerator lever or brake lever again to deactivate the function.
APP user information
and backend services
10

Safety measures should be taken before riding.
Wear approved safety elements such as a
helmet or kneecaps.
Do not use the vehicle under rain.
The appliance must not be used by more than
one person at the same time.
People below 14 years old, above 60 and
pregnant women may not use the product.
6. HOW TO RIDE THE SCOOTER
11

Minimum load allowed: 20 kg maximum load
allowed: 100 kg
Do not ride the scooter after drinking or taking-
medicine.
Do not use the phone or listen to music while
riding the scooter.
Pay special attention to the riding when theroad
has sandstone, ponding, mud, ice, snow, stairs or
when it is wet or dark.
12

Do not use the vehicle in dangerous areas where
there could be inflammable or explosive
substances, liquid or dust.
This scooter is not designed to ride on vehicle
roads or highways. Check your local current
legislation about where it is allowed to ride the
scooter.
Do not place heavy objects on the handlebar.
Avoid riding up and down the stairs with the
scooter.
13

Always drive the scooter holding the handlebar
with both hands.
Do not use the scooter with just one foot on the
footrest.
Do not activate the throttle while walking next to
the scooter.
Do not ride through puddles or othern wet
surfaces.
14

Watch your head when passing through
doorways or when driving indoors.
Do not turn the handlebar suddenly when riding
at high speed.
Start braking at enough distance from obsta-
cles, curves and from areas where the type of
floor changes. Remember to release the throttle
before braking.
Do not ride fast on stairs, curbs or speed humps.
15

5m
Avoid contacting obstacles with the wheels.
Do not touch the product’s motor immediately
after riding it, it could burn.
A minimum safety distance of 5 m should be
kept from other vehicles.
16

For your own safety, wear a helmet and knee pads to protect yourself from falls and injuries
while learning to ride the e-scooter.
The rider assumes all the risks of not wearing a helmet or other protective gear.
• At first use, charge the scooter to 100%. Check the battery indicator, if the battery is low,
recharge it before use. The e-scooter is a device that requires periodic recharging in order to
operate.
• Place the scooter on a flat surface.
• Put your hands on the handlebar. Step onto the platform with one foot and use the other to
give yourself a gentle push.
(For safety reasons, the scooter is initially set up to avoid a standing start).
• When the scooter starts to move, place both feet on the footplate and press the accelerator.
Note: The accelerator will engage once the forward speed exceeds 3 km/h.
• To ride the scooter, tilt your body in the direction of riding when turning and slowly turn the
handlebars.
• To stop the scooter, release the accelerator, press the electronic brake on the left side of
the handlebar and push the rear fender with your foot if necessary.
• To dismount, first stop the scooter completely. Trying to get off the scooter while it is in
motion can cause injury.
• When shifting gears, single click the button to change the speed mode.
• When riding at night or in dark places, double click the button to turn on the lights, and wear
a reflective vest.
17

The electric brake lever is located on the left hand side of the handlebar. The scooter is equipped
with a foot brake on the rear fender. When riding on a slippery road and when turning corners it
is recommended that you use the brake with caution, otherwise you may lose control of the
scooter and fall. As with other vehicles, higher speeds require longer braking distances. Sudden
braking on low-grip surfaces could cause an accident.
Be careful, and always keep a safe distance away from other people or vehicles while riding.
Charge the scooter 50%–60% before storing it out of season or for extended periods. Rechar-
ge it to 50%–60% every 2–3 months. If not used daily, it is recommended to store the scooter
at 15–25 °C. Do not expose the scooter to low (below 0 °C) or high (over 45 °C) temperatures.
Avoid leaving it outdoors, as it is not water resistant.
When the scooter gets dirty, clean it with a damp cloth. Before cleaning it, make sure the Electric
scooter is turned off and cover the charging port to avoid damage to the electronic components.
Do not use alcohol, gas, kerosene or other corrosive or volatile chemical solvents. This can
damage both the appearance and the internal structure of the electric scooter. Do not use
pressurised water guns or running water for cleaning. The electric scooter is not waterproof.
Do not expose it to rain or water, or immerse it and wash it with water.
The maximum battery life depends on several variables:
Terrain: Riding on smooth pavement will give you a greater range than riding on rough roads
and slopes.
User weight: The heavier the user, the shorter the runtime.
Temperature: Riding the scooter in a very cold or hot environment affects the range.
Speed and riding style: smooth and steady riding extends the range. Acceleration and manoe-
uvring aggressively reduces the range. A lower speed extends the range.
Maintenance: timely recharging and correct maintenance increase battery life.
7. BRAKES
8. BATTERY LIFE
9. STORAGE AND CLEANING
18

• This scooter is a vehicle designed for pleasure purposes. You need to learn to ride it by
practising.
• This product is a scooter for adults. It is limited to one person. Do not carry other people
at the same time; minors must use it under the supervision of an adult.
• When riding this product, wear a safety helmet and other protective equipment.
• Do not ride this product in unsafe or illegal places, such as on the motorway.
• Practice outdoors before riding.
• Do not make dangerous movements or ride with one hand; keep your feet on the pedal.
Do not turn off the power while the scooter is running.
• Before riding, check for loose fasteners and damaged components. If this scooter emits
abnormal sounds or alarms, stop riding immediately.
• Do not attempt to directly ride over steps with a gap greater than 3 cm, which could
overturn the scooter, causing injury to the rider or damage to the vehicle and avoid steps
of less than 3 cm as much as possible.
• In the event of rough or bumpy road conditions, slow down or get off. Do not drive this
product on slippery surfaces such as oil or ice.
• Do not use this product in environments with a temperature below -5 °C.
• Do not immerse the product deeper than 3 cm to avoid damage to the electrical part of
the vehicle.
• Avoid driving in bad weather, such as rain, snow, strong wind, etc., so as not to cause
unnecessary damage from environmental factors.
• If the product is not used for an extended period, charge it at least once every 30 days.
• Only MT Distribution-approved parts and accessories may be used. Do not modify the
scooter. Modifying your scooter can affect operation, causing serious injury or damage
and compromising your warranty.
10. SAFETY INSTRUCTIONS
19
