Amiga TravelMate III User manual

TRAVELMATE™ III
Owner Operational Manual
Serial Number: Purchase Date:
Read This Manual Before Operating

A new industry began in 1968 when Amigo
revolutionized mobility for people with walking
limitations. Amigo Power Operated Vehicles (POVs)
quickly became a household name for their ease of
operation and maneuverability. Ever since our first
creation, Amigo Company has worked hard to bring
comfort, freedom and satisfaction to our many
thousands of customers.
We would like to take this opportunity to thank you
for choosing Amigo. Our business will provide you
with personalized and innovative electric mobility
products and customer satisfaction, today and in
the future.
Sincerely,
Amigo Mobility International, Inc. (AMI)
Welcome to the Amigo family of active and independent
people. For thousands of individuals around the world,
Amigo provides the opportunity to enjoy life more fully.
We are confident that the following instructions and helpful
hints will make your Amigo an extremely useful and reliable
“friend.” Because we are concerned about your health and
safety, please read this manual carefully before operating
your vehicle. After learning to use your Amigo properly, you
will discover a world of enjoyment and independence.
Please return your warranty card to be placed on our
e-mailing list for Friendly Wheels. Friendly Wheels, e-mailed
monthly, is about owners participating in life. It also keeps
you informed about new products, accessories, helpful hints
and service tips!
Amigo Mobility International, Inc. (AMI) disclaims any
responsibility for personal injury or property damage from
the improper or unsafe use of its products.
TABLE OF CONTENTS
Safety First 3-4
Location of Controls 4
Identification of Parts 4
Folding/Unfolding Your Amigo 5
Operating Your Amigo 6
Driving Your Amigo 6-7
Safety Warnings 7
Battery Information &
Charging Instructions 8-9
Cleaning Instructions 10
Maintenance 10-11
Troubleshooting/Diagnostic Codes 12
Electromagnetic Interference 13
Wiring Diagram 14
Exploded View 15
Parts List 16
Warranty 17
Improving Lives Through Mobility®

SAFETY FIRST
For your convenience and understanding, signal words are defined below:
WARNING IS USED TO INDICATE THE PRESENCE OF A HAZARD, WHICH CAN CAUSE SEVERE
PERSONAL INJURY, DEATH OR SUBSTANTIAL PROPERTY DAMAGE IF THE WARNING IS IGNORED.
CAUTION IS USED TO INDICATE THE PRESENCE OF A HAZARD WHICH WILL OR CAN CAUSE
MINOR PERSONAL INJURY OR PROPERTY DAMAGE IF THE WARNING IS IGNORED.
Safety Recommendations
Use the following guidelines for the safe operation and use of your Amigo. Should you have any questions about the
safe operation of your vehicle, please contact AMI or your Amigo dealer. If you are in doubt about your ability to
operate your Amigo, consult your personal physician.
DO
  
  
  
  
  
  
  
  
  
The federal standard for wheelchair ramps is one inch (2.5 cm) rise per foot (30 cm) = 5 degrees or 8% grade.
  
  
  
  
TURNING THE KEY SWITCH OFF WHILE IN MOTION WILL BRING THE AMIGO TO A CONTROLLED STOP.
DO NOT
  
result in personal injury and damage to your Amigo. Amigo Company will not be responsible for injuries
and/or property damage resulting from failure to observe weight limitations.
  
  
  
  
  
  
www.myamigo.com 3

  
  
  
  
   
shower or leaving it uncovered in heavy rain.
AMI is not responsible for any damage or injury incurred due to the improper or unsafe use of the POV. AMI specifically disclaims
responsibility for any bodily injury or property damage that may occur during any use, which does not comply with applicable federal,
state or local laws or ordinances.
LOCATION OF CONTROLS
Twist Grip Handle
A. Throttle

C. Battery Gauge
D. Reverse Indicator Light
E. Forward/Reverse Switch
F. Horn
IDENTIFICATION
OF PARTS
1. Battery Case
2. Tiller
3. Hub Motor
4. Rear Wheels
5. Platform
6. Seat
7. Battery Power Connector Handle
8. Seat Adjustment Handle
9. Freewheeling Pin
10. Tiller Release Foot Pedal
11. Bumper/Lifting Handle
A
C
7
9
10
1
2
3
4
6
5
8
7
10
9
4 1-800-248-9131/ 989-777-0910
11
B
D
E
F

FOLDING/UNFOLDING YOUR AMIGO
Folding
IMPORTANT- Remove key before folding Amigo!
1. Remove basket.
2. Unplug battery connection using black battery power connector handle. Firmly grip handle and lift straight up to unplug.
Note:
Lifting on the end of the handle only will not unplug the battery connection.
3. Pull battery case out and away from velcro backing.
4. While holding the top of the tiller, step on tiller release foot pedal (Figure 2). Lower the tiller about two inches, then fold down
seat back.
5. Lift seat adjustment handle allowing seat to move forward into down position (Figure 3). Lower the tiller to rest on seat.
6. To lock tiller in place, loop retainer cord over black knob located on top of tiller. (Figure 4)
Unfolding
1. Remove retainer cord from black knob.
2. Raise tiller until you hear the lower latch lock into place.
3. Pull up seat using seat bottom or raising the seat adjustment handle (Figure 5)
4. Reinstall battery case, then power connection, followed by basket. Insert key.
Figure 1 Figure 4
Figure 5
Figure 2 Figure 3
www.myamigo.com 5
(Figure 1)

OPERATING YOUR AMIGO
To operate your Amigo, use the following procedures:
1. Turn the Amigo ON with ON/OFF key switch located
on the right side of the handle enclosure.
2. Handlebar directions:
a. To move forward, red directional control button near
the right hand grip should be in the (O) position.
b. Twist right hand grip toward you to accelerate.
Hold at desired speed.
c. Release grip to stop.
d. To reverse, push directional control button to the (–) position,
then twist the hand grip toward you as you would to move forward.
3. If necessary to manually “push” the Amigo, use a one finger application to
push down on one end of the freewheeling pin into vertical upright position. (Figure 6) To
resume power mode, push pin down into horizontal position. Before driving, make sure
tiller is locked in an upright position.
PUSH TOO FAST (PTF) FEATURE
With controls on or off (in freewheeling mode), the PTF feature is intended as a safety measure
allowing the Amigo to be pushed only a few feet. Upon reaching the pre-programmed speed, the
Amigo will go into a safety mode and limit how fast and/or how easily it can be pushed. There is an extended period of 10-15
seconds before the Amigo is able to be pushed easily, but again, for only a few feet and the cycle repeats itself. If it is necessary to
push the TravelMate III for an extended distance, unplug the battery connector, remove the battery case and wait 30 seconds to
bypass the PTF feature.
Always move carefully and deliberately getting on or off the Amigo in freewheeling position.
Some movement of the Amigo may occur.
DRIVING YOUR AMIGO
Make sure you are on a level surface and properly seated. Turn the key to the ON position. Make sure the red directional control
button is in the (O) position. To move forward, twist the right hand grip toward you. The further down you twist the hand grip, the
faster you will go. To slow down, slowly twist the hand grip forward. To stop, let go of the hand grip. To reverse your Amigo, push
the red directional control button to the (–) position and rotate the right hand grip toward you (just as you would when moving
forward).
Steering the Amigo is easy and logical. Just be sure to remember to give wide clearance when turning so that the rear wheels clear
any obstacle.
Shortcutting a sidewalk corner can cause the back wheel to go off the sidewalk. Avoid this situation by steering
an exaggerated wide arc around the obstacle. If you must steer in a tight spot, such as entering a doorway
or when turning around, stop and then apply power gently.
Driving Through Doorways
Approach an unfamiliar door slowly. Does it have a knob or push bar? Does it open toward you or away from you? Think in terms of
using the power of the Amigo to do the work for you. Hold the doorknob or bar in one hand and apply the power with the other
hand. If the door is self-closing, you can go through allowing the door to close behind you. If it is not a self closing door, stop when
you are clear of the door and push it closed. If the door opens toward you, hold the knob or bar with one hand and slowly
accelerate in reverse, letting the Amigo do the work for you. When the door is open wide enough, accelerate forward leaving your
hand on the door to keep it free from touching the Amigo and letting go as you pass through the door jamb.
Driving On Ramps
With the ADA (Americans with Disabilities Act), buildings require ramps for POV (Powered Operated Vehicle) access.
Some have U-turns in the middle where good cornering is required. Take wide swings with your front wheel around
any tight corners so the rear wheels follow a wide arc to stay clear of the corner. When you have stopped while facing uphill,
starting up again simply requires that you apply forward power. Accelerate gently after stopping on an incline.
When proceeding up a ramp or curb, lean forward in your seat for maximum stability and safety. Drive slowly
when going down any ramp or hill to ensure a safe descent.
6 1-800-248-9131/ 989-777-0910
Forward
Position
Reverse
Position
Figure 6

Transport
Amigos are not designed or tested for use as seats in private or public transporting vehicles. AMI advises
against transporting POVs in vehicles unless either the unit is folded and placed in the trunk of your car,
or the assembled unit is placed in the vehicle and strapped down. Any straps should be secured to non-removable parts of the
Amigo (i.e. platform). Even when strapped down, Amigos should not be used as seats in private or public transporting vehicles.
To transport your Amigo TravelMate III:
IMPORTANT - Remove key before folding Amigo!
1. Remove basket.
2. Unplug battery connection using black battery power
connector handle. Firmly grip handle and lift straight
up to unplug. Note:
Lifting on the end of the handle only will not
unplug the battery connection.
3. Pull battery case out and away from velcro backing.
4. While holding the top of the tiller, step on tiller release foot pedal.
Lower the tiller about two inches, then fold down seat back.
5. Lift seat adjustment handle allowing seat to move forward into down
position. Lower the tiller to rest on seat.
6. To lock tiller in place, loop retainer cord over black knob located on top of tiller.
USE A SMALL PIECE OF CARPET OR A HEAVY DUTY TOWEL ON VEHICLE BUMPER WHEN LOADING THE
  
Airline Travel
Special Handling tags are suggested when transporting your Amigo by airlines. Nonspillable,
sealed batteries are approved for travel on airplanes. When you make
your reservation, notify the airline that you will be requesting escort service.
This will assure that your Amigo will be picked up and delivered at the boarding gate.
For additional Helpful Hints for Airline Travel, visit our website at www.myamigo.com.
*Optional lithium batteries require you to take battery pack onboard plane as carry-on luggage.
Public Transportation
Some public transportation systems have accommodations for your Amigo, but you must
transfer to a seat. When utilizing public transportation, do not sit on your Amigo while it is
being lifted onto the vehicle or once the vehicle is in motion.
SAFETY WARNINGS
The driving performance of your Amigo can be influenced by electromagnetic fields, such as emitted by
cellular telephones and other emitting devices. We recommend the power on your unit be switched off
when using such a device. (Refer to Electromagnetic Interference section for additional information.)
  
from alarm systems in shops (refer to Electromagnetic Interference section for additional information).
   
driving functions.
For helpful hints visit www.myamigo.com or contact us at 1-800-248-9131 or 989-777-0910.
www.myamigo.com 7

BATTERY INFORMATION
AND CHARGING INSTRUCTIONS
Battery Information
For maximum range and life, it is recommended to fully charge the batteries
before using. Extended charging is good for the batteries and will not overcharge
them. Amigos have an overcharge protection feature so that the batteries can be
charged anytime the Amigo is not being used. It is a popular misconception that
batteries should be deeply discharged before recharging. This is not the proper
procedure for all batteries. They can actually be damaged if they are discharged
too deeply before recharging.
Battery range depends on driver weight, terrain, temperature and type of
battery used. Charge your batteries daily when the Amigo is used. Make sure
that the charger cord is unplugged from the wall outlet before moving your
Amigo. Batteries should be charged if the battery indicator light is blinking
while operating or if the battery gauge drops to 2 bars or less.
Your battery indicator light may blink prematurely when under a heavy power demand
such as an incline. If it is premature, it will stop blinking when the unit is stopped, and
the power switch is cycled to OFF and back ON. If this cycle does not stop the
blinking, it is time to recharge.
Charging Instructions
Disconnect the battery power connector from the battery case. Plug the
small DC battery charge connector to the socket on the battery case.
Plug the AC cord into the wall outlet. The charge cycle status is indicated
by the battery indicator light (LED) on the charger. The LED will glow
ORANGE or RED to indicate charging has started. The batteries are fully
charged when the LED switches to GREEN.
The battery charger is designed to accept 90-240 volts 50 or 60Hz AC power input.
This makes it possible to charge on any AC electrical system globally.
Charging Frequency
  
  
  .
BATTERY POWER CONNECTOR SHOULD ONLY BE UNPLUGGED WHEN TRANSPORTING
    
IF POWER CONNECTOR IS LEFT UNPLUGGED.
8 1-800-248-9131/ 989-777-0910

Charger Standard Precautions
  
  
Batteries generate explosive gases during normal battery operation.
  
  
to an extra-low-voltage electrical system or to charge dry cell batteries.
  
  
To reduce risk of spark:
• PreventexternaldamagetoACandDCcords.
    • Whenconnectingcharger,connectDCchargingcordtothebatterychargeplugbeforeconnecting
     chargerACcordtoelectricaloutlet.
    • Whendisconnectingcharger,alwaysdosoinreversesequenceofconnectingprocedure.
Break first connection as far away from battery as possible.
  
  
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
 
    
Battery Storage
If you remove your batteries from the battery case, put them on a surface that cannot be damaged by acid fumes. Whenever a
battery is charged and discharged through a cycle, it breathes. The breathing of the battery emits acid fumes and may mark
surfaces it rests on for long periods of time.
Store batteries indoors in a dry environment, away from any open flames. Temperature range is 0˚C (32˚F) to 40˚C (104˚F).
TO AVOID DAMAGE TO BATTERIES DURING STORAGE, DO NOT PLACE THEM ENDTOEND
WITH THE POSITIVE + AND NEGATIVE  TERMINALS NEXT TO EACH OTHER FIGURE 6.
www.myamigo.com 9
Figure 6

CLEANING INSTRUCTIONS
Tires: The tires should be cleaned with ordinary kitchen-type cleaners and a damp cloth.

Platform: The platform of the Amigo is constructed of aluminum and coated with a durable automotive type finish.
Use cool water with mild soap to remove dirt and oils. Do not spray the entire vehicle with water. This will
damage the electrical parts. The platform may be waxed with car body wax and buffed by hand with a soft cloth.
Seat: The vinyl seat can be cleaned with a mild soap or detergent and a damp cloth. A vinyl cleaner
can also be used. Care should be taken not to soak seats, as the interior foam rubber will hold water.
Floor mat: The floor mat should be cleaned with ordinary kitchen-type cleaners and a damp cloth.
Do not use solvents on the floor mat, as they may cause the floor mat material to break down.

MAINTENANCE
Minimum maintenance should prevent unnecessary repairs. You will get years of dependable
operation if you follow the suggested maintenance schedule. Check the following:
Daily
Charge batteries daily when the Amigo is used. Charge the battery until fully charged to ensure
proper battery operation. Extended charging is good for the batteries and will not overcharge them.
Monthly
Check and clean battery terminals and the wire connections as needed with a
light piece of emery cloth or brush and soda water.
  
  
  
  
operating vehicle.

Six Months
  
  
  
  
  ide the battery case, particularly at the bottom, for liquid.
Yearly
  
10 1-800-248-9131/ 989-777-0910

Battery Maintenance
VRLA (Valve Regulated Lead Acid) deep cycle or optional lithium-ion batteries are used for operating your Amigo. They are
maintenance-free and are transportable on aircraft, buses, trains, etc. as there is no danger of spillage.By following the charger and
battery procedures, you can expect extended battery life.
Fasteners Replacement
Use only Grade 8 (US) or 12.9 DIN (metric) in all applications. For service and
replacement parts, we recommend Amigo authorized parts.
Microprocessor Controller (MPC)
Do not attempt to service the MPC or related electronic components, as this will void the
warranty.
Circuit Breaker Replacement Instructions
An automatic resetting circuit breaker protects the wiring and battery in the event of a short circuit. If your Amigo stops abruptly,
wait 10 seconds for the circuit breaker to reset. If the breaker does not reset, check for overloads or short circuits.
If you suspect the circuit breaker is defective, use a jumper wire between the two terminals of the breaker.
If the Amigo runs now, replace the circuit breaker.
Battery Replacement
NOTE: Replacement battery must meet passenger
and cargo aircraft travel requirements.
  
and remove battery front cover.
  
  
the red wire connection and remove it
from each battery.
  
NOTE: Tampering with electrical or
mechanical parts will void warranty.
www.myamigo.com 11
Automatic Resetting Circuit Breaker

ASIC MPC DIAGNOSTIC CODES
The Amigo is equipped with an ASIC MPC. This controller has a built-in diagnostic feature that will cause the diagnostic light LEDs
(located on either side of the battery gauge) to flash a numeric code indicating service issues and to aid in diagnoses. When indicating
a service problem, the diagnostic light LEDs will flash, hesitate for a moment, and then flash again. Follow the code listings below to
determine the problem. If the code indicates a service problem, contact your local service representative or call the Amigo Service
Department at [phone] for instructions to verify and correct the problem.
**Note: First solution listed for each diagnostic code will x that problem 80% of the time. Attempt solutions in the order listed.

ELECTROMAGNETIC INTERFERENCE
RADIO WAVE SOURCES MAY AFFECT POWERED MOBILE VEHICLE CONTROL.
Electromagnetic Interference (EMI) From Radio Wave Sources
Powered vehicles may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy
(EMI) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios and
cellular phones. The interference (from radio wave sources) can cause the powered vehicle to release its brakes,

The intensity of the interfering EMI energy can be measured in volts per meter (V/m). Each powered vehicle can resist
EMI up to a certain intensity. This is called its “Immunity Level.”The higher the immunity level, the greater the protection.
At this time, current technology is capable of achieving at least a 20 V/m immunity level, which would provide useful protection
from the more common sources of radiated EMI. The immunity level of this powered vehicle is not known.
There are a number of sources of relatively intense electromagnetic fields in the everyday environment.
Some of these sources are obvious and easy to avoid. Others are not apparent and exposure is unavoidable.
However, we believe that by following the warnings listed below, your risk to EMI will be minimized.
The sources of radiated EMI can be broadly classified into three types:
1. Handheld portable transceivers (transmitters-receivers) with antenna mounted directly on the transmitting unit.
Examples include: citizens band (CB) radios, “walkie talkie,” security, fire and police transceivers,
cellular telephones and other personal communication devices.
Note: Some cellular telephones and similar devices transmit signals while they are ON, even when not being used.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks, ambulances and taxis.
These usually have the antenna mounted on the outside of the vehicle; and
3. Long-range transmitters and transceivers, such as commercial broadcast transmitters (radio and TV broadcast
antenna towers) and amateur (HAM) radios.
Note: Other types of handheld devices, such as cordless phones, laptop computers, AM/FM radios, TV sets,
   CDplayersandcassetteplayersandsmallappliancessuchaselectricshaversandhairdryers,    
so far as we know, are not likely to cause EMI problems to your powered vehicle.
Powered Vehicle Electromagnetic Interference (EMI)
Because EMI energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EMI fields from
handheld radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EMI energy

braking. Therefore, the warnings listed below are recommended to prevent possible interference with the control system
of the powered vehicle.
Warnings
Electromagnetic Interference (EMI) from sources such as radio stations, TV stations, amateur radio (HAM) transmitters,
two-way radios and cellular phones, can affect electric vehicles. Following the warnings listed below should reduce the
chance of unintended brake release or mobile vehicle movement, which could result in serious injury.
1. DO NOT operate or turn ON handheld personal communication devices, such as citizens band (CB) radios
and cellular phones while the vehicle is turned on.
2. Be aware of nearby transmitters, such as radio or TV stations and try to avoid coming close to them.
3. If unintended movement or brake release occurs, turn the vehicle off as soon as it is safe.
4. Be aware that adding accessories or components or modifying the vehicle may make it more
susceptible to interference from radio wave sources.
Note: There is no easy way to evaluate their effect on the overall immunity of the vehicle.
5. Report all incidents of unintended movement or brake release to the mobile vehicle manufacturer,
and note whether there is a source of EMI nearby.
Important Information
1. 20 volts per meter (V/M) is a generally achievable and useful immunity level against EMI
(as of May 1994). The higher the level, the greater the protection.
2. The immunity level of this product is not known. www.myamigo.com 13

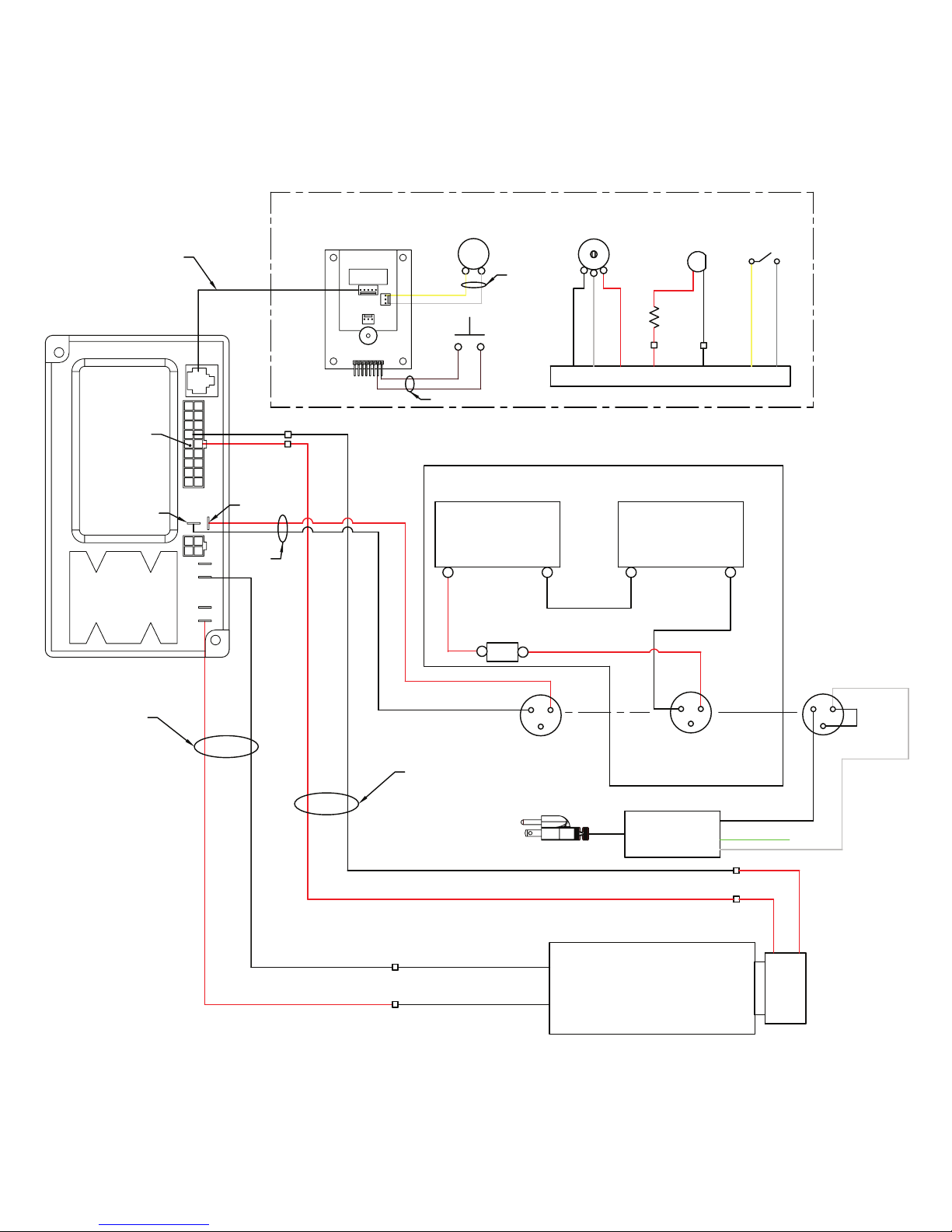

WIRING DIAGRAM
14 1-800-248-9131/ 989-777-0910
Y
SWITCH FWD/RVS
SWITCH
THROTTLE POT
RED
BRN
YEL
WHT
BL
M+
M-
BATT+
THROTTLE ENCLOSURE
MOTORRED
RED
BL
E/M

RED
BATTERY
12VDC BATTERY 12VDC
++
--
RED
BL
BL
C.B.
RED BL
CHARGER
12
3
BATTERY
ET
3
21
CHARGER
PLUG
SHUNT
WHT
BL
GRN
CONTROLLER
VEHICLE
PLUG
3
21
GND
HORN
WHT
FWD/RVS
LED
BRN MODULAR CONN.
RED
BL
MODULAR
CONN.
YEL
WHT
4.7k
11535
11520
11553
10144
BATTERY CASE
DISPLAY
11539
11540

www.myamigo.com 15
EXPLODED VIEW
11507
11517
11311
3623
11534
11503
11501
11502
7600 11508
1254
11506
4269
1069
1040
5209
11520
11535
11509
11521
11515
11522
11512
11549 STANDARD
11550 LITHIUM
11529
9022
11533
7281
10144
11657
11542
11543
11544
11519
11510
11511.20
10346
11337
11553
5514
10516
6227
11528
3622
11513
11514
5893 11530
11292TMG3
11531
11518
11504
11557
11505
11524
10973.21
6305
6304
11527
11565
11657
11657
11568
11569
10393
11592
10050
COLUMN BEARING
(NOT TO SCALE)
11657
11481.20
9676 10122
7441
7773
10134
10151
10346
10123
6699
9720
2315
11549 STANDARD
11526
10050

PARTS LIST
TravelMate III #580003 – May 1, 2011 to Present
Part # Description Qty/unit
1040 Ring, Retaining 5/8 OD Shaft 2
1069 Washer, Shim, 5/8 ID x 7/8 OD x .016Thick 4
1254 Pin, Spring, 1/8 OD x 1 1/8 Lg 1
2315 Nut, Hex, Nylon Insert, #4-40 2
3622 Nut, Hex, Nylon Insert, 1/4-20 1
3623 Screw, Hex, 1/4-20 x 1 1/4 Lg 4
4269 Washer, Flat, 5/8 ID x 1 1/8 OD 2
5209 Cap, Black, Wheel 2
5514 Screw, Hex, 1/4-20 x 2 3/4 Lg 1
5893 Washer, Flat, 9/32 ID x 1 OD 1
6227 Nut, Hex, Nylon Insert, #10-24 3
6304 Velcro Dual Lock 400/In 1
6305 Velcro Dual Lock 170/In 1
6699 Screw, Phillips, #4-40 x 1/2 Lg 2
7281 Screw, Hex Socket, 1/4-20 x 7/8 Lg 2
7441 Circuit Breaker, Auto Reset, 25 Amp 1
7600 Nut, Push, 1/4 Stud 2
7773 Cap, Vinyl Insulated 2
9022 Washer, Nylon Shim, 3/8 ID x 11/16 OD x .02Thk 2
9676 Battery, 12 Volt, 7.2 AH 2
9720 Wire Asm Battery to Circuit Breaker 1
10050 Bearing Set 1
10122 Battery Case 1
10123 Battery Cover 1
10134 Wire Asm Battery to Power Connector 1
10144 Wire Asm Battery to Controller 1
10151 Foam Insert, Adhesive Backed 4
10346 Screw, Phillips, #8 x 3/4 Lg Type B 8
10393 Ground Wire Asm 1
10516 Boot, Lower Handle 1
10973.21 Basket Asm 1
11292TMG3 Controller CS1108S-1 Standard 1
11311 Washer, Lock, 1/4 ID 4
11337 Washer, Flat, 13/64 ID x 1/2 OD 2
11481.20 Band, Retaining, Handle 1
11501 Arm, Front Seat Mount 1
11502 Arm, Rear Seat Mount 1
11503 Shaft, Rear Seat Pivot 3
11504 Shaft, Long, Seat Pivot 1
11505 Spring, Extension 2
11506 Axle, Rear 1
11507 Seat, Folding Vinyl 1
Part # Description Qty/unit
11508 Latch, Seat Adjusting 1
11509 Mat, Standard 1
11510 Cover, Handle Front 1
11511.20 Cover Asm, Handle Rear 1
11512 Pivot Weldment, Steering 1
11513 Pivot Weldment Handle 1
11514 Link, Handle Latch 2
11515 Bumper, Front Wheel 1
11517 Bracket Asm, Seat Upper 1
11518 Handle Weldment 1
11519 Throttle, Twist Grip 1
11520 Wire Asm Motor 1
11521 Motor, Hub 8" w/ EM Brake 1
11522 Fork Weldment, Motor 1
11524 Wheel Asm, Rear 9" 2
11526 Bearing, 5/8 ID Roller 2
11527 Screw, Shoulder, #10-24 x 1 Lg 1
11528 Screw, Shoulder, #10-24 x 1 Lg 2
11529 Screw, Shoulder, 5/16-18 x 1/4 Lg 2
11530 Spring, Compression 3/4 OD x 1 Lg 1
11531 Nut, U-Spring #8 Screw 4
11533 Screw, Set, 5/16-18 x 5/8 Lg 1
11534 Ring, Retaining 1/2 OD Shaft 8
11535 Wire Asm Brake 1
11542 Platform Pacic Blue 1
11543 Platform Cinnamon Red 1
11544 Platform Lime Green 1
11549 Battery Case Asm Standard 1
11550 Battery Case Asm Lithium 1
11553 Wire Asm, Cntrl/Display 1
11557 Ring, Spiral 2
11565 Handle Grip 1
11568 Seat Cover, Back TMG3 1
11569 Seat Cover, BottomTMG3 1
11592 Spacer, Plastic, 1/4 ID x 1/2 OD x 3/4 Lg 2
11657 Kit Trim TM3 1
16 1-800-248-9131/ 989-777-0910

WARRANTY
TravelMate III Product Warranty
Effective May 1, 2011
Amigo Mobility International, Inc. (AMI) warranties the original completed unit it manufactures to the original purchaser.
1. Structural components including platform, frame and seat post, have a two (2) year warranty
against defects in materials and workmanship.
2. Transaxle, motor, controller and battery charger, are warranted against defects in materials
and workmanship for two (2) years.
3. Seats and other components have a one (1) year warranty against defects in materials and workmanship.
Cuts and tears in seats are not covered by warranty.
4. AMI warranties batteries supplied from its factory. AMI factory-supplied batteries carry Amigo brand labels.
A six (6) month battery warranty from the date of purchase applies against the battery manufacturer's defects
in workmanship or materials (freight not included after six months). Damage caused by battery moisture,
spillage, or leakage is exclusive of warranty. When removing a battery, always set on cardboard
or newspapers to avoid damage.
5. Weight Restrictions: Use of a product by persons exceeding the specified load capacity
for that model is not recommended and voids warranty.
6. After sixty (60) days, labor will be charged on warranty repairs, except where law prohibits.
7. Items replaced under warranty, are covered by the original warranty.
(Warranty replacement does not extend the warranty period.)
8. AMI is obligated to repair or replace products or parts returned by the purchaser, and found to be
defective under warranty at its headquarters in Bridgeport, Michigan.
9. For unit and parts, this warranty does not cover accidental damage, misuse, normal wear and tear,
such as LED lights, electrical and mechanical switches, wires, belts, chains and resistors, or use of products
for other than personal purposes. Damage during shipment is not covered by the warranty.
10. If inspection determines that a returned part or unit is fully functional, it will be returned at the
expense of the owner. Opening sealed components will void the warranty.
11. Accessories and parts that are not a part of the original completed unit, or rebuilt units,
will have a one (1) year warranty against defects in materials and workmanship.

or date of purchase is not available, then AMI will use the production date of the unit as the effective warranty date.
This warranty supersedes and is in lieu of all other warranties, expressed or implied, and no person, agent or dealer is
authorized to give any warranties on behalf of AMI, nor to assume for AMI any other liability concerning any of its
products unless made in writing and signed by an official of AMI. Any unauthorized repair or modification will
void this warranty and release AMI from any liability.
This warranty gives you specific rights, with the possibility of other rights, which vary depending upon your locality.
www.myamigo.com 17

NOTES

NOTES

AMIGO MOBILITY INTERNATIONAL, INC.
Improving Lives Through Mobility®
6693 Dixie Highway, Bridgeport, MI 48722-9725

 
H1322011
