Mobishear GTS-2013 User manual

mobishear.com.au ||MOBIS-
HEAR AuStRAlIA
INSTRUCTION MANUAL
100% CORDLESS
HORSE & CATTLE CLIPPER
100% CORDLESS

Content
1 Proper Use................................................................................................................................................................................... 3
1.1 Equipment Items..............................................................................................................................................................3
1.2 Overall View / Controls ................................................................................................................................................... 3
Component Names(Illustration 1).................................................................................................................................3
1.3 intended use .....................................................................................................................................................................4
1.4 Technical data ..................................................................................................................................................................4
Clipper............................................................................................................................................................................4
Battery cartridge ............................................................................................................................................................4
charger............................................................................................................................................................................4
2 Safety regulations .......................................................................................................................................................................4
2.1 Introduction......................................................................................................................................................................5
2.2 Proper Use........................................................................................................................................................................5
2.3 Safety Principles..............................................................................................................................................................5
2.3.1 Power Connections...............................................................................................................................................5
2.3.2 Servicing and Checking Requirement..................................................................................................................5
2.3.3 Noise emission/Personal Protective Equipment...................................................................................................5
Wear Ear Protectors!......................................................................................................................................................5
Wear Protective Goggles and Gloves! ..........................................................................................................................6
2.3.4 Other Dangers....................................................................................................................................................... 6
2.4 Essential Operator Skills ................................................................................................................................................. 6
2.5 Safety Instructions for charger & battery cartridge.........................................................................................................6
2.6 Additional safety rules for charger & battery cartridge...................................................................................................6
3 Putting into operation..................................................................................................................................................................7
3.1 Controls and Operating Notes .........................................................................................................................................7
3.2 setting the clipper blades with the Adjusting screw ........................................................................................................7
Before clipping: .............................................................................................................................................................8
During clipping..............................................................................................................................................................8
3.3 lubrication ........................................................................................................................................................................8
Before and During clipping ...........................................................................................................................................8
3.4 Switching On/Off.............................................................................................................................................................8
3.5 Replace battery cartridge.................................................................................................................................................8
3.6 Charging...........................................................................................................................................................................9
3.7 malfunctions.....................................................................................................................................................................9
4 Servicing .....................................................................................................................................................................................9
4.1 Cleaning .........................................................................................................................................................................10
cleaning the clipper head and clipper blades...............................................................................................................10
4.2 Fitting the clipper blade.................................................................................................................................................10
4.3 Resharpening the clipper blades....................................................................................................................................10
4.4 Storing the clipping machine.........................................................................................................................................10
5 Repairs ......................................................................................................................................................................................10
5.1 Introduction....................................................................................................................................................................10
5.2 Mclfunction Lists........................................................................................................................................................... 11
6 Environmental protection and disposal ....................................................................................................................................12
6.1 Introduction....................................................................................................................................................................12
6.2 Recycling the Battery ....................................................................................................................................................12
6.2 Material Categories........................................................................................................................................................12
Illustration ....................................................................................................................................................................................13

1 Proper Use
Thank you for purchasing a GTS clipper.
1.1 Equipment Items
Clipping machine with clipper head 1
Battery cartridge 2
Clipping blades 1 pair
Battery charger 1
Special Lubricating Oil 1
Cleaning Brush 1
Operating Instructions 1
Special Screwdriver 1

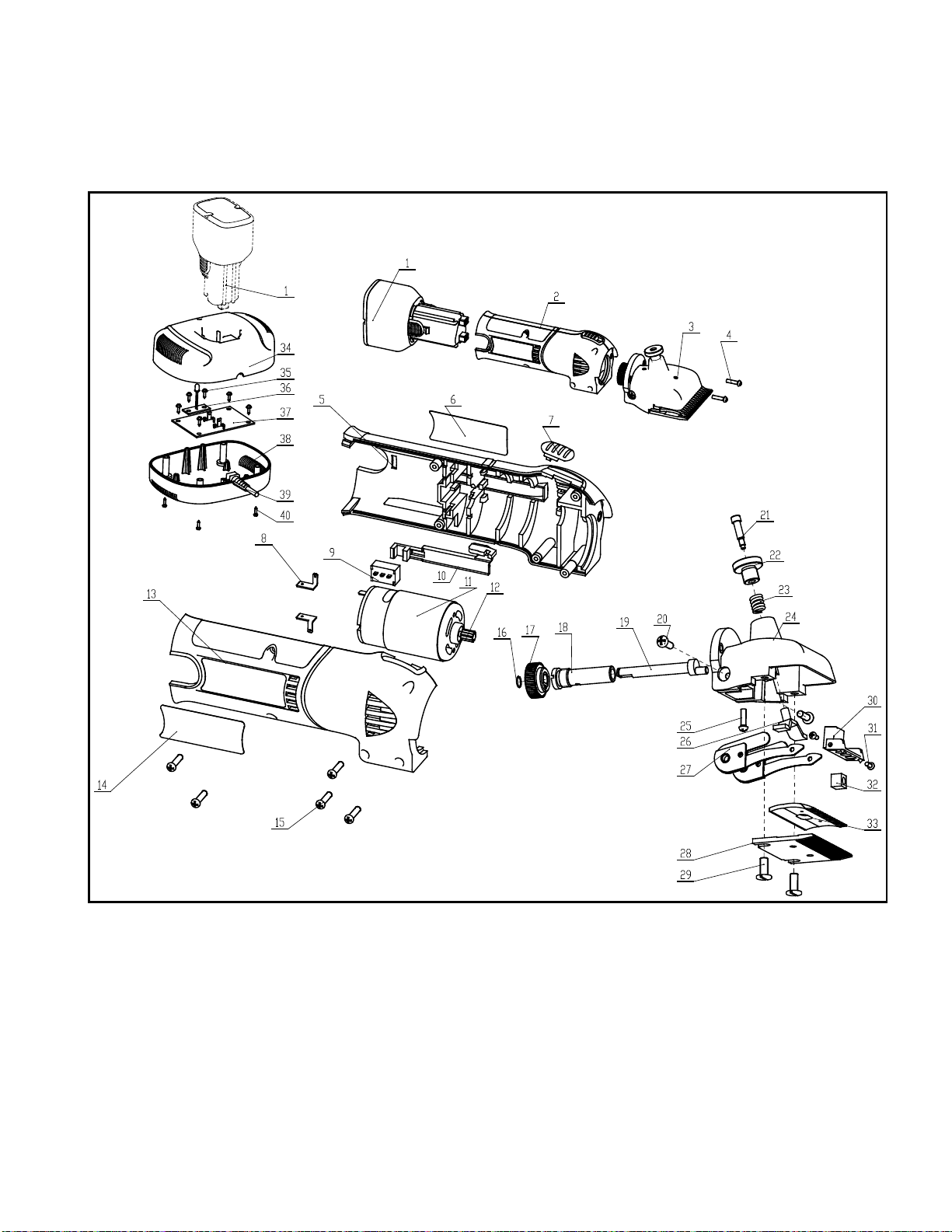

1.2 Overall View / Controls
Component Names(Illustration 1)
1
Battery cartridge
2
Clipping machine
3
Clipper head
4
Screw
Clipping machine
5 Housing seat 6 Trademark sticker 7 Switch push button
8 Connector piece 9 Switch 10 Switch push plate
11
Motor
12
Pinion
13
Housing cover
14
Nameplate sticker
15
Screw
Clipper head
（
Include Clipping blades
）
16
Retaining ring
17
Gear
18
Crank spindle sleeve
19
Crank spindle
20
Screw
21
Stop screw
22 Adjusting screw 23 Pressure spring 24 Head shell
25 Screw 26 Pressure plate 27 Laminated spring
28
Lower blade
29
Blade fixing screw
30
Driving carrier
31
Screw
32
Crank drive block
33
Upper blade
Charger
34
Charger cover
35
Screw
36
LED PCB
37
PCB
38
Charger base
39
Power cord
40 Screw

1.3 intended use
The clipper gives you the freedom to clip how and where.
The clipper machine exclusively intended for use on cattle and horses. Clipping horses and ponies for competition, for
leisure, for housing and for health. Clipping cattle for shows, for market, and for cleaning. Clipping the tail areas of sheep,
goats, llamas, and alpacas for hygiene. Not suitable for full shearing of sheep wool.
Other uses, in particular using the machine on people, are expressly prohibited.
Note: danger of blockage! The machine must not be operated unless the blades are fitter.
1.4 Technical data
Clipper
Model designation
GTS-2013
Voltage
10.8V
Motor power
45W
Speed
2300rpm
Amplitude of swing
6.5mm
Dimensions (W/H/L)
Approx.80mm
×
80mm
×
315mm (Include Battery cartridge)
Weight
Battery cartridge
Battery cells
6
×
3.6V Li-ion battery cells
Voltage
10.8V
Capacity
3000mAh
Overload current
Weight
charger
AC input
100-240V 50/60Hz 35W
DC output
13.7V 2A
Operating temperature
0-40
℃
Weight
2 Safety regulations
Never connect the clipper directly to the mains supply.

Clipping large animals can be hazardous, take all appropriate safety precautions.
Wear suitable clothing and eye protection. Tie up long hair and remove jewellery. Head protection is recommended
when clipping large animals
Regularly check moving parts for damage.
Repairs must be carried out by a qualified repairer using genuine GTS parts.
Use this product only for the applications intended.
Do not use accessories or attachments other than those recommended by GTS.
Do not burn or incinerate the Battery cartridge.
2.1 Introduction
This section describes the mandatory safety regulations which must be observed when using the clipping machine.
All persons undertaking work on or with the machine have an obligation to read the operating instructions.
The operating instructions must be kept safely in the storage case and accessible at all times.
2.2 Proper Use
The use to which the machine is intended for is described in Section 1.3.
The following applies to safe operation:
The details at section 1.4, “Technical data”, count as mandatory operating limits and ratings.
Clipping other animals, in particular dangerous animals such as beasts of prey and the like, counts as mis-use. this could lead
to circumstances dangerous to life and limb.
The appliance is not intended for use by young children or infirm persons. If used with a cord extension device or portable
outlet device, ensure such devices are positioned so as not to be subjected to splashing or ingress of moisture.
2.3 Safety Principles
2.3.1 Power Connections
Only insert the plug into undamaged sockets. Defective installations can cause an electrical shock or a short circuit. Outside
sockets must be equipped with a fault current breaker Observe the relevant national regulations.
Cleaning and servicing should only be done with the mains plug pulled out. Never let a machine with its cable plugged in, lie
around unsupervised. Keep children away from the working area and store the machine out of their reach.
2.3.2 Servicing and Checking Requirement
Only operate the shearing machine if it is undamaged and in a proper condition. Any defects to the housing or the electrical
cable should be rectified by a repair or service agent.
2.3.3 Noise emission/Personal Protective Equipment
Wear Ear Protectors!
Typical sound emissions when working are 93 db(A). We recommend that ear protectors should always be worn when

working.
Wear Protective Goggles and Gloves!
For your personal protection we recommend that you wear protective goggle and gloves.
Personal protective equipment is to be provided by the operator.
2.3.4 Other Dangers
Should evidence of dangers or potential dangers, not directly related to the clipping of animals, occur during operation, we
would ask you to inform us. This also applied to dangerous technical deficiencies.
2.4 Essential Operator Skills
Operating the machine safely makes only small demands of the operator. However, it is essential that they are observed and
carried out.
The operator must be experienced in handling the animals to be shorn.
The operator must have read and understood the instructions or have been instructed by an expert in the machine’s use
and have had the potential dangers explained.
Children are not permitted to operate the equipment.
2.5 Safety Instructions for charger & battery cartridge
1. SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings on(1) battery charger, (2) battery, and (3)
product using battery.
3. CAUTION - To reduce risk of injury, charge only GTS rechargeable batteries marked on the charger label. Other types of
batteries may burst causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric
shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. Do not operate charger with damaged cord or plug - replace them immediately.
9. Do not operate charger if it has received a sharp blow, been dropped or otherwise damaged in any way; take it to a
qualified serviceman.
10. Do not disassemble charger or battery cartridge; take it to a qualified serviceman when service or repair is required,
Incorrect reassembly may result in a risk of electric shock or fire.
11. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning. Turning off
controls will not reduce this risk.
12. The battery charger is not intended for use by young children or infirm persons without supervision.
13. Young children should be supervised to ensure that they do not play with the battery charger.
14. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating,
possible burns and even an explosion.
15. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in
loss of your eyesight.
2.6 Additional safety rules for charger & battery cartridge
1. Do not charge Battery Cartridge when temperature is BELOW 0°C (40°F) or ABOVE 40°C (104°F).

2. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle.
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery cartridge is not used.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible
burns and even a breakdown.
6. Do not store the tool and Battery Cartridge in locations where the temperature may reach or exceed 50°C (122°F).
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is completely worn out. The battery cartridge can
explode in a fire.
8. Be careful not to drop, shake or strike battery.
9. Do not charge inside a box or container of any kind. The battery must be placed in a well ventilated area during charging.
3 Putting into operation
3.1 Controls and Operating Notes
There are dangers inherent in the improper use of electrical equipment, especially stockbreeding equipment! Before taking
the machine into use, you should observe the following accident-prevention measures:
The mains voltage must be the same as that show on the nameplate. The charger may only be connected to an AC
supply.
Avoid all contact with the moving shearing blades.
Even when the machine is switched off, do not handle the area of the shearing blades as long as the machine is
connected to a battery cartridge. Always disconnect the power supply before corking on the shearing blades/shearing
head.
Avoid touching any machine which is in contact with any liquids. Never shear wet animals. Any liquid which has got
into the machine will lower the electrical insulation. There is then the danger of an electric shock or short circuit. Only
clean the machine when dry using a brush or the cleaning brush provided.
An electric cable lying loose on the ground for any distance can distance can snag and become a source of danger.
Before starting to charging, lay the cable out carefully and safely. Avoid any kinds in the power cable and prevent it
becoming entangled. Animals must not stand on or walk across the power cable or caught in it. Never wrap the power
cable around the machine and keep it away from hot surfaces and objects, This may result in breaks and damage to the
insulation. The cable should be regularly checked for damage.
Switch the machine to OFF (Figure 2) before replace the battery cartridge.
Wear suitable work clothes. Do not wear any loose fitting clothing or items of jewellery which could get caught up in
moving machine parts. We would recommend in the strongest terms that protective goggles and ear protectors are worn.
Never insert any object into any of machine’s apertures.
Noise from the machine can worry animals. Considerable injury can be caused as a result of being kicked by an animal
or being crushed by its body weight .Tether the animal securely, approach it from in front and switch the machine on
within the animals’ range of vision.
Animals should only be clipped if unauthorized persons have been excluded from the clipping area.
Only clip in well-ventilated spaces (dust) and never near objects or gases likely to explode.
Danger of blockage! The machine must not be operated unless the blades are fitted.
These safety notes must be complied with in all cases .It is recommended that a fault current safety plug always be used
when working with electrical equipment.
3.2 setting the clipper blades with the Adjusting screw
Before putting into operation, make adjustment as follows:

Before clipping:
With the machine switched off, tighten the Adjusting screw (part 22) until the first resistance is noticeable. Then tighten the
adjusting screw a further 1/4 turn. (Figure 3)
During clipping
The patent clipping system guarantees long term adjustment. When the blades cease clipping adequately the adjusting screw
should be tightened a further 1/4 turn (Figure 3). If this adjustment does not produce the desired result, the clipper blades
should be reshaped.
The clipping system works with much less pressure having to be applies than with traditional animal clipping machines. Care
should be taken, therefore, to ensure the blade tension is not set too high. Slightly adjust the blade tension from time to time
during clipping.
Hair may collect between the clipper blades if they are insufficiently tensioned at the start of clipping. This will have an
adverse effect on further clipping progress or make it quite impossible. If this happens, the clipper blades must be
disassembled, cleaned, oiled and re-fitted as described at 4.2.
3.3 lubrication
Before and During clipping
A thin layer of oil on the upper and lower blades (Figure 4, part 28+33)is essential for good clipping result and so as to
increase the life of the machine and its clipper blades. All other moving pares in the clipping head must also be well-oiled.
Place a few drips lf oil on the clipper blades and pour some into the lubricating holes provided on the clipper head (Figure 4,
part 3).
Only use our special oil or a paraffin oil meeting the ISO VG15 specification. This oil is nontoxic and produces no irritation
on contact with the skin or the mucous membranes .this paraffin oil degrades to some 20% after 21 days.
Poor lubrication is the most frequent cause of unsatisfactory clipping results. Inadequately oiled clipper blades will overheat.
leading to reduced blade life.
The clipping blades and clipper head must be adequately lubricated during clipper (at least every 15 minutes ) so that they do
not run dry.
3.4 Switching On/Off
There are two positions on the slide switch (Figure 2).
Position 1: Machine switched on
Position 2: Machine switched off
Always use the slide switch (Figure 2) when switching the machine on and off.
Check the switch position before replace battery cartridge.
3.5 Replace battery cartridge
1. Always switch off the tool before insertion or removal of the battery cartridge.
2. To remove the battery cartridge, withdraw it from the clipper while pressing the buttons on both sides of the battery
cartridge. (Figure 5)
3. To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place.
Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing
injury to you or someone around you.

4. Do not use force when inserting the battery cartridge. If the battery cartridge does not slide in easily, it is not being
inserted correctly.
5. A full charge lasts approximately 1.5-2 hours. Battery cartridge is automatically stopped when the output power is low
( output voltage is less than 8V).
CAUTION:
• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on
the tool.
3.6 Charging
1. Plug the battery charger into the proper AC voltage source. The charging light will flash in green color.
2. Insert the battery cartridge so that the plus and minus terminals on the battery cartridge are on the same sides as their
respective markings on the charger. Insert the cartridge fully into the port so that it rests on the charger port floor.
3. When the battery cartridge is inserted, the charging light color will change from green to red and charging will begin. The
charging light will remain lit steadily during charging.
4. When the charging light color changes from red to green, the charging cycle is complete.
5. If you leave the battery cartridge in the charger after the charging cycle is complete, the charger will switch into its “trickle
charge (maintenance charge)” mode.
6. After charging, unplug the charger from the power source.
7. A full charge takes between 2 and 3 hours.
NOTE:
The battery charger is for charging GTS battery cartridge. Never use it for other purposes or for other manufacturer’s
batteries.
When you charge a new battery cartridge or a battery cartridge which has not been used for a long period of time, it may
not accept a full charge. This is a normal condition and does not indicate a problem. You can recharge the battery
cartridge fully after discharging it completely and recharging a couple of times.
If you charge a battery cartridge from a just operated tool or a battery cartridge which has been left in a location
exposed to direct sunlight or heat for a long time, the charging light may flash in red color. If this occurs, wait for a
while. Charging will begin after the battery cartridge cools. The battery cartridge will cool faster if you remove the
battery cartridge from the battery charger.
If the charging light flashes alternately in green and red color, charging is not possible. The terminals on the charger or
battery cartridge are clogged with dust or the battery cartridge is worn out or damaged.
3.7 malfunctions
See the list of malfunctions is section 5 “Repairs” for the rectification of malfunctions.
4 Servicing
Before starting any servicing work .disconnect the power supply; remove the battery cartridge. Even with the machine
switched off .do not handle the area round the clipper blades as long as the machine is still connected to a power
source .Whenever working on the clipper blades / clipper head .always first disconnect the power supply.

4.1 Cleaning
cleaning the clipper head and clipper blades
After clipping, remove all oil from the machine by rubbing it down with a dry cloth and carefully clean the clipper head and
clipper blades with a dry brush .then oil the parts to prevent rusting, Even the smallest rust spots on the blades can adversely
affect clipping or make it completely impossible.
4.2 Fitting the clipper blade
A pair of clipper blades consists of a lower blade (Figure 6, part 28).and an upper blade (Figure 6, part 33).When fitting
the blades care should be taken to ensure that the correct surfaces come to rest against each other. The blades are fitted as
follows:
Loosen the pressure adjusting screw (Figure 7, part 22 ) and place the machine on a hard surface so that the blade fixing
screws (Figure 6, part 29) lie uppermost.
Loosen the two blade fixing screws and remove the two old blades.
Ensure that the new clipper blades are clean, particular care should be taken to ensure that the ground surfaces are free of dirt;
if not, even newly ground clipper blades will not clip satisfactorily.
Place the new upper blade in the guide points of the driving carrier; then place a few drops of oil on the ground surface
(Figure 7). Now push the new lower blade between the loosened screws (Figure 7)
What is now important is that you adjust the blades against each other in such a way that the ground surface of the lower
blade projects approx 1.5-2.0 mm beyond the tips of the upper blade. (Figure 8)
Once you have adjusted the clipper blades. Set the position of the lower blade and tighten up the blade fixing screws. (part
29)
4.3 Resharpening the clipper blades
Only work with sharp shearing blades. Replace blunt blades or those with missing teeth .proper Resharpening can only be
done with a special machine and by a trained technician contactable through your service centre.
4.4 Storing the clipping machine
Only store the machine in a dry place and in the case supplied. Do not switch on the machine if you suspect any liquid has
got into it. There is then a risk of an electric shock or short circuit. Hand the clipping machine into a service centre.
Make it a habit to store the machine between use, store it well-cleaned, oiled and with tension slackened off, in its storage
case, in a clean, dry place, out of the reach of children.
5 Repairs
5.1 Introduction
Actions to be taken to rectify malfunctions are indicated in the “Rectification” column of the malfunction lists. Those
rectification notes on a dark background may only be carried out by an authorized service centre.

Details of authorized service centre are be found at the end in the “contact addresses” section.
5.2 Mclfunction Lists
Contact an authorized service centre in the event of malfunctions not contained in these instructions
MALFUNCTION CAUSE RECTIFICATION
Upper blades move little
Crank drive block (part 32) lost Replace Crank drive block
Laminated spring (part 27) completely
broken
Replace Laminated springs on both sides
Crank drive block (part 32) and/or Crank
spindle (part 19)are worn out
Replace Crank drive block
Have Crank spindle replaced
Upper blade does not move Faulty Gear (part 17)Replace Gear
Pressure adjustment screw jams Thread is fouled or rusty (part 22)Clean and oil thread
Pressure spring (part 23)has jammed
Have Pressure spring replaced
There is play in the Laminated
spring in the head anchorage Fixing screws loose Tighten fixing screws
Driving carrier has too much
play between the laminated
springs
Laminated spring and/or fixing screws are
worn out
Have Laminated spring and/or fixing screws
replaced
Driving carrier can only be
mo
ved up and down with
difficulty
Centering bush lost Have new Centering bush fitted
Cuts badly not at all
Clipper blades are blunt Have upper and lower blade resharpened by
service centre
Clipper blades have not been correctly
ground
Clipper blades are not oiled
Oil clipper blades every 15 minutes
Clipper tension too low
Increase pressure by tightening the
regulating screw (Figure 3)
Laminated spring are broken
Have Laminated spring replaced
The animal’s hair is wet
Only clip when dry
Hair jammed between upper and lower
blades
Disassemble blades, clean well and oil; then
refit and increase pressure
Too much play in clipper head
Have clipper head inspected
Spacing between upper and lower clipper
blades incorrectly adjusted
Adjust spacing correctly
Power cuts out
Battery cartridge is be overloaded Unplug clipper. Clean, oil, and correctly
tension the blades.
Battery cartridge charge is low
Recharge the Battery cartridge
Switch is broken
Replace Switch
Motor is broken
Have Motor replaced
Switch push plate is broken
Have Switch push plate replaced
Loose connection
Use a qualified repairer
Other Possible malfunction Have clipper checked by a qualifies repairer

6 Environmental protection and disposal
6.1 Introduction
The owner has a duty to disuse of the clipper blades as well as of the clipping machine properly at the end of its service life.
Please observe your relevant national regulations.
6.2 Recycling the Battery
The only way to dispose of a GTS battery is to recycle it. The law prohibits any other method of disposal. To recycle the
battery:
1. Remove the battery from the tool.
2. a) Take the battery to your nearest GTS Factory Service Center.
b) Take the battery to your nearest GTS Authorized Service Center or Distributor that has been designated as a GTS battery
recycling location.
Call your nearest GTS Service Center or Distributor to determine the location that provides GTS battery recycling.
6.2 Material Categories
Please hand the machine to a service centre or to a specialist electrical dealer in your vicinity for disassembly.
Material
Contained in items from illustration
Rubber
39
Polyamide
1/5/7/9/10/11/13/34/38
Iron/steel
1/4/11/12/15/16/17/18/19/20/21/22/23//25/26/27/28/29/30/31/32/33/35/40
Copper/ Brass
1/5/8/9/11/13/36/37/39
Aluminum
24/36/37
battery
1
Other materials
1/6/9/11/14/17/36/37/39

Illustration
Figure 1

Figure 2 Figure 3
oil
Figure 4 Figure 5
Figure 6 Figure 7

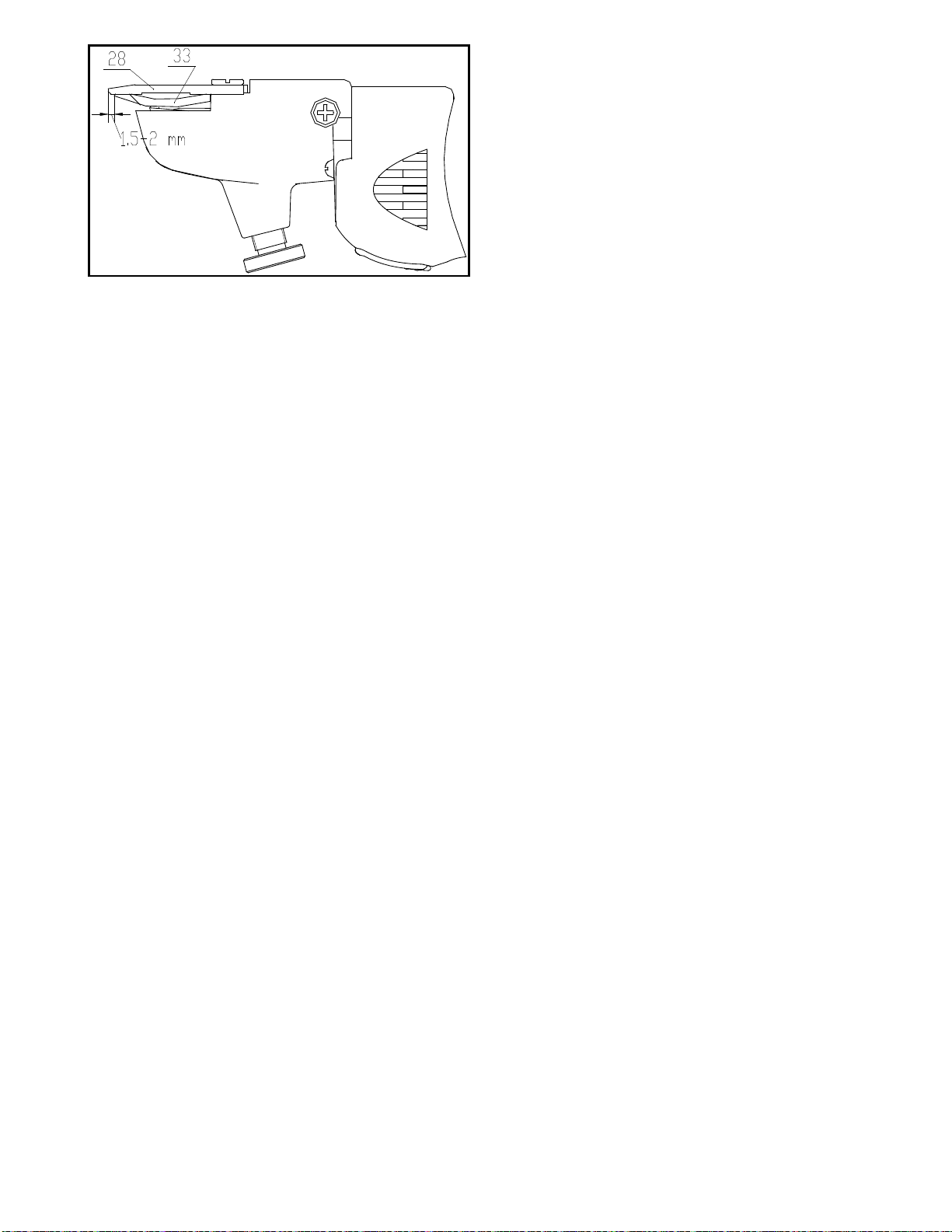

Figure 8

Arnd Enneking
M: 0421 062 697 E: [e-mail]
Heidi Enneking
M: 0409 289 532 E: [e-mail]
Box 89, Mount Barker SA 5251
100% CORDLESS
www.mobishear.com.au
