MOBISUN MPSG1800 User manual

Operating Instruction of
Portable Power Generator
MPSG1800 User Manual
www.mobisun.com
Warm prompt-please carefully read this instruction before operation!
Thank you for purchasing our products!
Before using this equipment, please read the warranty service in the warranty card first
if it does not meet, please contact our company as soon as possible to protect your rights.

Comtents
1. Product Introduction............................................................. 3
2. Button Instruction..................................................................4
3. Operating Instruction............................................................ 5
4. Technical Parameters.......................................................... 6
5. Application Areas..................................................................8
6. Troubleshooting.................................................................... 9

3
Mobisun series portable power station is built by our company after many
years of professional accumulation based on extensive user's feedback. The new
design adopts imported lithium battery as the energy storage main body. It has the
features of small size, large capacity, light weight, high power, easy to carry and so
on, providing you the simple solution of mobile power supply. It is widely used in
outdoor office, medical rescue, fire protection Rescue, field recreation, emergency
communications, and environmental monitoring.
█Intelligent Fully-Automatic Dynamic Charge and Discharge
█Multi-
f
unction display, showing battery voltage and battery power,
█
█
█
█
█
220V voltage output, Can supply power to most
(220V) and DC (DC5V) at the same time
Smallsize,largecapacity,lightweight,easy to carry
SPWM pulse widthmodulationsine wave ,highprecisionlowripple
Sinewave AC
Builtin high capacity,long life,high efficiency lithium-ionbattery
Can outputAC
█With Overcharge and over-discharge protection, power monitoring
Management Platform
voltage output and power output
voltage output
electrical equipments
and low battery warning function.
█With short circuit, overload, over temperature and other protection
functions, it is safe and reliable. There is a security warning and
sign and cautions.
1. Product Introduction
Overview

2. Button Instructions

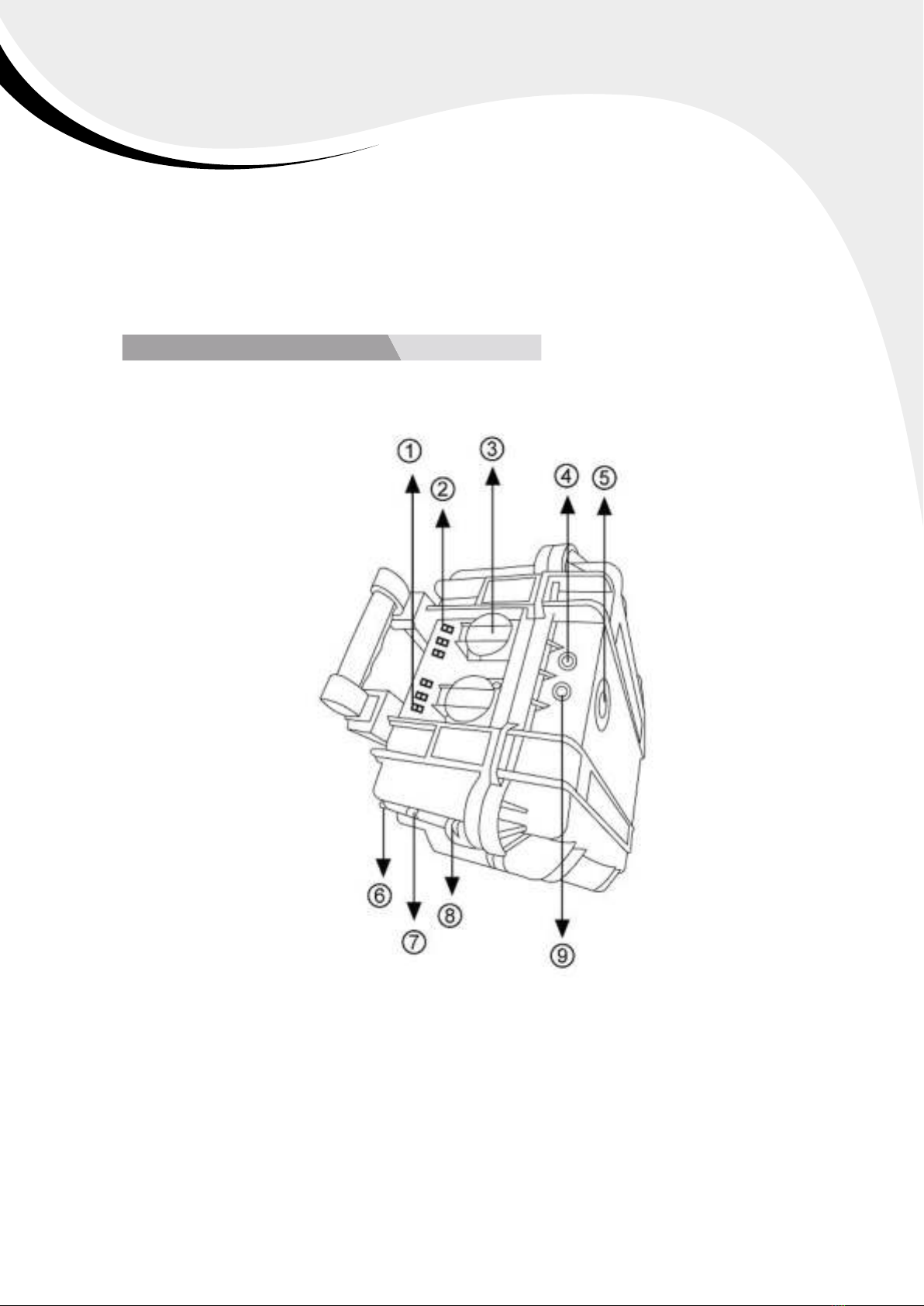

MPSG1800 Button Instruction
○
1Battery Voltage ○
2Output Voltage ○
3AC Output
○
4Lighting Switch ○ 5LED Light ○ 6DC 5V Output
○
7DC 12V Output ○
8Charging Input ○ 9Power Switch
4

5
3. Operation Instruction
3.1 Operation Step
①: Make sure the power of AC electrical appliance connected with portable power
station is lower than the rated output of power station. If it is higher, please use
the higher output portable power station.
②：
Plug the plug of appliance into the AC main power socket firstly, and then turn on
the power switch and power station will works well.
③：Multi-function LCD Screen can indicate battery voltage, battery level, AC output
voltage and load output.
○
4：When the battery voltage is low, the output will stop, the screen will be turn off
and the buzzer will alarm, meaning this power station need to be charged.
○
5Please turn off the power switch after use power station. Please charge the
power station if battery voltage indicates low.
Caution:
When the voltage of the battery is lower than 45V, the load should be reduced
to less than 1/3 of the rated load to prevent the battery from being discharged
too quickly and to protect the power station.
3.2 Operation Caution
Strictly comply with operation steps when using power station. It should be
operated under cool and dry circumstance and do not let water or other fluid
substance immerse in the power station. To keep perfect heat dissipation, ensure
that at least 5CM space around the power supply airflow is unobstructed. It is
prohibited that using power station under inflammable, explosive, corrosive gases
environment such as gasoline and gas.
Power Charge: The power station is equipped with battery charger, which is
automatically battery charge adapter without human intervention . It is suggested to
charge the battery without any load. If long time no use, please make sure the
power station will be charged once every 3 months.
The power provided by multi-functional portable AC&DC power station is rated load
power , which is applicable for those AC appliance power that are lower than this
rated load power .But for some electrical appliance, the starting power is higher
than rated power when startup. For example, inductive load equipment starting
power is generally 6-8 times higher than its rated power. Such as energy-saving
lamp starting power is dozens times the power of its rated power. The overload
protection will be activated and the output will be automatically disconnected once
electrical appliance starting power is higher than the peak power of the power
station.
3.3 Operate AC Load

Model No MPSG1800
Battery Type Lithium Battery
AC Current Output 10A
AC Voltage Output 220V
Power Output 1800W
Peak Power 3600W
Waveform Output Sine Wave
Frequency 50HZ
DC Voltage Output - Cigaree lighter DC 12V/10A
- Waterproof baery terminals 48V/30A, PEAK 60A
- 2 x USB 3.6-6.5V/3A, 6.5V-9V/2A, 9V-12V/1.5A
Protection functionsOver Charge, Over Discharge, Over load,
Over Temperature, Short Circuit,
Under Voltage etc.
Charging parameters54.6V/10A
Battery capacity 48V/60Ah
Charging time 6h
Cycle life >3000 times
Appearance size 458*348*205（mm）
Weight 25.0Kg
4. Technical Parameters
6

Working Temperature：-20℃--65℃
Working Humidity：0%RH--90%RH
Note: The above load test use time is for reference only. The actual use time will
vary depending on the brand of the load product.
Equipment Power(W) Usage Time(h)
MPSG1800
LED Light 5 600
LCD TV
30
100
Laptop
45
60
Household fans
75
40
Audio
150
20
Refrigerator
150
20
Desktop computer 200 15
Washing machine 300 9
Vacuum cleaner 500 6
Air Conditioning (1P) 800 3
Microwave oven 1200 2.5
Electric kettle
1500
2
Electric heating
2000
/
Electric water heater 2200 /
4.2 Working Temperature
4.3 Load Reference Time
7

8

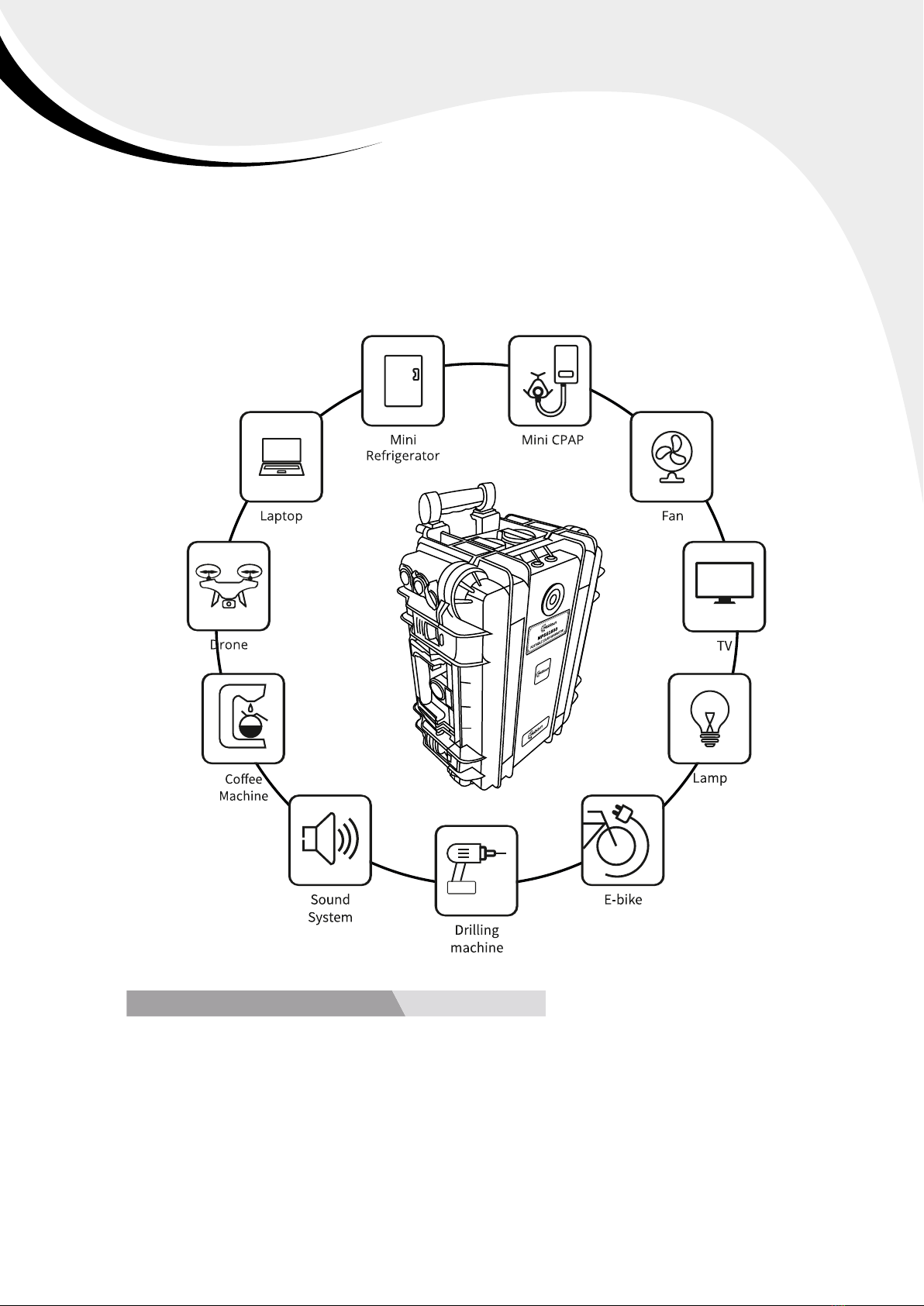

Applicaon Area
Multi-functional portable AC&DC power station can be applied for Medicaid,
emergency communication, environment monitoring, firefighting , army field
practice, outdoor work, household power outage as well as remote rural without
electricity , advertising media for outdoor shooting,
Except for above this normal application , it also can be used in tasks and
administration, such as installation and maintenance of telecom network
optimization , the army information technology company, the geographical survey
task force, miners oil exploration team, architectural survey, water detection ,
investigation on wild resources of forestry agriculture etc .
5. Application Area

9
○
1No AC Output: Check LED displays or not. If not, please charge the battery for 1
– 2mins to activate battery output.
○
2No DC Output: Turn on POWER switch.
○
3Long time alarm: Overheat or low battery level will lead to long time alarm. If the
temperature is too high, please stop using the power station and let it cool down
before using .If battery voltage is too low, please recharge the power station timely.
○
4Lamp not light: Turn on the power switch again and then switch on the light.
○
5No display on the screen when powered on: The battery voltage is low and is
under the protection. Please turn off the “POWER” button ,then plug in the charger.
Please use the battery when it is fully charged.
6. Troubleshooting
