For all questions about your ceiling fan please read all included
instructions, installation procedures, troubleshooting guidelines
and warranty information before starting installation.
For missing parts or general inquiries call our trained technical staff at:
1-866-810-6615 option 0
MON-FRI 8AM-8PM EST
Email: [e-mail]
Or live chat at modernforms.com
For fast service have the following information below when you call:
1. Model Name and Number
2. Part Number and Part Description
3. Date Of Purchase and Purchase Location
1-866-810-6615 option 1
MON-FRI 8AM-8PM EST
Email: [e-mail]
General Inquiries
Fan Support
FR-W2202-62L
FR-W2202-54L

SkylarkInstructions4
For operation, maintenance, and troubleshooting information,
visit http://modernforms.com/fan-support/
To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before
beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70” and
local electrical codes. Electrical installation should be performed by a licensed electrician.
The fan must be mounted with a minimum of 7 ft. (2.1m) clearance from the trailing edge of
the fan blades to the floor and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the
surrounding walls. Never place objects in the path of the fan blades. To avoid personal injury or
damage to the fan and other items, please be cautious when working around or cleaning the fan.
To avoid electrical shock or damage to the motor or finish, do not use water or chemicals
when cleaning the fan or fan blades. A dry cloth or lightly dampened cloth will be suitable
for most cleaning.
After making electrical connections, spliced conductors should be turned upward and pushed
carefully up into the outlet box. The wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet box, and the ungrounded conductor on
the other side of the outlet box.
All set screws must be checked and re-tightened
where necessary before installation.
Safety Rules
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 5
WARNING:Do not install or use your fan if any part(s) is/are damaged or missing. This product is
designed for use only with the supplied parts and/or accessories designated for use with this product
by Modern Forms. Substitution of parts or accessories not designated for use with this product by
Modern Forms could result in personal injury or property damage and will void the warranty. Contact
an authorized dealer or the manufacturer if any parts are damaged or missing.
WARNING:To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or controlled from the Modern Forms app.
WARNING:Do not use power tools to assemble or install your fan. Using power tools can result in
improper assembly which can lead to noise or fan damage,personal injury or property damage.
WARNING:To reduce the risk of personal injury, do not bend the blade arms when installing the
brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING:Do not operate fan unless fan blades are in place. Noise and fan damage can occur
WARNING:This appliance is not intended for use by young children without supervision.
WARNING: To reduce the risk of fire, electric shock, personal injury or damage to the fan or other
items, the outlet box and support structure must be securely mounted and capable of reliably
supporting a minimum of 35 Ibs (15.9 kg). Use only UL/cUL listed outlet boxes marked “FOR FAN
SUPPORT.” Use only the screws and washers provided with the outlet box.
CAUTION:Before assembling your fan, refer to the “Making the Electrical Connections“ section.
If you feel you do not have enough wiring knowledge or experience, have your fan
installed by a licensed electrician.
NOTE:Before servicing or cleaning the fan, switch power off at the circuit breaker.
FR-W2202-62L
FR-W2202-54L

SkylarkInstructions6
Integrates
seamlessly with:
devices you already own
works with the
Google Assistant
Get Smart...
Premium smart
features:
Accessories:
DC
MOTOR
complement high quality materials
personalize your experience
Quiet, reliable, and up to 70%
Wi-Fi and Bluetooth enabled
Bluetooth Wall Control
Dims light to 1% | ON/OFF
6 fan speeds | Sold separately
F-WCBT-WT White
Bluetooth Remote Control
Dims light to 1% | ON/OFF
6 fan speeds
F-RCBT-WT White
Wet Location-listed to the strictest
UL/cUL safety regulations. Finished
and rated for interior and exterior use
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 7
1. Mounting Options 10
2. Installing the Mounting Bracket 12
3. Attaching the Fan Blades 12
4. Installing the Adapter Plate 14
5. Hanging the Fan 14
6. Making the Electrical Connections 18
7. Installing the Optional Wall Control 20
8. Finishing the Installation 22
9. Installing the LEDLuminaire Module 24
10. Controlling the Fan 26
11. Reset 28
12. Breeze Mode 28
13. Application 28
14. Accessories 30
14. Troubleshooting 32-34
Contents

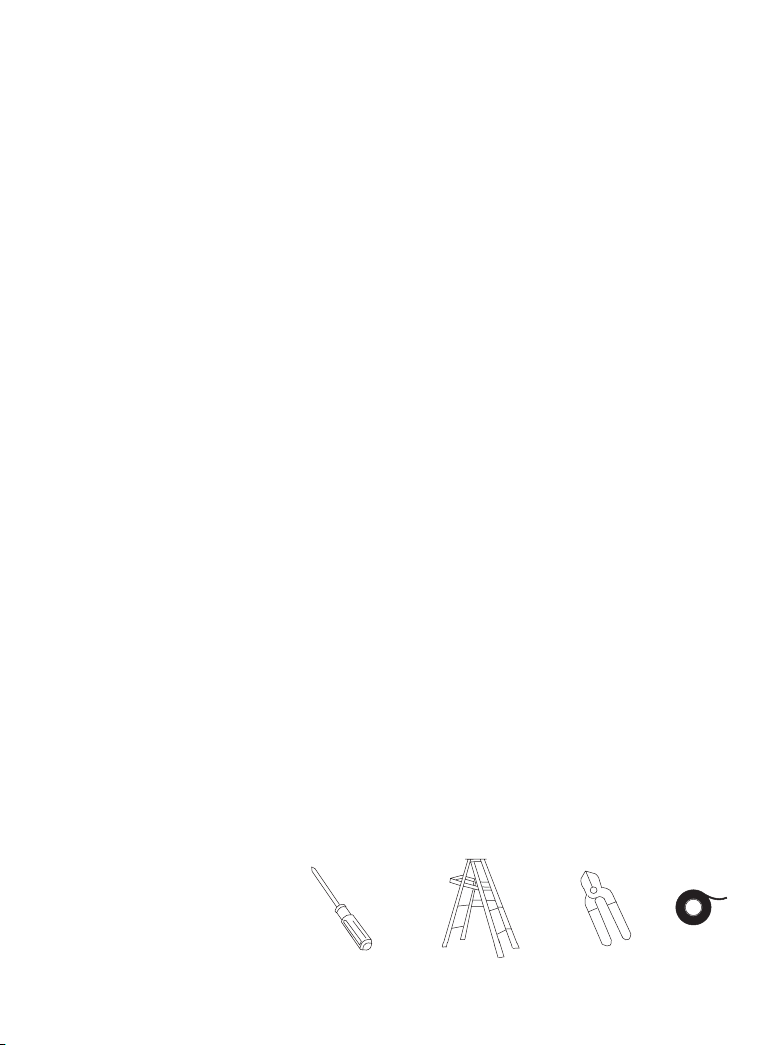

Tools Required
FR-W2202-62L
FR-W2202-54L

Skylark Instructions8
C: Safety Cable
Φ6.5x19x2mm Flat Washer (1pc)
3/16"(Φ5.2x8.4x1.0mm) Spring Washer (1)
#10x76mm Pan Head Phillip Wood Screws (1)
D: Wire Connectors (8)
A: Junction Box
#10 x 38mm Pan Head Phillip Screws (2)
Ø5 x 14 x 1mm Flat Washer (2)
3/16" Star Washer (2)
B: Blades
1/4" x 13" Pan Head Phillip Screws (7)
1/4 (6x13x1mm) Flat Washers (7)
6. Adapter Plate
RPL-F2202-ADP-**
7. LED Module
F4IN-120V-R1-30
8. PC Shade
RPL-F2202-GLA
9. Control Receiver
w/Hardware
F54”: -R3-2202-054R
F62”: -R3-2202-062
10. Remote Control
F-RCBT-WT
• Part A
• Part B
• Part C
• Part D
1. Blade Set of 3
RP54”: L-F2202-54-BD-**
RP62”: L-F2202-62-BD-**
2. Hanger Assembly
Mounting Bracket
Downrod Assembly
RPL-HGR-ASM-**
3. Canopy w/Canopy Ring
RPL-CAN-RND-**
4. Coupling Cover
RPL-F2202COUCVR-**
5. Motor Assembly

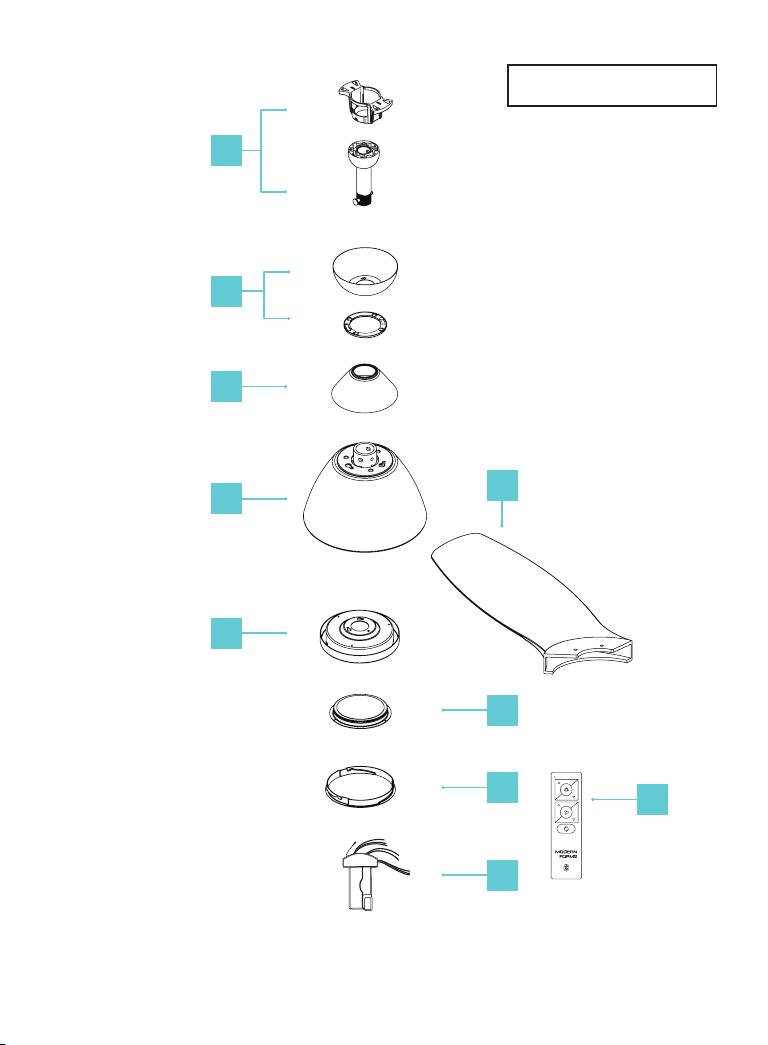

Package Contents
Before discarding packaging materials be certain all parts have been removed.
Place the parts from the hardware bag into a small container to keep them from being lost.

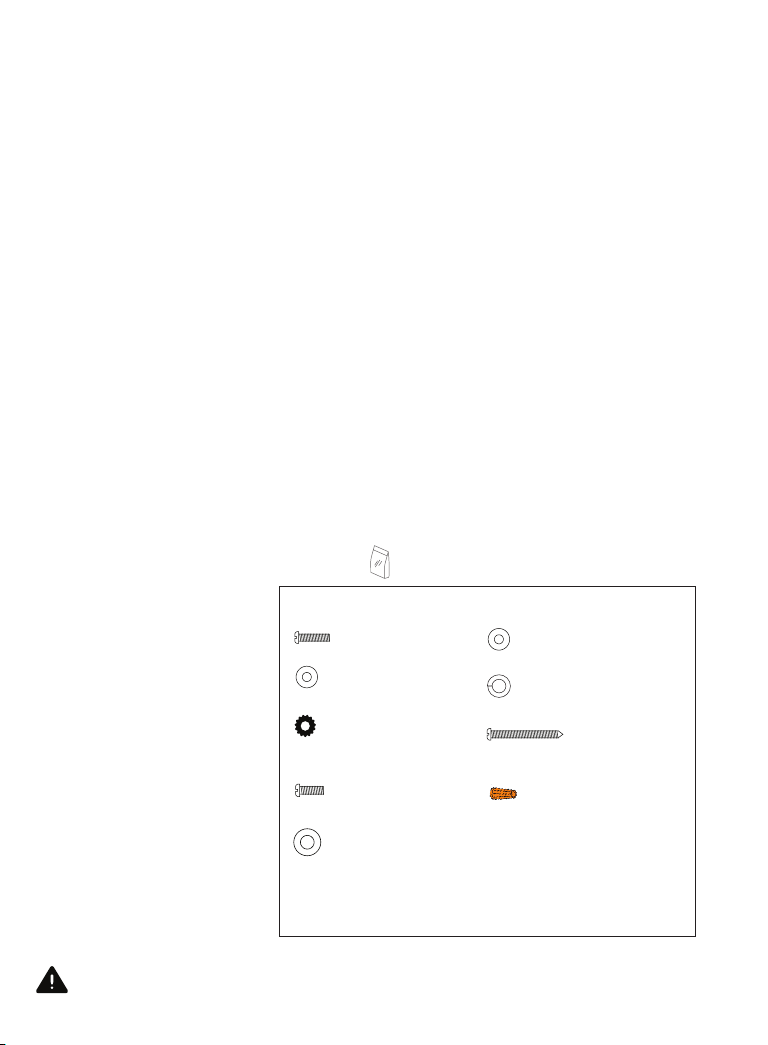

Hardware Bag
RPL-F2202-PARTS
** denotes finish code of fan
Hardware Bag
(Included with receiver)
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 9
1
8
7
10
9
4
5
6
Hanging Weight: 16.31 lbs (54”)
Hanging Weight: 18.51 lbs (54”)
IMPORTANT: Please make note of
the MAC ID on the receiver and
keep it in a safe place.
MACID
2
3
FR-W2202-62L
FR-W2202-54L

SkylarkInstructions10
1. Mounting Options
CAUTION: To prevent electrical shock, ensure electricity has been
turned off at the circuit breaker before beginning.
If there isn’t an existing UL/cUL listed outlet box, please refer to the
following instructions. Secure the outlet box directly to the building
structure. Use appropriate fasteners and building materials. The outlet
box and support structure must be able to fully support the moving
weight of the fan (at least 35 lbs/15.9 kg). Do not use plastic outlet
boxes. Use only UL/cUL listed outlet boxes marked
“FOR FAN SUPPORT.” Refer to Part A
Secure the outlet box directly to the building structure.
Figures 1-1C are examples of different ways to mount the
outlet box.
NOTE: To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar.
NOTE: Downrod fans can be suspended up to a maximum
recommended length of 72” using additional downrods
(sold separately) and the included 80” lead wire.
NOTE: The sloped ceiling kit (sold separately) is required for sloped
ceiling applications, and will accommodate slopes up to 45° (Fig. 1B).
NOTE: You may need a longer downrod to maintain proper blade
clearance when installing on a steep, sloped ceiling (Fig. 1B).
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 11
1
1A
1B
1C
1
1
2
1
1
2
3
3
1. Support Brace
2. Outlet Box
3. Joist
1. Support Brace
2. Mounting Bracket
3. Recess Outlet Box
1. Outlet Box
1. Outlet Box
Support Ceiling
Max 30° Angle
FR-W2202-62L
FR-W2202-54L

Skylark Instructions12
Remember to turn off power at the breaker.
Follow the steps below to hang your fan properly:
1. Disconnect power at the breaker to the fan location.
2. Remove 1 of 2 screws from the bottom of mounting bracket and
save for use in Finishing the Installation section. Loosen the other
screw (Fig. 2).
3. Pass the 120-volt supply wires through the center hole in the ceiling
mounting bracket as shown in (Fig. 2A).
4. Secure the mounting bracket to the ceiling outlet box with the
screws and washers provided with your outlet box (Fig. 2A).
2. Installing the Mounting Bracket
3. Attaching the Fan Blades
1. Attach the fan blades with the blade screws and washers provided.
(Fig. 3). Refer to Part B
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 13
3
2 2A
1
2
2
1
3
4
1. 120V Wires
2. cUL Listed Electrical Box
3. Mounting Bracket
4. Mounting Screws
(supplied with outlet box)
1. Mounting Bracket
2. Screw
FR-W2202-62L
FR-W2202-54L

SkylarkInstructions14

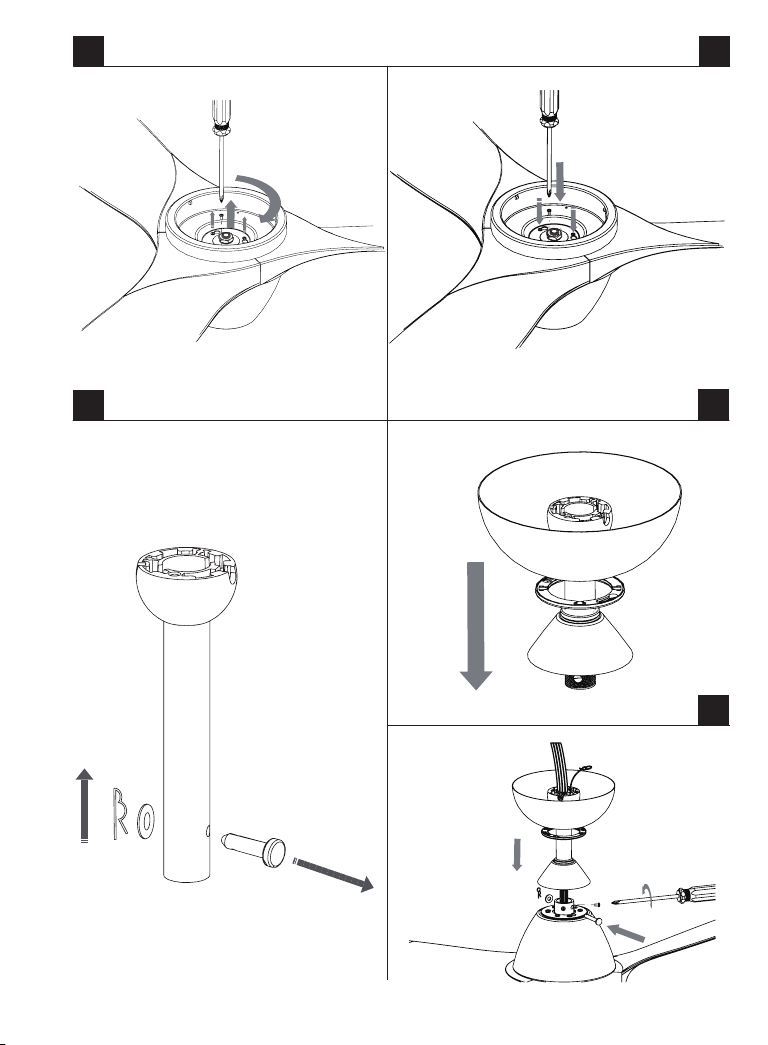

5. Hanging the Fan
4. Installing the Adapter Plate
1. Remove one of the three mounting ring screws from the fan and
loosen the other two screws. (Do not remove) (Fig. 4).
2. Place the key holes in the adapter plate over the two screws
previously loosened from the mounting ring. Turn the adapter plate
until it locks in place at the narrow section of the
key holes (Fig. 4A).
3. Locate the mounting ring screws you previously removed and install
the adapter plate. Tighten the other two mounting ring screws
previously removed from hte mounting ring. (Fig. 4A)
1. Take out the set screw located in the hanger ball, lower the
hanger ball and remove the cross pin. Remove the hanger ball from
the hanger ball downrod assembly (Fig. 5).
2. Remove the clevis pin and cotter pin, and loosen the two collar
screws from the motor collar (Fig. 5A).
3. Carefully feed the motor wires and safety cable up through the
downrod. Thread the downrod into the collar (Fig. 5B).
4. Align the holes of downrod and collar and insert the cotter pin and
clevis pin. Tighten the two collar screws (Fig. 5B).
WARNING: Failure to properly install the cotter pin and/or tighten
the screws could result in the fan loosening and possibly falling.
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 15
4 4A
55A
5B
FR-W2202-62L
FR-W2202-54L

SkylarkInstructions16

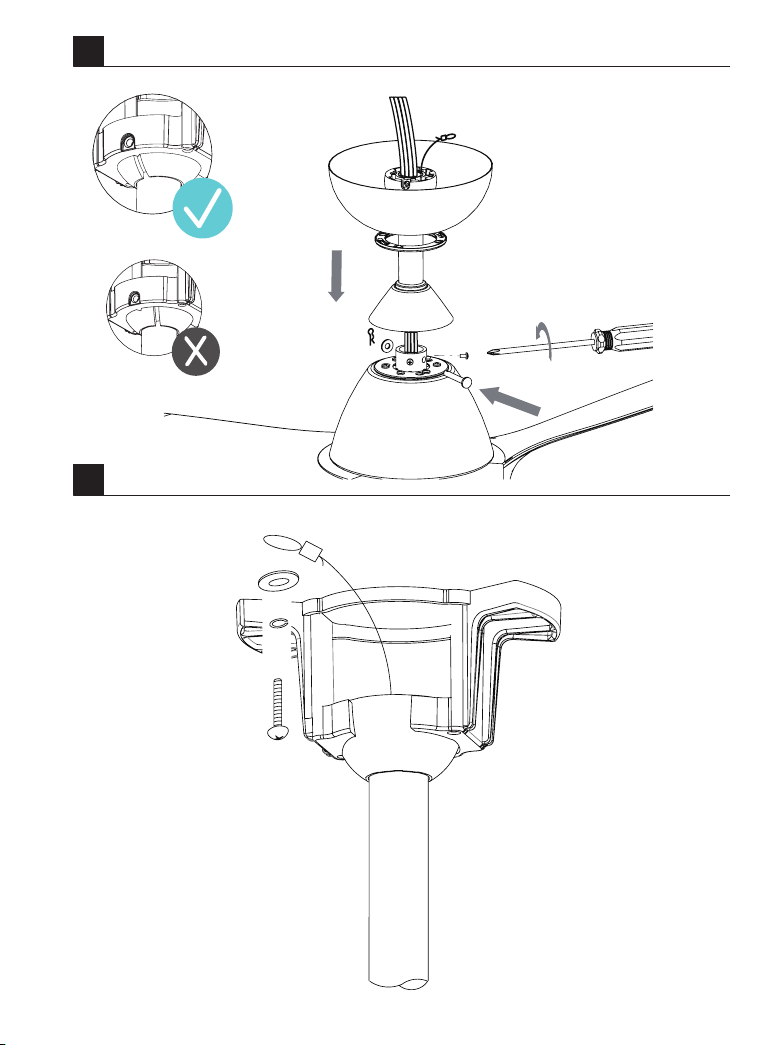

1. Slip the coupling cover, canopy screw cover (painted side face
down), and canopy (opened side up) onto the downrod (Fig. 5B).
Coupling cover goes all the way to the bottom.
2. Carefully reinstall the hanger ball onto the downrod, being sure that
the cross pin is in the correct position, the setscrew is
tightened and wires are not twisted (Fig. 5C).
3. Carefully lift the fan motor assembly up to the mounting
bracket and seat the hanger ball in the mounting bracket socket.
Make sure the tab on the mounting bracket socket is properly
seated in the groove in the hanger ball (Fig. 5C). Rotate the socket
assembly until the ball drops and locks into the hanger bracket
screw.
4. Secure the safety cable into the structure beams using the wood
screw, washers, and spring washers provided (Fig. 5D).
Refer to Part C
NOTE: A Safety cable is required for all installations in Canada. Safety
cable is required for ceiling fan and light combinations over
35 lbs. in both flush and downrod models in the United States.
5. Hanging the Fan
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 17
5C
5D
FR-W2202-62L
FR-W2202-54L

SkylarkInstructions18
6. Making the Electrical Connections
WARNING: Installation of this fan requires that a three-conductor
cable (including ground wire) which should run between ceiling and wall
outlet box.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire nuts,
except for the ground wire. Use Part D
Insert the receiver into the mounting bracket with the flat side of the
receiver facing the ceiling (Fig. 6).

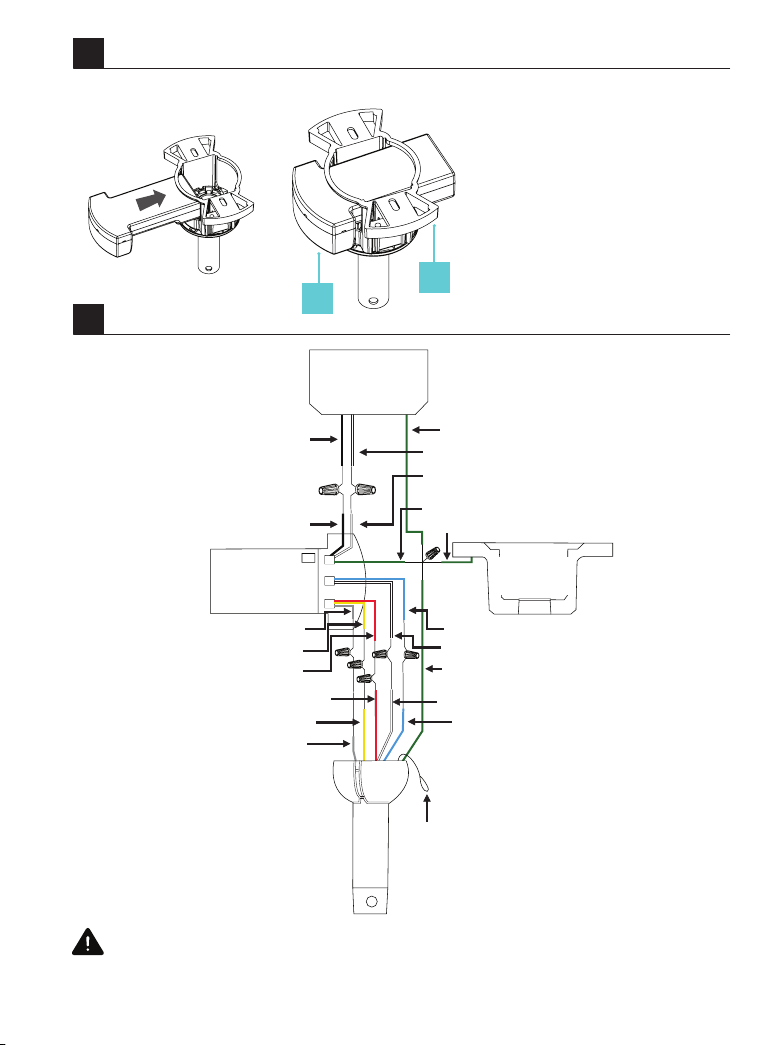

Motor to Receiver & Receiver to house supply wires (Fig. 6A).
1. Connect the hanger ball/downrod assembly ground wire, mounting
bracket ground wire and receiver ground wire to
the ground wire in outlet box.
WARNING: Failure to connect ground wires could result in
poor fan control functionality.
2. Connect the red wire from the fan to the red wire marked
“TO MOTOR” from the receiver.
3. Connect the grey wire from the fan to the grey wire marked
“TO MOTOR” from the receiver.
4. Connect the yellow wire from the fan to the yellow wire marked
“TO MOTOR” from the receiver.
5. Connect the white wire from the fan to the white wire marked
“FOR LIGHT” from the receiver.
6. Connect the blue wire from the fan to the blue wire marked
“FOR LIGHT” from the receiver.
7. Connect the black (hot) wire from the ceiling to the black wire
marked “AC in L” from the receiver.
8. Connect the white (neutral) wire from the ceiling to the white wire
marked “AC in N” from the receiver.
FR-W2202-62L
FR-W2202-54L

Skylark Instructions 19
Follow the steps above to connect the fan to your household wiring. Use the plastic wire nuts with your fan.
Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections.
6
6A
1
2
1. Mounting Bracket
2. Receiver
Black(Hot)
can be RED from Switch leg
Black(Line in H)
RED(to Motor)
GREEN(Ground)
BLUE (to Light)
BLUE (for Light)
GREEN(GND Must Use)
GREEN(Hanger Bracket Ground)
GREEN(Hanger Bracket Ground)
RED(to Receiver)
GREY(to Motor)
WHITE(Neutral)
WHITE(to Light)
WHITE(for Light)
Safety Cable
GREY(to Receiver)
YELLOW(to Motor)
WHITE(Line in N)
YELLOW(to Receiver)
Outlet
Box
Receiver
Hanger Ball & Downrod
Hanger
Bracket
FR-W2202-62L
FR-W2202-54L

SkylarkInstructions20
7. Installing the Optional Wall Control
NOTE: Bluetooth Wall Control Optional Accessory not included.
A Bluetooth Wall Control can be purchased separately.
1. Connect the green wire marked “GROUND” from the wall
control to the copper wire from the wall outlet box that
feeds back to the circuit breaker – important for proper
fan function (Fig. 7).
2. Connect the black wire marked “LINE IN” from the wall control to
the black LINE VOLTAGE wire from the wall outlet box that feeds
back to the circuit breaker (Fig. 7).
3. Connect the red wire from the wall control to the black wire from
the wall outlet box that feeds up to the fan (Fig. 7).
4. Connect the white wire from the wall control to the white (neutral)
wire from the wall outlet box (Fig. 7).
5. Carefully tuck the wire connections inside the outlet box.
Secure the wall control with the two (2) wall control screws
provided (Fig. 7A).
6. Attach the wall mounting plate over the wall switch and secure with
the two (2) wall mounting plate screws provided (Fig. 7A).
7. Fasten the wall plate to the wall mounting plate (Fig. 7A).
7
Wall Switch WiresHouse Wires
(Hot In)
(Neutral)
(Ground)
(Hot out to Fan)Fan Switch leg
(Copper/Ground)
(Neutral)
(Hot)
From Breaker
* Home Wiring may vary
to Fan
FR-W2202-62L
FR-W2202-54L
