Moderno Kids MKHP011 User manual

88 LB
12 Volt RC Ride-On Car

55 585 0088
DO NOT RETURN
THIS PRODUCT TO THE STORE!
Please read the following important information.
For Moderno Kids Customer Care, product operation
information, or for problem resolution, call toll-free:
10 a.m. to 6 p.m. Eastern Standard Time MON - FRI
www.modernokids.com

1
If a battery leak develops, avoid contact with the leaking acid and
place the damaged battery in a plastic bag. See information in
“Disposal of Battery” for proper disposal.
If acid comes in contact with skin or eyes,
flush with cool water for
at least 15 minutes and call a physician.
If acid is internally ingested,
give water, milk of magnesia or egg-
white immediately. Never give emetics or induce vomiting. Call a physician.
WARNING!
To reduce the risk of injury, adult supervision is required. Never use
in roadways, near motor vehicles, on or near steep inclines or steps,
swimming pools or other bodies of water. Always wear shoes and a helmet.
Never allow more than 1 riders.
TO PREVENT FIREAND ELECTRIC SHOCK:
DO NOT use the battery or charger for any other product.
Overheating, fire or explosion could occur.
NEVER modify the electric circuit system. Alterations could cause a shock,
fire or explosion.
DO NOT open the battery. Battery contains lead acid and other
materials that are toxic and corrosive.
DO NOT open the charger. Exposed wiring and circuitry inside case may
cause electric shock.
ONLY ADULTS may handle or charge the battery. NEVER allow child to
handle or charge the battery. Battery is heavy and contains lead acid
(electrolyte).
DO NOT drop the battery. Permanent damage to the battery could occur
or cause serious injury.
Before charging the battery, check for wear or damage to the battery,
charger and the connectors. DO NOT charge the battery if any damage
to parts has occurred. Replace with manufacturer’s parts ONLY.
DO NOT allow the battery to drain completely; recharge the battery after
each use or once a month if not used regularly.
DO NOT charge battery upside down.
Always secure the battery with the bracket. Battery can fall out and injure
a child if the vehicle tips over.Risk of fire. Do not bypass.
Only use battery and charger provided and specified by manufacturer. Use
of the wrong type of battery for charger could cause a fire or explosion.
DO NOT allow any type of liquid on the battery or its components.
Explosive gases are created during charging. DO NOT charge near heat
or flammable materials. Charge in a well ventilated area ONLY.
Charge the battery in a dry area ONLY.

Windshield
Front bumper support
Wheel-gearbox adapter Rear top bar
Rear bar support
Rearview mirror
Rear top bar light
M5 Locknut*1
M10 Locknut*4 M8 Locknut*1
Steering frame
Battery charger
Parental Remote Rear axle
Tail light lens
Wheel center cap
5mm×50mm
Steering fixing bolt×1

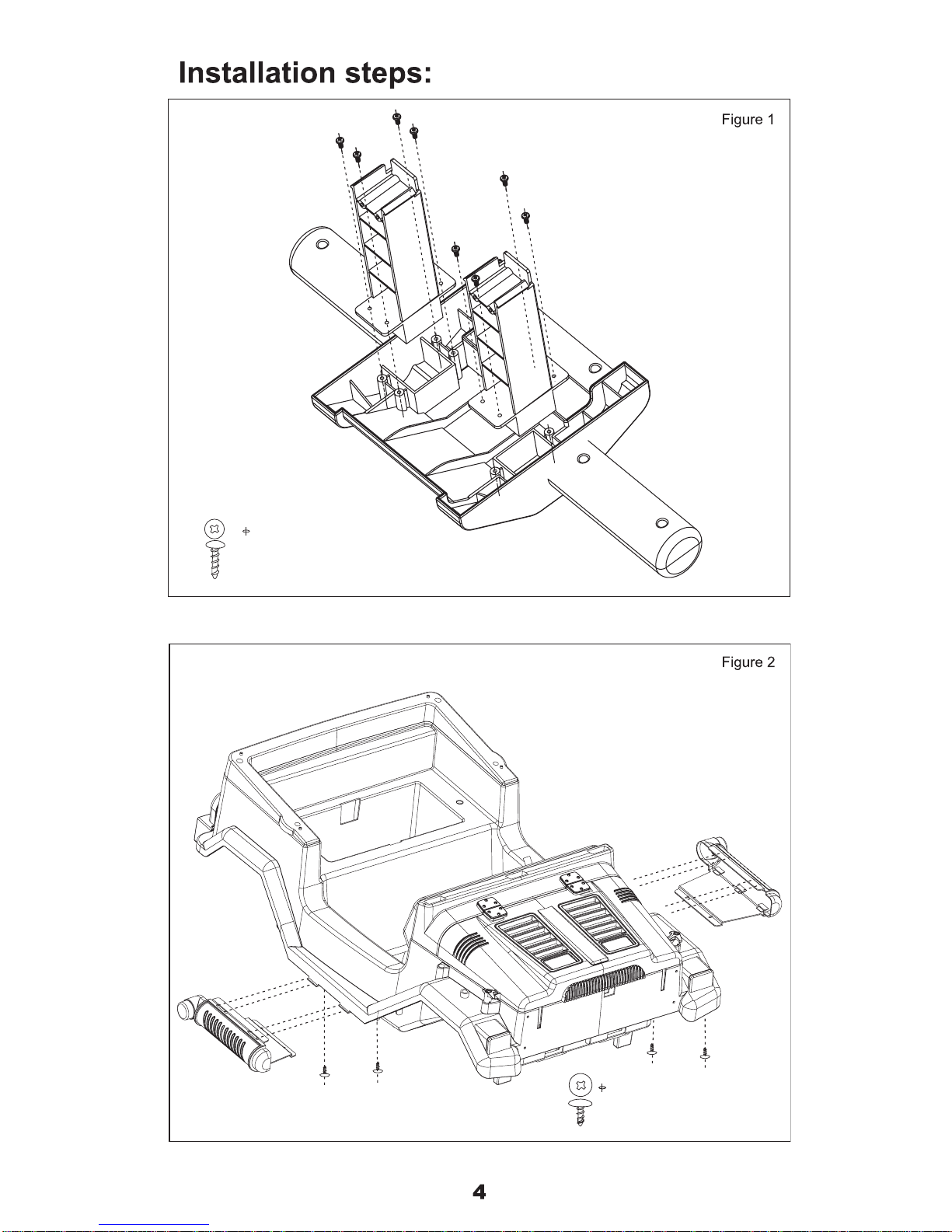

1.
Assembly of your new car is simple, provided
you carefully follow the detailed diagram and refer to
component part numbers to ensure they are fitted in the
correct order as shown above.
IMPORTANT!
3
1
10
10
23
2
18
20
13 17
14 25
19
26
9
11
6
22
7
8
5
5
21
12
16
4
15
3
R
L
Before first time use, charge
the battery for at least 8-12 hours.
Never charge the battery longer
than 15 hours.

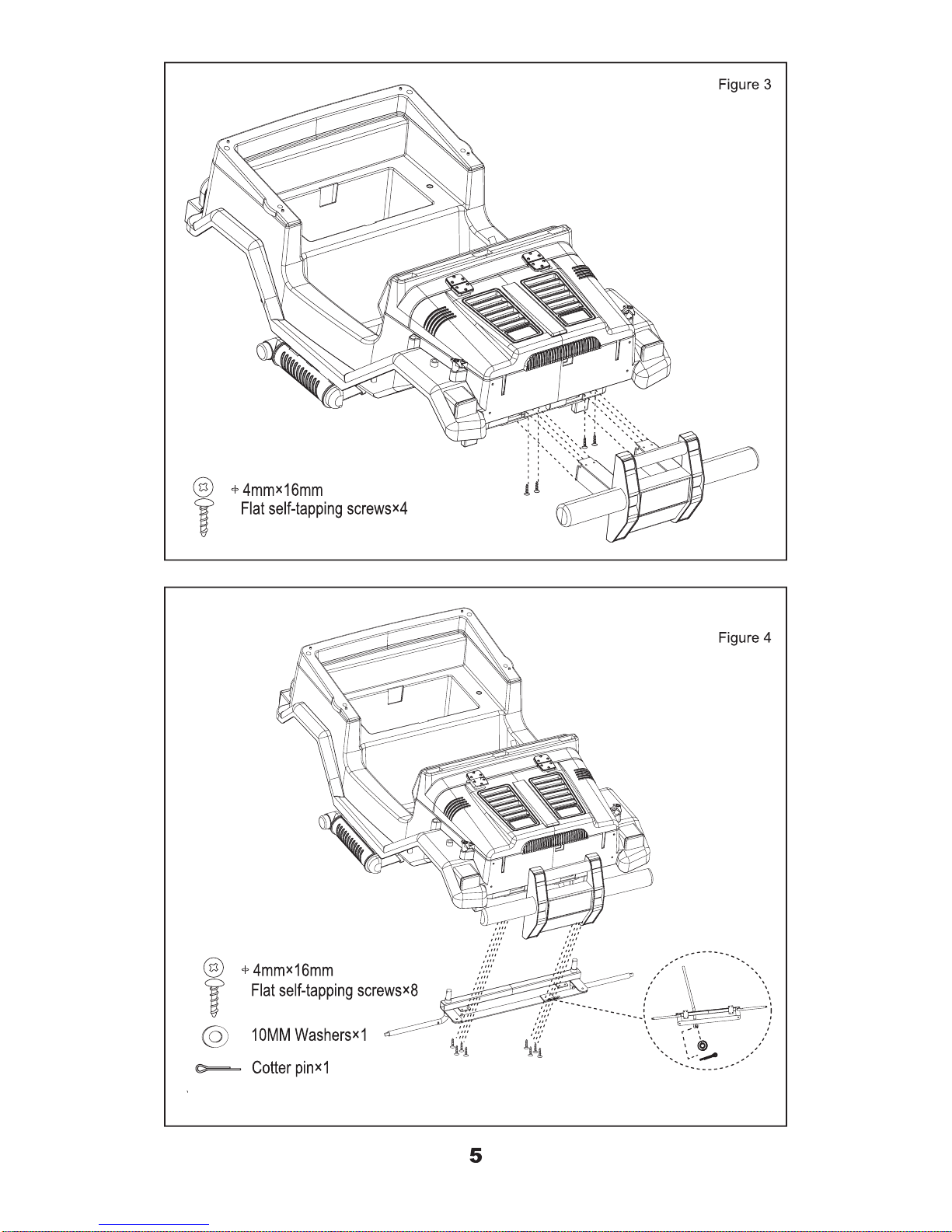

Flat self-tapping screws×8
4mm×16mm
Flat self-tapping screws×4
4mm×10mm

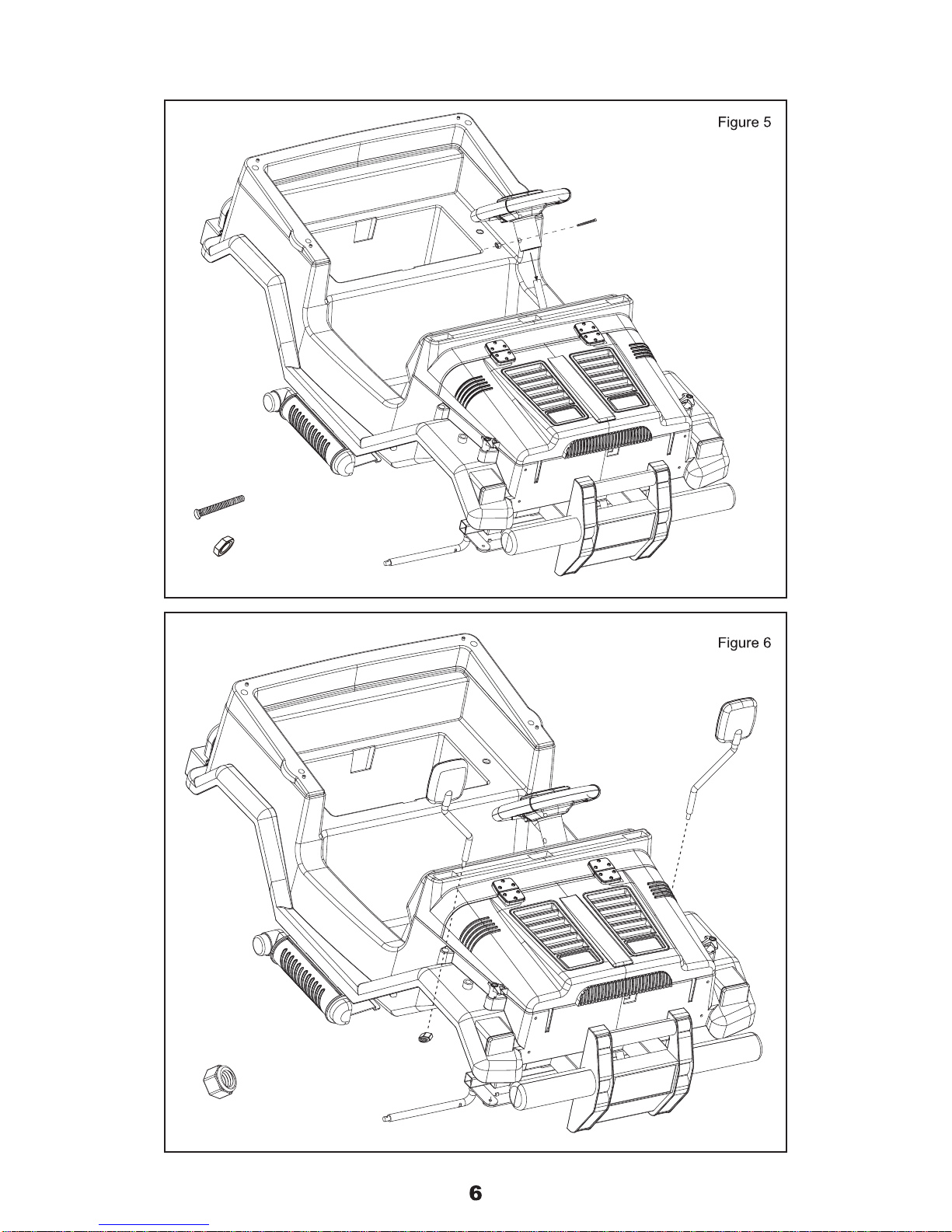

M5 Locknut*1
M8 Locknut×2
5mm×50mm
Steering fixing bolt×1

R
L

8
Figure 9
Figure 10

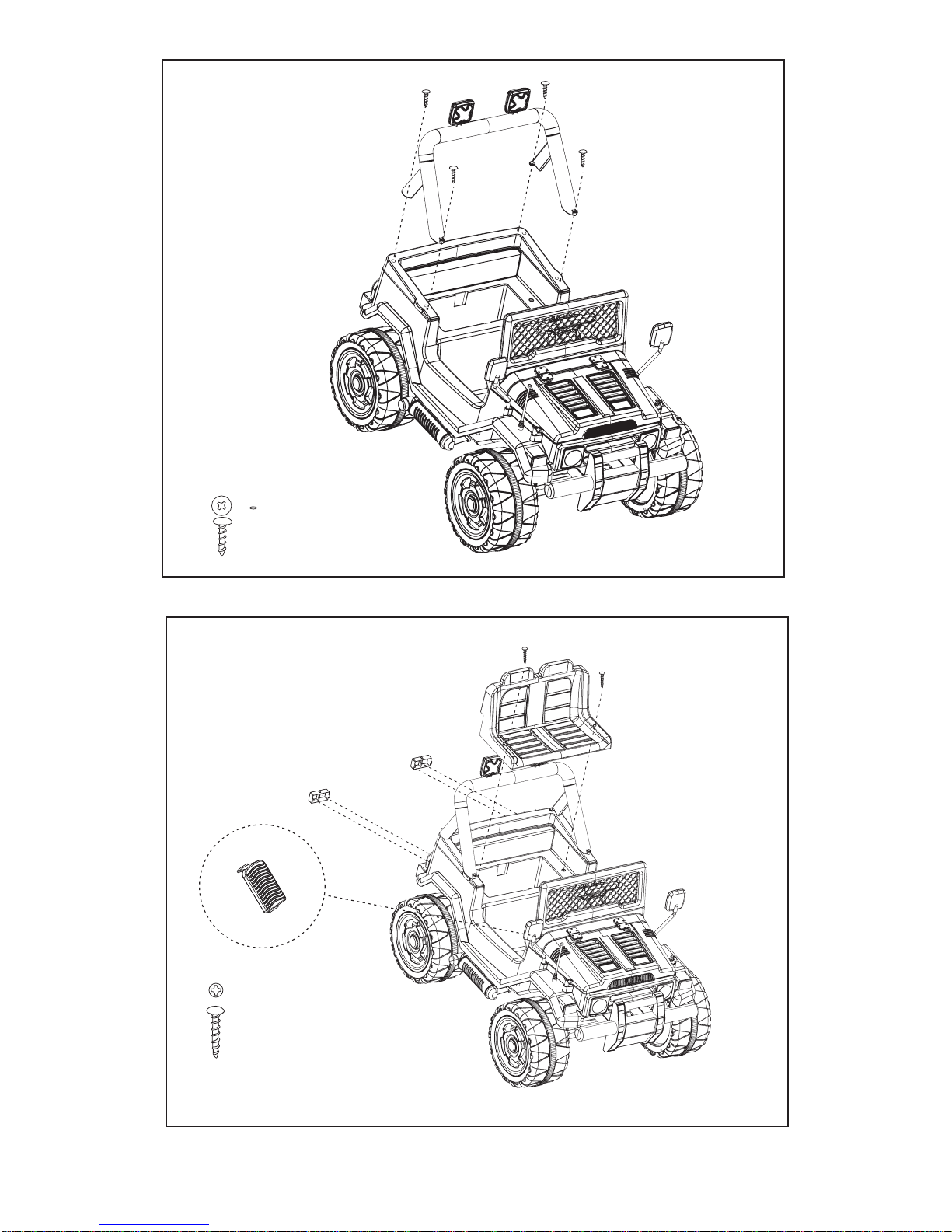

Flat self-tapping screws×4
4mm×16mm

Figure 11
9
Figure 12
6

Figure 13
10
Figure 14
Flat self-tapping screws×4
4mm×16mm
4mm×14mm
Circular self-tapping
screws×2

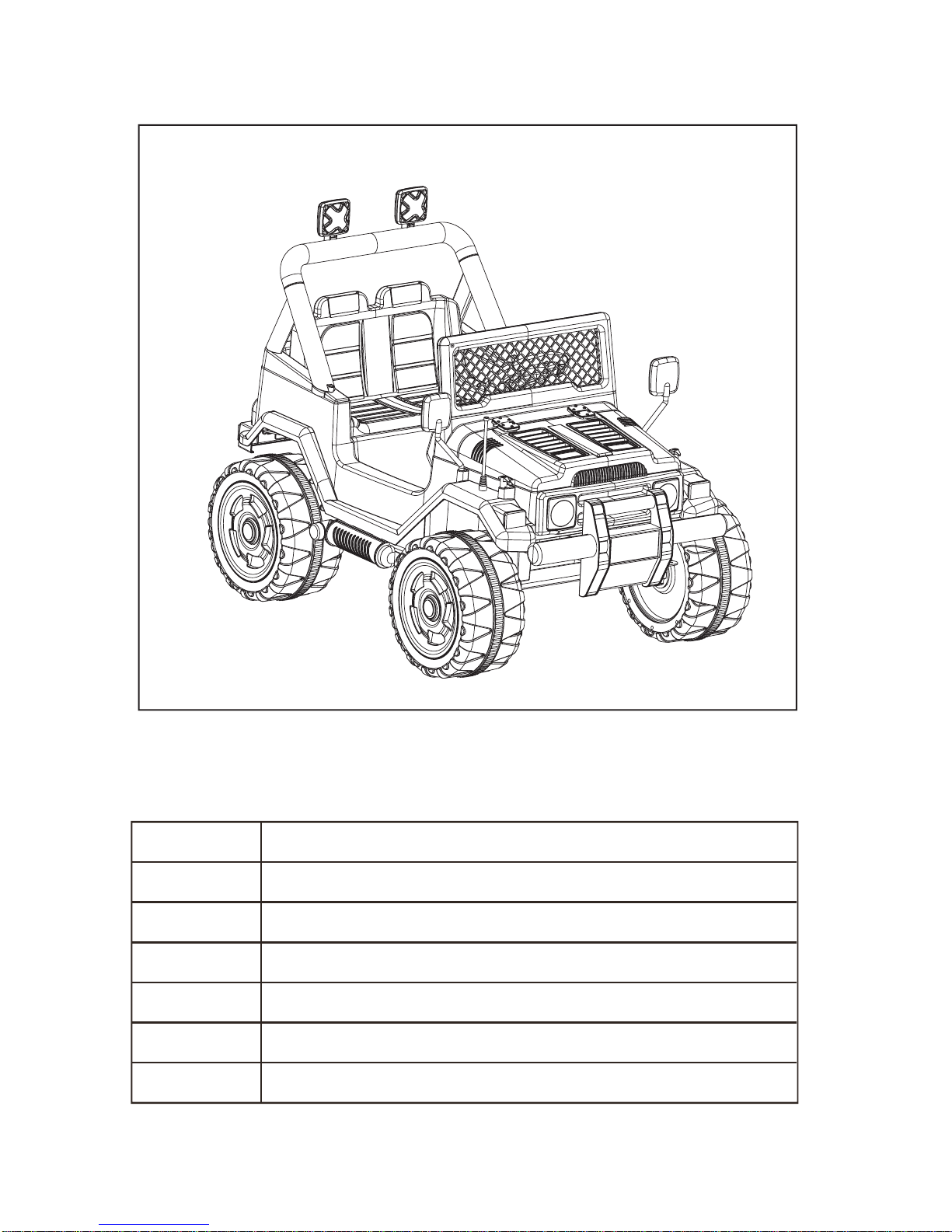

Specifications
Figure 15
11
The battery
The motor
The charger
Maximum load
Charging time
Applicable age
The car speed
12V 10AH ( 2 x 6V 10AH )
12V ( 2 x 30W )
12V 1000MA ( Smart Charger )
88LB
Charging time 8-12 hours (Automatically Controlled)
3 Years +
2.5mph - 5mph

HIGH SPEED
LOW SPEED
Forwa r d
S t o p
B a c k
MP3 Volume control
Battery Status
Manual
R/C
Your ride-on car is equipped with ON/OFFswitch located on dashboard.

13
Instructions
How to pair the parental remote control?

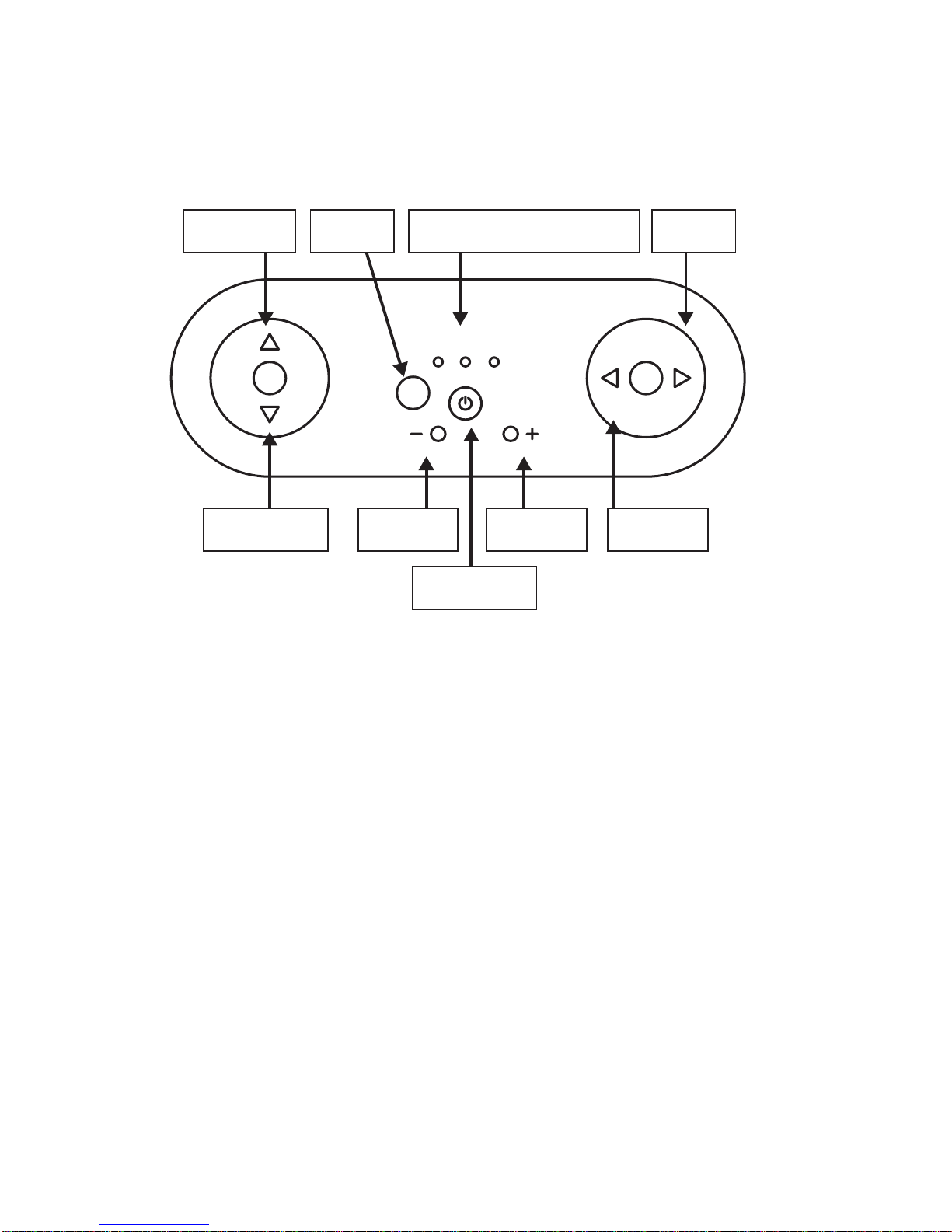

FORWARD STOP SPEED DISPLAY LED RIGHT
BACKWARD SPEED - SPEED + LEFT
POWER
1. First confirm that ride-on car power switch has been turned OFF. Open
remote controller battery cover, and install two AAA alkaline type batteries
(do not use lithium type batteries as they can damage remote controller).
4. Remote controller will stay connected with the ride-on car until it
requires battery replacement. If you replace the batteries,you need to
repeat pairing procedure again, by following steps 1-2.
5. When remote controller is not used for a while, it will automatically
enter a sleep mode, LED indicators will turn OFF. If you need to use
remote controller again, simply press POWER the button on the
remote.
2. When the 3 LED indicators on the remote controller start flashing,
turn the ride-on car ON using power switch on dashboard. The LED
indicators on the remotecontroller will stop flashing after 3 sec,
indicating the successfull pairing with the ride-on car. Close the battery
cover.

Disposal Of Battery
Disposal Of Battery
Battery safety information
Charging tips
Trouble Shooting Guide
Car will not run of all.
Check all electrical connections and ensure there is no damage.
14
Your sealed lead-acid battery must be recycled or disposed of in an
enviromentally friendly way, in compliance with local laws and regulations
1.Charging of battery should always be performed by an adult.
2.Never completely discharge battery as this will decrease battery life.
3.It is quite normal for battery and charger to become very warm during
charging cycle. Never charge battery while still warm after use.
4.To ensure proper life span of your battery while car is in storage,
it is strongly advised to charge battery fully every 90 days
(30 days during cold weather temperatures).
Car is running slower than normal.
Stop using the toy and recharge battery.

050516
Safety warnings
1.Battery should only be charged by an adult.
2.Children should always be supervised when riding.
3.Product should only be assembled by an adult.
4.Car should not be ridden at night, near or around swimming pools, steep
slopes or near any public roads.
5.Always ensure that product is stationary before switching from forward to reverse.
6.To avoid suffocation, keep all bags away from children. Please dispose of all
plastic bags immediately.
7.Car should only be washed with a clean damp cloth.
8.Car should never be used in wet weather.
9.It is advisable to protect car from weather conditions when not in use.
Do not leave outside.
10.Never allow more than 2 riders at a time.
11.Always wear a helmet and protective
Our products are suitable for the following standard:
GB6675,GB19865
clothing when riding.
ASTM-F963,CPSIA
EN71 AND EN62115
