MoDRN Refined Industrial Finna Low Profile Media... User manual

1/13
model# HYN-FNMDIA-GY
UPC 677446152695
Lot# ________
Date________
Customer Service:
1.877.436.7290
[email protected]
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
charcoal gray/walnut
Manufactured By:
BDDMI
1321 Tyler St NE, Minneapolis, MN 55413
Assembly Instructions
MŌDRN Rened Industrial Finna Low Prole Media Cabinet

2/13
QTY: 1 QTY: 1
QTY: 1 QTY: 1
QTY: 1 QTY: 1
QTY: 1 QTY: 1
• Please read through this instruction before beginning assembly.
• Two adults assembly is recommended.
• Clear out the space for assembly and lay out all parts base on Parts List, extra room will allow
you to easily determine if all the pieces are present.
• Save all packing materials until assembly is complete to avoid accidentally discarding smaller
parts or hardware.
• Keep small parts and pieces away from children until fully assembly.
• Please check for any loose screws and tighten them before you use.
PRE-ASSEMBLY PREPARATION:
PARTS LIST:
DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT
DUE TO THE POSSIBLE RISK OF FINGER ENTAPMENT

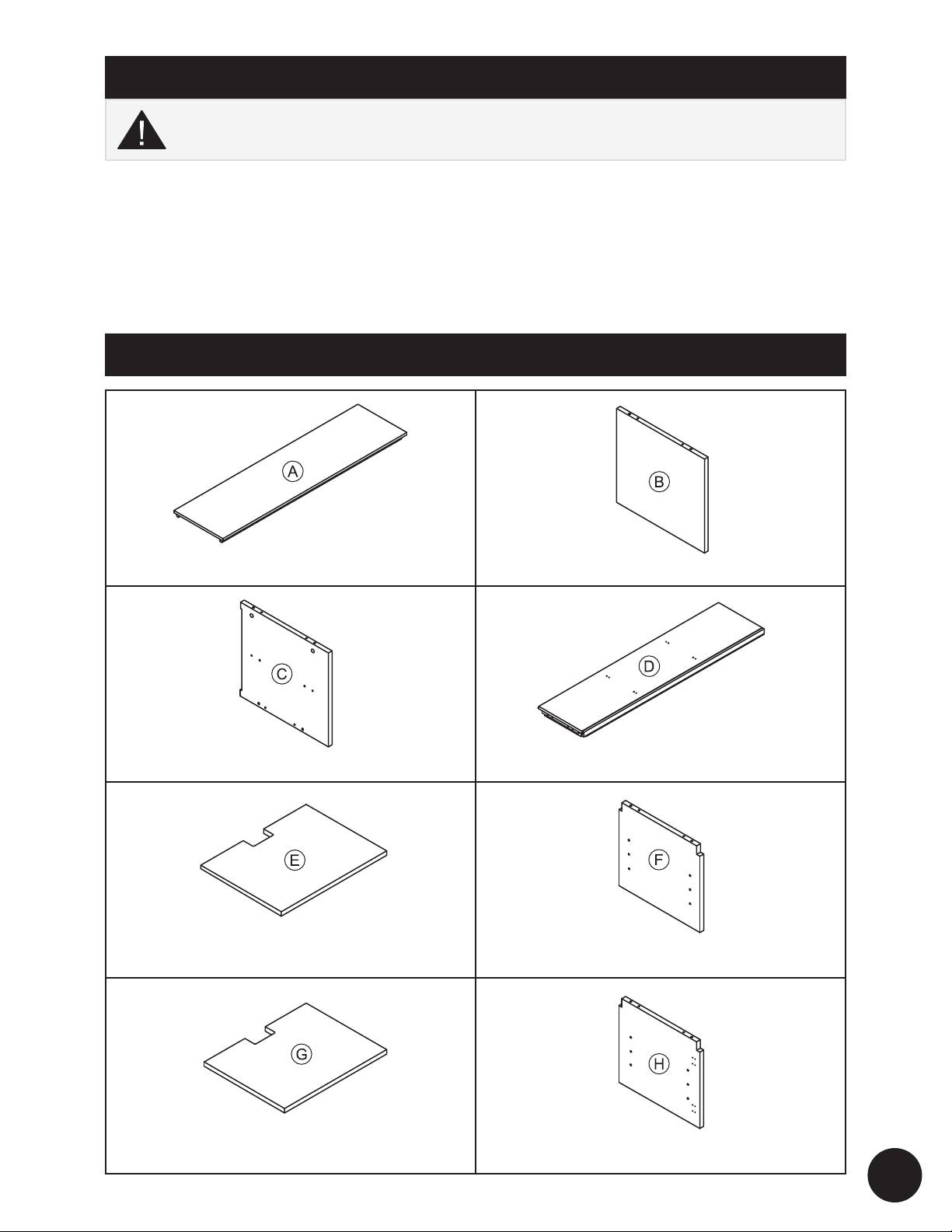

Top Panel (A) Left Side Panel (B)
Right Side Panel (C) Bottom Panel (D)
Side Adjustable Shelf (E) Left Partition (F)
Middle Adjustable Shelf (G) Right Partition (H)

3/13
QTY: 1 QTY: 1
QTY: 4 QTY: 1
QTY: 1 QTY: 1
PARTS LIST:
Fixed Shelf (I) Back Panel (J)
Leg (K) Center Leg (L)
Left Door (M) Right Door (N)

4/13
QTY: 20 QTY: 12
QTY: 12 QTY: 4
QTY: 4 QTY: 12
QTY: 12 QTY: 12
QTY: 1 QTY: 29
QTY: 2 QTY: 2
QTY: 4 QTY: 24
QTY: 2 QTY: 2
HARDWARE LIST:
Dowel (H1) Cam Bolt (H2)
Cam (H3) Side Hardware Cover (H4)
Center Hardware Cover (H5) M6*50mm Bolt (H6)
Lock Washer (H7) Washer (H8)
Allen Wrench (H9) 15mm Pan Head Screw (H10)
Knob (H11) 19mm Knob Bolt (H12)
32mm Flat Head Screw (H13) 15mm Flat Head Screw (H14)
Left Side Hinge (H15) Right Side Hinge (H16)

5/13
QTY: 8
HARDWARE LIST:

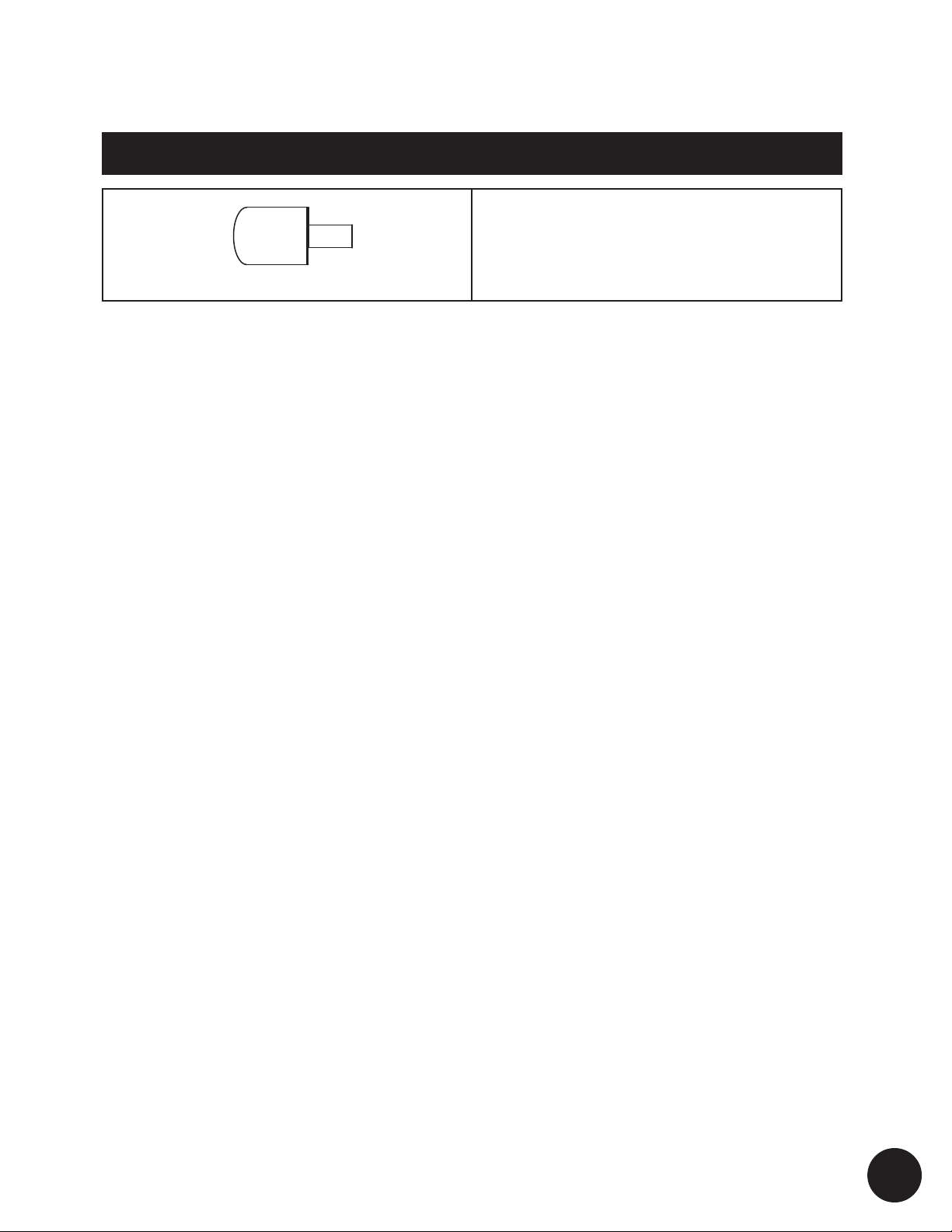

Shelf Pin (H17)

6/13

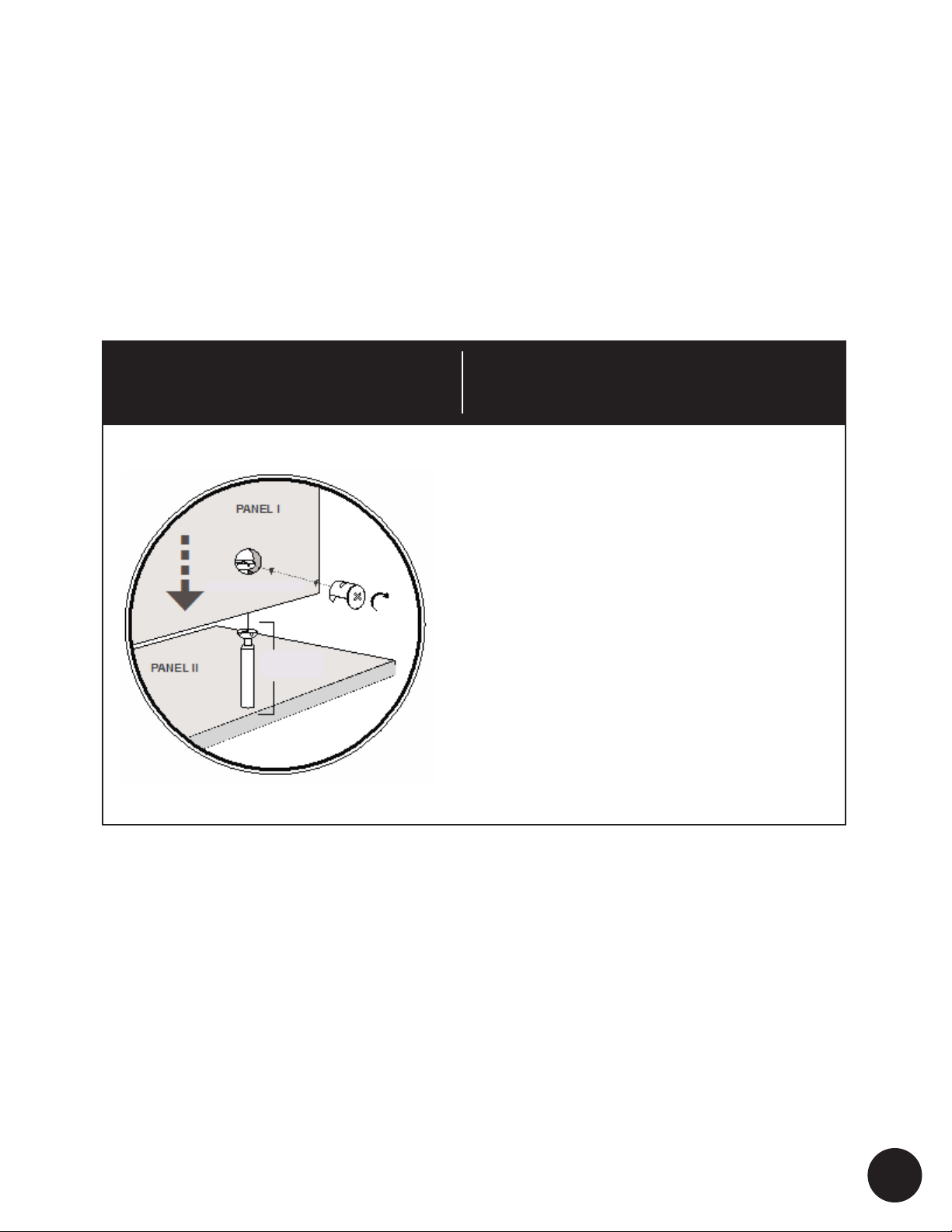

CAM LOCK INSTRUCTION This product is assembled with a cam lock set.
CAM LOCK
HOLE
CAM LOCK
CAM LOCK
DOWEL
STEP 1: Insert Cam lock into the cam lock hole
of panel I. Cam lock arrow should be pointing
towards the cam lock dowel insertion hole.
STEP 2: Insert wooden dowel into panel II.
STEP 3: Connect panel I and panel II by
inserting the cam lock dowel through the hole to
where the cam lock arrow is pointing.
STEP 4: Press panel I and panel II together.
STEP 5: Lock panels together by turning cam
lock clockwise using a screwdriver. The cam lock
and dowel should make a click sound, indicating
they are locked together.

7/13
1
2
H6
H1
H1
H13
H13
H7
H8
STEP-BY-STEP ASSEMBLY:
STEP 1: Make sure the bolts go through the pre-drilled holes properly. Do not over tighten
bolts.
STEP 2: Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
Make sure the screws go through the pre-drilled holes properly. Do not over tighten screws.
Anti-tip Restraint is REQUIRED in order to complete construction of this product.
When properly installed, this hardware can provide protection against the unexpected
tipping of furniture.
nished edge

8/13
3
4
H1
H1
H3
H6
H7
H8
H1
H2
H2
H2
H3
STEP-BY-STEP ASSEMBLY:
STEP 3: Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking
out. Insert H2 into panel H. Refer to page 6 on how to use the cam lock system. Ensure all
hardware pieces are properly tightened.
STEP 4: Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking
out. Insert H2 into panel C. Refer to page 6 on how to use the cam lock system. Ensure all
hardware pieces are properly tightened. Make sure the bolts go through the pre-drilled holes
properly. Do not over tighten bolts.

9/13
5
6
H6
H7
H8
H5
H5
H4
H4
H1
H2
H3
H1
STEP-BY-STEP ASSEMBLY:
STEP 5: Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking
out. Make sure the bolts go through the pre-drilled holes properly. Do not over tighten bolts.
STEP 6: Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking
out. Insert H2 into panel A. Refer to page 6 on how to use the cam lock system. Ensure all
hardware pieces are properly tightened.

10/13
7
8
H10
H17
H17
hole for anti-tip
strap
STEP-BY-STEP ASSEMBLY:
STEP 7: Begin by installing all of the screws along one edge of the back panel. Next, using
a square or tape measure, make sure that the case is square. (if using a tape measure, the
distance from one corner, diagonally to the other corner should be the same in both direc-
tions.) Install the remaining screws, starting with the corners.
STEP 8: Insert shelf supports into desired holes. Di󰀨erent holes accommodate di󰀨erent
shelf heights. Angle shelves to t between the rails and set on top of shelf supports.

11/13
9
10
H11
H15
H16
H14
H14
H14 H11
H12 H14
H16
H14
H14
H14
H14
H12
STEP-BY-STEP ASSEMBLY:

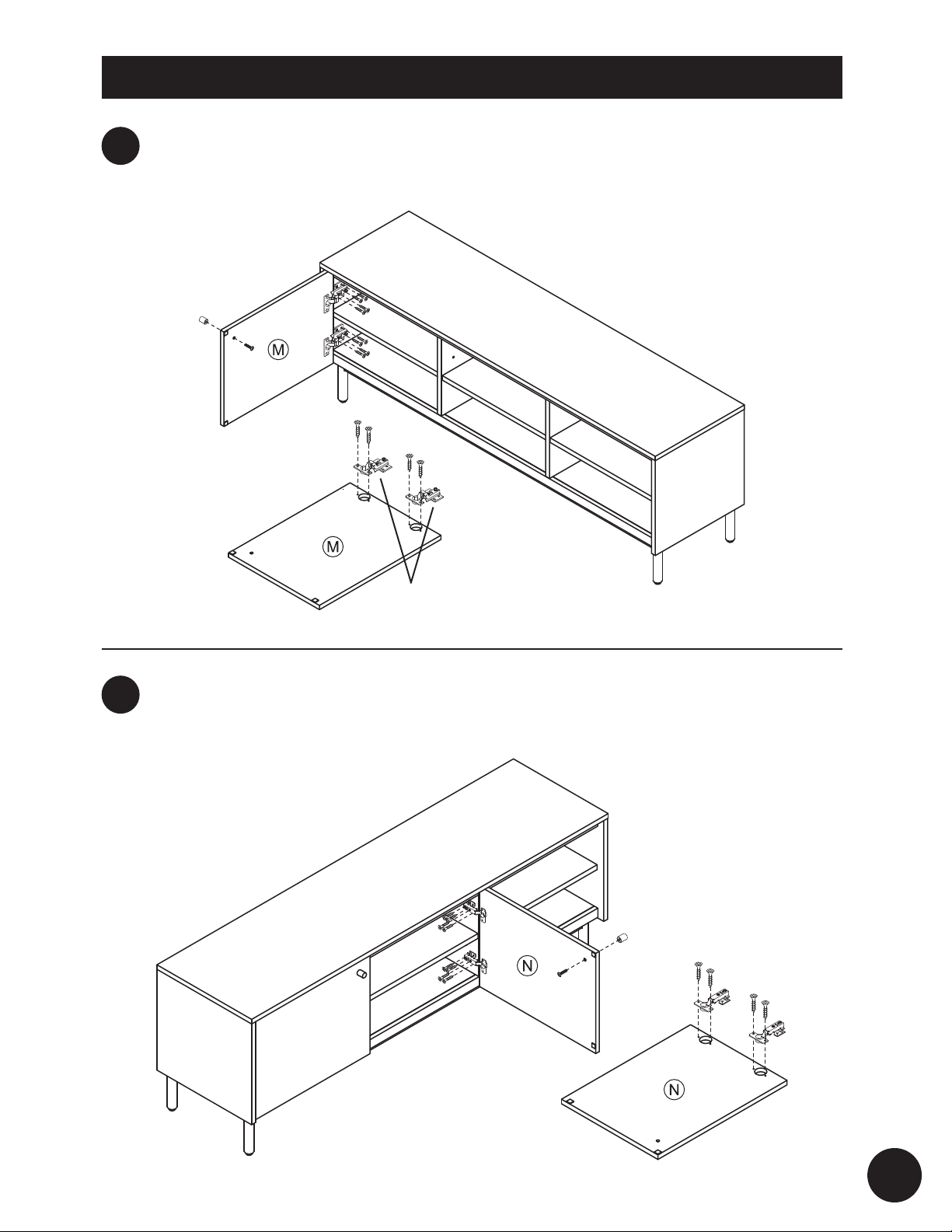

STEP 9: Make sure the screws go through the pre-drilled holes properly. Do not over tight-
en screws.
STEP 10: Make sure the screws go through the pre-drilled holes properly. Do not over
tighten screws.

12/13
2
3
1
4
1
5
x1x1x1x1
x2
ANTI-TIP RESTRAINT
Assembly Instructions:
STEP 1: Attach wall strap to product using provided screw.
STEP 2: Position against wall.
STEP 3: Mark position of strap hole on wall. Drill 1/4” hole.
STEP 4: Tap in wall anchor
STEP 5: Fasten anti-tip strap with wall screw provided
4. Truss
Head Screw
3. Wall
Screw
5. Wall
Strap
1. Washer 2. Wall
Anchor

13/13
13
Furniture Care Instructions:
Dust with clean, lint-free cloth.
Use furniture spray polish as needed.
Customer Service:
877.436.7290
[email protected]
PRINTED IN: China
• Your complete satisfaction is our number 1 priority. Our product is designed and manufactured to
meet the highest quality of standards. In the event that you have assembly questions, or parts are
missing or damaged, our customer service department would appreciate the opportunity to assist
you.
• Warranty available to original purchaser only . Proof of purchase is required . This warranty is your
sole remedy for product defect and does not cover damage due to mishandling, misuse or abuse.
The manufacturer is not responsible for incidental or consequential damages. Please contact our
Customer Service at 1-877-436-7290 to obtain information on warranty performance. This
warranty gives you specic legal rights and you may also have other rights which vary from State
to State.
PRE-ASSEMBLY PREPARATION:

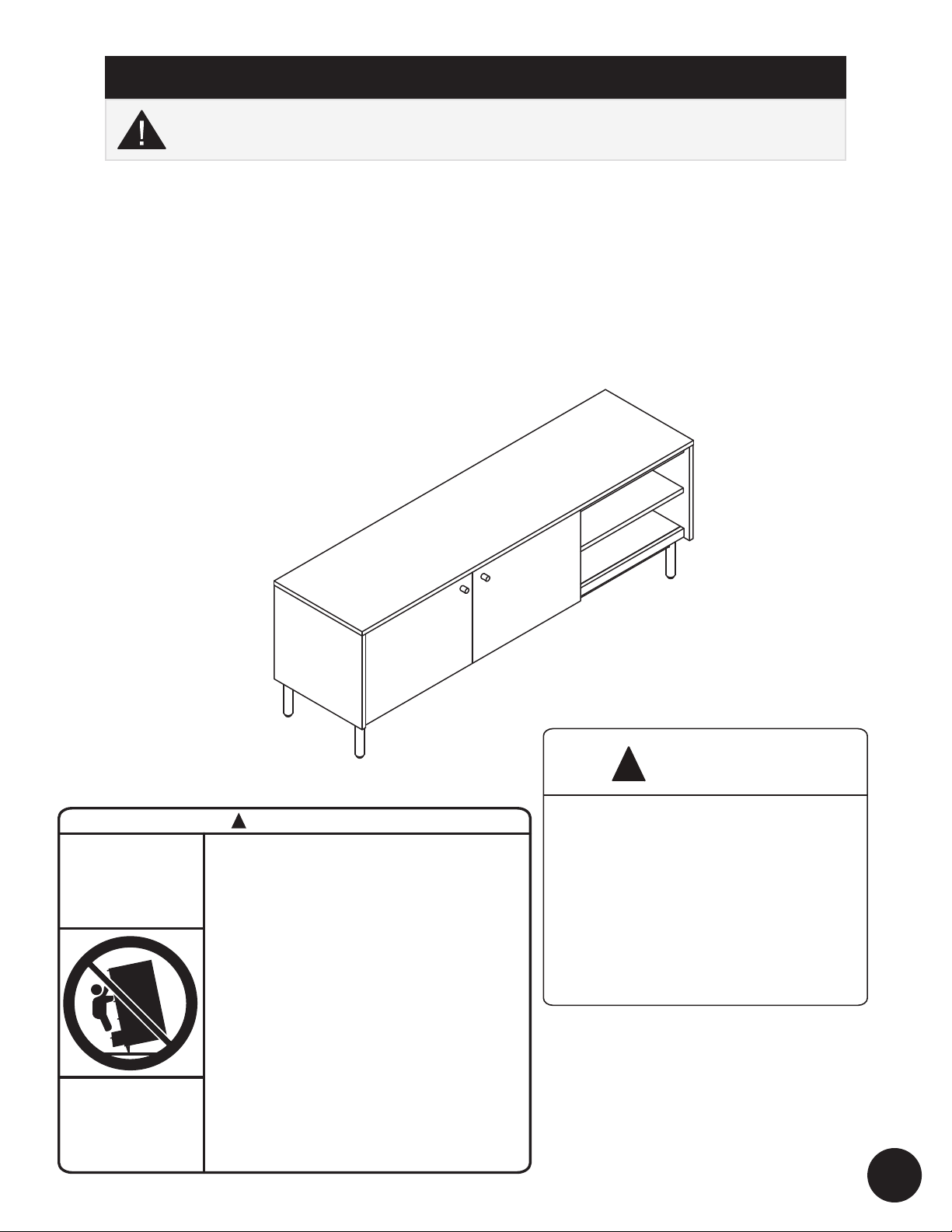

WARNING: Do not exceed the maximum load capacity. Exceeding
the maximum load capacity may result in collapse and possible injury.
For use with televisions weighing
45 pounds (20.4 kg) or less. Use with
heavier televisions may result in
instability causing tip over resulting
in death or serious injury.
Use of anti-tip restraints may only
reduce, but not eliminate, the risk
of tip-over.
! WARNING
80 lbs. general use /
45 lbs. television use
25 lbs. per shelf
!WARNING
Serious or fatal crushing injuries can occur
from furniture tip-over. To help prevent
tip-over:
• Install tip-over restraint provided.
• Place heaviest items in the lowest drawers.
• Do not set TV’s or other heavy objects on top
of this product, unless the product is
specifically designed to accommodate them.
• Never allow children to climb or hang on drawers,
doors, or shelves.
• Never open more than one drawer at a time.
(OR)
• Do not defeat or remove the drawer interlock
system.
Use of tip-over restraints may only reduce,
but not eliminate, the risk of tip-over.
This is a permanent label. Do not remove.

1/13
model# HYN-FNMDIA-GY
UPC 677446152695
Lot# ________
Fecha_______
Servicio al Cliente:
1.877.436.7290
[email protected]
ESTE MANUAL DE INSTRUCCIONES CONTIENE INFORMACIÓN IMPORTANTE
DE SEGURIDAD. POR FAVOR LEA Y GUARDE PARA REFERENCIA FUTURA.
color carbón gris/nogal
Fabricado Por :
BDDMI
1321 Tyler St NE, Minneapolis, MN 55413
MŌDRN Gabinete Bajo para Televisor
Industrial Renado Finna
Instrucciones de Ensamble

2/13
QTY: 1 QTY: 1
QTY: 1 QTY: 1
QTY: 1 QTY: 1
QTY: 1 QTY: 1
PREPARACIÓN DE PRE-MONTAJE:
LISTA DE PARTES:
NO PERMITA QUE LOS NIÑOS JUEGUEN ALREDEDOR DE LA UNIDAD POR EL
POSIBLE RIESGO DE ATRAPAMIENTO DE LOS DEDOS
Panel Superior (A) Panel del Lado Izquierdo (B)
Panel del Lado Derecho (C) Panel Inferior (D)
Repisa Ajustable Lateral (E) Divisor Izquierdo (F)
Repisa Ajustable Central (G) Divisor Derecho (H)
• Por favor, lea estas instrucciones antes de comenzar el ensamblaje.
• Se recomienda que el montaje se lleve a cabo por dos adultos.
• Despeje el espacio donde se llevará a cabo el montaje y coloque todas las piezas y la base de la Lista
de Piezas, el espacio adicional le permitirá determinar fácilmente si todas las piezas están presentes.
• Guarde todos los materiales de embalaje hasta que se complete el montaje para evitar el descarte
accidental de partes más pequeñas o metálicas.
• Mantenga las piezas y las partes pequeñas lejos de los niños hasta que estén completamente
ensambladas.
• Por favor, verique que no haya tornillos sueltos y ajústelos antes de usar.

3/13
QTY: 1 QTY: 1
QTY: 4 QTY: 1
QTY: 1 QTY: 1
LISTA DE PARTES:
Repisa Fija (I) Panel Posterior (J)
Pata (K) Pata Central (L)
Puerta Izquierda (M) Puerta Derecha (N)

4/13
QTY: 20 QTY: 12
QTY: 12 QTY: 4
QTY: 4 QTY: 12
QTY: 12 QTY: 12
QTY: 1 QTY: 29
QTY: 2 QTY: 2
QTY: 4 QTY: 24
QTY: 2 QTY: 2
LISTA DE ARTÍCULOS DE FERRETERÍA:
Clavija de Madera (H1) Tornillo de Leva (H2)
Leva (H3) Cubierta del Tornillo Lateral (H4)
Cubierta del Tornillo Central (H5) M6*50mm Perno (H6)
Arandela Fijadora (H7) Arandela (H8)
Llave Allen (H9) 15mm Tornillo de Cabeza de Noria (H10)
Perilla (H11) 19mm Perno de Perilla (H12)
32mm Tornillo de Cabeza Plana (H13) 15mm Tornillo de Cabeza Plana (H14)
Bisagra Izquierda (H15) Bisagra Derecha (H16)

5/13
QTY: 8
LISTA DE ARTÍCULOS DE FERRETERÍA:
Pasador para Repisa (H17)

6/13
INSTRUCCIONES PARA LAS
TRABAS DE LEVA
TORNILLO
DE LEVA
AGUJERO
DE LEVA
LEVA
PASO 1: Inserte la traba de leva en el oricio para
la traba de leva del panel I. La echa de la traba de
leva debe apuntar hacia el oricio de inserción de la
clavija de la traba de leva.
PASO 2: Inserte una clavija de madera en el panel
II.
PASO 3: Conecte el panel I y el panel II insertando
la clavija de la traba de leva a través del oricio hacia
donde apunta la echa de la traba de leva.
PASO 4: Presione el panel I junto con el panel II.
PASO 5: Trabe los paneles girando el seguro de la
traba de leva en el sentido de las agujas del reloj con
un destornillador. La traba de leva y la clavija deben
hacer un clic para indicar que están trabados.
Este producto se ensambla con
un juego de trabas de leva.

7/13
1
2
H6
H1
H1
H13
H13
H7
H8
ENSAMBLAJE PASO A PASO:
PASO 1: Cerciórese que los pernos pasen por los agujeros pretaladrados de manera
apropiada. No sobreapriete los pernos.
PASO 2: Con cuidado golpee las clavijas de madera en su lugar. Deje un saliente de 1.27
cm (½”) en las clavijas. Cerciórese que los tornillos pasen por los agujeros pretaladrados de
manera apropiada. No sobreapriete los tornillos.
borde acabado
Se REQUIERE el control antivuelco para completar la construcción de este producto. Una
vez que esté correctamente instalado, esta pieza puede brindar protección contra el
inesperado vuelco de los muebles.
