Mojo DUDE 18 User manual

Manual for
Rowingboards, iCoaster
and Airkayak
Assembly instruction and
operating instructions
MOJO 18' | DUDE 18' | LITE 15' | iCoaster | AIRKAYAK 16'

2
Table of Contents
1 Safety guidelines.................................................................. 4
2 Rowing boards 18'................................................................ 5
Overview.............................................................................. 5
2.1.1 MOJO 18'............................................................................. 5
2.1.2 DUDE 18' ............................................................................. 6
Assembly ............................................................................. 7
Roll up.................................................................................. 9
Positioning the Rowing Skid
on the MOJO 18' and DUDE 18'......................................... 11
3 Rowingboard LITE 15'........................................................ 12
Overwiew ........................................................................... 12
Assembly LITE 15' ............................................................. 13
Folding away LITE 15'........................................................ 15
Positioning the Rowing Skid on the LITE 15' ..................... 16
4 iCoaster ............................................................................. 17
Overview............................................................................ 17
Assembly iCoaster ............................................................. 18
Roll up iCoaster.................................................................. 21
Positioning the Rowing Skid on the iCoaster...................... 23
5 AIRKAYAK 16' ................................................................... 24
Overview............................................................................ 24
Assembly ........................................................................... 25
Folding away...................................................................... 28
Additional information......................................................... 30
5.4.1 Positioning the Rowing Skid on the Airkayak...................... 30
5.4.2 Securing the kayak seat..................................................... 31
5.4.3 Cleaning the boat............................................................... 32

3
6 Accessories and other matters........................................... 33
Air pump (standard accessories
for MOJO, DUDE, iCoaster) ............................................... 33
Air pump (standard accessories
for LITE and AIRKAYAK) ................................................... 35
Electric pump (option) ........................................................ 37
Securing the additional seat
on boards and iCoaster (option) ......................................... 39
Tying up & towing the board............................................... 40

4
1 Safety guidelines
Rowing can be dangerous and physically demanding. Rowing can lead
to dangerous situations developing that result in serious injury. The
user of this product should have a basic understanding of the risks
involved when rowing and be aware of consequences. Please observe
the following safety standards when using this product:
•Get instruction on how to row.
•Get training in First Aid and take a First Aid kit with you.
•Always wear a life jacket or similar buoyancy aid.
•Never row alone.
•Wear clothing appropriate for the weather conditions. Cold
water and/or cold weather can cause hypothermia.
•Check your equipment before each use for signs of wear or
failure.
•Do not consume alcohol or take drugs before using this
product.
•Do not go rowing if there is flooding.
•Watch out for the depth of the water, tide changes, dangerous
currents and sudden weather changes.
•Explore waters you are not familiar with, with caution; carry the
product if necessary.
•Do not exceed your rowing ability. Do not overestimate your
capabilities.
•Consult your doctor before you start with rowing training.
•Follow the manufacturer's recommendations when using this
product.
•If extra accessories are added to the boat/board, only use
materials approved by the manufacturer; embarking or
disembarking should remain unobstructed.
•Read the instruction manual before using this product.

5
2 Rowing boards 18'
Overview
2.1.1 MOJO 18'
1……MOJO 18'
2……2 x fin 2.4“ (6 cm)
3……Fin 7.7“ (19.5 cm)
4……Transport strap
5……Repair kit
6……Air pump with hose
7……Backpack (Dry Bag)
1
2
3
4
5
6
7

6
2.1.2 DUDE 18'
1……DUDE 18'
2……2 x fin 2.4“ (6 cm)
3……Fin 7.7“ (19.5 cm)
4……Transport strap
5……Repair kit
6……Air pump with hose
7……Backpack (Dry Bag)
3
4
5
6
7
1
2

7
Assembly
Step 1: Inflate
Make sure the valve pin is in the correct position before inflating. Push
the valve pin down to switch between the two valve positions.
Now connect the hose of the pump to the valve and pump up the board
to a maximum pressure of 14 psi (1.0 bar).

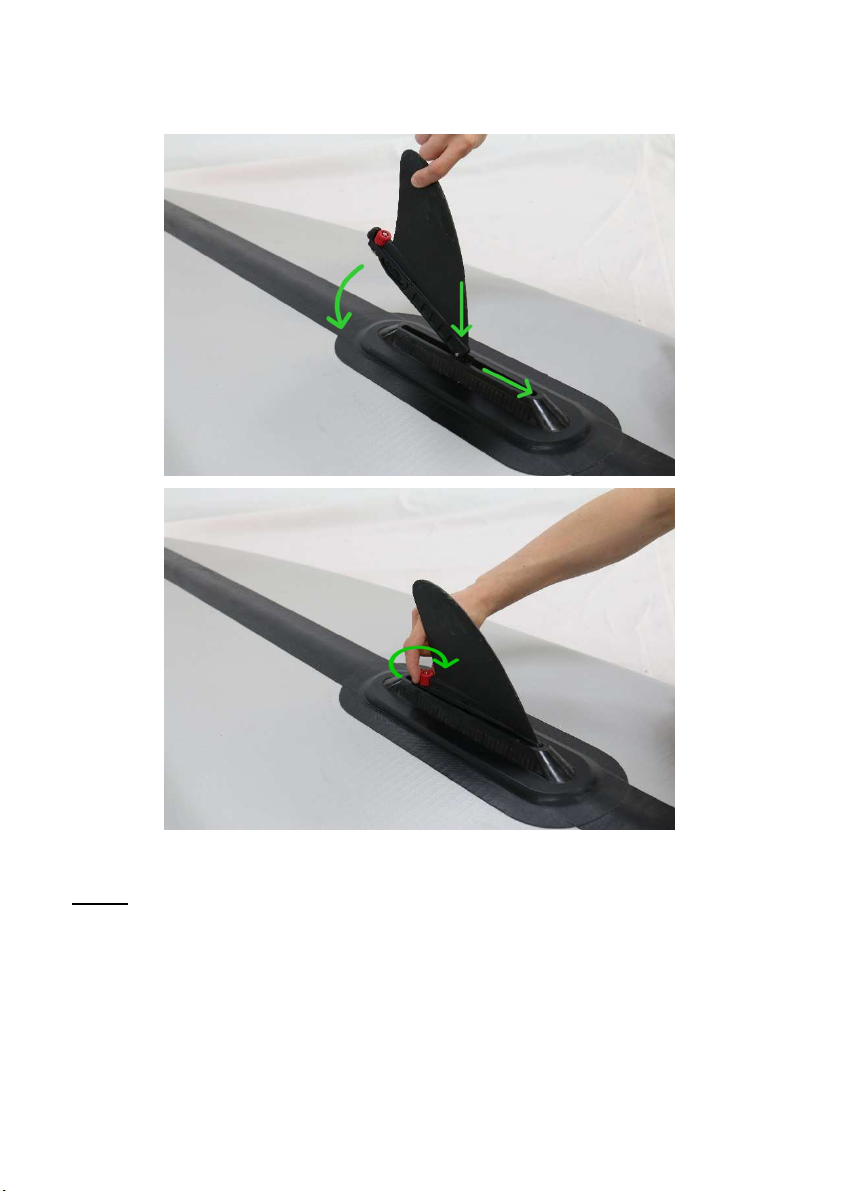

Step 2: Insert fin
The large 7.7" fin is used at the back and the two small 2.4" fins at the
front of the board.
Slide the front pivot of the fin into the fin box and then slide it forward.

8
Fold back the fin into the finbox.
Lock the fin with the quick release lever.
Note:
Do not drag the board over the ground. Place it in the water to avoid
damage. When the fin is inserted, make sure that it is not stressed by
the weight of the board or other objects.

9
Roll up
Start rolling up the board at the front and then roll it up until the rear
end.
After rolling up the board, place the transport strap around the rolled-up
board and tighten the strap. The board can now simply be packed in
the backpack with the other accessories.

10
Note:
Make sure that the board is completely dry before folding it away.
When you are deflating the board, use the pump to extract the air from
it.
If the board is rolled up and packed when wet, it must be unpacked and
rolled out again as soon as possible to dry completely.

11
Positioning the Rowing Skid on the
MOJO 18' and DUDE 18'
The MOJO 18' and DUDE 18' rowing boards can be used alone, or in
pairs (with two rowing systems).
To row on your own, place the rowing system on the board's 4 long
positioning pads. The position of the system can be adjusted
individually by hooking into the front or rear two D-rings.
To row in pairs, position one rowing system on the 4 front circular
positioning pads. Position the second rowing system on the 4 rear
round positioning pads.

12
3 Rowingboard LITE 15'
Overwiew
1……LITE 15'
2……Safety leash
3……Repair kit
4……Transport strap
5……Fin 14 cm (5.4")
6……Air pump with hose
7……Backpack (Dry Bag)
7
5
1
4
2
3
6

13
Assembly LITE 15'
Step 1: Inflate
Make sure the valve pin is in the correct position before inflating. Push
the valve pin down and rotate anti-clockwise to ensure that the valve is
in the correct position to inflate.
Now connect the hose of the pump to the valve and pump up the board
to a maximum pressure of 14 psi (1.0 bar).

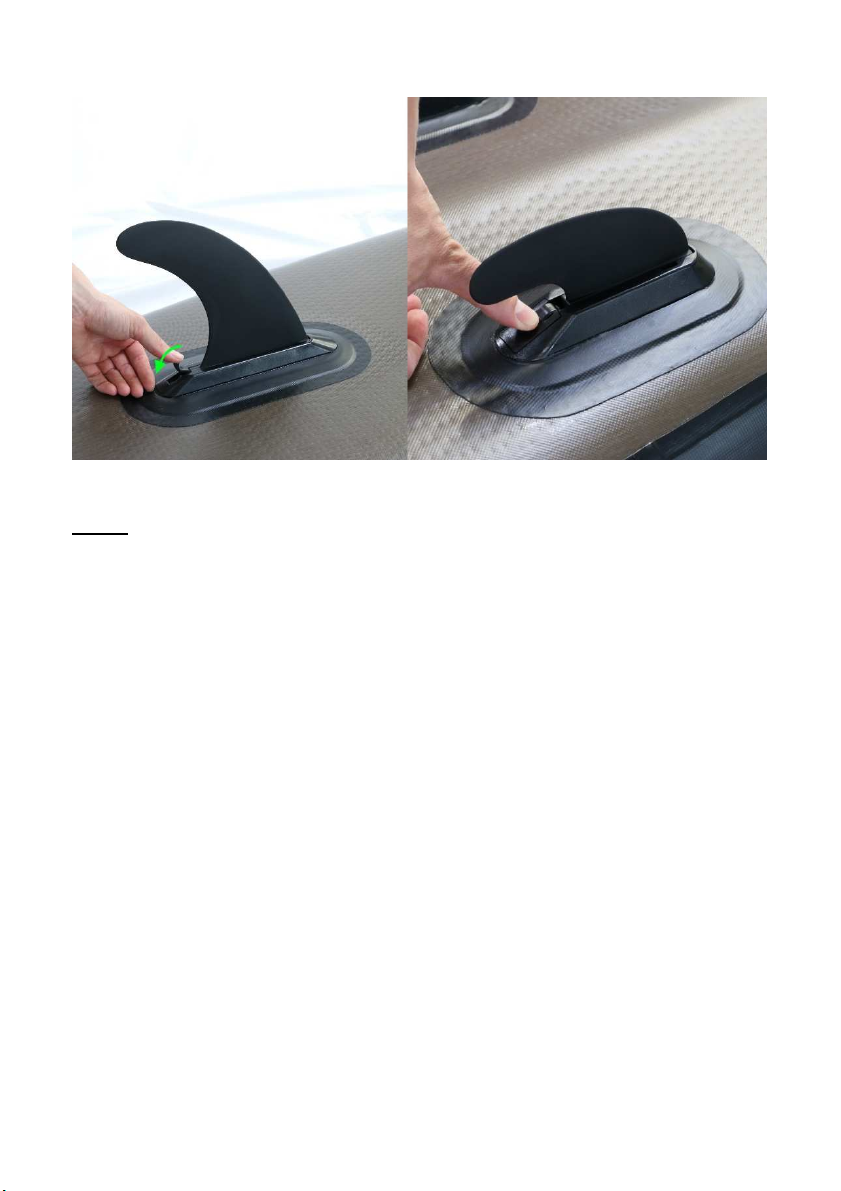

Step 2: Insert fin
Press down the Easy-Mount fastener and rotate the knob to insert the
fin.

14
Slide the guide pin of the fin into the fin box rail and rotate the knob to
secure the fin in place. Make sure the fin is securely fixed in the fin box.
Note:
Do not drag the board over the ground. Place it in the water to avoid
damage. When the fin is inserted, make sure that it is not stressed by
the weight of the board or other objects.

15
Folding away LITE 15'
Fold over the stern of the board once so that the fold line is at the side
fold mark (white arrow (1)). Then fold the board at the next fold mark
(2). Then continue rolling up the board towards the bow.
When the board is rolled up, place the transport strap around the
rolled-up board and tighten the strap. The board can now be easily
stowed in the backpack with the other accessories.
Note:
Make sure that the board is completely dry before folding it away.
When you are deflating the board, use the pump to extract the air from
it.
If the board is rolled up and packed when wet, it must be unpacked and
rolled out again as soon as possible to dry completely.
1
2

16
Positioning the Rowing Skid
on the LITE 15'

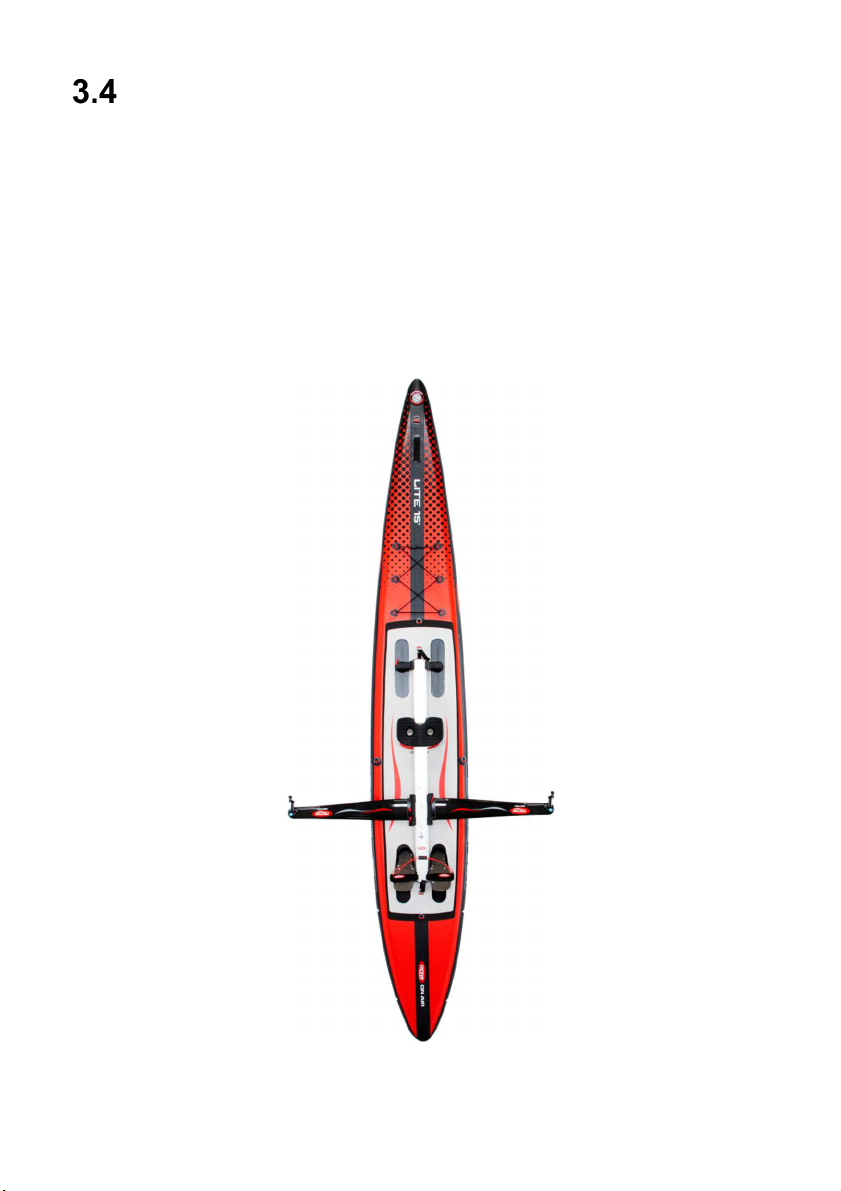

The LITE 15' rowing board can be used only alone (with one rowing
system).
Place the rowing system on the board's 4 long positioning pads. The
position of the system can be adjusted individually by hooking into the
front or rear two D-rings.

17
4 iCoaster
Overview

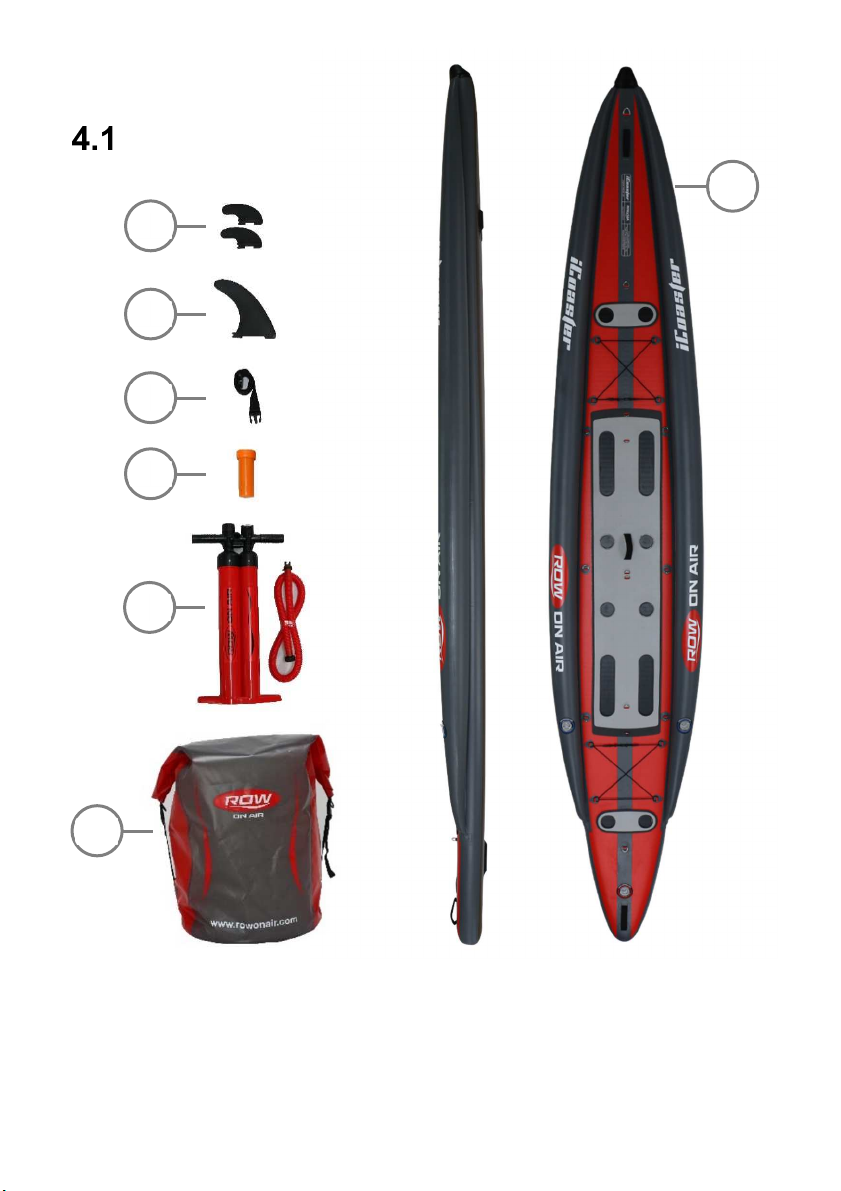

1……iCoaster
2……2 x fin 2.4“ (6 cm)
3……Fin 7.7“ (19.5 cm)
4……Transport strap
5……Repair kit
6……Air pump with hose
7……Backpack (Dry Bag)
1
2
3
4
5
6
7

18
Assembly iCoaster
Step 1: Inflate mainboard
Make sure the valve pin is in the correct position before inflating. Push
the valve pin down to switch between the two valve positions.
Now connect the hose of the pump to the valve and pump up the board
to a pressure of maximum 14 psi (1.0 bar).
Step 2: Inflate side chambers
Pump up the two side chambers to a pressure of 4 PSI (0.3 bar).
1
2
2

19
Step 2: Insert fin
The large 7.7" fin is used at the back and the two small 2.4" fins at the
front of the iCoaster.
Slide the front pivot of the fin into the fin box and then slide it forward.
Fold back the fin into the finbox.

20
Lock the fin with the quick release.
Note:
Do not drag the board over the ground. Place it in the water to avoid
damage. When the fin is inserted, make sure that it is not stressed by
the weight of the board or other objects.
