MOKENEYE RS01Z User manual

20V CORDLESS RECIPROCATING SAW
Model RS01Z
WARNING: Toreducetheriskof injury,theusermustreadand understandthe
Owner's Manualbefore using this product. Savethese instructionsfor future reference.
Owner’s Manual
VERSION: RS01Z-EN-03
For Customer Service [e-mail]

2
TABLE OF CONTENTS
GENERAL SAFETY WARNINGS................ 2
SAFETY WARNINGS FOR RECIPROCATING
SAW...................................................... 3
SYMBOLS .............................................. 4
GET TO KNOW YOUR RECIPROCATING
SAW...................................................... 5
SPECIFICATIONS.................................... 8
OPERATING INSTRUCTIONS................... 9
MAINTENANCE.................................... 12
TROUBLE SHOOTING........................... 13
LIMITED WARRANTY........................... 13
•Some dust created by power sanding, sawing,
grinding, drilling and other construction activities
contains chemicals known to the State of California
to cause cancer, birth defects or otherreproductive
harm. Some examples of these chemicals are:
-Lead from lead-based paints.
-Crystalline silica from bricks, cement, and other
masonry products.
-Arsenic and chromium from chemically-treated
lumber.
•Your risk from these exposures varies, depending
upon how often you do this type of work. To reduce
your exposure to these chemicals:
-Work in a well-ventilated area.
-Work with approved safety equipment, such as
dust masks that are speciallydesigned to filter out
microscopic particles.
-Avoid prolonged contact with dust from power
sanding, sawing, grinding, drilling, and other
construction activities. Wear protective clothing
and wash exposed areas with soap and water.
Allowing dust to get into yourmouth or eyes or to
lie on theskinmaypromote absorptionof harmful
chemicals.
GENERAL SAFETY WARNINGS
Read all safety warnings,
instructions, illustrations and
specifications provided with this power tool. Failure
to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
SAVEALLWARNINGSAND
INSTRUCTIONSFORFUTUREREFERENCE.
The term "power tool"in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless)power tool.
WORK AREA SAFETY
•Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
•Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
createsparkswhichmayignitethedustorfumes.
•Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
ELECTRICAL SAFETY
•Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
•Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or
grounded.
•Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
•If operating a power tool in a damp location is
unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a
GFCI reduces the risk of electric shock.
PERSONAL SAFETY
•Stay alert, watch what you are doing and use
common sense whenoperating apower tool. Do
notuse apowertoolwhileyou aretiredor under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
•Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat
or hearing protection used for appropriate
conditions will reduce personal injuries.
•Prevent unintentional starting. Ensure the
switch is in the off-position before connecting to
power source and/or battery pack, picking up or
carryingthetool. Carryingpower tools withyour
finger on the switch or energizing power tools
that have the switch on invites accidents.
•Remove any adjusting key or wrench before
turning the power tool on. Awrench or a key left

3
attached to a rotating part of the power tool
may result in personal injury.
•Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
•If devices areprovidedfortheconnectionof dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
•Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
POWER TOOL USE AND CARE
•Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better andsafer at the
rate for which it was designed.
•Do not use the power tool ifthe switch does not
turn it on and off.Anypowertool thatcannot be
controlled with the switch is dangerous and
must be repaired.
•Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any
adjustments, changing accessories, or storing
power tools. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool's operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly
maintained power tools.
•Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
•Usethepower tool, accessoriesandtoolbitsetc.
in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the power tool for
operations different from those intendeds could
result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean
and free from oil and grease.
•Slippery handles and grasping surfaces do not
allow for safe handling and control of thetool in
unexpected situations.
BATTERY TOOL USE AND CARE
•Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire
when used with another battery pack.
•Usepowertoolsonlywithspecificallydesignated
battery packs. Use of any other battery packs
may create a risk of injury and fire.
•When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
•Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
•Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
•Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or
temperature above 265°F may cause explosion.
•Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside
thespecifiedrangemaydamagethebatteryand
increase the risk of fire.
SERVICE
•Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
•Never service damaged battery packs. Serviceof
battery packs should only be performed by the
manufacturer or authorized service providers.
SAFETY WARNINGS FOR
RECIPROCATING SAW
•Hold the power tool by insulated gripping
surfaces, when performing an operation where
thecutting accessorymay contacthiddenwiring.
Cutting accessory contacting a "live" wire may
make exposed metal parts of the power tool
"live" and could give the operator an electric
shock.
•Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the workpiece by hand or against your
body leaves it unstable and may lead to loss of
control.
SAVETHESEINSTRUCTIONS!

4
SYMBOLS
SAFETY SYMBOLS
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols
and the explanations with them deserveyour careful
attention and understanding. The symbol warnings
do not, by themselves, eliminate any danger. The
instructions and warnings they give are no
substitutes for proper accident prevention measures.
Be sure to read and understand all
safety instructions in this Owner's
Manual, including all safety alert symbols such as
"DANGER," "WARNING," and "CAUTION" before
using this tool. Failure to following all instructions
listed below may result in electric shock, fire, and/or
serious personal injury.
The definitions below describe the level of severity for
each signal word. Please read the manual and pay
attention to these symbols.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey
all safety messages that follow this symbol to
avoid possible injury or death.
DANGER indicates a hazardous
situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION, used with the safety alert
symbol, indicates a hazardous
situation which, if not avoided, will result in minor or
moderate injury.
DAMAGE PREVENTION AND
INFORMATION MESSAGES
These inform the user of important information
and/or instructions that could lead to equipment or
otherproperty damageif theyare not followed. Each
messageis precededbythe word"NOTICE",asin the
example below:
NOTICE: Equipment and/or property damage may
resultiftheseinstructionsare not followed.
The operation of any power tools
can result in foreign objects being
thrown into your eyes, which canresult in severe eye
damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with
side shields and a full-face shield when needed. We
recommend a Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side
shields. Always use eye protection which is marked
to comply with ANSI Z87.1.
SYMBOLS (CONTINUED)
IMPORTANT: Some of the following symbols may be
used on your tool. Please study them andlearn their
meaning. Proper interpretation of these symbols will
allowyouto operatethetool better andmoresafely.
Symbol
Designation/Explanation
V
Volts
A
Amperes
Hz
Hertz
W
Watt
kg
Kilograms
min
Minutes
s
Seconds
Wh
Watt-hours
Ah
Ampere-Hours
Ø
Diameter
n0
No-load speed
n
Rated speed
…/min
Revolutions or
reciprocations per minute
0
Off position
1,2,3, …
I, II, III,
Selector settings
Arrow
Direct current
Alternating current
Class II tool
Earthing terminal
Li-ion RBRC seal
Read manual symbol
Wear eye protection symbol
Wear protective gloves

5
GET TO KNOW YOUR RECIPROCATING SAW
MOKENEYE 20V CORDLESS ANGLE GRINDER
1) PIVOT SHOE
2) TOOL-LESS BLADE CLAMP
SLEEVE
3) LED LIGHT
4) VARIABLE-SPEED TRIGGER
SWITCH
5) LOCK-OFF BUTTON
6) VENTILATION OPENINGS
7) HANDLE
8) SHOE-RELEASE SCREWS
9) VENTILATION OPENINGS
10) HANDLE
11) SHOE-RELEASE SCREWS
2
3
5
1
6
4
7
8
1
2
10
11
9
C20M1US
C20MK1US
10
11
9

6
1/2"
VARIABLE-SPEED
TRIGGER SWITCH
FUEL GAUGE
DETACH
ATTACH
BATTERY-
REALEASE
BUTTON
3a
LOCK-OFF
BUTTON
3b
4
5
6
8
LED LIGHT

7
7a
7b
9
PIVOT SHOE
10
11

8
SPECIFICATIONS
Model No.
RS01Z
Rated voltage
20V d.c.
No-load speed
0 ~ 3000 SPM (Strokes per Minute)
Stroke
1" (25mm)
Sawing capacity in wood
4-3/4" (120 mm)
Sawing capacity in aluminum
15/16" (24 mm)
Sawing capacity in metal
3/4" (20 mm)
Recommended working temperature
14 ~ 104°F (-10 ~ 40°C)
Recommended storage temperature
32 ~ 104°F (0 ~ 40°C)
12a
12b
BLADE FACING DOWN
BLADE FACING UP

9
OPERATING INSTRUCTIONS
To reduce the risk of fire, personal
injury, and product damage due to
ashortcircuit,neverimmerseyourtool,batterypack
orchargerinfluidorallowafluidto flow insidethem.
Corrosive or conductive fluids, such as seawater,
certain industrial chemicals, and bleach or bleach-
containing products, etc. can cause a short circuit.
If any parts are damaged or
missing, do not operate this
product until the parts are replaced. Use of this
product with damaged or missing parts could result
in serious personal injury.
Do not attempt to modify this tool
or create accessories not
recommended for use with this tool. Any such
alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
injury. To prevent accidental starting that
couldcauseseriouspersonalinjury,
always remove the battery pack from the tool when
assembling parts, making adjustments, cleaning, or
when not in use.
This cordless reciprocating saw must be used only
with the battery packs and chargers listed below:
Battery Pack Selection:
B202010MZ(L), B203005MZ(L), B204005MZ(L),
B204010MZ(L).
Charger Selection:
C10MZ1US, C20M1US, C20MK1US.
NOTICE: Please refer to the battery and charger
manuals for detailed operatinginformation.
FUEL GAUGE BATTERY PACKS
Some MOKENEYE battery packs include a fuel gauge
which consists of four green LED lights that indicate
the level of charge remaining in the battery pack.
The fuel gauge is an indication of approximate levels
of charge remaining in the battery pack according to
the following indicators:
To actuate the fuel gauge, press and hold the fuel
gauge button. A combination of the four green LED
lights will illuminate designating the level of charge
left. When the level of charge in the battery is below
theusablelimit,thefuelgauge willnotilluminateand
the battery will need to be recharged.
NOTICE: The fuel gauge is only an indication of the
charge left on the battery pack. It does not indicate
tool functionality andis subject to variation based on
product components, temperature and end-
user application.
For more information regarding fuel gauge battery
packs, please send e-mail to Mokeneye Customer
Service: [e-mail].
LED FUNCTIONS OF CHARGER
LED WILL BE ON TO INDICATE STATUS OF CHARGER
AND BATTERY PACK:
•LED lights up red = Fastcharging mode.
•LED lights up green = Fully charged and in
maintenance charge mode.
•LED lights up green = When an under-charged
battery pack is inserted into charger, indicates
hot battery pack or that battery pack is out of
normal temperature range or deeply discharged
or defective battery pack.
•No LED on = Defective charger.
CHARGING THE BATTERY PACK
See Fig. 2
Batterypacksforthistoolareshippedinalowcharge
condition to prevent possible problems. Therefore,
you should charge it until the green LED on the front
of the charger comes on.
CHARGING A COOL BATTERY PACK
If battery pack is within normal temperature range,
the red LED on charger will come on.
NOTICE: If the charger does not charge the battery
pack under normal circumstances, return both the
battery pack and charger to your nearest Mokeneye
Authorized Service Center for electrical check.
•Charge the battery pack only with the charger
provided.
•Make sure the powersupply is normalhousehold
voltage, 110~240 volts, 50/60 Hz, AC only.
•Connect the charger to the power supply.
•For C10M1US charger, insert the plug of the
charger into the charging hole of the battery
pack.
•For C20M1US/C20MK1US charger, place the
battery pack in the chargeraligning raised rib on
the battery pack with the groove in the charger.
•Press down on the battery pack to be sure
contacts on the battery pack engage properly
with contacts in the charger.
•Normally the red LED on charger will come on.
This indicates the charger is in fast charging
mode.
•Red LEDshould remain on forapproximately 1 to
2 hours then the green LED will come on. Green
LEDon indicatesbattery packisfullychargedand
charger is in maintenance chargemode.
NOTICE: The green LED will remain on until the
75-100% charged
50-75% charged
25-50% charged
<25% charged
Pack needs to be charged

10
charger is disconnected from the power supply.
•After normal usage, a minimum of 1 hour of
charging time is required to fully recharge
battery pack.
•The battery pack and the charger will become
slightly warm to the touch while charging. This is
normal and does not indicate a problem.
•Do not place the charger and battery pack in an
area of extreme heator cold. They will work best
at normal room temperature.
NOTICE: The charger and battery pack should be
placed in a location where the temperature is
more than 32°F but less than 100°F.
•When batteries become fully charged, unplug
the charger from power supply and remove the
battery pack.
CHARGING A HOT BATTERY PACK
Whenusingthe tool continuously,thebatteriesin the
battery pack will become hot. You should let a hot
batterypackcooldownforapproximately30minutes
before attempting to recharge. When the battery
pack becomes discharged and is hot, this will cause
the green LED to come on instead of the red LED.
After 30 minutes, reinsert the battery pack in the
charger. If the green LED continues to remain on,
return battery pack to your nearest Mokeneye
Authorized Service Center for checking or replacing.
NOTICE: This situation only occurs when continuous
use of the tool causes the batteries to become hot.It
doesnotoccur under normalcircumstances.Referto
"CHARGING A COOL BATTERY PACK" for normal
recharging of batteries. If the charger does not
charge your battery pack under normal
circumstances, return both the battery pack and
charger to your nearest Mokeneye Authorized
Service Center for electricalcheck.
LOCK-OFF BUTTON
See Fig. 3
Your tool is equipped with a lock-off button, located
above the variable-speed trigger switch, to prevent
the saw from being activated unintentionally.
Tolocktheswitchintheoffposition,depressthelock-
off button to the (locked) position (Fig.3a).
To unlock the switch, depress the lock-off button to
the (unlocked) position (Fig.3b).
TO ATTACH/DETACH BATTERY PACK
See Fig. 4
Lock the variable-speed trigger switch "OFF" on the
tool by depressing the lock-off button to the locked
position.
To attach the battery pack:
Align the raised rib on the battery pack with the
grooves on the tool, and then slide the battery pack
onto the tool.
To detach the battery pack:
Depress the battery-release button, located on the
front ofthe battery pack, to release the batterypack.
Pull thebattery packoutand removeit fromthetool.
NOTICE: When placing the battery pack on the tool,
be sure that the raised rib on the battery pack aligns
with the groove in the tool and that the latches snap
into place properly. Improper attachment of the
battery pack can cause damage to internal
components. Battery tools are always in
operating condition. Therefore, the
lock-off button should always be depressed and in
the locked position when the tool is not in use or
carrying at your side.
VARIABLE-SPEED TRIGGER SWITCH
See Fig. 5
Your tool is equipped with a variable-speed trigger
switch. The tool can be turned "ON" or "OFF" by
depressing or releasing the variable-speed trigger
switch.
The variable-speed trigger switch delivers higher
speed with increased trigger pressure and lower
speed with decreased trigger pressure.
LED LIGHT
See FIG. 6
Your tool is equipped with an LED, located above the
blade clamp on the tool. ThisLED provides additional
light onthe surface ofthe workpiece foroperationin
lower-light areas.
The LED will automatically turn on with a slight
squeeze on the variable-speed trigger switch before
the tool starts running, and will turn off after the
variable-speed trigger switch isreleased.
BLADE SELECTION
To obtain the best performance from the saw, it is
important to select the correct blade for the
particular application and type ofmaterial to be cut.
Blades with fewer teeth, e.g., 6 teeth per inch (TPI),
aretypically used for cuttingwood;bladeswith more
teeth per inch are better for cutting metal or plastic.
We recommend 14 TPI blades for plastics and soft
metals and 18 TPI bladesfor hard metals.

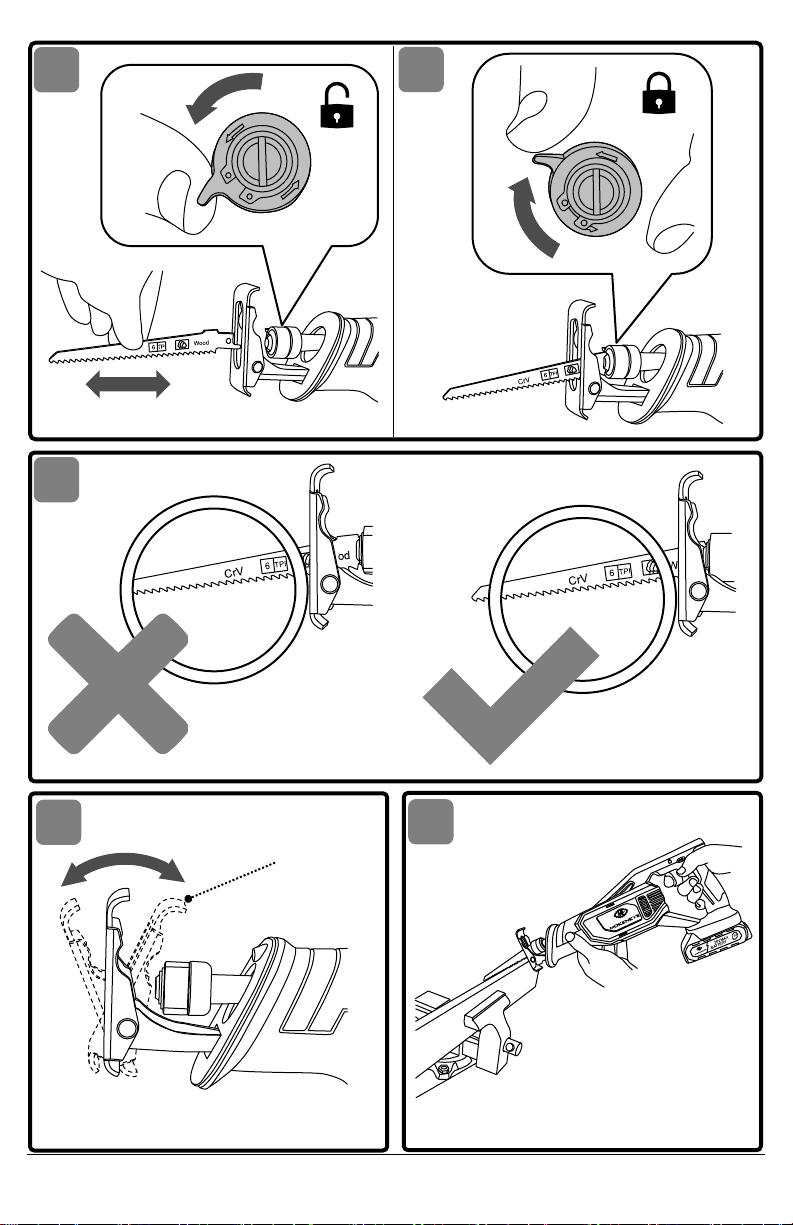

INSTALLING AND REMOVING THE SAW
BLADE
See Fig. 7 Alwayslockthetooloffandremove
thebatterypackbeforemakingany
adjustments or assembling parts.
Depressthelock-off button tothelockedposition and
then remove the battery pack from the tool.
To install the saw blade:
a. Use one hand to depress the fin on the sleeve of
the tool-less blade clamp to rotate the sleeve in
the direction of the arrow marked on the blade

11
clamp and then hold it in place.
b. Use the other hand to insert the saw blade into
the blade clamp as far as possible.
c. Release the tool-less blade clamp sleeve,and the
blade should be locked in place automatically.
d. Try to push in and pull-out blade to check
whether it is locked correctly.
NOTICE: The blade may be installed with the teeth
pointing up or down, according to the needs of the
cutting operation.
To remove the saw blade:
a. Use one hand to depress the fin on the sleeve of
the tool-less blade clamp to rotate the sleeve in
the direction of the arrow marked on the blade
clamp and then hold it in place.
b. Remove the saw blade from the blade clamp.
c. Release the tool-less blade clamp sleeve.
Use protective gloves when
removing the saw blade from the
tool, or first allow the saw blade to cool down. The
saw blade may be hot after prolonged use.
PIVOT SHOE ADJUSTMENT
See Fig. 8, 9
Your tool is equipped with a pivot shoe that can slide
in and out to adjust the effective stroke length for
maximum control and longer blade life.
a. Depressthe lock-offbutton tothelockedposition
and then remove the battery pack from the tool.
b. Loosen the shoe-release screws by turning them
counterclockwisewith thehex key (supplied) and
slide the shoe to the desired position.
c. Tighten the shoe-release screws by turning them
clockwise with the hex key (supplied) to lock the
shoe in the desired position.
Toavoidinjury anddamage,donot
operate the saw without the pivot
shoeinplace. Thebladeclampmaystrikeagainst the
workpiece and damage the reciprocating
mechanism. Make sure that the front endof the
blade extends through the shoe for
the entire stroke length (Fig. 9). Do not use specialty
blades that are very short or those with significant
tilt. The blade must not contact the shoe. A blade
that is too short or is tilted could jam inside the shoe
and then snap.
PIVOTING THE SHOE
See Fig. 10
The shoe pivots to provide maximum control when it
is aligned against the surface being cut.
a. Depressthe lock-offbutton tothelockedposition
and then remove the battery pack from the tool.
b. Firmly hold the saw and then pivot the shoe to
the desired angle, while taking care to avoid
contact with the blade.
c. Reinstall the battery and prepare to cut.
GENERAL CUTTING
See Fig. 11 Never use the woodcutting blade
for cutting metals. Failure to do so
could result in serious personal injury.
Before attaching the battery pack
onto the tool, always check to
determine that the switch performs properly and
returns to the "OFF" position when released.
Hold the tool only by the plastic
handle and the insulated grip area
to help prevent electrical shock. When sawing into
walls or floors you may encounter electrical wiring.
Sawing into a "live" wire will conduct electricity into
the tool.
a. Depressthe lock-offbutton tothelockedposition
and then remove the battery pack from the tool.
b. Make sure that the workpiece is firmly clamped
in place to keep it from slipping or moving while
cutting.
c. Install the appropriate type and size of blade for
the workpiece material and size.
d. Adjust the pivot shoe as necessary to make sure
that the blade will extend beyond the shoe and
through the workpiece at all times.
e. Adjust the pivot shoe as necessary to expose
unworn blade teeth for longer blade life.
f. Checkforclearancebehindtheworkpiecesothat
the blade will not contact another surface.
g. Mark the line of cut clearly. If cutting metal,
apply cutting oil to the line.
h. Attachthe battery packto thereciprocating saw.
i. Hold the saw firmly with both hands. Make sure
to keep your hands on the insulated gripping
areas only.
j. Depressthelock-offbuttonto theunlockposition
and squeeze thevariable-speed trigger switch to
start the saw and bring it to the maximum
desired cutting speed before applying the blade
to the workpiece.
k. Place the shoe firmly on the workpiece while
cutting. Use only enough steady pressure on the
blade to keep the saw cutting. Do not force the
tool.
l. Reduce pressure as the blade comes to the end
of the cut.
m. Allow the saw tocometoa completestop before
removing the blade from the workpiece.
NOTICE: Whensawing fiberglass, plaster,wallboard,
or spackling compound, clean the motor vents
frequently with a vacuum or with compressed air.
These materials are highly abrasive and may
accelerate the wear on motor bearings and brushes.
Always wear safety goggles when
cleaning tools with compressedair.
NOTICE: Cutting speeds should vary with the

12
workpiece. Hard materials, such as metals, require
lower speeds; use higher speeds for softer materials.
Always wear safety goggles or
safety glasses with side shields
during powertool operationor when blowing dust. If
operation is dusty, also wear a dust mask.
Do not allow familiarity with the
saw to make you careless. One
careless fraction of a second is enough to inflict
serious injury.
PLUNGE CUTTING
See Fig. 12
Your reciprocating saw is ideal for plunge cutting
directly into surfaces that cannot be cut from an
edge, such as in walls or floors. Plunge cutting may
be done two ways, depending on how the blade is
inserted.
Figure 12a shows how to plunge cut with the teeth
of the blade facing down.
Figure 12b shows how to plunge cut with the teeth
of the blade facing up.
Do not plunge cut into metal
surfaces.
a. Depressthe lock-offbutton tothelockedposition
and then remove the battery pack from the tool.
b. Make sure that the workpiece is firmly clamped
in place to keep it from slipping or moving while
cutting.
c. Select the appropriate type and size of blade for
theworkpiece material and size. Install the blade
onto the tool.
d. Adjust the pivot shoe as necessary to make sure
that the blade will extend beyond the shoe and
through the workpiece at all times.
e. Adjust the pivot shoe as necessary to expose
unworn blade teeth for longer blade life.
f. Checkforclearance behindtheworkpiecesothat
the blade will not contact another surface.
g. Mark the line of cut clearly.
h. Attachthe battery packto thereciprocating saw.
i. If the blade is inserted with the teeth facing
downward, hold the tool as shown in Column A,
resting the edge of the shoe on the workpiece.
j. NOTICE: To make plunge cutting easier, use a
heavy gauge blade and install the blade with the
teeth facing upward relative to the normal
upright operating position of the saw, as show in
Column B.
k. Withthebladejustabovetheworkpiece,depress
the lock-off button to the unlock position and
squeeze the variable-speed trigger switch to
start the tool; allow it to come to the desired
speed.Then,using theedgeof the shoeasa pivot,
lower the blade into the workpiece.
l. As the blade starts cutting, raise the handle of
the tool slowly, until the shoe rests firmly on the
workpiece.
m. After the blade has penetrated through the
workpiece, continue sawing along the marked
cutting line.
n. Allow the saw tocometoacompletestopbefore
removing the blade from the workpiece.
To reduce the risk of explosion,
electric shock and property
damage, always check the work area for hidden gas
pipes, electrical wires or water pipes when making
blind or plunge cuts.
To avoid loss of control and serious
injury, make sure that the blade
reaches the full desired speed before touching it to
the workpiece. Do not make plunge cuts in metal
materials.
METAL CUTTING
Never use the wood-cutting blade
for cutting metals. Failure to do so
could result in serious personal injury.
The saw can be used to cut metals, such as sheet
steel, pipe, steel rods, aluminum, brass, and copper.
Be careful not to twist or bend the saw blade. Do not
force the tool.
The use of cutting oil is recommended when cutting
soft metals and steel. Cutting oil will keep the blade
cool, increase the cutting action, and prolong blade
life.
To avoid possible serious injury:
•Never use gasoline as cutting lubricant, because
normal sparking could ignite the fumes.
•Securely clamp the workpiece in position, and
make the cut close to the clamping point to
minimize vibration.
•When cutting conduit pipe or angle iron, clamp
the workin avise,ifpossible,and cut closeto the
vise.
•To cut thin sheet material, "sandwich" the
material between pieces of hardboard or
plywood, and clamp the layers together to
reduce vibration and tearing of the material.
MAINTENANCE
To avoid serious personal injury,
remove the battery pack from the
tool before inspecting, cleaning, or performing
maintenance. A battery-operated tool with the
battery pack inserted is always on and can start
accidentally.
SERVICE Preventivemaintenanceperformed
by unauthorized personnel may
result in misplacing of internal wires and
components which could cause serious hazard. We
recommend that all tool service be performed by a
MOKENEYE Factory Service Center or Authorized
MOKENEYE Service Station.

13
GENERAL MAINTENANCE
When servicing, use only identical
replacement parts. Use of any
other parts could create a hazard or cause product
damage.
Periodically inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts,
caps,etc.Tightensecurely allfastenersand capsand
do not operate this product until all missing or
damaged parts are replaced. Please contact
customer service or an authorized service center for
assistance.
CLEANING
The tool may be cleaned most effectively with
compressed dry air.
Always wear safety goggles when
cleaning tools with compressed air.
Ventilation openings and switch selectors must be
keptcleanandfreeofforeignmatter.Donotattempt
to clean by inserting pointed objects through
openings. Certain cleaning agents and
solvents damage plastic parts.
Some of these are: gasoline, carbon tetra-chloride,
chlorinated cleaning solvents, ammonia and
household detergents that contain ammonia.
STORAGE
Store the tool indoors in a place that is inaccessible
to children. Keep away from corrosive agents.
TROUBLE SHOOTING
Problem: Tool will not start.
Cause
Remedy
Battery pack is depleted.
Charge the battery.
Battery pack is not
installed properly.
Confirm battery is
locked and secured to
the tool.
Burned out switch.
Have the switch
replaced by an
Authorized MOKENEYE
Service Center or Service
Station.
Problem: The blade binds, jams, or bums
the wood.
Cause
Remedy
The blade is dull.
Replace the blade.
An improper blade is
being used.
Choose the right blade
for your operation.
The blade is warped.
Replace the blade.
Problem: The saw vibrates or shakes.
Cause
Remedy
The blade is damaged.
Replace the blade.
The blade is loose.
Remove the blade and
reinstall it.
LIMITED WARRANTY
1 YEAR LIMITED WARRANTY- LEGAL
MOKENEYE warrants to the original purchaser only,
that all MOKENEYE consumer POWER TOOLS will be
free from defects in material or workmanship for a
period of one years from date of purchase.
BATTERIES AND CHARGERS are warranted for 1
years. Original purchasers should also retain their
receipt as proof of purchase.
Notwithstanding the foregoing, if a MOKENEYE
consumer portable power tool is used for industrial,
professional or commercial purposes, the foregoing
warranty will apply for a duration of ninety days.
SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE
REMEDY under this Limited Warranty and, to the
extent permitted by law, any warranty or condition
implied by law, shall be the repair or replacement of
parts, without charge, which are defective in
material or workmanship and which have not been
misused, carelessly handled, or repaired by persons
other than Seller or Authorized Service Station. To
make a claim under this Limited Warranty, you must
returnthecompleteproduct,transportationprepaid,
to any MOKENEYE Factory Service Center or
Authorized Service Station. For Authorized
MOKENEYE Power Tool Service Stations, please
contact Amazon Store Customer Service.
THIS LIMITED WARRANTY DOES NOT APPLY TO
ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES,
DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING
BELTS, GRINDING WHEELS AND OTHER RELATED
ITEMS.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING BUT NOT LIMITED TO LIABILITY FOR
LOSS OF PROFITS) ARISING FROM THE SALE OR USE
OF THIS PRODUCT.
