MokerLink POE-G484GSM User manual

Manual for POE-G484GSM
All Gigabit PoE Managed switch

01 Product introduction
Product overview
POE-G484GSM L2 multi-functional network PoE management switch independently adopts Realtek's new generation
high-performance platform and new self-developed switch system, and supports flexible network management functions
such as 802.1Q VLAN, IGMP, port monitoring, port aggregation, bandwidth control, ring application, etc. This series of
switches is specially designed for the construction of high-performance complex network requirements, providing a
comprehensive security protection system, perfect qos strategy and rich VLAN functions, simple management and
maintenance, and can be applied to the core layer of small and medium-sized enterprises, communities and schools.
Port performance
Supply 48*10/ 100/1000M PoE ports, all of which can realize line speed forwarding.
Supply 4*SFP uplink ports for high-speed uplink transmission.
Each port supports MDI/ MDIX auto flip and duplex / rate self negotiation.
Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control.
Security & Protection
STP / RSTP / MSTP spanning tree protocol is supported to eliminate layer-2 loops and realize link backup.
Support tree security function, prevent devices in tree network from being attacked by various forms of malicious.
It supports static aggregation and dynamic aggregation, effectively increases link bandwidth, realizes load balancing,
link backup, and improves link reliability.
Running and Maintenance
Support web management, CLI command line (console, telnet), SNMP (v1/v2/v3) and other diversified management
and maintenance methods.
It supports HTTPS, SSL V3, tlsv1, sshv1/v2 and other encryption methods, and makes management more secure.
It supports RMON, system log and port traffic statistics to facilitate network optimization and transformation.
Users can know the working status of the switch through the power indicator (PWR), port status indicator and system
status indicator (sys).
Functional features
Add a variety of new applications based on IPv6, easily adapt to modern complex network management applications
Support IEEE 802.1Q VLAN, users can divide VLAN flexibly according to their needs.
Support voice VLAN, configure QoS parameters for voice data stream, improve the transmission priority of voice data
stream and ensure the call quality.
It supports QoS, supports port based, 802.1p and DSCP based priority modes to optimize the bandwidth configuration.
It supports ACL, achieves packet filtering by configuring matching rules, processing operations and time permissions,
and provides flexible security access control policies
Support IGMP V1 / V2 multicast protocol, support IGMP snooping, meet the requirements of multi terminal HD video
monitoring and video conference access.
Support multicast VLAN, multicast filtering, efficient data transmission, save network bandwidth, reduce network load.
Support port monitoring, copy the data package of monitored port to the monitoring port to realize network monitoring.
Support the management and maintenance of equipment through web interface.
It supports port convergence, effectively increases link bandwidth, realizes link backup and improves link reliability.
PoE Function
Complied to IEEE80.23af/at/PoE++/BT,whole device PoE output power up to 600W.
Automatically detect and supply power for PoE devices.
Advanced PD detection function when PoE is on, the switch can achieve real-time detection on powered devices.And
the switch automatically sets the ports and then restores PoE power supplying to make no duty come true.

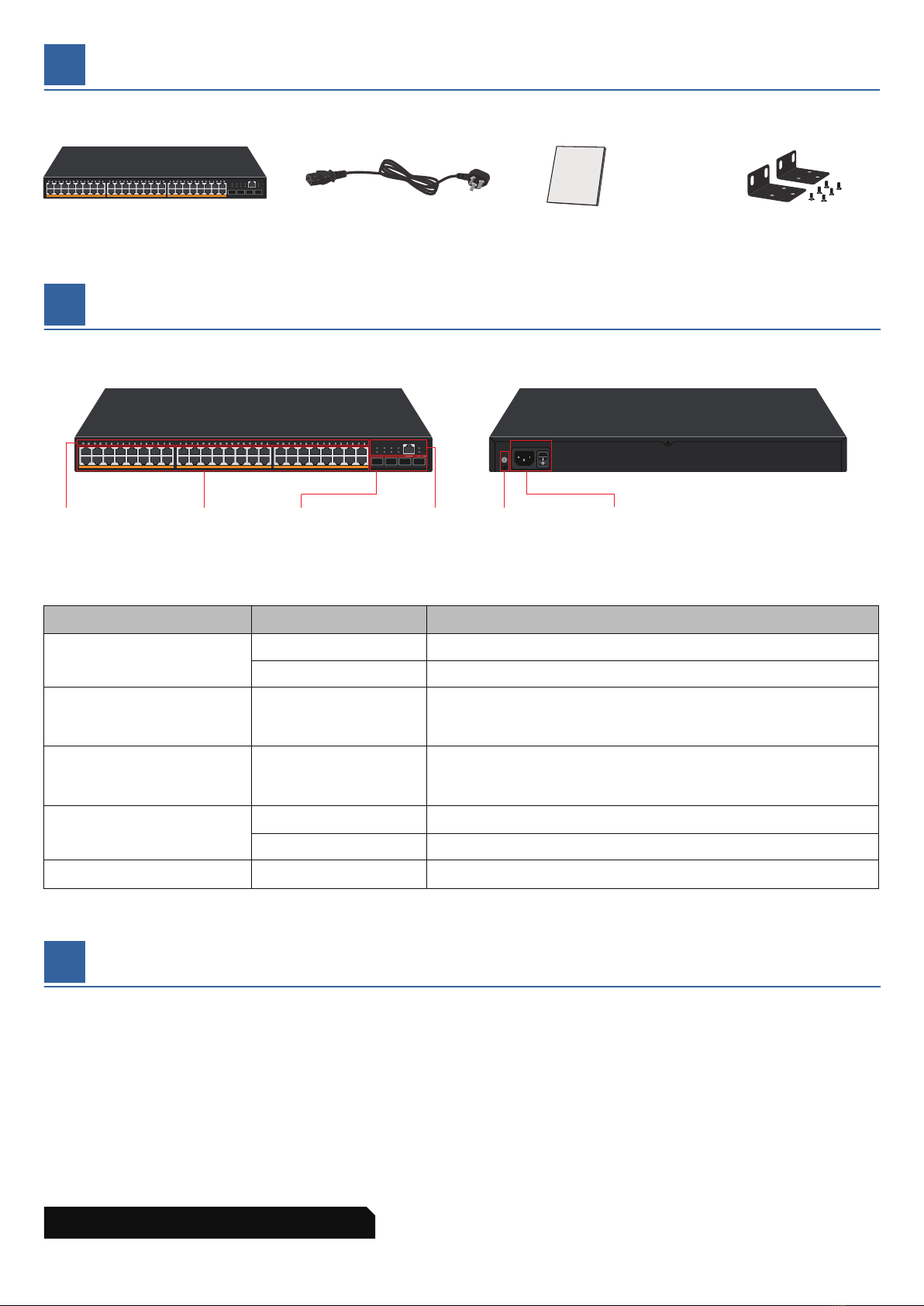

02 Spare parts list
Switch AC power cable User manual Rack hanger
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
03 Product display
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
AC-110-240V
Front Back
Downlink portPort Indicator Uplink port Indicator and Reset key Ground screw AC Power
Indicator definition:
Indicator
Power indicator: PW
SFP indicator: 49~52
【Link】
SFP indicator: 49~52
【Giga】
Port indicator: 1~48
System indicator:SYS
Status Description
Green light is always on Power on normal
Always off No power
Light is on The corresponding SFP port works at 10/100M speed
Green light is on The corresponding port works at 10/100M speed
Orange light is on The corresponding port works at 1000M speed
1S Slow flash System is operating normally
Light is on The corresponding SFP port works at 1000M speed
04 Installation&Points of attention
Checking before installation
1.Check whether the accessories are complete. If there is any omission, please contact us.
2.Check whether the power supply voltage is consistent with the working voltage of the switch,so as to avoid the
equipment burning out due to high voltage.
3.Ensure that the installation position of the switch has certain ventilation and heat dissipation conditions.
4.Please keep the power off during installation to avoid potential safety hazards.
5.Please install the switch on a stable plane to avoid falling and damage.
Port installation and connection
12

678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
Insert the data cable
As shown in the figure, insert the crystal head of
the data cable into the network port. When you
hear a clear click, it indicates that the crystal
head is successfully connected with the network
port of the switch. Just plug in all the network
cables of the network equipment in this way.
Install the SFP module
12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
As shown in the figure, align the optical fiber
module with the optical port of the SFP and
insert it smoothly. When you hear a clear
click, it indicates that the optical fiber module
is installed successfully. Just install the two
optical fiber modules in this way.
Install to desktop
Attach the four non slip rubber footmats that came
with the device to the bottom corners of the switch.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
Place the switch on the horizontal desktop in the
ventilation area.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
Install to cabinet/Rack
1. install the rack lug attached to the equipment to both
sides of the switch with screws
2. Install floating nut on cabinet / rack

3. Put the switch installed with the lug into the cabinet and screw on the screw to complete the installation.
12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
Power on
Connected the power
AC-110-240V
Three
hole socket
AC Power in 100V~240V
50/60Hz
Points of attention
1.Do not stack heavy objects on the switch to avoid danger.
2.In order to avoid the risk of electric shock, please do not open the machine box when the switch is working, even if it
is not powered on, please contact us in case of any problem.
3.Before cleaning the switch, pull out the power plug of the switch. Do not wipe it with wet fabric or clean it with liquid.
4.If the power adapter is damaged, do not replace it with other power adapters. This switch should be equipped with
original power adapter.

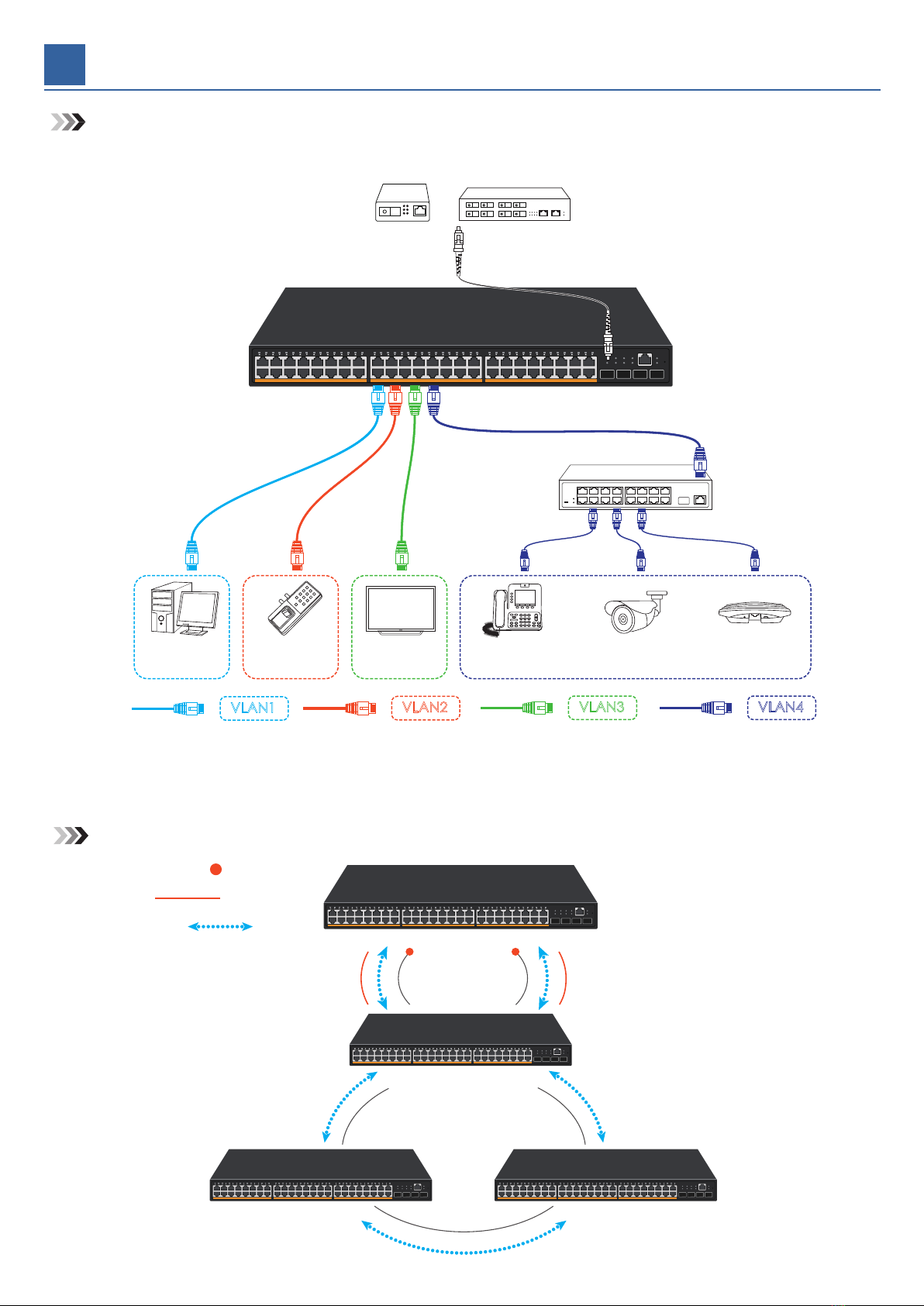

05 Application
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
Fiber
converter
Fiber convergence
switch
Computer Camera
Ethernet Switch
Wireless APIP Phone
Intelligent
door lock IPTV
VLAN application
The uplink port can connect routers, servers and other devices. The downlink port can be connected to the switch
or directly connected to the network equipment. It also supports port based VLAN, which can be divided into up
to 4096 VLANs.
VLAN1 VLAN2 VLAN3 VLAN4
Application of ring network
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
49 50 51 52
Link
SYS
PW RETConsole
Giga
48G+4SFP Managed Switch
50 51 52
RPL Owner
RPL
Data stream

06 Common troubleshooting
The PWR indicator is not on after the power is connected Check whether the power adapter and plug are
connected correctly, whether the power cord is damaged, and whether the power adapter is damaged.
Switch cannot communicate after power up Check whether the switch indicator is on. If the indicator is off, the
network cable is not connected. If the indicator is on, the communication fault is indicated.
Switch network speed suddenly become very slow Take off the plug and restart the switch.
[If the above problems or other switch problems can not be solved, please contact us for technical support]

07 Product Parameter
Model
Product
POE-G484GSM
48 Port Gigabit PoE Managed Switch
Fixed Port
48*10/100/1000Base-TX PoE port
4*1000M SFP
Console port 1*console port
Reset Key 1
Port Specification 10/100/1000BaseT（X）Auto
Transmission Mode Store and Forward(full wirespeed)
Bandwidth 256Gbps
Packet Forwarding 74.88Mpps
MAC Address 16K
Buffer 12M
Transmission Distance
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter)
1000BASE-TX ： Cat6 or later UTP(≤1000 meter)
1000BASE-SX:62.5μm/50μm MMF(2m~550m)
1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Watt ≤600W
FLASH 16M
RAM 128M
LED Indicator
PWR: Power LED
SYS: (System LED）
1~48 Port:(Link LED;1000M LED;PoE LED）
49~52:(SFP LED)
Power Built-in Power AC：100～240V 50-60Hz
Operating
Temperature/Humidity -20～+55°C；5%～90% RH Non coagulation
Storage
Temperature/Humidity -40～+75°C；5%～95% RH Non coagulation
IEEE 802.3
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.3ad
IEEE 802.3q 、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol
EAPS ring network protocol
Network Protocol
PoE Standard IEEE80.23af/at/PoE++/BT
PoE power 1~2: Max 90W
3~48: Max 30W

Software Function
The followings are main functions not included in all the functions.Please contact with us for more other
information!（We support software development for customization requirement）
Network Protocol
IEEE 802.3x
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d、IEEE 802.1S、IEEE 802.1X
MAC Support 16K MAC address,auto aging and learning
Port Aggregation Support 8 groups of aggregation, each group support up to 8 ports
Port Mirroring Support many-to-one port mirroring
Loop Guard Support loop protection, real-time detection, quick alram, concise location,
Intelligent blocking, automatic recovery
Port Isolation Support downlink ports isolate from each other and communicate with
uplink port as well
Speed Limitation Bandwidth management based on port input and output
DHCP DHCP Snooping
Multicast Control
IGMPv1/2/3 and MLDv1/2 Snooping
GMRP protocol registration
Multicast address management, multicast VLAN, multicast routing port,
static multicast address
Flow Control Half duplex based on Back pressure;
Full duplex based on PAUSE frame
Spanning Tree
STP(Spanning tree protocol)
RSTP(Rapid spanning tree protocol)
MSTP(Rapid spanning tree protocol)
EPPS(Ring network protocol)
EAPS(Ring network protocol)
802.1x
VLAN Configuration
Support port-based VLAN
Up to 4096 VLANs
Support Voice VLAN, can configure Qos for voice data
802.1Q
Product size/ package size
（L*W*H）
440mm*290mm*45mm
515mm*375mm*95mm
N.W/G.W（kg）5.5kg/6.3kg
Installation Rack-mount(optional machine hanger spare parts)
Lightning protection
/ protection level
3KV 8/20us；
IP30
Certificate
3C；
CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；
Warranty Whole device for 1 year(Accessories not included)

Wuhan MokerLink Technology Co.,Ltd
Rm10,13/F,Main Building 7,Changhang Lanjing International,
No.116 Gaoxin Ave.,Hongshan Dist.,Wuhan,China
http://www.mokerlink.com
[email protected]
For technical support and other information, please visit
http://www.mokerlink.com/support/
Cable Sequence Auto-MDIX; auto detection on straight-through and cross-over cable
Negotiation Mode Port support auto negotiation function(self-negotiation transmission rate
and duplex mode)
Network Management
WEB interface management
CLI management based on Telnet、TFTIP、Console
SNMP V1/V2/V3 management
RMONV1/V2 management
RMON management
System maintenance
Upgrade package upload
System log viewing
WEB recovery factory configuration
PoE management
Turn the Port On or Off
Standard PoE schedule management
Automatic detection of online equipment function(Automatic execution without
operation)
QOS
802.1p port queue priority algorithm
Cos/Tos,QOS remark
WRR(Weighted Round Robin), weighted priority rotation algorithm
WRR、SP、WFQ priority scheduling modes
Security
Support User port+IP address+MAC address
ACL based on IP, MAC
Support security properties of number of MAC address based on port
Storm Suppression Support unknown unicast, multicast , unknown multicast, broadcast type
storm suppression;
Storm suppression based on bandwidth adjustment and storm filtering
