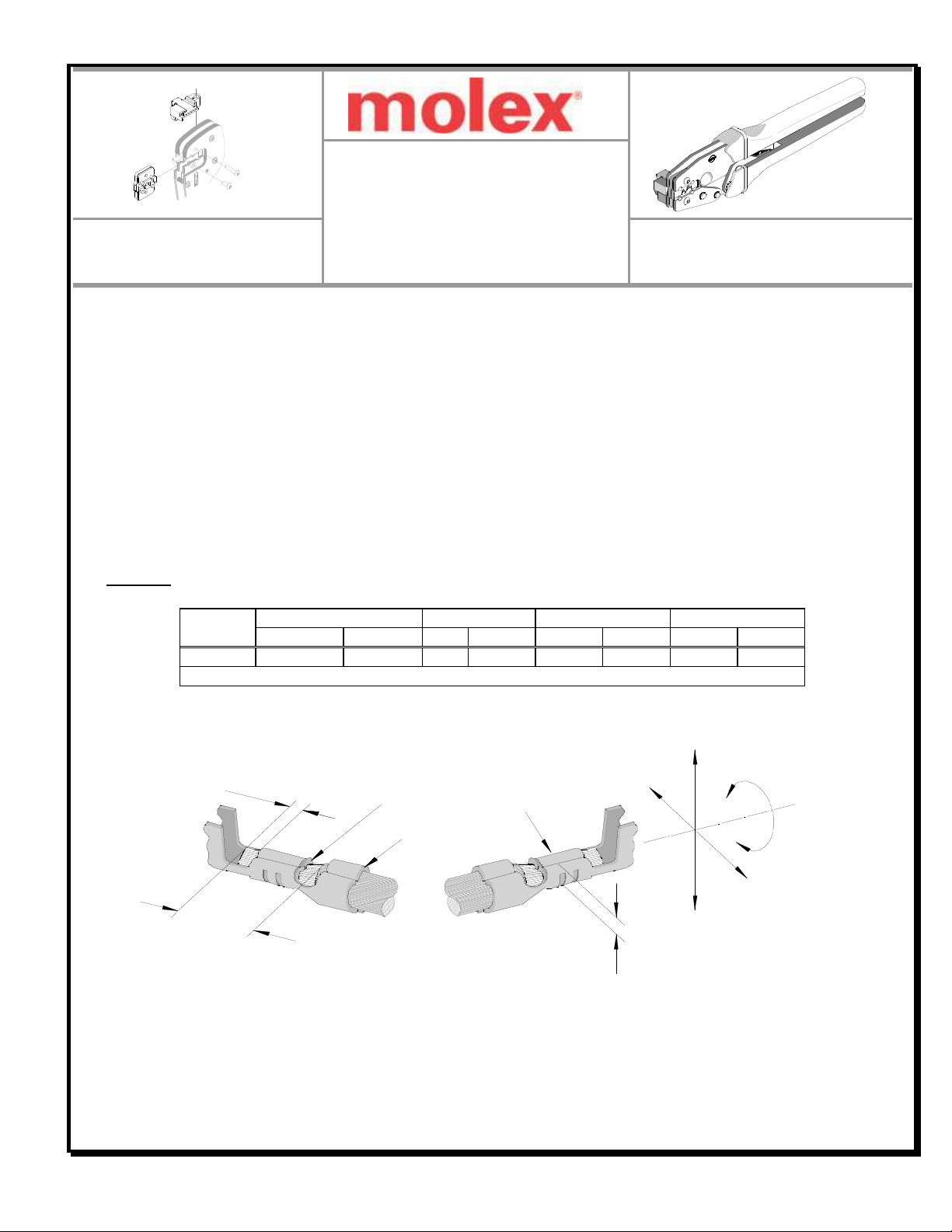

molex 207129 Series User manual

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 1 of 9
Revision: C Revision Date: 10-04-10
INSULATION
CRIMP
▲
SEE NOTE
BRUSH
STRIP
LENGTH
BELL MOUTH
BEND
DOWN
BEND UP
ROLLING
CONDUCTOR
CRIMP
TWISTING
CRIMP HEIGHT
Application Tooling
Speci ication Sheet
Tool Kit
Order No. 63811-6770
Hand Crimp Tool
Order No. 63811-6700
FEATURES
% A full cycle ratcheting hand tool ensures complete crimps
% Ergonomically designed soft handles
% Precisely designed crimping profiles with simple contact positioning
% Easy handling due to outstanding force ratio
 Tool kits are easily installed into the Hand Crimp Tool or the 63 16-0300 Power Crimp Head which is installed
into the 63 16-0200 (110 V) or the 63 16-0250 (220 V) Battery Powered Tool.
 Many different Tool kits can be used with a single Battery Powered Tool.
 This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 2.00mm (.079") Pitch, Micro SPOX™ Crimp Terminals, 22-30 AWG.
Terminal
Series No.
Terminal Order No. Wire Size Insulation Diameter Strip Length
Loose Piece 

Reel AWG mm² mm In. mm In.
5230 0 -70-0073 0 -70-0072 22-30 0.35-0.05 1.10-1.50 .043-.060 2.54-3.17 .100-.125
Customer to cut off terminal from reel: 0.40mm (.016”) maximum Cut-off Tab.
DEFINITION OF TERMS
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
TYPE 2C

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 2 of 9
Revision: C Revision Date: 10-04-10
▲Insulation Crimp Note:
Due to the terminal’s insulation grip design
and/or insulation diameter range, this tool
uses “overlap” form geometry in the insulation
punch. This produces an overlap insulation
crimp (A620 – compliant). While the insulation
punch profile may appear “lopsided”, this is a
normal condition for this tool. See figure to the
right. (Some tools with multiple crimp pockets
may not have the “overlap” profile on all
pockets).
CONDITIONS:
After crimping, the conductor profiles should
measure the following (see notes below).
Terminal Series No. Wire Size Conductor Crimp
Height (Re )
Pull Force
Minimum Pro ile
AWG mm2 mm In. N Lb. A B
5230
22 0.35 0. 4-0. 9 .033-.035 39.1 . 0 X
24 0.20 0.76-0. 1 .030-.032 29.3 6.60 X
26 0.12 0.69-0.74 .027-.029 19.6 4.40 X
2 0.0 0.66-0.71 .026-.02 9. 2.20 X
30 0.05 0.63-0.6 .025-.027 4.9 1.10 X
Tool Qualification Notes:
1. Pull Force should be measured with no influence from the insulation crimp.
2. The above specifications are guidelines to an optimum crimp.
Note:
A crimp height chart is provided with this manual as Reference Only. Due to the wide range of wires, strands,
insulation diameters, and durometers, actual crimp height measurements may very slightly. An occasional,
destructive, pull force test should be preformed to check hand tool crimp. Pull Force value must exceed the
minimum pull force specifications listed.
CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage
can occur to the tool or die.
INSTALLATION
To install the Tool Kit into the Power Crimp Head follow the steps below:
Anvils and Punches Installation
1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place.
2. Insert the Punches into the top slots of the nest. Install the M4 x 1 long BHCS and tighten in place. See
Figure 1.
OVERLAP
INSULATION
CRIMP
OVERLAP FORM GEOMETRY
ANVIL
PUNCH
WIRE

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 3 of 9
Revision: C Revision Date: 10-04-10
SWING
LOCATOR
OPEN
PRESS DOWN
ON THE BRASS
PIVOT SHAFT
LIFT UP ON
THE LOCATOR
Figure 2
ANVILS
POWER
CRIMP
HEAD
Figure 1
PUNCHES
M4 X 10 LONG
BHCS
M4 X 18 LONG
BHCS
Locator Installation and Removal
Follow the steps below to install or replace the locator. See Figure 2.
To install the locator
1. Position the locator with the hole over the brass pivot shaft and snap it into place.
To remove the locator
1. Open the crimp hand tool.
2. Swing the existing locator open and away from the hand tool.
3. Firmly press down on the brass pivot shaft with your thumb, while
pulling the locator up. Slip the locator off the top of the brass pivot
shaft.
OPERATION
Open the tool by squeezing the handles together, at the end of the closing
stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
Crimping Terminals
1. Select the desired terminal listed in the preceding charts.
2. Swing the terminal locator away from the crimp tool shown in Figure 4. Some terminals with large insulation
grips may interfere with the crimp tooling when swinging the locator into position. The terminal must then be
loaded into the locator in the closed/crimp position.
3. When using the locator, press down on the wire stop on the locator as shown in Figure 4. Insert the proper
terminal into the proper nest opening. Make sure when choosing the nest opening, it will correspond with the
A or B profile on the hand tool.
4. Return the locator to its original position.
5. Insert the proper wire over the terminal. Some large O.D. wires may need to be placed into the terminal before
closing the tool. Gently touch the wire stop with the end of the wire. See Figure 5.
6. Compress the terminal by squeezing the tool handles until the ratchet mechanism cycle has been completed.
Release handles to open the jaws.
Figure 3
LOCATOR
JAWS OPEN

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 4 of 9
Revision: C Revision Date: 10-04-10
SWING
LOCATOR
OPEN
PRESS DOWN
ON BRASS PIVOT
SHAFT
LIFT UP
LOCATOR
JAWS
OPEN
Figure 6
TERMINAL
PUSH HERE TO
OPEN WIRE STOP
SWING OPEN
LOCATOR LOCATOR
TERMINAL IN PLACE
Figure 4
LOCATOR
IN PLACE
WIRE STOP
TERMINAL
WIRE
WIRE STOP
WIRE
AGAINST STOP Figure 5
7. Remove the crimped
terminal from the terminal
locator by pressing down
on the wire stop and
gently pulling on the wire.
The terminal locator can
be in either position.
. Visually inspect the
crimped terminal for
proper crimp location.
Note: The tamper proof ratchet action will not release the tool until it has been fully closed.
For the Battery Power Tool:
1. Cycle the Battery Power Tool to crimp the terminal to the wire.
2. Remove the crimped terminal from the terminal locator by pressing down on the wire stop and gently pulling on
the wire. The terminal locator can be in either position.
3. Visually inspect the crimped terminal for proper crimp location.
Locator Replacement

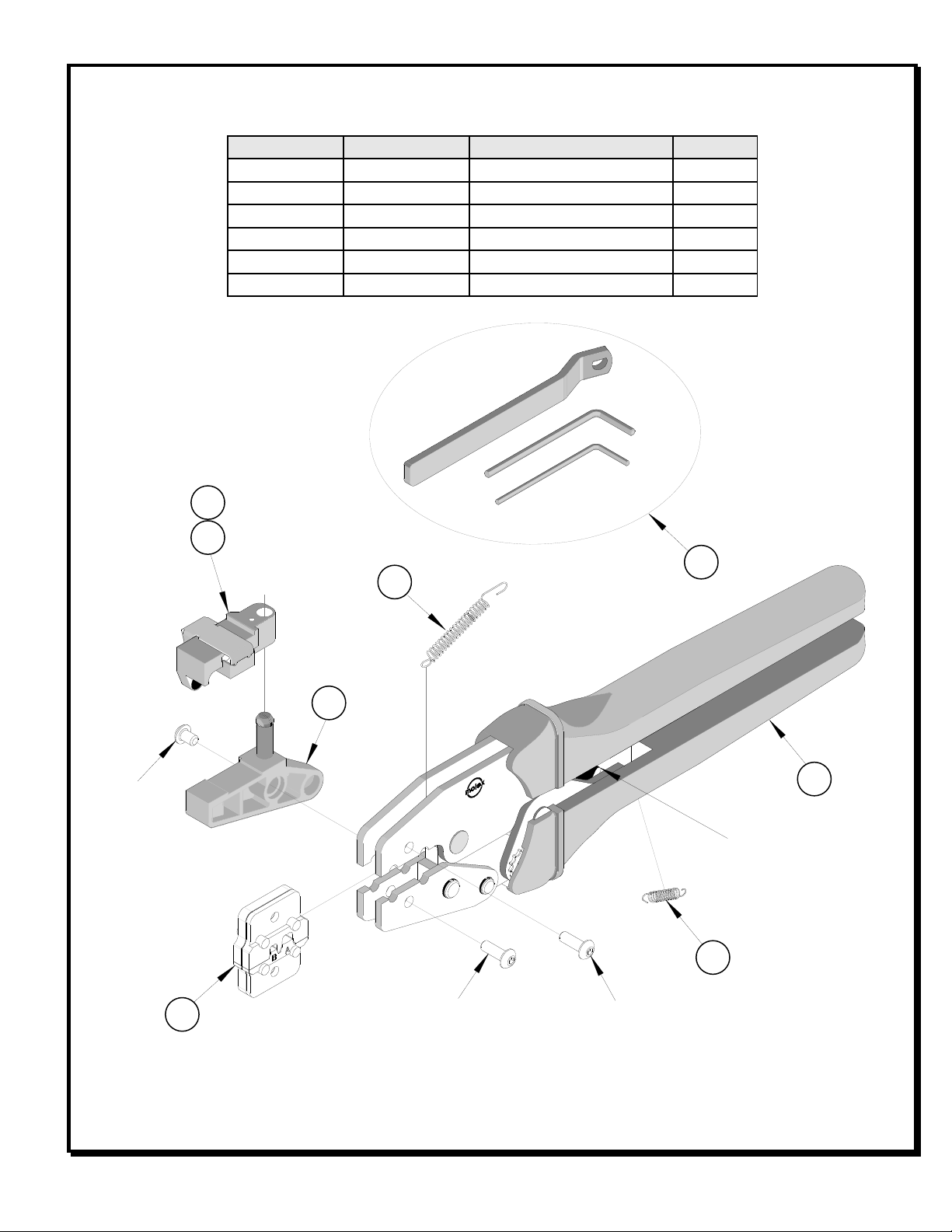

See the parts list on the last page of this document for the proper locator order number. Follow the steps below to
replace the locator.
1. Open the crimp hand tool.
2. Swing the existing locator open and away from the hand tool.

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 5 of 9
Revision: C Revision Date: 10-04-10
3. Firmly press down on the brass pivot shaft
with your thumb, while pulling the locator
up. Slip the locator off the top of the
brass pivot shaft. See Figure 6.
4. Replace it with the proper locator by
putting over the brass pivot shaft and
snapping it into place.
Maintenance
It is recommended that each operator of the
tool be made aware of, and responsible for,
the following maintenance steps:
1. Remove dust, moisture, and other
contaminants with a clean brush, or soft,
lint free cloth.
2. Do not use any abrasive materials that could damage the tool.
3. Make certain all pins; pivot points and bearing surfaces are protected with a thin coat of high quality machine
oil. Do not oil excessively. The tool was engineered for durability but like any fine piece of equipment it needs
cleaning and lubrication for a maximum service life of trouble free crimping. Use a 30 weight automotive (light)
oil used at the oil points, every 5,000 crimps or 3 months, shown in Figure 7A or 7B will significantly enhance
the tool life.
4. Wipe excess oil from hand tool, particularly
from crimping area. Oil transferred from the
crimping area onto certain terminations may
affect the electrical characteristics of an
application.
5. When tool is not in use, keep the handles
closed to prevent objects from becoming
lodged in the crimping dies, and store the tool
in a clean, dry area.
Miscrimps or Jams
Should this tool ever become stuck or jammed in
a partially closed position, Do Not force the
handles open or closed. The tool will open easily
by pressing the ratchet release lever. See Figure .
How to Adjust Tool Preload (See Figure 8)
This hand tool is factory preset to 25-45 LBS. preload. It may be necessary over the life of the tool to adjust tool
handle preload force. Listed below are the steps required to adjust the crimping force of the hand tool to obtain
proper crimp conditions:
1. Remove or fold back the handle grip from the handle to expose the eccentric axle and setting wheel.
2. Remove the locking screw with a 2mm hex wrench. The wrench set (63 10-0101), is not supplied. It is sold
separately from the hand tool.
RATCHET
RELEASE LEVER
Figure 8
HANDLE
GRIP
REMOVED
ECCENTRIC AXLE
HANDLE
GRIP
LOCKING
SCREW
WRENCH SET
(SOLD
SEPERATELY)
PRELOAD
CHECK POINT
25.4MM
SETTING WHEEL
Figure 7B
LUBRICATION
POINTS
(BOTH SIDES)
LIGHT OIL
(EVERY MONTH
OR
5,000 CRIMPS)
Figure 7A

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 6 of 9
Revision: C Revision Date: 10-04-10
3. Turn the eccentric axle and setting wheel with the wrench or pliers Counter-clockwise (CCW) to increase
handle force.
4. Replace the locking screw, aligning the nearest notch in the setting wheel to locking screw.
5. Replace the handle grip.
6. Check the crimp specifications or conduct a pull test after tool handle preload force is adjusted.
Warranty
This tool is for electrical terminal crimping purposes only. This tool is made of the best quality materials. All vital
components are long life tested. All tools are warranted to be free of manufacturing defects for a period of 30
days. Should such a defect occur, we will repair or exchange the tool free of charge. This repair or exchange will
not be applicable to altered, misused, or damaged tools. This tool is designed for hand use only. Any clamping,
fixturing, or use of handle extensions voids this warranty.
CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling.
CAUTIONS
1. Manually powered hand tools are intended for low volume or field repair. This tool is NOT intended for
production use. Repetitive use of this tool should be avoided.
2. Insulated rubber handles are not protection against electrical shock.
3. Wear eye protection at all times.
4. Use only the Molex terminals specified for crimping with this tool.
Certi ication
Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for
customers to re-certify hand tools.
% This tool is qualified to pull force only. To re-certify, crimp a terminal to a wire, which has been stripped
12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than
25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull
testing.
% If the tool does not meet minimum pull force values, handle preload should be increased and the pull test
rerun, (See How To Adjust Preload).
% When the hand tool is no longer capable of achieving minimum pull force, it should be taken out of service and
replaced.

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 7 of 9
Revision: C Revision Date: 10-04-10
The chart below shows all applications for this Tool Kit.
Tool Kit
Order No.
Tool
Order no.
Tool
Description
Power Head
Order No.
Adapter
Description
Figure
No.
63 11-6770
63 10-0100 Hand Crimp Frame (Short) N/A N/A 9
63 10-0400 Hand Crimp Frame (Long) N/A N/A 9
63 16-0200 Battery Power Tool (110 V) 63 16-0300 Power Crimp Head 10
63 16-0250 Battery Power Tool (220 V) 63 16-0300 Power Crimp Head 10
Applications or the Tool Kit
Hand Crimp Tool Battery Powered Tool
Figure 9 Figure 10
WARNING: NEVER operate service, install tool kits, or adjust the Power Crimp Head without proper
instruction and without first reading and understanding the instructions in the proper Manual or
Specification Sheet. See Chart above for the correct Manual or Specification Sheet.
WARNING: NEVER install tooling or service this tool while it is into any power source. Make sure the
power is turned off.
CAUTION: Keep fingers away from the crimping area when operating this tool. It may cause severe injury.
CAUTION: Wear safety glasses when operating or serving this tool.
POWER
CRIMP
HEAD
LOCKING PINS
BA
TTERY
POWERED
TOOL
TOOLING KIT
HAND CRIMP
FRAME LONG
AND SHORT
TOOLI
NG
KIT

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page of 9
Revision: C Revision Date: 10-04-10
RATCHET
RELEASE SCREW

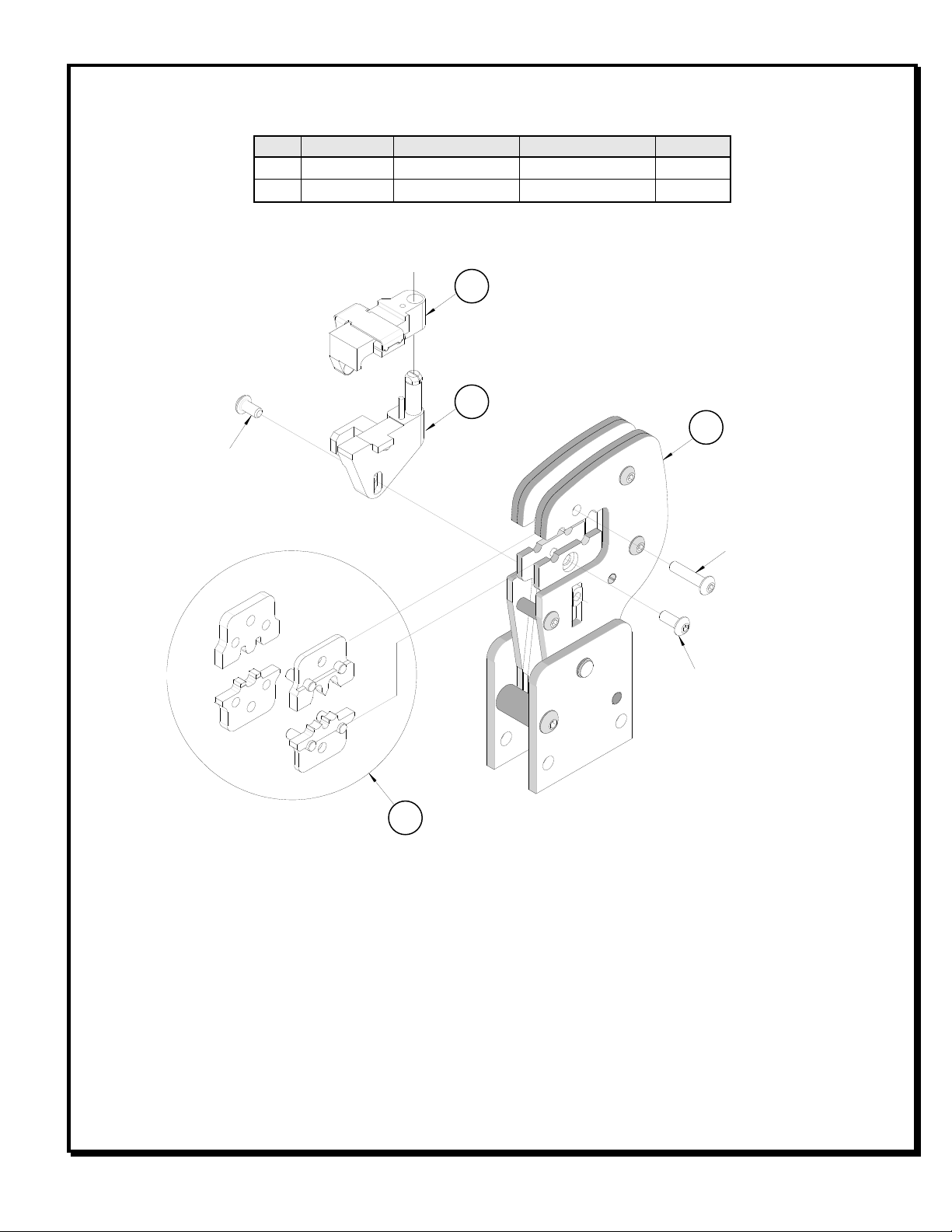

Figure 11
1
3
M4 X 6mm
LONG BHCS
M4 X 12mm
LONG BHCS
5
6
WITH TOOL KIT
LOCATOR ONLY
M4 X 12mm
LONG BHCS
4
4
2
5
HAND TOOL PARTS LIST
Item Number Order Number Description Quantity
1 63 10-0100 Hand Crimp Frame (Short) 1
2 63 10-0101 Wrench Set (Not included) 0
3 63 10-0102 Locator Base 1
4 63 10-0103 Repair Kit (Not included) 0
5 63 11-6770 Tool Kit with Locator 1
6 63 11-6775 Locator (only) REF

Tool Kit for , Micro SPOX™ Crimp Terminals
Doc No: ATS-63 1167HM Release Date: 0 -02-06 UNCONTROLLED COPY Page 9 of 9
Revision: C Revision Date: 10-04-10
Figure 12
1
2
2
M4 by 8 Long
BHCS
M4 by 18 Long
BHCS
M4 by 10 Long
BHCS
1
POWER HEAD PARTS LIST
Item Order No Engineering No. Description Quantity
1
63 16-0300 63 16-0300 Power Crimp Head 1
2
63 11-6770 63 11-6770 Tool Kit 1
http://www.molex.com
