Monessen Hearth BDV300N/PV7 User manual






547050
DVB7 cover



    

 


 
  
  

        


  

      
       

   
     
       
     
      


    
       


       


         


     





    
       

    
       


  



20301836 5/10 Rev. 1

BDV7 Series Direct Vent Gas Fireplace
220301836

 
 
 
High Elevations .....................................................5
Gas Pressures ...................................................... 5
Gas Specifications & Orifices ................................ 5

Before You Start ....................................................5

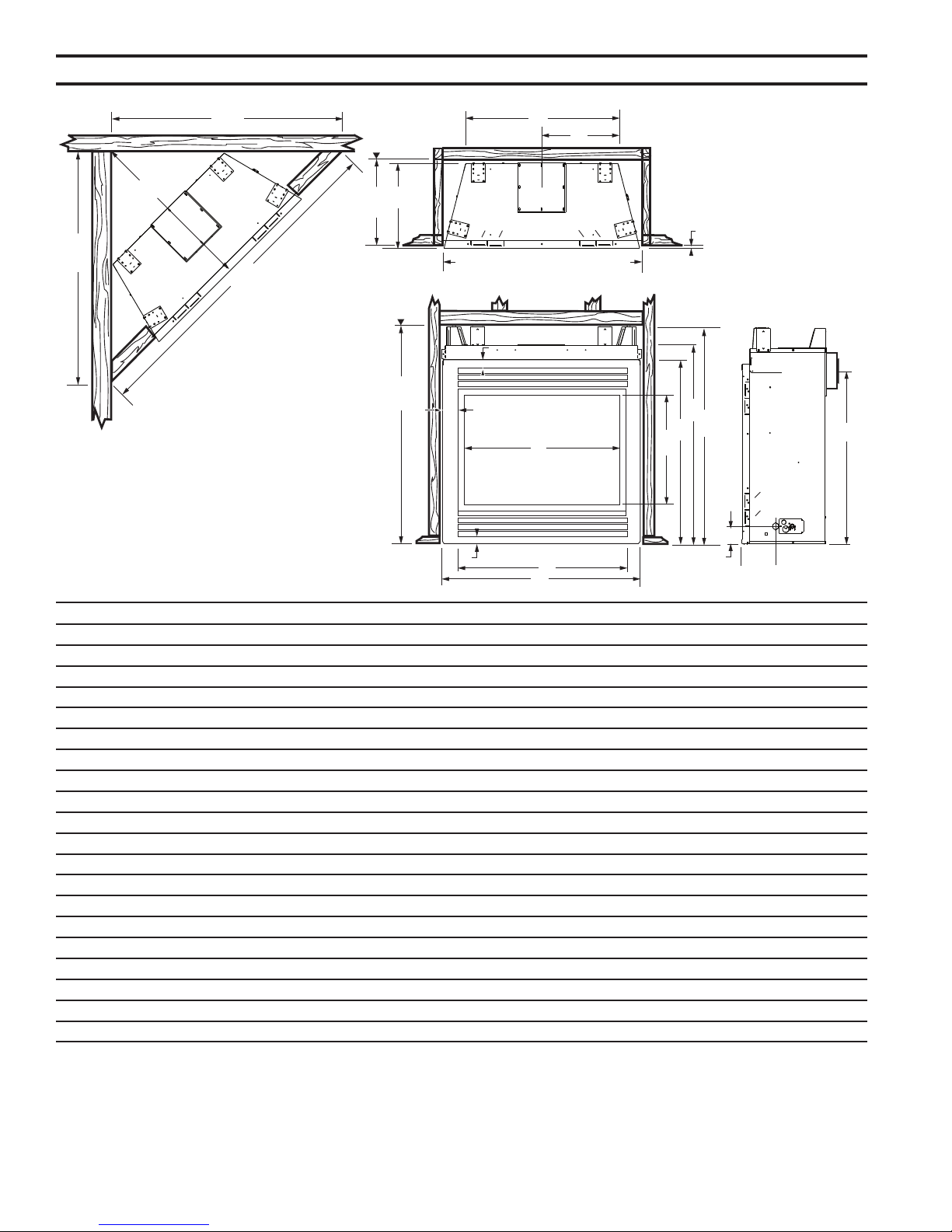

Fireplace & Framing Dimensions ..........................6

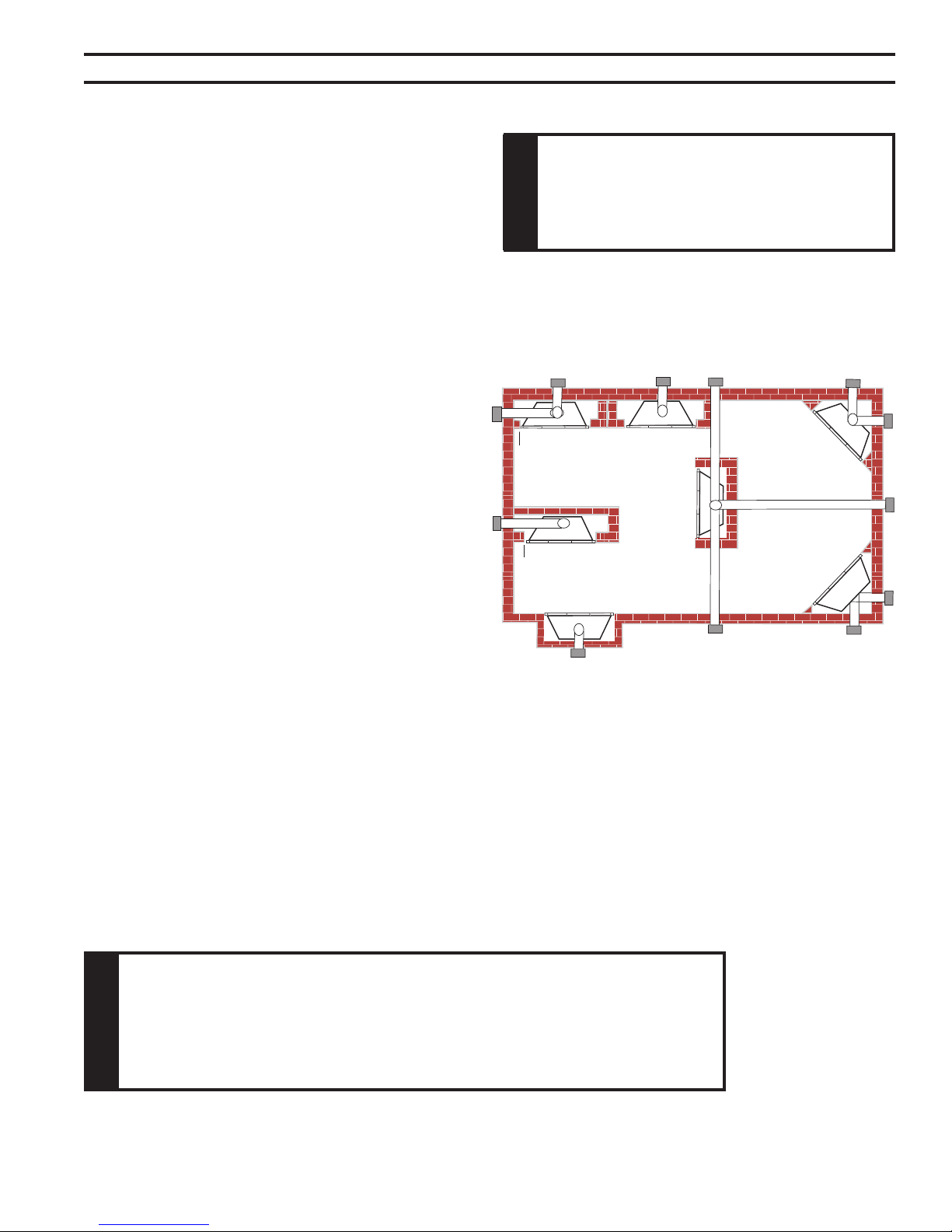

Fireplace Location ................................................. 7
 
 
 
 
Installation Precautions ....................................... 11

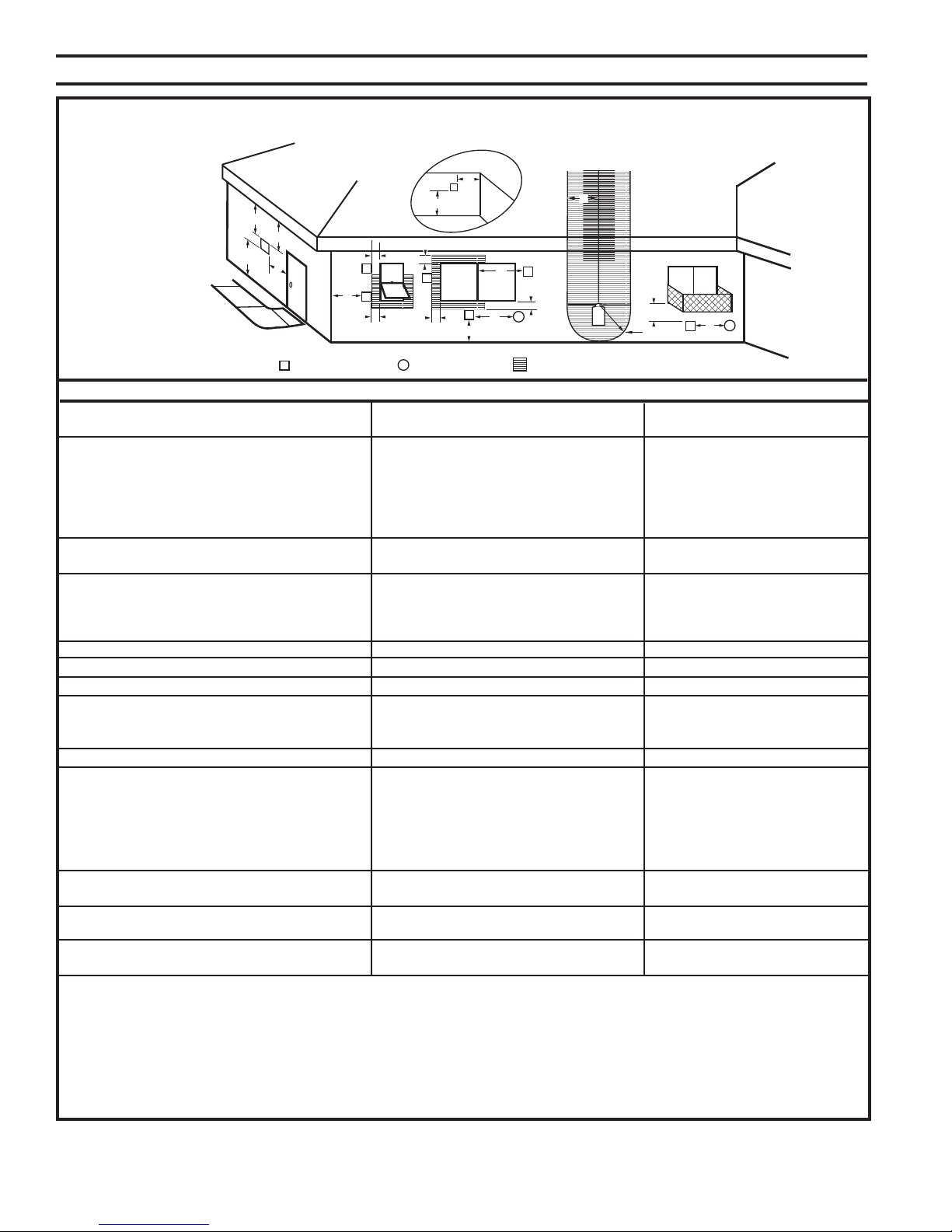

Termination Location ........................................... 12

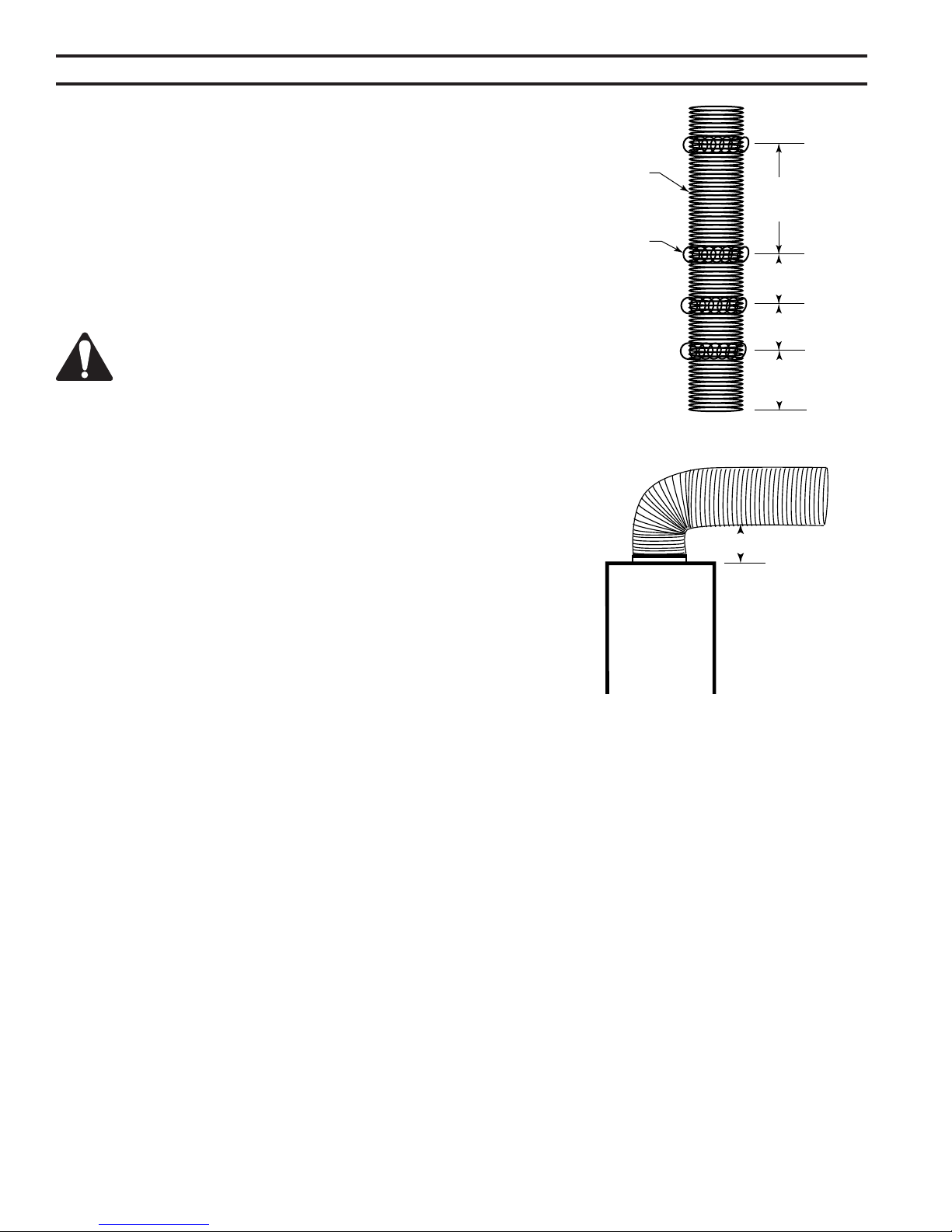

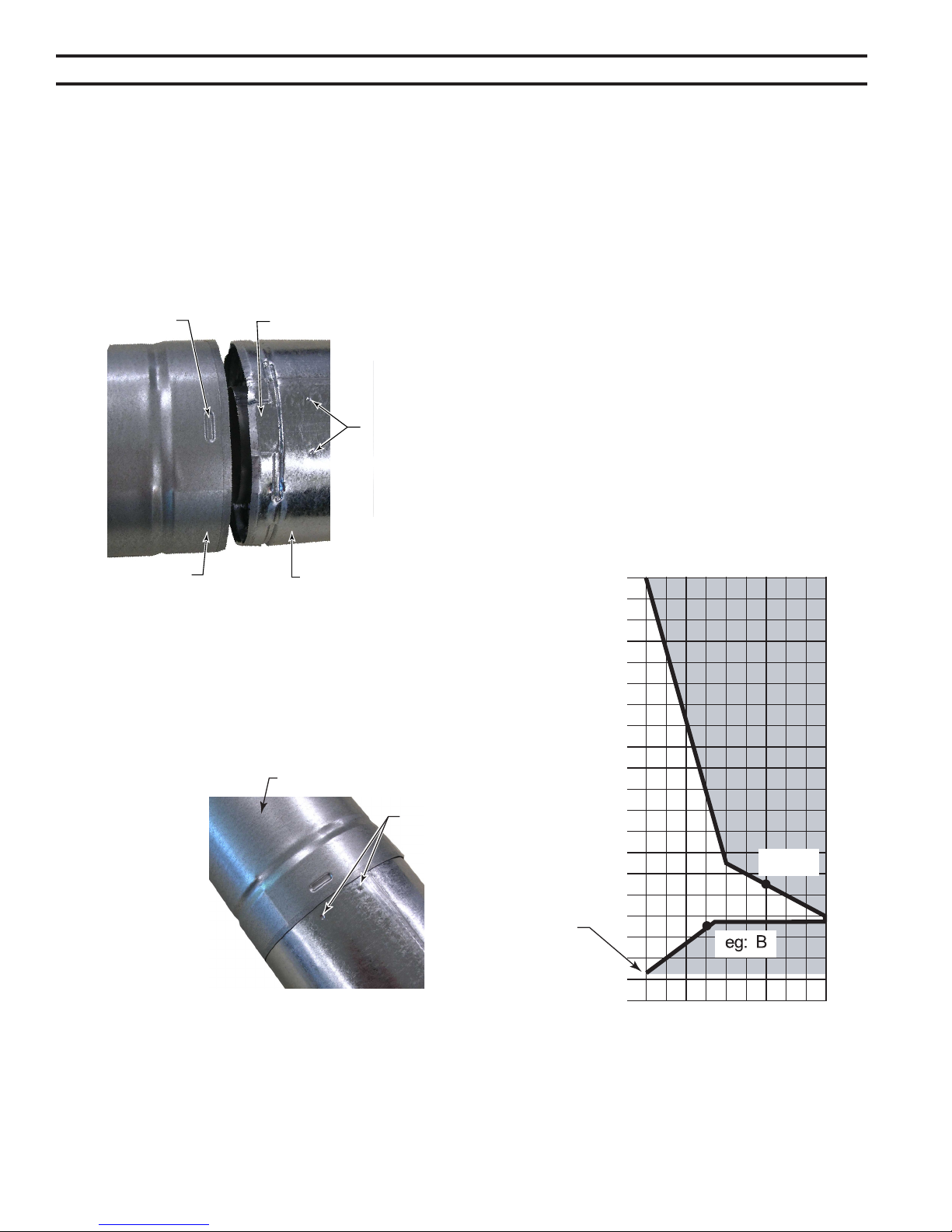

General Information Assembly Vent Pipes ..........13

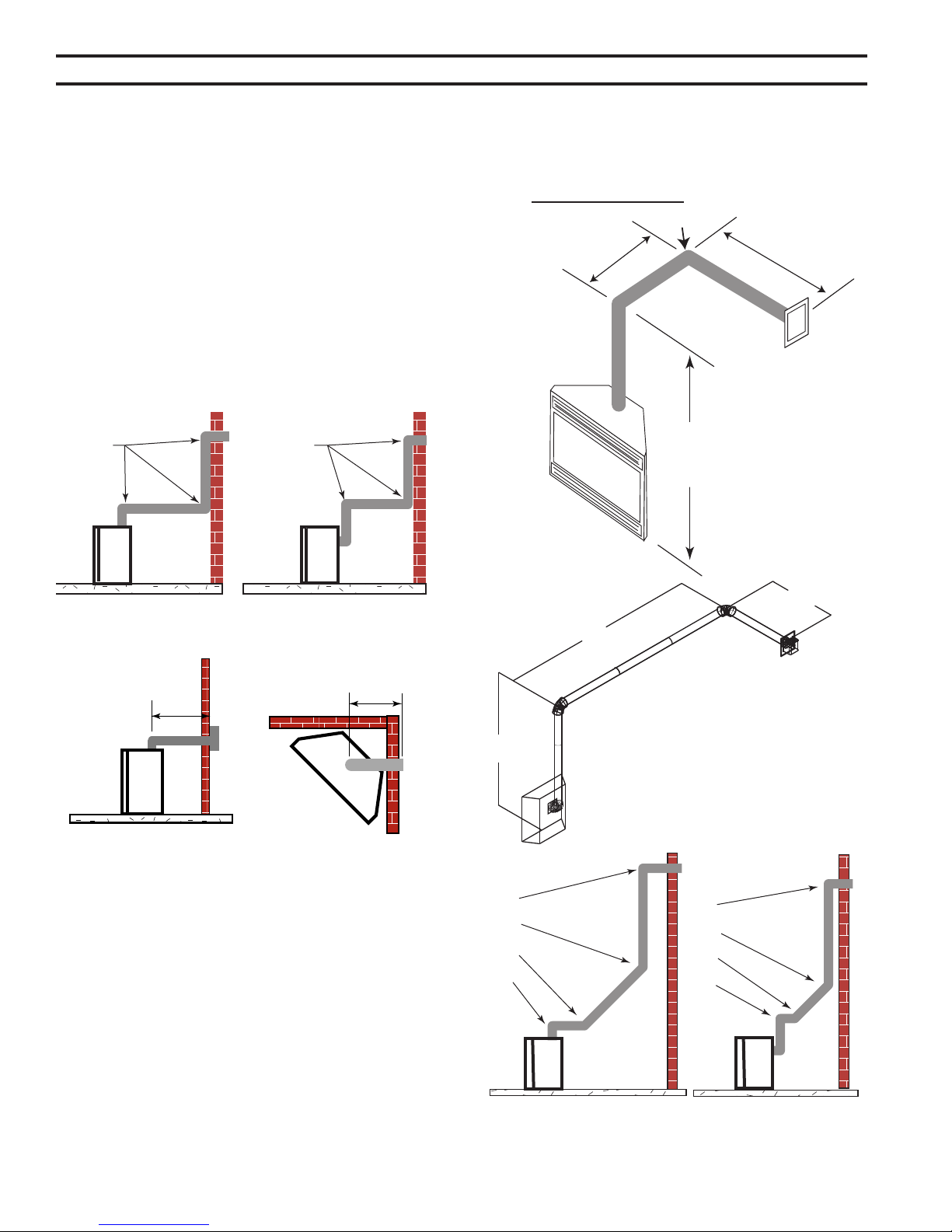

Vent Graph ..........................................................14
Rear Wall Vent Applications & Installation .......... 16

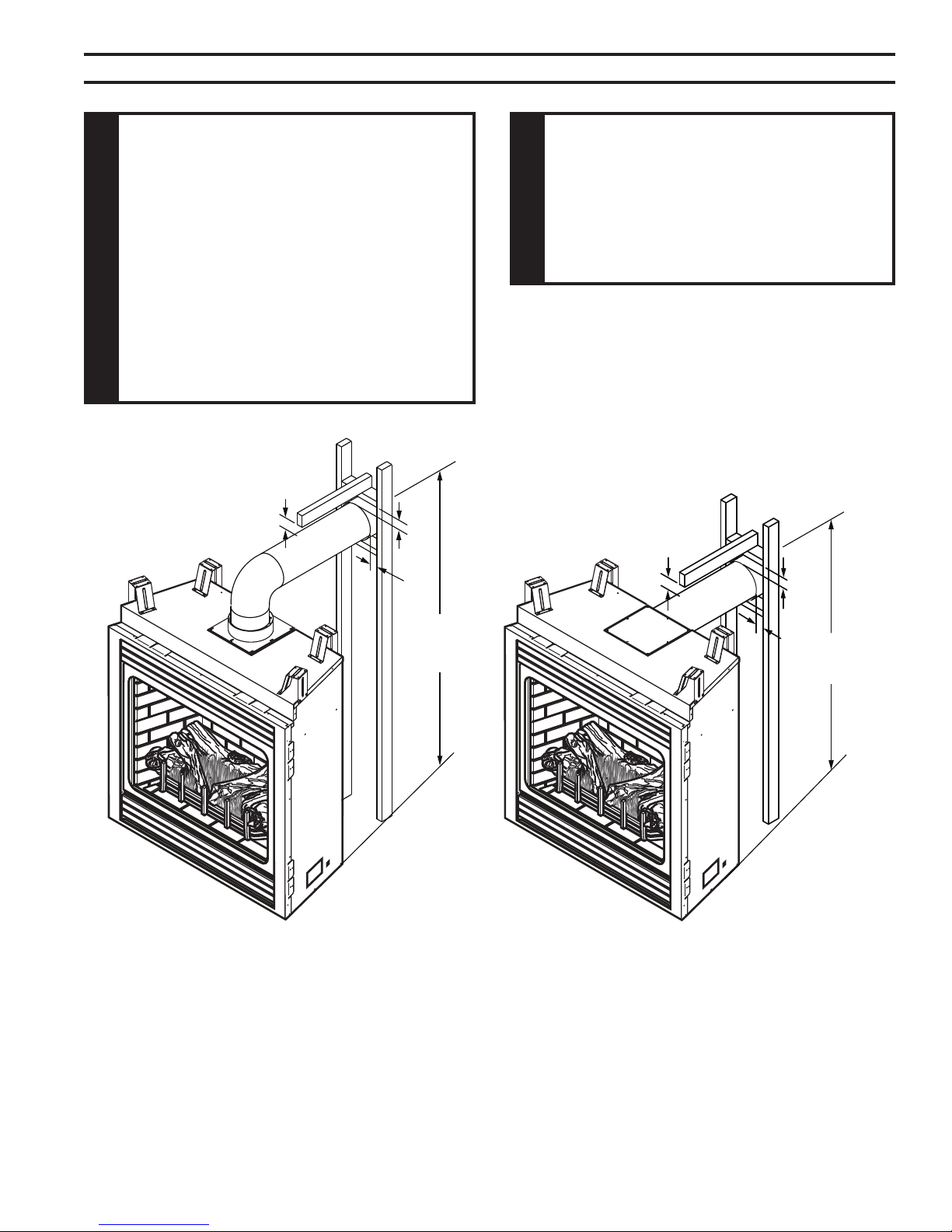

Top Vent Sidewall Applications & Installation ......17
Below Grade Installation ..................................... 21
Vertical Through-the-Roof Installation ................. 22
 
Check Gas Type..................................................24
Installing Gas Piping to Fireplace/Burner System
Location ..............................................................24
 
 
Electrical Wiring .................................................. 27
 
 
 
Lighting Pilot for the First Time ...........................29
Lighting Pilot .......................................................30
Lighting Burner .................................................... 31
To Turn Off Gas ...................................................31

  

  
Junction Box Wiring ............................................ 33
Command Center Wall Installation ...................... 33
Wall Switch Installation ....................................... 33
Signature Command Wiring Diagram ................. 34
 
BLOTSCSignature Command System ............... 35
BLOT Automatic Thermostat Blower ................... 36
FK-12 Manual Blower .........................................36

  
Operating Instructions .........................................38
To Turn Off Gas To Appliance ............................. 38
 
 
 
Rockwool Placement ..........................................43
Log Placement ....................................................43
 
Burner, Pilot and Control Compartment .............. 44
Pilot Flame ..........................................................44
Burner Flame ...................................................... 44
Vent System ........................................................45
Glass Door ..........................................................45
Logs .................................................................... 45
Rock Wool .......................................................... 45
 
Standing Pilot Ignition ......................................... 46
Signature Command System .............................. 48
 
Firebox Components ........................................... 49
Standing Pilot Millivolt Control ...........................51
Signature Command System .............................. 53
Logs .................................................................... 55
Vertical Venting Components .............................. 56
Horizontal Venting Components .........................57
 








BDV7 Series Direct Vent Gas Fireplace
20301836 3


Please leave these instructions with the appliance.

Please retain these instructions for future reference .
 

 
 


This fireplace is a vented product. This fireplace must be
properly installed by a qualified service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualified service person with glass
door properly seated and sealed, combustion leakage
can occur.
 Early signs of carbon
monoxide poisoning are similar to the flu with headaches,
dizziness and/or nausea. If you have these signs, the fire-
place may not have been installed properly. Get fresh air
at once! Have the fireplace inspected and serviced by a
qualified service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the influence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this fireplace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certified
kit is used.
2. For propane/LP fireplace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/
LP supply tank(s) outdoors. To prevent performance
problems, do not use propane/LP fuel tank of less than
100 lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or other flam-
mable objects are less than 42" from the front, top,
or sides of the fireplace
• in high traffic areas
• in windy or drafty areas
5. This fireplace reaches high temperatures. Keep chil-
dren and adults away from hot surfaces to avoid burns
or clothing ignition. Fireplace will remain hot for a time
after shutdown. Allow surfaces to cool before touch-
ing.
6. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.
7. Do not modify fireplace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating fireplace.
8. Turn fireplace off and let cool before servicing, install-
ing, or repairing. Only a qualified service person should
install, service, or repair the fireplace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent clean-
ing may be needed due to excessive lint and dust.
Turn off the gas valve and pilot light before cleaning
fireplace.
10. Have venting system inspected annually by a quali-
fied service person. If needed, have venting system
cleaned or repaired. Refer to Cleaning and Mainte-
nance, Page 44.
11. Keep the area around your fireplace clear of combus-
tible materials, gasoline, and other flammable vapor
and liquids. Do not run fireplace where these are used
or stored. Do not place items such as clothing or deco-
rations on or around fireplace.

BDV7 Series Direct Vent Gas Fireplace
420301836

12. Do not use this fireplace to cook food or burn paper or
other objects.
13. Never place anything on top of fireplace.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this fireplace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the flow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood
flooring, you must set appliance on a metal or wood
panel or hearth pad extending the full width and depth
of the appliance.
18. Do not use fireplace if any part has been exposed to
or has been under water. Immediately call a qualified
service technician to inspect the appliance and replace
any part of the control system and any gas control
which as been submerged in water.
19. Do not operate fireplace if any log is broken.
20. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
fireplace.
21. Do not operate the fireplace with glass door removed,
cracked, or broken.



It is normal for fireplaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.



It is not unusual for gas fireplaces to give off some
odor the first time it is burned. This is due to the
manufacturing process.
       

It is recommended that you burn your fireplace for at
least ten (10) hours the first time you use it. Place the
fan switch in the “OFF” position during this time.

     


Nous recommandons que nos
appareils de chauffage au gaz
soient installés et entretenus par
des professionnels qui ont été
accrédités aux È.U. par le National
Fireplace Institute ® (NFI) comme
étant des spécialistes du NFI en
matièred’appareils de chauffage
au gaz.

Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:

TESTED TO: ANSI Z21.88B-2009 / CSA 2.33-2009
STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, 
 or when such a standard is not applicable, the

, or 
.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.

BDV7 Series Direct Vent Gas Fireplace
20301836 5


• This appliance has been certified for use with either
natural or propane gas. Refer to appropriate data
plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsitting
room installations.
• The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
• This appliance is mobile home approved.
• The appliance must be properly connected to a venting
system.
• The appliance is not approved for closet or recessed
installations.
FP2087
DVB features
Hi/Lo Knob
Off/Pilot/On Knob
On/Off/RS Switch
Ignitor
Blower Control
Optional Remote
Receiver
FP2087
Figure 1 -



Input ratings are shown in BTU per hour and are certified
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installation must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installation at eleva-
tions above 4,500 feet (1,370 m).

Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.

Max.Input Min. Input Orifice
Model Fuel BTU/h BTU/h Size
BDV300NV7 Nat. 21,000 15,000 #43
BDV300PV7 LP 21,000 15,000 #54
BDV300NSC7 Nat. 21,000 15,000 #43
BDV300NPC7 LP 21,000 15,000 #54
BDV400NV7 Nat. 24,000 17,000 #41
BDV400PV7 LP 24,000 17,000 #53
BDV400NSC7 Nat. 24,000 17,000 #41
BDV400NPC7 LP 24,000 17,000 #53
BDV500NV7 Nat. 26,000 20,000 #40
BDV500PV7 LP 26,000 20,000 1.55 mm
BDV500NSC7 Nat. 26,000 20,000 #40
BDV500PSC7 LP 26,000 20,000 1.55 mm
BDV600NV7 Nat. 26,000 20,000 #40
BDV600PV7 LP 26,000 20,000 1.55 mm
BDV600NSC7 Nat. 26,000 20,000 #40
BDV600PSC7 LP 26,000 20,000 1.55 mm

Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that
all listed parts have been received. You should have the
following:
• Fireplace (Firebox and Burner System)
• Rock Wool
• Log Set

• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Level
• Electric Drill and Bits • Tee Joint
• Pliers • Measuring Tape
• Square • Pipe Wrench
• Caulking Material (Noncombustible)
• Fireplace Surround Material (Noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to Sulfur Compounds)

BDV7 Series Direct Vent Gas Fireplace
620301836

    
A 33Z\zn” (840 mm) 37Z\zn” (941 mm) 41Z\zn” (1043 mm) 47Z\zn” (1195 mm)
B 29M\,” (759 mm) 32” (813 mm) 36” (914 mm) 42” (1067 mm)
C 27” (686 mm) 29” (737 mm) 33” (838 mm) 39” (991 mm)
D 16Z\x” (419 mm) 18Z\x” (470 mm) 20Z\x” (521mm) 23Z\x” (597 mm)
E 28” (711 mm) 29” (737 mm) 33” (838 mm) 39” (991 mm)
F 18” (457 mm) 20C\,” (518 mm) 20C\,” (518 mm) 20C\,” (518 mm)
G 33M\,” (860 mm) 37Z\x” (953 mm) 37Z\x” (953 mm) 37Z\x” (953 mm)
H 14” (357 mm) 16” (406 mm) 16” (406 mm) 16” (406 mm)
I 37M\,” (962 mm) 41Z\x” (1054 mm) 41Z\x” (1054 mm) 41Z\x” (1054 mm)
J 29B\,” (753 mm) 33Z\,” (841 mm) 33Z\,” (841 mm) 33Z\,” (841 mm)
K 2Z\,” (54 mm) 1Z\v” (32 mm) 1Z\v” (32 mm) 1Z\v” (32 mm)
L 1Z\x” (38 mm) 2Z\x” (64 mm) 2Z\x” (64 mm) 2Z\x” (64 mm)
M 15/16” (24 mm) 15/16” (24 mm) 15/16” (24 mm) 15/16” (24 mm)
N 31B\,” (803 mm) 34C\v” (883 mm) 34C\v” (883 mm) 34C\v” (883 mm)
O 33Z\x” (851 mm) 37Z\x” (953 mm) 41Z\x” (1054 mm) 47Z\x” (1207 mm)
P 38” (966 mm) 41B\,” (1057 mm) 41B\,” (1057 mm) 41B\,” (1057 mm)
Q 13C\v” (349 mm) 15C\v” (400 mm) 15C\v” (400 mm) 15C\v” (400 mm)
R 55ZZ\zn” (1414 mm) 60M\,” (1546 mm) 64M\,” (1648 mm) 70M\,” (1800 mm)
S 39C\,” (1000 mm) 43Z\zn” (1094 mm) 45M\,” (1165 mm) 50Z\,” (1273 mm)
T 27ZC\zn” (706 mm) 30M\zn” (773 mm) 32M\zn” (824 mm) 35M\zn” (900 mm)
5/8” 1/2”
5/8”
1/2”
L
C
A
B
M
356O”
856M”
J
5/8"
1/2”
544050
DVB/BDV7 dims
E
D
H
1/2” or 5/8”
Min. Rough
Opening
Height
F
G
NI
O - Min. Rough Opening Width
Min. Rough
Opening
Depth
P
Q
R
S
S
T
K
Figure 2 -
Fireplace and Framing Dimensions

BDV7 Series Direct Vent Gas Fireplace
20301836 7

      



Firebox framing can be built before or after the appliance
is set in place. Refer to Figure 2 for fireplace and framing
dimensions. Construct firebox framing following Figure 2
for your specific installation requirements. The framing
headers may rest on the top of the firebox standoffs. Do
not bring headers below top of standoffs.
The firebox may be installed directly on a combustible floor
or raised on a platform of an appropriate height. When
the firebox is installed directly on carpeting, tile, or other
combustible material, other than wood flooring, the firebox
shall be installed on a metal or wood panel extending the
full width and depth of the enclosure.


Plan for the installation of your appliance. This includes
determining where the unit is to be installed, the vent con-
figuration to be used, framing and finishing details, and
whether any optional accessories (i.e. blower, wall switch,
or remote control) are desired. Consult your local building
code agency to ensure compliance with local codes, includ-
ing permits and inspections.
The following factors should be taken into consideration:
• Clearance to side-wall, ceiling, woodwork, and windows.
Minimum clearances to combustibles 

• This fireplace may be installed along a wall, across a
corner, or use an exterior chase. Refer to Figure 3 for
suggested locations.
• Location should be out of high traffic areas and away
from furniture and draperies due to heat from appli-
ance.
• Never obstruct the front opening of the fireplace.
• Do  install in the vicinity where gasoline or other
flammable liquids may be stored.
• Vent pipe routing. Refer to Venting section found in this
manual for allowable venting configurations.
• These units can be installed in a bedroom. See National
Fuel Gas Code ANSI Z233.1/NFPA 54 — (current
edition), the Uniform Mechanical Code — (current edi-
tion), and Local Building Codes for specific installation
requirements.
Y
EAB
C
D
F
YB
X
LU584-1
Locating unit
2/4/99 djt
A Flat on Wall
B Cross Corner
C Island**
D Room Divider*
E Flat on Wall Corner*
F Chase Installation
Y 4” Minimum
** Island (C) and room divider (D) installation is possible as long
as the horizontal portion of vent system (X) does not exceed
20'. Refer to Termination Location on Pages 12 and 13.
* When you install your fireplace in (D) room divider or (E)
flat on wall corner positions (Y), a minimum of 6" clearance
must be maintained from perpendicular wall and front of
fireplace.
Figure 3 -
Fireplace Locations


      





BDV7 Series Direct Vent Gas Fireplace
820301836









71” Minimum
11” Minimum
12”
Max.
Min. 4”
From Either
Side Wall
FP2248
mantel clearances
Figure 4 -
Clearances
Ceiling
Combustible Mantel
5”
7”
11”
3”
12”
8”
6”
2”
FP2204a
mantel clearances
Wall
Stud
Standoff
FP2204a
Top of Exhaust
Louvers

1"
256O”
3"
4"
156O”
256O”
45°
FP2093A
mantel side clearance
Wall
Combustible
Material Area
Side of Fire-
place Opening
FP2093a

Figure 5 -
Mantel Clearances

 The combustible area above the facing must not protrude
more than 1/2" from the facing. If it does, it is considered a mantel
and must meet the mantel requirements listed in this manual.

       



BDV7 Series Direct Vent Gas Fireplace
20301836 9

The fireplace must be secured to the floor and/or to framing studs as shown in Figure 6. Use
two (2) wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4)
screws to attach fireplace to framing. The side nailing flanges are 1/2" or 5/8" to accommodate
different wall thickness.
FP2094a
secure fireplace
Framing
Nailing Flange
Screws
Nailing Flange
Screws
Drywall Support Tabs
(Do not use for framing or
header)
Framing
Nailing Flange
Screws
Nailing Flange
FP2094a
Figure 6 -
Secure Fireplace to Floor and Framing Studs

 Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to
final finishing to avoid costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating
of Zero) may be used to cover the black surface of the appliance. A 300°F minimum adhesive may
be used to attach facing materials to the black surface. If joints between the finished wall and the
fireplace surround are sealed, a 300°F minimum sealant material (General Electric RTV103 or
equivalent) must be used.

BDV7 Series Direct Vent Gas Fireplace
10 20301836


The appliance is shipped as a rear vent unit. If the instal-
lation layout requires the unit to be a top vent configu-
ration the appliance can be converted by following the
steps below.
When removing and refitting the plates and adapter be
sure the associated gaskets are undamaged and refitted
as required.
1. Remove the eight (8) screws securing the flue pipe
adapter to the fireplace body. Figure 7
2. Set the flue pipe adapter aside, complete with the
gasket. Do not damage the gaskets as the adapter
and gasket must be refitted.
3. Remove the eight (8) screws securing the flue pipe
cover to the top of the intake box and remove the cover
and gasket. Figure 7


       
  B\,     

FP1991
remove screws
Screws
Flue Pipe
Cover
Flue Pipe
Adapter
FP1991
Figure 7 -
Remove 16 Screws from Flue Pipe Adapter and Flue
Pipe Cover
FP1992
remove flue pipe
Flue Cover
Screws
Flue Pipe
FP1992
Figure 8 -
Remove Flue Pipe
FP1993
attach flue pipe
Flue Pipe
Screws
FP1993
Figure 9 -
Attach Flue Pipe to Top Vent Configurations
4. Remove six (6) screws securing the flue pipe to the
back of the intake box and remove the pipe and gasket.
Figure 8
5. Replace flue pipe to top of firebox. Ensure the gasket
is in place and undamaged. Secure with six (6) screws.
Figure 9
6. Place the flue pipe cover and gasket removed in step
3 over the flue opening in back of the intake box.
7. Refit the flue pipe adapter and gasket to the top of
fireplace. Secure the adapter with eight (8) screws
removed in Step 1.
