MX40 Series II
STANDARDS CERTIFIED AS/NZS4601 1999 amendment 1 2003
OPERATING & INSTALLATION INSTRUCTIONS
DO NOT LEAVE THIS MANUAL IN YOUR VEHICLE

MX40
II

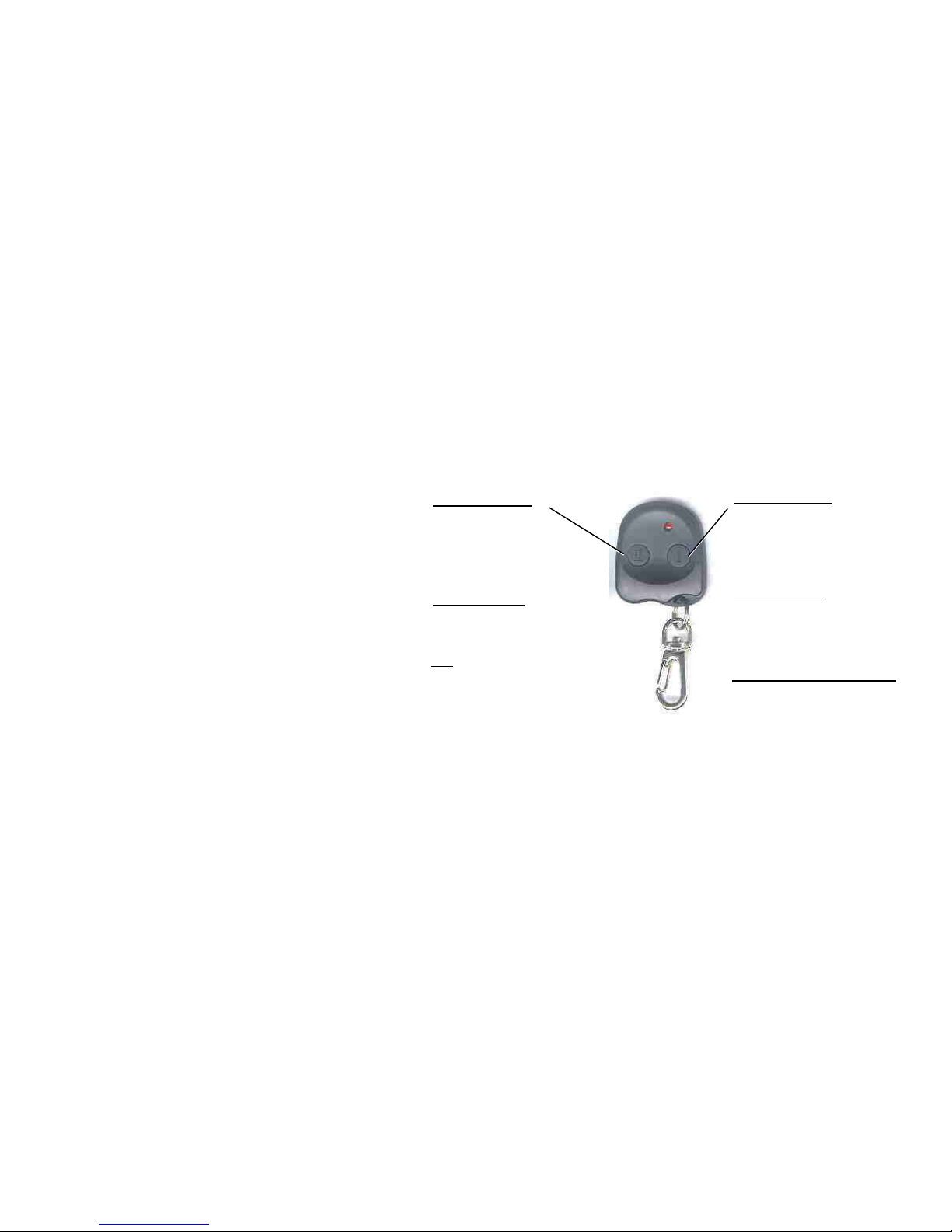

REMOTE SECURITY
BUTTON ONE ONLY
‘ARM’ (& LOCK)
PRESS FOR 1.5 SECONDS
TO ARM THE SECURITY SYSTEM -
(DOORS WILL ALSO LOCK IF THE
CENTRAL LOCKING HAS BEEN
CONNECTED)
WHEN SIREN ADDED
SIREN WILL CHIRP ONCE TO
CONFIRM ARMING
PRESS FOR 3 SECONDS TO ‘PANIC’
THE ALARM
BUTTON TWO ONLY
‘DISARM’ (& UNLOCK)
PRESS BUTTON TWO TO
DISARM THE ALARM SYST EM.
(DOORS WILL ALSO UNLOCK
IF THE CENTRAL LOCKING
HAS BEEN CONNECTED)
WHEN SIREN ADDED
SIREN WILL CHIRP TWICE TO
CONFIRM DISARMING
LED
THE LED CONFIRMS REMOTE TRANSMISSION.
REPLACE BATTERY WITH T YPE RCB23A
EVERY 12 MONTHS.
NOTE; THE REMOTE CONTROL IS NOT WAT ER
RESISTANT OR PROOF. OPTIONAL WATERPROOF
REMOTES ARE AVAILABLE…..PART NO’ MRC200W

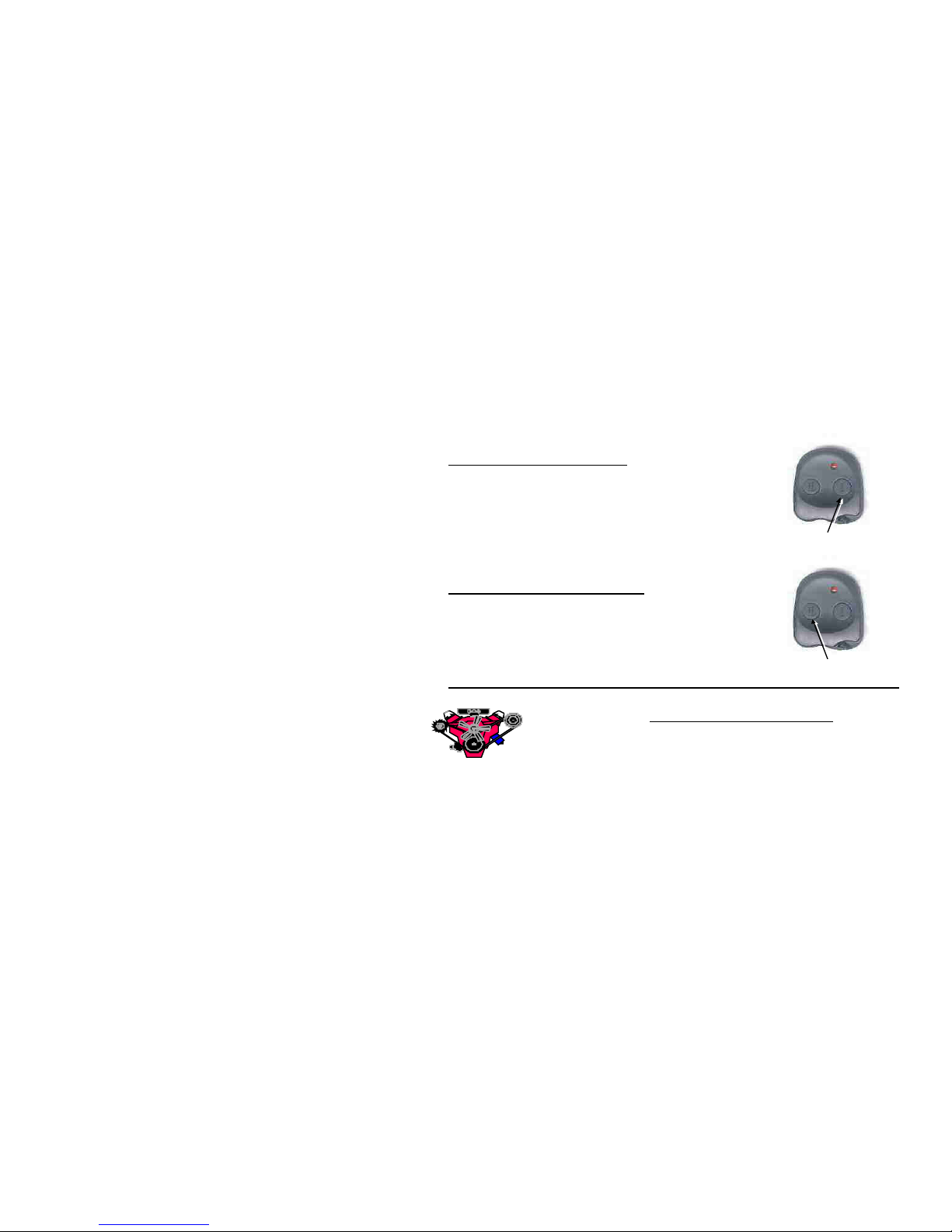

BUTTON ONE & TWO TOGETHER
SILENT ARM & AUTO SILENT
DISARM
PRESS BOTH BUTTONS TO SILENTLY
ARM WITH NO CHIRPS. DISARMING IS
AUTOMATICALLY SILENT. ONLY
APPLICABLE WHEN A SIREN IS ADDED.

ONE
TWO
ARMING THE SYSTE M - BY REMOTE
The sy stem is armed by depressing button ONE on the remote
control momentarily (approx. 1~1.5 seconds).
You will notice the park lights will flash once to indicate that the
sy stem is armed. (The optional siren will chirp once)
The dash board warning light, LED, will slow f lash to indicate
armed mode. If y ourv ehicle has central locking and it has been
connected to this security system, the doors will lock at the same
time as arming.
The sy stem will be fully armed after approximately 5 seconds.
DISARMING THE SYSTEM - BY REMOTE
Press button TWO on the remote control to disarm the system.
The park lights will flash twice and the doors will unlock if wired
to the v ehicle’s central locking system. (The optional siren will
chirp twice) The dashboard LED will begin to fast flash to
indicate the system will automatically re-arm after 30 seconds.
You must start the engine to prev ent the system re-immobilising.
AUTOMATIC DUAL CIRCUIT ENGINE IMMOBILISATION – 30 SECONDS AFTER IGNITION OFF
If the system is not manually armed by the remote control thev ehicle will be
automatically immobilised 30 seconds after the ignition is turned off. The dash
board LED will fast flashf or 30 seconds to indicate the system is in this sequence.
After 30 seconds the dash board LED will slow f lash to indicate armed mode and
the parking lights will flash once. (The optional siren will chirp once)
X

SECURITY RE-ARM (& RE-LOCK)
The sy stem will automatically re-immobilise after 30 seconds if it has been disarmed by remote.
Doors will also re-lock, if connected, if no door is opened within the 30 seconds. Opening a door will
not prev ent the engine f rom being automatically immobilised – the engine must be started to prevent
this. For the security re-lock f eature to operate, the system must hav e been initially set by the remote
control.
TRIGGER & 2 STAGE DISARM
When armed, if a door is opened or the ignition is switched on the park lights will f lash for 30 seconds
(the optional siren will sound).
If the system is being triggered, press the disarm button once to cancel the lights and optional siren.
Press a second time to disarm the system.
AUTOMATIC RE-SET
After the system has been triggered, it will automatically re-set to the armed position. If the parking
lights flash 4 times upon disarming, this indicates the system has been triggered.
ARM CONDITION MEMORY
Should the vehicle battery be disconnected, the system memorises the last set position of the system.
If the system was disarmed and the engine not immobilised prior to battery disconnection,
reconnection does not immobilise the v ehicle until reset by the ignition being turned ON then OFF.
If the battery was disconnected whilst the system was armed, reconnection will return the system to
the armed state and then immediately trigger.
PARK LIGHTS FLASHING (connection to the indicators may infringe your warranty)
The park lights flash to confirm the arming and disarming of the system. They will alsof lash if the
sy stem is triggered whilst the system is armed. The park light output is f use protected to prevent the
module being shorted.

PARK LIGHT CONFIRMATION / CODES
This is av isual indication of system status.
1 Flash - Armed by remote.
2 Flashes - Disarmed.
3 Flashes - Armed by remote with a door left open.
4 Flashes - Disarmed but system was triggered.
Flashes f or 30 seconds - System triggered.
DASH MOUNTED WARNING LIGHT - LIGHT EMITTING DIODE (LED)
Located on or near the dashboard area, the status LED is a small red f lashing light that indicates the
v ehicle is fitted with a security system. This LED needs to be visible toy ou.
A) Slow flashing - system armed.
B) LED off - system disarmed.
C) Fast f lashing - 30 second immobilisation or auto re-arm countdown.

SYSTEM OVERRIDE – PIN CODED FACTORY PRE-SET CODE IS 1-1-1-1
Should the remote control fail to operate the system or is lost, the system can be overridden using a
unique 4 digit PIN code of your choice. Y ou can change the PIN code at any time when the system is
disarmed and how to do this is detailed later in this manual. The PIN is therefore a unique number to
y ou and must be memorised or kept secure. Remov ing power does not re-set the code.
To ov erride the security system use the following procedure.
NOTE: During system override, the remote controls will not function.
Assuming a PIN code of 2-3-3-4 as an example;
A) Open door with the ignition key and close all doors.
(Lights will flash and optional siren will sound)
The override sequence does not operate with any door open.
B) Turn ignition on/off - on/off - on
LED lights for 3 seconds to signify override mode
C) wait for the LED to flash twice for 1st digit (2)
turn ignition off - LED lights solid for 2 seconds then turn ignition on
D) wait for LED to flash the 2nd digit (3)
turn ignition off - LED lights solid for 2 seconds then turn ignition on
E) wait for LED to flash the 3rd digit (3)
turn ignition off - LED lights solid for 2 seconds then turn ignition on
F) wait for LED to flash the 4th digit (4)
G) turn ignition off – LED lights solid to confirm last digit input
Assuming the PIN code is correct, the system will now disarm and the optional
siren will stop sounding and the engine may be started.

SYSTEM OVERRIDE - CONTINUED
NOTE: This system will always automatically immobilise the engine each time the ignition is
turned off. If either of the 2 supplied remote controlsare lost or fail to operate, then this override
sequence will have to be used until replacement remotesare obtained.
The PIN code programmed at the time of installation is:--------
DO NOT LEAVE THIS MANUAL IN YOUR VEHICLE
IS THE VEHICLE BATTER Y FLAT ? THE OVERRIDE WILL NOT OPERATE IF THE VEHICLE
BATTERY IS FLAT.
CHANGING THE PIN CODE NUMBER
Your PIN code number can be changed at any time when the system is disarmed.
Information on how to change the code is given in the installation section of this manual but
we suggest this is carried out by an authorised Mongoose dealer.
WHAT HAPPENS IF I FORGET MY PIN CODE NUMBER ?
Providing your remote controls are in working order, you can re-programme a new PIN or,
visit an authorised Mongoose dealer who can re-programme a unique number for you.

WHAT HAPPENS IF I FORGET MY PIN CODE NUMBER AND HAVE LOST OR
DAMAGED MY REMOTE(S) AND I CAN’T ST ART MY VEHICLE ?
Due to the high security of this product, this system can only be deactivated by the supplied
remote controls or by the PIN coded override. It is important that the PIN code is a number
easily memorised by yourself and/or written down in a secure place.
If you cannot recall the PIN code, please call your local Mongoose direct during normal
office hours. You will need to provide evidence that you are the vehicle owner and the serial
number of the security system. Once validated, we will assist you in getting your vehicle
mobile.
Roadside assistance personnel will not be able to assi st you other than by rewiring the
system. Any associated costs are not covered by Mongoose.
SERVICE
Should you have reason to have this security system serviced, please provide the serial
number of this sy stem.
NOT E: T he serial number i s not the PIN code.
DO NOT DISCLOSE YOUR PIN CODE NUMBER TO ANYONE.
Write your serial number here:-

INSTALLATION
The installation of this product must comply with the AS/NZS 3749.2 -1997 Standard or any
updated versions. Copies of the relative Standards are available from the Standards offices.
IMPORTANT: IF VEHICLE IS EQUIPPED WITH AIR BAG SY STEM, for personal saf ety and to avoid
possible AIR BAG release it should be temporarily disabled. Please ref er to the v ehicle supplier f or
details. Mongoose is not responsiblef or the accidental triggering of v ehicle airbags.
a) Read all sections of this manual so you understand how the system operates.
b) Inspect and identify all components of the supplied equipment.
c) The supply of installation tools or equipment is not included.
d) Carry out a v ehicle inspection report as shown in the general Mongoose installation manual
e) Disconnect thev ehicle battery & disable any airbag.
f) If the vehicle has a security coded radio, ensure the code is av ailable.
g) All connections are to “ FLOW SOLDERED” and insulated. The use of snap lock connectors is
not permitted. All wires are to be taped & loomed.
h) It is recommended that the main +12v is not connected whilst wiring and soldering the other
connections to avoid misdirected electrical current or any other energy which may interf ere with
the module’s orv ehicle’s electronics.
i) The cables supplied are black in colour with remov able labels identifying the wire f unction. To
ensure this product conforms to the Standards, these tags are to be remov ed during or at the
completion of the installation.

COMPONENT LOCATION
SIREN ASSEMBLY (OPTION AL PART)
Select a suitable location f orthe siren assembly under the bonnet, away f rom sources of extreme heat
and possible water damage. Select a location that will allow a direct sound path towards the ground for
maximum sound dispersion. In most cases the fire-wall area or one of the f ront suspension strut
housings are suitable locations. Establish what is behind the chosen location to ensure hidden v ehicle
parts are not interfered with. Once the location has been established place the sirenmounting bracket
and mark and drill three (3) x 1.5mm holes. Fit the siren bracket andthe siren to the bracket.
DASH BOARD WARNING LIGHT - LED
The LED (Light Emitting Diode) is usually installed in an area which is v isible f rom most angles
outside the v ehicle and to the driv er. The LED is a surface mount ty pe with a self adhesiv e pad and
is suitable for mounting virtually any where. Once this area has been selected, clean the area surf ace
with alcohol or solvent and attach. Route the cable securely to where the module will be located.
MAIN MODULE – MUST BE CONCEALED FROM VIEW AND TAMPERING
It is required that the main module is located in a position to make unauthorised access difficult. This
is the key to effective security. It is recommended to check where the module will f inally be located
bef ore it is secured. Once this has been established the installation may be proceeded with. Do not
locate near v ehicle computers or other similar electronic components as they may affect the
perf ormance of this product.

WIRING
DO NOT CONNECT THE MAIN +12V POWER SUPPLY PRIOR TO WIRING AND SOLDERING
THE OTHER CONNECTIONS.
SIREN ASSEMBLY (OPTION AL – NOT SUPPLIED)
a) Secure a ring terminal on the black wire of the siren to chassis (ground). Use a serrated washer
and screw to ensure a good grounding. It is recommended to use a separate grounding screw
and NOT one of the siren bracket screws as the grounding point.
b) Route the red (+12v) siren wire cable through a firewall rubber grommet at the shortest and most
conv enient point. Where the cable passes through the f irewall it must be insulated by the rubber
grommet.
c) Where possible route and loom the wire alongside f actory wiring and secure with cable ties.
d) Once inside the v ehicle, route and secure this wire to where the main module will be located.
ANTENNA - BLACK (THIN WIRE AT MODULE)
This is the module receiv er’s antenna DO NOT GROUND THIS WIRE!! Let it “hang” free under the
dash, but not exposed. Keep away f rom magnetic objects such as loud speakers or v ehicle
computers as it can reduce the range of the remote. Do not coil or wrap around other cables.
DASH MOUNTED LED
The LED must be mounted in such a position that it can be seen by the driv er and from both sides from
outside the v ehicle.

MAIN MODULE
The main module has concealed plugs with only black wires emitting from it. The wires are labeled for
the f unction;
1 (+) 12V OUTPUT TO PARKING LIGHTS
2 DOOR TRIGGER (‘+’ OR ‘-‘ SELECTABLE BY JUMPER J5. FACTORY SET TO ‘-‘)
3 (-) NEGATIVE GROUND
4 (+) 12V FUSED CONSTANT POWER
5 (+) 12V IGNITION INPUT WIRE (ALSO +12V BACK-UP FOR IMMOBILISATION)
6 (-) GROUND WHEN ARMED
7 (-) LOCK, LOW CURRENT (0.3 SEC PULSE – OPEN JUMPER J5 FOR 4.0 SEC)
8 (-) UNLOCK, LOW CURRENT (0.3 SEC PULSE – OPEN JUMPER J5 FOR 4.0 SEC)
9 (+) OPTIONAL SIREN OUTPUT
10 IMMOBILISER CIRCUIT NO’ 1 (BLACK TAPED TOGETHER)
11 IMMOBILISER CIRCUIT NO’ 2 (BLACK TAPED TOGETHER)
12 DUMMY IMMOBILISER CIRCUIT NO’ 3 (CLEAR TAPED TOGETHER)
13 LED

GROUND – 2 WIRES (-)
Two ground (-) wires are prov ided, connect these v ia ring terminals to two separate ground points
ensuring a good metal to metal contact. Do not connect the ground wires together.
IMMOBILISER WIRES – EACH 15AMP CONTINUOUS
There are 2 automatic engine immobiliser circuits. The relays are of the normally open ty pe. The only
time they maintain continuity is when the system is powered and the ignition is turned on. At all other
times, the engine circuits are immobilised.
It is suggested that these circuits be used to interrupt the starter motor and low tension ignition or any
other suitable disabling circuits such as electric fuel pump. We do not recommend interrupting the
computer circuits. It is recommended that the v ehicle owner is informed which circuits hav e been
interrupted.
Verify the continuous current draw of each circuit is within the capacity of this product.
Two dummy immobiliser wires are provided and hav e no function other than to deceiv e illegal
tampering. DO NOT CUT OFF OR CONNECT ANYTHING TO THESE. Loom these wires into the
main wiring loom so they appear to be part of the system.
POWER SUPPLY +12v FUSED
The power supply must be taken f rom a permanent 12v FUSED supply and should be connected last.
Not suitable for 24v systems unless a reducing transf ormer is being used.

IGNITION WIRE (+)
It is imperative that the ignition wire is connected to receive 12v when in the engine run and the crank
position of the ignition switch. The ignition input is also a back-up power supply to the main power
supply. Ensure this connection is secure.
PARK LIGHTS (+)
The MX40II is designed to f lash the parking lights, not the indicators. This wire is fuse protected to
prev ent shorting. Connecting to the indicators may overload the circuit and voids warranty.
DOOR TRIGGER – (Change jumper J5 for ‘+’ or ‘-‘ input - factory set to (-) negative)
Connect this wire to a common door switch so that it receiv es a ground signal regardless of which door
is opened. Any other triggers may be connected at this point (bonnet, boot, shock sensor). In this
conf iguration, and when the optional siren is installed, a ground signal will cause the siren to sound.
GROUND WHEN ARMED (-)
This wires provides a ground signal when the system is armed. This may be used for a third
immobiliser relay.
CENTRAL LOCKING (-) LOCK / UNLOCK (Jumper J4 controls timing)
The MX40II has low current lock and unlock central locking outputs. Additional components may be
required depending on the ty pe of v ehicle and/or its’ central locking. Please refer to the Mongoose
installation manualf orf urther details.
(Factory set at 0.3 sec pulse. Remove jumper J4 for 4.0 second pulse)

OVERRIDE PIN CODE PROGRAMMING
The PIN code is programmable to any 4 digit number. The factory default is 1-1-1-1. This must
be changed to a number the v ehicle owner can easily remember. It is recommended that installers do
not keep any record of the v ehicle owners PIN code. Write the PIN code in the space prov ided earlier
in this manual. INFORM THE VEHICLE OWNER TO MEMORISE THE CODE NUMBER.
1 Disarm the system using the remote control.
2 Disconnect the power feed and the central locking connections to this system for
10 seconds and then reconnect.
3 Within 10 seconds of reconnecting the power, turn the ignition ON then OFF.
4 Open & close the door 5 times and leave closed.
The optional siren will give one long chirp and the park lights will stay on to show
learning mode.
If the code is, for example, 2-3-3-4
5 Turn ignition ON.
The LED lights for 3 seconds to show the start of the learning sequence. The LED
will then start to slow flash.
6 Allow the LED to flash twice for the first digit (2), then turn ignition OFF.
The LED will light for 2 seconds to confirm 1st digit input.
7 Turn the ignition ON and the LED starts to slow flash again.
8 Repeat steps 6 & 7 for the 2nd, 3rd & 4th digits.
9 After the 4th digit is accepted the programme learning will cease.
(Turning ON the ignition & opening a door will also cancel this learning mode)
ARM THE SYSTEM AND TEST THE OVERRIDE PIN CODE FOR CORRECT
OPERATION.

TESTING SYSTEM OPERATION
Af ter all the connections have been made and checked f orcorrect connection, re-connect the battery. If
the parking lights flash press Button ONE on the remote control to cancel.
Now follow the operator instructions and test all features.
COMPLETING THE INSTALLATION
Once all the testing procedures f or the system hav e been carried out and are satisf actory, secure the
main module to the predetermined area under the dash. Re-connect the AIR BAG system (if v ehicle
is equipped). Re-code the radio if thev ehicle battery was disconnected. “Tidy -up” the looms, replace
all steering column cov ers, “kick” panels, door trims etc. apply the window stickers and clean the
v ehicle.
It is advisable to test all the vehicle’s circuits, (lights, wipers, radio, indicators etc) in case any wires
were disturbed during the installation of this product.
TO LEARN NEW REMOTE CONTROLS
If optional siren is not installed, connect a test light or multi-meter to the siren output wire.
Disarm by remote or use the ov erride & turn the ignition on with doors closed.
Open & close the drivers door 5 times to enter learning mode – door remains closed at completion.
Test light (or siren) flashes 5 times – signif ies learning mode.
Any remote, including any existing, must be memorised at this time. Press remote button ONE on the
f irst remote and then the ONE button on any subsequent remote (one after the other) - learns up to 4
remotes. Learning only one erases all previous memory. Turn off ignition to complete the sequence.

THE RECOGNISED NAME IN SECURITY
Mongoose (Australia) Pty Lim ited
Sydney, Melbourne, Brisbane
Mongoose (New Zealand) Lim ited
Auckland
For service contact your Mongoose agent;
