Monitor GF 500 User manual

SAFETY ALERTSYMBOL
These symbolsappear as important safety precautions and should be understood
and followed bythe owner to assure safe operation ofthe heater.
For Quick Reference
Page
SECTION A: ImportantCaution 1
SECTION B: Specifications 5
SpecialFeatures 5
SafetyFeatures 5
SECTION C: ToolsNeeded for Heater Installation 6
Accessories YouMay Need 7
Flue PipeExtensions 8
SECTION D: NoticeBeforeInstallation 9
Heater Installation 10
Flue PipeClearances 11
SECTION E:Gas Connection 15
SECTION F: OperatingInstructions 16
StartingInstructions 17
AdjustingRoomTemperature 17
Turning Offthe Heater 18
Relighting the Heater 18
Programming the Heater 18
Programming for AutomaticHeaterOperation 19
Manual Operation 19
SECTION G: ProtectiveFeatures • 20
Loss of Power-AutomaticReset 20
ElectricalFuse 20
Overheat Prevention 20
SECTION H: Maintenance and Check 21
SECTION I: TroubleShootingGuide 22
SECTION J : WiringDiagram 23
BlockDiagram 23
SECTION K: PartsList 24
COPYRIGHT © MONITOR PRODUCTS, INC.,

SECTION A
IMPORTANT CAUTION
AWARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,SERVICE
OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE,REFER TO THE OWNER'S INFORMATION
MANUALPROVIDED WITH THIS APPLIANCE.
INSTALLATION AND SERVICEMUST BE PERFORMED BYA
QUALIFIED INSTALLER,SERVICEAGENCY OR THEGAS SUPPLIER.

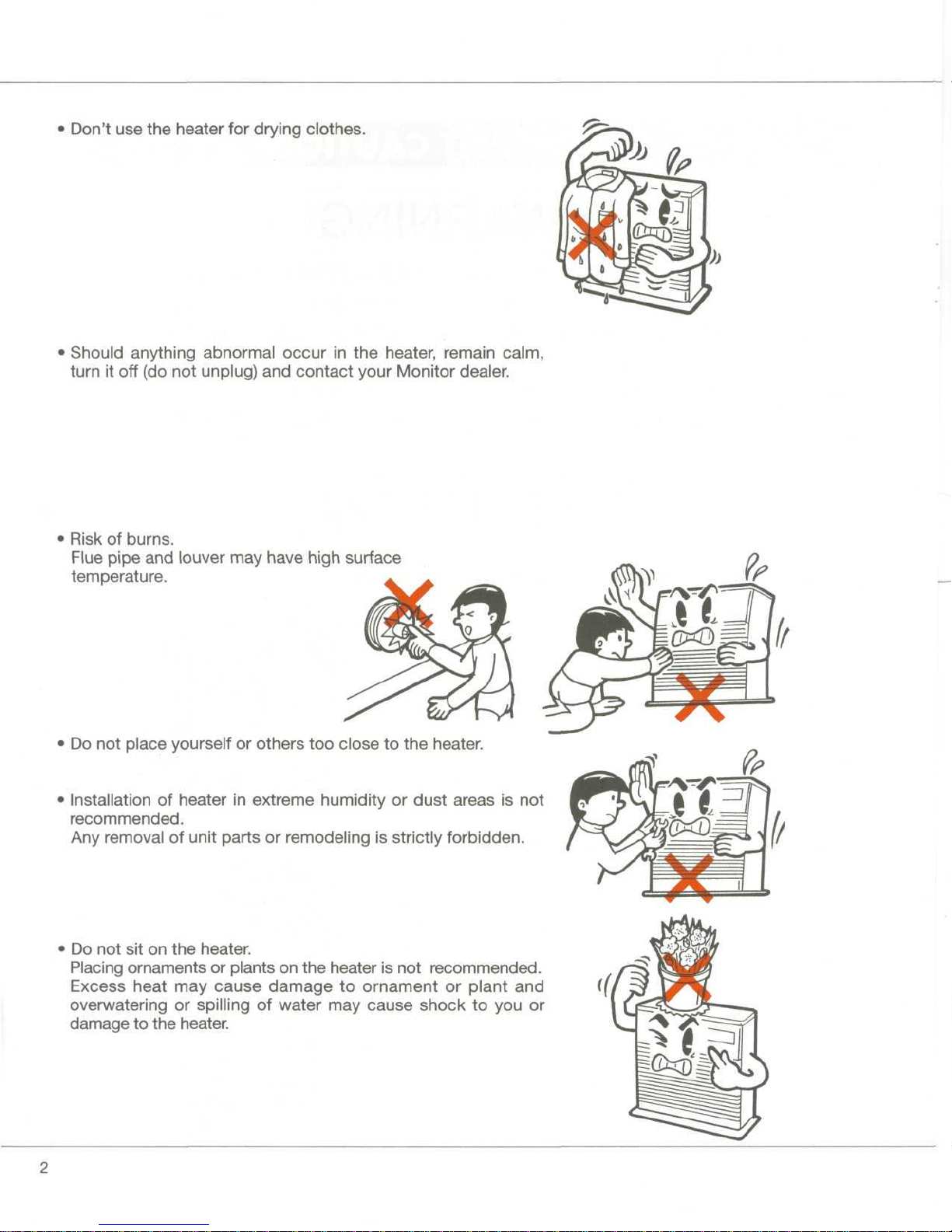

ACAUTION
• Makesure that flue pipe (exhaust pipe, air supplyhose) is
connectedproperly.
• Keep heaterclean anddonot store any flammableitems onor
near the heater.

Don't usethe heater for dryingclothes.
Shouldanythingabnormaloccur inthe heater,remaincalm,
turn itoff(donot unplug) and contactyourMonitordealer.
• Risk of burns.
Flue pipe and louver may have high surface
temperature.
Do not placeyourself or others too close tothe heater.
• Installation of heater in extremehumidity or dustareas isnot
recommended.
Any removal of unitparts or remodeling is strictlyforbidden.
Do notsitonthe heater.
Placingornaments or plants onthe heater isnot recommended.
Excess heat may causedamage to ornament or plant and
overwatering or spilling of water may causeshock toyouor
damage tothe heater.

Don'tsprayaerosols onthe heaterwhen in operation.
Don'tallowchildren to insertarticles inthe louvers.
Ei.v
w<tsf
//
Keep flammablematerials,trees,shrubsetc.awayfromflue pipe.
Do not ventunitintootherrooms.Flue pipe must be outside.
Do not install nor exhaust the flue pipe into a crawlspace or underneathfloor nor into a flue or
chimney.
X
Flue
or
Chimney

In areas of heavysnowaccumulation,fluepipe may need tobe installedhigher to avoidbeingburied.
In openareaswithstrongwind, a windbreak maybe necessary to avoidexhaustgasesbeingblown
back into the intake and causingpoorcombustion.
Long —
Extension'
kit
Must be higher.
Snow
24"min
(61cm)
1
Exhaust pipe must be keptclear of flammablematerials.
This heater isnot designed tobe built in.
\

SECTION B
SPECIFICATIONS
Model No.
GF500
Type of Appliance Fan typedirectventwallfurnace
InputRatingNat. Gas 38,000BTU/hour
LP. Gas 34,500BTU/hour
OutputRating Nat. Gas 30,700BTU/hour
LP.Gas 27,900BTU/hour
Efficiency
83%
ElectricalRating 120V, 60Hz,Lessthan 2 amperes
Power Consumption 80 Watts
Heated Air DeliveryHigh
388 Cubic feet/minute
Low 300 Cubic feet/minute
FluePipeHole
2.5 inchesdiameter
DimensionsHeight:26.6inches(67.56cm)
Width:28.7inches(72.90cm)
Depth:13.8inches(35.05cm)
Weight
82 pounds
Inlet Gas SupplyPressureNat. Gas Max.
Min.
10.5 inchW.C.(267 mmH2O)
5.1 inchW.C. (130mmH2O)
LP. Gas Max. 13.0 inchW.C.(330 mmH2O)
Min. 11.0 inchW.C.(279 mmH2O)
ManifoldTestPressureNat.
Gas3.4 inchW.C. (85 mmH2O)
LP. Gas3.4 inchW.C. (86 mmH2O)
The minimum and maximuminlet gas supplypressure areforthe purpose of inputadjustment.
The efficiencyrating of thisappliance isa product of thermalefficiencyratingdeterminedunder
continuous operatingconditions andwas determinedindependently ofany installedsystem.
SPECIAL FEATURES
AUTOMATIC IGNITION
MEMORY BACK UP:Set memory canbe kept in case of
powerfailure forupto5 minutes.
DUALBLOWERS:Separatefans for combustion and
room air circulation.
THERMOSTATICALLY CONTROLLED:Adjusts tothe
desiredroomtemperature.
BUILT-IN TIMER:Heater will automatically operate as
programmed bythe user.
AUTOMATIC RESETAFTERPOWERFAILURE:Heater
willautomaticallyresume operation afterpower is
restored.
INDICATOR LIGHTS:Easy-to-see signals showwhen
heater isin operation, whentimer is activated, and
when the burner is operating inlowor high modes.
CLEAN OPERATION: Products of combustion are vented
outside.
CONSUMES NO ROOMAIR: Airfor combustion is drawn
fromoutside.
EASY INSTALLATION:Includes all parts required for
standard installation.
SAFETY FEATURES
SAFE RE-LIGHTING:Heater will not restart until its
combustion chamber has cooled.
ELECTRICALPROTECTION:Heaterautomaticallyshuts
off inthe unlikelyevent ofa malfunction inthe electrical
circuitry or disruption ofthe powersupply.
NO EXHAUST IN ROOM:Products of combustion are
discharged outdoors.
FLUE PIPE:Outside airis drawnthrough a pipe-within-
a-pipe venting system.Thisprocesspreheats
combustion airand regainsheatfromexhaustgases.
A CAUTION: ALTERNATEPOWERSOURCES
The Monitor GF500 maynot operatewhenpowered
by sourcessuch asan auxiliary generator, UPS
(Uninterrupted PowerSource),inverters,etc.
Check with yourdealer for guidance on specific
applications.

SECTION C
Before installing yourheater, be sure to check and comply with local and state building and electrical codes
that may apply to ventedheaters in yourarea.Permanentwiringmust be installed bya licensedelectrician.
TOOLS NEEDED FOR HEATER INSTALLATION
Check the followingcharts tobe sure you have allthe tools required to installyourMonitorGF500HeatingSystem.
STANDARD TOOLS
APPLICATION
PhillipsHeadScrewdriverInstallation of HeaterParts
Steel Tape Measure Taking Measurements
Pen or Pencil Marking DrillingLocation
Exterior CaulkCaulkingBetweenPacking
and Wall
Yardstick or LongStraightEdgeCheckingAngle of Hole for FluePipe
Soapy Water Lubricating SleeveHardware
SPECIAL TOOLS APPLICATION
ElectricDrillAccommodatingHole
Sawand Drill Bit
2
1/2
inchHole Saw AttachmentCuttingHole for FluePipe
Long
1/4
inchDrill Bit Drilling PilotHoleThroughWall
Level CheckingAngle of Hole for FluePipe andfor checkingheater
level.
Fig.1

ACCESSORIES YOUMAY NEED
Check the listbelow andsee your MPI dealer for accessories youmay need or want for installation of yourheating
system.
ACCESSORY APPLICATION
MediumFluePipe P/N 8206 Foruse where wall thickness isupto 14Va inches(36.83cm)
LongFluePipe P/N 8005 Foruse where wallthickness isupto 20'/2 inches(52.07cm)
Extra Short,Short,Medium orForuse where "standard" installation isnot practical
LongExtension Kitor ElbowAdapter kit
(See FluePipeExtensions,page 8)

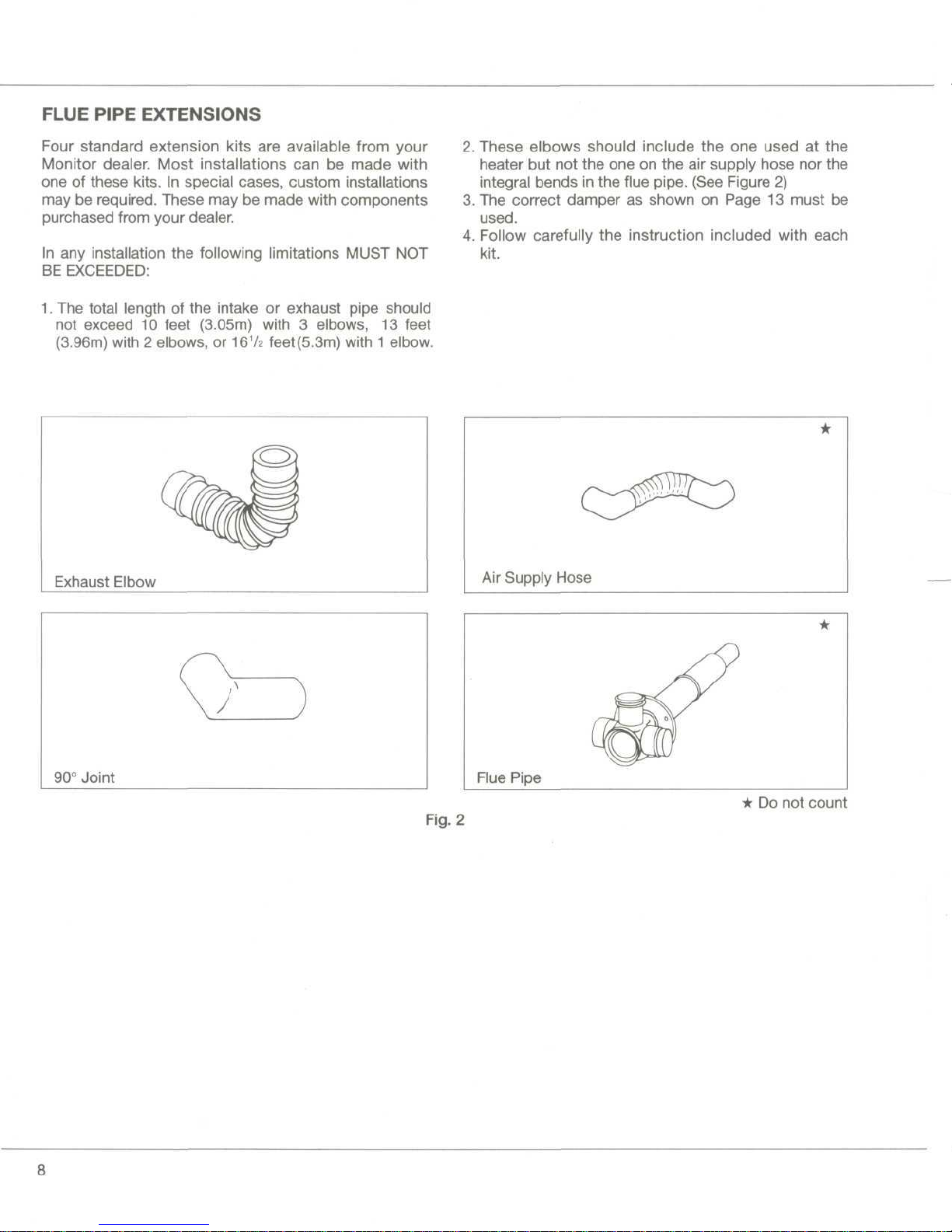

FLUE PIPEEXTENSIONS
Four standardextensionkits are availablefromyour
Monitordealer.Mostinstallations canbe madewith
one of these kits. In special cases, custom installations
may be required.These maybe madewithcomponents
purchased fromyourdealer.
In any installation the followinglimitationsMUST NOT
BE EXCEEDED:
2. Theseelbowsshouldinclude theone used atthe
heater butnottheoneontheair supplyhose northe
integral bends inthe flue pipe. (SeeFigure 2)
3. The correctdamper as shown on Page 13 must be
used.
4. Followcarefully the instructionincludedwitheach
kit.
1. The totallength ofthe intake or exhaustpipeshould
not exceed 10 feet (3.05m) with 3 elbows, 13 feet
(3.96m) with 2 elbows, or 161/2 feet (5.3m) with 1 elbow.
Exhaust Elbow
90° Joint
Air SupplyHose
FluePipe
* Do not count
Fig. 2

SECTION D

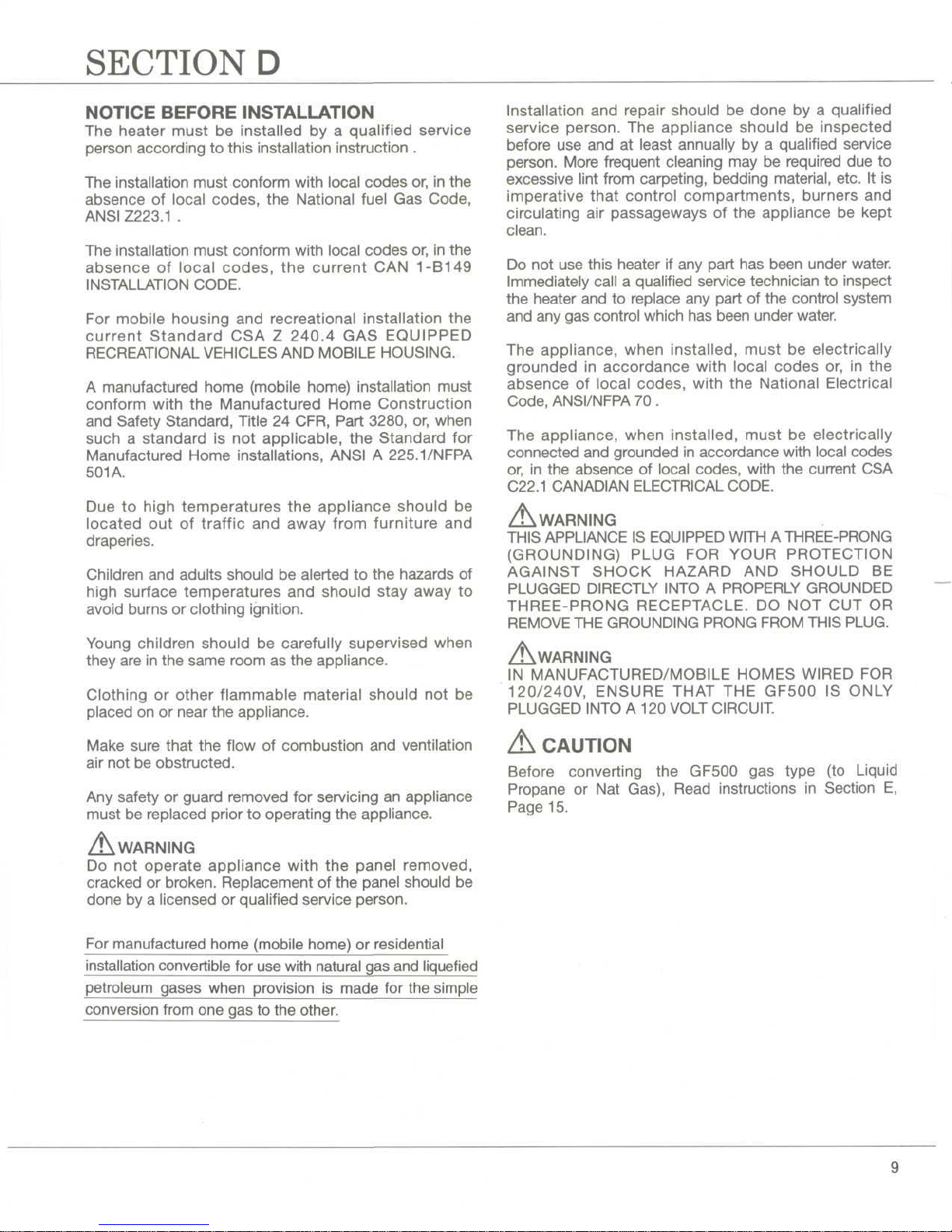

NOTICEBEFOREINSTALLATION
The heatermust be installed bya qualified service
person according to thisinstallationinstruction .
The installationmustconformwithlocalcodes or,inthe
absence of localcodes, the Nationalfuel Gas Code,
ANSI Z223.1 .
The installationmustconformwithlocalcodes or,inthe
absence of local codes, the current CAN 1-B149
INSTALLATION CODE.
For mobilehousing and recreationalinstallation the
currentStandard CSAZ 240.4 GAS EQUIPPED
RECREATIONAL VEHICLES AND MOBILEHOUSING.
A manufacturedhome(mobilehome)installationmust
conformwith the ManufacturedHomeConstruction
and SafetyStandard,Title 24 CFR,Part3280, or, when
such a standard isnot applicable, the Standard for
ManufacturedHomeinstallations,ANSI A 225.1/NFPA
501 A.
Due to hightemperatures the applianceshould be
located outof traffic and awayfromfurniture and
draperies.
Children and adultsshould be alerted tothe hazards of
highsurfacetemperatures and shouldstayaway to
avoid burns or clothing ignition.
Young childrenshould be carefullysupervisedwhen
they areinthe sameroom asthe appliance.
Clothing or otherflammablematerialshould notbe
placed onor near the appliance.
Make surethat the flow of combustion and ventilation
air notbe obstructed.
Any safety or guardremoved for servicing an appliance
must be replacedprior to operating the appliance.
A\ WARNING
Do not operateappliancewith the panelremoved,
cracked or broken.Replacement ofthe panelshould be
done bya licensed or qualifiedserviceperson.
Installation and repairshould be done bya qualified
service person. The applianceshould be inspected
before useandat leastannually bya qualifiedservice
person.Morefrequentcleaning maybe required dueto
excessive lintfromcarpeting,beddingmaterial,etc. Itis
imperative that controlcompartments,burners and
circulating air passageways ofthe appliance be kept
clean.
Do notuse thisheater ifany part has beenunderwater.
Immediatelycall a qualifiedservicetechnician to inspect
the heater andto replace any part ofthe controlsystem
andanygas controlwhich has beenunderwater.
The appliance,wheninstalled,must be electrically
grounded in accordancewithlocalcodes or,inthe
absence of localcodes,with the NationalElectrical
Code, ANSI/NFPA 70.
The appliance,wheninstalled,must be electrically
connected and grounded in accordancewithlocalcodes
or, inthe absence of localcodes,with the current CSA
C22.1 CANADIAN ELECTRICAL CODE.
A WARNING
THIS APPLIANCE IS EQUIPPEDWITH A THREE-PRONG
(GROUNDING) PLUG FOR YOURPROTECTION
AGAINST SHOCKHAZARD AND SHOULD BE
PLUGGED DIRECTLY INTO A PROPERLY GROUNDED
THREE-PRONG RECEPTACLE. DONOTCUTOR
REMOVE THE GROUNDING PRONG FROM THISPLUG.
A\ WARNING
IN MANUFACTURED/MOBILEHOMES WIRED FOR
120/240V, ENSURETHAT THE GF500 IS ONLY
PLUGGED INTO A 120 VOLT CIRCUIT.
A CAUTION
Before converting the GF500 gas type (to Liquid
Propane orNat Gas), Read instructions in Section E,
Page 15.
For manufactured home(mobile home) or residential
installation convertible foruse with natural gasand liquefied
petroleum gaseswhenprovision is made forthe simple
conversion from onegastothe other.

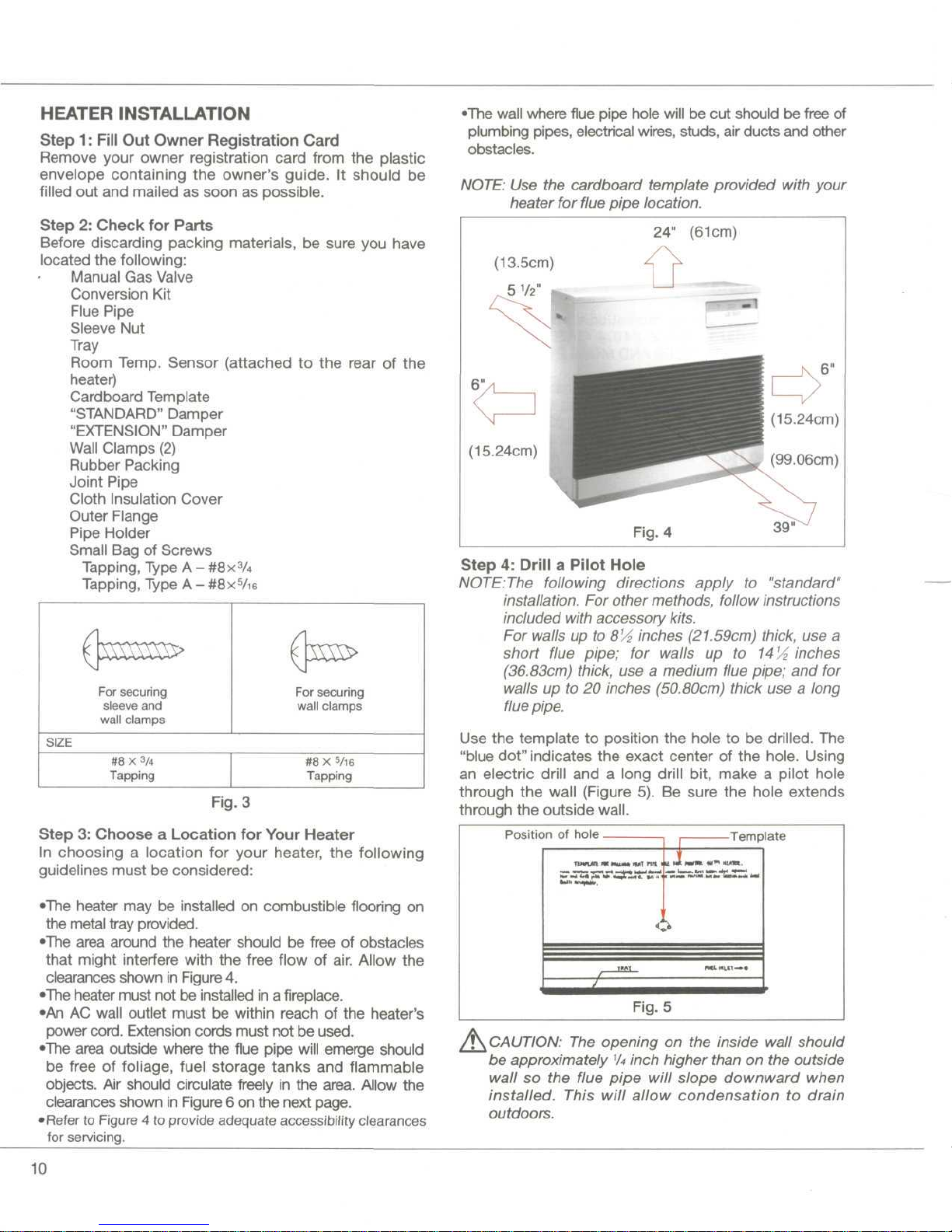

HEATERINSTALLATION
Step 1: Fill Out OwnerRegistrationCard
Remove yourownerregistrationcardfrom the plastic
envelope containing the owner'sguide. It should be
filled outand mailed as soon as possible.
Step 2: Check for Parts
Before discardingpackingmaterials, be sure you have
located the following:
Manual Gas Valve
Conversion Kit
Flue Pipe
Sleeve Nut
Tray
Room Temp.Sensor(attached tothe rear ofthe
heater)
CardboardTemplate
"STANDARD" Damper
"EXTENSION" Damper
Wall Clamps (2)
Rubber Packing
JointPipe
ClothInsulationCover
Outer Flange
PipeHolder
Small Bagof Screws
Tapping, Type A- #8x3A
Tapping, Type A- #8x5/ie
(fa^S>
For securing
sleeve and
wall clamps
For securing
wall clamps
SIZE
#8X 3/4
Tapping
#8X 5/16
Tapping
Fig. 3
Step 3: Choose a Location for Your Heater
In choosing a location for yourheater, the following
guidelinesmust be considered:
•Theheater maybe installed on combustibleflooring on
the metaltrayprovided.
•The area around the heatershould be free of obstacles
thatmightinterferewith the freeflow of air. Allow the
clearances shown in Figure 4.
•Theheatermust notbe installed ina fireplace.
•AnAC walloutletmust be withinreach ofthe heater's
power cord.Extensioncordsmust notbe used.
•The area outsidewhere the fluepipewillemergeshould
be free of foliage,fuelstoragetanks and flammable
objects. Air shouldcirculatefreely inthe area.Allow the
clearances shown in Figure 6 onthe nextpage.
•Refer to Figure 4to provide adequateaccessibility clearances
for servicing.
•Thewallwherefluepipeholewill becut should be free of
plumbingpipes,electricalwires,studs, air ducts and other
obstacles.
NOTE: L/se the cardboard templateprovided with your
heater for flue pipelocation.
24" (61cm)
(15.24cm)
Fig. 4
Step 4: Drill a Pilot Hole
NOTE:The following directions apply to "standard"
installation. For other methods, follow instructions
included with accessory kits.
For walls up to 8Y2 inches (21.59cm) thick, use a
short flue pipe; for walls up to 141/^ inches
(36.83cm) thick, use a medium flue pipe; and for
walls up to 20 inches (50.80cm) thick use a long
flue pipe.
Use the template to position the hole tobe drilled. The
"bluedot"indicates the exactcenter ofthe hole.Using
an electric drill anda long drill bit, make a pilot hole
through the wall(Figure 5).Be sure the holeextends
through the outsidewall.
Positic
n nf |-inle>
TiMfun m Mum OUT nn
rjs;sr.rjst*i«r?.
M»<MfM».
<
—Template
t Jl NMK «*> HCfflK.
>
TKAt RatllUI!-^*
Fig. 5
^CAUTION: The opening on the inside wall should
be approximately '/4 inch higher than onthe outside
wall so the flue pipe will slope downward when
installed. This will allow condensation to drain
outdoors.
10

FLUE PIPECLEARANCES
• Vent terminalmust be located at least 3 feetabove any forced air inletlocatedwithin 10 feet.
•The ventterminal ofa directventappliancewith an input of 50,000 Btuper hour or lessshall be located at least 9
inches from any openingthroughwhichfluegasescouldenter a building, and such an appliancewith an input over
50,000 Btuper hourshallrequire a 12-inch ventterminationclearance. The bottom ofthe ventterminal andtheair
intake shall be located at least 12 inchesabovegrade.
• Fluepipeinstallationsshouldprovide for venting toa confinedspacethroughwhichthere isa free flow of outdoor
air. Clearances to adjacentwalls or obstaclesmustcomplywith the requirementsshownbelow.
Frontal Clearance
A
P.nmhi istihle iiiiiiiii iiimui miummi inn it
CAUTION :
Do not attachanythingonto the outlet
of the fluepipe.
OverheadClearance
Combustible ->imwmi
24' (6 Ocm)
or more
3
Wall
5^" J
(13.5cm)
| _J^;
Clamp '. 1
&^
r*l
Heater - j J
* ' .
i-
24 (60cm)
or more
Wai
5
\/-
(13.5cm)
Clamp
^^
=^*
|E
A
*
1
Heater
-Wall
Any construction
above Flue Pipe
51A" must not come
(14 within 24" (60cm)
cm) of front obstacle
~or4 24" (60cm) - — »
more or more
3^-t.,, Flue Pipe
r*^ »
12" (30cm)
or more
I
Front Obstacle
Ground or slab surface
Side Clearance
Non-combustible
-Wall
Combustible
,,7
'
Wall
Clamp
| Side obstacle
//" 24" (60cm)
'Jr
or
more
45° /
£
Ground
12" (30cm)
or more
i
Flue Pipe
Heater-
Ul
1 18' (45cm)
— or more
^J ,
iH P""3 *~~
Flue Pipe
wan
or slab surface
IMPORTANT:
(1) In areas of heavy snow falls, ground surface clearance
must be increased according to average snow falls, to
prevent flue pipe from being buried.
-f
Must be higher.
Extension
kit
Snow
(2) In open area with strong wind, a wind break may be
necessary.
j— 24"min -*.
(61cm)
Fig. 6
11

Step 5:Cutthe Hole forthe Fluepipe
Using a hole saw attachment andan electric drill, cuta 21/2
inch diameterholethrough the inner and outerwalls
figure 7).
After the hole is cut, usea straightedge anda level to
be sure the insideopening is approximately
1A
inch
higher than the outsideopening.
NOTE: After cutting the inside wall, remove the
insulation. Make sure there are no obstructions
inside the wall, such as electrical wiring, water
pipes, hot air ducts,etc.
Step 6: Install the FluePipe
FromINSIDE the building, insert the fluepipe(with
arrow pointing "up")into the hole.Fasten the fluepipe
with the3 #8x3A tapping screws(Figure 8).
(See Figure 3 for screwsize and application.)
NOTE: Top center port is an extra exhaust port.
Wall
(0.64cm)
Fig. 7
tapping screw
Fig. 8
Step 7: Install the OuterFlange
Applycaulkingmaterial tothe insideridge ofthe rubber
packing(Figure 9).
Holding the "Up"mark tothe top, slide the rubber
packingonto the sleeve(caulkside tothe wall).
NOTE: If it is difficult to slide the packing onto the
sleeve, apply soapy water to the inside of the
packing.
Once the rubberpacking isin place,slide the outer
flange onto the sleevewith the conicalsidepointing
outward(Figure10).
Screw the fluepipe nut onto the fluepipegrooves, and
tighten it firmly(Figure 10).
RecommendedcaulkingmaterialType:
Permatex, RTV Red,Part No. 26C.
Fig. 9
Rubber Packing
OuterFlange
Flue Pipe Nut.
Fig. 10
12

Step 8: Level the cabinet
Place the tray onthe floorwhere you plan to located
your heater.
Position the heater onthe tray sothe legs ofthe
cabinet fit into the circularindentation inthe tray.
In order for heater to operateproperly. It must be
positioned ona levelsurface.Ensureproperleveling by
adjustingeach legandby using a carpenterslevel to
check both side to side, and front to backlevel
condition.(Figure 11)
Step 10: Connect the Heater tothe FluePipe
Move the heatertoward the wall,guiding the jointpipe
into the centerport ofthe fluepipe(Figure 13).
Be sure the jointpipe is completelyinsertedinto the
fluepipe.
Legs
Tray
Fig. 11
Fig. 13
Step 9: Install the JointPipe
At the rear ofthe heater,slide the large end opening of
the jointpipeinto the exhaustportoutlet ofthe heater.
Be sure the joint pipe is fully seated. Slide the fabric
cover over the jointpipe(Figure 12).
The o-rings thatseal the jointpipe maybedryand
tight. A little soapywaterwilleaseinstallation.
Step 11: Install theAir Damper
If installation is standard(that isno extensionkits are
required),place theair dampermarked with a
"STANDARD" over theair intakeflange onthe fluepipe
(Figure14).
Place the hosebandaround theendoftheair supply
hose.Push theair supplyhoseonto theair intake
flange and secure the hosewith the hoseband.
FabricCover
Joint Pipe
Fig. 12
Air Damper
Air SupplyHose
Fig. 14
NOTE: Do not place intake hose onto metal capped
exhaust port.
13

NOTE: The "STANDARD" damper is to be used with
extension kits up to a total overall length of 20
inches and a maximum of 3 bends (90° elbow).
The "EXTENSION" damper must be used when
extension kit or kits exceed 20 inches.
Step 12: Install the Flue Pipe Holder
Place the ring ofthe flue pipe holder around the flue
pipe. The otherside ofthe holder hooks ina slot
directlyabove the jointpipe atthe rear ofthe heater
(See Figure15).
Step 14: Recheck the Heater
Beforeproceeding,checkagain tobe surethere areno
flammablematerialsclose tothe heater.Check tobe
sure the heater is level.
Examine the fluepipe tobe sureconnections are tight.
FluePipeHolder
Fig. 15
i WARNING: Failure to position the parts in accordance
withthesediagrams or failure touse onlyparts specifically
approvedwiththisappliance may result in propertydamage
or personalinjury.
Step 13: Secure the Heater
Insert the narrowends ofthe2 wallclamps into sockets
onthe rear ofthe heater.
Loosen the adjustmentscrews and extend the clamps
untiltheytouch the wall.Fasten the clamps tothe wall
with 2 #8x3A tappingscrews.
14

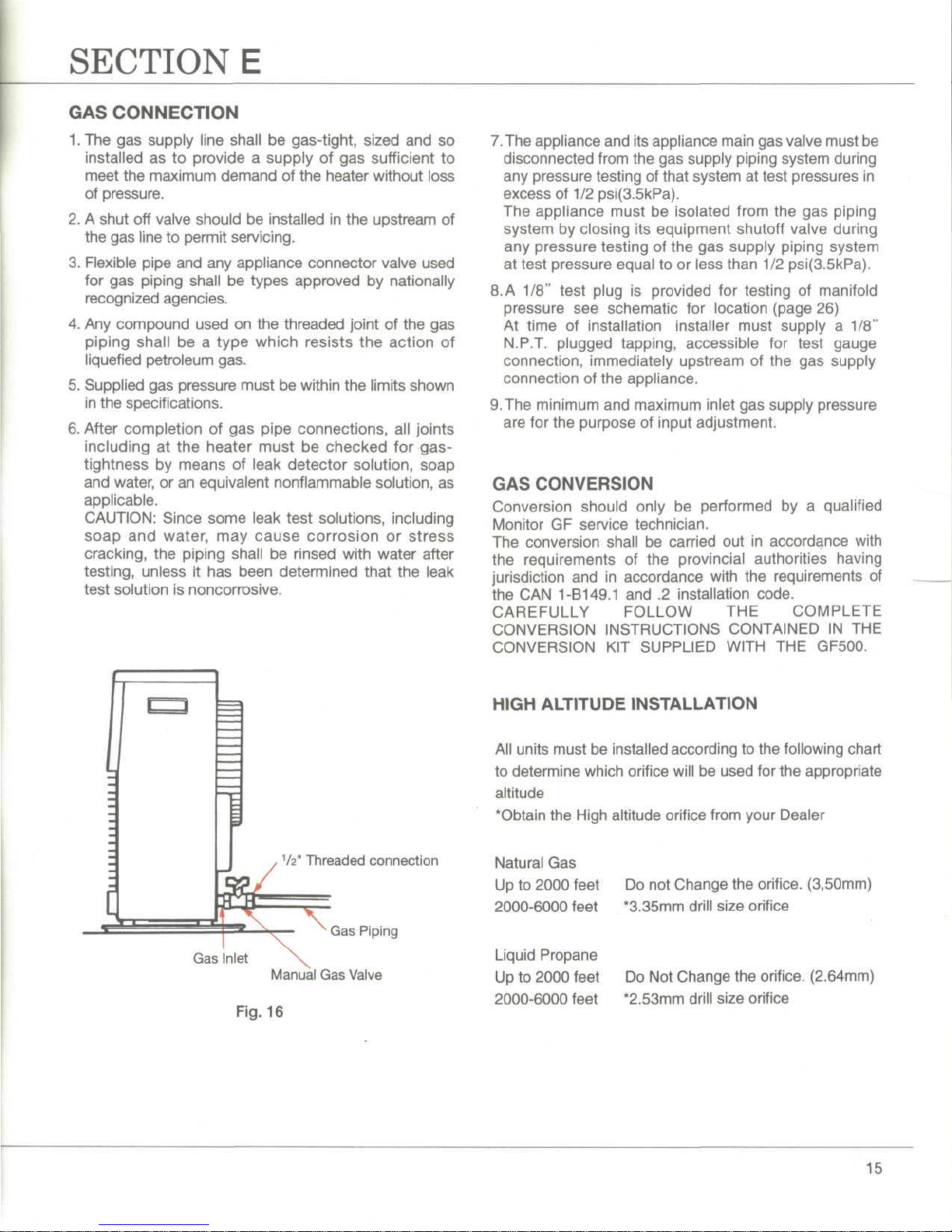

SECTION E
GAS CONNECTION
1. Thegas supplylineshall be gas-tight, sized andso
installed asto provide a supply ofgas sufficient to
meet the maximumdemand ofthe heaterwithoutloss
of pressure.
2. A shut off valveshould be installed inthe upstream of
thegas line to permit servicing.
3. Flexiblepipe andany applianceconnectorvalveused
for gas piping shall be typesapproved by nationally
recognizedagencies.
4. Any compoundused onthe threadedjoint ofthegas
piping shall bea typewhichresists the action of
liquefiedpetroleumgas.
5. Supplied gas pressuremust be within the limitsshown
in the specifications.
6. Aftercompletion ofgas pipe connections, all joints
including atthe heatermust be checked for gas-
tightness by means of leakdetector solution, soap
and water, oran equivalentnonflammablesolution, as
applicable.
CAUTION:Sincesomeleaktestsolutions, including
soap and water, may causecorrosion or stress
cracking, the piping shall be rinsedwithwaterafter
testing, unless ithas beendeterminedthat the leak
testsolution is noncorrosive.
1/2"
Threadedconnection
Gas Piping
7. The appliance andits appliancemain gas valvemust be
disconnected from thegas supplypipingsystemduring
any pressuretesting of thatsystem at testpressures in
excess of1/2 psi(3.5kPa).
The appliancemust be isolatedfrom thegas piping
system by closing its equipment shutoffvalveduring
any pressuretesting ofthegas supplypipingsystem
at testpressureequal toor lessthan 1/2 psi(3.5kPa).
8. A 1/8"testplug is provided for testing of manifold
pressure see schematic for location(page 26)
At time of installationinstallermustsupply a 1/8"
N.P.T.pluggedtapping,accessible for testgauge
connection,immediatelyupstream ofthegas supply
connection ofthe appliance.
9. The minimum and maximuminlet gas supplypressure
areforthe purpose of inputadjustment.
GAS CONVERSION
Conversion shouldonly be performed bya qualified
Monitor GF servicetechnician.
The conversionshall be carried outin accordancewith
the requirements ofthe provincialauthoritieshaving
jurisdiction andin accordancewith the requirements of
theCAN 1-B149.1 and.2 installationcode.
CAREFULLY FOLLOW THE COMPLETE
CONVERSION INSTRUCTIONSCONTAINED INTHE
CONVERSION KIT SUPPLIEDWITH THE GF500.
HIGH ALTITUDEINSTALLATION
All unitsmust be installedaccording tothe followingchart
to determinewhichorificewill be used forthe appropriate
altitude
*Obtain the HighaltitudeorificefromyourDealer
Gas InletManual
Gas Valve
Fig. 16
Natural Gas
Up to 2000feet
2000-6000 feet
LiquidPropane
Up to 2000 feet
2000-6000feet
Do not Change the orifice.(3,50mm)
*3.35mm drillsizeorifice
Do Not Change the orifice.(2.64mm)
*2.53mm drillsizeorifice
15

SECTION F
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: Ifyoudonot followtheseinstructionsexactly, a fire or explosion may resultcausingproperty
damage, personalinjury or loss of life.
A. This appliance does not have a pilot. Itis equipped
with an ignitiondevicewhichautomaticallylights the
burner. Donottryto light the burner by hand.
B. BEFORE OPERATING smell all around the appliance
area for gas. Be sure to smellnext tothe floor
because some gasis heavierthan airand willsettle
on the floor.
WHAT TODOIFYOU SMELL GAS
•Donottryto light any appliance.
•Donot touch any electricswitch; donotuseany
phone in your building.
• Immediatelycallyour gas supplierfrom a neighbor's
phone.Follow thegas supplier'sinstructions.
•Ifyou cannotreachyour gas supplier,call the fire
department.
C. Use onlyyour hand to push inor turn thegas control
knob.Never use tools. Ifthe knobwill not push inor
turn by hand, don't tryto repeat it, call a qualified
service technician.Force or attemptedrepair may
result ina fire or explosion.
D. Donotuse thisappliance ifany part has beenunder
water. Immediatelycall a qualifiedservicetechnician
to inspect the appliance andto replace any part of
the controlsystem andanygas controlwhich has
been underwater.
OPERATING INSTRUCTIONS
STOP! Read the safetyinformationabove on thislabel.
1. Setthe thermostat to lowestsetting.
2. Turn offall electricpower tothe appliance viathe
ON/OFF switch onthe controlpanel.
3. Thisappliance is equippedwith an ignitiondevice
whichautomaticallylights the burner. Donottryto
light the burner by hand.
4. Turnmanualvalve at rear of unitclockwise tothe full
OFF position.
5. Wait five (5)minutes to clear outany gas.Thensmell for
gas, includingnear the floor. Ifyou thensmellgas,STOP!
Follow "B"inthe safety informationabove on thislabel.
If you don'tsmellgas, goto next step.
6. Turnmanual gas valve to the full ON position. ^
7. Turn onall electricpower tothe appliance.
8. Setthe thermostat to desiredsetting.
9. Ifthe appliance will not operate,follow the Instructions
"To Turn OffGasTo Appliance" and callyourservice
technician orgas supplier.
TO TURN OFFGASTO APPLIANCE
1 .Turn off electricpower tothe applianceusing the ON/OFFswitchlocated onthe front of unit.
2. Turnmanualvalveclockwise tothe full OFF position. /">
NOTE: The fan will continue to operate until the appliance is cool, do not turn the appliance off by unplugging it from
the wall.
Unplug the appliance only after unit is cooleddown.
16

STARTING INSTRUCTIONS
•Step 1: Plug inthe Heater
Plug intheAC cord, and route it away from the area ofthe
flue pipe. Itis recommendedthat no otherappliance share
the same outlet.
NOTE: When the unit is operated for the first time or the
gas piping is replaced, the unit may not come ON
the first few times since air is in the piping. In this
case, repeat the starting procedures.
Step 2:Set "ON"Button
Depress the operationbutton toputitinthe "ON"
position(Figure 17).The "RUN"Lamplightsindicating
"Set Room Temperature" and "Present Room Temperature".
Burnerstatuslamps will light and ignition willstartafter
approximately 20 seconds. In30 seconds the circulation
fan willstart to operate, and warm air will be feltcoming
through the cabinet grill.
RI IM
AUT«
ECONOMYBURNERSTATUS SET ROOM
PLUb _:= ItMH _ _ _ — j
OPERATION TIMER SELECTOR TIME/TEMP SET
CLOCK
ON/OFF AUTO ECONOMY
SET 1s, 2nd
3rd4th
T|MF|
WOMR MINI ITF SFT r
PLUS *^« ••« ^«« m^mm mmm ' <Mc.\ | HOUR MINU Ib ot I
a en a cu
LEAR
a
Fig. 17
ADJUSTING ROOM TEMPERATURE
Pressing either the "Up" or "Down"buttonwill increase or
decrease theset temperature by2 degreeincrements.
Once desiredtemperature is displayed, press set button
to lockintomemory.
The lights onthe controlpanelwillindicate the level of
heater operation—low or high.
BURNER MODE
The heaterwillautomaticallychange its heatoutputuntil
the desiredroomtemperature is reached. While it cycles,
youmay hear the circulation fan changespeed.
Depending onthe outputrequired to maintain the desired
room temperature, the indicatorlightswillilluminate inthe
followingpattern:
LIGHT PATTERN
High
4 indicators—On
Low
2 indicators—On
Off
*No lights on
*The heaterwillshutitself off temporarilywhen the desiredroomtemperature has beenreached and restartautomatically when
necessary to maintainroomtemperature.
NOTE: The heater may display room temperature 4 degrees above set temperature, depending on heater load
conditions, before shutting itself off.
INSTRUCTIONS FOR ECONOMYPLUSMODE
To engage the economyplusmode,simplypressdown the button labeled "EconomyPlus", to disengagepressagain.
NOTE: Operation switch must be "ON" and in manual mode.
Thisfeatureminimizes the "ON" and "OFF"cycling ofthe unit by allowing itto overshoot theset temperature by12
degreesinstead ofthe normal 4 degrees.
The advantages of thisfeature areto increase the overallefficiency ofthe unit by:
1. Reducingheatloss during the prepurge and postpurgecycles.
2. Reducinginefficientcombustionassociatedwithstart upand shutdown.
3. Prolongingcomponentlife by decreasingexpansion and contraction of internalparts.
NOTE: This feature could be compared to driving an automobile in stop and go traffic (regular mode) versus highway
driving with cruise control engaged (Economy Plus mode).
17

TURNING OFFTHE HEATER RELIGHTING THE HEATER
To turn offthe heater, press the OperationButton toput
itinthe "Off"position(Figure 17). The operationlight
will go out, andthe fuelflow will stop.
After turning heater offthe fans willcontinue torun until
unit has cooleddown tothe pointwhere the fans will
automatically stop.
Automatic controlspreventyour heater from relighting
after the OperationButton has been setto "Off"until
heater has cooled.
If the OperationButton isputinthe "On"position
during the coolingperiod, the heaterwillautomatically
relight attheendofthe period.
PROGRAMMING THE HEATER
SETTING THE CLOCK
Step 1: Setthe TimerSelector
Press the "TimerSelector"button, at whichtime the "ClockSet"Lightwillilluminate. TheLED indicator inthe
Display Windowwillshow88:88 at thispoint.
DISPLAYWINDOW
RUN AUTO
EC?n?QMY
BURNERSTATUS
r l_Uo _
OPERATION TIMER SELECTOR
CLOCK
ON/OFF AUTO ECONOMY
SET 1st 2nd 3rd
4th
SETJ ROOM
TEMP
AM
PM
• n n
TIME/TEMP SET
EH
HOUR MINUTE SET CLEAR
CH EH EH EH
TEMP| | UP DOWN
TIMER SELECTOR
Fig. 18
Step 2:Setthe Hour
Press the "Hour"Buttonuntil the correcthour(either
A.M. or P.M.)appears inthe window.
Step 3:Setthe Minute
Press the "Minute"Button until the correcttimeappears
in the window.
Immediately press the "Set"Button.
NOTE: If the "Set" Button is not pressed within 1 minute
after the time is set, the programming will be
cancelled.
NOTE: The "Hour" and "Minute" Buttons can be pressed
and held or pressed momentarily to change the
time.
18
