Monoprice 24760 User manual

Caliber+ 60-Watt 6.5-inch Fiber 2-Way Powered
Ceiling Speakers with Bluetooth®
P/N 24760
User's Manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3
INTRODUCTION................................................................................................................................................................................................3
FEATURES..............................................................................................................................................................................................................4
CUSTOMER SERVICE....................................................................................................................................................................................4
PACKAGE CONTENTS.................................................................................................................................................................................4
PRODUCT OVERVIEW.................................................................................................................................................................................5
PAINTING...............................................................................................................................................................................................................6
INSTALLATION TOOLS...............................................................................................................................................................................6
INSTALLATION.................................................................................................................................................................................................. 7
BLUETOOTH PAIRING .................................................................................................................................................................................9
FINE TUNING THE SOUND ....................................................................................................................................................................10
TROUBLESHOOTING ..................................................................................................................................................................................10
TECHNICAL SUPPORT................................................................................................................................................................................11
SPECIFICATIONS.............................................................................................................................................................................................11
REGULATORY COMPLIANCE..............................................................................................................................................................12
Notice for FCC ..........................................................................................................................................................................................12
Notice for Industry Canada...........................................................................................................................................................12

3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. If moisture does get in
or on the device, immediately unplug it from the power outlet and allow it to fully
dry before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
If operating this speaker in a humid environment, ensure that no condensation
occurs. Condensation could cause damage to the speaker cone and could cause a
short in the amplifier, which in turn could cause fire or severe electric shock.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Ensure that power is turned off and disconnected before making any electrical
connections, including speaker wire connections.
INTRODUCTION
Thank you for purchasing this Powered Ceiling Speaker with Bluetooth®! Ceiling speakers
are the ideal combination of sound quality and styling. Rather than cluttering the room
with large box speakers trailing speaker wires, the speakers are virtually invisible, while
filling the room with high fidelity audio. Featuring a removable and paintable magnetic
grille, this 2-way speaker uses a DuPont™ Kevlar® woven fiber cone woofer with rubber
surround for deep, impactful bass, and a 0.75" silk titanium dome tweeter with 15° pivoting
action for smooth, sweet highs.

4
FEATURES
6.5" DuPont™ Kevlar® woven fiber cone woofer
0.75" silk titanium dome tweeter with 15° pivoting action
Includes both master and slave speakers
Dual 30-watt (RMS) power amplifiers for driving the master and slave speakers
Includes wired RCA and wireless Bluetooth® connections
8 ohms nominal impedance
60Hz ~ 20kHz frequency response
90dB sensitivity
Removable and paintable magnetic grille
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Master speaker
1x Slave speaker
2x Speaker grilles (installed)
1x AC power adapter and AC cord
1x Cutting template
1x User's Manual

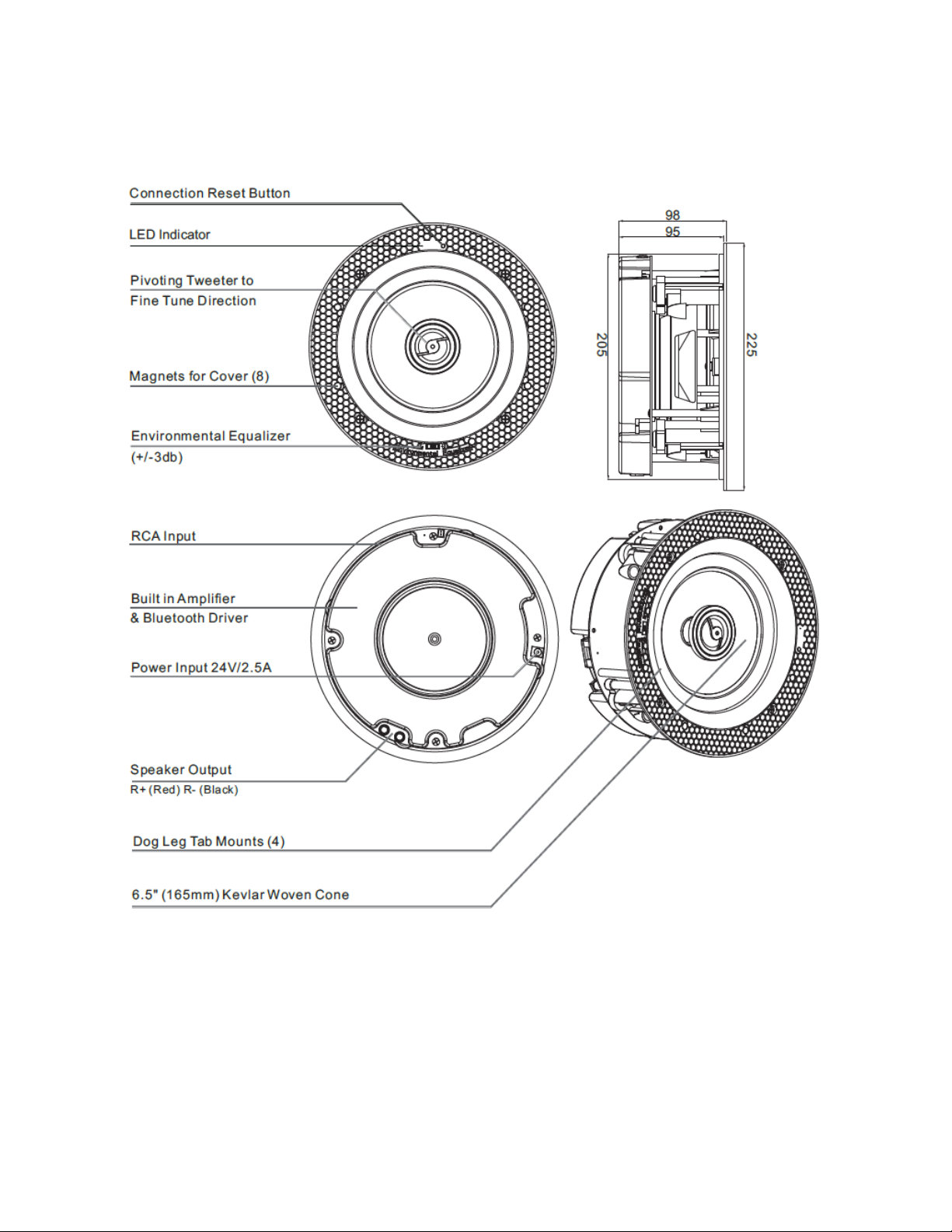

PRODUCT OVERVIEW

6
PAINTING
The grilles can be painted to match your ceiling, making the speakers even less noticeable.
Perform the following steps to safely paint them without damaging the speakers.
1. Completely remove the grilles by lifting them off the frames.
2. Paint the speaker grilles. It is best to use spray paint to avoid paint clogging the
holes.
3. Allow the paint to completely dry before proceeding with installation. Ensure that
the holes in the grilles are not blocked by paint.
INSTALLATION TOOLS
The following tools are required for installation.

7
INSTALLATION
Perform the following steps to install these speakers into your ceiling. Installation requires
knowledge of and experience with best building practices. Thoroughly read all of these
installation steps before beginning installation. If you do not feel totally comfortable with
performing any of these steps, contact a professional installer to perform the installation.
1. Determine where you will mount the master speaker. The master speaker should be
mounted near an AC power outlet in the ceiling.
2. Use a stud finder to locate the ceiling studs around the installation location. Mark
the edges of the ceiling studs with a pencil.
3. If you have not already done so, remove the grille from each speaker.
4. Place the cutting template against the ceiling in the intended installation location,
then mark the cutting line with a pencil.
5. Drill a small hole in the middle of the marked location.
6. Cut open a clothes hanger and straighten it out. Bend the hanger 90° at a point
about 6" from the end. Insert the hanger into the pilot hole, then turn it 360° around
to ensure that there are no obstructions in the cutting area. If there are
obstructions, move the install location and repeat the above steps until you have
identified an unobstructed area.
7. Using a drywall saw, cut along the cut line.
8. Repeat the above steps for the slave speaker.
9. Prepare a two-conductor speaker wire for connecting the slave speaker to the
master speaker. This wire must be rated for in-wall/in-ceiling use.
10. Connect one end of the speaker wire to the speaker input terminals on the slave
speaker, taking care to match the polarity.
11. Using a #2 Philips screwdriver, turn the four dog leg tab mount screws on the slave
speaker counterclockwise to retract the tabs.
12. Feed the loose end of the speaker wire through the installation hole, then insert the
slave speaker into the speaker installation hole.

8
13. Using a #2 Phillips screwdriver, turn the
four dog leg tab mount screws
clockwise to extend the tabs. Continue
tightening until the speaker is firmly
against the ceiling. Take care not to
over-tighten.
14. Determine whether you will want to
use these speakers in stereo or mono
mode. Slide the stereo/mono switch on the master speaker to the appropriate
position.
15. Determine if you will need to limit the volume, then slide the volume limiter switch
on the master speaker to the 50% or 100% position, as desired.
16. (Optional) Using a stereo RCA patch cable (not included), plug one end into the RCA
input jacks on the master speaker. Next, feed the cable into the installation hole,
then connect the other end into the line output of an audio source device, such as a
CD player or FM tuner. This cable must be rated for in-wall/in-ceiling use.
17. Connect the speaker wire from the slave speaker to the speaker output connectors
on the master speaker, taking care to
match polarity.
18. Plug the DC barrel connector on the
included AC power adapter into the
power input jack on the master speaker.
Next, feed the AC power adapter into
the installation hole, then plug it into an
AC power outlet in the ceiling.
19. Using a #2 Philips screwdriver, turn the four dog leg tab mount screws on the
master speaker counterclockwise to retract the tabs.
20. Insert the master speaker into the speaker installation hole.
21. Using a #2 Phillips screwdriver, turn the four dog leg tab mount screws clockwise to
extend the tabs. Continue tightening until the speaker is firmly against the ceiling.
Take care not to over-tighten.

9
BLUETOOTH PAIRING
The speaker can be paired with up to two Bluetooth® devices simultaneously, but only one
connection will be active. If actively connected to one device, the other device cannot be
paired and cannot control the speaker. To pair or connect the second device, the
connection to the first device must be broken.
Note that when a Bluetooth connection is active, the physical RCA input is disabled. To use
the physical RCA input, all Bluetooth connections must be broken.
Perform the following steps to pair this speaker system with a Bluetooth audio source
device.
1. When power is first applied the LED indicator on the master speaker will flash
rapidly, indicating that the speaker is in Bluetooth pairing mode. If not, press and
hold the RESET button for 5 seconds, then release the button. This resets the
speaker and puts it into Bluetooth pairing mode.
2. Open the Bluetooth settings on your audio source device and search for available
Bluetooth devices. Select the BT Speaker entry.
3. If you want to pair a second device, turn off Bluetooth on the first device. Once the
connection is lost, the LED on the master speaker will begin flashing again.
4. Open the Bluetooth settings on your second audio source device and search for
available Bluetooth devices. Select the BT Speaker entry.

10
FINE TUNING THE SOUND
1. Start audio playback on one of your audio source devices.
2. Carefully aim the tweeters on the two speakers toward your listening area.
3. If the sound is too bright, slide the Environmental Equalizer switch to the -(minus)
position. If the sound is suppressed or muddy sounding, slide the Environmental
Equalizer switch to the +(plus) position.
4. Once you are happy with the quality of sound, replace the magnetic grilles onto the
two speakers.
Congratulations, your new Bluetooth® ceiling speakers are installed, connected, and tuned
for the best possible sound quality!
TROUBLESHOOTING
Q1: The Bluetooth speaker cannot be found during the Bluetooth® pairing process.
A1: Check the LED on the master speaker to ensure that the speaker is powered on. Ensure
that the LED is flashing, indicating that it is in Bluetooth pairing mode. If not, press and
hold the RESET button for 5 seconds to reset the speaker and clear all previous
Bluetooth pairings.
Q2: The speaker fails to connect to the Bluetooth device.
A2: Ensure that your Bluetooth device is located as close as possible to the speaker. If your
Bluetooth device prompts for a password, type 0000 (four zeros).
Q3: The Bluetooth source device is connected to the speaker, but no sound can be heard.
A3: Verify that your device is playing audio. Ensure that your device is not muted. Increase
the volume level.

11
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [e-mail]
SPECIFICATIONS
Model
24760
Built-in Amplifiers
2x 30-watt Class D (digital) amplifiers
Frequency Response
60Hz ~ 20kHz
Sensitivity (1 watt/1 meter)
90dB
Low-frequency Driver
6.5" DuPont™ Kevlar® woven fiber cone
High-frequency Driver
0.75" silk titanium dome tweeter
Nominal Impedance
8 ohms
Bluetooth® Version
4.0
Wireless Range
up to 32 feet (10 meters)
Bluetooth ID Name
BT Speaker
Input Power
24 VDC, 2.5A
AC Adapter Input Power
100 ~ 240 VAC, 50/60 Hz
Dimensions (each)
8.86" x 3.86" (225 x 98 mm)
Cut-out Dimensions (each)
8.07" x 3.74" (205 x 95 mm)

12
REGULATORY COMPLIANCE
Notice for FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours
and Company.
