Monoprice Harmony Capsule 200 User manual

Harmony Capsule 200 Portable Bluetooth® Speaker
P/N 43262
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying
extra attention to these safety warnings and guidelines. Please
keep this manual in a safe place for future reference.
•Do not expose this device to excessively high
temperatures. Do not place it in, on, or near a heat
source, such as a fireplace, stove, radiator, etc.
•Do not expose this device to excessive vibration,
extreme force, shock, or fluctuations in temperature or
humidity.
•This device contains a Lithium-ion battery. Dispose of this
device only in accordance with local, state, or federal
regulations for electronic waste.
•Charge the battery before first use and at least once
every two months to keep it fresh and capable of holding
the full charge.
•Clean using a soft, dry cloth only. Do not use chemical
cleaners, solvents, or detergents. For stubborn deposits,
moisten the cloth with warm water.
•This device has no user serviceable parts. Do not attempt
to open, service, or modify this device.

3
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to
ensuring that your ordering, purchasing, and delivery experience
is second to none. If you have any problem with your order,
please give us an opportunity to make it right. You can contact a
Monoprice Customer Service representative through the Live
Chat link on our website www.monoprice.com or via email at
[e-mail]. Check the website for support times
and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you
have all the items listed below. If anything is missing or damaged,
please contact Monoprice Customer Service for a replacement.
1x Bluetooth® Speaker
1x USB Type-C® Charging Cable
1x User's Manual

4

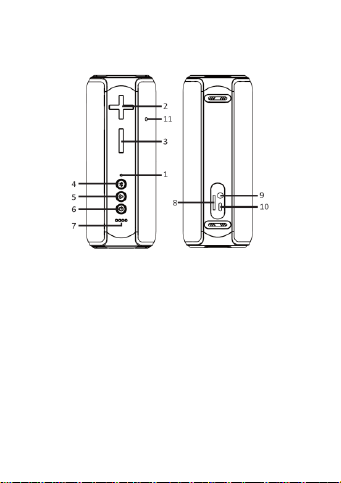

PRODUCT OVERVIEW
1. Bluetooth Indicator
2. Volume + Button
3. Volume - Button
4. Bluetooth® Button
5. Play/Pause Button
6. Power Button
7. Battery Charge Indicator
8. microSD™ Card Slot
9. 3.5mm AUX Jack

5
10. USB Type-C® Charging Port
11. Microphone
CHARGING
Charge the battery before first use and at least once every two
months to keep it fresh and capable of holding a full charge. We
recommend that you charge the speaker for about 10 minutes
prior to use, if it has been unused for at least 7 days.
1. When the Battery Charge Indicator has only one element
illuminated, the battery level is low and needs to be
recharged.
2. Plug one end of the included USB Type-C® Charging
Cable into the USB Type-C Charging Port on the speaker,
then plug the other end into a USB power source, such as
a wall charger, power bank, computer, etc. (available
separately). The Battery Charge Indicator will flash white
and the number of illuminated elements will increase
while charging is in progress.
3. When charging is complete, the Battery Charge Indicator
will be solid white in all four elements.

6
BLUETOOTH PAIRING
1. Press and hold the Power Button for 3 seconds to turn
the speaker on. When the speaker is first powered on, it
will automatically enter Bluetooth® pairing mode and the
Bluetooth Indicator will flash white, indicating that it is in
Bluetooth pairing mode.
If the speaker is already paired to a device and that
device is powered on and within range, the speaker will
attempt to reconnect to the paired device. If it cannot
automatically reconnect to the paired device, you can
either press and hold the Bluetooth Button for 3 seconds
to reconnect the device or proceed with pairing a
different device.
2. Open the Bluetooth® settings on your device and scan
for nearby Bluetooth connections.
3. Locate and select the MP43262 entry. If prompted for a
passcode, enter 0000 (four zeros).
4. Once connected, the Bluetooth Indicator will stop
flashing and will illuminate solid white, and an audible
cue will be heard.

7
AUX PLAYBACK
If your audio device does not have Bluetooth® or if you do not
want to use Bluetooth, you can listen to audio using a wired
connection to the 3.5mm AUX Jack on the speaker.
1. Plug one end of the included 3.5mm Audio Cable in the
3.5mm AUX Jack on the speaker, then plug the other end
into the headphones or other analog audio output on
your audio source device.
2. Press the Bluetooth Button to switch between
Bluetooth, AUX, and microSD™ (TF) card playback.
3. Use the controls on your device to control audio
playback and the volume controls on the speaker to
control the volume. The playback controls on the speaker
do not function with a wired connection.
MICROSD CARD PLAYBACK
This speaker features a microSD™ card slot, which can be used to
play mp3 files on an inserted microSD card.
1. With the speaker powered off, insert a microSD card with
mp3 files into the microSD Card Slot. The speaker
supports microSD cards with capacities up to 32GB and

8
formatted with the FAT16 or FAT32 file system. The mp3
files on the card can be in any subdirectory.
2. Press and hold the Power Button for 3 seconds to turn
the speaker on.
4. Press the Bluetooth Button to switch between
Bluetooth, AUX, and microSD™ (TF) card playback.
3. Use the controls on the speaker to control playback and
volume.
BUTTON OPERATION
Power Button
•With power off, press and hold the Power Button for 3
seconds to turn the speaker on. If it has not already been
paired or if its paired device is off or out of range, the
speaker will enter Bluetooth® pairing mode. If it has been
paired and the paired device is on and in range, the
speaker will reconnect with your device.
•With power on, press and hold the Power Button for 3
seconds to turn the speaker off. Note that after 10
minutes of no audio playback, the speaker will
automatically turn off.

9
•Press the Power Button to enable Siri® functionality. The
speaker also supports the Huawei® intelligent voice
assistant.
Bluetooth Button
•With a device paired, but not connected, press and hold
the Bluetooth Button for 3 seconds to reconnect the last
connected device.
•With a device connected, press and hold the Bluetooth
Button for 3 seconds to terminate the Bluetooth
connection.
•Press the Bluetooth Button to switch between
Bluetooth®, AUX, and microSD™ (TF) card playback.
•Double press the Bluetooth Button to switch between
the Standard, Bass, and 3D EQ modes.
Play/Pause Button
•With audio playing, press the Play/Pause Button to
pause playback.
•With audio playback paused, press the Play/Pause
Button to resume playback.

10
•When an incoming call is received, press the Play/Pause
Button to answer the call.
•With a call in progress, press the Play/Pause Button to
terminate the call.
•When an incoming call is received, press and hold the
Play/Pause Button for 2 seconds to reject the call.
•When a Bluetooth® connection to your phone is active,
double press the Play/Pause Button to redial the last
called number.
•Press and hold the Play/Pause Button for 8 seconds to
reset the speaker.
•At any time, other than when an incoming call is
received, press and hold the Play/Pause Button for 2
seconds to make a TrueWireless™ Stereo (TWS)
connection with another 43262 speaker.
•When a TWS connection is active, press and hold the
Play/Pause Button for 2 seconds to disconnect the TWS
connection.
Volume + and Volume - Buttons
•Press the Volume + Button to increase the volume level.
•Press the Volume - Button to decrease the volume level.

11
•Press and hold the Volume + Button for 2 seconds to skip
forward to the next track.
•Press and hold the Volume - Button for 2 seconds to skip
back to the previous track.
TWS OPERATION
This speaker features TrueWireless™ Stereo (TWS) functionality,
which allows you to connect two 43262 speakers together to act
as a stereo pair, with one speaker playing left channel audio and
the other playing right channel audio. Perform the following steps
to establish a TWS connection with two 43262 speakers.
1. Press and hold the Power Button on each speaker for 2
seconds to turn each speaker on.
2. Press and hold the Play/Pause Button on one of the
speakers for about 2 seconds until you hear a beep
sound. This will be the primary/left channel speaker in
the TWS array.
3. Release the Play/Pause Button and the speakers will
connect to each other. The Bluetooth Indicator on the
primary/left channel speaker will flash blue once every 3
seconds, while the Bluetooth Indicator on the right
channel speaker will illuminate solid blue.

12
4. Open the Bluetooth® settings on your phone. Locate and
select the MP43262 entry, which is now the two
speakers operating as a single stereo speaker array.
To disconnect the TWS array, press and hold the Play/Pause
Button on one of the speakers for 2 seconds until you hear a beep
sound.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical
support to assist you with any questions you may have about
installation, setup, troubleshooting, or product recommendations.
If you ever need assistance with your new product, please come
online to talk to one of our friendly and knowledgeable Tech
Support Associates. Technical support is available through the
online chat button on our website www.monoprice.com or
through email by sending a message to [email protected].
Check the website for support times and links.
To download the latest drivers, firmware, manuals, etc., go to
www.monoprice.com and type the P/N into the search bar. If
available, support files are linked at the bottom of the product
page.

13
SPECIFICATIONS
P/N
43262
Driver Size
1x ø66mm, 2x ø52mm
Amplifier Power
1x 18 watts, 2x 6 watts
Nominal Impedance
4Ω
Bluetooth® Version
5
Bluetooth Range
Up to 32 feet (10 meters)
Bluetooth Pairing Name
MP43262
microSD™ Card Capacity
32GB
microSD Card Formatting
FAT16 or FAT32
Waterproof Level
IPx7
Battery Type
7.2V Lithium-ion
Battery Capacity
2500mAh
Charging Time
About 3 hours
Playback/Talk Time
About 8 hours
Input Power
5 VDC, 2.0A
Dimensions
3.5" x 3.7" x 8.8" (90 x 95 x
224 mm)

14
Weight
34.4 oz. (974 g)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Modifying the equipment without Monoprice's authorization may
result in the equipment no longer complying with FCC
requirements for Class B digital devices. In that event, your right
to use the equipment may be limited by FCC regulations, and you
may be required to correct any interference to radio or television
communications at your own expense.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This

15
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.
Radio Notice for FCC
Caution
This FCC Part 15 radio device operates on a non-interference basis
with other devices operating at this frequency. Any changes or
modification to said product not expressly approved by

16
Monoprice, including the use of non-approved antennas, could
void the user's authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Radio Notice for Industry Canada
Caution
This IC RSS-210 radio device operates on a non-interference basis
with other devices operating at this frequency. Any changes or
modification to said product not expressly approved by
Monoprice, including the use of non-approved antennas, could
void the user's authority to operate this device.

17
This device complies with IC RSS-210. Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired
operation.
Monoprice™ and all Monoprice logos are trademarks of
Monoprice Inc.
The Bluetooth® word mark and logos are registered trademarks of
Bluetooth SIG, Inc.
USB Type-C® and USB-C® are registered trademarks of USB
Implementers Forum.
microSD™ is a trademark of SD-3C, LLC.
Siri® is a trademark of Apple Inc., registered in the U.S. and other
countries.
Huawei® is a registered trademark of Huawei Technologies Co.,
Ltd.
Qualcomm® is a trademark of Qualcomm Incorporated, registered
in the United States and other countries. TrueWireless™ is a
trademark of Qualcomm Technologies International, Ltd.
Qualcomm® TrueWireless™ is a product of Qualcomm
Technologies International, Ltd.
