SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
If operating this speaker in a humid environment, ensure that no condensation
occurs. Condensation could cause damage to the speaker cone and could cause a
short in the amplifier, which in turn could cause fire or severe electric shock.
Do not install this device on an unstable surface where it could fall and cause either
personal injury or damage to the device and/or other equipment.
Do not expose this device to excessive vibration.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in
direct sunlight.
Do not place or install this device in an area where it can be exposed to excessive
amounts of dust, humidity, oil, smoke, or combustible vapors.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Unplug this device from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.

5
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Ensure that power is turned off and disconnected before making any electrical
connections.
Remove the battery from the controller if it will go unused for a lengthy period of
time.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
FEATURES
Includes a wireless Bluetooth® connection
Features HDMI® Audio Return Channel, digital coaxial, digital optical, and 3.5mm
AUX inputs
Includes an IR remote control
60 watts power output
Includes a wireless subwoofer
40Hz ~ 20kHz overall frequency response
Nominal 8 ohm impedance

6
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com or via email at [email protected]. Check the website for
support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Soundbar
1x Wireless subwoofer
1x IR remote control
2x AC power cords
1x 3.5mm to 3.5mm audio cable
1x 3.5mm to RCA audio
1x User's manual
1x Thank you card

7
PRODUCT OVERVIEW
Soundbar Front Panel
1. LED Indicators: The LEDs indicate the mode and operation status. The different
colors and their meaning are as follows:
Solid Red: The soundbar is in Standby Mode.
Solid Green: The soundbar is powered on and in AUX Mode.
Solid Blue: The soundbar is powered on and in Bluetooth® Mode.
Flashing Blue: The soundbar is powered on and in Bluetooth Pairing Mode.
Solid Orange: The soundbar is powered on and in Optical Mode.
Flashing Orange: The soundbar is powered on and in Coaxial Mode.
Solid White: The soundbar is powered on and in HDMI® ARC (audio return
channel) Mode.
2. IR Receiver: Aim the included remote control at the IR Receiver on the front panel.
Soundbar Top Panel
3. Power: Press the Power button to turn the soundbar on or to put it in Standby
Mode.

8
4. Source: Press the Source button to cycle through the various inputs. The order of
the inputs is AUX, Bluetooth®, Optical, Coaxial, and HDMI® ARC.
5. Volume: Press the -button to decrease the volume level or the +button to increase
the volume level.
Soundbar Rear Panel
6. AC: AC socket for connecting the included AC power cord.
7. COAXIAL: Digital coaxial audio input.
8. OPTICAL: Digital optical audio input.
9. AUX: 3.5mm stereo analog AUX audio input.
10. SERVICE ONLY: USB port for servicing the soundbar at the factory. This is NOT an
audio input and should not be used.
11. HDMI ARC: HDMI® port for connecting your television for audio using the Audio
Return Channel (ARC) feature, which allows the soundbar to play audio from your
television.

9
Remote Control
1. POWER: Press the Power button to turn the
soundbar on or to put it in Standby Mode.
2. SOURCE: Press one of the Source buttons
to select the indicated source.
3. VOL+/VOL-: Press the VOL+ button to
increase the volume level or VOL- to
decrease the volume level.
4. EQ: Press one of the EQ buttons to select a
different EQ setting.
5. MUTE: Press the button to turn audio
muting on or off.
6. ▮◄/►▮: Press the ►▮button to skip
forward to the next track in Bluetooth®
Mode or press the ▮◄button to skip back to the previous track in Bluetooth Mode.
7. ►▮▮/PAIR: Momentarily press the ►▮▮/PAIR button in Bluetooth® Mode to pause
or resume playback. Press and hold the ►▮▮/PAIR button put the soundbar in
Bluetooth Pairing Mode when no Bluetooth pairing exists. If a device is already
paired with the soundbar, press and hold the ►▮▮/PAIR to delete the existing
Bluetooth pairing.

10
Subwoofer Rear Panel
1. AC: AC socket for connecting the included AC power cord.
2. PAIR: Press the PAIR button to manually pair the subwoofer with the soundbar.
3. PAIRED LED: The LED illuminates flashes rapidly while pairing with the soundbar. It
flashes slowly when the wireless pairing has failed. It illuminates solid when the
subwoofer is paired with the soundbar.
IR REMOTE CONTROL
Preparation For Use
The included IR remote control features an installed CR2025
battery. To prevent the battery from discharging during
shipping, a plastic tab is installed. Prior to use, pull the tab to
remove it, as indicated in the image to the right.

11
Replacing the Battery
With continued use, the battery will eventually need to be replaced. Perform the following
steps to replace the CR2025 battery.
1. Invert the remote, then push the tab on the edge of the tray towards the tray.
2. Pull the tray out of the remote.
3. Remove the old battery, then insert the new battery into the tray with the +
terminal facing up.
4. Insert the tray into the remote until it clicks into place.
CONNECTIONS
HDMI ARC
The soundbar includes an HDMI® ARC (Audio Return
Channel) input, which allows you to send audio from
your TV to the soundbar over a single HDMI cable.
Note that your TV must support both the HDMI ARC
and HDMI CEC (Consumer Electronics Control)
features and be setup accordingly.
Using a High Speed HDMI Cable (not included), plug
one end into the HDMI ARC port on the soundbar, then plug the other end into the HDMI
ARC output on your TV. Note that the cable must be compliant with the HDMI 1.4
specification or later.
When properly configured, your TV remote control can be used to change the soundbar's
volume.

12
OPTICAL

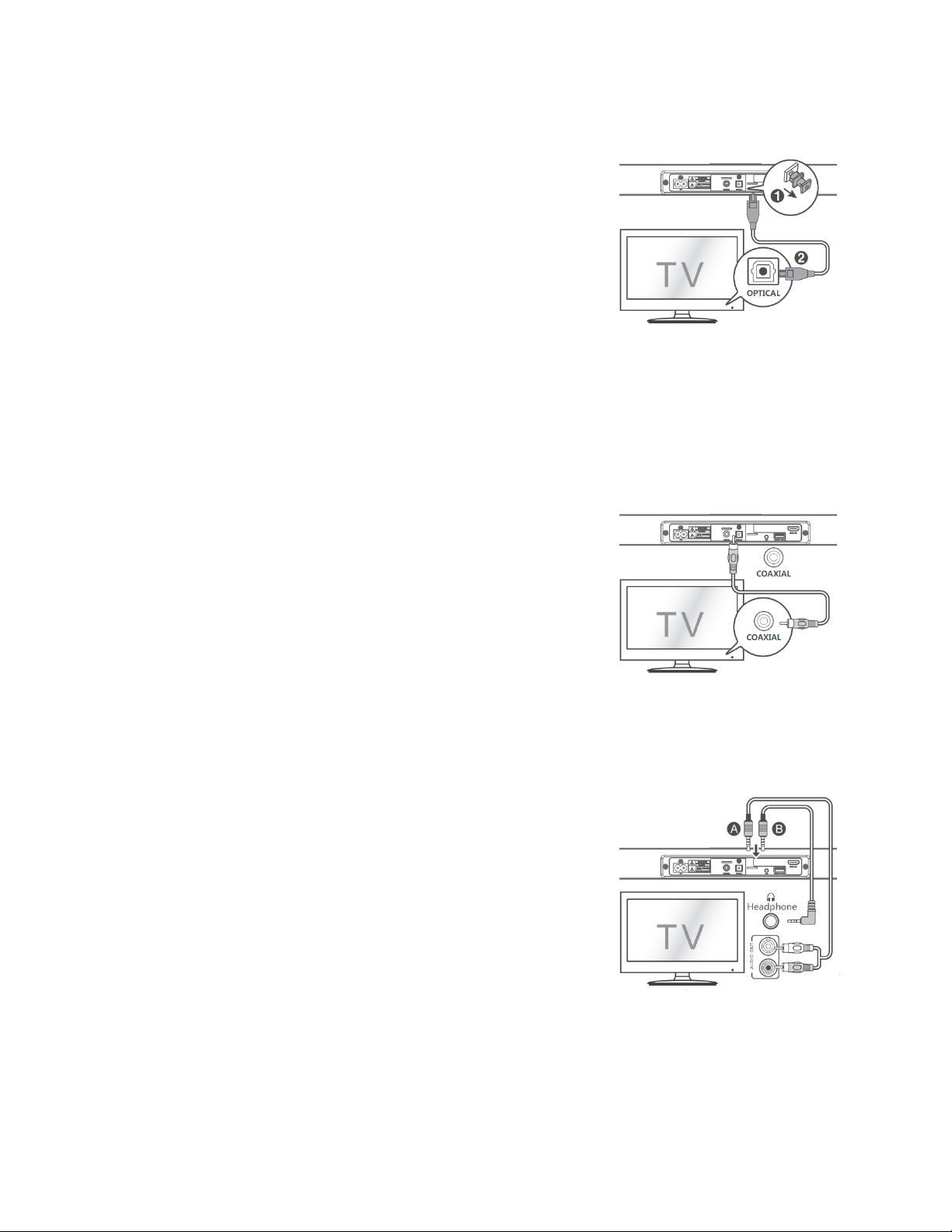

The soundbar features a digital optical audio input, allowing
you to connect your TV or other audio source. Perform the
following steps to use the OPTICAL input.
1. Remove the small, protective plug from the OPTICAL
input on the soundbar.
2. Using a digital optical audio cable (not included), plug
one end into the OPTICAL input on the soundbar, then plug the other end into the
OPTICAL output of your TV or other audio source.
COAXIAL
The soundbar features a digital coaxial audio input, allowing
you to connect your TV or other audio source.
Using a digital coaxial audio cable (not included), plug one
end into the COAXIAL input on the soundbar, then plug the
other end into the COAXIAL output of your TV or other audio
source.
AUX
The soundbar features a 3.5mm AUX jack, allowing you to
connect your TV, smartphone, or other audio source. Perform
one of the following steps to use the AUX input.
A: Using the included 3.5mm to 3.5mm audio cable, plug
one end into the AUX input on the soundbar, then
plug the other end into the headphone output on
your smartphone, TV, or other audio source.
B: Using the included 3.5mm to RCA audio cable, plug the 3.5mm end into the AUX
input on the soundbar, then plug the other end into the RCA audio outputs on your
TV or other audio source.

13
Power

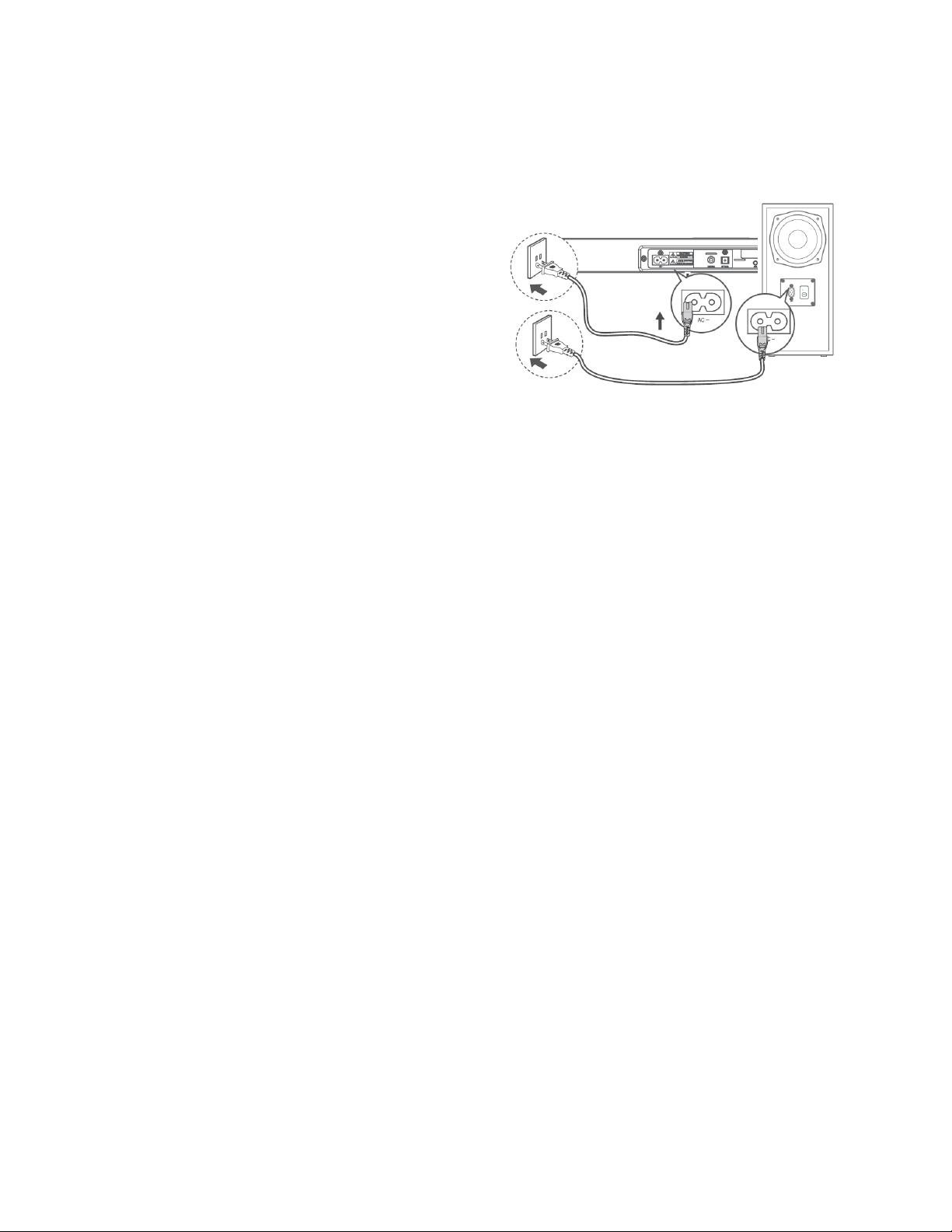

Perform the following steps to connect the soundbar and subwoofer to AC power.
1. Plug one of one of the included AC
power cords into the AC socket on the
soundbar, then plug the other end into
a nearby AC power outlet.
2. Plug one of one of the included AC
power cords into the AC socket on the
subwoofer, then plug the other end into
a nearby AC power outlet.
PAIRING THE SOUNDBAR AND SUBWOOFER
Automatic Pairing
The subwoofer and soundbar will automatically pair when both units are plugged in and
powered on.
Notes:
Do not press the PAIR button on the subwoofer, unless performing manual pairing.
If automatic pairing fails, perform manual pairing.
Manual Pairing
Perform the following steps to manually pair the subwoofer and soundbar.
1. Ensure that the soundbar is in Standby Mode.
2. Press and hold the PAIR button on the rear of the subwoofer for a few seconds. The
subwoofer will enter Pairing Mode and the Paired LED will begin blinking rapidly.
3. Press the Power button on the soundbar top panel or the remote control to turn
the soundbar on.

14
4. After the connection is established, the Paired LED will cease blinking and illuminate
solid.
5. If the Paired LED starts blinking slowly, the wireless connection has failed. Unplug
the subwoofer, wait for 3 minutes, then plug it back in and repeat steps 1-4.
Notes:
If the wireless connection fails again, check to see if there is a conflict or strong
interference from other electronic devices. Remove the conflicts or source of
interference, then repeat the pairing procedure.
The subwoofer should be located in an open area within 19 feet (6 meters) of the
soundbar.
If the soundbar is powered on and is not connected with the subwoofer, the
POWER indicator on the soundbar will flash. Repeat the above steps to establish a
wireless connection.
OPERATION
Power
When you first plug the soundbar into an AC power outlet, it is in Standby Mode.
Press the Power button on the soundbar top panel or IR remote control to power
the soundbar on.
Press the Power button again to put the soundbar back into Standby Mode.
If using the HDMI® ARC input, turning your TV on will turn the soundbar on at the
same time.
After about 15 minutes with no input, the soundbar will automatically switch to
Standby Mode.
Unplug the soundbar from the AC power outlet to turn the soundbar completely
off.

15
Bluetooth Pairing
To use the Bluetooth® audio connection, you must first pair the soundbar with your mobile
device. Perform the following steps to pair the soundbar with your mobile device.
1. Ensure that your mobile device is located within about 26 feet (8 meters) of the
soundbar. For best results, ensure they are within 3 feet (1 meter).
2. Press the Power button on the soundbar top panel or on the IR remote control to
turn the soundbar on.
3. Press the Source button on the soundbar top panel repeatedly until the LED
Indicator begins flashing blue, indicating the soundbar is in Bluetooth pairing mode.
Alternatively, press the BT button on the remote control. The soundbar will say
Pairing.
4. Open the Bluetooth settings on your mobile device and scan for nearby Bluetooth
devices.
5. Locate and select the SB200SW entry. If prompted for a passcode, enter 0000 (four
zeros). If you cannot locate the SB200SW entry, press and hold the ►▮/PAIR button
on the remote control until you hear the Pairing voice prompt.
6. Once the soundbar is paired with your mobile device, the soundbar will say Paired
and the LED Indicator will stop flashing blue and will illuminate solid blue.
Notes:
To play audio from your mobile device, it must support the Advanced Audio
Distribution Profile (A2DP).
If your mobile device supports the Audio Video Remote Control Profile (AVRCP),
you can use the soundbar's remote control to control audio playback.
The soundbar has an unobstructed Bluetooth range of about 26 feet (8 meters). Any
obstacles between the soundbar and your mobile device will reduce that range.
If you lose connection, the soundbar will automatically re-enter Bluetooth pairing
mode.
If no device is paired with the soundbar within 2 minutes, the soundbar will restore
any previous Bluetooth pairing.

16
Disconnecting Bluetooth
You can break the Bluetooth connection between the soundbar and your mobile device
using one of the following methods.
Press the Source button on the soundbar top panel or press one of the Source
buttons on the remote control other than the BT button to change the soundbar to
a different mode.
Disable Bluetooth on your mobile device. The soundbar will say Disconnected.
Press and hold the ►▮/PAIR button on the remote control.
TROUBLESHOOTING
Q1: There is no power.
A1: Ensure that the AC power cord is properly connected and plugged into an AC power
outlet. Ensure that the outlet is live by plugging in a different device, such as a lamp.
Press the Power button to turn the soundbar on. Try unplugging the soundbar, wait 30
seconds, then plug it back in again.
Q2: There is no sound.
A2: Increase the volume. Press the MUTE button on the remote control to ensure muting is
not on. Try playing audio from a different source. If using digital audio, ensure that
your TV or other audio source device is configured to output PCM audio. Try
connecting directly to your audio source device in case the TV does not pass through
the audio. Ensure that your TV's audio output is set to FIXED or STANDARD and is not
set to VARIABLE. If using a Bluetooth® connection, ensure that the volume on your
mobile device is turned up and that it is not muted.

17
Q3: The remote control doesn't work.
A3: Ensure you have the correct source selected. Ensure you are aiming the remote control
at the IR Receiver on the soundbar's front panel. Check the remote's battery to ensure
polarity is properly aligned. Try replacing the battery.
SPECIFICATIONS
Model
38037
Audio Inputs
HDMI® ARC, Bluetooth®, digital optical,
digital coaxial, 3.5mm stereo analog
Bluetooth Version
4.2
Bluetooth Pairing Name
SB200SW
Bluetooth Range
26 feet (8 meters)
Audio Input Sensitivity
500mV
Output Power
60 watts
Soundbar Frequency Response
120Hz ~ 20kHz
Subwoofer Frequency Response
40 ~ 120 Hz
Nominal Impedance
8 ohms
Wireless Frequency
2400 ~ 2483 MHz
Remote Control Battery Type
1x CR2025
Input Voltage
100 ~ 240 VAC, 50/60 Hz
Soundbar Power Consumption
30 watts
Subwoofer Power Consumption
30 watts
Soundbar Dimensions
35.4" x 3.4" x 1.8" (900 x 86 x 45 mm)
Subwoofer Dimensions
5.9" x 8.7" x 12.6" (150 x 220 x 320 mm)

18
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
or through email by sending a message to [email protected]. Check the website for
support times and links.
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the

19
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Radio Notice for FCC
Caution
This FCC Part 15 radio device operates on a non-interference basis with other devices
operating at this frequency. Any changes or modification to said product not expressly
approved by Monoprice, including the use of non-approved antennas, could void the user’s
authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

20
Radio Notice for Industry Canada
Caution
This IC RSS-210 radio device operates on a non-interference basis with other devices
operating at this frequency. Any changes or modification to said product not expressly
approved by Monoprice, including the use of non-approved antennas, could void the user’s
authority to operate this device.
This device complies with IC RSS-210. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
