TECHNICAL DETAILS type: TEXNO 60
Rated voltage 230 В - 50
general power 121W
Engine power 115 W
Lighting power 2 x 3W
Max. performance 650 м3/h
Equipment class second
Operation mode continuous, under control

3English
Closely follow the instructions set out in this manual. All responsibility, for any
eventual inconveniences, damages or fires caused by not complying with the
instructions in this manual, is declined. The hood is conceived for the suction of
cooking fumes and steam and is destined only for domestic use.
The hood can look different to that illustrated in the drawings in this booklet.
The instructions for use, maintenance and installation, however, remain the same.
It is important to conserve this booklet for consultation at any moment. In the case of
sale, cession or move, make sure it is together with the product.
Read the instructions carefully: there is important information about installation, use
and safety.
Do not carry out electrical or mechanical variations on the product or on the discharge
conduits.
Before proceeding with the installation of the appliance verify that there are no damaged
all components. Otherwise contact your dealer and do not proceed with the installation.
NOTE: the elements marked with the symbol “(*)” are optional accessories
supplied only with some models or elements to purchase, not supplied!
WARNING: Do not connect the appliance to the mains until the installation is fully
complete. Before any cleaning or maintenance operation, disconnect hood from the
mains by removing the plug or disconnecting the mains electrical supply.
Always wear work gloves for all installation and maintenance operations.
The appliance is not intended for use by children or persons with impaired physical,
sensorial or mental faculties, or if lacking in experience or knowledge, unless they
are under supervision or have been trained in the use of the appliance by a person
responsible for their safety.
This appliance is designed to be operated by adults, children should be monitored
to ensure that they do not play with the appliance.
This appliance is designed to be operated by adults. Children should not be allowed
to tamper with the controls or play with the appliance.
Never use the hood without effectively mounted grating!

4English
The hood must NEVER be used as a support surface unless specifically indicated.
The premises where the appliance is installed must be sufficiently ventilated, when
the kitchen hood is used together with other gas combustion devices or other fuels.
The ducting system for this appliance must not be connected to any existing
ventilation system which is being used for any other purpose such as discharging
exhaust fumes from appliances burning gas or other fuels.
The flaming of foods beneath the hood itself is severely prohibited.
The use of exposed flames is detrimental to the filters and may cause a fire risk,
and must therefore be avoided in all circumstances.
Any frying must be done with care in order to make sure that the oil does not
overheat and ignite.
Accessible parts of the hood may became hot when used with cooking appliance.
With regards to the technical and safety measures to be adopted for fume
discharging it is important to closely follow the regulations provided by the local
authorities.
The hood must be regularly cleaned on both the inside and outside (AT LEAST
ONCE A MONTH).
This must be completed in accordance with the maintenance instructions provided
in this manual). Failure to follow the instructions provided in this user guide regarding
the cleaning of the hood and filters will lead to the risk of fires.
Do not use or leave the hood without the lamp correctly mounted due to the
possible risk of electric shocks.
We will not accept any responsibility for any faults, damage or fires caused to the
appliance as a result of the nonobservance of the instructions included in this manual.
This appliance is marked according to the European directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product.
The symbol on the product, or on the documents accompanying the product,
indicates that this appliance may not be treated as household waste. Instead it
should be taken to the appropriate collection point for the recycling of electrical

5English
and electronic equipment. Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
For further detailed information regarding the process, collection and recycling
of this product, please contact the appropriate department of your local authorities
or the local department for household waste or the shop where you purchased this
product.
Appliance designed, tested and manufactured according to:
;Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
;Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/
IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
;EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC
61000-3-3.
Suggestions for a correct use in order to reduce the environmental impact:
Switch ON the hood at minimum speed when you start cooking and kept it running
for few minutes after cooking is finished. Increase the speed only in case of large
amount of smoke and vapour and use boost speed(s) only in extreme situations.
Replace the charcoal filter(s) when necessary to maintain a good odour reduction
efficiency. Clean the grease filter(s) when necessary to maintain a good grease
filter efficiency. Use the maximum diameter of the ducting system indicated in this
manual to optimize efficiency and minimize noise.
Additional Installation Specifications:
Use only the fixing screws supplied with the product for installation or, if not
supplied, purchase the correct screws type.
Use the correct length for the screws which are identified in the Installation Guide.
In case of doubt, consult an authorised service assistance centre or similar
qualified person.
WARNING! Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.

6English

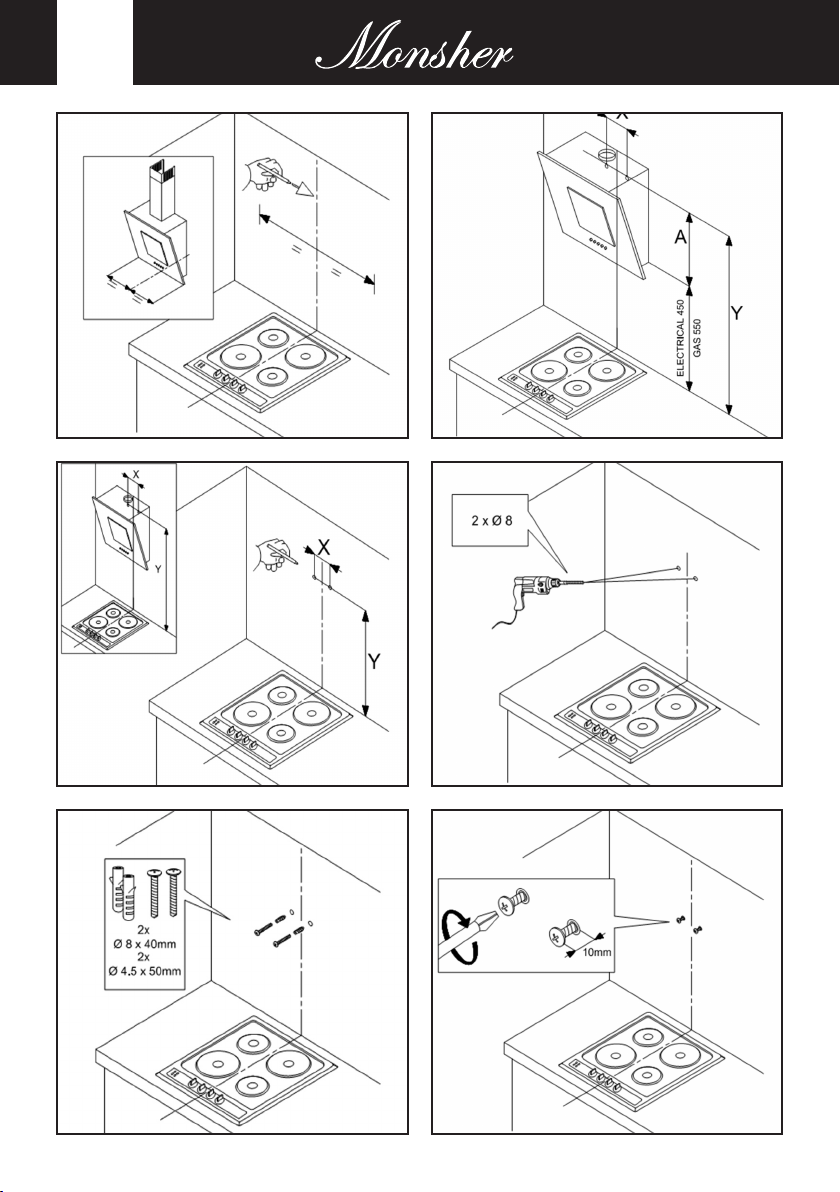

1
3
5
2
4
6

7English

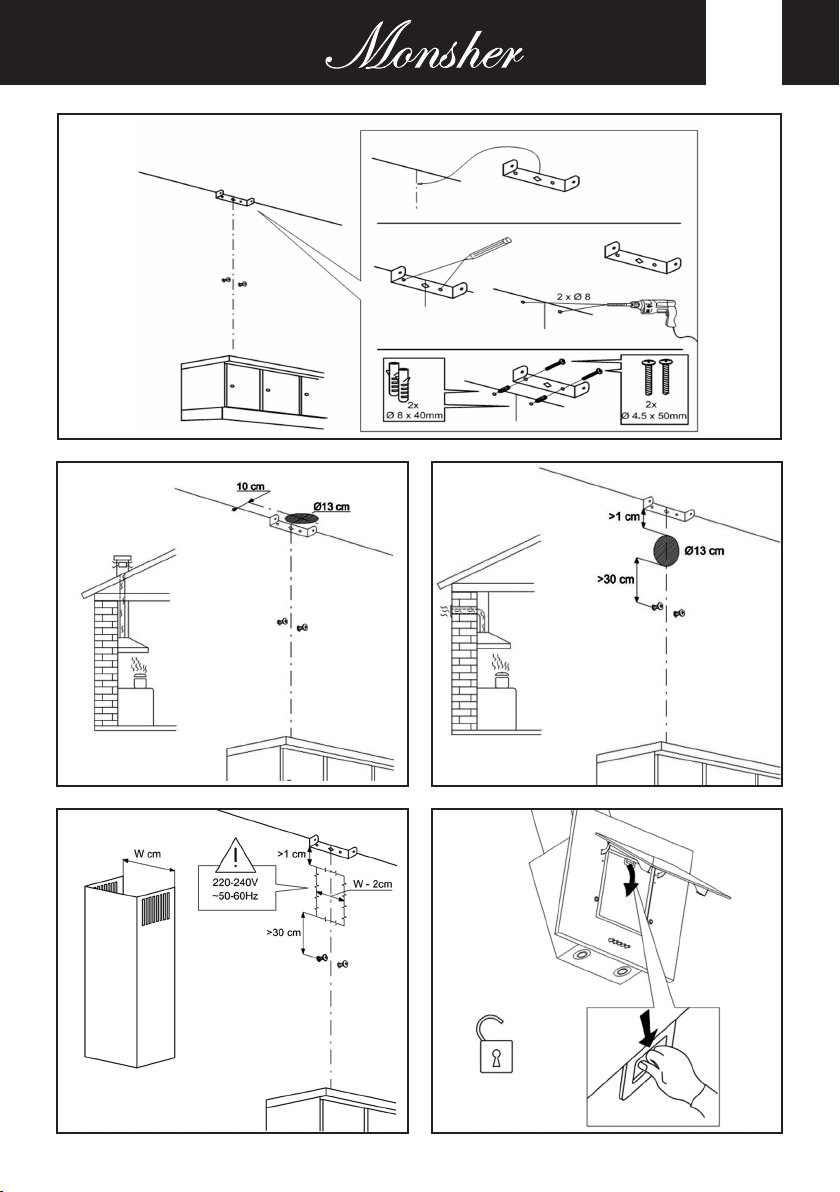

8
10
9
11
7

8English

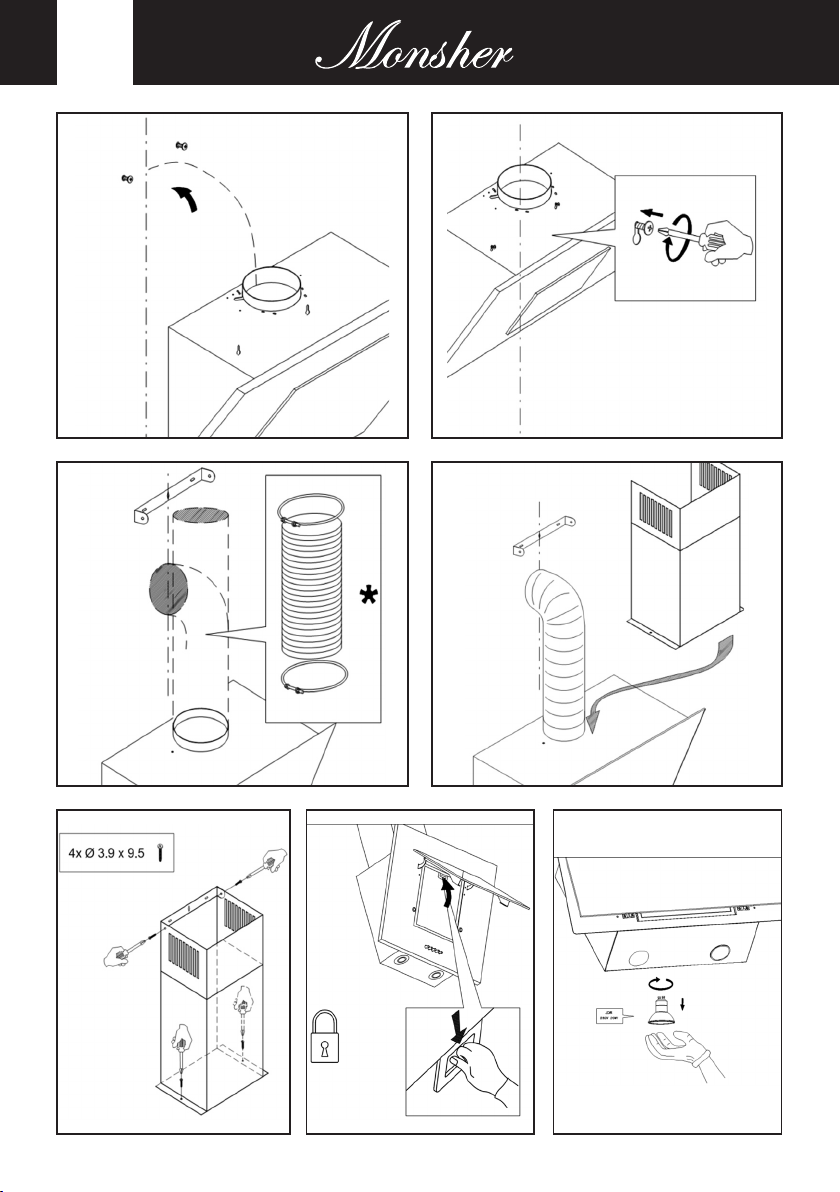

16 17 18
12
14
13
15

9English

10 English
USE
The hood is designed to be used either for exhausting or filter version.
Ducting version
In this case the fumes are conveyed outside of the building by means of a special
pipe connected with the connection ring located on top of the hood.
Attention! The exhausting pipe is not supplied and must be purchased apart.
Diameter of the exhausting pipe must be equal to that of the connection ring.
In the horizontal runs the exhausting pipe must be slightly slanted (about 10°)
and directed upwards to vent the air easily from the room to the outside.
Attention! If the hood is supplied with active charcoal filter, then it must be
removed.
Connect the hood and discharge holes on the walls with a diameter equivalent
to the air outlet (connection flange).
Using the tubes and discharge holes on walls with smaller dimensions will cause
a diminution of the suction performance and a drastic increase in noise.
Any responsibility in the matter is therefore declined.
Use a duct of the minimum indispensible length.
Use a duct with as few elbows as possible (maximum elbow angle: 90°).
Avoid drastic changes in the duct cross-section.
Use a duct as smooth as possible inside.
The duct must be made of certified material.
Filter version
One active charcoal filter is needed for this and can be obtained from your usual
retailer.
The filter removes the grease and smells from the extracted air before sending
it back into the room through the upper outlet grid.

11English
INSTALLATION
The minimum distance between the supporting surface for the cooking
equipment on the hob and the lowest part of the range hood must be not less than
45 cm from electric cookers and 50 cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this
must be adhered to.
Electrical connection
The mains power supply must correspond to the rating indicated on the plate
situated inside the hood. If provided with a plug connect the hood to a socket in
compliance with current regulations and positioned in an accessible area, after
installation. If it not fitted with a plug (direct mains connection) or if the plug is
not located in an accessible area, after installation, apply a double pole switch
in accordance with standards which assures the complete disconnection of the
mains under conditions relating to over-current category III, in accordance with
installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking
the efficient function, always check that the mains cable is correctly assembled.
The hood is provided with a special power cable ; if the cable is damaged, request
a new one from Technical Service.
Mounting
Very heavy product; hood handling and installation must be carried out by at
least two persons.
Before beginning installation:
;Check that the product purchased is of a suitable size for the chosen installation
area.
;Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/
these is/are to be mounted only if you want lo use the hood in the filtering
version.
;Check (for transport reasons) that there is no other supplied material inside
the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing
them and keeping them.

12 English
;If possible, disconnect and move freestanding or slide-in range from cabinet
opening to provide easier access to rear wall/ceiling. Otherwise put a thick,
protective covering over countertop, cooktop or range to protect from damage
and debris. Select a flat surface for assembling the unit. Cover that surface with
a protective covering and place all canopy hood parts and hardware in it.
;In addition check whether near the installation area of the hood (in the area
accessible also with the hood mounted) an electric socket is available and it
is possible to connect a fumes discharge device to the outside (only suction
version).
;Carry out all the masonry work necessary (e.g. installation of an electric socket
and/or a hole for the passage of the discharge tube).
Expansion wall plugs are provided to secure the hood to most types of walls/
ceilings. However, a qualified technician must verify suitability of the materials in
accordance with the type of wall/ceiling. The wall/ceiling must be strong enough
to take the weight of the hood. Do not tile, grout or silicone this appliance to the
wall. Surface mounting only.
OPERATION
Use the high suction speed in cases of concentrated kitchen vapours. It is
recommended that the cooker hood suction is switched on for 5 minutes prior
to cooking and to leave in operation during cooking and for another 15 minutes
approximately after terminating cooking.
To select the functions of the hood, simply touch the controls.
1. Stand by/ON display
2. ON/OFF suction speed (power) 1
ON/OFF suction speed (power) 2
ON/OFF suction speed (power) 3
3. ON/OFF lights

13English
MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood from
the electrical supply by switching off at the connector and removing the connector
fuse.
Or if the appliance has been connected through a plug and socket, then the plug
must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the same frequency
with which you carry out maintenance of the fat filters) internally and externally.
Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive
products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning recommendations of the cooker
hood and replacement of the filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to the motor or any
fire damage linked to inappropriate maintenance or failure to observe the above
safety recommendations.
Grease filter
Traps cooking grease particles.
The grease filter must be cleaned once a month using non aggressive detergents,
either by hand or in the dishwasher, which must be set to a low temperature and a
short cycle. When washed in a dishwasher, the grease filter may discolour slightly,
but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.
Charcoal filter (filter version only)
It absorbs unpleasant odours caused by cooking.
The saturation of the charcoal filter occurs after more or less prolonged use,
depending on the type of cooking and the regularity of cleaning of the grease
filter.
In any case it is necessary to replace the cartridge at least every four mounths.
The charcoal filter may NOT be washed or regenerated.

14 English
Circular carbon filter
Apply one on each side as cover to both the shield grids of the motor impeller,
then turn clockwise.
For the disassembly, turn counter-clockwise.

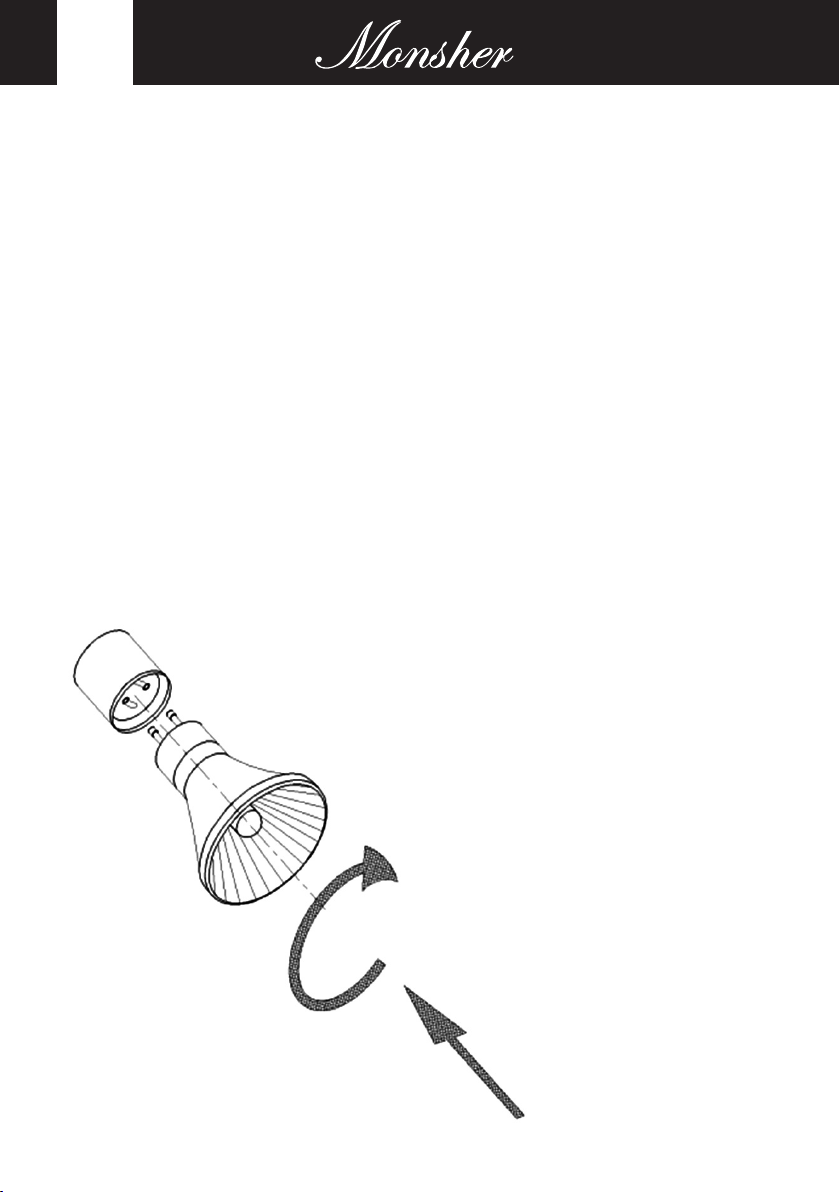

Replacing lamps
Disconnect the appliance from the electricity.
Warning! Prior to touching the light bulbs ensure they are cooled down.
Replace the old light bulb with the one of the same type as specified in the
feature label or near the light lamp on the hood.
The hood is equipped with a lighting system based on LED technology.
The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the
traditional lamps and allow to save 90% electrical energy. For replacement, contact
the technical service..

15English
DETERMINATION OF THE PRODUCTION DATE
BY SERIAL NUMBER
MANUFACTURERS:
Ciarko Spółka z ograniczoną odpowiedzialnością Sp. K.
38-500 Sanok,ul.Okulickiego 10, Polska
IMPORTERS:
LLC «MG Rusland», 141400
Moscow region, Khimki, Butakovo, 4
Year Month
XX XX XX X ХХХХX

16 English
NOTES

17English
NOTES

Русский
18
ТЕХНИЧЕСКИЕ ДАННЫЕ TEXNO 60
Номинальное напряжение 230 В - 50 Гц
Общая мощность 121 Вт
Мощность двигателя 115 Вт
Мощность освещения 2 x 3Вт
Макс. производительность 650 м3/ч
Класс оборудования второй
Режим работы непрерывный, под контролем

Русский 19
Вытяжное устройство „NTI”, предназначено для устранения или нейтрализа-
ции кухонного угара и устанавливают его постоянным образом над газовой или
электрической плитами. Работая в режиме поглотителя угара, оно требует уста-
новки трубы для отвода воздуха наружу. Длина трубы (Ø150 или 120 мм) не долж-
на превышать 4-5 м. После установки фильтра с активированным углем, вытяж-
ное устройство может работать в режиме поглотителя запахов. В этом случае,
это не требует монтажа трубы для отвода воздуха наружу.
Производитель снимает с себя всякую ответственность за неполадки, ущерб
или пожар, которые возникли при использовании прибора вследствие несоблю-
дения инструкций, приведенных в данном руководстве. Вытяжка предназначена
исключительно для домашнего использования. Вытяжка может иметь дизайн,
отличающийся от вытяжки, показанной на рисунках данного руководства,
тем не менее, руководство по эксплуатации, техническое обслуживание и уста-
новка остаются те же.
Очень важно сохранить эту инструкцию, чтобы можно было обратиться к ней в любой
момент. Если изделие продается, передается или переносится обеспечить, чтобы
инструкция всегда была с ним.
Внимательно прочитать инструкции: в них находится важная информация по установке,
эксплуатации и безопасности.
Запрещается выполнять изменения в электрической или механической части изделия
или в трубах рассеивания.
ПРИМЕЧАНИЕ: принадлежности, обозначенные знаком “(*)” поставляются по
спецзапросу только к некоторым моделям или в случае необходимости в закуп-
ке деталей, которые не были поставлены.
ВНИМАНИЕ! Не подключайте прибор к электрической сети, пока операции
по установке полностью не завершены. Прежде чем приступить к операциям
по очистке или уходе отсоедините вытяжку от сети, вынув вилку или выключив
общий выключатель электрической сети.
Для выполнения всех операций по установке и уходу используйте рабочие
перчатки.

Русский
20
Дети или взрослые не должны пользоваться вытяжкой, если по своему физи-
ческому или психическому состоянию не в состоянии этого делать, или если они
не обладают знаниями и опытом необходимыми для правильного и безопасного
управления прибором.
Не оставляйте детей без присмотра, чтобы они не играли с прибором.
Не используйте вытяжку, если решетка неправильно установлена!
Категорически запрещается использовать вытяжку в качестве опорной пло-
скости, если это специально не оговорено.
Обеспечьте надлежащий воздухообмен помещения, когда Вы используете
вытяжку в кухне одновременно с другими приборами на газу или на другом го-
рючем.
Вытягиваемый воздух не должен выбрасываться наружу через воздуховод,
используемый для выброса дымов от приборов с газовым сжиганием или с пи-
танием другими горючими.
Категорически запрещается готовить блюда “под пламенем”, поскольку сво-
бодное пламя может повредить фильтры и стать причиной пожара; поэтому, воз-
держивайтесь от этого в любом случае. Жаренье в большом количестве масла
должно производиться под постоянным контролем, имея в виду, что перегретое
масло может воспламеняться.
При использовании вместе с прочими аппаратами для варки, открытые части
прибора могут сильно нагреваться. Что касается технических мер и условий по
технике безопасности при отводе дымов, то придерживайтесь строго правил,
предусмотренных регламентом местных компетентных властей.
Производите периодическую очистку вытяжки как внутри, так и снаружи (ПО
КРАЙНЕЙ МЕРЕ, РАЗ В МЕСЯЦ с соблюдением условий, которые специально
предусмотрены в инструкциях по обслуживанию данного прибора).
Несоблюдение инструкций по чистке вытяжки и по замене и чистке фильтров
может стать причиной пожара.
Не используйте и не оставляйте вытяжку без правильно установленных лам-
почек в связи с возможным риском удара электрическим током.
Мы снимаем с себя всякую ответственность за неполадки, ущерб или сго-
рание прибора вследствие несоблюдения инструкций, приведенных в данном
руководстве.
