Monsher TOWN User manual

TOWN
TOWN S
Инструкция по эксплуатации
User manual
Кухонная вытяжка
Extractor hood

2English
CONTENTS
Section 1
Safety precautions..........................................................................................................3
Section 2
Specifications....................................................................................................................5
Section 3
Control..................................................................................................................................5
Section 4
Mounting and dimensions.............................................................................................6
Section 5
Cleaning and maintenance..........................................................................................10
Section 6
Troubleshooting................................................................................................................11
Section 7
Helpful information..........................................................................................................12

3English
DEAR CUSTOMER
Thank you for purchasing our equipment! We are sure that appliances of the
MONSHER brand, which are modern, functional and made of high quality materials
and components, will be a reliable assistant in your kitchen.
Please read this manual carefully before starting any installation work. It will
help you avoid premature failure, as well as extend the life of your appliance to the
maximum possible.
Please note that the installation of this appliance must be carried out by a
qualified technician and in accordance with these instructions. The manufacturer
is not liable for any consequences of failure to observe this condition.
;Caution!
The manufacturer reserves the right to make any changes, without prior notice,
to design, outside appearance and scope of supply of appliance, which will be
considered as necessary and useful according to the manufacturer’s point of view.
Possible modifications will not affect the basic properties, including those that
relate to safe operation of the appliance.
SECTION 1.
;Safety precautions
1. Assembling and electrical connection of the appliance must be carried out by
skilled technicians of authorized service center.
2. The appliance is designed to operate on 220-240 V AC. Make sure that the
technical parameters of your home power supply system correspond to the data
for the power supply. If parameter values are above or below the specified range,
the use of the appliance is prohibited.
3. Do not connect the kitchen air cleaner to the ventilation channels that are
used to remove smoke and fumes from the equipment operating on any other
energy sources except electric one.
4. The appliance is to be connected only to an earthed power supply system.
5. Do not cook flammable foods below the kitchen air cleaner.

4English
6. Use aluminum filter that comes with the appliance. The use of other materials
is prohibited!
7. Do not connect the appliance to the power supply system, until the assembly
and installation of the appliance is completed.
8. Do not use the appliance without the aluminum filter in place.
9. Do not touch the lamps.
10. Do not remove the aluminum filter while the appliance is in operation.
11. Do not disconnect the appliance from the power supply system directly.
If necessary, turn the appliance off using the control panel and, only after that,
unplug it from the power supply system. When switching on: first connect the
appliance to the power supply system, then switch it on using the control panel,
but not vice versa!
12. The appliance requires regular cleaning and maintenance work.
13. When installing the appliance, observe the required distance between it and
the cooking surface of your stove:
- for an electric stove: at least 65 cm
- for a gas or gas-electric stove: at least 70 cm
14. Do not allow children to play with packaging materials, it can be dangerous!
15. For best air cleaning in your kitchen, do not turn off the appliance immediately
after the cooking process is completed: let the appliance run for a further 15
minutes. For this purpose you can also use the timer function (the button «Auto
Switch Off Timer» on the control panel).
16. Ensure adequate ventilation in the kitchen, if a gas stove is operated
simultaneously with the appliance.
17. In case of any malfunctions, contact your nearest authorized service center.
18. If the kitchen hood is supposed to operate in air discharge mode, then during
installation it is important to provide a duct of the corresponding diameter. To
prevent loss of performance caused by aerodynamic resistance of the duct, the air
duct must not be too long, or curved. Never restrict the duct size, or make sharp
bends. In addition, it is preferable to use smooth PVC duct (round or flat), rather
than the flexible corrugated one because bends of a corrugated duct increase the
noise level of the hood.
19. The manufacturer does not bear any responsibility for any possible damage,
in case of non-compliance with above precautions.

5English
SECTION 2.
;Specifications
Wall hood
Width...........................................................................................................................600-900 mm
Control type..................................................................................................Touch, Push Button
Suction power.................................................................................................................850 m3/h
Lamps...........................................................................................................LED 13 W (or 23 W)
Diameter of the air
discharge pipe............................................................................................................120-150 mm
Voltage................................................................................................................220-240 V / 50 Hz
Modes of operation..................................................................Air discharge / Recirculation
Noise level..........................................................................................................................54-67 dB
SECTION 3.
;Control type

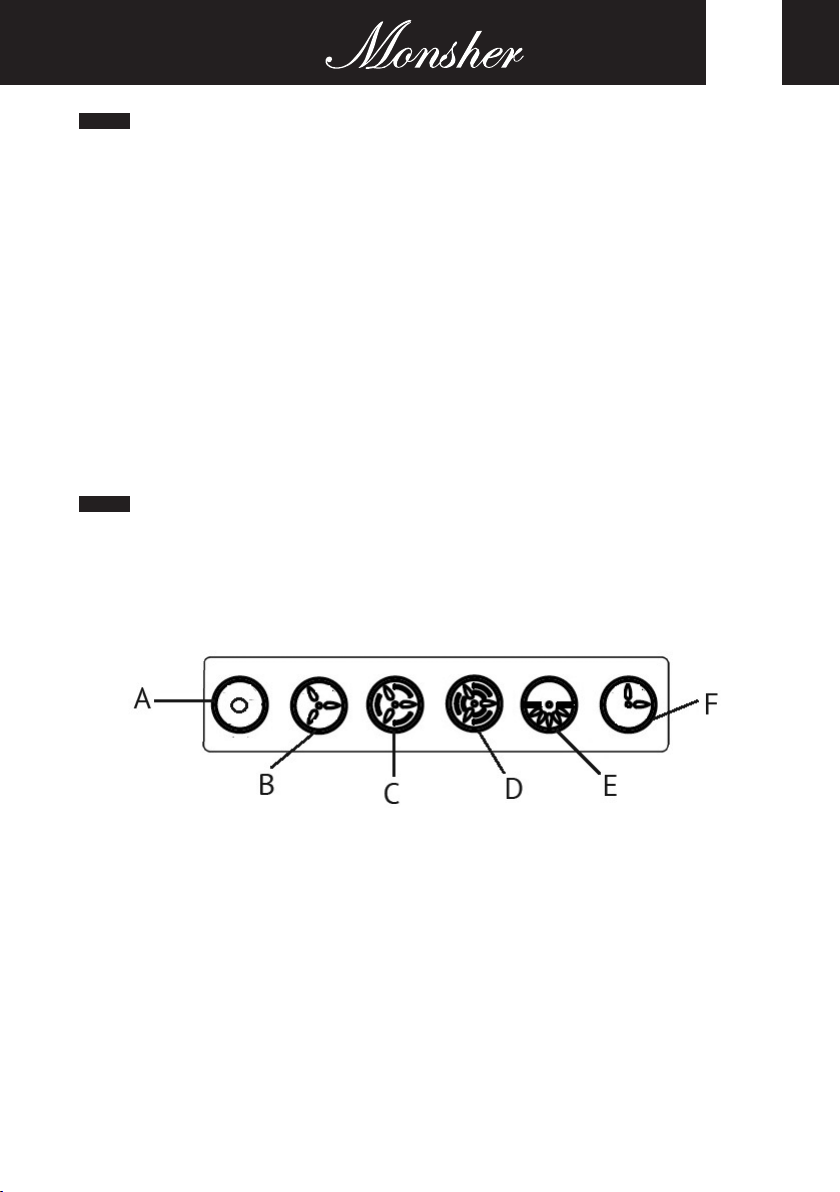

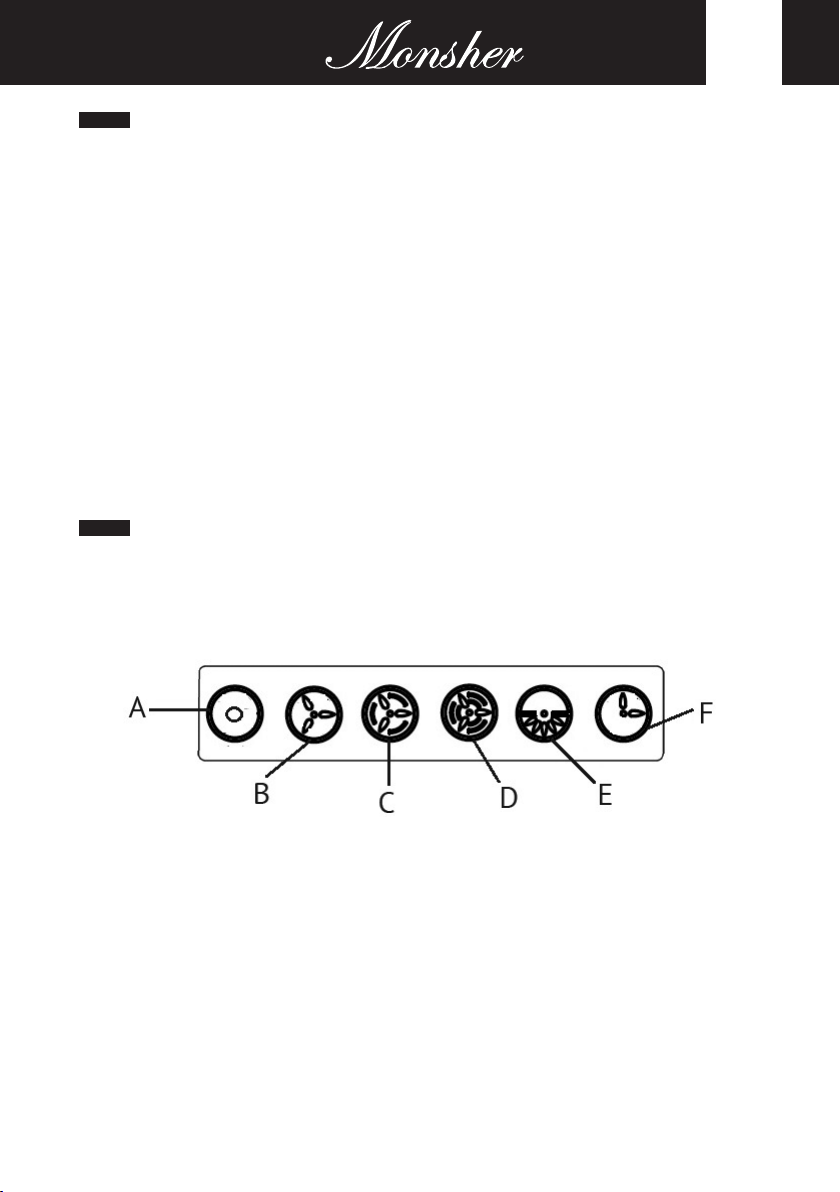

Touch control
 – On/Off switch
 – low rotation speed
 – average rotation speed
D – high rotation speed
E – Lighting
F – Auto Switch Off Timer
 – Hood motor On/Off
 – low rotation speed (1 speed)
 – average rotation speed (2 speed)
D – high rotation speed (3 speed)

6English
E – Lighting On/Off
F - When you press on the Timer, the motor will automatically be shut down
after 15 minutes. To activate the function, press and hold the Timer for 3 seconds
(rotation speed level starts to fl ash on the display). To cancel, press once on the
Timer.

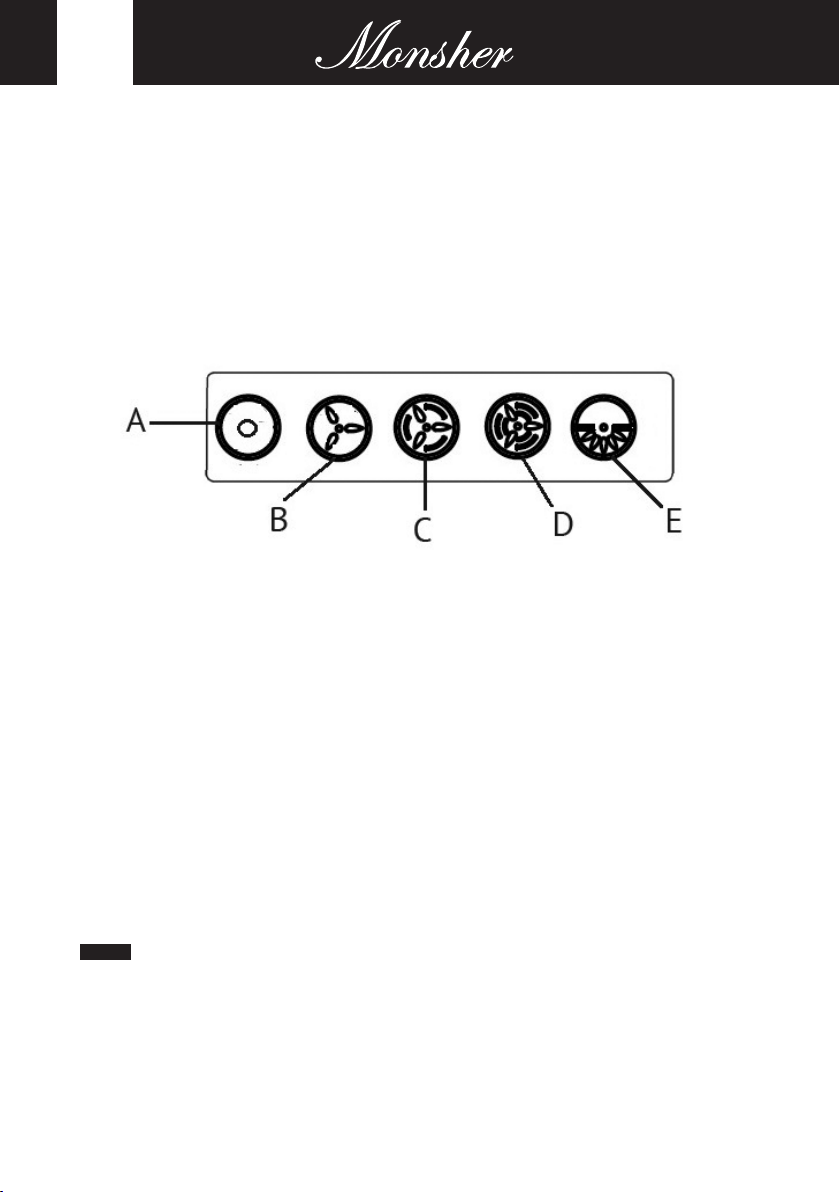

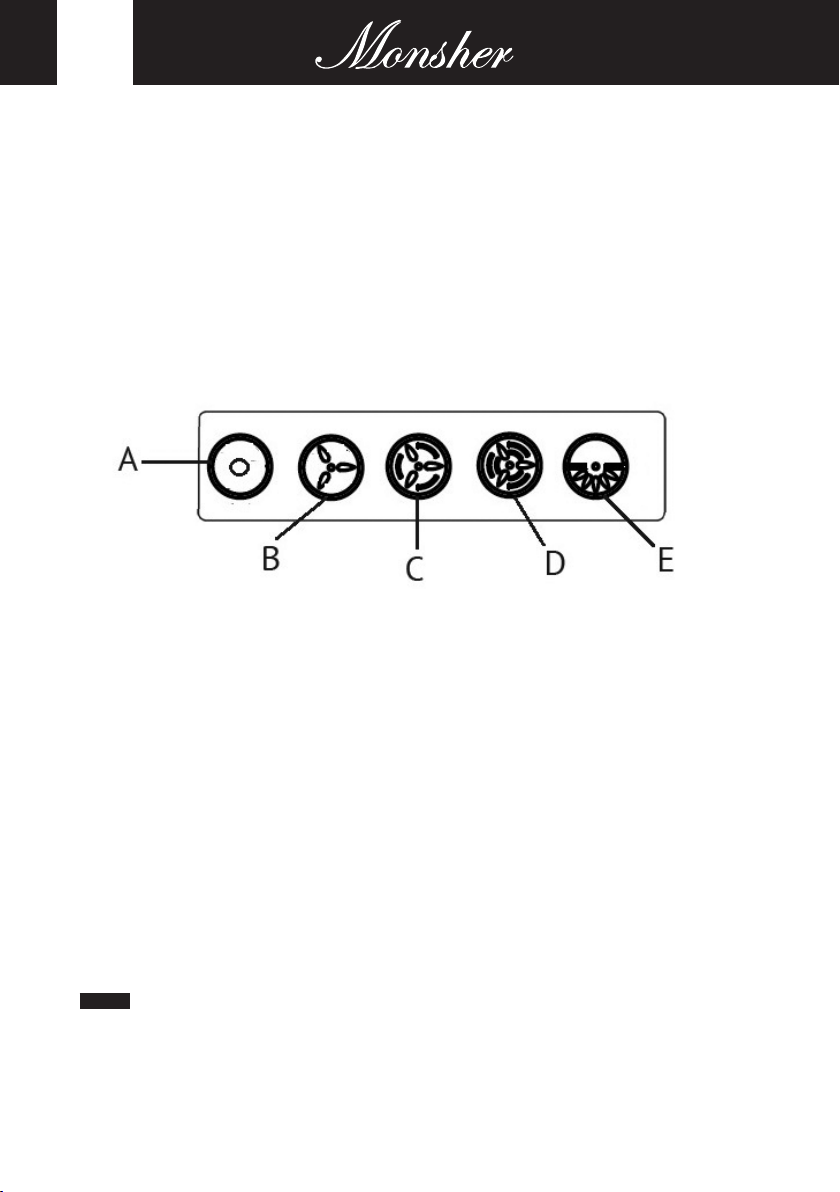

;Mechanical control (buttons)
 – On/Off switch
 – low rotation speed
 – average rotation speed
D – high rotation speed
E – Lighting
 – Hood motor On/Off
 – low rotation speed (1 speed)
 – average rotation speed (2 speed)
D – high rotation speed (3 speed)
E – Lighting On/Off
SECTION 4.
;Mounting and dimensions
Please unpack and inspect the appliance! Before starting installation, make sure
that the hood has no obvious transport damages. If such defects are detected, do
not install or connect the appliance to the mains.

7English
1. To install the air cleaner above the stove, draw a vertical line on the wall
from the center of the stove vertically to the ceiling. To comply with safety
regulations, the distance between the cooking surface and the air cleaner should
be 700 mm. Accordingly, make a mark with a pencil on the vertical line at a height
of 700+426=1126 mm from the surface of the stove. Draw a horizontal line through
this point on the wall. Measure 100 mm on this line to the right and left from the
point of intersection of the vertical and horizontal lines and make marks with a
pencil. Using a 6-mm drill bit, drill holes in these marks. Insert dowels in the holes
just drilled and fi x the hooks.
2. Installation of decorative cover Draw a horizontal line on a wall, at a distance
of 75 mm from the ceiling. Measure 50 mm on this line to the right and left from the
point of intersection with the vertical line and make marks with a pencil. On these
marks, drill the holes, insert the 8-mm dowels in them and tighten 2.5-mm screws
which must protrude 2 mm from the wall.

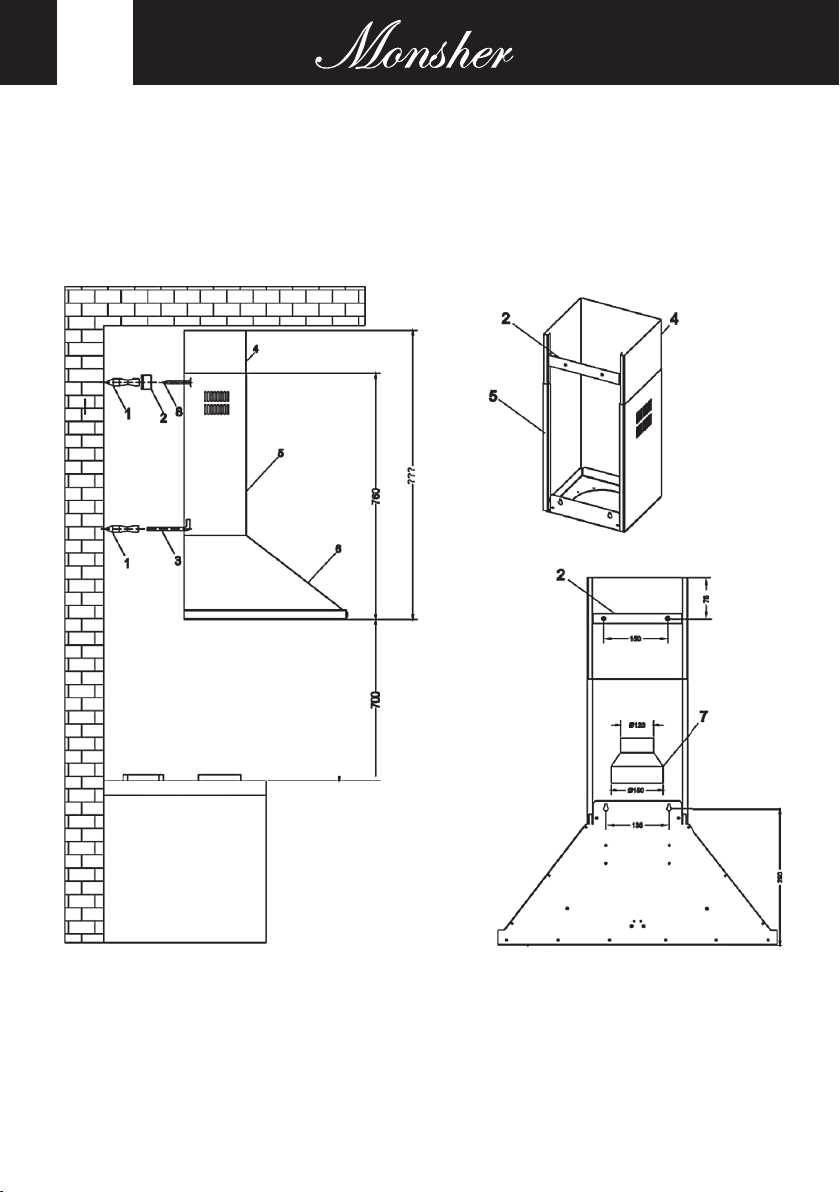

Step 1: Installation of hooks
Step 2: Installation of mounting bracket
Step 3: Installation of housing
Step 4: Installation of external part of decorative cover
Step 5: Installation of internal part of decorative cover
1- Ø8 dowel
2- Mounting bracket
3- Hook
4- Internal part of decorative cover
5- External part of decorative cover
6- Air cleaner housing
7- Bushing adapter
8- Ø 2.5 screw

8English
Step 2
Step 1
Kitchen stove

9English

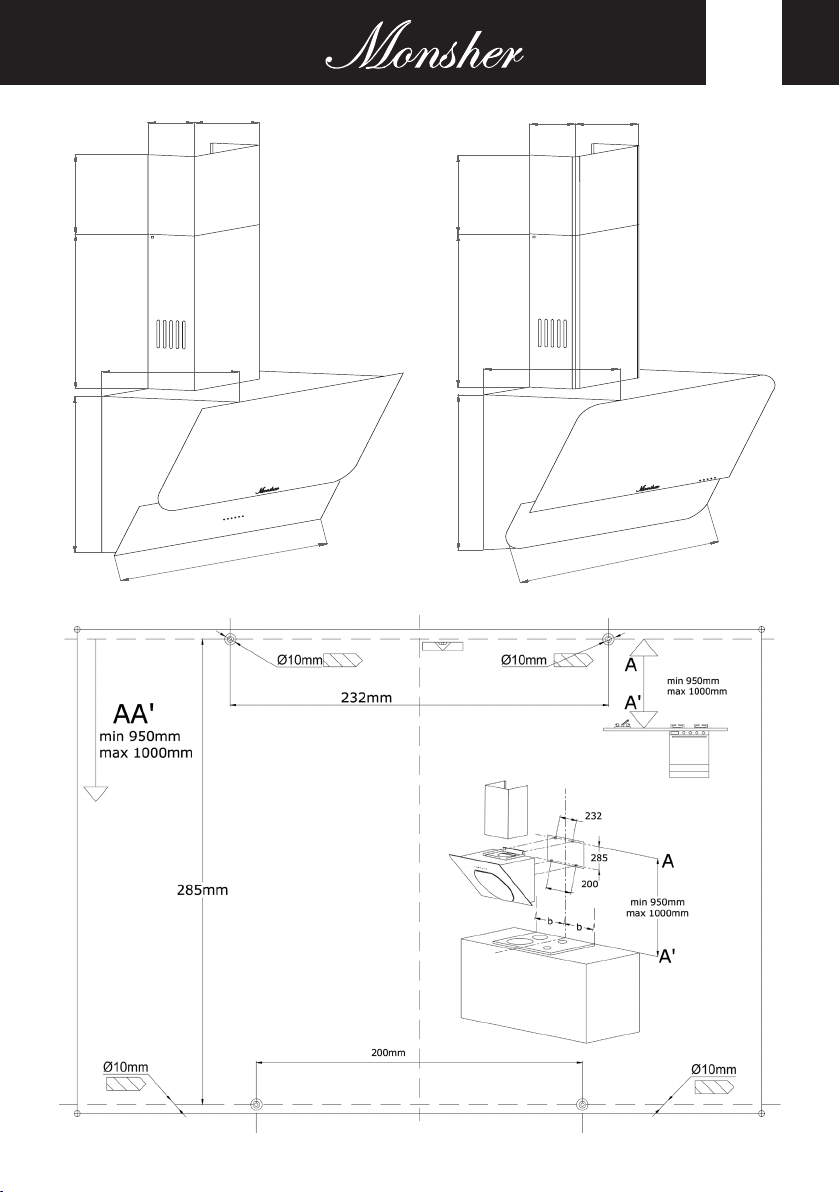

450
354
358
600 - 900
180 220
200
358
450
354
180 220
600 - 900
200

10 English
SECTION 5.
;Cleaning and maintenance
Caution! Before you start cleaning the appliance, disconnect it from the power
supply.
;Aluminum filter
Aluminum filter is designed to trap grease particles out of the flow of air running
through it. For this reason, the filter needs regular cleaning. The cleaning interval
depends on the frequency of use of the air cleaner. Generally, it is recommended
to clean it once a month.
To do this, remove the filters, wash them in water with a neutral liquid detergent,
dry them, then set them back in the air cleaner. Over time, filters may change
color due to a regular washing. This is a natural process, which does not indicate a
defect, so filter replacement is not required.
The aluminum filters can be washed in the dishwasher.
;How to remove aluminum filters:
1. Press on the latch of the filter lock.
2. Pulling down a bit, remove the filter.
In order to put the filters in place after cleaning, follow the above instructions
in reverse order.
;Carbon filter (used in recirculated air mode)
Carbon filter is designed to trap odors and fumes while cooking. It is used in
cases where there is no possibility to connect the air cleaner to a special ventilation
duct for discharging air outward. When operating the appliance with a carbon
filter, contaminated air is sucked into the appliance and passes through a carbon
filter, and then clean air is supplied to the kitchen.
The carbon filter should be replaced at regular intervals. The interval of filter
replacement depends on the frequency of use of the air cleaner, style of cooking
and frequency of the aluminum filter cleaning. Generally, it is recommended to
replace the carbon filter once every 4 months.
;How to remove carbon filter:
1. Remove aluminum filters.
2. Turn the carbon filter to the left and pull it.
3. Replace the old carbon filter with the new one.

11English
4. Put the filter back into place.
If necessary, clean the outside of the air cleaner with a soft, damp cloth. Do not
use any abrasive cleaning agents. For painted stainless steel surfaces: to avoid
scratching it is recommended to wipe them with a soft, damp cloth in the painting
direction. Do not remove the lamp cover during the surface cleaning process.
;Caution!
Do not use the steam generators for cleaning.
;Caution!
Not following the above rules for cleaning the appliance and replacing filters
may cause fire.
;Replacing lamps
Before replacing lamps, disconnect the appliance from the power supply. Then,
with a screwdriver, pry and remove the lamp cover, while supporting it from below.
Remove the burned-out lamp and replace it with a new one. Put the lamp cover
into place, press it slightly and fix it. Caution: do not touch the halogen lamp with
your fingers, it significantly reduces its lifetime. Use a soft, dry cloth.
;Caution!
If you need to transport the air cleaner, first of all, disconnect it from the power
supply and proceed with disassembly. It is recommended that you transport it in
the original packaging. If this packaging is not available, package the appliance
using materials that prevent possible damage resulting from transportation.
SECTION 6.
;Troubleshooting
Very often a malfunction of the appliance occur for minor reasons. So, before
you call for service center, please check whether you can troubleshoot yourself.
For this purpose please check the following possible causes of malfunctions.

12 English
SECTION 7.
;Helpful information
Physical characteristics of the sound volume (the sound pressure level) is
measured in decibels (dB). «Noise» is a chaotic mix of sound.
The human ear can detect sounds with sound volume of 10-15 dB and above.
When choosing a kitchen hood, it is necessary to pay special attention to technical
indicators such as the noise level. This indicator is very important, because, and that’s
beyond a shadow of a doubt, each of us spends a lot of time on the kitchen. It is especially
common for women who love to please their loved ones with delicious cooked dishes.
According to the surveys, 40% of women do not use kitchen hoods for their
intended purpose (it refers to the process of air suction), precisely because they
are annoyed with the noise level.
Consequently, such a necessary and needed in the kitchen appliance, kitchen
air cleaner, designed to remove airborne odors, grease, soot and smoke, becomes
almost meaningless.
This allows you to make the cooking process the most comfortable and helpful.
For more complete understanding of the scale of decibels, you can compare
parameters of the following guidelines:
Malfunction Possible cause Troubleshooting action
The appliance does
not operate
...Faulty fuse
...Plug is not properly
inserted into the outlet
...There is no voltage in
the power supply system
1. Check the fuse of the
appliance
2. Make sure that plug is
properly inserted into the outlet
Suction power is
not sufficient
...Incorrect speed
selected
...Filters are clogged
1. Increase suction speed of
hood
2. Clean or replace filters
The lamp is not
lighting
...Faulty fuse
...The lamp is burned out
or incorrectly installed
1. Check the fuse of the
appliance
2. Make sure that the lamp is
installed correctly or replace it

13English
Intensity of typical noise sources
Approximate
sound pressure
level dB
Characteristics Sound source and distance
160 Shock, trauma Shot of a gun of 0.303 caliber close to your
ear
150 Contusion,
trauma Rise of the lunar rocket, 100 m
140 Contusion Rise of the jet plane, 25 m
120 Almost
unbearable
Engine room of submarine Jackhammer,
1 m
100 Extremely noisy Very noisy factory Subway car
(intermittently)
90 Very noisy
Heavy diesel truck, 7 m
Road drill (without muffler), 7 m
Railway freight wagon, 7 m
80 Very noisy Ringing alarm clock, 1 m
Motorcycle with a silencer, 1 m
75 Noisy Inside railway carriage
Shout, 1 m Loud laughter, 1 m
70 Noisy
Inside a small car, moving at a speed of
50 km/h
Home vacuum cleaner, 3 m
Loud conversation, 1 m
65 Clearly audible Typewriter Normal conversation, 1 m
40 Quite audible Institution, where there are no special
sources of noise
35 Hardly audible Room of a quiet apartment
Very muffled conversation
25 Quiet Rural areas located far from roads
Whisper of a person, 1 m

14 English
DETERMINATION OF THE PRODUCTION DATE
BY SERIAL NUMBER
Year Month
XX XX XX X X
MANUFACTURERS:
Tümsan Elektronik Makina ve Parça San. ve Tic. A.Ş.
AYDINLI-ISTANBUL AYOSB MAH. GAZI BLV. ISTANBUL ANADOLU YAKASI OSB SIT. NO:6
TUZLA/ISTANBUL
IMPORTERS:
LLC «MG Rusland», 141400
Moscow region, Khimki, Butakovo, 4

15English
NOTES

Русский
16
СОДЕРЖАНИЕ
 1
 ............................................................................................17
 2
 ....................................................................................19
 3
........................................................................................................................19
 4
  ........................................................................................................20
 5
  ..................................................................................................................24
 6
 .........................................................................................25
 7
   .........................................................................................26

Русский 17
УВАЖАЕМЫЙ ПОКУПАТЕЛЬ!
     !  ,   
 “MONSHER”,   ,   -
       -
   .
,       -
.      ,   -
      .
  ,       -
       -
.        -
  .
;!
    ,   ,
    ,    , -
,   ,     .
      ,   
  ,      . 1.
РАЗДЕЛ 1.
; 
1.        
    .
2.       220-240 . -
,       -
  .        -
  .
3.      
,         ,
   ,     .
4.        .
5.        -
 .

Русский
18
6.   ,     
.    !
7.         ,   
    .
8.      .
9.     .
10.        .
11.      .  -
  ,    ,   , -
   .  :    ,
  ,   ;   !
12.      .
13.         
   :
-   :   65 ;
-     :   70 .
14.        -   
!
15.           
   :     -
 15 .         -
 ( « »   ).
16.    ,    -
     .
17.    - ,   -
   .
18.        ,   
    .  -
  ,   -
 , ,       
.       .  , -
      (  ),
  ,    
  .
19.        
,       .

Русский 19
РАЗДЕЛ 2.
; 
 
........................................................................................................................600-900 
.........................................................................................., 
 ...............................................................................................850 3/
 .....................................................................................LED 1x3 (or 23 )
  .........................................................................120-150 
.....................................................................................................220-240  / 50 
 ..................................................................  / 
 ...................................................................................................................54-67 
РАЗДЕЛ 3.
;
 
 –  / 
 –   
 –   
D –   
E – 
F –   
 –  /   .
 –    , 1- )
 –    , 2- )

Русский
20
D –     (  -
)
E –  /  
F -    ,      15 -
.    ,      3 .
 (      ).   –
   .
;  ()
 –  / 
 –   
 –   
D –   
E – 
 –  /   .
 –    , 1- )
 –    , 2- )
D –     (  -
)
E –  /  
РАЗДЕЛ 4.
;  
,     !  
      , 
