Monster MSB3788W User manual

37" BLUETOOTH 5.1 SOUND BAR - WIRELESS SUBWOOFER
AND 2 SATELLITE SPEAKERS
MODEL: MSB3788W
Please read this instruction manual carefully and keep it for future reference

2
CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER
(OR BACK). NO USER SERVICEABLE PART INSIDE, REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE: The lighting flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION: The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG
CORD This unit has a long cord that can be easily tripped on or pulled on,
causing injury. Please make sure it is arranged so that it will not drape over a
tabletop, etc. Where it can be pulled on by children or tripped over accidentally.
CALIFORNIA PROP 65 WARNING: ”WARNING” This product contains chemicals
known to the State of California to cause birth defects or other reproductive harm. For
more information on these regulations and a list of chemicals, log on the following
website: http://www.oehha.ca.gov/prop65.html
This product meets and complies with all Federal regulations.
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation. The antenna(s) used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

3
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
To assure continued operation, follow the attached installation instructions and
use only shield cables when connecting to other devices. Changes or
modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Before using the unit, be sure to read all operating instruction carefully, please
note that these are general precautions and may not pertain to your unit. For
example, this unit may not have the capability to be connected to an outdoor
antenna.
1. Read these instructions
All the safety and operating instructions should be read before the appliance is
operated.
2. Keep these instructions
The safety and operating instructions should be kept for future reference.
3. Heed all warnings
All warnings on the appliance and in the operating instructions should be
adhered to.
4. Follow all instructions
All operation and use instructions should be followed.
5. Do not use this apparatus near water
The appliance should not be used near water; for example, near a bath tub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming
pool.

4
6. Clean only with dry cloth
The appliance should be cleaned only as recommended by the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Slots and openings in the cabinet and in the back or bottom are provided for
ventilation, to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or similar
surface. This product should never be placed near or over a radiator or heat
source. This product should not be placed in a built-in installation, such as a
bookcase or rack unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
An appliance and cart combination should be moved with care. Quick stop,
excessive fore and uneven surfaces may cause the appliance and cart
combination to overturn.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
To protect your product from a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the product due to
lightning and power-line surges.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged,liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.

5
15. Power source
This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your
home, consult your appliance dealer or local power company. For products
intended to operate from battery power, or other source, refer to the operation
instructions.
16. Power lines
An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of
fire or electric shock.
18. Object and liquid entry
Never push objects of any kind into the product through openings as they may
touch dangerous voltage points or short out parts that could result in fire or
electric shock. Never spill or spray any type of liquid on the product.

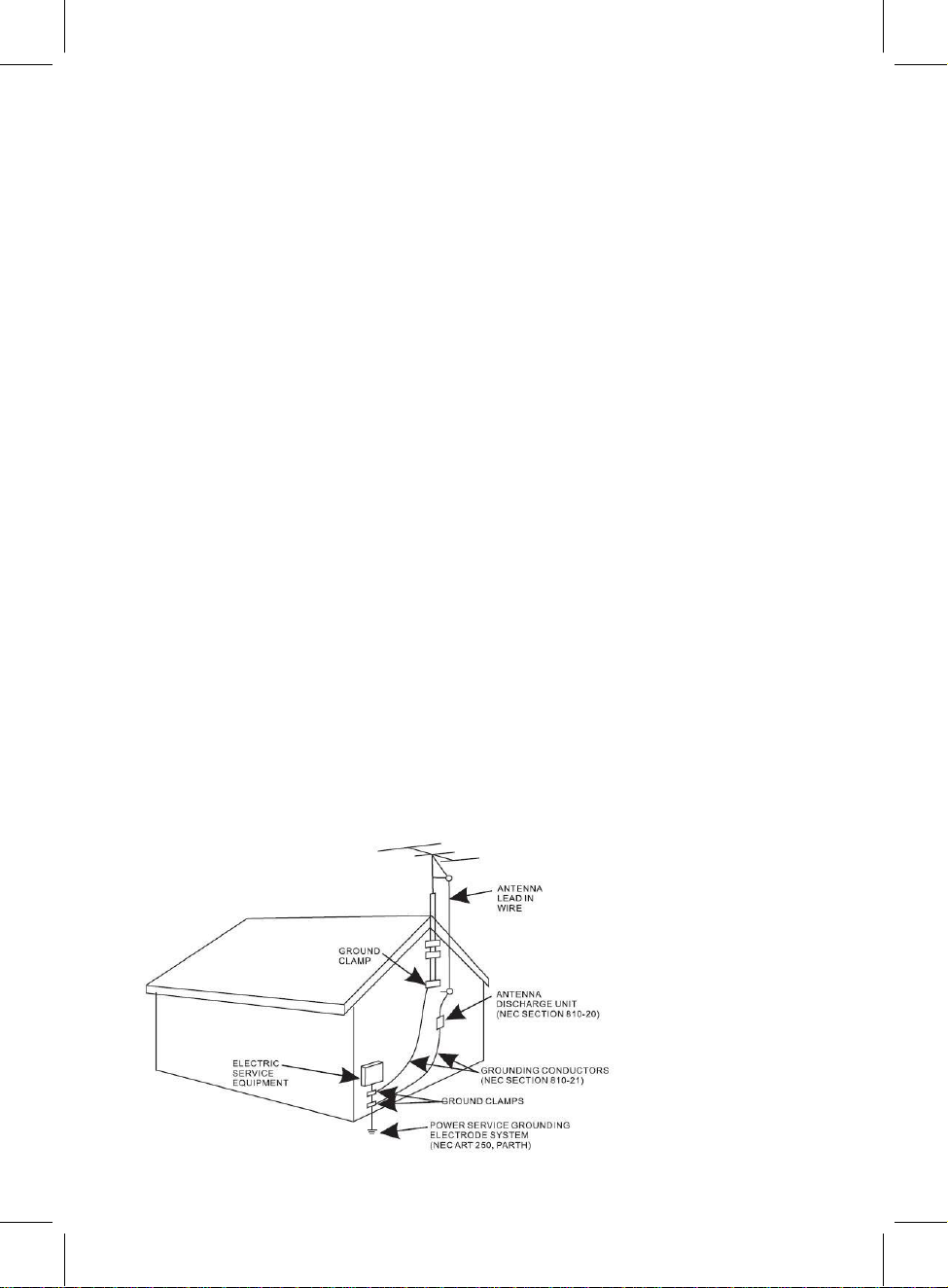

19. Outdoor antenna grounding
If an outside antenna is connected to the product, be sure the antenna system
is grounded so as to provide some protection against voltage surges and built
up static charges. Section 810 of the National Electric Code ANSI/ NFPA 70
provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead- in wire to an antenna discharge
product, size of grounding conductors, location of antenna- discharge product,
connection to grounding electrodes and requirements for the grounding
electrodes.

6
20. Service
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
21. Replacement parts
When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer or those that have the same
characteristics as the original parts. Unauthorized substitutions may result in
fire or electric shock or other hazards.
22. Safety check
Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper
operating condition.
23. Wall or ceiling mounting
The product should be mounted to a wall or ceiling only as recommended by
the manufacturer.
24. Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service
personnel under the following conditions.
a) When the power- supply cord or plug is damaged.
b) If liquid has been spilled or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as an adjustment of other controls may result in damage and will
require extensive work by a qualified technician to restore the product to its
normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance- this indicates a
need for service.
25. Note to CATV system installer
This reminder is provided to call the CATV system installer' s attention toArticle
820- 40 of the NEC that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
NOTE: Refer all servicing to qualified service personnel. Servicing is
required when the unit has been damaged in any way such as the
following: the power-supply cord or plug has been damaged, liquid has
been spilled into unit, the unit has been exposed to rain or moisture, the
unit has been dropped or the unit does not operate normally.

7
PRODUCT OVERVIEW
FRONT VIEW
CONTROL PANEL REAR PANEL
1. Remote Sensor
2. Standby/Bluetooth Indicator
3. LINE In Indicator
4. AUX In and 5.1CH indicator
5l In Indicator
6. USB Indicator
7. DC In Jack
8. Line In Jacks
9l In Port
10. USB In Port
11. AUX In Jack
12. 5.1 CH Input Jacks
13. Poweron
14. Source Bon
15. Bluetooth Pairingon
16. Volume Doon
17. Volume Up Bon
18. Play/Pause B
o
n
1
5.1 CH
2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18

8
SUBWOOFER REAR PANEL
19. Speaker
20. DC In Jack
21. Standby Bu�on
SATELLITE SPEAKERS REAR PANEL
22. Speaker
23. DC In Jack
24. Standby Bu�on
19
20 21
22
23
24

9
REMOTE CONTROL
1. Power Bu�on
2. REC Bu�on
3. Previous Bu�on
4. MUSIC Bu�on
5. Center Volume+ Bu�on
6. Center Volume- Bu�on
7. Volume- Bu�on
8. Pairing Bu�on
9. Source Bu�on
10. Play/Pause Bu�on
11. Mute Bu�on
12. 2.1/5.1 Reset Bu�on
13. Next Bu�on
14. TALK Bu�on
15. Surround Volume+
Bu�on
16. Surround Volume-
Bu�on
17. Volume+ Bu�on
18. MOVIE Bu�on
19. Subwoofer Volume-
Bu�on
20. Subwoofer Volume+
Bu�on
BATTERY INSTALLATION OF REMOTE CONTROL
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment, a
reserved battery may cause damage to the device.
Fig.1
Fig.2
Fig.3
Remove and discard the insulation film as Fig.1.
Replacing
battery
for
Remote
Control
First
time
use
3
V
CR2025
. Pull out the battery holder as Fig.
2.
1
. Replace the old button cell with a new CR2025 button cell
2
with the polarity markings facing upward as Fig.3.
3
. Push back the battery holder as Fig.
4.
Fig.4
1
2
3
4
5
6
7
11
12
13
14
15
16
17
8 9 10
181920

10
3. Do not mix different types of batteries together (e.g.: Alkaline and Carbon-zinc) or old batteries with fresh
ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove
the batteries to prevent damage or injury from possible leakage.
5. Do not try to recharge the battery as it is not intended to be recharged; it can overheat and rupture.
(Follow the battery manufacturer’s instructions.)
6. The batteries shall not be exposed to excessive heat such as sunshine or fire.
7. Clean the battery contacts and also those of the device prior to battery installation.
8. The remote control is supplied with a coin/button cell battery.
If the coin button cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to death. Keep new
and used battery away from children. If the Battery
compartment does not close securely, stop using the product
and keep it away from children. If you think batteries might
have been swallowed or placed any part of the body, seek
immediate medical attention.
CAUTION
●Danger of explosion if the battery is incorrectly replaced.
●Replace only with the same or equivalent type.
Remote control operation range
●When there is an obstacle between the transmitter and the unit, the unit may not operate.
●When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines
on the REMOTE SENSOR of the unit, the operation of the remote may be unstable.
PLACEMENT AND MOUNTING
1. Placing the device on a table - Ventilation
When placing the unit and the subwoofer on an entertainment center, bookshelf,
or any type of enclosed space, be sure to allow enough space for ventilation.
Otherwise, the heat generated will produce potential heat hazard.
2. The Installation Distance
|------------------------723.9mm (28.5 inches)----------------------|

11
2.1 Mounting to a wooden wall
(screws not included)
A. Mark the position of the mounting screws on the wall using a pencil.
B. Drill the screws directly into the marks that you have made on the wall and leave approx.
0.3 inches length to hook the sound bar.
C. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
2.2 Mounting to a brick wall
(screws and plastic fixing plug are not included)
A. Mark the position of the mounting screws on the wall using a pencil.
B. Drill 2 holes on wall with a powerful electric drill.
C. Insert the fixing plug and hammer into the holes.
D. Secure the screws into the fixing plug and leave approx. 0.3 inches length to hook
the sound bar.
E. Put the sound bar onto the mounting screws. Make sure they are firm and stable.

12
GENERAL OPERATION
1. Connect the DC 15V, 2.4A Adapter to the DC IN jack on the Unit. Plug the
Adapter into the AC outlet with AC110~240V; 50/60Hz. The mode indicator on
the Unit will light up and turn RED.
2. Connect the DC 15V, 2.4A Adapter to the DC IN jack on the subwoofer. Plug the
Adapter into the AC outlet with AC110~240V; 50/60Hz. The power indicator on
the subwoofer will light up and turn BLUE in flashing.
3. Connect the DC 5V, 1.0A Adapters to the DC IN jack on each of the satellite
speakers. Plug the Adapter into the AC outlet with AC110~240V; 50/60Hz. The
power indicator on the speakers will light up and turn RED/BLUE in flashing.
4. Press the button on the unit or press the button on remote control to power
on the unit. After a few seconds, the unit will be connected with subwoofer and
satellite speakers automatically and the beep sounds can be heard separately.
5. The indicator on subwoofer will be solid BLUE. The indicator on the satellite
speakers will be solid RED(Right speaker)/BLUE(Left speaker).
IMPORTANT NOTE: If the pairing INDICATOR on the SUBWOOFER/SPEAKERS is off,
it means the Main Unit is not connected with the SUBWOOFER/SPEAKERS
successfully. Please operate as the steps below:
A: Press and hold the Bluetooth Pair button on the Main Unit for 3-5 seconds in the
power of model.
B: Press the button on SUBWOOFER/SPEAKERS to power off, then press the
button on SUBWOOFER/SPEAKERS once to power on again, the pairing INDICATOR
on SUBWOOFER/SPEAKERS will blink several times and then turn to solid color, it
means the SUBWOOFER/SPEAKERS is connected with Main Unit successfully.
C: Press the Bluetooth Pair button on the Main Unit again, the pairing INDICATOR will
be solid BLUE.
6. Press the source button on remote control or on the main unit repeatedly to
switch to the desired mode, the indicator on top of the unit will turn on:
Standby/Bluetooth Indicator............................................Bluetooth Mode (BLUE)
Line In Indicator............................................................LINE IN Mode (ORANGE)
Aux In Indicator ......................................................... AUX IN Mode (BLUE)
Optical Indicator …...................................................OPTICAL IN Mode (WHITE)
USB Indicator……….............................................................USB Mode (GREEN)
5.1 CH Indicator ......................................................... 5.1 CH Mode (RED)
.........
............

13
7. During Playback:
~ Press the + or - button on the unit or remote control repeatedly to adjust volume.
~ Press the button on remote control to turn off sound, press the button again to
resume.
~ Press the MUSIC button on remote control to turn to MUSIC sound effect mode.
~ Press the TALK button on remote control to turn to TALK sound effect mode.
~ Press the MOVIE button on remote control to turn to MOVIE sound effect mode.
~ Press 2.1/5.1 Reset button on remote control to turn to normal sound effect mode.
8. Press the button on the unit or press the button on remote control to power off
the unit.
Press the button on the subwoofer/speakers to power off.
BLUETOOTH OPERATION
1. Power on the unit and subwoofer/speakers and pair as previously explained.
2. Press the Bluetooth Pairing button on the top of the unit or the PAIR button on the
remote control to switch to the Bluetooth mode, the indicator on top of the unit
will turn BLUE color and blink.
3. Power on the external Bluetooth enable device and enter Bluetooth mode and try
searching the unit.
4. When MONSTER SB3 appears, select it and make connection.
5. After successful paired, the indicator will stop blinking and beep sound can be
heard.
6. During playback:
~ Press the previous or next button on remote control to skip tracks.
~ Press the Play/Pause button on the remote control to pause, press it again
to resume.
~ Press the volume +/- from this unit to increase or decrease this volume.
~ Press and hold volume +/- from this unit to skip or go back last track.
7. Press and hold the Bluetooth pair button on the top of the unit or the PAIR button
on the remote control to disconnect current connection and go into a pairing mode,
you can pair to new devices with this soundbar.
NOTE: The unit will be automatically connected with the last connected Bluetooth
device if their Bluetooth function are activated and they are in working range.

14
AUX IN/5.1 CH INPUT OPERATION
An external audio/video player (such as TV, DVD player, etc.) can be connected to this
unit and listen through the unit's speakers.
1. Plug one end of the AUX IN L&R or 5.1 CH RCA cable (not included) into the AUX
IN jack or 5.1 CH input jacks on the rear of the unit.
2. Plug another end of the cable into Line Out (L&R) jack or 5.1 CH output ports on the
external audio/video player.
3. Power on the unit and subwoofer/speakers and pair as previously explained.
4. Press the Source button on the unit or the remote control repeatedly, select the AUX
In indicator on top of the unit to turn on RED in 5.1 CH input playback or BLUE in
AUX IN L&R input playback.
5. Power on the connected external player and start playback the music as usual.
6. During playback:
~ Press the button on remote control to pause, press it again to resume.
LINE IN OPERATION
An external audio player (such as mobile phone, MP3 player etc.) can be connected
to this unit and listen through the unit's speakers.
1. Plug one end of the line in cable (not included) into the LINE IN jack on the rear of
the unit.
2. Plug the other end of the line in cable into the headphone jack or Line Out jack on
the external audio player.
3. Power on the unit and subwoofer/speakers and pair as previously explained.
4. Press the Source button on the unit or the remote control repeatedly, the Line In
indicator on top of the unit will turn ORANGE.
5. Power on the connected external player and start playback the music as usual.

15
OPTICAL IN OPERATION
1. Connect the Optical out jack from the external audio player (such as TV, DVD
player, etc.) to the OPTICAL IN jack on the rear of the unit with the optical
connection cable (For PCM format only).
2. Power on the unit and subwoofer/speakers and pair as previously explained.
3. Press the Source buon on the unit or remote control repeatedly, the indicator
on top of the unit will turn WHITE.
4. Power on the connected external player and start playback the music as usual.
Turn on the digital audio output and set it to PCM (Pulse Code Modulation) type.
USB PLAYBACK
1. Plug the USB flash drive to the USB port at the rear panel of the unit.
2. Power on the unit and subwoofer/speakers and pair as previously explained.
3. Press the Source button on the unit or the remote control repeatedly, the USB
indicator on top of the unit will turn GREEN.
4. During playback:
~ Press the or button on remote control to skip tracks.
~ Press the button on remote control to pause, press it again to resume.
USB RECORDING
1. Plug the USB flash drive to the USB port at the rear panel of the unit.
2. Power on the unit and subwoofer/speakers and pair as previously explained.
3. Play the music from the source (Bluetooth/Line In/AUX IN/Optical) your provided.
4. Press the REC buon on the remote control to start recording the music to the
USh drive. USB indicator will keephing in GREEN color during recording.
5. Press the REC bon on the remote control to stop recording.
6. Follow the previous USB PLAYBACK son to playback the recorded music tracks.
Note: It will have one tone coming out during start recording. It will have double
tone coming out when it stopped recording.

16
TROUBLESHOOTING
Play
music/movie
in
the
paired/
Connected device as usual and make
sure the volume level of it is in high
level.
Sound distortion/rattle
Reduce the volume level by pressing
Volume level too high
the
of
level
volume
the
Reduce
paired/connected device.
Bluetooth
Reception failure
Put the external BT device close to the
unit.
Pair the unit with the BT Device as the
Have not paired
Procedures stated in this manual.
Input source incorrect
Press and hold the power/source button
The unit is in power off mode
The paired/connected device
is not in playback mode
The external device is
too far from the unit
Remote Control
not functioning
Out of range
The battery in the remote
control is drained
Point the remote control tothe
remote sensor on the unit within
16
feet, +/-30 degrees
Replace with new battery
No sound or
sound weak
Volume level in minimum position
Raise the volume level by pressing
the + Button on the unit
SYMPTOM
POSSIBLE CAUSE
POSSIBLE SOLUTION
No power
The adapter is not connected
Connect the adapter to the unit and
wall outlet
on the unit or press the button
on remote control to power on the unit
Or press VOL+ button on remote control
control to switch to desired mode
The volume- Button on the top of the unit
Or press VOL- button on remote control
or press the source button on remote
Press the power/source button repeatedly

SPECIFICATIONS
Power input ...........................................................................AC 100~240V, 50/60Hz
Power output .................................................................... DC 15V 2.4A
DC 5V 1.0A
Bluetooth effective working range in open area......................................up to 32 feet
Remote effective working range..............................................................up to 16 feet
PACKAGES
1x The Unit
1x Subwoofer
2x Satellite Speakers
1x User Manual
1x Remote Control
2x Power Adapters for the Main Unit/Subwoofer (15V, 2.4A)
2x Power Adapters for the Satellite Speakers (5V, 1.0A)
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE
WITHOUT NOTICE
is a trademark on a registered trademark of Bluetooth
SIG Inc. All other trademarks and trade names are
those of their respective owners.
Monster, the Monster logo and the M design are registered trademarks of Monster,
Inc. and its subsidiaries in the U.S. and other countries and are used under license.
For service assistance and product information, please call: 1-800-968-9853.
Curtis International Ltd.
7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3
www.curtisint.com
20
Sound Bar Output Power .................................Left & Right - 2” Driver, 4Ω10W RMS
Center - 2” Driver, 4Ω15W RMS
Surround Output Power ......................................Left & Right - 3” Driver, 2Ω5W RMS
Subwoofer Output Power .....................................................6.5” Driver, 4Ω25W RMS
1x AUX IN Cable
1x Line In Cable

To make a warranty claim, do not return this product to the store. Please email
[email protected]om or call 1-800-968-9853.
90 day Warranty
This product is warranted to be free from defects in material and workmanship
for a period of ninety (90) days from the date of original purchase. During this
period, your exclusive remedy is repair or replacement of this product or
component found to be defective, at our option; however, you are responsible
for all costs associated with returning the product to us. If the product or
component is no longer available, we will replace with a similar one of equal or
greater value. Prior to a replacement being sent, the product must be rendered
inoperable or returned to us.
This warranty does not cover glass, filters, wear from normal use, use not in
conformity with the printed directions., or damage to the product resulting from
accident, alteration, abuse, or misuse. This warranty extends only to the original
consumer purchaser or gift recipient. Keep the original sales receipt, as proof of
purchase is required to make a warranty claim. This warranty is void if the
product is used for other than single-family household use or subjected to any
voltage and waveform other than as on the specified rating on the label (e.g.,
120V~60Hz).
We exclude all claims for special, incidental, and consequential damages
caused by breach of express or implied warranty. All liability is limited to the
amount of the purchase price. Every implied warranty, including any
statutory warranty or condition of merchantability or fitness for a
particular purpose, is disclaimed except to the extent prohibited by law,
in which case such warranty or condition is limited to the duration of this
written warranty. This warranty gives you specific legal rights. You may have
other legal rights that vary depending on where you live. Some states or
provinces do not allow limitations on implied warranties or special, incidental, or
consequential damages, so the foregoing limitations may not apply to you.
For faster service, locate the model, type, and serial numbers on your appliance.
