Monster H056 User manual

MONSTER VAC
MULTI-FUNCTION HAND VACUUM
INSTRUCTION MANUAL
CUSTOMER SERVICE: 1800 663 866 (AUS)
0800 666 783 (NZ)

IMPORTANT SAFE TY INSTRUCTIONS
2 Safety Instructions
SAVE THESE INSTRUCTIONS
When using an electrical appliance, basic safety
precautions should always be observed, including the
following:
Read all instructions before using this appliance.
WARNING: To reduce the risk of re, electrical shock,
or injury:
1. Do not leave appliance unattended when plugged in. Unplug
from outlet when not in use.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
4. Use only as described in this manual. Use only manufacturer’s
recommended attachments.
5. Do not use with damaged cord or plug. Do not use vacuum if
it has been dropped, damaged, left outdoors, or dropped in
water.
6. Do not pull or carry by cord, use cord as a handle, or pull cord
around sharp edges or corners. To unplug, grasp the plug to
remove – do not pull on cord.
7. Keep cord away from heated surfaces.
8. Do not put any objects into openings. Do not use with any
opening blocked – keep free of dust, lint, hair and anything
that may reduce air ow.
9. Do not handle plug or appliance with wet hands.
10. Do not attempt to change accessories while unit is running.
11. Keep hair, loose clothing, ngers, and all parts of body away
from openings and moving parts.
12. Do not use appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, or hot ashes.
13. Always switch unit off before unplugging.
14. Do not use to pick up ammable or combustible liquids such
as gasoline or use in areas where the vapors or materials may
be present.
15. Look closely at your vacuum and follow all labels and marking
instructions.

IMPORTANT SAFE TY INSTRUCTIONS
3 Safety Instructions
SAVE THESE INSTRUCTIONS
16. Keep the end of hose, wands and other openings away from
your face and body.
17. Do not use the vacuum cleaner without Dust Cup Filter in
place.
18. Always unplug this appliance before connecting or
disconnecting Flex Hose, Extension Tubes or Accessories.
19. Always unplug this appliance before removing or replacing
Dust Cup and/or Dust Cup Filter.
20. Store the vacuum indoors. Store vacuum in a safe place to
prevent accidents.
21. Using improper voltage may result in damage to the motor
and possible injury to the user. Correct voltage is listed on the
rating label.
22. Use only on dry, indoor surfaces.
23. Do not use for any purpose other than described in this user’s
manual.
24. If the cleaner is damaged, it must be repaired by the
manufacturer or its service agent in order to avoid safety
issues to the operator.
25. Use only approved and supplied parts and accessories. Use
of any other kind of accessory is not recommended.
26. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of appliance
by a person responsible for their safety.
27. This appliance is intended for household and residential
use only.
28. Read and follow all important notices in this guide.

1 - Blower Opening Release
2 - Handle
3 - Dust Cup Release
4 - Power Button
5 - Dust Cup Filter
6 - Dust Cup Lock
7 - Dust Cup
8 - Floor Brush
9 - Flex Hose
10 - Extension Tube
11 - Accessory Bag
12 - Scent Cartridges (5)
13 - Blower Nozzle
14 - Upholstery & Dusting Brush
15 - Angle Brush (horse hair)
16 - Crevice Tool
Product Description
4 Product Description
7
8
1
4
6
3
11
14
16
9
13
2
5
10
15
12

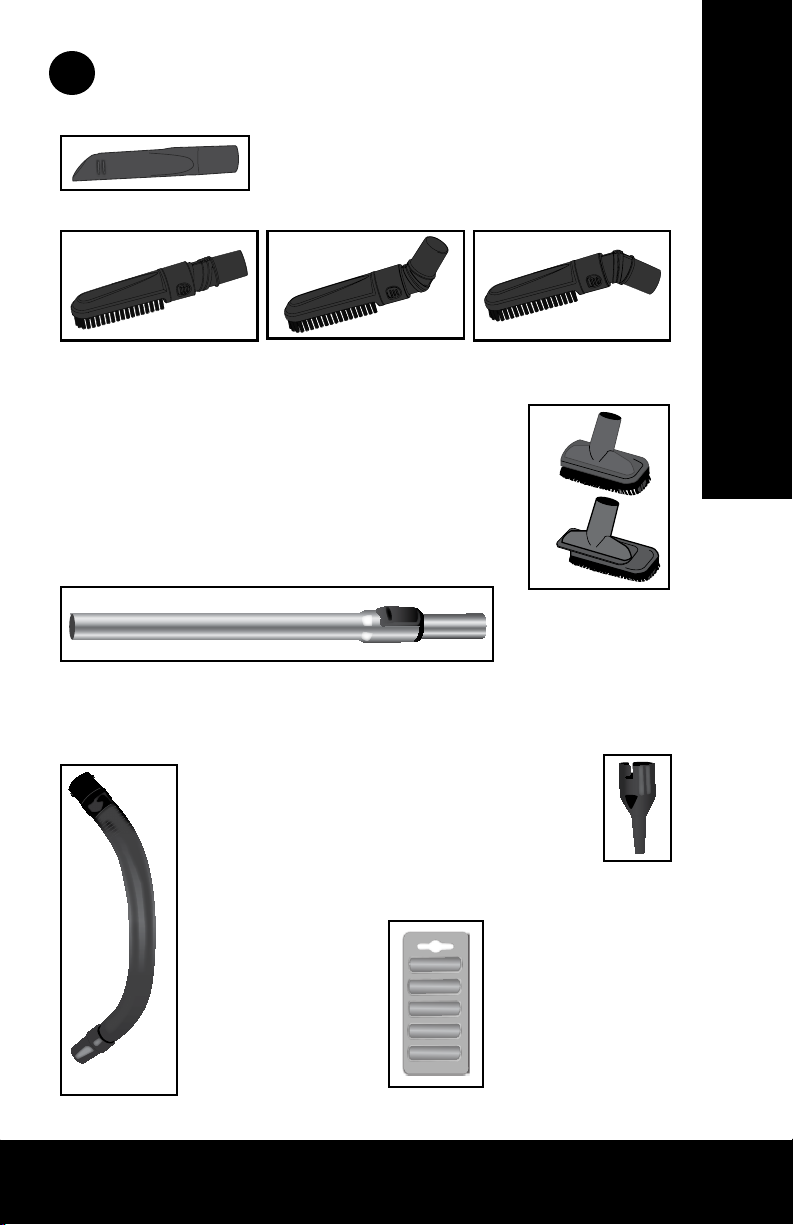

Accessories – Uses & Descriptions
5 Accessories – Uses & Descriptions
A.
B.
Upholstery & Dusting Brush –
(A.)
can be used for dusting blinds, books,
furniture and more, or…
Slide bristles off
(B.) and use to thoroughly
clean upholstery and mattresses.
Flex Hose –
Connect to
bottom portion
of unit and use
with Accessories
for more exible
control. Insert
in top of unit
for use with the
Blower Nozzle.
Accessories – Uses & Descriptions
1
Blower Nozzle –
Use on end of Flex Hose
to blow leaves or dust
and dirt from window
tracks and corners.
Extension Tube – Use with the Floor Brush
to create a stick oor vac. Or, use with
other Accessories to extend your reach.
Crevice Tool – Use to get into narrow spaces or
crevices between seat cushions and under the
refrigerator or furniture.
Angle Brush – Horse Hair Brush rotates and twists to create
multiple angles for cleaning hard to reach areas.
Scent Cartridges –
Insert a scent
cartridge in the
top of the unit
to dispense a
fresh scent while
you clean.

6 Before Use
Before Use
*IMPORTANT*
ALWAYS REMOVE THE PLUG
FROM ELECTRICAL OUTLET
BEFORE ATTACHING OR
REMOVING ACCESSORIES!
3
Attach Accessories Directly to Unit
When cleaning automobile interiors or small areas
that do not require a long reach, we suggest
attaching the required Accessory directly to the unit.
Insert the Floor Brush or any of the Accessories shown,
directly in the Dust Cup opening. Be sure Accessory is
pushed securely in place before using.
Expand the Dust Cup
2
The Dust Cup can be expanded by
holding the Handle, turning the
Dust Cup Lock toward the “Unlock”
symbol, and pulling the Dust Cup down.
Once expanded, turn the Dust Cup
Lock to the “Lock” symbol, and lock
Cup in place.
Before using your Multi-Function Hand Vacuum, please
take a minute to familiarize yourself with the unit, it’s
functions and how to properly connect Accessories.
*IMPORTANT*
ALWAYS REMOVE THE PLUG
FROM ELECTRICAL OUTLET
BEFORE EXPANDING DUST CUP.
HAND VAC

7 Before Use
Before Use
Attach Flex Hose & Accessories to Unit
A. Insert Flex Hose
Insert the end of Flex Hose with the 2 small squares on either side
into the grooves inside the Dust Cup opening. Be sure to press
Hose in as far as it will go.
4
A.
*IMPORTANT*
ALWAYS REMOVE THE PLUG FROM
ELECTRICAL OUTLET BEFORE ATTACHING
OR REMOVING ACCESSORIES!
B. Insert Accessory
Once Flex Hose is inserted in Dust
Cup, insert any of the Accessories
below directly in the opening at the
opposite end of the Flex Hose.
You can also connect the Extension
Tube to the Flex Hose to reach further
(See page 9 for details).
B.
HAND VAC
with FLEX HOSE

8 Before Use
Using the Extension Tube
5
Before Use
*IMPORTANT*
ALWAYS REMOVE THE PLUG FROM ELECTRICAL OUTLET BEFORE ATTACHING
OR REMOVING ACCESSORIES!
Insert the narrow end of Extension Tube
in the Dust Cup opening and press rmly
in place.
Firmly insert Accessory in the other end
of the Extension Tube and your vacuum
is converted to a stick cleaner.
• Attach the Floor Brush to clean
hardwood oors and carpets.
• Attach the Upholstery & Dusting Brush to
clean ceilings, draperies and more.
• Attach the Crevice Tool for corners,
shelves, drawers and other tight spaces.
• Attach the Angle Brush and rotate to get
into awkward spaces like corners and on
top of ceiling fan blades or shelves.
STICK VAC

9 Before Use
Before Use

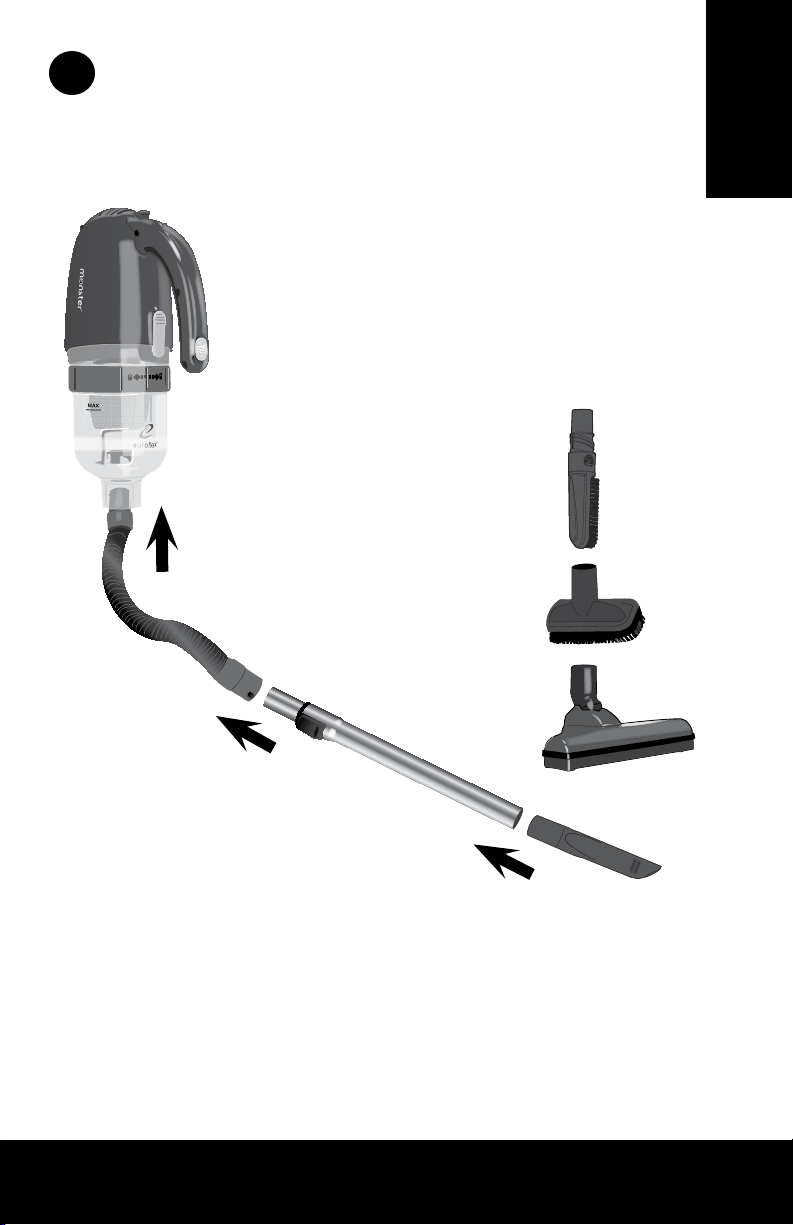

Using Extension Tube & Flex Hose
6
You can insert the Flex Hose to extend your reach when you
are using the Multi-Function Hand Vacuum as a Floor Vac.
A. Insert the end of Flex Hose with
the 2 small squares on either
side into the grooves inside the
Dust Cup opening. Be sure to
press Hose in as far as it will go.
B. Insert narrow end of Extension
Tube in Flex Hose opening, then
insert Accessory in the larger
end of the Extension Tube.
C. Firmly insert Accessory in the
open end of the Extension Tube
and your vacuum is now an
extended stick cleaner.
A.
B.
C.
STICK VAC
with FLEX HOSE

10 Before Use
Before Use

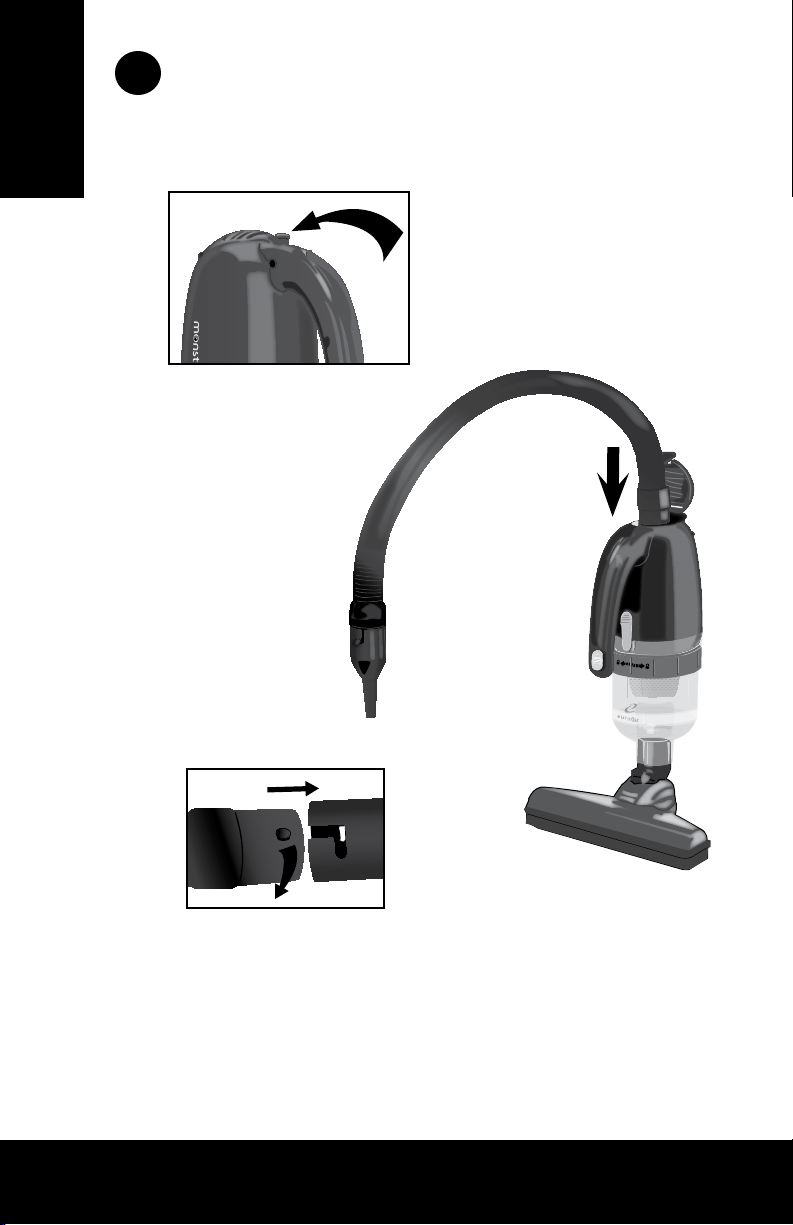

Using Unit as a Blower
7
When you need to clean up leaves, clear dirt from doorways
and window tracks, or blow up air mattresses, the Multi-
Function Hand Vacuum can also be used as a Blower.
A. Pull the Blower Opening Release
up and away from the Handle.
B. Firmly insert the end of Flex Hose
with the 2 small squares on either
side into the opening.
C. Attach Blower Nozzle to Flex Hose
Line up opening on Blower Nozzle
with round button on other end of
Flex Hose.
Insert Flex Hose in Blower Nozzle and
turn Hose to right to lock in place.
A.
B.
C.
UNIQUE
BLOWER

11 Before Use
Before Use
B. Insert a Scent Cartridge in the opening. Push top down until it “snaps”
in place.
Replacement packs of scent cartridges are available
for purchase by phone, online or at a participating
electrical appliance retailer.
To Order Replacement Scent Cartridge Packs
Call: 1800 663 866 (Australia) or 0800 666 783 (NZ), or
Visit: www.monsterappliances.com.au
REPLACEMENT SCENT CARTRIDGES
Insert Scent Cartridges
8
Your Multi-Function Hand Vacuum comes with a 5-pack of
Scented Cartridges to freshen the air while you clean. Simply
insert one of the scented cartridges in the unit and enjoy.
When scent is gone, it’s time to change the cartridge.

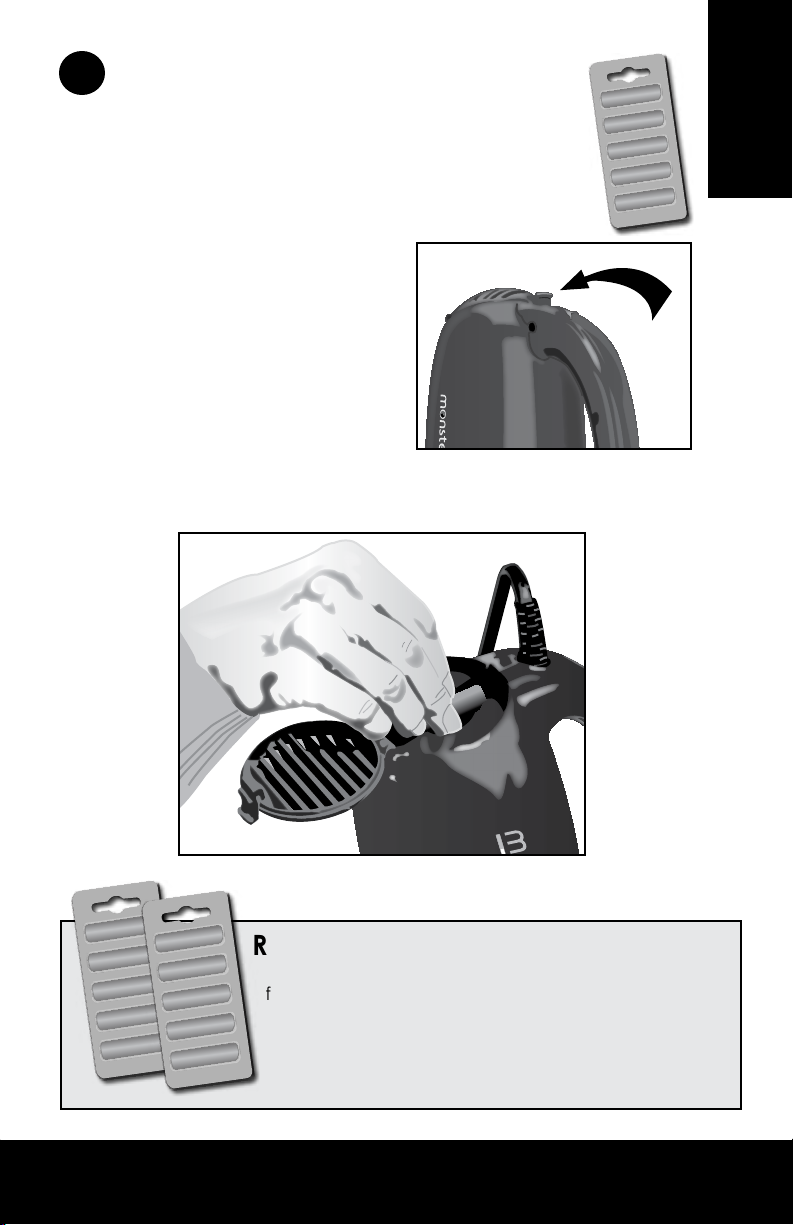

To Install Scent Cartridge:
A. Open the top of the unit by pulling
the Opening Release up and
away from the Handle.
A.
B.

12 Operation & Cleaning & Maintenance

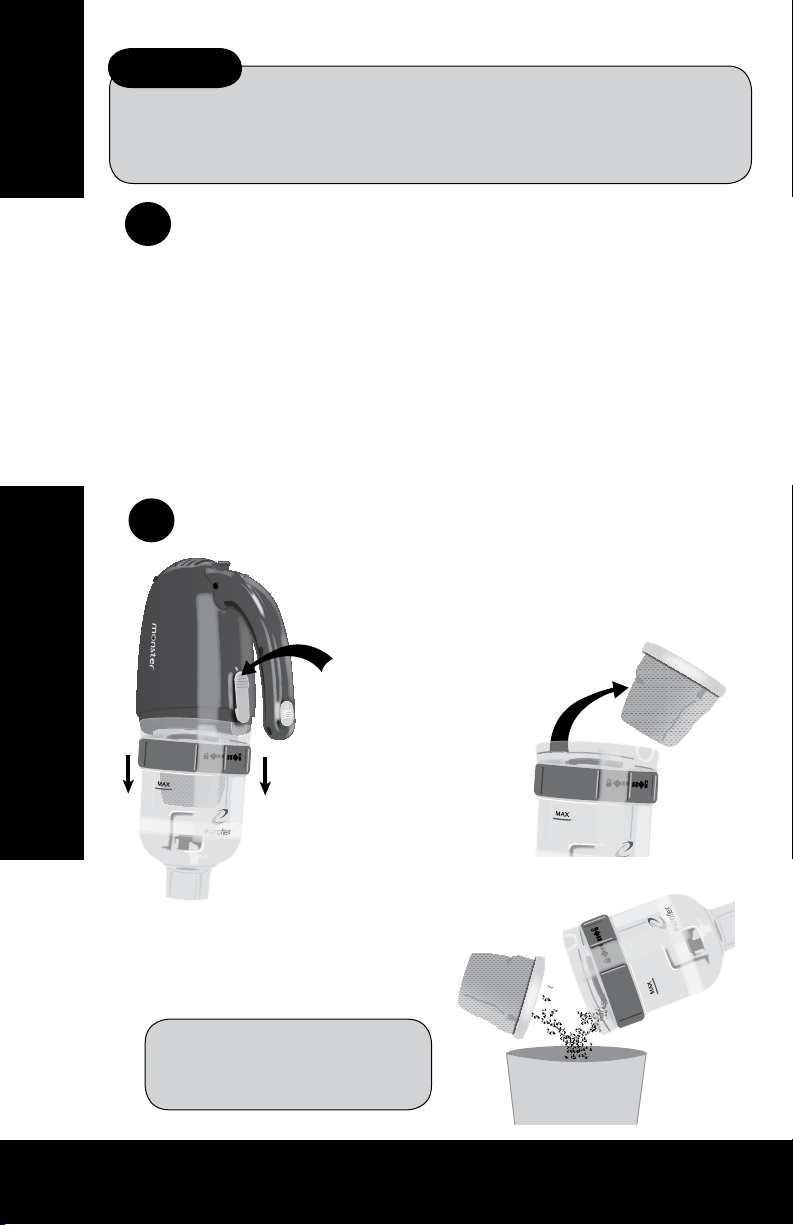

Emptying Dust Cup & Cleaning Filter
A. Remove Dust Cup
Push Dust Cup Release at top and remove Dust
Cup from vacuum (see image at left).
10
NOTE: We recommend replacing
the Dust Cup Filter every three
(3) months to ensure peak
performance of the unit.
C. Empty Debris from
Dust Cup and Filter
Brush off clinging dirt and dust
from the outside of the Filter
and empty debris
in trash can.
B. Remove Filter from
Dust Cup
Lift Filter from
top of Dust Cup.
OperationCleaning & Maintenance
Operating the Multi-Function
Hand Vacuum
Whether you are using as a Vacuum or Blower, the operational
steps are the same as listed below
• Hold the vacuum rmly using the Handle.
• Plug Power Cord in an electrical outlet.
• Slide the Power Switch to the “On” position and begin
vacuuming or blowing.
• When nished, turn Switch “Off”, unplug unit, bundle power cord
and place unit in a cool, dry location.
9
*CAUTION*
The hand vacuum is a powerful unit. Be sure to hold it rmly, as it can slip from
your hand and may cause injury.
ALSO…Ensure the Dust Cup opening and all Accessories are free of obstructions
at all times. If clogged, the motor will overheat and could become damaged.

13 Cleaning & Maintenance
B. Replace Dust Cup
Insert the notch at the bottom of the unit in the
small square hole at the top of the Dust Cup,
then match up the rounded cutout on Dust
Cup with the Dust Cup Release. Push Dust Cup
Release down and snap Cup in place.
Cleaning Filter
When Filter becomes extremely dirty, you can wash it by hand.
• Rinse Dust Cup Filter with cold tap water and ALLOW IT TO AIR DRY
COMPLETELY.
Replacing Filter and Dust Cup
Do not use a washing machine to clean Dust Cup Filter. Do not use
any detergents or chemicals to clean Filter. Do not use a hair dryer
to dry the Filter. AIR DRY ONLY.
A. Replace Filter in Dust Cup
Lower Filter into the
top of Dust Cup.
Cleaning & Maintenance
*IMPORTANT*
NEVER USE THE MONSTER VAC WITHOUT A FILTER IN PLACE.

14 Replacement Parts
Replacement Parts
Replacement packs of scent cartridges are available
for purchase by phone, online or at a participating
electrical appliance retailer.
To Order Replacement Scent Cartridge Packs
Call: 1800 663 866 (Australia) or 0800 666 783 (NZ), or
Visit: www.monsterappliances.com.au
Replacement packs of Filters are available for
purchase by phone, online or at a participating
electrical appliance retailer.
To Order Replacement Filters
Call: 1800 663 866 (Australia) or 0800 666 783 (NZ), or
Visit: www.monsterappliances.com.au
REPLACEMENT SCENT CARTRIDGES
REPLACEMENT FILTERS

15 Troubleshooting
Troubleshooting
Issues Possible Causes Solutions
Hand Vacuum will not operate. No power coming from electrical outlet. Check fuse or breaker, and replace fuse or
reset breaker if needed.
Safety Shutoff Feature temporarily Unlplug unit, empty Dust Cup, clean Dust Cup Filter
cuts off power to the unit. and let unit cool for 20 minutes.
Unit needs servicing. Send/take appliance to an authorized service center.
Call Customer Service.
Hand Vacuum will not pick up, or Dust Cup is full. Empty Dust Cup (see above).
suction power is weak. Dust Cup filter needs cleaning. Remove Dust Cup filter and check for object(s)
in air duct and remove. Clean Filter by brushing dust
& dirt clinging to outside of Filter.
Dust escaping from Hand Vacuum. Dust Cup is full. Empty Dust Cup.
Dust Cup filter installed incorrectly. Review Dust Cup instructions.
There is a hole in Dust Cup filter. Replace Dust Cup filter.
Hand Vacuum brushes will not pick up. Dust Cup is full. Empty Dust Cup.
Attachment may be clogged. Unclog attachment.
*IMPORTANT*
Vacuum automatically shuts off if Dust Cup is full or Filter is too
dirty, due to overheating.
Please follow these steps to reset the unit:
1. Unplug unit.
2. Empty Dust Cup.
3. Clean Filter.
4. Let unit cool for 20 minutes.
Unit should operate after above steps have been followed. If this
does not x the issue, call customer service at:
1800 663 866 (Australia)
0800 666 783 (NZ),

H056 (Australia/NZ) 11/17/14
EFLX-060AB
Customer Support
Customers needing assistance with their Monster Multi-Function Hand Vacuum can
call the Customer Support Line on the phone numbers listed below. Customers should
also call the Customer Support Line if they require product warranty assistance or
post-warranty servicing. Our friendly Customer Service Team can assist you to get the
best cleaning results from your Monster Vac.
Monster Customer Support Line
AUSTRALIA 1800 663 866
NEW ZEALAND 0800 666 783
Monster Appliances (Australia)
8 Success Way
WANGARA WA 6065
AUSTRALIA
TEL: [phone]
Email: admin@euroex.com.au
Website: www.monsterappliances.com.au
Euroex New Zealand Ltd
PO BOX 305 650
Triton Plaza
North Shore 0757
NEW ZEALAND
TEL: [phone]
Email: admin@euroex.com.au
Website: www.monsterappliances.com.au
Euroex SRL
Via dei Colli, 153
31058 Susegana (TV)
ITALY
Tel: [phone]
Email: euroex@euroex.tv
Website: www.euroex.tv
