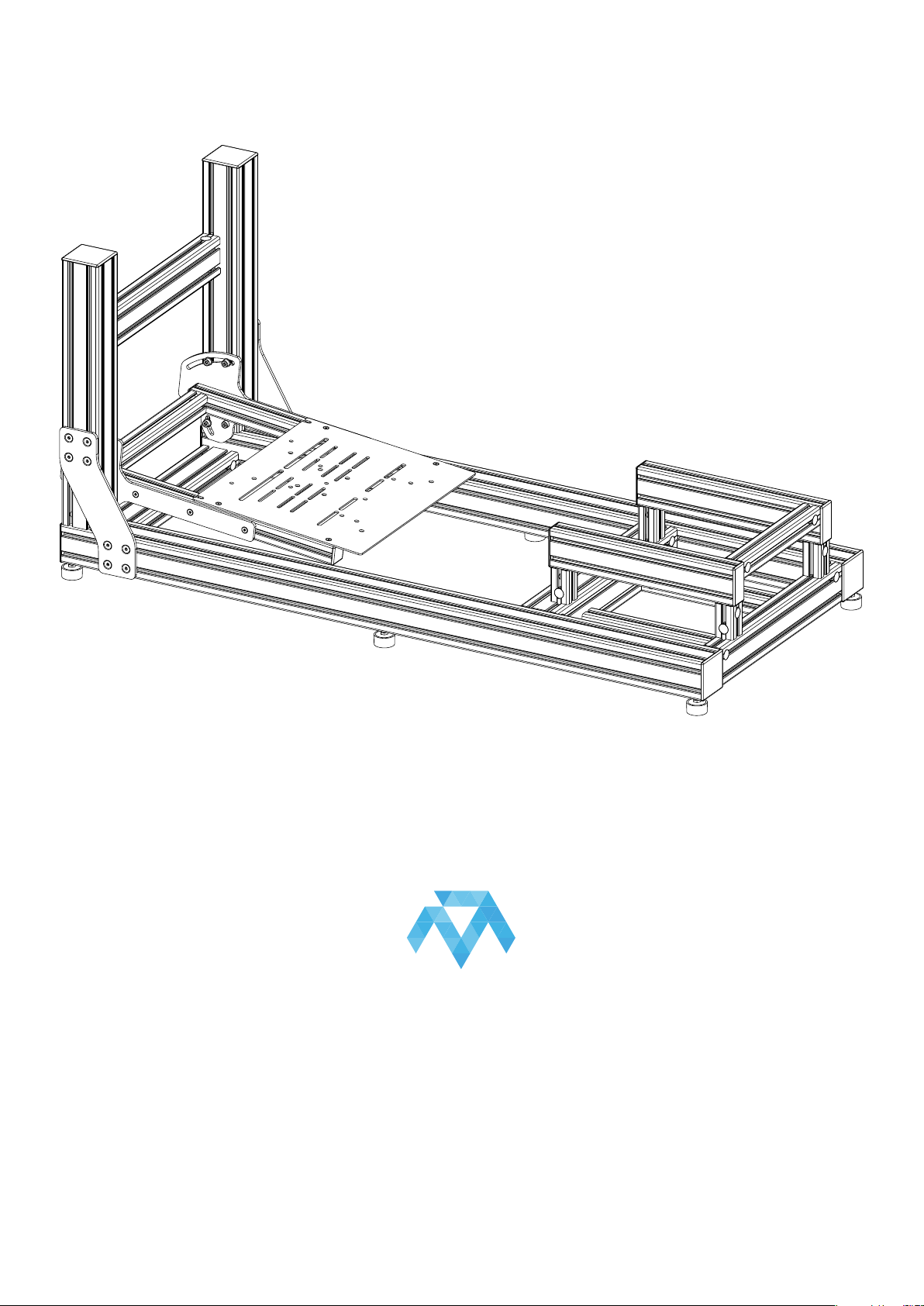

Monstertech MTS User manual

MTS BASE FRAME
Instruction Manual
Bedienungsanleitung
Mode d‘emploi

2MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
1400
80
80
475
80
80
80
80
550
475
40
80
475
40
80
400
40
80
70
40
40
70
40
40
320
40
40
305
40
40
550
40
40
384
40
40
2x
2x
1x
1x
2x
2x
2x
1x
2x
2x

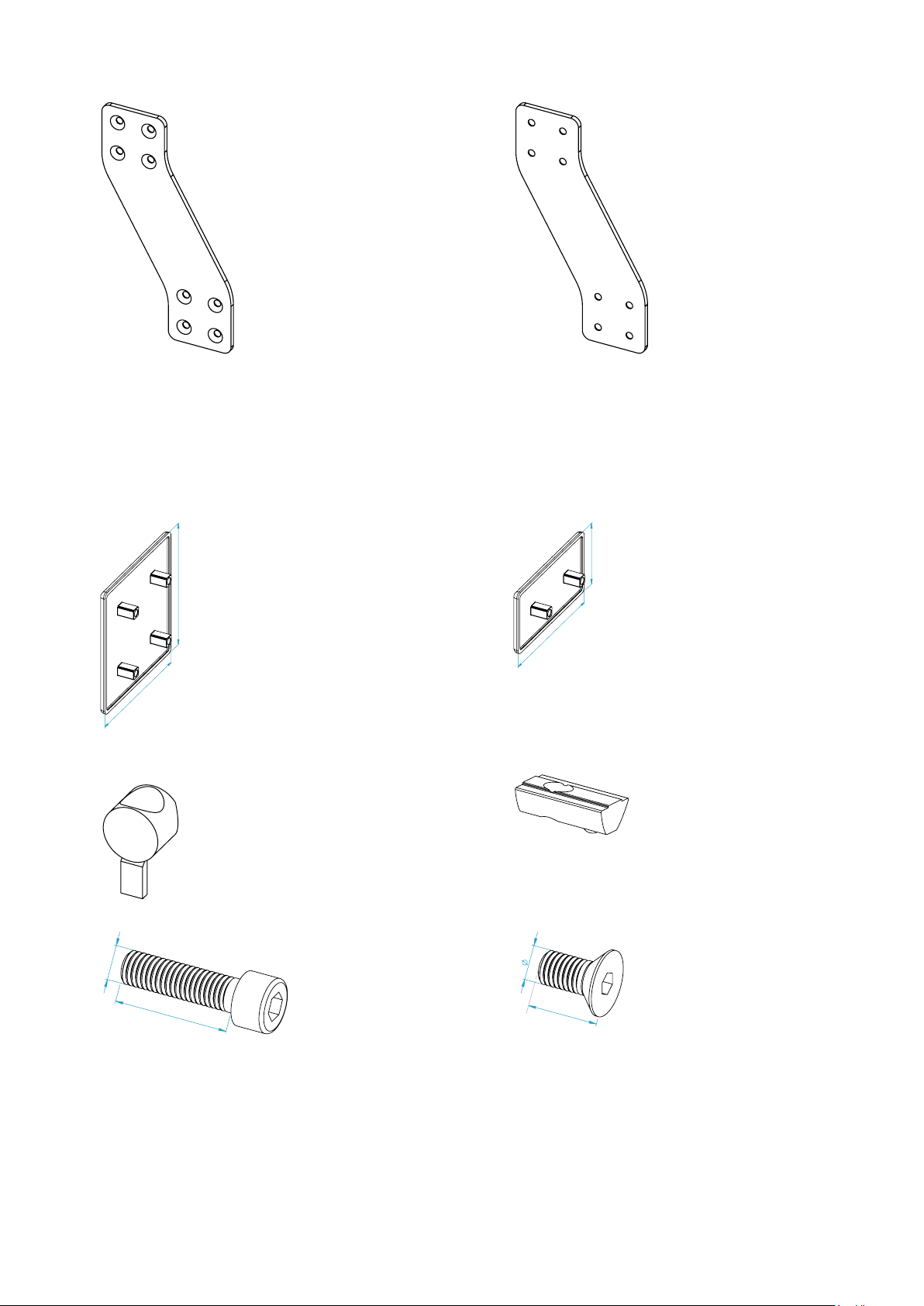

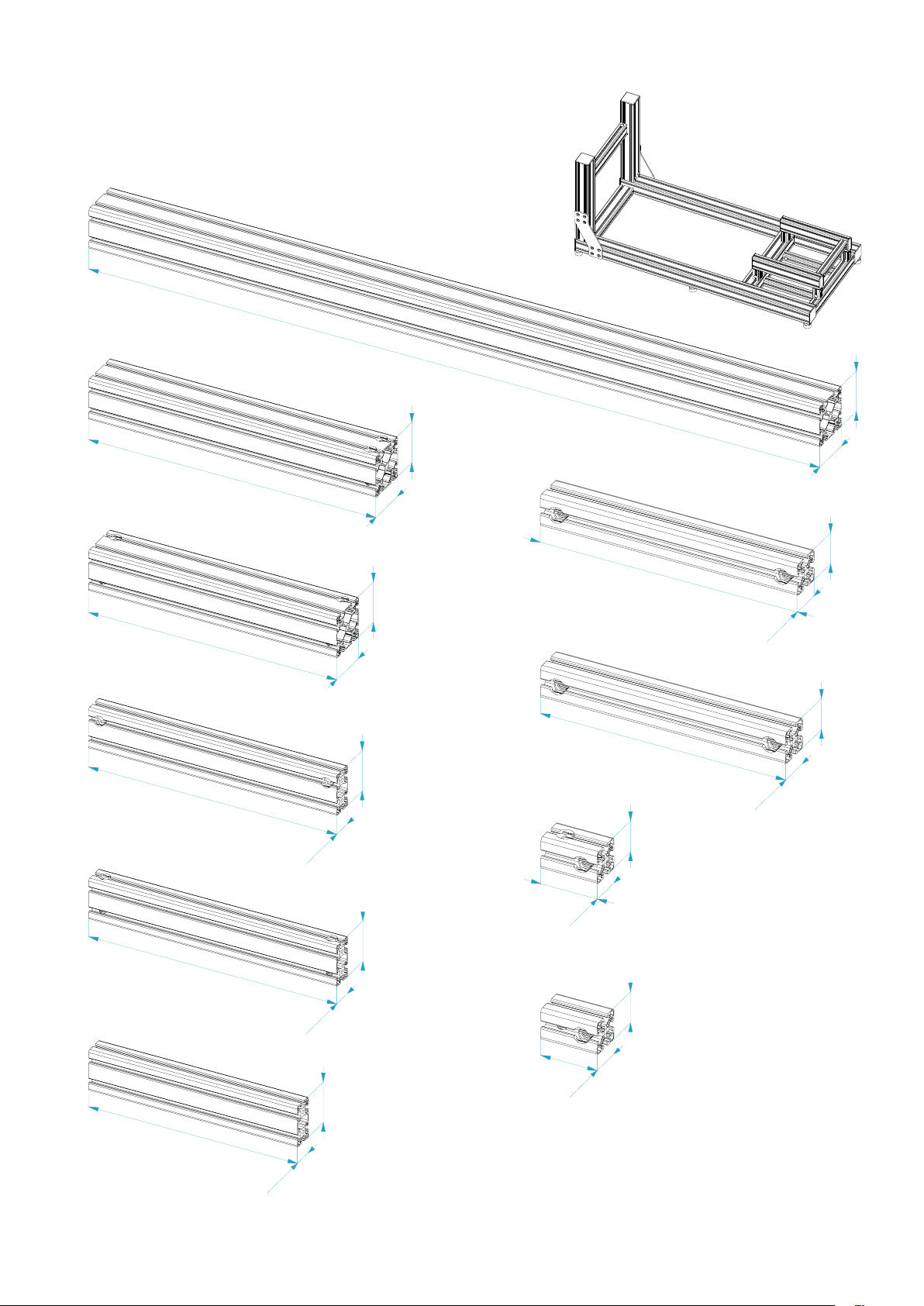

PARTS [dimensions in mm / different
scales]

3MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
1x
4x6x
16x
38x
38x
54x
1x
80
80
80
40

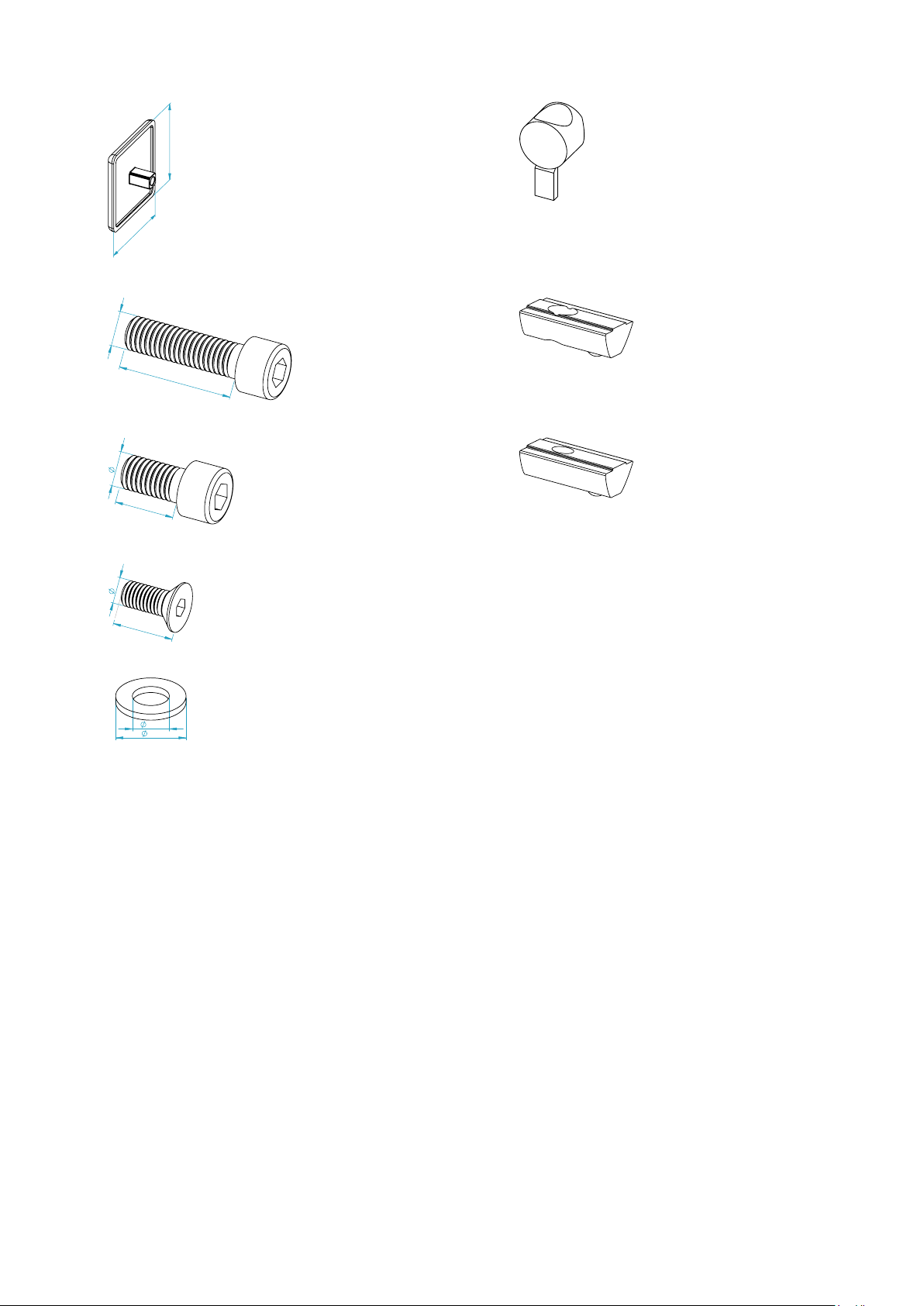

BAG 1
M8
30
Ø8
16
8
flat head
black

4MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
6x
6x
6x
BAG 2 (feet)
8,4
12
5
M8
8,4
24
M8
6x
6x

5MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
475 mm
1400 mm
ASSEMBLY
M8x30
slot
nut M8
Ø8mm

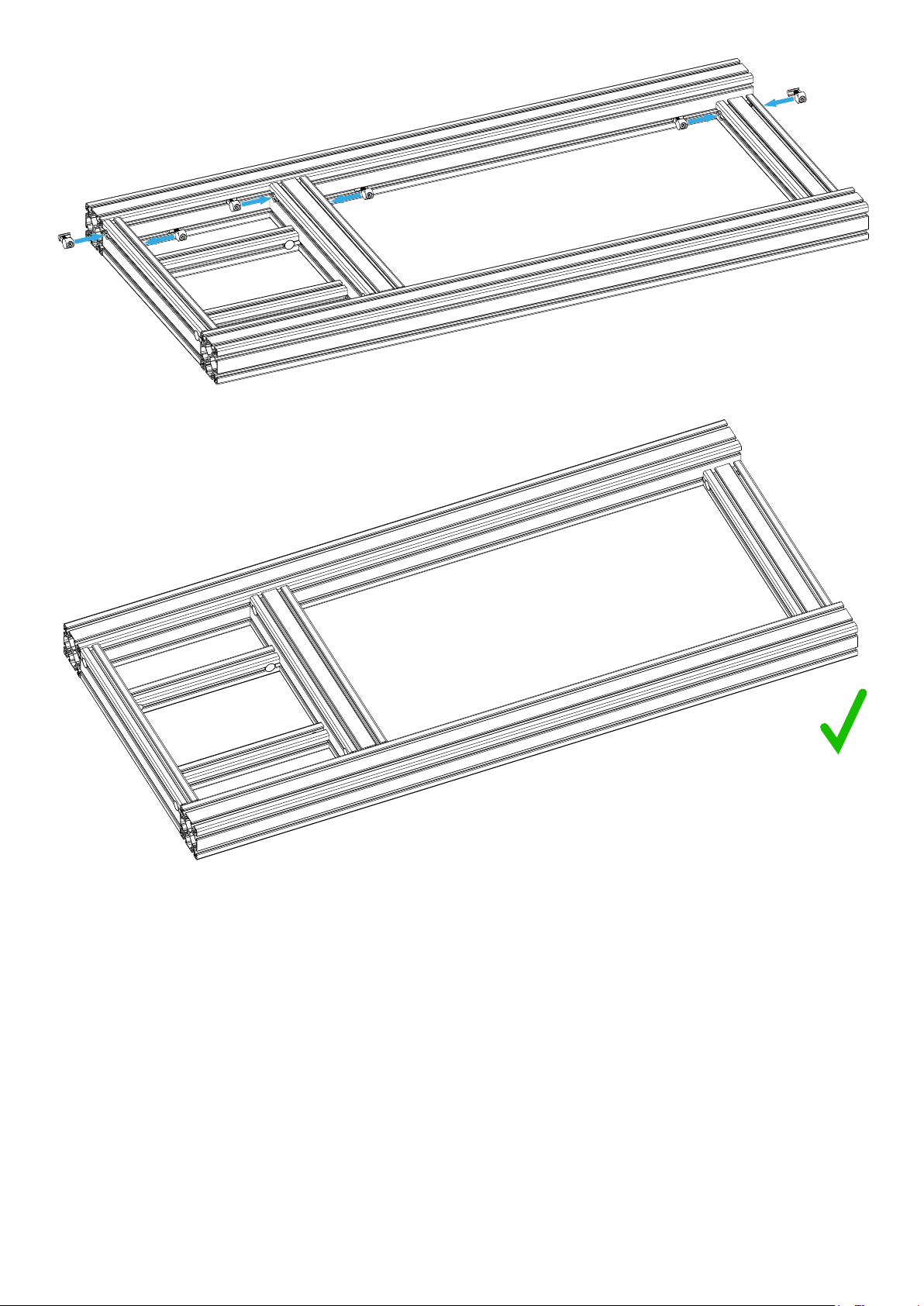

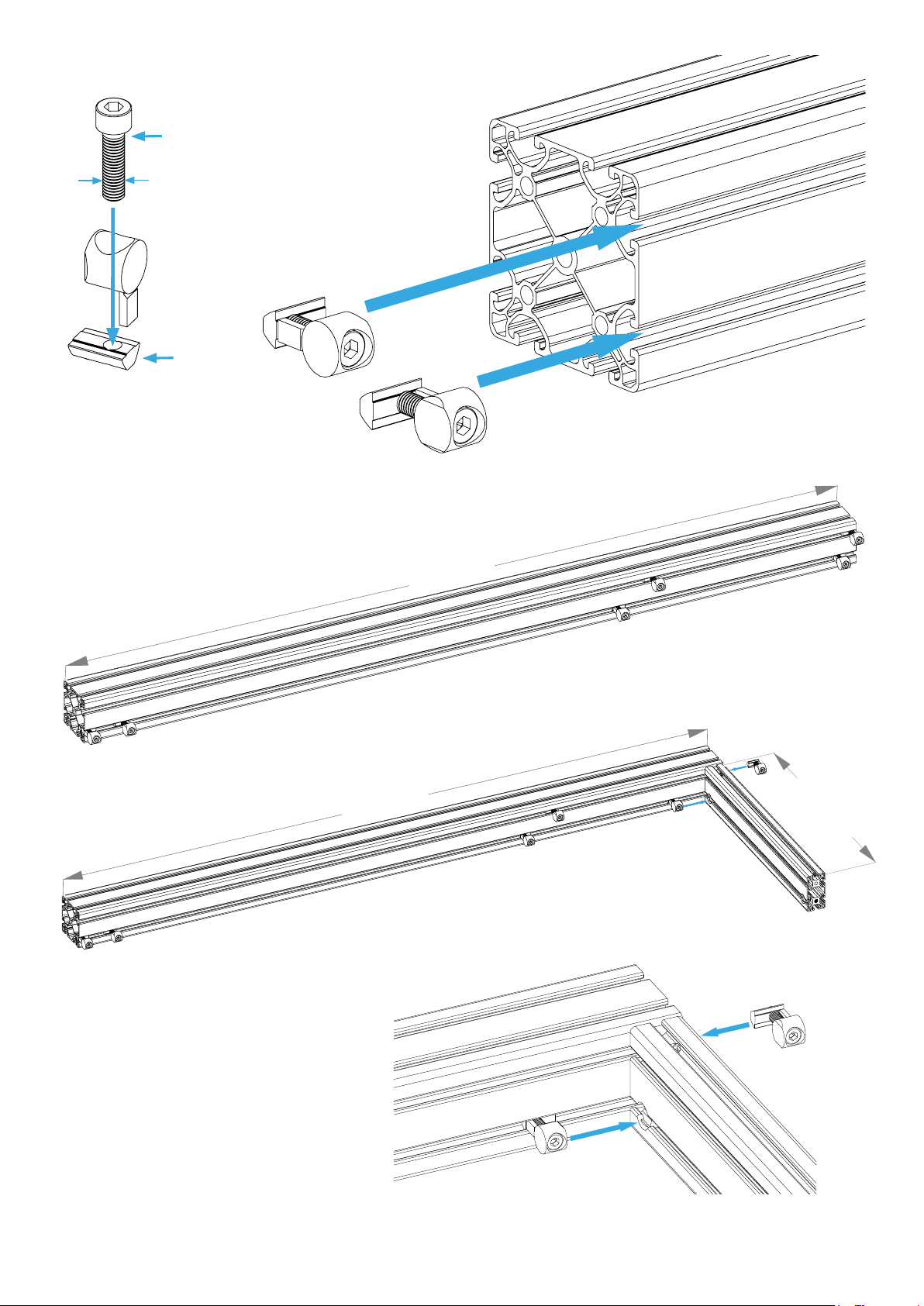

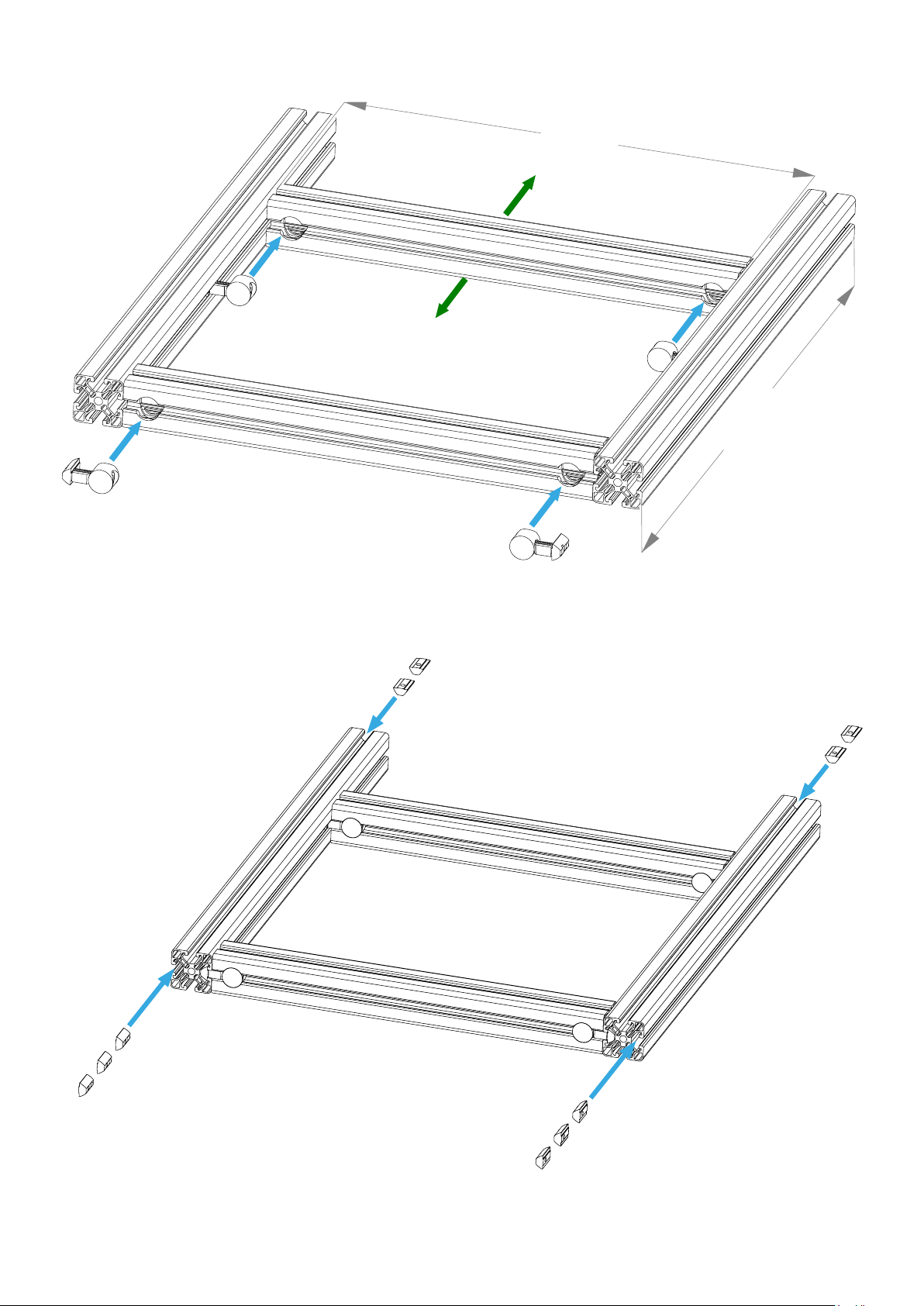

Prepare universal connectors
(loose fit) and slide in paired.
Use a plan surface forUse a plan surface for
assembly.assembly.
Tighten slightly until ALLTighten slightly until ALL
profiles are placed.profiles are placed.
1400 mm
Detail

6MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL

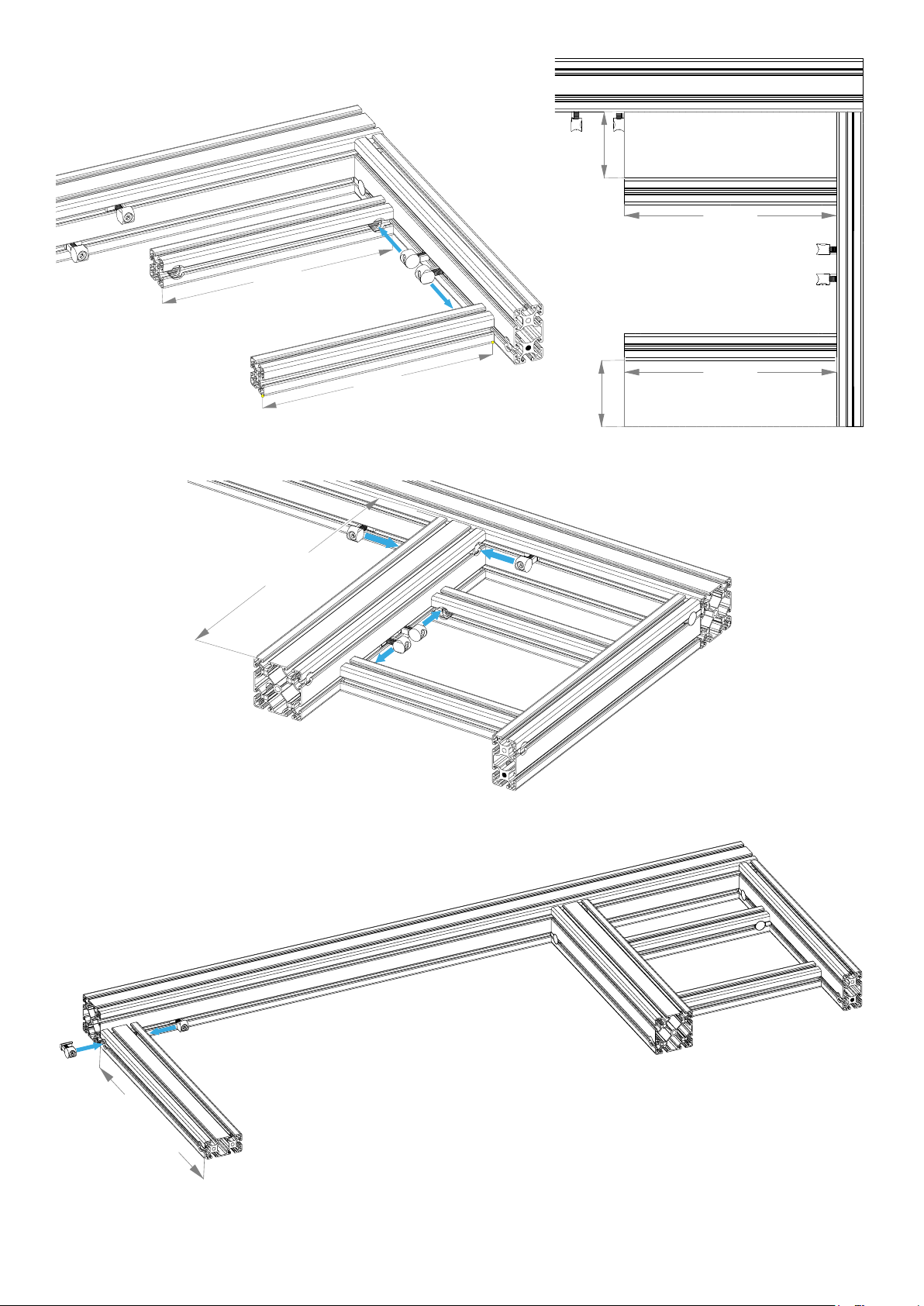

320 mm
320 mm
320 mm
320 mm
100 mm 100 mm
top view
475 mm
475 mm

7MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
Tighten all bolts now!

8MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL

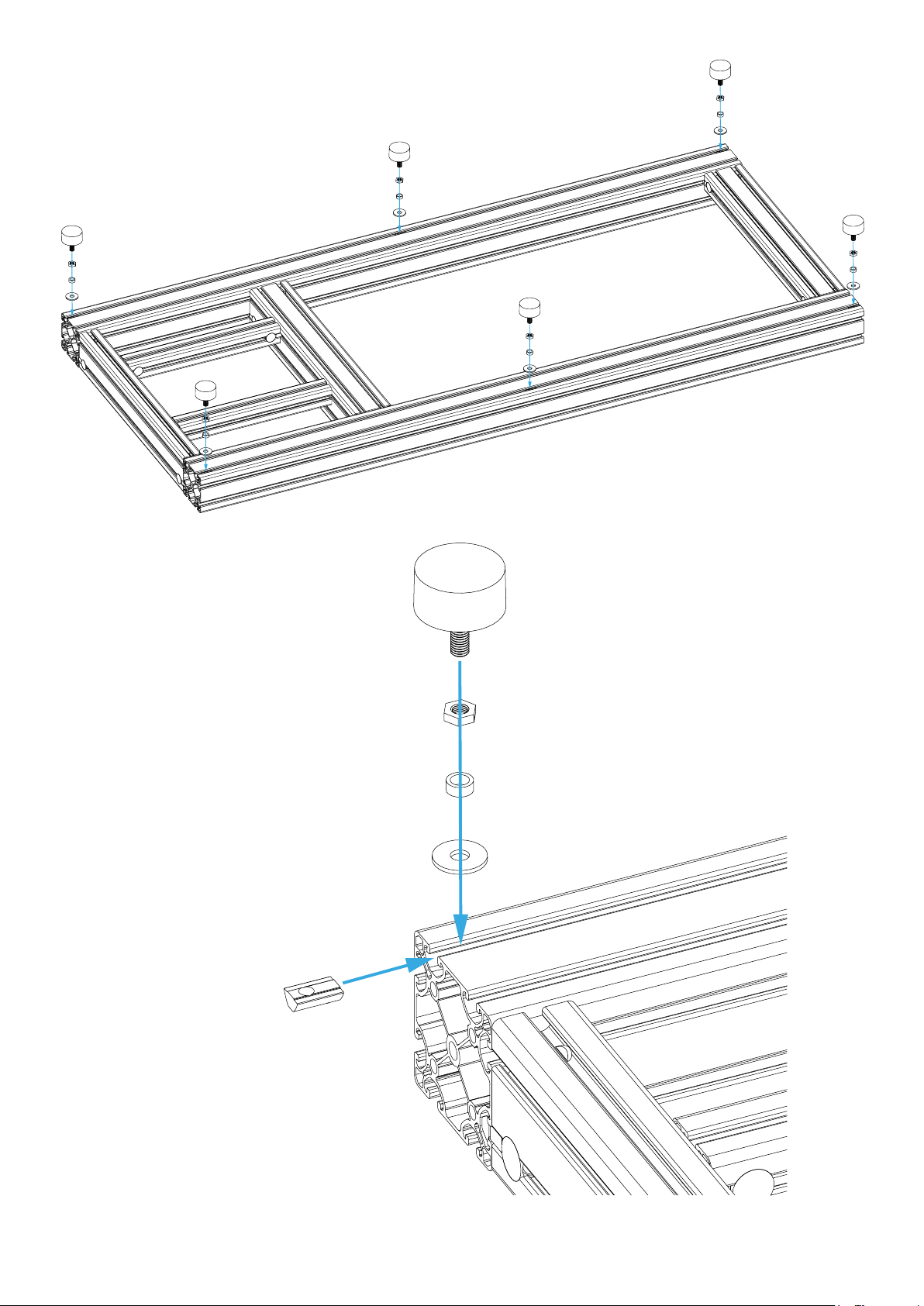

Mounting the feets.
Two in the middle of the profiles.
Four at the ends.
6x feet
flat nut M8
spacer 5 mm
washer Ø24 mm
slot nut M8

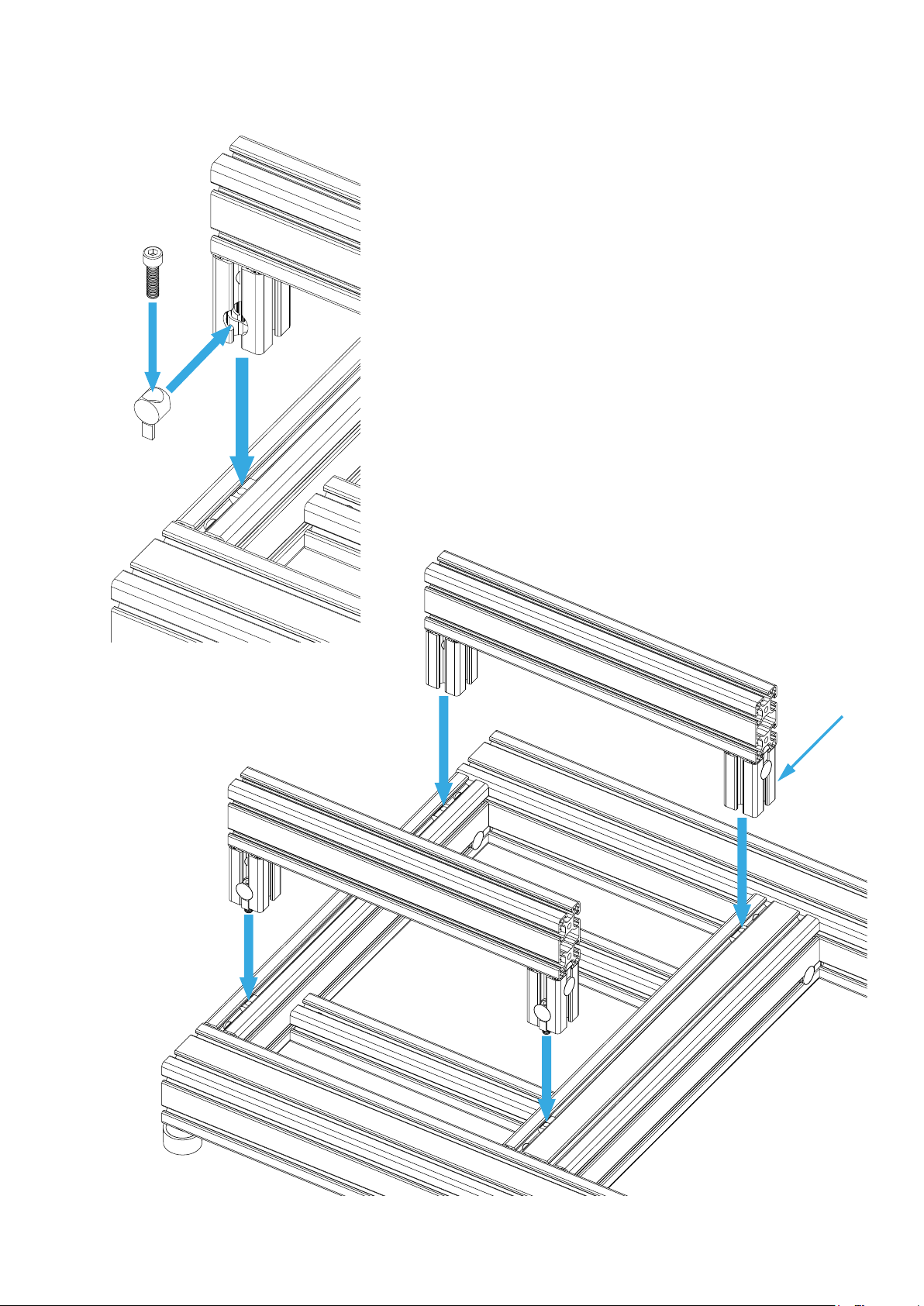

9MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
height
adjustment
for uneven
floor
tighten nut
after height
adjustment

10MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
70 mm
400 mm
70 mm
4x slot nut M8
2x

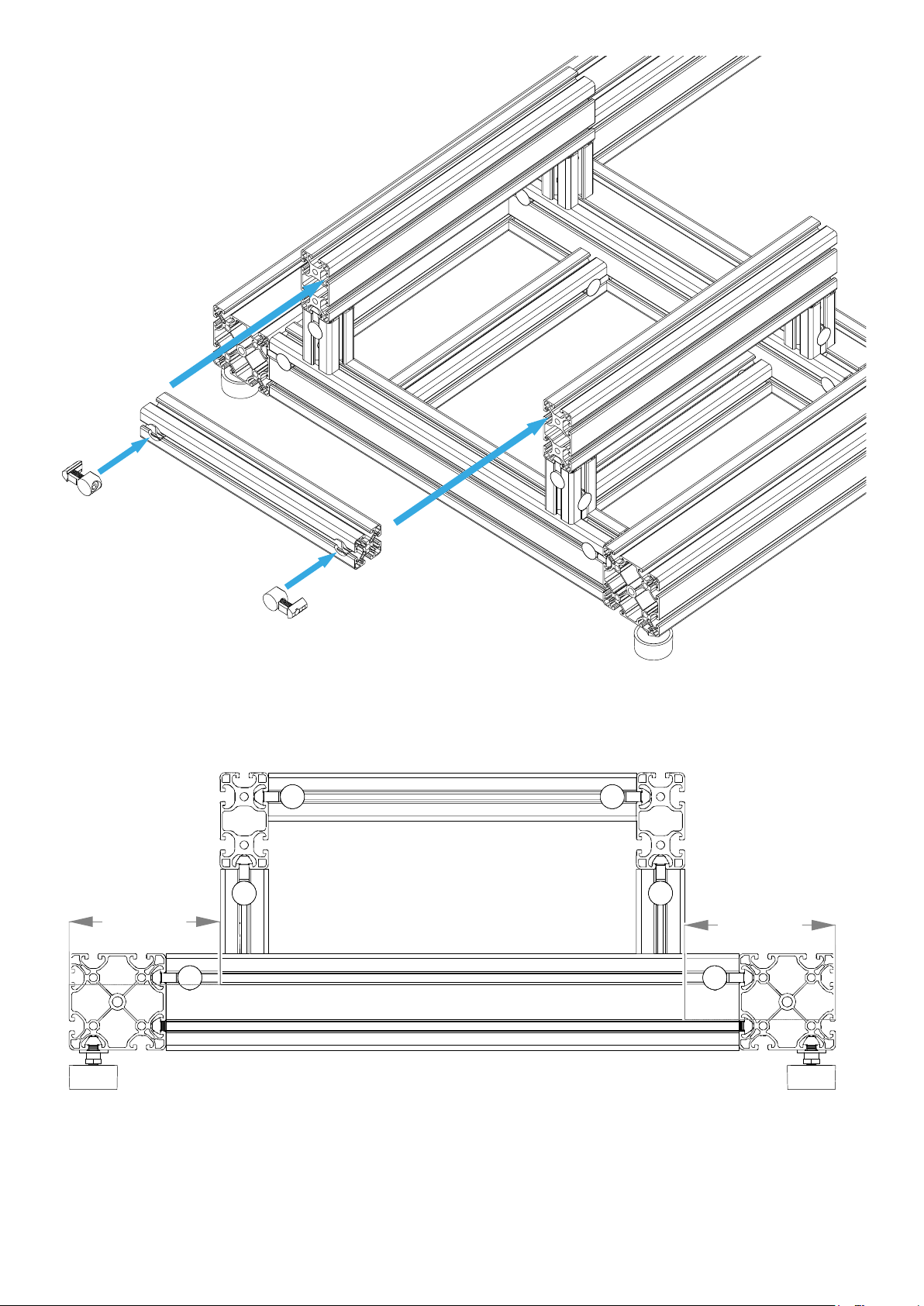

11MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
M8x30
universal
connector
4x
universal
connectors
outer side
1. 2.
3.
Tighten slightly until all
profiles are placed.

12MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL

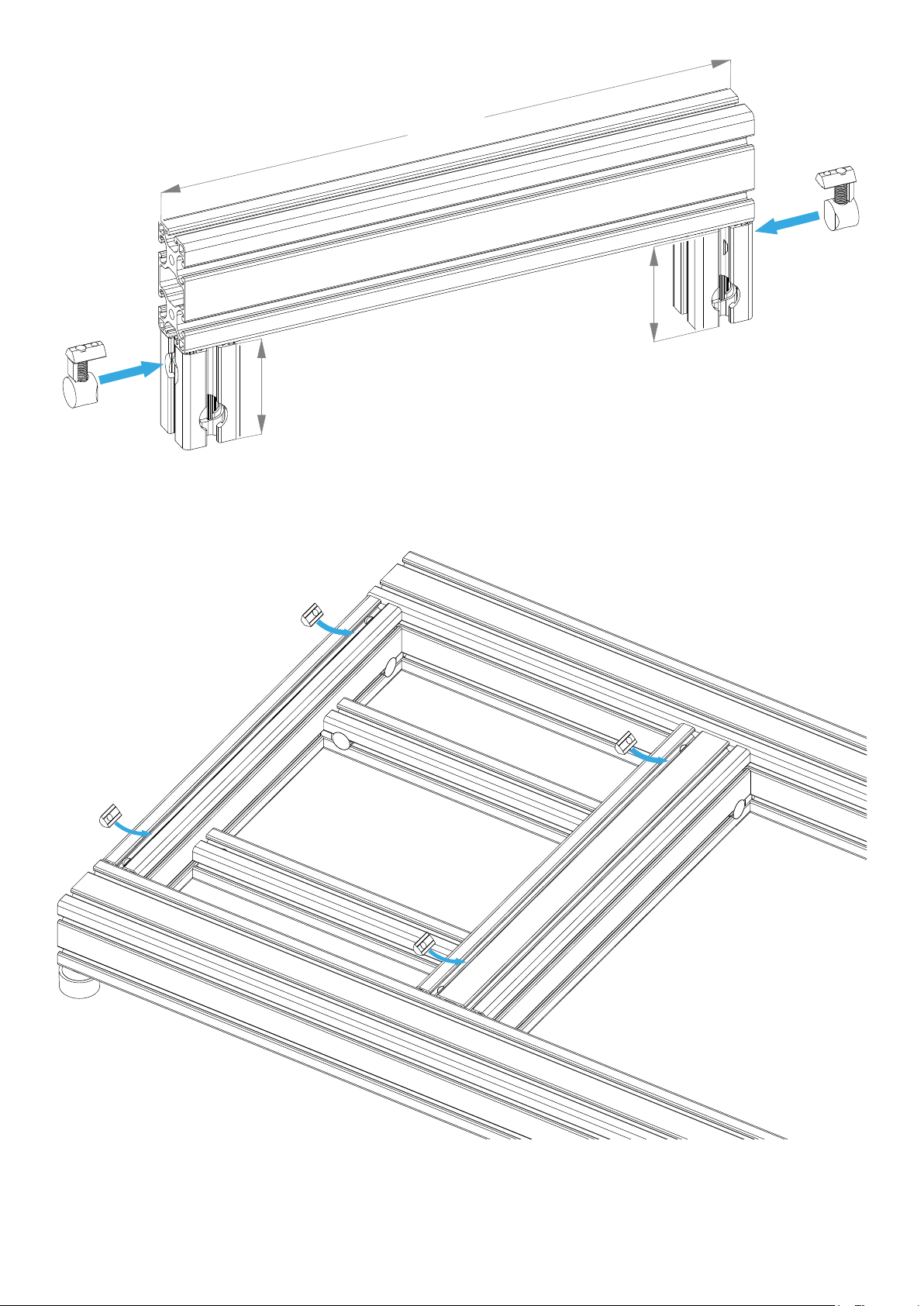

130 mm
130 mm
If your seat has a different
mounting width you can
leave this profile away.
Tighten bolts now.
ATTENTION!
Monstertech
Center Joysick woun‘t fit
for other seat width!

13MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL

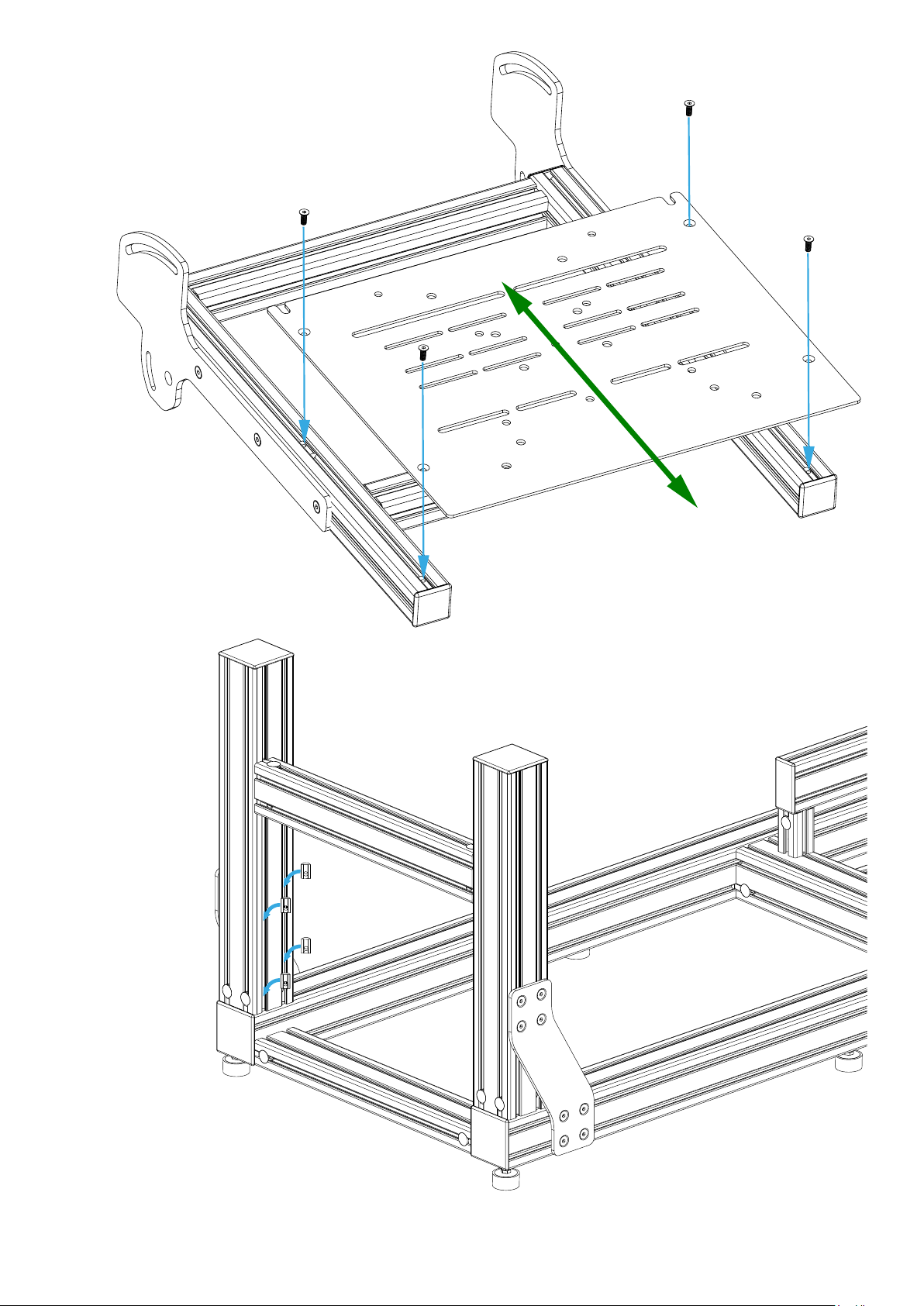

550 mm
Tighten bolts
slightly.

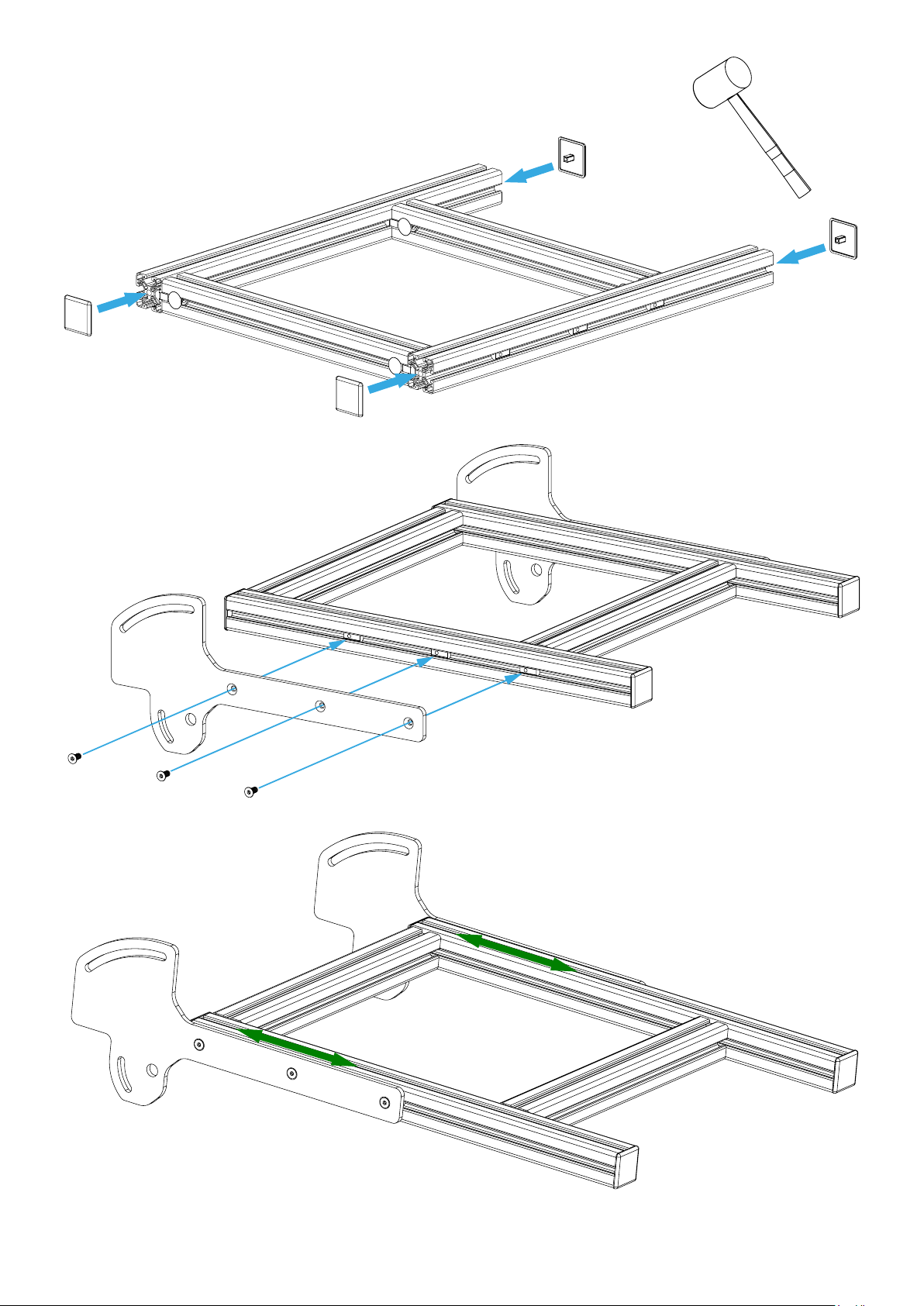

Mount profile
and then
tighten bolts.
approx.
150 mm

14MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL

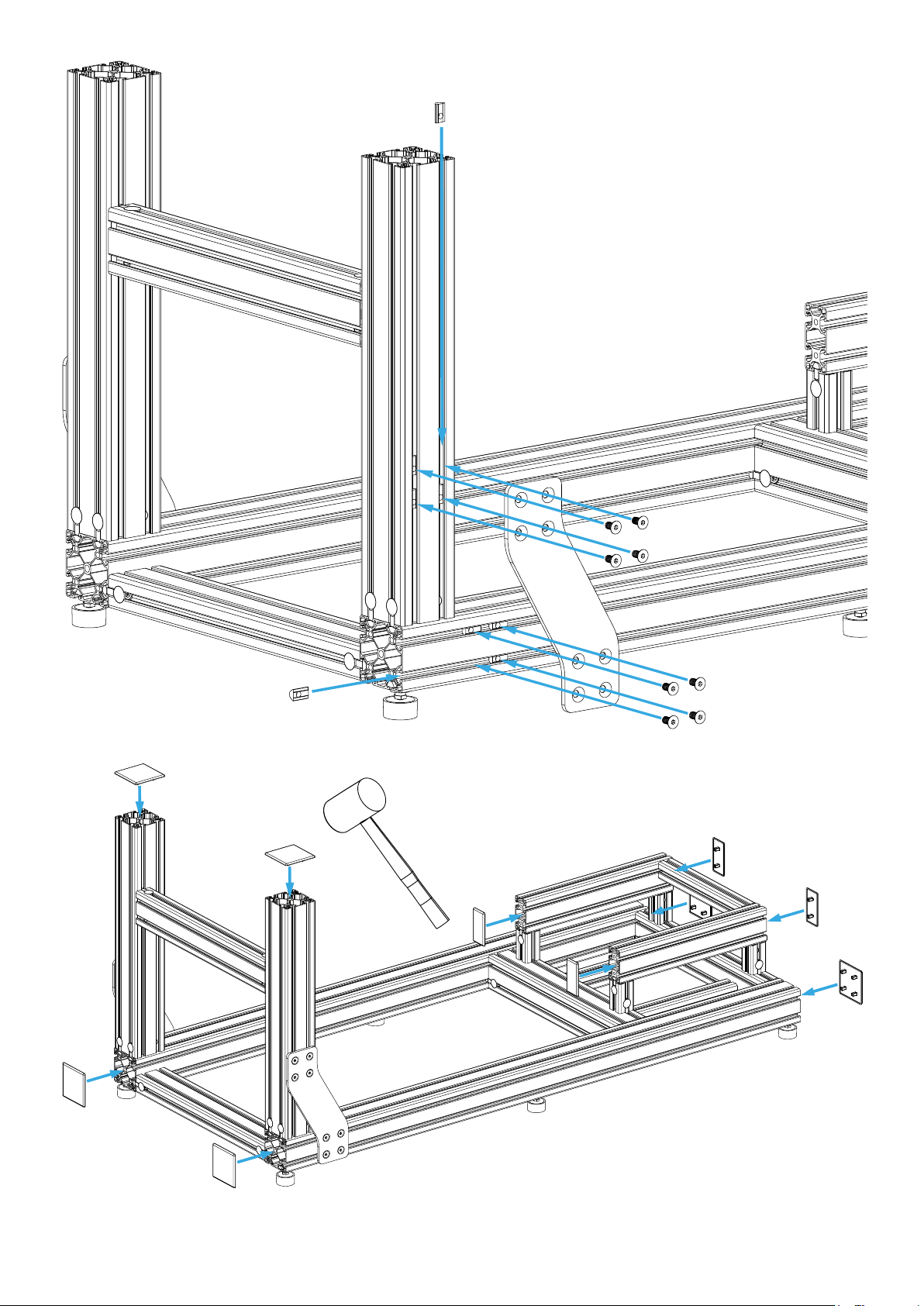

8x
M8x16
flat head
black
4x
slot nut
M8
4x
slot nut
M8
Same assembly
on both sides
of the rig.
place
all
caps

15MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
1400
80
80
475
80
80
80
80
550
475
40
80
475
40
80
400
40
80
70
40
40
70
40
40
320
40
40
305
40
40
550
40
40
384
40
40
2x

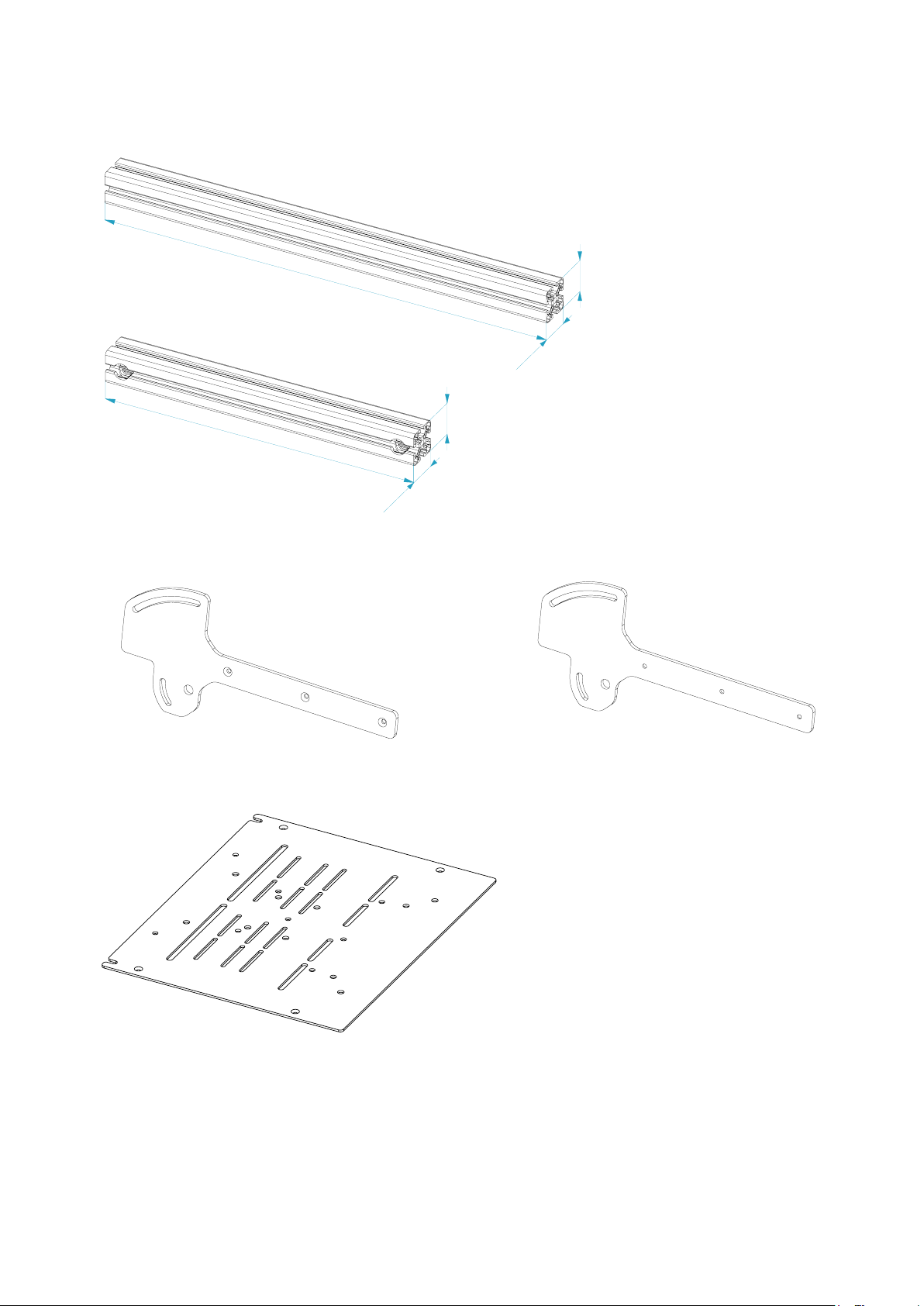

PARTS - PEDALS / RUDDER [dimensions in mm / different
scales]
2x
1x 1x
1x
hole pattern could
change by updates

16MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
40
40
4x 4x
30
Ø8
4x
8x
6
14
12x
12x
M8
12x
black
black
M6
BAG 3 (pedals / rudder)
8,4
16
8x
black
8
16
BAG 4
with various bolts and nuts for mounting your pedals.
BAG 5
various tools

17MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
384 mm
550 mm
Use a plan surfaceUse a plan surface
for assembly.for assembly.
ASSEMBLY
Choose a position where theChoose a position where the
profile didn‘t block your pedalprofile didn‘t block your pedal
mounting bolts.mounting bolts.
3x slot nut M6
3x slot nut M6
2x slot nut M6
2x slot nut M6

18MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
caps
caps
3...4x M6x14
flat head
black
Adjust distance
by loosening
the bolts.
other side too

19MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
4x M6x14
flat head
black
another distance
adjustment option
4x
slot nut
M8
both sides

20MONSTERTECH MTS BASE FRAME INSTRUCTION MANUAL
4x
washer Ø16
black
detail
4x
M8x16
black
For height
and angle
adjustments
loose these
bolts.
other side too
