Monte Carlo Fan Company Titus Instruction manual

DATE OF PURCHASE:
MODEL NUMBER:
RETAILER NAME:
RETAILER ADDRESS:
Attach sales receipt to this card and retain as yourproof of purchase
To register your fixture, please visit our website www.montecarlofans.com
3TTHR52XXXD Series Fan
CUL Model NO. : 3TTHR52XXD
Total fan weight with light
Owner’s Guide and Installation Manual
7 kg
15.4 lbs

2
© 2022 Monte Carlo Fan Collections 8/2022
Cautions and Warnings
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses, Stepladder and Wire Strippers
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING
READ AND SAVE THESE INSTRUCTIONS
Customer Service
800-969-3347
Customer Service Center
7400 Linder Ave.
Skokie, IL 60077
www.montecarlofans.com
Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70) including
fire-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side
of the outlet box and ungrounded conductor on the other side of the outlet box. The splices, after being made, should be turned upward and pushed
carefully up into the outlet box.
WARNING: Before you begin installing the fan, servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to
prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Be cautious! Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the floor
to the trailing edge of the blade.
WARNING: To Reduce The Risk Of Fire, Electric Shock, or Personal Injury, Mount To Outlet Box Marked “Acceptable for Fan Support of 15.9 kg (35 lbs)
or less” And Use Mounting Screws Provided With The Outlet Box.
CAUTION: For Compliance with Local Codes and Regulations, If Installing The Secondary Support Safety Cable in the U.S., Do Not Remove Knockouts
In The Outlet Box. Mount the secondary support safety cable through the reserved nail/screw hole on the outlet box to the building structure (or the
ceiling joist).
WARNING: To reduce the risk of personal injury, do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert
foreign object between rotating blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
WARNING: To reduce the risk of fire or electric shock, this fan must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part no. MR181A-3 manufactured by Satellite
Electronic (Zhongshan) Ltd.
WARNING: To reduce the risk of fire or electric shock, do not use this fan with any other solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
Never place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating equipment
manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
CAUTION: To Reduce the Risk of Electric Shock, Disconnect the electrical supply circuit to the fan before installing the light kit.
CAUTION: The light source is designed for this specific application and can overheat if serviced by untrained personnel. If any servicing is required, the
product should be returned to an authorized service facility for examination or repair.
All set screws must be checked and tightened where necessary before installation.

3
1 2 3
4 5 6
© 2022 Monte Carlo Fan Collections 8/2022
ON
OFF
ON
OFF

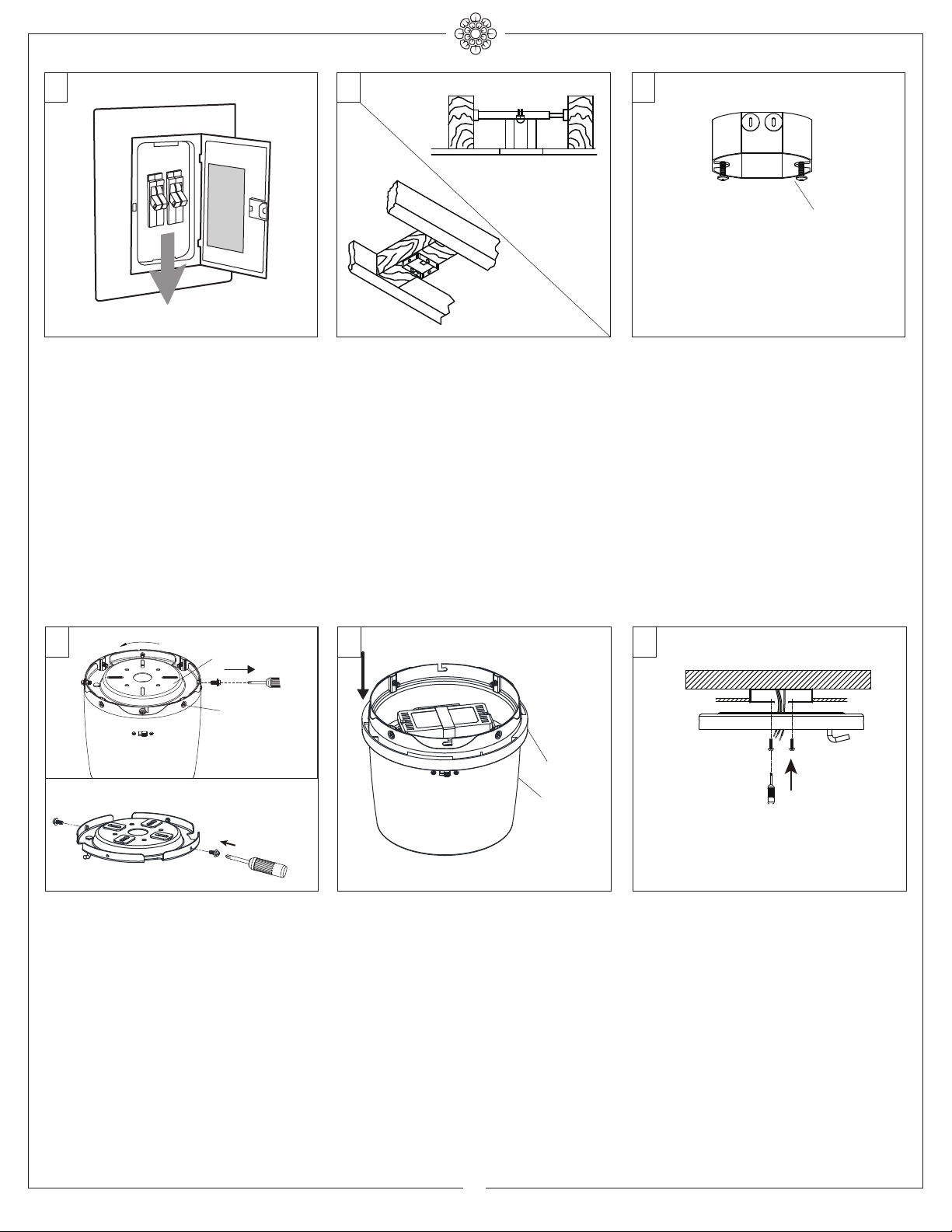

Before you begin installing the fan, Switch
power off at Service panel and lock
service disconnecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be locked,
securely fasten a warning device, such
as a tag, to the service panel.
Before installing this fan make sure the
outlet box is properly installed to the
house structure. To reduce the risk of
fire, electric shock, or personal injury,
mount to outlet box or supporting system
acceptable for fan support.
(Mounting must support at least 35 lbs.)
Use metal outlet box suitable for fan
support and use only the screws provided
with the outlet box (must support 35
lbs). Before attaching fan to outlet box,
ensure the outlet box is securely fastened
by at least two points to a structural
ceiling member ( a loose box will cause
the fan to wobble).
Remove the 4 set screws and remove the
mounting plate from fan housing. Keep
screws.
Partially reinstall 2 of the set screws onto
the mounting plate across from each
other as shown in the illustration.
Save the other screws and corresponding
to installation step 11.
Note: Do not remove the screws at
recessed areas.
Place the decorative ring over the
housing. Handle it carefully to prevent the
housing gets scratch from the decorative
ring. Make sure the side with grooves
is upward.
Note: The decorative ring cannot be
installed in position if it is placed upside
down.
Remove the two screws provided with the
outlet box, aligning the holes of the
mounting plate with the screw holes of
the outlet box. Reinstall the 2 outlet box
screws securely.
Outlet box
Mounting plate
Decorative ring
Housing
Do not remove
these screws
Mounting plate
Motor assembly

4
10 11 12
© 2022 Monte Carlo Fan Collections 8/2022
7 8 9
After making the wire connections, the
wires should be spread apart with the
grounded conductor and the
equipment-grounding conductor on one
side of the outlet box and ungrounded
conductor on the other side of the outlet
box. The splices after being made should
be turned upward and pushed carefully up
into the outlet box.
Attach motor assembly onto mounting
plate, aligning the keyhole slots on the
housing with the screws on mounting
plate and twist clockwise till tight.
Reinstall the screw removed in step 4.
Tighten all screws securely.
Attach decorative ring by locating the
head of set screws on housing with
grooves in the decorative ring and twist
clockwise till tight.
Align the holes on the blade with the
screw holes on the motor. Install the
blade by setting screws provided. Repeat
this process for other blades. Tighten all
screws securely.
Note: Make sure the side with a mark
“This side up” is installed upward.
Hang motor assembly onto the hook on
mounting plate for hands-free wiring and
safety cable installation.
(Use one of non-slotted holes).
For Canadian installation and for USA fan
and light kit combinations over 35 lbs, in
both flush and downrod modes the safety
cable must be installed into the house
structure beams using 3” lag screws,
washers and lock washers provided.
Make sure that when the safety cable is
fully extended the lead wires are longer
than the cable and no stress is placed on
the lead wires.
Note: If Installing The Secondary Support
Safety Cable in the U.S., Do Not Remove
Knockouts In The Outlet Box.
Make wiring connections as indicates
above, using wire connectors provided.
Connect Black wire from fan to Black
(Live) wire from house. Connect White
wire from Fan to White (Neutral) wire from
house. Connect all green grounded wires
to Grounded wire from House. Make sure
that no filaments are outside of the wire
connectors.
Hook
Lag screw
Safety cable
Washer
Lock washer
SAFETY CABLE INSTALLATION
Drawing 7
Wall switch White Black
Power source
Green/Ground
Green/Ground
White
Black
Black
Set screw
Motor assembly
Decorative
ring
Grounded
wires
Ungrounded
wires

5
13 14 15
16 17 18
© 2022 Monte Carlo Fan Collections 8/2022
Loosen 2 and remove 1 preassembled
screw from the plate on motor. Save
screw for later use.
Place the lead wires from fan over the
central hole of light pan
Aligning the keyhole slots on the light pan
with the preassembled screws on the
plate and twist it clockwise till lock.
Reinstall the screw removed . Tighten all
screws securely.
Connect white wire from fan to white wire from
LED light fixture and then connect blue (or
black) wire from fan to black (or blue) wire
from LED light fixture. Be sure plugs
connection clasped together completely.
Attach LED light fixture onto the light pan,
aligning the keyhole slots on the LED light
fixture with the preassembled screws on the
light pan. Twist clockwise till lock. Reinstall the
screw removed in installation step 14. Tighten
all screws securely.
Attach the light shade by locating dimples
in light pan with grooves on the light
shade and twist clockwise until tight.
Setting the reverse switch in the left hand
side will result in downward airflow and
setting the switch in the right hand side
will result in upward airflow.
Note: Reverse switch must be set either
completely Left or completely Right for
fan to function. If the reverse switch is set
in the middle position, fan will not
operate.
Loosen 2 and remove 1 preassembled
screw from light pan. Save screw for later
use.
Reverse switch
Light pan
Plate on motor
Light shade
Light fixture

6
© 2022 Monte Carlo Fan Collections 8/2022
Remote Controller Operation

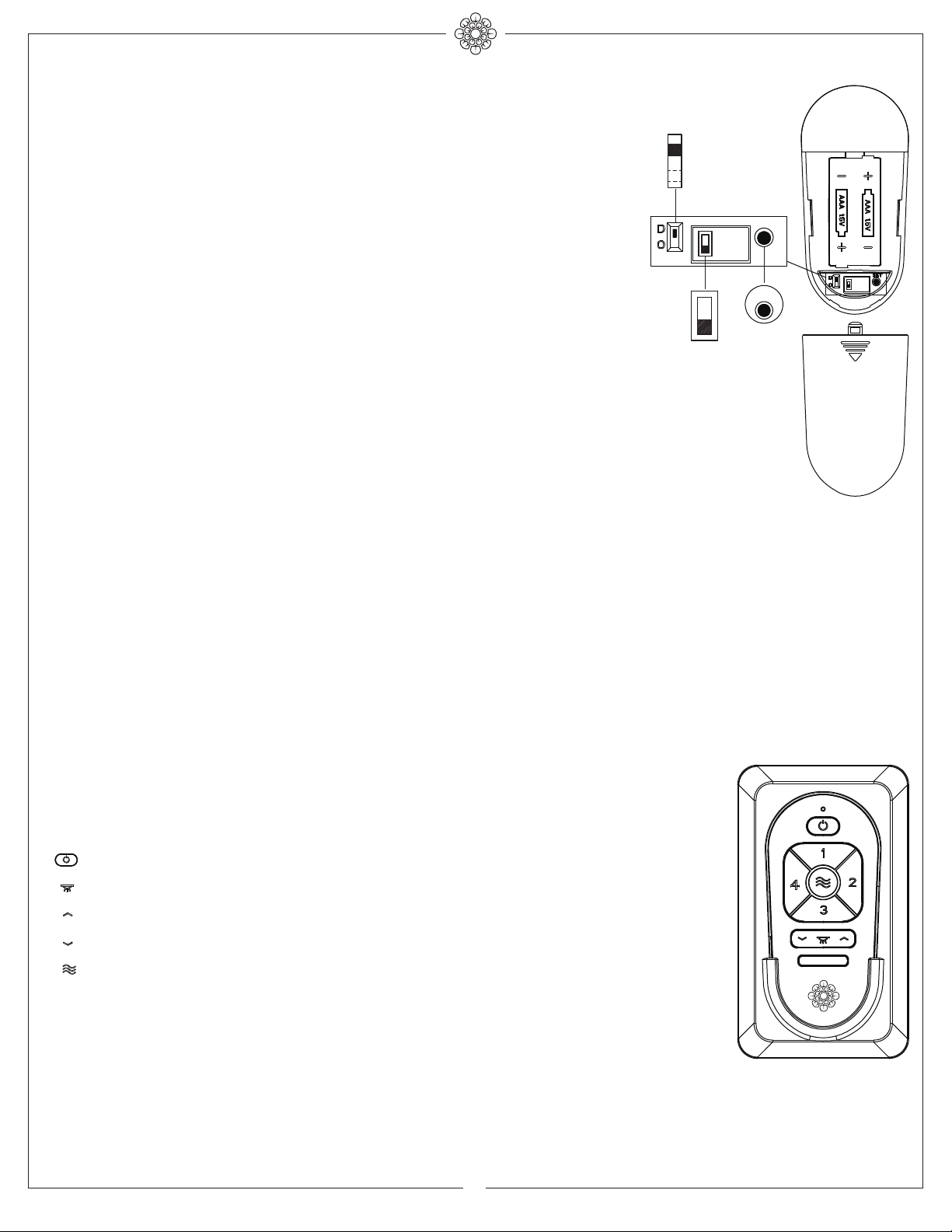

Remove the battery cover from the remote control transmitter and install batteries.
Replace the cover. This remote uses 2 1.5V/AAA batteries.
Note: If not using for long periods of time, remove the batteries to prevent damage to
remote controller, and store the remote controller away from excess heat or humidity.
The batteries will weaken with age and should be replaced before they leak or corrode as
this will damage the controller. Dispose of the used batteries properly. Always keep
batteries out of the reach of children.
Dimming, Non Dimming Setting (Only available for fans with light)
In the dimming mold, it is a light dimming selection and it is to be used with dimmable
luminaries. The remote controller is set with dimming function at factory.
In ON/OFF (non-dimming mold), it is for light ON/OFF only (non-dimming function).
The remote control buttons control the fan speed as follows:
1 = low speed 2 = medium speed 3 = medium high speed
4 = high speed
This button turns the fan off.
Light button- Press this button to turn light on or off.
Light button- Press this button to desired brightness, dim to bright.
Light button- Press this button to desired brightness, bright to dim.
Breeze-
Press the Breeze button, the Fan will operate randomly among 1st - 4th speed until the breeze mode is
canceled.
Breeze mode can be erased by pressing either the power or speed control buttons.
Note : This remote controller has auto resume function, the fan and light will maintain the last setting if
turned off with exception of the Breeze mold.
Battery cover
DIM (D)
ON/OFF (O)
SET
SET
1
0
1
0
1
0
Universal Mode and Learning Mode
Your remote controller has two options: “Universal Mode” (mark “0”) and “Learning Mode” (mark “1”).
If choosing “Universal Mode,” simply move the switch to the LOWER position (mark “0”). Your fan with
the remote controller is ready to use.
Note: If using Universal Mode, your fan can be controlled with other remote controllers with the same
setting.
To control the fan with a specific remote controller, choose “Learning Mode” by moving the switch to
the UPPER position (mark “1”) and then follow the Learn Mode steps below.
Learn Mode
Important: Turn the power on for ONLY the specific fan you wish to pair with the remote controller.
Make sure to turn the power off for all other fans with which you use the same remote controller.
Restore power to your fan, press and hold the “SET” button to pair the transmitter and receiver. You
must press the ‘SET” button within 60 seconds of restoring power to the fan.
Note : Fan will at first operate at minimum speed and light will blink (if your fan has a light) after you’ve
chosen Learn Mode.
Note : If the power is already on, you must turn the power off and then back on for the remote control
setting.
Note : If you reset the controller to Universal Mode (mark “0”) and later want to pair the controller
again to a specific fan, you have to repeat the Learn Mode steps.

7
© 2022 Monte Carlo Fan Collections 8/2022

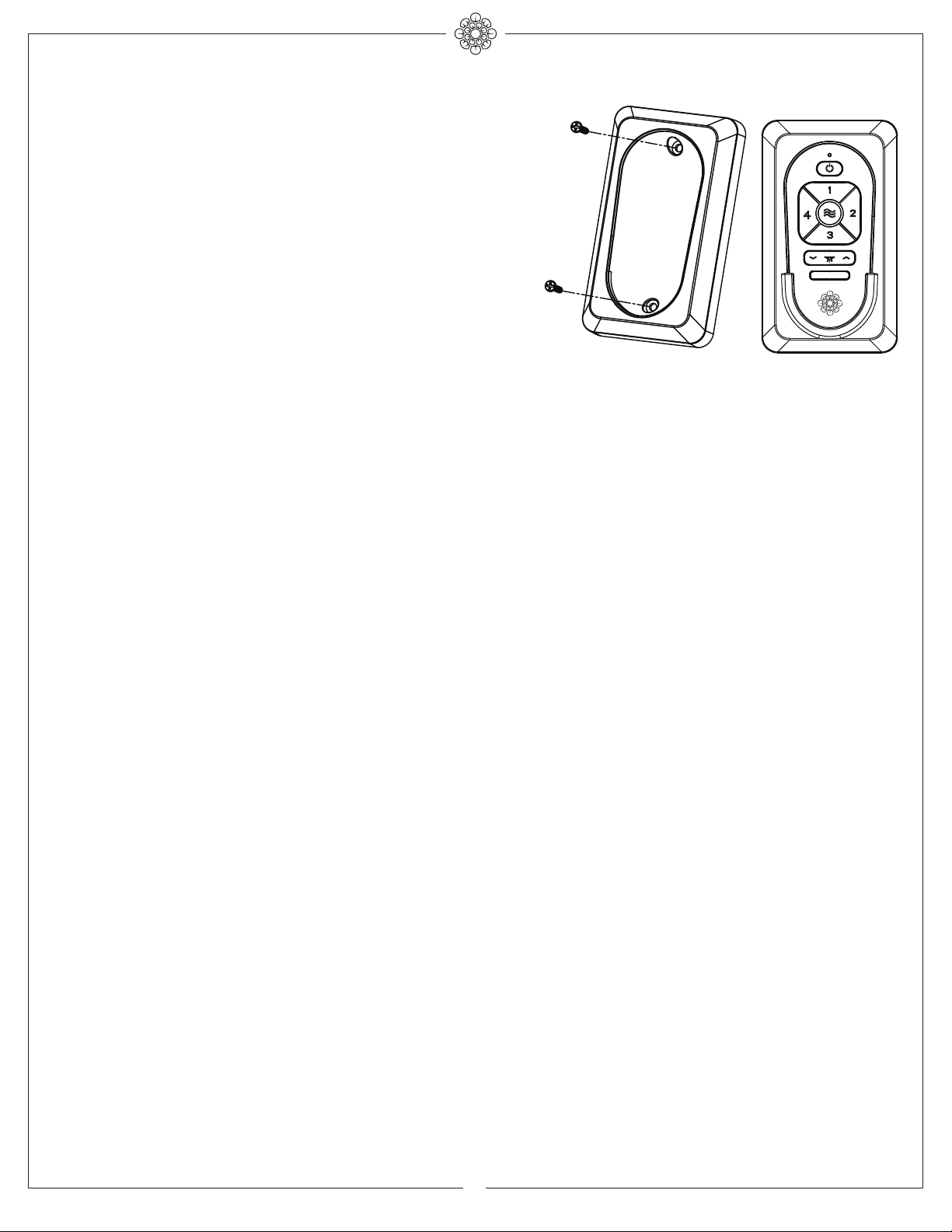

Wall mount cradle
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS. (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
User Tips
1. If your fan is operating automatically after installation, it is still using the factory setting. Follow the settings for Learn Mode
above to reset.
2. If the fan or light isn’t working, reset power (turn the power off then turn the power back on) and follow the Universal Mode or
Learn Mode remote control settings.
Note : Make learn setting either you change it from universal mode to learn mode or change it back to universal mode from learn
mode.
3. If two or more fans in the same remote signal range are on the same power supply, they cannot be operated separately by
remote control. Use a separate power supply for each fan, such as an individual wall switch, and restrict the power supply to
only the fan which you are pairing with its transmitter in order to use the remote controller.
Install Transmitter wall mount cradle with 2 screws provided.
Useful tips:
The remote transmitter can be removed by pressing it
upward from the lower half.
The remote transmitter can be held on magnetic metal
materials by a magnet built in the transmitter.

8
8
© 2022 Monte Carlo Fan Collections 8/2022
Troubleshooting
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
installation, please call our Customer Service Center at the
number printed on your parts list insert sheet.
Warning
and lock the service panel to prevent the power from being switched back on accidentally. If the service panel
cannot be locked to prevent the power from being switched on accidentally, securely fasten a warning sign to the
service panel.
1. Check main and branch circuit fuses or circuit breakers.
2. Check line wire connections to fan and switch wire connections in switch housing.
CAUTION
either way. Fan will not operate when switch is in the middle.
4. If this fan uses a remote controller, make sure dip switches are in the correct setting
and make sure the battery works.
1. Check to make sure all screws in motor housing are snug (not over tightened).
2. Check to make sure the screws which attach the fan blade holder to the motor are tight.
3. Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION
4. Check to be sure light bulb is tight in socket and not touching the glass shade.
5. Some fan motors are sensitive to signals from Solid State variable speed controls.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
1. If this is a downrod mount fan, make sure the ridge on mounting bracket engages the
notch in the downrod ball.
2. Make sure that canopy, mounting bracket or mounting plate are tightened securely to
4. Check that all blade holders are tightened securely to motor.
5. Most fan wobble problems are caused when blade levels are unequal. Check this level
by selecting a point on the ceiling above the tip of one of the blades. Measure this distance
from blade tip to ceiling. Keeping measure within 1/8", rotate the fan until the next blade
is positioned for measurement. Repeat for each blade. If all blade levels are not equal,
you can adjust blade levels by the following procedure. To adjust a blade tip down, insert
a washer (not supplied) between the blade and blade holder at the screw closest to the
motor. To adjust a blade tip up, insert washer (not supplied) between the blade and blade
holder at the two screws farthest from the motor. Reverse the position of the washer if
blades mount from top of blade.
6. If blade wobble is still noticeable, interchanging two adjacent blades can redistribute the
weight and possibly result in smoother operation.
If the above steps do not eliminate the wobble problem, you will need to dynamically
balance your fan with balancing kit provided.
1. Check blue wire from fan to make sure it is connected to hot wire from house.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for loose or disconnected wires in light kit.
4. Check for faulty lightbulb and make sure bulb is tight in socket.
5. Remove light kit and check the plug connections if they are present.
6. If this fan uses a remote controller, make sure dip switches are in the correct setting
and make sure the battery works.
CAUTION: Make sure main power is turned off before entering switch housing and/or
canopy.
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. If fan does not start:
Trouble Suggested Remedy

Aug.2022
