Montgomery Gos156 User manual

Single Door

Metal Cabinet

H1600mm W600mm D410mm

Box Contents

Step 1

Very Important: Unpack the unit and conﬁrm that you have all the parts listed. Assemble the unit on

a solid, level surface. Avoid carpet. You may need the assistance of a second person during assembly.

Safety Tip: For added safety and support, we recommend you ﬁx the unit to a wall.

You will need the following: Phillips-head screwdriver, rubber mallet.

For your safety the following must be adhered to: • This cabinet will hold 30kg per shelf.

• Heavier items should be stored on the lower shelves. • Always distribute items evenly on all shelves.

WARNING: This unit may have sharp edges,

please use gloves when assembling.

PLEASE NOTE: Tip-over prevention kit

included (refer to last page for installation).

Top panel

Left side panel

Right side panel

Back panel

Shelf

Front base bracket

Back brace bracket

Door

Shelf support

M4x10mm Self tapping screws

Washer

Wiring grommet

PART NAME PCSNO

1PC

2PCS

18PCS

12PCS

3PCS

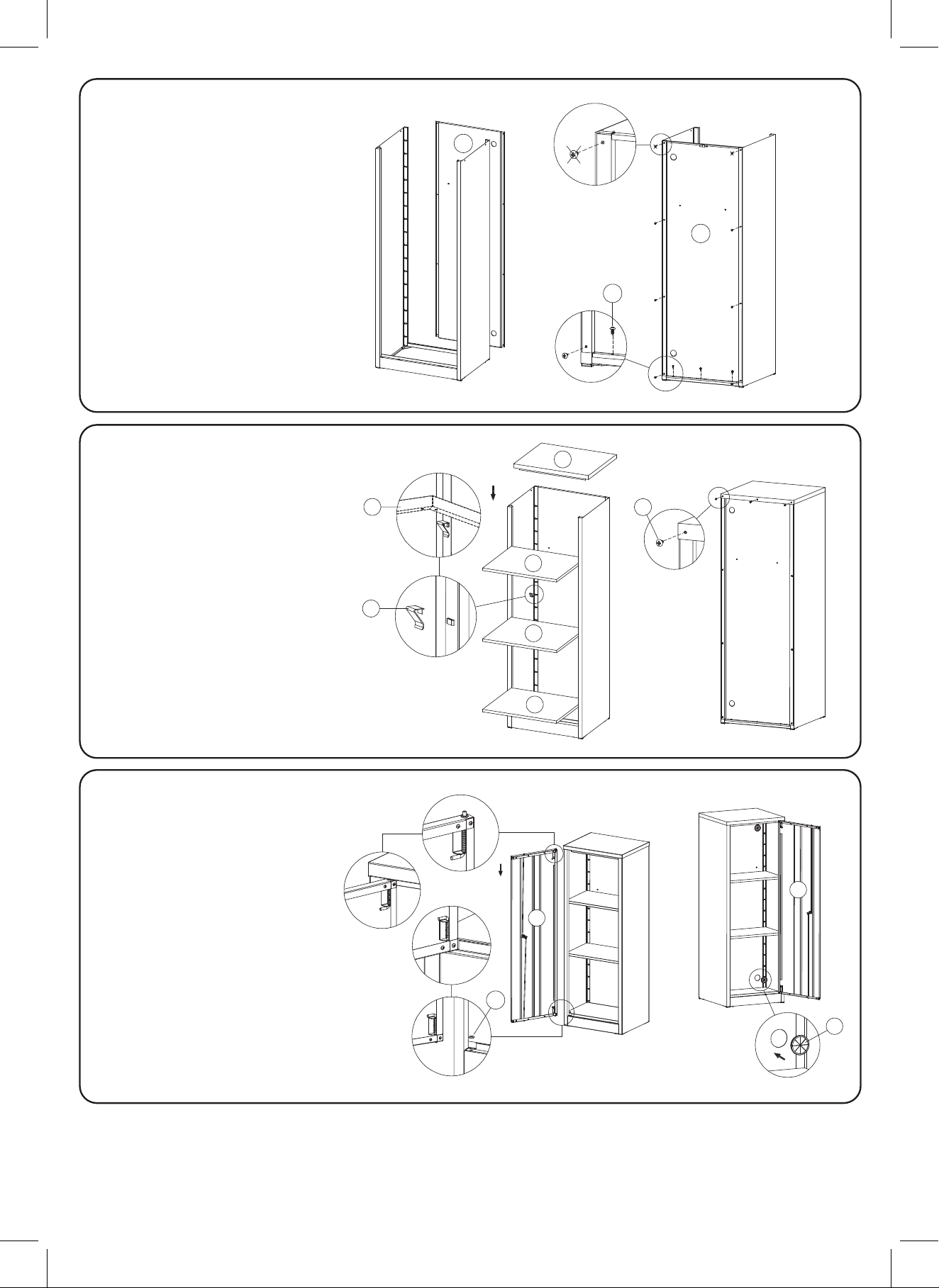

Insert and slide the front base bracket

(E1) and back brace bracket (F1) into the

bottom of the left side panel (B1) and right

side panel (B2). Attach brackets using the

provided self tapping screws (J) in each

of the four corners.

TIP: Use a trestle table or saw horse to

make assembling easier.

Install the door (G1) to the left or right

side of cabinet using the top and bottom

spring hinge (already attached to the

door). The space between the door and

the top panel can be adjusted using the

provided washer (M) if necessary. Insert

the wiring grommets (N) into the pre-cut

holes on the back panel (C1).

Please refer to next page for

attaching the provided Tip-over

prevention kit.

Install the top panel (A1) and ﬁx it using the

provided self tapping screws (J). Insert the

shelf supports (I) for all shelves to your

desired height and insert the shelves (D1).

Step 2

Step 3

Step 4

Stand the unit upright and install the back

panel (C1) with the provided self tapping

screws (J).

Please note: At this stage, ﬁx all screws

except those marked with a cross.

TIP: Use a trestle table or saw horse to make

assembling easier.

G1 OR
