Montigo B34DV Instruction manual

For Your Safety:
Do not store or use gasoline or other ammable vapors and liquids in
the vicinity of this or any other appliance.
®
C US
Warning:
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Refer to this manual. For assistance or additional information
consult a qualied installer, service agency or the gas supplier.
• Installer: Leave this manual
with the appliance.
• Consumer: Retain this
manual for future reference.
www.montigo.com
• Do not try to light any appliance.
• Do not touch any electrical
switch; do not use any phone in
your building.
• Immediately call your gas
supplier from a neighbor's
phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas
supplier, call the re department.
Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
Warning: If the
information in these instructions is
not followed exactly, a re or explo-
sion may result causing property
damage, personal injury or death.
WHATTODOIFYOUSMELLGAS
Installation Operation & Maintenance Manual
Check local codes and read all instructions prior to installation.
XG0160 Canadian Heating Products Inc. Langley, BC V4W 4A Montigo Del Ray Corp. Ferndale, WA 98248 151125
B34DV Indoor
B38DV Indoor
B34DV2 Black Trim
Shown
B-Series DV-2 Gas Fireplace

Page 2
B-Series DV-2 Gas Fireplace
Part No. XG0160 -151125
Congratulations!
Congratulations on selecting a Montigo gas replace, an elegant
and well designed gas replace built to your specications. The
Montigo gas replace you have selected is designed to provide
the utmost in safety, reliability, and engineering standards.
As the owner of this new replace, you'll want to read and care-
fully follow all the instructions contained in this Installation,
Operations and Maintenance manual. Pay special attention to all
cautions, warnings, and Important warnings.
This owner's manual should be retained for future reference. We
suggest that you keep it with all your other important documents
and product manuals.
The information contained in this owner's manual, unless noted
otherwise, applies to all models, and gas control systems.
Your new Montigo gas replace will give you years of durable,
reliable use. Welcome to the Montigo family of gas replace
products.
Table Of Contents
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
•Important: Used to address practices not related to personal injury.
Instruction Manual Contents
Congratulations! 2
Safety Alert Key: 2
Introduction 3
Rating Plate Sample - B34 4
Rating Plate Sample - B38 5
Installing and Framing the Fireplace 6

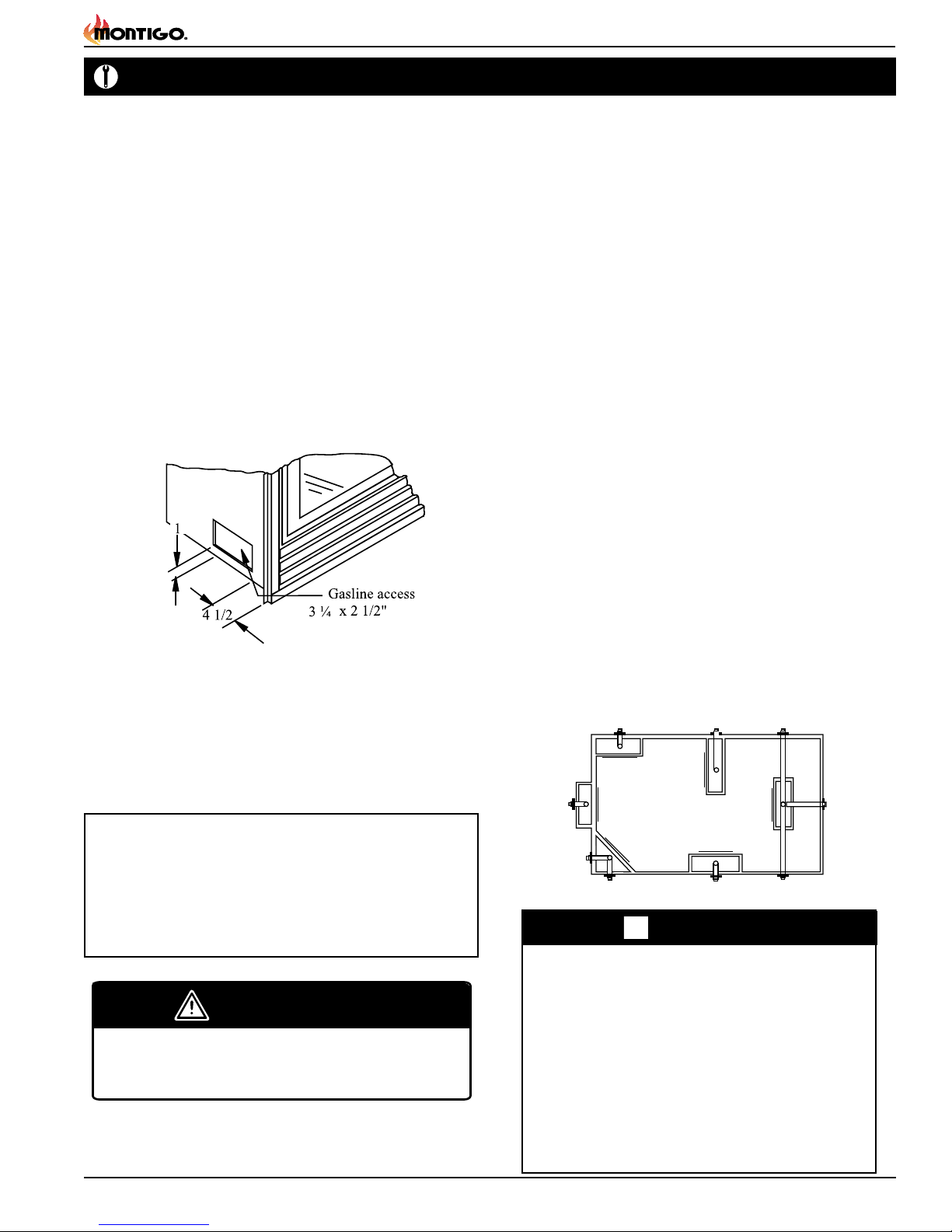

Installing The Gas Line 7
Vent Installation 7

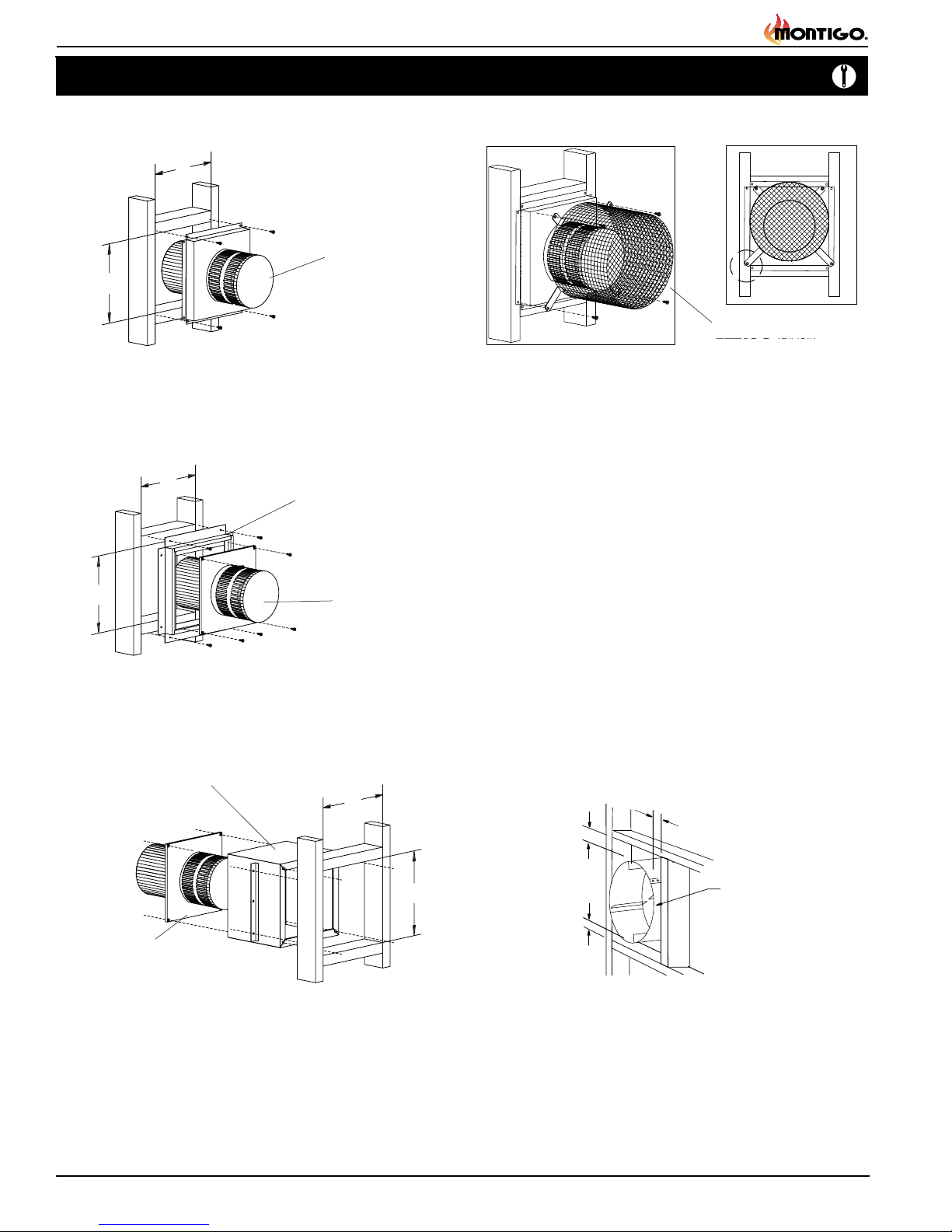

Installing Terminations with Built-In Frames 8
Installing Terminations with MSR Frames 8
Installing Terminations with MOSR Frames 8
Installing Heat Guards over Terminations 8
Installing The Remote On/Off Wall Switch 8
Heat Shields 8

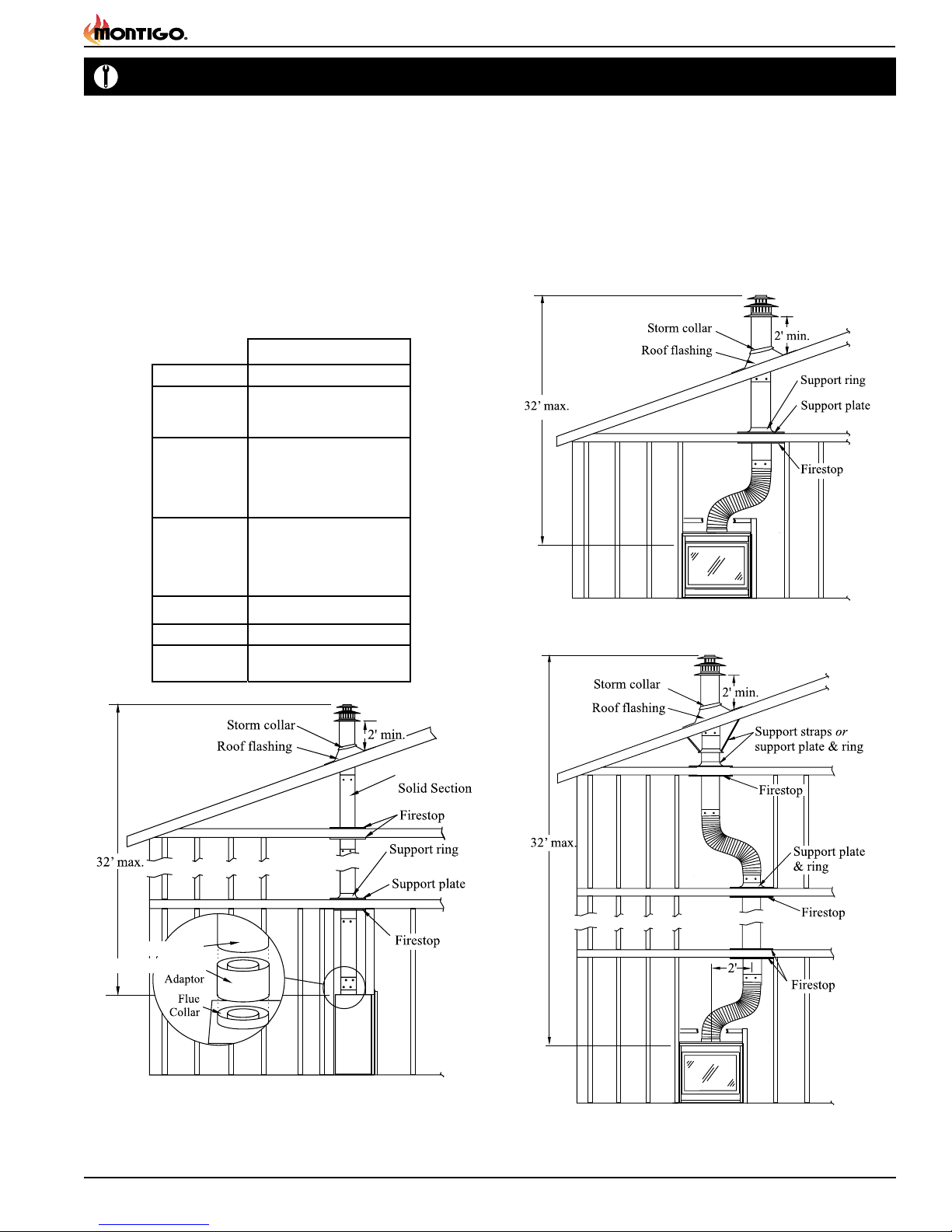

Top Vent Venting Runs 9
Through-The-Wall Installations 9
B34DV-2 9
B38DV-2 9
Rear Vent Venting Runs 12
FinishingAround the Fireplace 14
Wiring 15

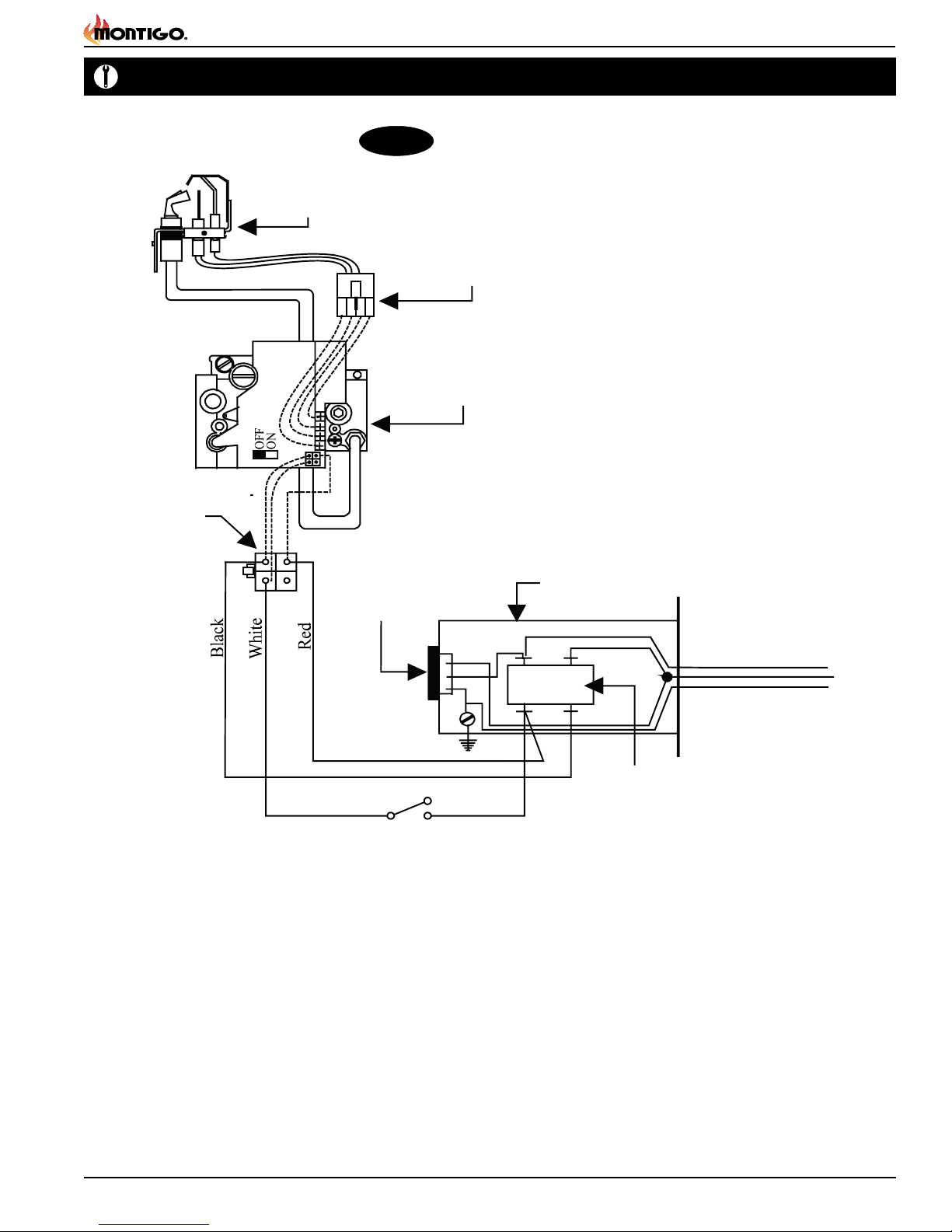

Gas Control and Pilot Wiring 16

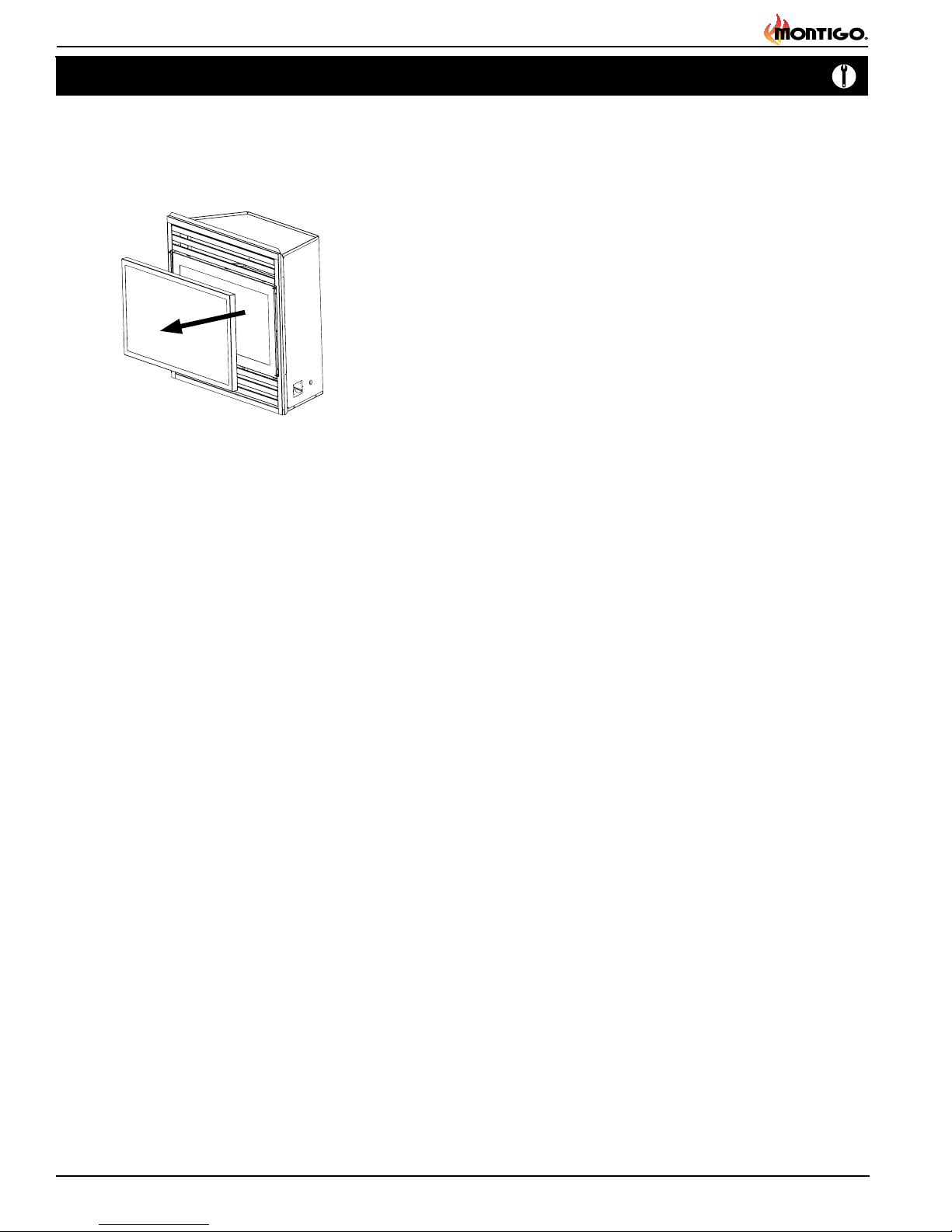

Removing the screen and door: 17
Installing the Log Set 19
Single Cast Log Set 19
5-Piece Log Set 20
Operation 22
Maintenance 25
SIT Proame 2: 26
Honeywell: 27
Warranty 28
Appendix A - Termination Locations 29
Appendix B - State of Massachusetts 30
Warning:
Read this manual before installing, operating or troubleshooting this
appliance. Please retain this owner's manual for future reference.

B-Series DV-2 Gas Fireplace
Page 3
Part No. XG0160 - 151125
Introduction
Thank You for choosing a Montigo Gas Fireplace.
About this Fireplace:
The B-Series DV-2 is a dual burner replace with glowing embers.
The replace is available in three models, and in top or rear vent
for each model.
Standard Log Set
The B34DV-2 is rated for Natural Gas at 18,000 BTU/H
(5.28 Kilowatts) Input or Propane at 18,000 BTU/H (5.28
Kilowatts) Input.
■B34DT-2; Top Vent, Millivolt Pilot.
■B34DR-2; Rear Vent, Millivolt Pilot.
■B34DT-2-I; Top Vent, Intermittent Pilot (HSI).
■B34DR-2-I; Top Vent, Intermittent Pilot (HSI).
■B34DT-2-F; Top Vent, Electronic Ignition (IPI).
■B34DR-2-F; Top Vent, Electronic Ignition (IPI).
Standard Log Set
The B38DV-2 is rated for Natural Gas at 21,000 BTU/H
(6.16 Kilowatts) Input or Propane at 21,000 BTU/H (6.16
Kilowatts) Input.
■B38DT-2; Top Vent, Millivolt Pilot.
■B38DR-2; Rear Vent, Millivolt Pilot.
■B38DT-2-I; Top Vent, Intermittent Pilot (HSI).
■B38DR-2-I; Top Vent, Intermittent Pilot (HSI).
■B38DT-2-F; Top Vent, Electronic Ignition (IPI).
■B38DR-2-F; Top Vent, Electronic Ignition (IPI).
How to use this manual:
This manual covers installation, operation and maintenance.
Lighting, operation and care of this replace can be easily performed
by the homeowner. However, all installation and service work
should be performed by a qualied or licensed installer, plumber,
or gastter who is qualied or licensed by the state, province,
region, or governing body in which the appliance is being installed.
This manual covers all models and unless otherwise specied, the
designationB-SeriesDV-2refers to allmodels.Sectionswhichare
specic to a particular model are marked with a symbol,
plus the appropriate model number.
Warranty and Installation Information:
The Montigo warranty will be VOIDED by, and Montigo disclaims
any responsibility for, the following actions:
■Modication of the replace and/or components including Direct-Vent
assembly or glass doors.
■Use of any component part not manufactured or approved by Montigo
in combination with this Montigo replace system.
■Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation
requirements for factory-built gas replaces. Installation & repairs
should be done by a qualied contractor.
InstallationsinCanadamustconformtothecurrentCAN/CGA
B-149.1and .2Gas InstallationCode andlocal regulations.If the
optional air-circulating fan kit is installed, it must be electrically
grounded in accordance with CSA C22.1 Canadian Electrical
Code Part 1 and/or Local Codes.
Installations in the USA must conform to local codes, or in
the absence of local codes to the National Fuel Gas Code, ANSI
Z223.1-1988.Iftheoptionalair-circulatingfanisinstalled,itmust
be grounded in accordance with local codes or, in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70-
1987. See Appendix B for installation within the State
of Massachusetts.
CAUTION!
Due to its high operating temperatures, the appliance
should be located out of trafc & away from furniture
and draperies.
 Children and adults should be alerted to the haz-
ardsofthehighsurfacetemperature,whichcould
cause burns or clothing ignition.
 Young children should be carefully supervised
whentheyarein the same room as theappliance.
 Clothing or other ammable materials should not
be placed on or near the appliance.
Young children should be carefully supervised when they are
in the same room as the applicance. Toddlers, young children
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddles, young children and
other at risk individuals out of the room and away from hot
surfaces.
CAUTION
WARNING
Abarrierdesignedto reduce the risk of burns from hot viewingglassisprovidedwith this
applianceandshallbe installed for the protection of children and otherat-riskindividuals.
Ifthebarrierbecomes damaged, the barrier shall be replaced with themanufacturer’s
barrierforthisappliance.
WARNING
Anysafetyscreen,guard, or barrier removed for servicing an appliance mustbereplaced
priortooperatingthe appliance.
Introduction

B-Series DV-2 Gas Fireplace
Page 4 Part No. XG0160 -151125
Introduction
Rating Plate Sample - B34
Figure A: Rating Plate for B34 - Standing Pilot Figure B: Rating Plate for B34 - Electronic Ignition



 













LBL1205-V6.1 Stand. Pilot- Screen DEC06.2014
  










 


    




  

  








    






 
 
 


 



Teklynx LabelView Demo



 












LB1223-V5.1 SIT IPI -with screen DEC06.2014
  










 


    




  

  








    






 
 
 


 


Teklynx LabelView Demo

B-Series DV-2 Gas Fireplace
Page 5
Part No. XG0160 - 151125
Introduction
Rating Plate Sample - B38
Figure C: Rating Plate for B38 - Standing Pilot Figure D: Rating Plate for B38 - Electronic Ignition



 













LBL1205-V6.1 Stand. Pilot- Screen DEC06.2014
  










 


    




  

  








    






 
 
 


 



Teklynx LabelView Demo



 












LB1223-V5.1 SIT IPI -with screen DEC06.2014
  










 


    




  

  








    






 
 
 


 


Teklynx LabelView Demo

B-Series DV-2 Gas Fireplace

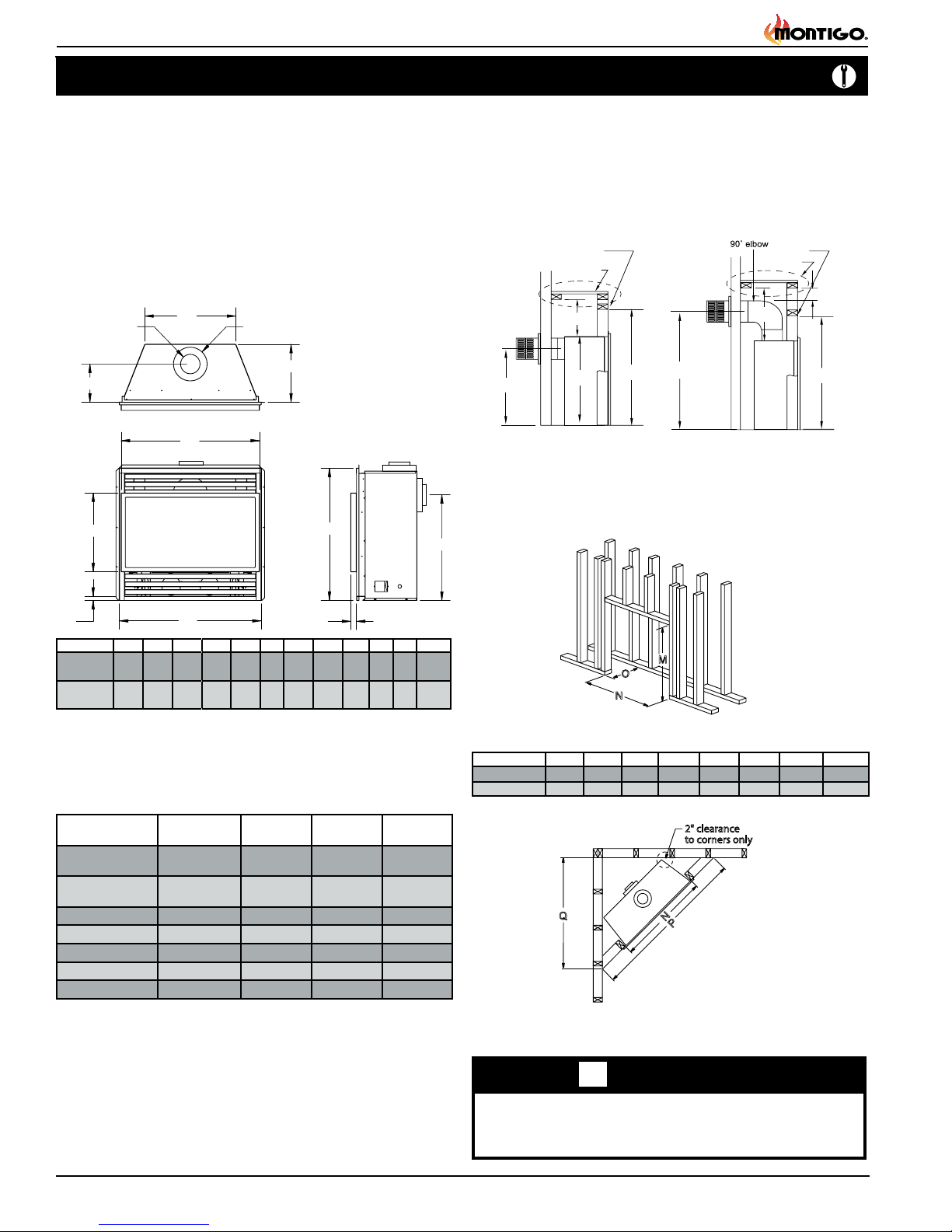

Page 6 Part No. XG0160 -151125
Installation
Installing and Framing the Fireplace
The B-Series-DV-2 replaces may be installed in any location that
maintainsproperclearancestoairconditioningducts,electricalwiringand
plumbing. Safety, as well as efciency of operation, must be considered
when selecting the replace location. Try to select a location that does
not interfere with room trafc, has adequate ventilation, and offers an
accessible pathway for Direct Vent installation. Refer to page 7 - Vent
Installation for more information.
The replace dimensions are shown below:
Figure 4. Minimum Corner framing dimensions, using a 45°
elbow.
Figure 3. Framing dimensions.
(When sheetrock is
not used behind the
replace, framing
depth "O" may be
reduced by 5/8")
Framing
Clearances
These clearances apply to all dimensions except the framed opening,
where the clearance to combustibles is 0". The B-SeriesDV-2clearances
to combustible materials are:
B34-DV-2-TV B34-DV-2
RV B38-DV- 2-TV B38-DV-2- RV
Top - Rear
Vent * N/A 8" N/A 9 1/4"
Top - Top
Vent 15" N/A 15" N/A
Back 0" 1" 1" 1"
Sides 1" 1" 0" 0"
Floor 0" 0" 0" 0"
Mantle** 8" 8" 6" 6"
Flue 1 1/2" 1 1/2" 1" 1"
* Clearance from the top of the replace to a combustible ceiling within
the replace enclosure.
** Refer to page 14, (Mantels and Surrounds).
Unprotected combustible walls which are perpendicular to the replace
opening, must not project beyond the area shown in Figure 23.
Forprotectionagainstfreezingtemperatures,itisrecommendedthatouter
walls of the chase be insulated with a vapor barrier. This will reduce the
possibility of a cold-air convection current on the replace.
Figure 1. Fireplace dimensions.
A B C D E F G H I J K L
B34-
DV-2 333
/ 4311 / 2311 / 411 / 418 1133 / 4213 / 48 4 7 251 / 4
B38-
DV-2 373
/ 4341 / 2343 / 411 / 421 1157 / 8241 / 89 4 7 283 / 8
M
N
O
N
P
Q
2" clearance
to corners only
M
N
O
N
P
Q
2" clearance
to corners only
L M N O P Q S T
B34-DV-2 251
/ 4363 / 433 151 / 250 353 / 8303 / 8397 / 8
B38-DV-2 283 / 8393 / 437 175 / 856 395 / 8333 / 8427 / 8
When installing a shelf over the top of the replace, the following guidelines
must be adhered to: For Rear Vent applications the minimum clearance
from the top of the replace to a shelf is 8". For Top Vent applications,
the minimum clearance is 15". ( Minimum clearance to combustible
constructionaroundtheventpipeis1"onallsides,exceptonhorizontal
venting where the top of the pipe must have a clearance of at least 2". )
Figure 2. Framing for shelves over the replace.
Top Vent
Rear Vent (On Applicable Models)
WARNING!
When this appliance is installed directly on any combustible material
other than wood ooring, it must be installed on a metal or wood
panel extending the full width and depth of the appliance.
M
8”
S
H
ea
d
er
Shelf
LT
15”
Header
MEL
S
hort
Shelf
M
2” Min
A
E
C
M
H
G
I
K
L
B
N
L
Top View
Side ViewFront View

B-Series DV-2 Gas Fireplace
Page 7
Part No. XG0160 - 151125
Installation
■Use only certied Montigo vent components. (Use of other parts
will void the Montigo warranty, and may impede the operation of the
replace.)
■ Connect all vent sections using a minimum of three sheet metal screws
on the outer pipe ue.
■ Vent terminations must not be recessed in walls or siding
■Ensure all runs are supported with a minimum of 3 supports per 10’ of
venting.
■ Flex vent sections may be stretched up to 50% of their total length (eg.
a 24" section may be stretched to 36")
■ Maximum horizontal run for a ex section with no vertical rise is 3 feet.
■ Flex vent sections over 3 feet must fall within the limits set by the
venting graph and must have a minimum vertical rise of 3 inches per
foot of ex.
■ Solid vent sections may be cut less than half way from the female
end
■ Venting components can be used in any combination of solid/rigid pipe
or ex pipe and in any orientation (Male connectors can face in
any direction)
Vent Terminations
Selecting A Termination Location
Choosing your vent termination location will help to determine
whether you need to use a top vent or rear vent replace. Figure
6, below, shows typical replace locations and the venting options
they provide.
For a more detailed diagram of allowed termination locations, see
Appendix A.
Figure 6. Fireplace locations and vent terminations.
Installing The Gas Line
The gas line must be installed before nishing the B-SeriesDV-2
Fireplace. Natural Gas requires a minimum inlet gas supply
pressure of 5.5" W.C. & a manifold pressure of 3.5" W.C. Propane
Gas requires a minimum inlet gas supply pressure of 11" W.C. & a
manifold pressure of 10" W.C. Provision must also be made for a 1/8"
N.P.T. plugged tapping and be accessible for test gauge connection
immediatelyupstreamofthegassupplycontrolstotheappliance.
The replace gas connection and the main operating gas valve is
located behind the removable trim at the bottom of the unit and
need only be attached to the gas line with an approved tting, as
required by the applicable installation codes.
• Only use gas shut-off valves approved for use by the state, province,
region, or governing body, in which the appliance is being installed,
or as required by the applicable installation codes.
• Flexible gas connectors must not exceed 3 feet in length, unless
it is allowable within applicable installation codes.
Note: Aftergaslineisconnected,eachapplianceconnection,
valve and valve train must be checked while under normal
operating pressure with either a liquid solution, or leak detection
device, to locate any source of leak. Tighten any areas where
bubbling appears or leak is detected until bubbling stops
completely or leak is no longer detected. DO NOT use a ame
of any kind to test for leaks.
Figure 5. Gas line access.
The appliance and its individual shut-off valve must be disconnected
from the gas supply piping system during any pressure testing of
that system at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut-off valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5 kPa).
Cautions:
 Vent terminations can be very hot. If the termination is less than
7 feet above a public walkway, it should be tted with a certied
Montigo Heat Guard. (Part no. PTKOG).
 Do not obstruct, or attempt to conceal the vent termination.
These actions will affect the operation of the replace, and
may be hazardous.
 In heavy snow areas, take extra care to prevent snow buildup
from obstructing the vent termination.
 Use Montigo Vinyl Heat Shield (Part no. VSS) when using
on applications with vinyl siding to guard against possible
damage.
WARNING
When installing the replace - gas lines, ttings, accesso-
ries or any other objects cannot impede the proper
movement of the door buckles.
Vent Installation

B-Series DV-2 Gas Fireplace
Page 8 Part No. XG0160 -151125
Installation
Installing Terminations with Built-In Frames
Installing Terminations with MSR Frames
1. Frame the termination opening to 12" x 12".
2. Fastentheterminationtothestudsusingaminimumof4screws.
1. Frame the termination opening to 11" x 11".
2. Fasten the termination to the studs using a minimum of 4
screws.
Installing Terminations with MOSR Frames
MOSR
1. Frame the termination opening to 12" x 12".
2. Fastenthe MOSRframe to the interior side of the studs using
a minimum of 4 screws.
3. Insert the termination into the MOSR frame as shown here,
and attach by screwing through the four pilot holes in the
termination.
MSR
MTO-4F (4"/7")
PTO-3F (5"/8")
MTO-4F (4"/7")
PTO-3F (5"/8")
MTO-4F (4"/7")
PTO-3F (5"/8")
MTKOG (4"/7")
PTKOG (5"/8")
1. Ensure that the two long mounting brackets are facing the
bottom of the termination. (See inset). This will provide more
heatprotectionatthetopofthetermination,wheretemperatures
are highest.
2. Attach to the faceplate of the termination using four sheet
metal screws.
Installing Heat Guards over Terminations
Installing The Remote On/Off Wall Switch
The B-Series DV-2's gas valve, located behind the lower trim,
may be connected to a wall switch. The valve will either generate
its own power on a millivolt circuit or draw its power from an
AC connection inside the replace, depending on the model of
yourunit. Use only low voltage wire, and DO NOT connect
any external power to the remote switch.
Refer to Figure 24, or 27 for wiring requirements.
Note: The switch location must not exceed 30'from the replace.
Heat Shields
Due to high ue temperatures, heat shields are required on all B
SeriesDV-2 installations (except those with vertical terminations)
at the point where the venting connects to the termination. With the
heat shield, vent clearances can be maintained at 1”.
Figure 7. RHS8 Installation. (Install by sliding over vent
pipe where it passes through the combustible
construction.
11
11
12
12
12
12
1
MIN
1 MIN
1 MIN. Both
sides Typical
RHS8 Heat
Shield

B-Series DV-2 Gas Fireplace
Page 9
Part No. XG0160 - 151125
Installation
Top Vent Venting Runs
FortheB-Series DV-2TopVent,therearetwotypesofinstalla-
tions: A) Through-The-Wall Installations and B) Vertical (Through-
The-Roof) Installations.
Through-The-Wall Installations
Before you install any venting, you must determine whether the
venting run will be acceptable. Unacceptable venting can affect
the replace's combustion.
The Venting Graph
Measure the vertical height from the replace hearth to the centre
of the termination and the horizontal run from the from the replace
ue collar to the wall ange of the termination. Plot on the Venting
Graph (Fig. 8) or (Fig.8a) with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
B34DV-2
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 108" and the horizontal
run to the wall ange of the vent termination is 180", this would be
an acceptable installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 44" and the horizontal
run to the wall ange of the vent termination is 72", this would be an
acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 60" and the
horizontal run to the wall ange of the vent termination is 144", this
would NOT be an acceptable installation.
Figure 8. B34-DV-2 Top Vent Venting Graph
B38DV-2
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 84" and the horizontal
run to the wall ange of the vent termination is 36", this would be an
acceptable installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 108" and the horizontal
run to the wall ange of the vent termination is 120", this would be
an acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 72" and the
horizontal run to the wall ange of the vent termination is 84", this
would NOT be an acceptable installation.
Figure 8a. B38-DV-2 Top Vent Venting Graph
NOTES: All dimension lengths for vertical or
horizontal runs are measured from centre of the vent
pipe. Venting runs must fall within the limits set by the
venting graph (Fig 8 or 8a).
B34DV-2
B38DV-2
42 7/8”
B
A
18”
C
72”
39 7/8”
A
B
C
Available Top Vent Components
The following venting components are available for theB-Series DV-2
Top Vent:
4" / 7" Venting
A- Termination TO-4 (3" Length)
MTO-4F (3" Length)
B - Stucco Kits MSR (Stucco Frame)
MOSR (Stucco Can)
BSR ( Brick Can)
C - Flex Sections MFL-1 (12" f/f Section)
MFL-2 (24" f/f Section)
MFL-3 (36" f/f Section)
MFL-4 (48" f/f Section)
D - Rigid
Sections MEXT-1 (12" mf Section) MEXT-2 (24" m/f Section)
MEXT-3 (36" m/f Section)
MEXT-4 (48" m/f Section)
E - Elbows MEL-90MM (m/m 90° Elbow)
MEL-90FF (f/f 90° Elbow)
MEL-90FM (f/m 90° Elbow)
MFL-6 (72" f/f Section)
MEXT-6 (72" m/f Section)
M

B-Series DV-2 Gas Fireplace
Page 10 Part No. XG0160 -151125
Installation
PEL
Example 1:
For our shortest venting conguration use components A and E
(see table on page 9).
Figure 9. Typical Top Vent installation. If the 90° elbow is
installed directly on the replace, for height to the
center of the termination see chart on page 6.
Horizontal Venting
Figure 10. Typical Top Vent installation. The solid sections can
be used in various combinations to obtain the desired vent run.
The vent run must fall within the limits set by the venting graph.
90° Elbow
MEXT Section
Termination
Example 2:
Rigid sections and an elbow used in conjunction with 3 ft. ex
section (MFL-3) will, when extended in a ve foot chase, allow for
a maximum horizontal run of twelve and one-half feet from the
centre of the replace to outside wall and a minimum of 7'6" when
retracted in opposite direction (see Figure 11).
"C" ex sections and "D" rigid sections (See table on page 9)
may be used in conjunction with one another to obtain different
possible horizontal length installations, Figure 12.
NOTE:Flex section with no vertical rise must not exceed maximum
horizontal length of 3 feet (see Figure 13). Flex runs over 3 feet
must fall within the limits set by the venting graph, and must have
a minimum vertical rise of 3" per foot of ex.
Figure 11. Extended Installation using a combination of
solid and ex venting. Use the vent graph to determine your
allowable run, then select appropriate components.
Figure 12. Retracted Installation using a combination of
solid and ex venting. Use the vent graph to determine your
allowable run, then select appropriate components.
Figure 13. Horizontal ex installation with no vertical rise.
36” max.
Flex Section
Hearth
Termination
Exterior
Wall

B-Series DV-2 Gas Fireplace
Page 11
Part No. XG0160 - 151125
Installation
B. Vertical (Through-The-Roof) Installations
 Vertical Terminations must be installed:
• minimum 2' (two feet) above the highest point where vent
passes through the roof.
• minimum 6' (six feet) from a mechanical air inlet
• minimum 18" (1 1/2 feet) from a parapet wall.
 Maximum vent height is 32 feet above replace.
Note: Flame characteristics will change if the maximum vent
height is used.
 Minimum clearances 1" from vent to all combustible materials
must be maintained.
MEXT
MEXT
MXT-10
Figure 15. Vertical venting with 1 offset (1 offset= two 90°
bends).
Figure 14. Straight,verticalventing showing required MXT-10
adaptor (supplied with the MVTK-1 termination). Figure 16. Vertical venting with 2 offsets (1 offset= two
90° bends).
4" / 7" Venting
A - Termination MVTK-1
B - Stucco Kits MSR (Stucco Frame)
MOSR (Stucco Can)
BSR ( Brick Can)
C - Flex Sections MFL-1 (12" f/f Section)
MFL-2 (24" f/f Section)
MFL-3 (36" f/f Section)
MFL-4 (48" f/f Section)
D - Rigid Sections MEXT-1 (12" m/f Section)
MEXT-2 (24" m/f Section)
MEXT-3 (36" m/f Section)
MEXT-4 (48" m/f Section)
E - Support Ring
& Plate MSPXT-7
F - Firestop FS-7
G - Roof Flashing MRF-7 (1/12 - 7/12 pt.)
MRF-12 (7/12 - 12/12 pt.)
MEXT-6 (72" m/f Section)
MFL-6 (72" f/f Section)
 Amaximumoftwooffsets(eachoffsethastwo90°bends)
may be made and shall not exceed total length of 25% of the
vertical vent height, when measured center to center of piping.
Example: Typical vent installation.
20' vertical vent
2 - 2' offsets required
25% of 20' = 5' max. offset allowed
This venting conguration meets requirements.

B-Series DV-2 Gas Fireplace
Page 12 Part No. XG0160 -151125
Installation
Figure 18. Corner installation.
Figure 19. Flex installation.
2. 45° Corner Installation.
Attach an EEL-45 (45° elbow) directly onto the ue collar. Cut the
EXT-18 to suit, and attach it to the EEL-45. Slide the replace into
positionandattachtothetermination.Maximumhorizontal
run must not exceed 18"
3. Corner Installation — 45° or less.
Use an MTO-4 or MTO-4F termination, an MFL-1 or MFL-2(12" or
24" compressed length) and a frame, if appropriate. Flex may
be turned to obtain desired degree of angle required but must
not exceed 45°.
Figure 17. Extended installation.
Rear Vent Venting Runs
The B-Series DV-2 Rear Vent has three possible installations
which do not require vertical lift.
1. Straight Installation.
The B-Series DV-2 rear vent versions are supplied with and
18" extension pipe (EXT-18) with female/female connections.
For shorter installations, cut the EXT-18 to the desired length.
Refertopage6formeasurementsfromthehearthtothecenter
of the termination.
Note: ForRearVentmodels,maximumhorizontalrunwith
no vertical lift must never exceed 18".
EXT-18
EEL-45
EXT-18

B-Series DV-2 Gas Fireplace
Page 13
Part No. XG0160 - 151125
Installation
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 84" and the horizontal
run to the wall ange of the vent termination is 30", this would
be an acceptable installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 108" and the
horizontal run to the wall ange of the vent termination is 120",
this would be an acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 72"
and the horizontal run to the wall ange of the vent termination
is84",thiswouldNOTbean acceptableinstallation.
B. Multi-Elbow Installations
For more difcult installation situations, the B-Series DV-2 Rear Vent
may be installed with two - 90° elbows and up to 15' of horizontal run. If
using this installation option, you must adhere to the following guidelines:
Important: Some models are not available to be installed in a
rear vent application. Please refer to the model specications
on page 3 of this manual.
 the rst 90° elbow must be placed directly on the ue collar
 you must have a minimum vertical lift of 50" (measured from the
hearth)
 your vent run must fall within the limits set by Figure 20.
Before you install any venting, you must determine whether the venting
run will be acceptable. Unacceptable venting can affect the replace's
combustion.
The Venting Graph
Measure the vertical height from the replace hearth to the centre of the
termination and the horizontal run from the from the replace ue collar
to the wall ange of the termination. Plot on the Venting Graph (Fig. 20)
with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
Figure 20. B-Series DV-2 Multi-Elbow Venting Graph.
NOTES: All dimension lengths for vertical or horizontal runs
are measured from center of the vent pipe.
Venting runs must fall within the limits set by the
venting graph (see Figure 20).
B
A
32”
C
50”
18"
Max.
15’ Max.
50"
Min.
Figure 21. Multi-elbow installation. (For the B-Series the
vertical distance must be a minimum of 50". The
vent run must comply with the Graph, gure 20).
4" / 7" Venting
A - Termination MTO-4 (3" Length)
MTO-4F (3" Length)
B - Stucco Kits MSR (Stucco Frame)
BSR-4 (4" Brick Frame)
BSR-6 (6" Brick Frame)
MOSR (Stucco Can)
C - Flex Sections MFL-1 (12" Section)
MFL-2 (24" Section)
MFL-3 (36" Section)
MFL-4 (48" Section)
D - Rigid
Sections MEXT-1 (12" m/f Section) EXT-18 (18" f/f section)
MEXT-2 (24" m/f Section)
MEXT-3 (36" m/f Section)
MEXT-4 (48" m/f Section)
E - Elbows MEL-90MM (m/m 90° Elbow)
MEL-90FF (f/f 90° Elbow)
MEL-90FM (f/m 90° Elbow)
EEL-45 (f/m 45° Elbow)
MFL-6 (72" Section)
MEXT-6 (72" m/f Section)
Installation of Rear Vent DV-2
The following venting components are available from a B-Series
DV-2 in a Rear Vent Installation:

B-Series DV-2 Gas Fireplace
Page 14 Part No. XG0160 -151125
Installation
Finishing Around the Fireplace
Combustible mantels and mouldings may be safely installed over
the top and on the front of the replace provided that they do not
project beyond shaded area shown in Figure 22 or 22a. Side wall
clearances are 3". Combustible surrounds may be installed with
3" clearance to the side of the replace as shown in Figure 23.
Fireplace Facing
When selecting the nish material for your replace, it is important
to remember the following: THE HORIZONTAL LOUVRES
MUST NOT BE OBSTRUCTED IN ANY WAY - to do so
restricts the air supply for the control compartments
and heat exchanger it also prevents access for servic-
ing controls.
The face of the replace may be painted to match the room decor,
provided you use a heat-resistant paint. Decorative facing must
not extend past the replace opening at all, because it will interfere
with the access to retainers for removal of glass door.
Mantels & Surrounds
NOTE: National Canadian Gas Association mantel test requirements
are for re hazard prevention to combustible materials.
New technology, to meet consumer and government demands for
the wise use of energy, has prompted us to manufacture many
models of replaces which are hot, fuel and energy efcient.
Please be aware; temperatures over the mantel will rise above normal
room temperature and walls above replace may be hot to touch.
Warning:
When covering the upper metal portion of the replace with a non-
combustible material Please Note: The decorative facing materials
may be subject to temperatures in excess of 250° F. This should
be considered when selecting facing materials.
We recommend careful consideration be given to the effects of
elevated mantel temperatures which may be in excess of product
design, for example: candles, plastic or pictures. This can cause
melting, deformation, discolouration or premature failure of T.V.
and radio components.
Figure 23. Combustible surrounds.
Figure 22. Combustible mantles and facings for B34DV-2.
Figure 22a. Combustible mantles and facings for B38DV-2.
B34DV-2
B34DV-2
Wiring
WARNING
When installing the replace - gas lines, ttings, accesso-
ries or any other objects cannot impede the proper
movement of the door buckles.

B-Series DV-2 Gas Fireplace
Page 15
Part No. XG0160 - 151125
Installation
Wiring
Wiring for the optional Fan Kit
All B-Series DV-2 replaces may be equipped with optional fan
kits for circulating heat into the living space.
Installations in Canada which employ the fans must be
electrically grounded in accordance with CSA C22.1 Canadian
Electrical Code Part 1 and/or Local Codes.
Installations in the USA which employ the fans must be
grounded in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70-1987.
For more information see the Fan Kit Installation Guide
included with the fan kit.
115/1/60 Supply
G L1 L2
G
L2-WH
L1-BLK
Quick Connect
plug to motor
NOTE: Ifanyoftheoriginalwiresuppliedwiththeapplianceisreplaced,
it must be replaced with the same type, or its equivalent.

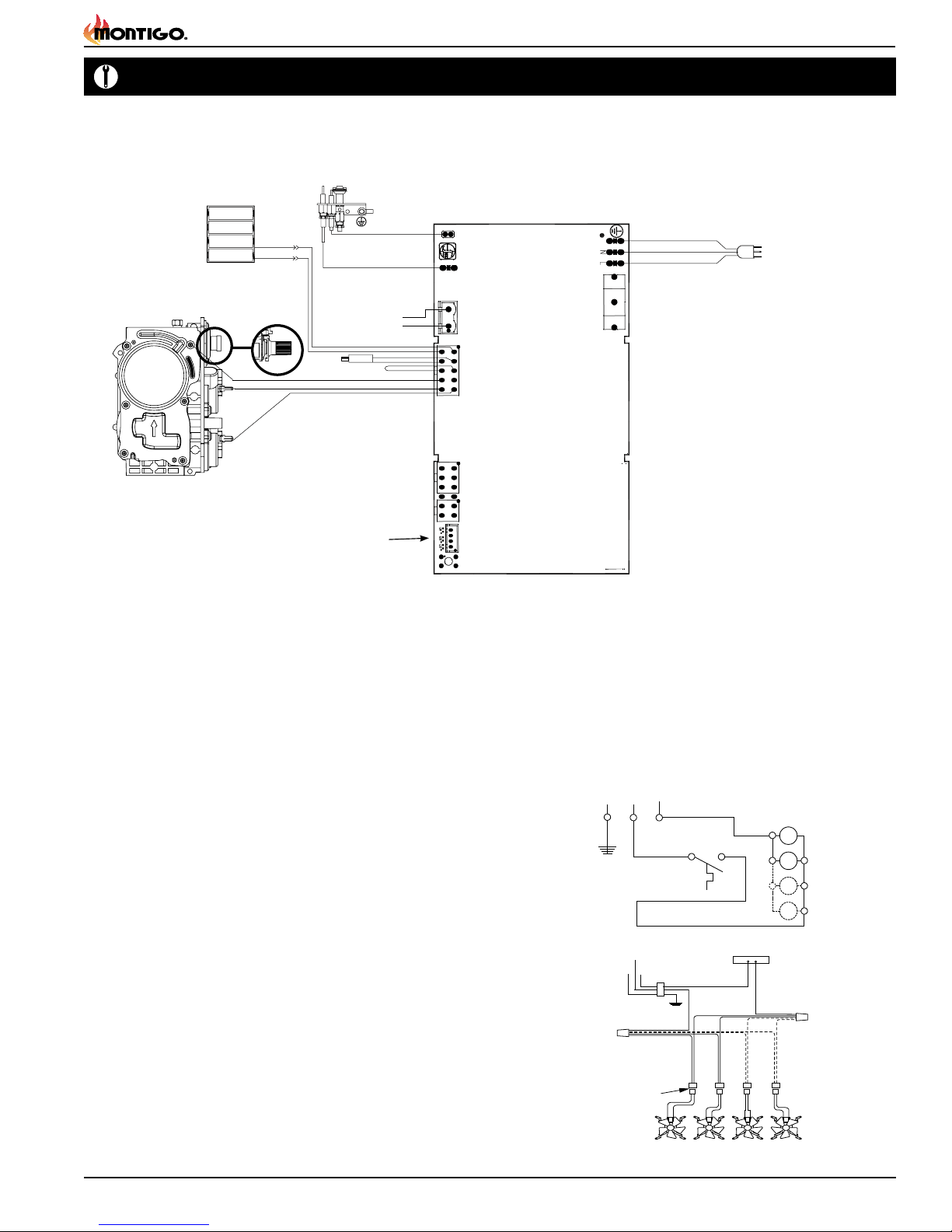

Figure 25. Wiring schematic for optional fans.
Figure 24. Wiring Diagram for the SIT Proame 2 Electronic Ignition
1.5V AA type
1.5V AA type
1.5V AA type
1.5V AA type
BLACK
WHITE
GREEN
To PPO
SPARK
SENSOR
RED
BLACK
BATTERY
PACK
TO ON/OFF
WALL SWITCH
YELLOW/GREEN
ORANGE
GREEN
6
10
4
6
3
4
OPTIONAL CPI/IPI SWITCH
BLUE
WHITE
X1
X5
X4
X3
X2
LED Lights
LED1 - Red LED
LED2 Amber LED
3.15A FUSE
SW1
WHITE
BLACK
OPTIONAL

B-Series DV-2 Gas Fireplace
Page 16 Part No. XG0160 -151125
Installation
CPI [Continuous Pilot Ignition] / IPI [Intermit-
tent Pilot Ignition] Jumper Cable Installation
on Proame II Basic Board (only available for
SIT Electronic Ignition Systems)
“Why use CPI mode”?
CPI means “Continuous Pilot Ignition” or “Standing Pilot” as
it is commonly known. IPI means “Intermittent Pilot Ignition”,
which only initializes the pilot when you are going to be us-
ing the appliance.
There are several reasons why you may choose to use
CPI mode. When a ue is cold it can be difcult to light
the appliance. It can take a bit of time (particularly on tall
vents) to initialize vent action. This can result in “lifting” or
“ghosting” of the ames during the rst two to three minutes
of operation. It is also possible to encounter times when
the replace fails to light successfully. The replace will
then attempt to re-light a second or third time depending
on prevailing temperatures or altitude. When in CPI mode
the pilot also keeps the system warm. During a “cold” start,
condensation will normally form on the inner glass surface
of the door. This condensation will quickly dry, however, the
condensation tends to run down the glass and cause some
streaking. CPI mode helps to resolve this issue. If CPI
mode is used during the winter months the energy it takes
to run the pilot is partially recovered as heat into the build-
ing, so it does not waste as much energy as running a pilot
in the off season.
A connector is supplied with this unit that can be plugged
into the controller. When the CPI jumper is plugged into the
controller wiring harness the pilot will light and run con-
tinuously. Use the wall switch to turn on the main burner.
Remove the CPI jumper to turn off CPI and return to IPI.
The difference between IPI and CPI:
IPI (Intermittent Pilot Ignition) Mode: is a fuel saving
mode in which the pilot is only used when the main burner
is on.
CPI (Continuous Pilot Ignition) Mode: The Pilot runs
continuously even when the main burner is off.
Installing the CPI Jumper Cable
3). Find the corresponding plug attached to the control
wire harness.
4). The pilot will light and burn continuously.
Figure 26.
Figure 26a.
Figure 26b.
1). Access the controller (refer to the installation and
maintenance manual for your model).
2). Remove the bag containing the Jumper Cable from
the wiring harness connected to the controller as shown
in Figure 26.

B-Series DV-2 Gas Fireplace
Page 17
Part No. XG0160 - 151125
Installation
Gas Control and Pilot Wiring B-Series DV-2-I
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector
Junction Box
115VAC
24VAC
40 VA
Transformer
Black
White
Green
Gnd Screw
Wall Switch
Fan Plug
Receptacle
Figure 27. Wiring for the B-Series DV-2-I with Honeywell gas control and pilot.

B-Series DV-2 Gas Fireplace
Page 18 Part No. XG0160 -151125
Installation
Figure 28a. Removing and installing the glass door.
Figure 28b. Removing and installing the glass door.
Figure 28c. Removing and installing the glass door.
Removing the screen and door:
Remove the trim (Figure 28) to access the door lateches.
Open the latches by pulling Part A upwards and towards you to
disengagePartBfromthedoor.LiftPartBclearofthedoor.Repeat
for both latches. Be sure to hold the door carefully so it does not
fall. (See gure 27a.)
REVISIONS
REV. DESCRIPTION DATE CHANGED BY
- . - -
1:8
DWG. NO.
SHEET 1 OF 1
WEIGHT:
B34DV-MAN1
Finish
MATERIAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
1/32"
TWO PLACE DECIMAL
.015"
THREE PLACE DECIMAL
.005"
ALL BENDS ARE ASSUMED
TO BE 90
UNLESS NOTED
OTHERWISE.
Revision / Date
Drawn by
DATE
NAME
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CANADIAN HEATING PRODUCTS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CANADIAN HEATING PRODUCTS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
Y:\Products\Residential Products\B34DV\B34DV
February-27-15 12:28:46 PM
SCALE
PC
Description
MANUAL 1
Revision
02/27/2015
A
Removing the screen and door:
Remove the screen by pulling towards yourself. The screen is held
on with spring clips in each corner.
Figure 28. Removing the screen

B-Series DV-2 Gas Fireplace
Page 19
Part No. XG0160 - 151125
Installation
WARNING
When reinstalling door(s), always make sure all door
buckles are properly hooked and fully engaged.
WARNING
When installing the replace - gas lines, ttings, accesso-
ries or any other objects cannot impede the proper
movement of the door buckles.
Figure 29. Installing the Trim.
Reinstalling the screen and door:
To reinstall the door, tilt the top edge towards you and line up the
tabs of the bottom of the door with the slots on the replace. Place
the tabs into the slots, and tilt the top of the door back towards
the replace as far as it will go. Close the latches by holding Part
B onto the groove at the top of the door and pushing Part A down
completely.
To reinstall screen, push the screen back onto the ball studs on
the replace frame.
Installing the Trim & Bafe:
The 6 horizontal trim pieces (3 upper and 3 lower) are purchased
separate from the replace, and must be eld-installed.
Install the trim by placing the top edge of the trim over to the retainer
clips on either side of the replace. Push the bottom edge rmly
inwards and the trim will snap on (See gure 28). Install the upper
trim pieces so that the bafe is resting between the top and middle
piece, as shown below.
The trim piece with the Montigo emblem should be installed on the
lower middle clips with the emblem on the right side.

B-Series DV-2 Gas Fireplace
Page 20 Part No. XG0160 -151125
Installation
Installing the Log Set
Single Cast Log Set
Installing the Logs:
Unpack the log set and handle very carefully.
1. Remove the door cover and the glass door.
2. Place the single cast log. Set rmly in place as shown below.
3. Place the Front log onto the front log rest as shown in gure
30. Center the log from side to side, and push it against the
back of the log rest. Carefully push the log onto the metal
spikes on the log rest.
4. Place the top logs in position as shown in gure 30a, place the
centre log down rst, then the right and left logs.
5. Start the replace. If the ame appears satisfactory, replace
the glass door and door cover.
Figure 30. Positioning for the single cast log set.
Figure 30a. Proper log placement.
single cast log set
CAUTIONS:
•If logs are not placed properly, excessive sooting will
result.
•The surface of the logs will crack due to the heat of
the flames. This is a normal occurrence.
Figure 30b. Proper log placement.
