Montigo Wildfire MW34-DV User manual

Page 1 of 21
W3400 Gas Fireplace
Check local codes and
read all instructions
prior to installation.
Leavethismanualwith
the owner.
Gas Fireplace
MW34-DV
Installation
Operation &
Maintenance
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Warning:
Improper installation, adjustment,
alteration,serviceormaintenancecancause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.

Page 2 of 21
W3400 Gas Fireplace
Introduction
About the Wildfire 34:
The W34-DV is a direct-vented gas fireplace equipped with a
dual-inlet Wildfire® Burner. It is available in four versions:

Top Vent (Product Code W34DT)

Rear Vent (Product Code W34DR)

Intermittent Pilot - Top Vent (Product Code W34DT-I)

Intermittent Pilot - Rear Vent (Product Code W34DR-I)
The W34-DV is certified as a Gravity Direct Vent Wall Furnace
(ANSI Z21.44-1988 · CGA 2.19-M81) and is rated for:
Natural Gas 22,000 BTU/H (6.4 Kilowatts) Input
16,100 BTU/H (4.7 Kilowatts) Output
Propane 22,000 BTU/H (6.4 Kilowatts) Input
15,400 BTU/H (4.5 Kilowatts) Output
How to use this manual:
This manual covers all models and unless otherwise specified, the
designation W34-DV refers to all models. Sections which are
specific to a particular model are marked with a sym-
bol, plus the appropriate model number.
Warranty and Installation Information:
The Montigo warranty will be voided by, and Montigo disclaims
any responsibility for, the following actions:
Modification of the fireplace and/or components including
Direct-Vent assembly or glass doors.
Use of any component part not manufactured or approved by
Montigo in combination with this Montigo fireplace system.
Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation require-
ments for factory-built gas fireplaces. Installation & repairs should
be done by a qualified contractor.
Installations in Canada must conform to the current CAN/CGA
B-149.1 and .2 Gas Installation Code and local regulations. If the
optional air-circulating fan kit is installed, it must be electrically
grounded in accordance with CSA C22.1 Canadian Electrical
Code Part 1 and/or Local Codes.
Installations in the USA must conform to local codes, or in the
absense of local codes to the National Fuel Gas Code, ANSI
Z223.1-1988. If the optional air-circulating fan is installed, it must
be grounded in accordance with local codes or, in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70-
1987.
Table Of Contents
Introduction ............................................................................. 2
Installation
Installing the Fireplace Shell ......................................... 3
Installing the Gasline ..................................................... 4
The Remote Switch ....................................................... 4
Direct Vent Installation .................................................. 4
General Requirements...................................... 4
Terminations ..................................................... 5
Top Vent Models with horizontal runs ............... 6
Top Vent Models with vertical runs ................... 8
Rear Vent Models ............................................. 9
Rear Vent Models ........................................... 10
Construction around the fireplace
Facing ............................................................. 11
Mantels and Surrounds................................... 11
Wiring ....................................................................... 12
Installing the Logset .................................................... 12
Removing and Installing the Insert .............................. 13
Removing and Installing the Door ............................... 13
Operation ........................................................................ 14 - 16
Maintenance ................................................................... 16 - 17
Warranty ................................................................................. 18
Appendix
A. Spare Parts ............................................................. 19
B. Termination Locations ............................................ 20
CAUTIONS
Due to its high operating temperatures, the appliance
should be located out of traffic & away from furniture and
draperies.
Children and adults should be alerted to the hazards
of the high surface temperature, which could cause
burns or clothing ignition.
Young children should be carefully supervised when
they are in the same room as the appliance.
Clothing or other flammable materials should not be
placed on or near the appliance.

Page 3 of 21
W3400 Gas Fireplace

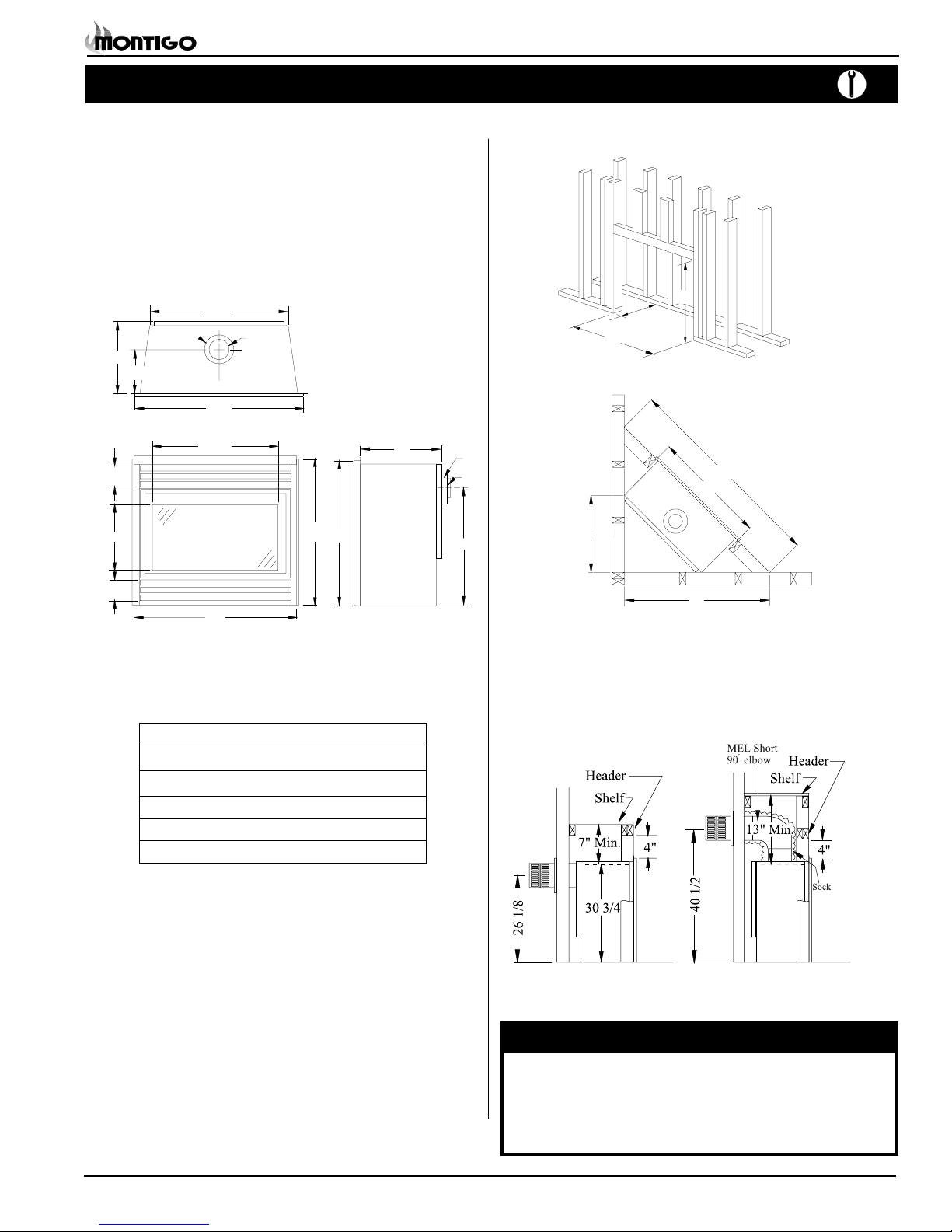

Installing The Fireplace Shell
The fireplace may be installed in any location that is free of air
conditioning ducts, electrical wiring and plumbing. Safety, as well as
efficiency of operation, must be considered when selecting the
fireplace location. Try to select a location that does not interfere with
room traffic, has adequate ventilation, and offers an accessible
pathway for Direct Vent installation. Refer to page 4 - Vent Installation
for more information.
The fireplace dimensions are shown below:
Installation
When installing a shelf over the top of the fireplace, the following
guidelines must be adhered to: For Rear Vent models (W3400R), the
minimum clearance from the top of the fireplace to a shelf is 7". For
Top Vent models (W3400DT), the minimum clearance is 13".
(Minimum 1" clearance must still be maintained around the vent
pipes.)
Figure 3. Corner framing dimensions.
Figure 2. Framing dimensions.
* When sheetrock is
not used behind the
fireplace, framing
depth may be
reduced to 15"
Framing
WARNING:
When this appliance is installed directly on carpeting, tile or any
combustible material other than wood flooring, it must be installed
on a metal or wood panel extending the full width and depth of
the appliance.
Rear Vent
Clearances
The W3400 clearances to combustible materials are:
Top - Rear Vent* 7"
Top - Top Vent*†13"
Back 0"
Side 1"
Floor 0"
Mantle** 10"
* Clearance from the top of the fireplace to a combustible
ceilingwithinthefireplaceenclosure.
** Refer to page 11.
†If special short elbow (SEL90) is used with the Low Clearance
Sleeve (CRS30) the Top Clearance is 13".
If the standard elbow (MEL90) is used with the Low
Clearance Sleeve (CRS30) the Top Clearance is 15".
If the Low Clearance Sleeve (CRS30) is NOT used
over the elbow, the Top Clearance is 35".
Top Vent
34
24 1/2
32
12 1/8
4 3/4
4 3/4
Front View
Figure 1. Fireplace dimensions.
15
26 1/8
32
Ø7
Ø4
34
C
15
31 1/2
Ø7 Ø4
8 3/4
33
15 3/4
36
22 1/4
42
33
59 3/8
Unprotected combustible walls which are perpendicular to the
fireplace opening, must not project beyond the shaded area shown in
Figure 19b.
For protection against freezing temperatures, it is recommended that
outer walls of the chase be insulated with a vapour barrier. This will
reduce the possibility of a cold-air convection current on the fireplace.
Figure 4. Framing for shelves over the fireplace.
W3400DT
W3400R

Page 4 of 21
W3400 Gas Fireplace
Vent Installation
This section covers the installation of direct venting and terminations.
Installation Requirements
W3400 fireplaces must be installed with Montigo Premium Series
direct vent components with:
5" inner dia. / 8" outer dia.
Minimum 1" clearance to combustibles required for vent pipes
Use only certifiedMontigoventcomponents.(Use of other parts will
void the Montigo warranty, and may impede the operation of the
fireplace.)
All joints must be secured with a minimum of two screws per joint
Vent terminations must not be recessed in walls or siding
Horizontal runs must be supported by a minimum of two supports
per horizontal run. A minimum of one screw on each side of
support is also required
Flex vent sections may be stretched up to 50% of their total length
(eg. a 24" section may be stretched to 36")
Maximum horizontal run for a flex section is 3 feet.
Solid vent sections may be cut less than half way from the
tapered end
Vent Terminations
Selecting A Termination Location
Choosing your vent termination location will help to determine
whether you need to use a top vent or rear vent fireplace. Figure 6,
below, shows typical fireplace locations and the venting options they
provide.
For a more detailed diagram of allowed termination locations, see
Appendix B.
Cautions:Cautions:
Cautions:Cautions:
Cautions:
Installing The Gas Line
The gas line must be installed before finishing the W3400 Fireplace.
Natural Gas requires a minimum inlet gas supply pressure of 5.5"
W.C. & a manifold pressure of 3.5" W.C. Propane Gas requires a
minimum inlet gas supply pressure of 11" W.C. & a manifold pressure
of 10" W.C. Provision must also be made for a 1/8" N.P.T. plugged
tapping and be accessible for test gauge connection immediately
upstream of the gas supply controls to the appliance. The fireplace
gas connection and the main operating gas valve is located behind
the removable brass trim at the bottom of the unit and need only be
attached to the gas line with an approved fitting, as required by the
applicable installation codes.
Installation
Figure 6. Fireplace locations and vent terminations.
Note: After gas line is connected, each applianceconnection,
valve and valve train must be checked while under
normal operating pressure with either a liquid solution, or
leak detection device, to locate any source of leak. Tighten
any areas where bubbling appears or leak is detected until
bubbling stops completely or leak is no longer detected.
DO NOT use a flame of any kind to test for leaks.
Installing The Remote Switch
The W3400's gas valve, located behind the lower brass trim, may be
connected to a wall switch or a thermostat. The valve is pre-wired and
completely self contained to generate its own power. DO NOT connect
any external power to it.
Refer to Figure 26 for wiring requirements.
Note: The switch location must not exceed 30' from the fireplace.

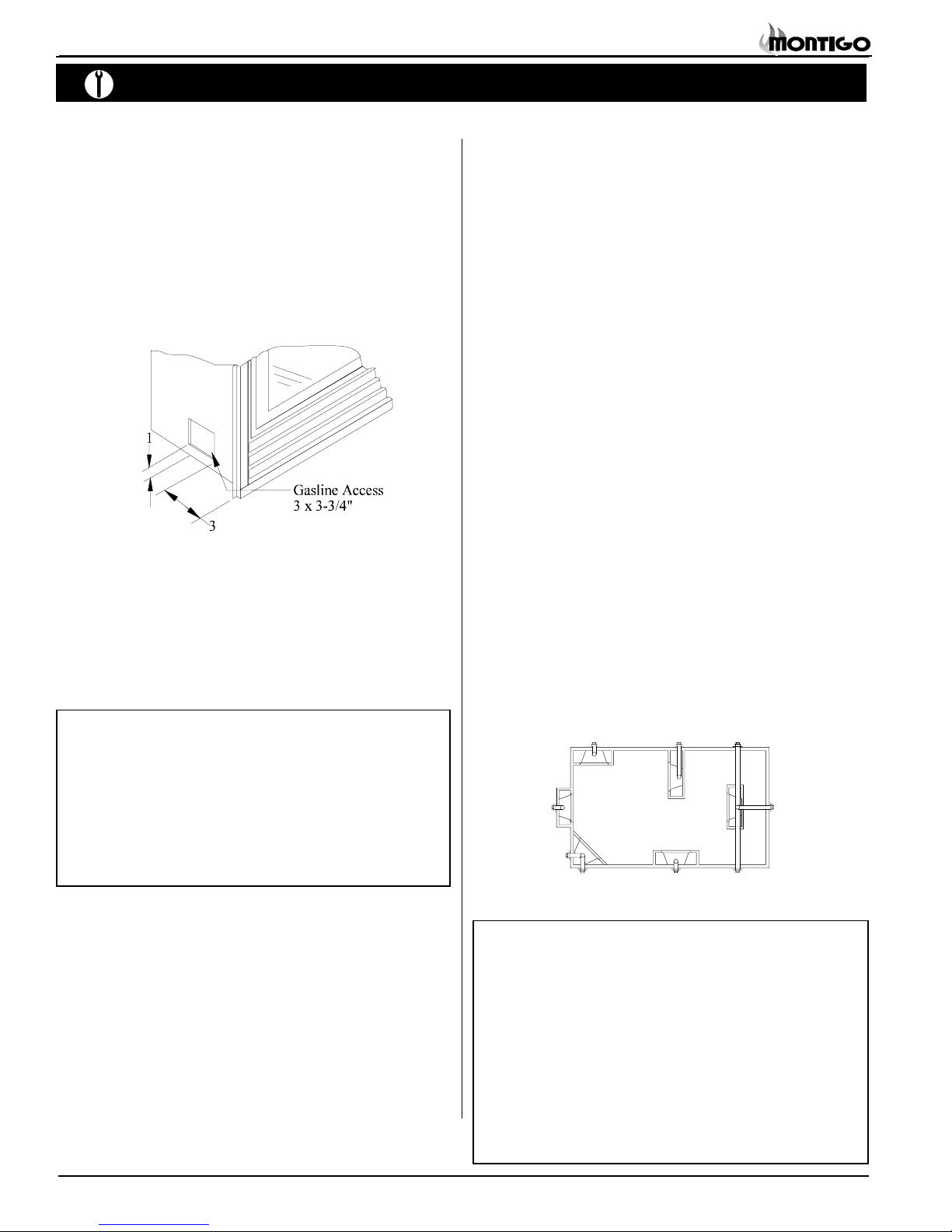

Figure 5. Gas line access.
During any pressure testing of the gas supply piping that excedes 1/2
psig (3.5 kPa), the appliance and its individual shutoff valve must be
disconnected from gas supply system.
When pressure testing the gas supply piping system at test pressures
of less than or equal to 1/2 psig (3.5 kPa), the appliance must be
isolated from the gas supply piping system by closing its individual
manual shutoff valve.
Vent terminations can be very hot. If the termination is less
than 7 feet above a public walkway, it should be fitted with a
certified Montigo Heat Guard. (Part no. PTKOG)
Do not obstruct, or attempt to conceal, the vent termination.
These actions will affect the operation of the fireplace, and
may be hazardous.
In heavy snow areas, take extra care to prevent snow buildup
from obstructing the vent termination.

Page 5 of 21
W3400 Gas Fireplace
Installation

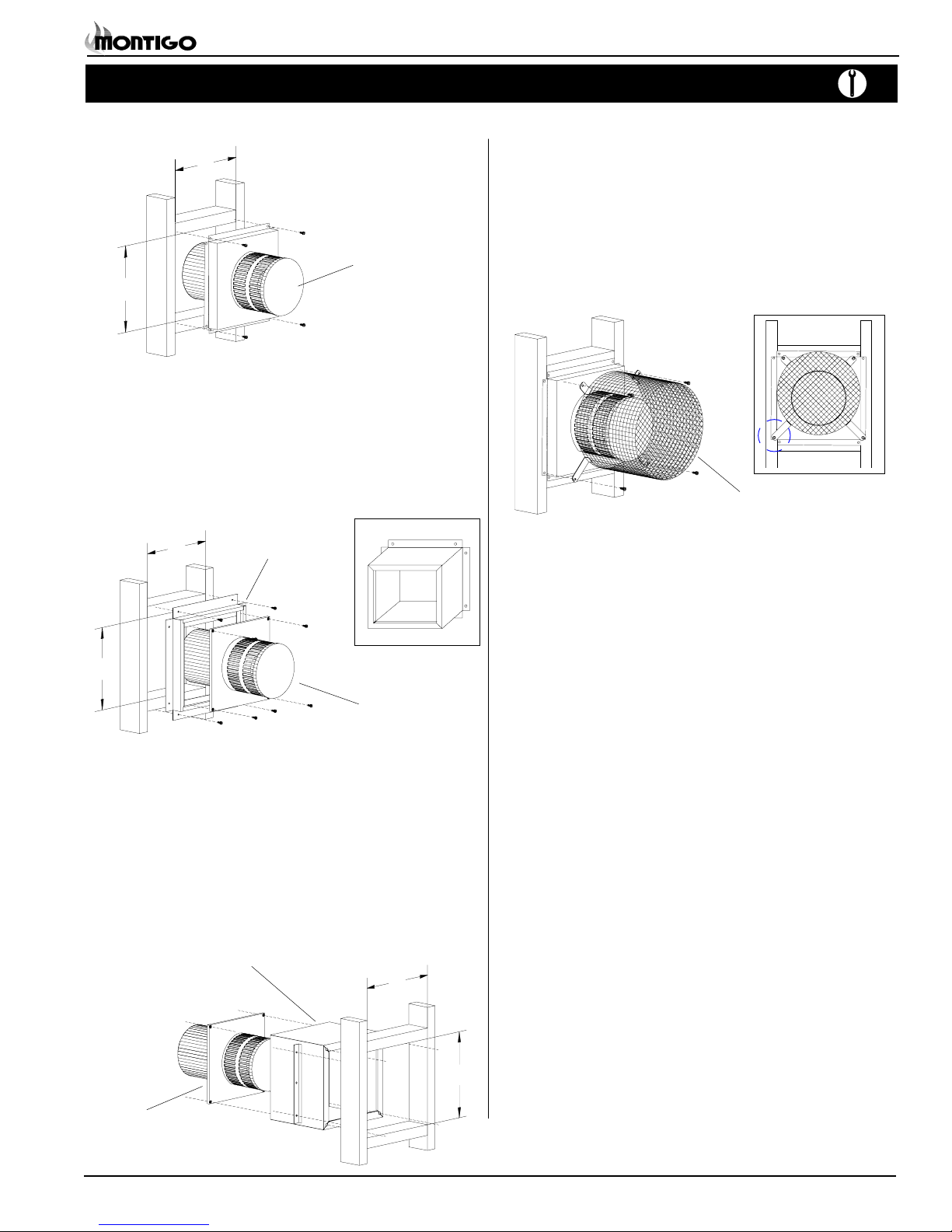

Installing Terminations with Built-In Frames
11
11
1. Frame the termination opening to 11" x 11".
2. Fasten the termination to the studs using a minimum of 4
screws.
1. For the MSR, frame the termination opening to 12" x 12".
For the BSR, frame the termination opening to 11" x 11".
2. Fasten the MSR or BSR to the studs using a minimum of 4 screws.
3. Attach the termination to the frame as shown here, and secure by
screwing through the four pilot holes in the termination.
12
12
MSR shown
Inset - BSR frame.
Installing Terminations with MOSR Frames
The MOSR is a frame for installing terminations from the interior of a
building. Use it for installations such as high rises, where the
termination may not be easily installed from the building's exterior.
1. Frame the termination opening to 12" x 12".
2. Fasten the MOSR frame to the interior side of the studs using a
minimum of 4 screws.
3. Insert the termination into the MOSR frame as shown here, and
attach by screwing through the four pilot holes in the termination.
1212
12
MOSR
Installing Terminations with MSR or BSR Frames
The MSR Frame is for use with stucco or siding exteriors, and the
BSR is for use with brick exteriors. The BSR is available in 4" or 6"
depths.
MTO-3F
MTO-3
MTO-3
MTKOG
1. Ensure that the two long mounting brackets are facing the
bottom of the termination. (See inset). This will provide more
heat protection at the top of the termination, where temperatures
are highest.
2. Attach to the faceplate of the termination using four sheet metal
screws.
Installing Heat Guards over Terminations

Page 6 of 21
W3400 Gas Fireplace
Installation
Model W3400T Venting Runs
For the W3400T Top Vent there are two types of installations: A)
Through-The-Wall Installations and B) Vertical (Through-The-Roof)
Installations.
A) Through-The-Wall Installations
Before you install any venting, you must determine whether the
venting run will be acceptable. Unacceptable venting can affect the
fireplace's combustion.

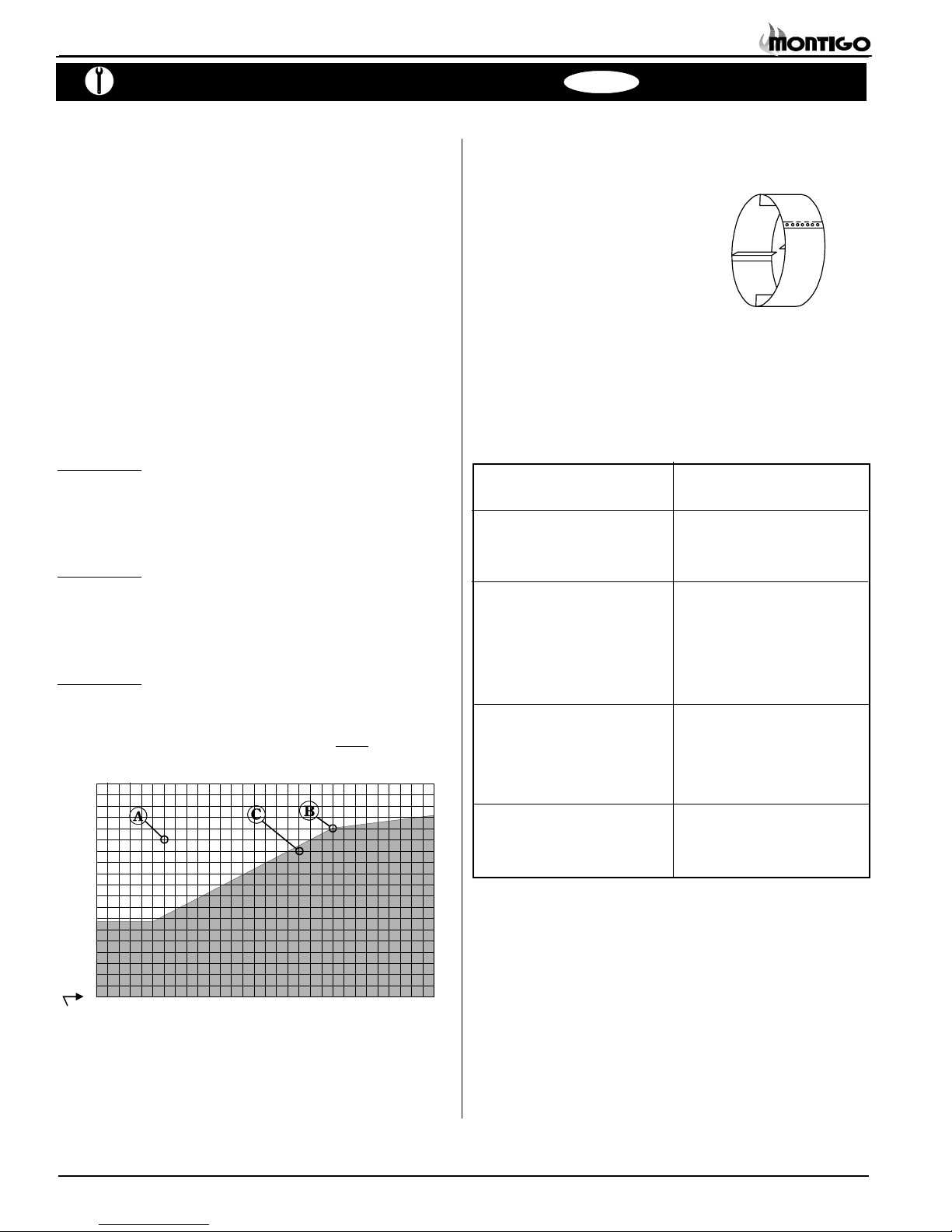

The Venting Graph
Measure the vertical height from the fireplace hearth to the centre of
the termination and the horizontal run from the from the fireplace flue
collar to the wall flange of the termination. Plot on the Venting Graph
(Fig. 7) with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 84" and
the horizontal run to the wall flange of the vent
termination is 36", this would be an acceptable
installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 90" and
the horizontal run to the wall flange of the vent
termination is 126", this would be an acceptable
installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the floor of the fireplace
is 78" and the horizontal run to the wall flange of the
vent termination is 108", this would NOT be an
acceptable installation.
Top Vent
012 24 36 48 60 72 84 96 108 132120 144 156 168 180
Horizontal Run (in.)
Hearth
0
12
24
36
48
60
72
84
96
108
Heat Shields
Due to high flue temperatures, heat shields are required on all 34
Series Modular Direct Vent installations
(except those with vertical terminations) at
the point where the venting connects to the
termination. With the heat shield, vent
clearances can be maintained at 1".
Figure 7. W3400TVentingGraph NOTES: All dimension lengths for vertical or horizontal runs are
measured from center of the vent pipe.
Venting runs must fall within the limits set by the
venting graph (see Figure 7).
Figure 8. Heat Shield. Install by sliding over the vent pipe where it
passes through combustible construction.
Installation Of Top Vent DV
The following venting components are available for the W3400T:
A - Termination PTO-3 (3" length)
PTO-3F (3" length)
B - Stucco Kits MSR (stucco frame)
MOSR (stucco can)
BSR (brick can)
D - Flex sections PFL-1 (12" section)
PFL-18 (18" section)
PFL-2 (24" section)
PFL-3 (36" section)
PFL-4 (48" section)
E - Rigid sections PEXT-1 (12" m/f section)
PEXT-2 (24" m/f section)
PEXT-3 (36" m/f section)
PEXT-4 (48" m/f section)
F - Elbows PEL-90M (m/m 90° elbow)
PEL-90F (f/f 90° elbow)
PEL-90FM (f/m 90° elbow)

Page 7 of 21
W3400 Gas Fireplace
Installation

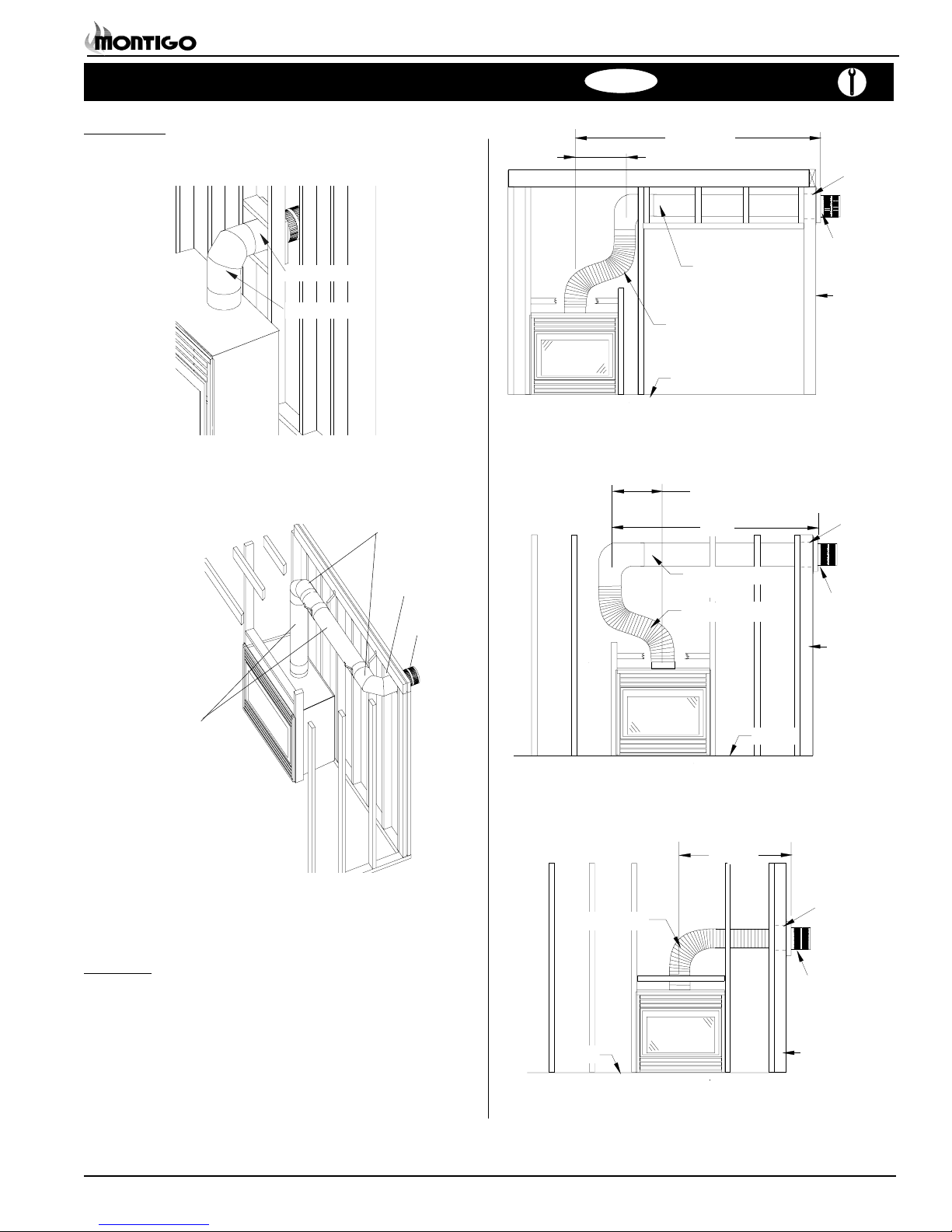

Figure 10. Extended Installation using a combination of solid and
flex venting. Use the vent graph to determine your
allowable run, then select appropriate components.
Figure 11. Retracted Installation using a combination of solid and
flex venting. Use the vent graph to determine your
allowable run, then select appropriate components.
Figure 12. Horizontal flex installation.
Hearth
Termination
Exterior
Wall
3' max.
Flex Section
Hearth
Flex Section Termination
Exterior
Wall
126"
30" Max.
Solid Section w/
90° Elbow
Heat
Shield
Heat
Shield
W3400T
Hearth
Flex Section
Solid Sections
Termination
Exterior
Wall
Heat
Shield
150" max.
30" max.
Example 1:
For our shortest venting configuration use components A
and F (see Figure 9a).
Figure 9a. Typical Top Vent installation. If the 90° elbow is installed
directly on the fireplace, the height to the center of the
termination is 44".
Horizontal Venting
Figure 9b. Typical Top Vent installation. The solid sections can be
used in various combinations to obtain the desired vent
run. The vent run must fall within the limits set by the
venting graph.
90° Elbow
MEXT Section
Heat Shield
Example 2:
A 10' section and elbow used in conjunction with 3 ft. flex section (PFL-
3) will, when extended in a five foot chase, allow for a maximum
horizontal run of twelve and one-half feet from the centre of the
fireplace to outside wall and a minimum of 8' when retracted in opposite
direction (seeFigure10and 11).
"D" flex sections and "E" solid sections may be used in conjunction with
one another to obtain different possible horizontal length installations.
NOTE: Flex section must not exceed maximum horizontal length of 3
feet. (see Figure 12).
Termination
PEL-90 Elbow
PTKO Termination

Page 8 of 21
W3400 Gas Fireplace
Storm collar
Support ring
PEXT
Solid Section
Roof flashing
30' max.
* Minimum 1" clearance to all combustibles
Support plate
Firestop
Firestop
2' min.
PXT-10
Adaptor
PEXT
Flue
Collar
2' min.
Storm collar
Support ring
Roof flashing
30' max.
* Minimum 1" clearance to all combustibles
Support plate
Firestop
Installation
B. Vertical (Through-The-Roof) Installations
Vertical Terminations must be installed:
•minimum 2' (two feet) above the highest point where
vent passes through the roof.
•minimum 6' (six feet) from a mechanical air inlet
•minimum 3' (three feet) from a parapet wall.
Maximum vent height is 20 feet above fireplace.
Note: Flame characteristics will change if the maximum vent
height is used.
Minimum clearances 1" from vent to all combustible materials
must be maintained.
Figure 13. Straight,verticalventingusingrequired PXT-10 adaptor.
A maximum of two offsets with 90° bends may be made and shall not
exceedtotal lengthof 25%of thevertical ventheight, when measured
center to center of piping.
Example: Typical vent installation.
20' vertical vent
2 - 2' offsets required
25% of 20' = 5' max. offset allowed
This venting configuration meets requirements.
A - Termination PVTK-1
B - Flex sections PFL-1 (12" section)
PFL-2 (24" section)
PFL-3 (36" section)
PFL-4 (48" section)
C - Solid sections PEXT-1 (12" section)
PEXT-2 (24" section)
PEXT-3 (36" section)
PEXT-4 (48" section)
D - Support Ring & Plate PSPXT-8 (7" dia.)
E - Firestop PS-8 (7" dia.)
F - Roof Flashing PRF-7 (1/12 - 7/12 pitch)
PRF-12 (7/12 - 12/12 pt.)
PRF-16 (12/12 - 16/12 pt.)
Figure 14b. Vertical venting with 2 offsets.
Figure 14a. Vertical venting with 1 offset.
2' min.
2'
Storm collar
Roof flashing
30' max.
* Minimum 1" clearance to all combustibles
Support straps or
support plate & ring
Firestop
Firestop
Firestop
Support plate
& ring
35' max.
35' max.
Top Vent
35' max.

Page 9 of 21
W3400 Gas Fireplace
Installation Rear Vent
A. Through-The-Wall Rear Vent Installations
The W3400R has three possible installations which do not require
verticallift:
1. Standard Installation.
Model W3400R Venting Runs
For the W3400R, there are two types of installations: A) Basic
Through-The-Wall Installations and B) Multi-Elbow Installations.
For standard installations, you may use the PXT-20 section, and a
termination. The height from the hearth to the center of the
termination is 26 1/8".
Note: PXT extensions may be cut to desired length but must
never exceed 18".
Flue Collar
Heat Shield
EXT extension
ETKO
Termination
Figure 15. Extendedinstallation.
Figure 16. Flexinstallation.
2. Corner Installation - 45° or less.
Use a PFL (12" or 20" compressed length) and a frame, if
appropriate. Flex may be turned to obtain desired degree of angle
required but must not exceed 45°.
Heat Shield
Flex
Terminatio
n
Flue Collar
Heat Shields
Due to high flue temperatures, heat shields are required on all W3400
installations (except those with vertical terminations) at the point where
the venting connects to the termination. With the heat shield, vent
clearances can be maintained at 1".
See Figure 8.
B. Multi-Elbow Installations
For more diffiicult installation situations, the W3400R may be installed
with 2 - 90° elbows and up to 15' of horizontal run. If using this
installation option, you must adhere to the following guidelines:
the first 90° elbow must be placed directly on the flue collar
you must have a minimum vertical lift of 50" (measured from the
hearth)
your vent run must fall within the limits set by Figure 19
Before you install any venting, you must determine whether the
venting run will be acceptable. Unacceptable venting can affect the
fireplace's combustion.
The Venting Graph
Measure the vertical height from the fireplace hearth to the centre of
the termination and the horizontal run from the from the fireplace flue
collar to the wall flange of the termination. Plot on the Venting Graph
(Fig. 19) with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 84" and
the horizontal run to the wall flange of the vent
termination is 36", this would be an acceptable
installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 90" and
the horizontal run to the wall flange of the vent
termination is 126", this would be an acceptable
installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the floor of the fireplace
is 78" and the horizontal run to the wall flange of the
vent termination is 108", this would NOT be an
acceptable installation.

Page 10 of 21
W3400 Gas Fireplace
Installation RearVent
Figure 17. ModelW3400RVentingGraph
0 12 24 36 48 60 72 84 96 108 132120 144 156 168 180
Horizontal Run (in.)
Hearth
0
12
24
36
48
60
72
84
96
108
8"
H
L
Installation Of Rear Vent DV
A complete W3400R (rear vent) system may comprise up to six
individual components:
A - Termination PTO-3F (3" length)
B - Stucco Kits MSR (stucco frame)
BSR-4 (4" brick frame)
BSR-6 (6" brick frame)
MOSR (stucco can)
D - Flex sections PFL-1 (12" section)
PFL-2 (24" section)
PFL-3 (36" section)
PFL-4 (48" section)
E - Solid sections PEXT-1 (12" section)
PEXT-2 (24" section)
PEXT-3 (36" section)
PEXT-4 (48" section)
F - 90 degree elbow MEL-90 (90° elbow)
NOTES: All dimension lengths for vertical or horizontal runs are
measured from center of the vent pipe.
Venting runs mustfall within the limits set by the venting
graph (see Figure 17).
min 8"
max 18"
Figure 18. Multi-elbowinstallation.Distance'H'mustbeaminumumof
50".Theventrunmust complywithfigure17.

Page 11 of 21
W3400 Gas Fireplace
Finishing Around the Fireplace
Combustible mantels and mouldings may be safely installed over the top
and on the front of the fireplace provided that they do not project
beyond shaded area shown in Figure 19. Side wall clearances are 3".
Combustible surrounds may be installed with 3" clearance to the side of
the fireplace as shown in Figure 20.
Installation
We recommend careful consideration be given to the effects of
elevated mantel temperatures which may be in excess of product
design, for example: candles, plastic or pictures. This can cause
melting, deformation, discoloration or premature failure of T.V. and
radio components.
Sheetrock/
Drywall
Header
3
45°
Painting:
Special care is recommended by the Master Painters and Decorators
Association, when painting the fireplace surrounds, to select and
apply a quality Alkyd sealer prior to the applying of latex paints. This
is to prevent leaching of water from evaporation and causing a
brownish staining effect to paint over coats.
Top of fireplace
Combustible Facing
Combustible construction
allowed in shaded area.
123456789101112
Figure 19a. Combustiblemantlesandfacings.
Mantels & Surrounds
NOTE: National Canadian Gas Association mantel test requirements
are for fire hazard prevention to combustible materials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
fireplaces which are hot, fuel and energy efficient.
Please be aware; temperatures over the mantel will rise above
normal room temperature and walls above fireplace may be hot to
touch.
Figure 19b. Combustiblesurrounds.
Fireplace Facing
When selecting the finish material for your fireplace, it is important to
remember the following: BRASS TRIMS MUST NOT BE
OBSTRUCTED IN ANY WAY - to do so restricts the air supply for
the control compartments and heat exchanger it also prevents
access for servicing controls.
The face of the fireplace may be painted to match the room decor,
provided you use a heat-resistant paint. Decorative facing must not
extend past the fireplace opening at all, because it will interfere with
the access to retainers for removal of glass door.

Page 12 of 21
W3400 Gas Fireplace
Installation
Wiring
Figure 21b. Wiringschematicforoptionalfankit.
Figure 21a. Wiringforoptionalaircirculatingfankit.
Installing the Log Set
The W3400 is supplied with four (4) ceramic fibre logs. Logs "A"and
"B"are factory-installed on the log rest. To install the two small logs
("C"and "D"), simply place them onto their mating positions as shown
in figure 24a below. When log set is installed it should look like figure
24b.
Figure 22a. Logplacement.
Figure 22b. Completedloginstallation.
NOTES:
If logs are not placed properly, excessive sooting will result.
If handling or vacuuming the logs, do not attempt to move
the two large logs. They are extremely fragile, and will break
easily.
The surface of the logs will crack due to the heat from the
flames. This is a normal occurance.
Gas Control and Pilot Wiring W3410
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector Fuse
Limit
Switch Wall
Switch
Fan Plug
Receptacle
Junction Box
Junction Box Cover
White
Black
Green
40 VA
Transformer
115VAC
24VAC
Grnd Screw
Figure 20. WiringfortheW3410withHoneywellgascontrolandpilot.
Wiring for the optional Fan and Blower Kits
This fireplace may be equipped with an optional fan pack or blower for
circulating heat into the living space.
Installations in Canada which employ the fans or blowers must be
electrically grounded in accordance with CSA C22.1 Canadian
Electrical Code Part 1 and/or Local Codes.
Installations in the USA which employ the fans or blowers must be
grounded in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70-1987.
For more information see the Fan Kit Installation Guide included
with the fan kit.
NOTE: If any of the original wire supplied with the appliance is replaced, it
must be replaced with the same type, or its equivalent.
G
L1-WH
L2-BLK
Quick Connect
plug to motor
115/1/60 Supply
G L1 L2
Log 'C Log 'D' '
Logs 'A' and 'B'
1" Gap
Push top log ‘D’
to back of log ‘B’
(1 or 3 fan motor)

Page 13 of 21
W3400 Gas Fireplace
Pull bottom of door
surround outwards
and upwards.
Glass door
and frame
Door surround
Tab 'B'
Slot 'A'
Magnet
Installation
Removing and Installing
the Door
Removing the door surround:
The door surround is held in place by two metal clips at the top, and
one magnet on each side. To remove the surround, pull the bottom
outwards and lift upwards until the slots "A" are clear of tabs "B" in
the door. You may need to use a flat screwdriver to pull the door
surround outwards. (Seefigure 23a).
Machine Screws
Door Rail Tabs
Glass door
& frame
Removing the door:
To install/remove the glass door, simply attach/remove the ten (10)
machine screws that hold door in place (Seefigure23b).Ensure that a
good seal is maintained when installing the door.
Figure 23b. Removingorinstallingtheglassdoor.
Figure 23a. Removingorinstallingthedoorsurround.

Page 14 of 21
W3400 Gas Fireplace
WARNING: If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
If you cannot reach your gas supplier, call the Fire
Department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualified service technician.
Force or attempt to repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system, and
any gas control which has been under water.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
What To Do If You Smell Gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
To Turn Off Gas To Appliance:
Operation - Model W3400
3. Push in gas control knob slightly and turn clockwise
to "Off". Do not force.
4. Flip up lower brass trim.
1. Turn off remote switch.
2. Flip down lower brass trim.
1. STOP! Read the safety information above on this label.
2. Flip down lower brass trims.
3. Push in gas control knob and turn clockwise to
"OFF."
4. Wait five (5) minutes to clear out any gas. Smell for gas,
including near the floor. If you then smell gas, STOP!
Follow "B" in the safety information above on this label. If
you don't smell gas, go to the next step.
5. Locate pilot burner (See illustration at right.) and follow
steps below.
6. Turn knob on gas control counterclockwise to
"PILOT."
7. Push in gas control knob completely and hold. Light with
Piezo Igniter button. Continue to hold the control knob in for
about (1) minute after the pilot is lit. Release the knob and it
will pop back up. Pilot should remain lit. If it goes out repeat
steps 3 through 8.
If knob does not pop up when released. Stop and
immediately call your service technician or gas supplier.
If the pilot will not stay lit
after several tries, turn the
gas control knob to "OFF"
and call your service
technician or gas supplier.
8. Push in gas control knob and
turn counterclockwise to "ON."
9. Flip up lower brass trim.
10.Turn on remote switch to ignite fire.
Lighting Instructions:
W3400
with Continuous Pilot
For Your Safety - READ BEFORE LIGHTING:
Gas Control Knob
(Shown in "Pilot" postion.)
NOTE: Knob cannot be turned from
"PILOT" to "OFF" unless knob is
pushed in slightly. Do not force.

Page 15 of 21
W3400 Gas Fireplace
For Your Safety - READ BEFORE LIGHTING:
To Turn Off Gas To Appliance:
Lighting Instructions:
If you cannot reach your gas supplier, call the Fire
Department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualified service
technician. Force or attempt to repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system,
and any gas control which has been under water.
A. This appliance is equipped with an ignition system that
lights the pilot burner automatically. Do not attempt to
light the pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
What To Do If You Smell Gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
1. Turn off remote switch.
2. Flip down lower brass trim.
3. Turn the switch on the gas control to "Off".
4. Flip up brass trim.
1. STOP! Read the safety information above on this label.
2. Flip down lower brass trims.
3. Turn switch on the gas control to OFF".
4. Wait 5 minutes to clear out any gas. If you smell gas,
STOP! Follow "B" in the safety information above on this
label. If you don't smell gas, go to the next step.
5. Turn switch on the gas control to "ON". NOTE: This unit is
equipped with an ignition system that lights the pilot burner
automatically. Do not attempt to light the pilot by hand.
6. Turn on wall switch.
7. Flip up lower brass trim.
8. If the fireplace does not operate, follow the instructions "To
Turn Off Gas To Appliance" and call your service technician
or gas supplier.

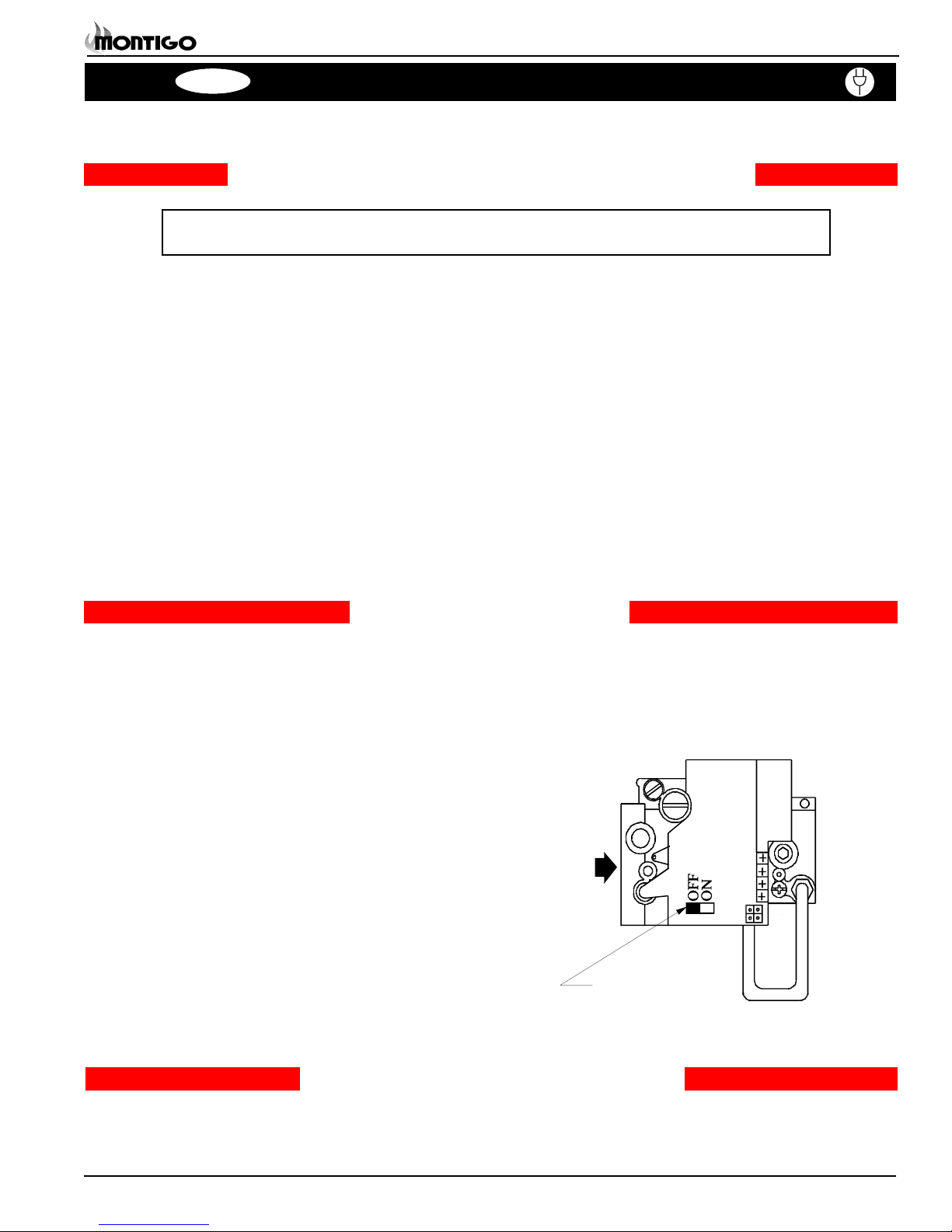

with Honeywell (Electronic) Intermittent Pilot
WARNING: If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
Gas
Inlet
Gas Control Switch
Shown in "On" Position
Operation - Model W3410
W3410

Page 16 of 21
W3400 Gas Fireplace
Maintenance
CAUTIONS
Fireplace gas control must be in the “OFF” position and pilot
and main burners extinguished when cleaning appliance with
a vacuum.
Doors and logs can get very hot. Handle only when cool.
General
Have the fireplace installation inspected yearly, including a visual
check of the vent system, the burner and the pilot flame. For your
convenience a 1/8" manifold pressure tap is supplied on the gas
valve for a test gauge connection. See Figure 28.
For Natural Gas this appliance requires a minimum inlet pressure
of 5.5" W.C. and a manifold pressure of 3.5" W.C.
For Propane Gas this appliance requires a minimum inlet
pressure of 11" W.C. and a manifold pressure of 10" W.C.
Always keep the fireplace area clear and free of combustible
materials, as well as gasoline and other flammable vapours and
liquids.
Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
Operation
Lighting Instructions
See pages 14 and 15.

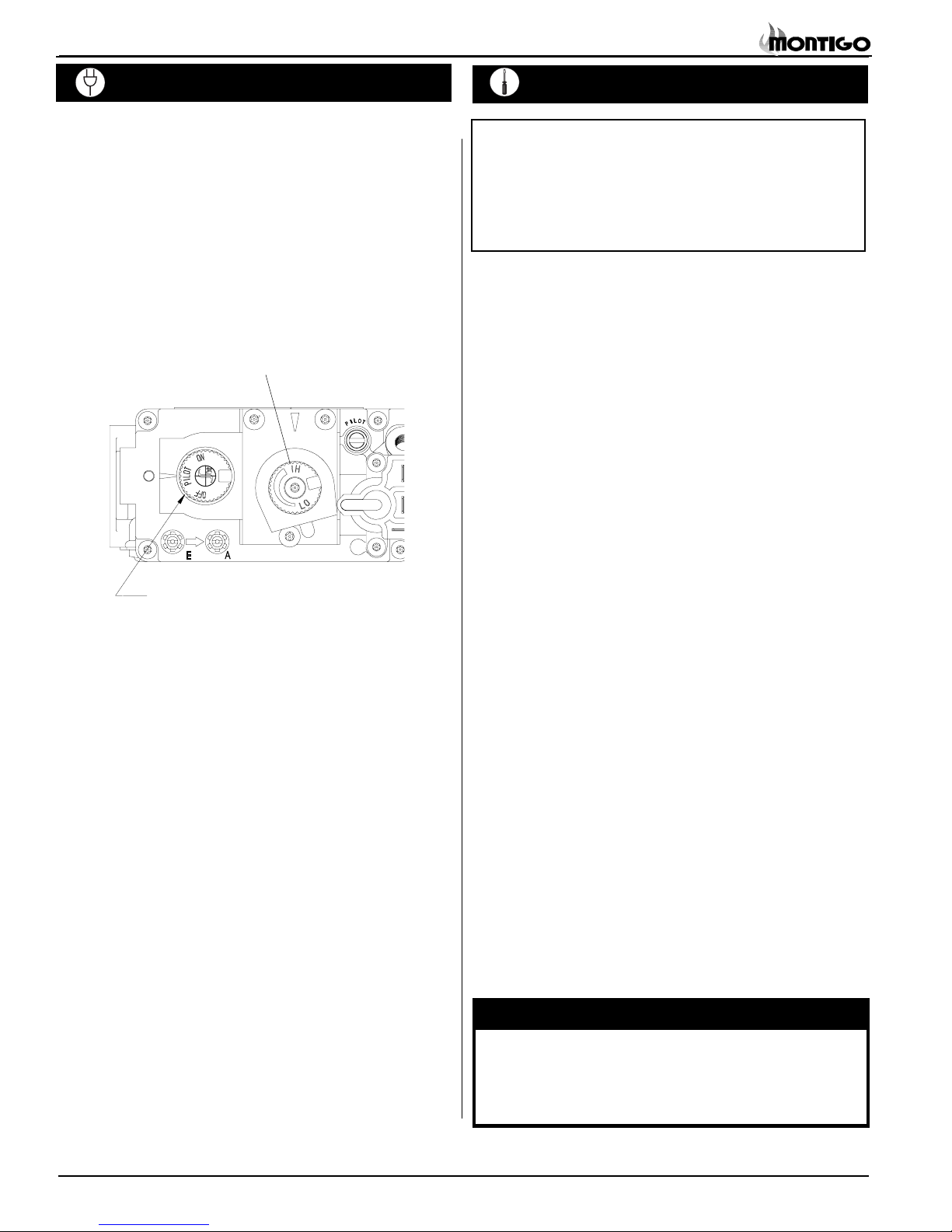

Burner Adjustment
The Wildfire is equipped with an adjustable burner, allowing you to
raise or lower the flames. To adjust the flames, locate the black knob
marked 'Hi-Lo', in the centre of the gas control valve (See Figure 27).
To raise the flame height, turn the black knob (located behind
the lower trim) counterclockwise.
To lower the flame height, turn clockwise.
Gas Control Knob
(Shown in "Pilot" postion.)
'Hi-Lo' Adjustment Knob
Figure 24. 'Hi-Lo'AdjustmentonModelW3400gasvalve. Cleaning
When the fireplace is first activated, there may be some smoking and
a visible film may be left on the glass. This is a normal condition, and
is the result of burning of protective coatings on new metal.
Glass must be cleaned periodically to remove any film (which is a
normal biproduct of combustion) which may be visible. Film can
easily be removed by removing the door, as shown on page 13.
Handle the door carefully, and clean it with non-abrasive glass
cleaners. One of the most effective products is Kel Kem.
Silicone seals on inner door during initial firing will "off gas",
leaving a visual deposit of a white substance on combustion
chamber walls. This can easily be removed using normal
household products.
Use a vacuum cleaner or whisk broom to keep the control
compartment, burner, and firebox free from dust and lint.
Logs may be cleaned periodically with a vacuum to remove soot
or other contaminates. Do not attempt to move the 2 large logs
when cleaning. They are extremely fragile and will break easily.
WARNING:
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass
etching may cause premature glass failure.

Page 17 of 21
W3400 Gas Fireplace
Maintenance
Troubleshooting
If your fireplace still does not operate correctly, consult your dealer or
the manufacturer.
All service and repairs should be performed by a qualified
agency.
All spare parts, optional fans (see optional fan instruction guide), and
optional trim finishes are available from the manufacturer or your local
dealer.
HONEYWELL SV 9500 /SV9600
Troubleshooting Sequence
NOTE: Before Troubleshooting, Familiarize Yourself With
The Startup And Checkout Procedure.
· Turn Gas Supply off
· Set thermostat to
call for heat
SV9500/SV9600
is powered
(24 VAC nominal)
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
START
Igniter warms up
and glows red.
Pilot Valve opens.
Turn gas on.
Pilot Burner lights?
Main Valve opens?
SYSTEM OK
Unplug Pilot Burner Cable,
Measure Voltage at
SV9500/SV9600 HSI
Terminals (24 VAC
Nominal, See INSET)
Replace Igniter/
Flame Rod Assembly.
Replace Igniter/
Flame Rod Assembly.
Replace SV9500/SV9600
Measure Voltage to SV9500
/SV9600. Voltage must
be at least 19.5 VAC
Discard old Igniter/
Flame Rod Assembly.
Replace Igniter/Flame
Rod Assembly and retain.
Restart Troubleshooting
Sequence. Does main
valve open?
Replace
SV9500/
SV9600
Check
Transformer
Line Volt
Supply
Replace
SV9500/
SV9600.
Save old
Igniter/Flame
Rod Assembly
for service.
INSET
HSI
Terminals
CHECK:
· Line voltage power
· Low voltage transformer
· Limit Controller
· Thermostat
· Wiring
· Air proving switch on
combustion air blower system
· Vent damper (if used) is open
and end switch made
Gas Control Valve

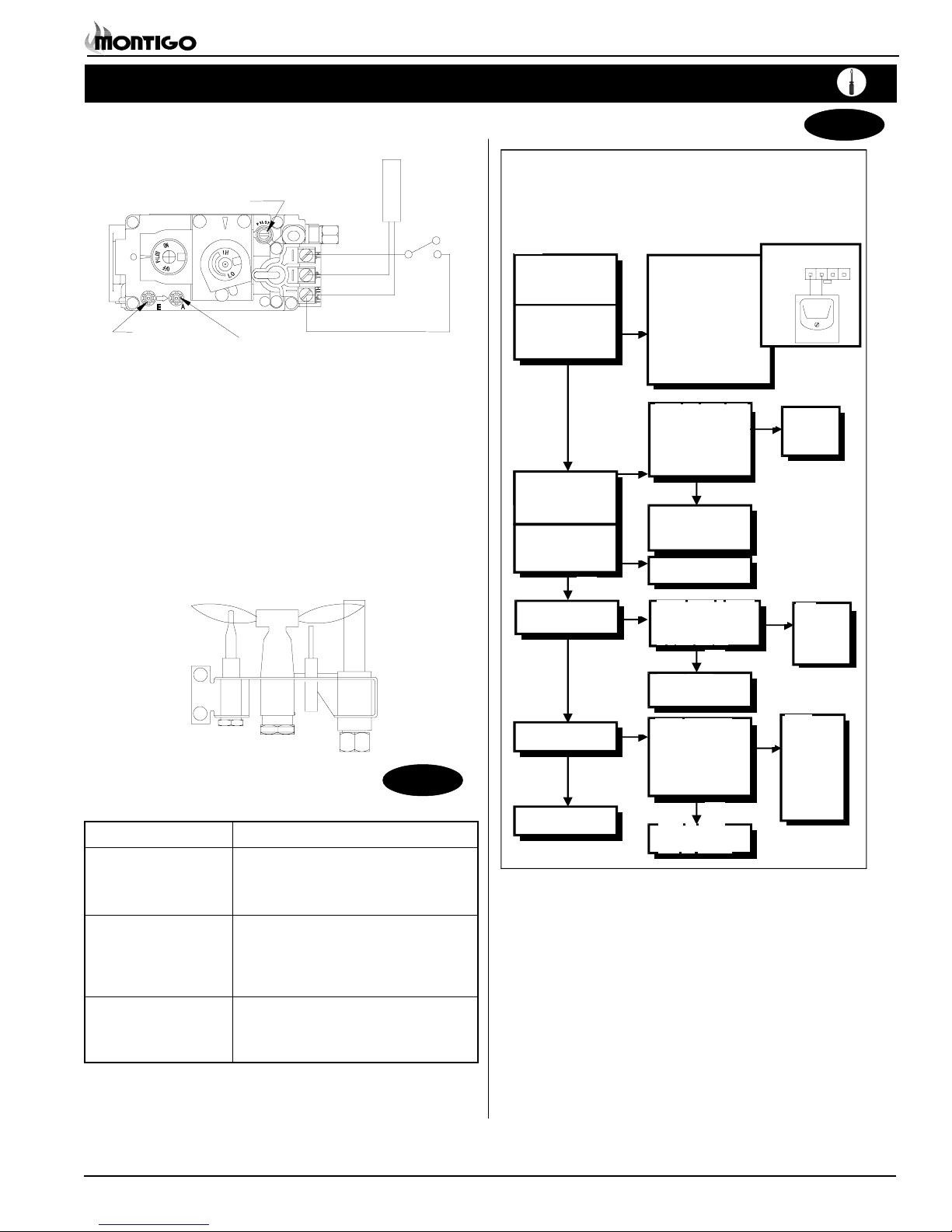

Figure 25. Sit Nova 820 gasvalve.
Pilot Burner Adjustment
1. Locate Pilot Adjustment Screw. (Seefigure25.)
2. Adjust pilot screw to provide properly sized flame as shown in
figure26).
3. After installing or servicing, leak test with a soap solution with main
burner on. Coat pipe and tubing joints, gasket etc. with soap
solution. Bubbles indicate leaks. Tighten any areas where the
bubbles appear until the bubbling stops completely.
W3410
Figure 26. PilotBurner
Troubleshooting
The following is a troubleshooting chart of possible problems:
PROBLEM CORRECTIVE ACTION
NoisyPilot Flame Locate pilot adjustement screw on gas
control valve. Flame is decreased by
turning adjustment screw clockwise.
Pilot won’t ignite Disconnect remote wires and try to
light pilot. If pilot now works, remote
connections are faulty. Check wiring
diagram figure 28.
Main burner will 1. Check wiring (seefigure26).
not light 2. Check wall switch for proper
connection.
W3400
Manifold Pressure
Test Connection
Pilot Adjustment Screw
Inlet
Pressure
Power
Generator
Wall Switch

Page 18 of 21
W3400 Gas Fireplace
The WThe W
The WThe W
The Warrantyarranty
arrantyarranty
arranty
The Companies warrants the Montigo Gas Appliance to be free from defects in materials and workmanship at the time of manufacture. On the Montigo, there is a
ten-year warranty on the firebox and its components, a five-year warranty on the main burner and pilot burner, and a one-year warranty on the gas control valve and
fibre logs. Glass, plated/painted finishes, and refractory lining are exempt.
Remedy And Exclusions
The coverage of this Warranty is limited to all components of the Gas Appliance manufactured by The Companies.
This Warranty only covers Montigo Gas Appliances installed in the United States or Canada.
If the components of the Gas Appliance covered by this Warranty are found to be defective within the time frame stated (see The Companies right of investigation
outlined below). The Companies will, at its option, replace or repair defective components of the Gas Appliance manufactured by The Companies at no charge, and
will also pay for reasonable labour costs incurred in replacing or repairing components. If repair or replacement is not commercially practical, The Companies will,
at its option, refund the purchase price of the Montigo Gas Appliance.
This Warranty covers only parts and labour as provided above. In no case shall The Companies be responsible for materials, components, or construction which
are not manufactured or supplied by The Companies, or for the labour necessary to install, repair or remove such materials, components or construction. All
replacement or repair components will be shipped F.O.B. the nearest The Companies factory.
Qualifications To The WarrantyQualifications To The Warranty
Qualifications To The WarrantyQualifications To The Warranty
Qualifications To The Warranty
The Gas Appliance Warranty outlined above is further subject to the following qualifications:
(1) The Gas Appliance must be installed in accordance with The Companies installation instructions and local building codes. The Warranty on this Montigo Gas
Appliance covers only the component parts manufactured by The Companies. The use of components manufactured by others with this Montigo Gas Appliance
could create serious safety hazards, may result in the denial of certification by recognized national safety agencies, and could be in violation of local building
codes. This warranty does not cover any damages occurring from the use of any components not manufactured or supplied by The Companies
(2) The Montigo Gas Appliance must be subjected to normal use. The Gas Appliances are designed to burn gas only. Burning conventional fireplace fuels such
as wood, coal or any other solid fuel will cause damage to the Gas Appliance, will produce excessive temperatures and will result in a fire hazard.
Limitations On LiabilityLimitations On Liability
Limitations On LiabilityLimitations On Liability
Limitations On Liability
It is expressly agreed and understood that The Companies sole obligation, and purchaser's exclusive remedy under this Warranty, under any other warranty,
expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above.
In no event shall The Companies be responsible for any incidental or consequential damages caused by defects in its products, whether such damage occurs or
is discovered before or after replacement or repair, and whether or not such damage is caused by The Companies negligence. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The duration of any implied warranty with respect
to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the
above may not apply to you.
Investigation Of Claims Against WarrantyInvestigation Of Claims Against Warranty
Investigation Of Claims Against WarrantyInvestigation Of Claims Against Warranty
Investigation Of Claims Against Warranty
The Companies reserves the right to investigate any and all claims against this Warranty and to decide upon method of settlement.
The Companies Are Not Responsible For Work Done Without Written Consent
The Companies shall in no event be responsible for any warranty work done without first obtaining The Companies written consent.
Dealers Have No Authority To Alter This Warranty
The Companies employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated above.
How THow T
How THow T
How T
o Register A Claim Against Wo Register A Claim Against W
o Register A Claim Against Wo Register A Claim Against W
o Register A Claim Against Warrantyarranty
arrantyarranty
arranty
In order for any claim under this Warranty to be valid, The Companies must be notified of the claimed defect in writing or by telephone, as soon as reasonably possible
after the defect is discovered. Claims against this Warranty in writing should include the date of installation, and a description of the defect.
Other RightsOther Rights
Other RightsOther Rights
Other Rights
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
NOTE: The Companies as stated above refer to - Canadian Heating Products Inc. and/or Montigo Del Ray Corp.
Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, without
notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Warranty

Page 19 of 21
W3400 Gas Fireplace
Appendix A - Spare Parts
1
25
34
6
89
12
1. Fan Kit ()
2. Termination (MTKO/ETKO)
3. Termination Frame (MSR)
4. Termination Frame (MOSR)
5. Termination Frame - Brick (BSR)
6. Heat Guard (MTKOG)
7. Wildfire 4-piece Logset
8. 4-Piece Picture Frame Surround (PFS)
9. 3-Piece Picture Frame Surround (PFO)
10. Horizontal Trim Kits
11. Door Cover, Square (DF0)
12. Door Cover, Arched (DFA)
13. Control Module for ModelW3400
14. Control Module for Model W3400-I
15. Aluminum Tubing - 1/4" dia.
16. Locking Nuts
17. Spacer
18. Bulkhead Fitting
19. 90° Elbow
20. Burner Orifice
21. Burner Tube
13
10
11
14
17
18
19
21
16
15
20
7

Page 20 of 21
W3400 Gas Fireplace
Appendix B - Termination Locations
16
