Montigo H38DF PRC Instruction Manual

H38DF PRC
HL38DF PRC
HP38DF PRC
Panorama
Indoor
Resi dential
Gas Fireplace
®
C US
Read and understand this manual. Improper installation, adjustment, alteration,
serviceormaintenancecancauseseriousinjury,propertydamageorevendeath.
For assistance or additional information consult a qualified installer, service
agency or the gas supplier.
DANGER
Installation & Maintenance Manual
Donotstoreorusegasolineorany other flammable vapors andliquidsin the vicinity of
this or any other gas burning appliance. A fire or explosion my occur causing serious
injury, property damage or even death.
WARNING
Installer: Leave this manual with the appliance. Do not remove.
Consumer: Retain this manual for maintenance and future reference. Do not Discard.
NOTICE
IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
DANGER
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
XG0211 151126
Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248

Page 2
You must read and understand this manual prior to installation, operation or
troubleshootingthis appliance.Please retainthis owner’smanual forfuture reference
and maintenance.
NOTICE
XG0211 - 151126
Table of Contents
H*38DF PRC Panorama Indoor Gas Fireplace
Instruction Manual Contents
SafetyAlerts 3
INTRODUCTION 3
Before You Start: 4
Installation Checklist 4
Rating Plate Sample 5
Section 1: Installation Overview and Product Dimensions 6
Section 2: Framing 7
Clearances 8
Installing The Standoffs 8
Nailing Flange Extension 8
Section 3: Venting 9
Section 3-1: CONVERTING TO TOP VENT / REAR VENT 9
Section 3-2: INSTALLING A ROOF MOUNTED DIRECT VENT
TERMINATION (PVTK-1) 10
Section 3-2-1: VENTING LAYOUT 10
Roof mounted Terminations 10
Section 3-3: INSTALLINGAWALL MOUNTED DIRECT VENT 12
Section 3-3-1: VENTING LAYOUT 13
Section 3-3-2: VENTING COMPONENTS 17
Section 3-3-3: Heat Shields 18
Section 4: Wiring 19
CPI[ContinuousPilotIgnition]/IPI[IntermittentPilotIgnition]JumperCable
Installation (only available for SIT Electronic Ignition Systems) 20
Section 5: Installing the Gas Line 21
Section 5-1: FUEL CONVERSION 21
Section 5-2: GAS PRESSURE 21
Section 5-3: GAS CONNECTION 21
Section 6: Finishing 22
Section 7: Screen Installation and Removal 23
Section 8: Installing & Removing the Door 24
Section 9: Installing theAccessories 26
Installing the H38PR* Logset 26
Operation 29
Standing (Continuous) Pilot Ignition (SIT NOVA820) 29
SIT Proame 2 Electronic Ignition 30
Honeywell Electronic Ignition 31
Remote Operation 32
Maintenance 37
Troubleshooting: 38
SIT Nova 820: 38
Honeywell: 38
SIT Proame 2: 38
Replacement Parts: 39
AppendixA: Venting Terminations 40
Appendix B: Warranty 41
Appendix C: State of Massachusetts 42

Page 3
XG0211 - 151126
Indicates a hazardous situation which, if not
avoided, WILL result in death or serious
injury or property damage.
Indicates a hazardous situation which, if not
avoided, COULD result in death or serious
injury or property damage.
Indicates a hazardous situation which, if not
avoided, WILL result in minor or moderate
injury.
Address practices that are important, but
not related to personal injury
DANGER WARNING
CAUTION NOTICE
H*38DF PRC Panorama Indoor Gas Fireplace
Safety Alert Key
Introduction
SafetyAlerts
INTRODUCTION
Congratulations on your purchase of a Montigo Fireplace.
With over 30 years of experience, Montigo is committed
to providing you with a gas replace that is not only a
beautiful addition to your space, but that is also designed
and manufactured to the highest safety, reliability and
engineering standards.
We strongly encourage you to read and carefully follow
the instructions laid out in this Installation, Operation and
Maintenance Manual and retain it for your future reference.
Pay special attention to all cautions, warnings, and notices
throughout this manual intended to ensure your safety.
Thismanualcoversinstallation,operationandmaintenance.
Lighting, operation and care of this replace can be easily
performed by the homeowner. All installation and service
work should be performed by a qualied or licensed installer,
plumber or gas tter as certied by the state, province, region
or governing body where the replace is being installed.
Warranty Information: (See Appendix B)
TheMontigowarrantywillbevoidedby,andMontigodisclaimsany
responsibility for the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation
requirements for factory-built gas replaces. Installation & repairs
should be done by a qualied contractor.
This installation, operation and maintenance manual is
applicable to the models described below. Refer to your
rating plate to verify included options. Throughout this
manualinstructions areapplicableto allmodelsdesignated
as H*38PR* unless otherwise noted.
MODEL Natural Gas Liquid Propane Gas Rating (BTU hr) Traditional Burner w/ Logset Premium Burner w/ Logset Linear Burner w/ Glass mediaAccessories Standing Pilot Ignition Honeywell HSI Ignition SIT Electronic Ignition
H38DFPRCN X 34,000 X X
H38DFPRCN-F X 34,000 X X
H38DFPRCL X 32,000 X X
H38DFPRCL-F X 32,000 X X
HL38DFPRCN-F X 34,000 X X
HL38DFPRCL-F X 32,000 X X
HP38DFPRCN-F X 34,000 X X
HP38DFPRCL-F X 32,000 X X
Young children should be carefully supervised when they are
in the same room as the applicance. Toddlers, young children
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddles, young children and
other at risk individuals out of the room and away from hot
surfaces.
CAUTION

H*38DF PRC Panorama Indoor Gas Fireplace
Page 4 XG0211 - 151126
Installation
Due to high operating temperatures, this appliance should be located out of traffic &
away from furniture and draperies.
Children and adults should be alerted to the hazards of the high surface temperature,
which could cause burns or clothing ignition.
Youngchildren shouldbe carefully supervised whenthey are in thesame room as the
appliance.
Clothing or other flammable materials should not be placed on or near the appliance.
CAUTION
Whenthis applianceis installed directlyon anycombustiblematerial otherthan wood
flooring, it must be installed on a metal or wood panel extending the full width and
depth of the appliance or a fire will occur causing serious injury, property damage or
even death.
DANGER
Installation Checklist
Determine the desired install location of your replace.
See Section 1, Dimensions on Page 6, and refer to the
Framing Section 2 for details.
Selectthelocationofyourterminationandresultingventrun.
Your selected termination location must be the
highest point in the Direct Vent installation.
Shoulditbeimpossibletomeettheventingrequirementslaid
out in Section 3: Venting, please contact a local Montigo
dealer regarding the use of a Montigo Power Vent.
Lay out the Vent run; calculating the required elbows and
straight runs of 5"/8" flex and/or rigid pipe.
LayoutElectricalRequirementsRefertoSection4:Wiring,
for Details.
Refer to Section 5: Installing the Gas Line, for details on
the gas connection and access.
Refer to local codes and guidelines for installation
requirements.
Installation and repairs should be done by a
qualied contractor and must conform to:
•InstallationsinCanadamustconformtothelocalcodes
orintheabsenceoflocalcodestothecurrentversionofNaturalGas
and Propane Installation Code, CSA B149. Electrical Installations
must conform to the local codes or, in the absence of local codes,
to the current version of Canadian Electrical Code, CSAC22.1.1
•InstallationsintheUSAmustconformtothelocalcodes
or in the absence of local codes to the current version of National
FuelGasCode,ANSI Z223.1/NFPA54.ElectricalInstallationsmust
conformto the localcodesor,inthe absence oflocalcodes,to the
currentversionoftheNationalElectricalCode,ANSI/NFPA70. See
Appendix C for installation within the State of Massachusetts.
IMPORTANTMESSAGE:SAVETHESEINSTRUCTIONS
TheH*38PR* Direct Vent replace must be installed in accordance
with these Instructions. Carefully read all the Instructions in this
manual rst. Consult the Local Gas Branch to determine the need
fora permit prior tostarting the installation.It is theresponsibility
of the installer to ensure this replace is installed in compliance
with the manufacturers instructions and all applicable codes.
Before You Start:
Installation and repairs should be done by an authorized gas fireplace service technician.
Theapplianceshouldbeinspectedbeforeuseandatleastannuallybyaprofessional.More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
thefireplacearekeptclean.
NOTICE
WARNING
Abarrier designed toreduce the riskof burns from hot viewing glass isprovided with this
applianceand shall beinstalled for theprotection of children and other at-risk individuals.
Ifthe barrier becomesdamaged, the barriershall be replaced with the manufacturer’s
barrierfor this appliance.
WARNING
Anysafety screen, guard, or barrierremovedfor servicing an appliance mustbe replaced
priorto operating the appliance.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 5
XG0211 - 151126
Installation Section:
Rating Plate Sample



 












LB1223-V5.0 SIT IPI -with screen JUN 16.2014
  










 


    




  

  








    






 
 
 


 


Teklynx LabelView Demo



 












LB1223-V5.1 SIT IPI -with screen DEC06.2014
  










 


    




  

  








    






 
 
 


 


Teklynx LabelView Demo
FigureA: Rating Plate for IPI eletronic ignition Figure B: Rating Plate for standing pilot (SIT)

H*38DF PRC Panorama Indoor Gas Fireplace
Page 6 XG0211 - 151126
Installation
Section:
Section 1: Installation Overview and Product Dimensions
Figure 1. Fireplace dimensions with attached Nailing Flange Extension. (Tolerance ± ⅛").
The replace dimensions are shown below:
PleasereviewthePre-InstallationChecklistonPage4forgeneral
information on preparing for a successful installation of your
replace.
The H*38PR* replace may be installed in any location that
maintains proper clearances to air conditioning ducts, electrical
wiring and plumbing. Safety, as well as efciency of operation,
should be considered when selecting the replace location. Select
a location that does not interfere with room trafc, has adequate
ventilationandoffersanaccessiblepathforDirectVentinstallation.
Top View
Front View Side View
39 5
8
"
1006
42 1
8
"
1071
35 5
8
"
904
5
8
"
16
4"
102
25 3
8
"
643
8"
203
17 3
8
"
440
22 1
4
"
566
43
4
"
122
24 3
4
"
630
10"
254
5"
127
8"
203
33 1
8
"
843
Rear Vent
Center

H*38DF PRC Panorama Indoor Gas Fireplace
Page 7
XG0211 - 151126
Installation Section:
Section 2: Framing
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.
1). Frameintheenclosurefortheunitwithframingmaterials.The
framed opening for the assembled replace is 40 3/4" wide, x
44" high x 24 1/2" deep, see Figure 2 .
NOTE: When constructing the framed opening, please ensure
there is access to install the gas line when the unit is installed.
Figure 2. Framing dimensions.
24 1/2”
40 3/4”
44”
Figure 3. Combustible Framing for shelves over the replace, Rear vent.
Note:HP38DF*CANNOTbestraightrunrearventedwithwalltermination.
Figure 4. Combustible Framing for shelves over the replace, Top vent.
‡ HP38DF* is 59"
Figure 5. Non Combustible Framing with alcove above replace, Top Vent.
11”
29
C
ombustible
Framing Header
shelf
33 1/2” 44”
1” Min.
12” Max.
46” ‡
17 1/2”
MEL Short
90 elbow
shelf
Combustible
Framing / Header
44”
1 Min.”
Floor
39 5/8”
door
opening
44”
C
ombustible
Header
Min. 1 ”
2”
Ceiling level
Non-Combustible
Header
Non-Combustible
materials. Alcove
over fireplace.
Top Vent
Non-Combustible
Materials, with Low
profile mantel / Alcove
over fireplace.
84”
Min.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 8 XG0211 - 151126
Installation
Section:
Clearances
When installing a shelf over the top of the replaces, the following
guidelines must be adhered to:
For Rear Vent applications, the minimum clearance is 1" from the
rear of the replace to a wall, or any combustible materials, and
11" clearance from the top of the replace to the underside of any
combustible shelf materials.
For Top Vent applications, the minimum clearance is 1" from the
rear of the replace to a wall, or any combustible materials, and 17
1/2" to the underside of any combustible shelf materials.
1” clearance is maintained on sides and bottom of vent runs and
2” above horizontal vent runs to any combustible material.
MODEL Top - Rear Vent † Top - Top Vent † Header Sides Front Rear Venting - Top Venting - Sides, bottom
H*38PR* 11" 17 1/2" 4" 0" 0" 1" 2" 1"
Installing The Standoffs
To avoid elevated mantel temperatures, all H*38PR* gas
replaces are required to have the supplied standoffs installed.
The replace is supplied with two standoffs. Bend and install these
standoffs on top of the replace ensuring that the height of the
standoff maintains a 8" clearance.
Figure 6. Installing the H*38PR* standoffs.
† Note: Clearance from top of replace to a ceiling within the
replace enclosure.
Fasten Standoffs
in gutter
8”
Nailing Flange Extension
The 4" nailing ange extension is shipped attached to the top edge
of the replace, see Figure 1.
The nailing ange extension may be substituted with a piece of NON-
Combustible material of the same thermal characteristics, ie:
cement board or equivalent to t the opening. This is recommended
in applications where the facing materials will not adhere to the
metal nailing ange. To remove the Nailing Flange Extension follow
the directions below:
Figure 7c. Finished removing Nailing Flange extension.
Figure 7. Remove screws from top of the unit
Figure 7a. Remove shell from the top of unit. Remove screws from outer
edge.
Figure 7b. Remove the nailing ange extension from the unit. Reinstall
shell. Screw shell in place.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 9
XG0211 - 151126
Installation
Section 3: Venting
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.
Montigo supplies a variety of direct venting and termination
options. The direct vent termination location MUST be selected
such that it is the highest point in the venting assembly. It
should also be selected such that it provides the shortest vent
run possible. Should it be impossible to ensure that the termina-
tion is the highest point or should it be impossible to meet the
venting guidelines laid out below please contact your Montigo
dealer to discuss power venting options.
NOTES FOR PLANNING VENTING:
Venting originates from the unit through the top
or through the rear
Venting can terminate through the roof or through
an exterior wall.
Refer to Appendix A - Termination Locations
to ensure the planned termination location is
acceptable.
Once the termination location has been
established, refer to the appropriate section below
for installation details
All replaces shipped from the factory are Top
vent.
Silicone application is NOT required when joining
Montigo vent pipes and components.
Figure 8. Flue cover and collar removal, Top Vented replace.
Figure 8a. Flue cover and collar installation, Rear Vented
replace.
Use the following instructions to convert an H*38PR* for Rear
Vent use:
1. Remove the Rear ue cover and gasket (5" and 8") on the
ue outlet, as shown in Figure 8.
2. Next, Remove the Top ue collar's (5" and 8") on the ue
outlet, as shown in Figure 8.
3. Install the (removed) Rear ue cover and gasket material, to
theTopventoutlet.Fastenthecoverwithincludedhardware,
as illustrated Figure 8a.
4. Installthe (5" and 8")collars tothe rearvent outlet usingthe
included hardware, as illustrated Figure 8a.
5”Inner Flue Collar
8”Outer Flue Collar
Flue Gasket
Flue Cover Plate
Flue Gasket
Flue Cover Plate
8” Outer Flue Collar
5” Inner Flue Collar
Section 3-1: CONVERTING TO TOP VENT / REAR VENT

H*38DF PRC Panorama Indoor Gas Fireplace
Page 10 XG0211 - 151126
Installation
Section 3-2: INSTALLINGAROOF MOUNTED DIRECT VENT
TERMINATION (PVTK-1)
This section applies to installations where the direct vent termi-
nation will be roof mounted.
Section 3-2-1: VENTING LAYOUT
Selection of components and details of venting lay out should
adhere to the following guidelines:
The maximum termination point is 32’ above the replace
(NOTE: if the maximum termination height is used, the ame
pattern may be affected).
The Vertical termination must be a minimum 2’higher than
where the termination exits the roong materials, (asphalt
shingles, cedar shakes, etc). This distance should be
measured from the high side of the roof slope where the
ue ashing intersects the roong materials. (see Figures
9 to 9c).
Terminationlocationmustbeaminimum6’fromamechanical
air inlet.
Foramoredetaileddiagramofallowedterminationlocations,
see Appendix A.
Amaximum of two offsets (each offset is made up of 2-90°
bends) may be made for vertical vent runs.
Firestops must be installed as required by National & local
codes.
Ensure all horizontal runs are supported with a minimum
of 3 supports per 10’of venting.
Install all roof ashing and storm collars as shown.

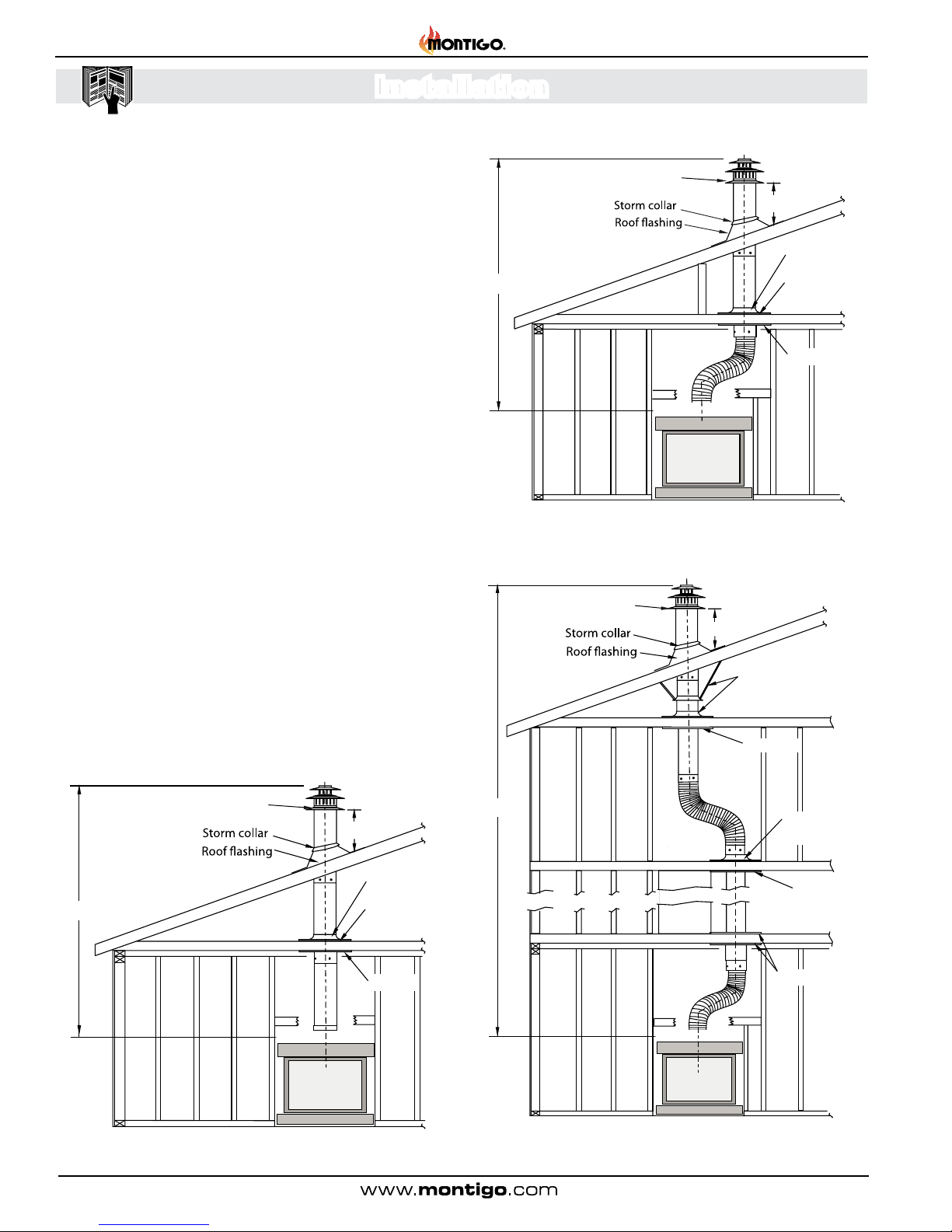

Figure 9. Top vent, Roof mounted termination with no offset in vent run.
Figure9a. Topvent, Roof mounted with 1 offset (1 offset= two90° bends).
Figure 9b.Topvent,Roofmounted with2offsets(1offset=two90°bends).
Roof mounted Terminations
The following details are some possible congurations for Roof
mounted terminations.
Support ring
Support plate
Firestop
3
2’ max.
2’ min.
Obstacle
PVTK1
Termination
Support ring
Support plate
Firestop
3
2’ max.
2’ min.
PVTK1
Termination
Support straps or
support plate & ring
2’ min.
Firestop
Firestop
Firestop
3
2’ max Support plate
& ring
Obstacle
PVTK1
Termination

H*38DF PRC Panorama Indoor Gas Fireplace
Page 11
XG0211 - 151126
Installation
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.
Figure 9c.Rear vent, Roof mounted venting (1 = 90° bend).
Support ring
Support plate 32’ Ma.x
PVTK
1
Termination
12” Max.
Storm Collar

H*38DF PRC Panorama Indoor Gas Fireplace
Page 12 XG0211 - 151126
Installation
1
12”
2”
12”
12”

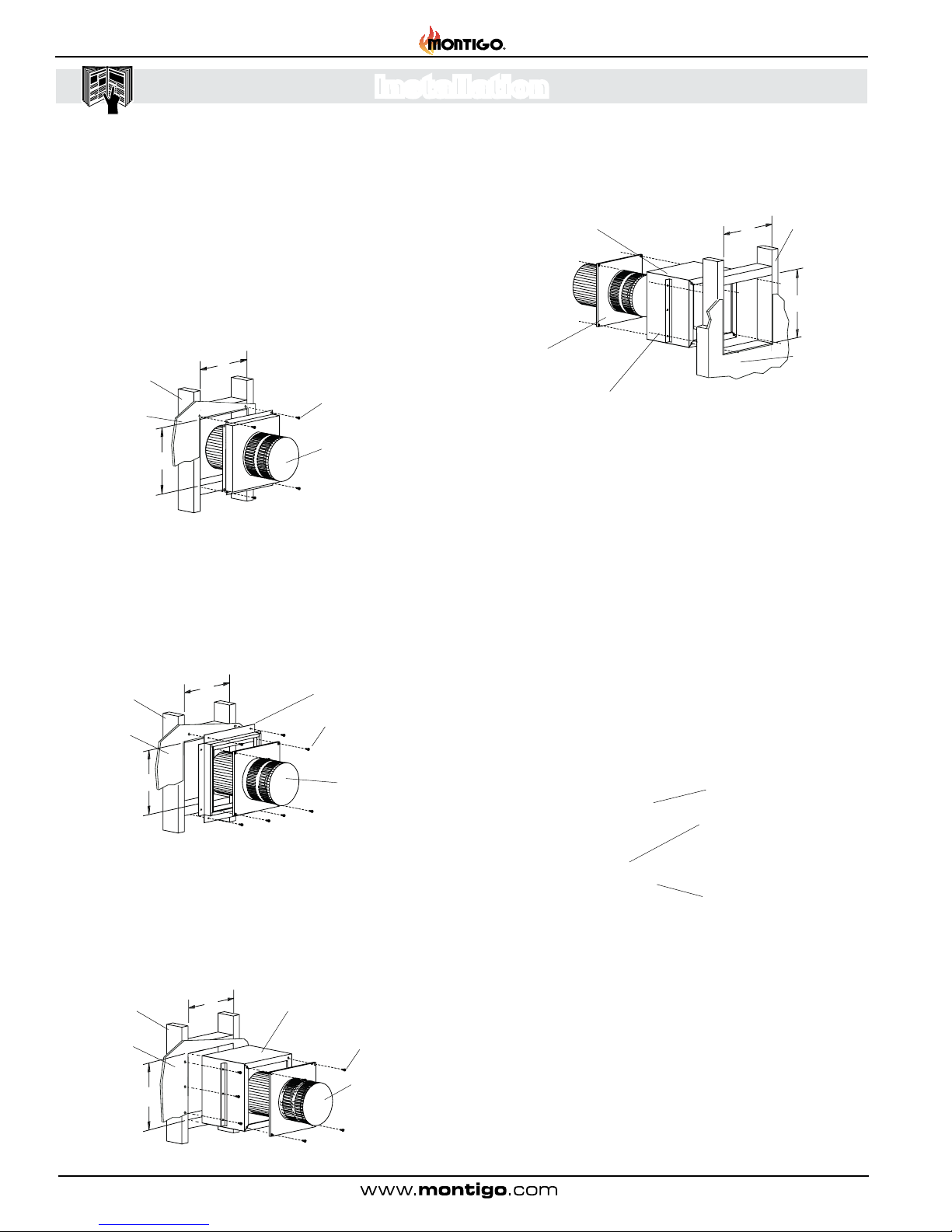

Section 3-3: INSTALLINGAWALL MOUNTED DIRECT VENT
TERMINATION
This section applies to installations where the direct vent termi-
nation will be wall mounted.
1). Installation of Termination with built in frame
A Termination with a Built-In Frame is installed during framing of
a structure.
1. Frame the termination opening to 11" x 11".
2. Install exterior sheathing to the structure framing.
3. Fasten the termination to the sheathing using a minimum of
4 screws.
MSR Frame
PTO-4 (5"/8")
Termination
PTO-4F (5"/8")
Termination
Figure 10. Installing a PTO-F termination.
Figure 10a. Installing a PTO termination with the MSR frame.
Figure 10d. Installing the VSS Vinyl Shield.
5). Installation of a termination shield for Vinyl Siding
The VSS Termination shield is installed when the exterior of a
structure is clad with Vinyl siding. It is placed directly above, and
on-centre with the termination.
2). Installation of termination frame at time of framing
Terminations with a MSR frame allow the installation of the frame
prior to installation of the termination.
1. Frame the termination opening to 12" x 12".
2. SecuretheMSRFrametotheexteriorsheathingofthestructure.
3. Fasten the termination to the MSR Frame using a minimum of
4 screws.
Figure 10b. Installing a PTO termination with the BSR frame.
3). Installation of termination frame at time of framing in Masonry
Terminations with a BSR frame allow the installation of the frame
in masonry prior to the installation of the termination
1. Frame the BSR opening to 12" x 12".
2. SecuretheBSRFrametotheexteriorsheathingofthestructure.
1. Frame the MOSR opening to 12" x 12".
2. Fasten the MOSR frame to the interior side of the studs,
concrete, or nished wall construction using a minimum of 4
screws.
3. Insert the termination into the MOSR frame as shown here,
(fromthe inside)andattachtotheMOSRbyinstallingamin.
quantityof4boltsintothethreadednutsontheMOSRFrame.
4). Installation of termination from inside structure
A Termination with a MOSR Frame is installed from the inside of
thestructure.Thesearecommonlyusedinhigh-riseconstruction.
MOSR Frame
PTO-4 (5"/8")
Termination
Figure 10c. Installing a PTO termination with the MOSR frame.
BSR Frame
1
1”
11”
Framing
Exterior
Sheathing Fastening Hardware,
minimum 4-screws
Framing
Exterior
Sheathing Fastening Hardware,
minimum 4-screws
PTO-4 (5"/8")
Termination
Framing
Exterior
Sheathing
Fastening Hardware,
minimum 4-screws
12”
12”
Fastening Hardware,
minimum 4-screws
Framing, con-
crete or other
materials
Exterior Sheath-
ing, concrete or
other materials
Exterior Vinyl
siding
PTO-4 (5"/8")
Termination
VSS Vinyl shield
Wall mounted Terminations
The following details are some possible congurations for Wall
mounted terminations. See below.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 13
XG0211 - 151126
Installation
MTKOG (5"/8")
Installing Heat Guards over Terminations is recommended
in installations where the termination is located within 7' feet
above grade, or above a pedestrian walkway, and may be
Required by code in Public areas.
1. Ensure that the two long mounting brackets are facing the
bottom of the termination. (See inset). This will provide more
heatprotectionatthetopofthetermination,wheretemperatures
are highest.
2. Attach to the faceplate of the termination using four sheet
metal screws.
Figure 11. Installing a PTO termination heat guard.

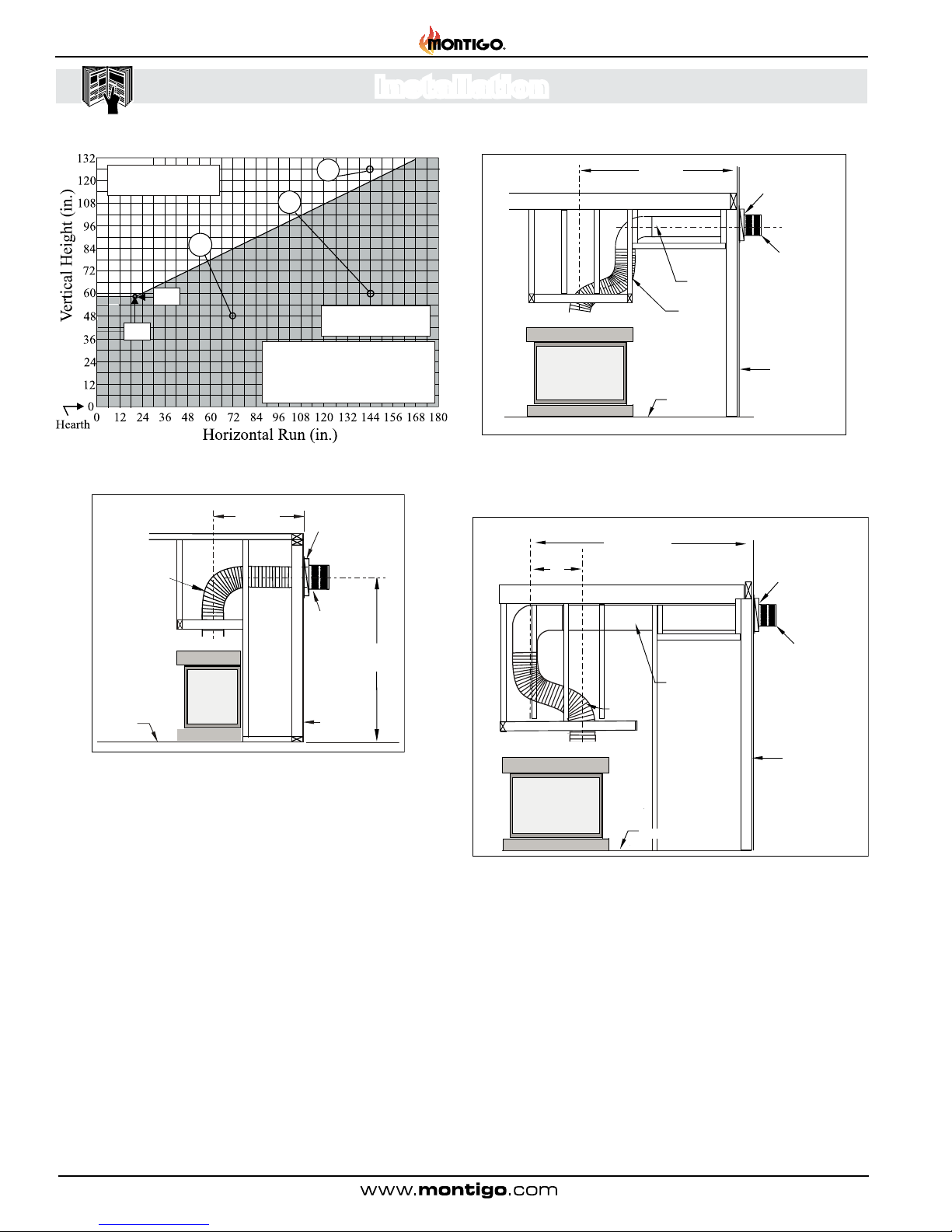

Figure 12. H38PR* or HL38PR* Top Vent Venting Graph for wall mounted
terminations.
Section 3-3-1: VENTING LAYOUT
Selection of components and details of venting layout should
adhere to the following guidelines:
Vent terminations must not berecessed in wallsor siding.
For Heat Shield requirements see Section 3-3-3 on
page 18.
Once the proposed venting layout has been determined
refer to either Figure 12, 12a, 14, or 14a to ensure the
layout is acceptable.
Notes Wall Mounted Terminations: TOP VENT
All dimension lengths for vertical or horizontal runs are
measured from center of the vent pipe.
Venting runs must fall within the limits set by the venting
graphs, see Figure 12 or 12a.Figure12a.H38PR*orHL38PR*TopVented,wallmountedinstallationwith
one90° bend.The vent run must comply with Venting Graph for Top vent,
wall mounted terminations, Figure 12.
42”
46”
A
C
B
If your installation does not fall with-
in the venting graph parameters,
please contact a local Montigo
dealer for Power Venting options.
Unacceptable vent run
within shaded area.
Acceptable vent run
within non-shaded area.
Heat
Shield
Termination
Hearth Exterior
Wall
46”
Min.
42” Max.
Flex section
The Venting Graph
Measure the vertical height from the replace hearth to the centre
of the termination and the horizontal run from the replace ue
collar to the wall ange of the termination. Plot on the Venting
Graph Figure 12 or 12a with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
ExampleA: (Acceptable Installation)
If the vertical dimension from the hearth is 126" and the
horizontal run to the wall ange of the vent termination is 144",
this would be an acceptable installation.
Example B: (Unacceptable Installation)
Iftheverticaldimensionfromthehearthis48"andthehorizontal
run to the wall ange of the vent termination is 72", this would
NOT be an acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 60"
and the horizontal run to the wall ange of the vent termination
is 144", this would NOT be an acceptable installation.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 14 XG0211 - 151126
Installation
Section:
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.
Figure 13b. H38PR*, HL38PR*, or HP3PR* Top Vented, wall mounted
Multi-elbow installation. See Venting Graph for Top vent, wall mounted
terminations, Figure 12 or 12a.
Heat
Shield
Termination
Exterior
Wall
30” Max. 126” Max.
Solid
Section
Flex
Section
Hearth
Figure 13c. H38PR* , HL38PR* or HP38PR* Top Vented, wall mounted
Retracted Multi-elbow installation. See Venting Graph for Top vent, wall
mounted terminations, Figure 12 or 12a.
Solid
Section
Flex
Section
Hearth
Heat
Shield
Termination
Exterior
Wall
150”max.
Figure13.HP38PR*TopVentVentingGraphforwallmountedterminations.
Heat
Shield
Termination
Hearth Exterior
Wall
59”
Min.
18” Max.
Flex or Rigid
Section
Figure 13a. HP38PR* Top Vented, wall mounted installation with one 90°
bend. The vent run must comply with Venting Graph for Top vent, wall
mounted terminations, Figure 12a.
59”
A
C
B
.
Unacceptable vent run
within shaded area.
Acceptable vent run
within non-shaded area.
.
18”If your installation does not fall with
in the venting graph parameters,
please contact a local Montigo
dealer for Power Venting options.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 15
XG0211 - 151126
Installation Section:
Figure 14. H38PR* or HL38PR* Rear Vent Venting Graph for wall mounted
terminations.
Notes Wall Mounted Terminations: REAR VENT
All dimension lengths for vertical or horizontal runs are
measured from center of the vent pipe.
Venting runs must fall within the limits set by the venting
graphs, see Figure 14 or 14a.
Fireplace must be converted to Rear Vent conguration
prior to running vent, see Figure 8 and 8a.
The Venting Graph
Measure the vertical height from the replace hearth to the centre
of the termination and the horizontal run from the replace ue
collar to the wall ange of the termination. Plot on the Venting
Graph Figure 14 or 14a with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
ExampleA: (Acceptable Installation)
If the vertical dimension from the hearth is 114" and the
horizontal run to the wall ange of the vent termination is
126", this would be an acceptable installation.
Example B: (Unacceptable Installation)
Iftheverticaldimensionfromthehearthis66"andthehorizontal
run to the wall ange of the vent termination is 84", this would
NOT be an acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 72"
and the horizontal run to the wall ange of the vent termination
is 144", this would NOT be an acceptable installation.
Figure 15. H38PR* or HL38PR* Straight run, Rear Vented, wall mounted
termination. The vent run must comply with the Venting Graph for Rear
vent, wall mounted terminations Figure 14. Note: HP38PR* CANNOT be
straight run, rear vented with a wall mounted termination.
33 1/2”
PXT Extension
RHS101 Heat
Shield
Termination
Hearth Exterior
Wall
NOTE:
12” MAX. horizontal
run with no vertical lift.
12” MAX.
33”
12”
A
B
C
59”
46”
Unacceptable vent run
within shaded area.
Acceptable vent run
within non-shaded area.
If your installation does not fall with-
in the venting graph parameters,
please contact a local Montigo
dealer for Power Venting options.
42”
59”
A
C
B
Acceptable vent run
within non-shaded area.
.
Unacceptable vent run
within shaded area.
If your installation does not fall with-
in the venting graph parameters,
please contact a local Montigo
dealer for Power Venting options.
Figure14a.HP38PR*RearVentVentingGraphforwallmountedterminations.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 16 XG0211 - 151126
Installation
Section:
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.
Figure 15b. HP38PR*RearVented,wallmountedMulti-elbowtermination
installation. The vent run must comply with the Venting Graph for Rear
vent, wall mounted terminations, Figure 14a.
Figure 15a. H38PR* or HL38PR* Rear Vented, wall mounted Multi-elbow
terminationinstallation.TheventrunmustcomplywiththeVentingGraph
for Rear vent, wall mounted terminations, Figure 14.
46” Max.
59” Min.
12”
Max.
26”
Min.
33”
Flex or Rigid
Section
42” Max.
59” Min.
12”
Max.
26”
Min.
33”
Flex or Rigid
Section

H*38DF PRC Panorama Indoor Gas Fireplace
Page 17
XG0211 - 151126
Installation
Connection and installation of the vent components
should adhere to the following guidelines:
Section 3-3-2: VENTING COMPONENTS
The following components and associated Montigo part num-
bers for installation of a roof or wall mounted termination. Use
only Montigo Vent Components. Use of non-Montigo parts will
VOID the warranty and may impede operation of the replace..
A- Termination PTO4 (3" Length)
PTO4F (3" Length)
PVTK1SS
B - Frame Kits MSR (Stucco Frame)
MOSR (Stucco Frame)
BSR-4 (4" Brick Frame)
BSR-6 (6" Brick Frame)
C - Flex Sections PFL - 1 (12" f/f Section)
PFL - 18 (18" f/f Section)
PFL - 2 (24" f/f Section)
PFL - 3 (36" f/f Section)
PFL - 4 (48" f/f Section)
PFL - 6 (72" f/f Section)
D - Rigid Sections PXT - 5 (5" f/f Section)
PXT - 10 (10" f/f Section)
PXT - 20 (20" f/f Section)
PEXT - 1 (12" f/m Section)
PEXT - 2 (24" f/m Section)
PEXT - 3 (36" f/m Section)
PEXT - 4 (48" f/m Section)
PEXT - 6 (72" f/m Section)
E - Elbows PEL-90MM (m/m 90º Elbow)
PEL-90FF ( f/f 90º Elbow)
PEL-90FM ( f/m 90º Elbow)
PEL-45FM ( f/m 45º Elbow)
F - Support Ring & Plate PSPXT-8
G - Firestop FS-8
H - Roof Flashing PRF-7 (1/12 - 7/12 pt.)
PRF-12 (7/12 - 12/12 pt.)
I - Heat Shield RHS101
J - Heat Guard MTKOG
IMPORTANT:
Please Refer to your Building Envelope
Engineer or Waterproong Consultant
for a review of ALL penetrations through
exterior walls or the roof.
Montigo recommends the use of a ex section for the nal
pipe connected directly to the replace offering greater
exibility of installation and absorption of movement.
Firestops must be installed as required by National & local
codes.
Montigorecommendsthatallexteriorcornersandjointsbe
sealedwithexteriorcaulking.However,weencourageyouto
consult your Building Envelope Engineer or Waterproong
Consultant for further recommendations.
Use any combination of rigid and ex pipe as required and in
anyorientation(Maleconnectorscanfaceinanydirection).
Flexsectionsmaybestretchedupto50%oftheirtotallength
(e.g. a 24” section maybe stretched to 36”).
Connect all vent sections using a minimum of three sheet
metal screws on the outer pipe ue.
Ensure the pipe ends male to female slide in a minimum of
1 1/2” of overlap.
Ensure all horizontal runs are supported with a minimum
of 3 supports per 10’of venting.
Whenhanging/supportingventing,ensurethat1”clearance
ismaintainedonsidesandbottomofventrunsand2”above
horizontal vent runs to any combustible material.
Rigid pipe may be cut less than half way from the female
end only.
Ensure when cutting sections of rigid pipe to maintain
integrity of internal supports.
Place the springs, supplied with the pipe kit, between the
outerand inner pipesto keepthe pipes separateand avoid
any possible hot spots.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 18 XG0211 - 151126
Installation
Note: Images are shown without screens for clarity purposes.
However, your replace should not be operated without proper
installation of screens.
Section 3-3-3: Heat Shields
Installing a Wall Mounted RHS8 Heat shield
TheRHS8 Heat shieldCANNOTbeusedwhen the Terminationis
WITHIN36" Min. horizontal and 60" Min.verticalfromthe
replace, or directly off the rear of the replace, as shown gure
16a. The RHS101 Heat Shield (Figure 17 and 17a) MUST be
used within the noted dimensions.
ToinstalltheRHS8,frameanopeningincombustibleconstruction,
Figure 16below.Slide theHeatshieldin place overtheventpipe
which attaches to the replace. After the replace and vent pipe
has been installed, clearances should match the dimensions in
Figure 16.
Figure 17. RHS101 Installation. (Install by sliding Outer Section over vent
pipe where it passes through the combustible construction.
Figure 17a. Heat Shield.After sliding the outer section in place.
Termination
Drywall / sheetrock
RHS101 Heat Shield, inner Section
RHS101 Heat Shield
Outer Section
Installing a Wall Mounted RHS101 Heat shield.
TheRHS101HeatshieldMUSTbeusedwheretheRHS8Termination
(Figure 16 and 16a) CANNOT be used. Use the RHS101
whereanyofthedimensionsarewithintheparameters
shown, gure 16a.
ToinstalltheRHS101,SlidetheInnerSectionovertheventpipethat
will connect to the replace. Then fasten the vent pipe to the back
of the replace with a minimum of three sheet metal screws. From
the outside slide the RHS101 outer section on see Figure 17. To
complete the installation fasten the Heat Shield Outer Section &
Termination frame to the structure Figure 17a.
Combustible
framing
Termination
Drywall / sheetrock
RHS101 Heat Shield, inner Section
RHS101 Heat Shield
Outer Section
Vent pipe, from fireplace
RHS8 Heat Shield
1” Min. Both sides Typical
1” Min.
1” Min.
Combustible Framing
Figure 17b. RHS101 Installation.
Outer Shield 10 1/4”
3/8” Min. Both sides Typical
3/8” Min.
3/8” Min .
Combustible Framing
12” x 12”
Inner Shield 9 3/8”
Figure 16. RHS8 Installation. (Install by sliding over vent pipe where it
passes through the combustible construction).
Figure 16a. RHS8 Installation. (Minimum requirements).
RHS8 Heat
Shield
36” Min
60” Min.

H*38DF PRC Panorama Indoor Gas Fireplace
Page 19
XG0211 - 151126
Installation
Section 4: Wiring
Figure 18. Wiring Diagram for the SIT Proame 2 Electronic Ignition
Figure 20. Wiring with Honeywell gas control and pilot.
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector
Junction Box
115VAC
24VAC
40 VA
Transformer
Black
White
Green
Gnd Screw
Wall Switch
Fan Plug
Receptacle
Manifold Pressure
Test Connection
Wall Switch
Power
Generator
Pilot Adjustment Screw
Inl
e
t Pr
essu
r
e
'Hi-Lo'Adjustment Knob
Gas Control Knob (Shown in “Pilot” position)
Figure 19. Wiring Diagram for SIT Nova 820 gas and pilot.
Models
H38DFPRCN-I
H38DFPRCL-I
Models H38DFPRCN H38DFPRCL
Models
H38DFPRCN-F HL38DFPRCN-F HPDFPRCN-F
H38DFPRCL-F HL38DFPRCL-F HP38DFPRCL-F
Installing the remote On/Off Wall Switch
The SIT Nova 820 gas valve may be connected to a wall
switch. Do NOT connect any external power to the remote
switch. The valve will generate its own power on a millivolt
circuit or will draw its power from anAC Connection inside
the replace, depending on the model of the unit. Use only low
voltage wire, and DO NOT connect any external power to the
remote switch.
NOTE: The switch location must not exceed 30' from the replace. NOTE: Ifanyoftheoriginalwiresuppliedwiththeapplianceisreplaced,
it must be replaced with the same type, or its equivalent.
1.5V AA type
1.5V AA type
1.5V AA type
1.5V AA type
BLACK
WHITE
GREEN
To PPO
SPARK
SENSOR
RED
BLACK
BATTERY
PACK
MAIN ON/OFF
SWITCH
YELLOW/GREEN
885 PROFLAME
PILOT
BURNER
ORANGE
GREEN
BLACK
BROWN
YELLOW
ORANGE
6
10
4
6
3
4
OPTIONAL CPI/IPI SWITCH BLUE
WHITE
X10
X11
X12
X13
X1
X6
X5
X4
X3
X2
LED Lights
LED1 - Red LED
LED2 Amber LED
3.15A FUSE
SW1
jumper

H*38DF PRC Panorama Indoor Gas Fireplace
Page 20 XG0211 - 151126
Installation
Section: Installing the CPI Jumper Cable
1). Access the controller (refer to the installation and
maintenance manual for your model).
2). Remove the bag containing the Jumper Cable from
the wiring harness connected to the controller as shown
in Figure 21.
3).Findthecorresponding plugattached tothecontrol wire
harness and connect the CPI jumper.
4). See remote operation section to turn remote into CPI
mode.
Figure 21.
Figure 21a.
Figure 21b.
CPI [Continuous Pilot Ignition] / IPI [Intermittent Pilot
Ignition] Jumper Cable Installation (only available for SIT
Electronic Ignition Systems)
“Why use CPI mode”?
CPI means “Continuous Pilot Ignition” or “Standing Pilot”
as it is commonly known. IPI means “Intermittent Pilot
Ignition”, which only initializes the pilot when you are going
to be using the appliance.
There are several reasons why you may choose to use
CPI mode. When a ue is cold it can be difcult to light
the appliance. It can take a bit of time (particularly on tall
vents) to initialize vent action. This can result in “lifting” or
“ghosting” of the ames during the rst two to three minutes
of operation. It is also possible to encounter times when
the replace fails to light successfully. The replace will
then attempt to re-light a second or third time depending
on prevailing temperatures or altitude. When in CPI mode
thepilot alsokeeps thesystem warm. Duringa “cold”start,
condensation will normally form on the inner glass surface
of the door. This condensation will quickly dry, however,
the condensation tends to run down the glass and cause
some streaking. CPI mode helps to resolve this issue. If
CPI mode is used during the winter months the energy it
takes to run the pilot is partially recovered as heat into the
building, so it does not waste as much energy as running
a pilot in the off season.
If you use a wall switch:
A connector is supplied with this unit that can be plugged
intothewireharness connectedto thecontroller.Whenthe
CPI jumper is connected, the pilot will light and remain lit
continuously. Use the wall switch to turn the main burner
on or off. To switch back to IPI mode you must unplug the
CPI jumper.
If you use the remote:
Aconnectorissuppliedwiththisunitthatcanbepluggedinto
the wire harness connected to the controller. This Jumper
Cable gives the Remote Control the ability to operate the
CPI/IPIswitchandsettheunittooperateineithercondition.
The difference between IPI and CPI:
IPI(IntermittentPilotIgnition)Mode: isafuelsavingmode
in which the pilot is only used when the main burner is on.
CPI (Continuous Pilot Ignition) Mode: The Pilot runs
continuously even when the main burner is off.
