XG0190 Canadian Heating Products Inc. Langley, BC V4W 4A Montigo Del Ray Corp. Ferndale, WA 98248 061509
HW38DF
Installation Operation & Maintenance Manual
Check local codes and read all instructions prior to installation.
HW38DF Gas Fireplace
HW38DF Shown
www.montigo.com
For Your Safety:
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Safety Notice:
Glass doors on gas fireplaces are extremely hot while the fireplace is on and remain
hot even after the fireplace has been turned off. Safety screens are available and
can reduce the risks of severe burns.
®
C US
Warning:
Improper installation,adjustment,alteration,serviceor maintenancecan cause
injury or property damage. Refer to this manual. For assistance or additional
information consult a qualied installer, service agency or the gas supplier.
Warning:
What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical
switch; do not use any phone in
your building.
• Immediately call your gas
supplier from a neighbor's
phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas
supplier, call the re department.
• Installer: Leave this manual
with the appliance.
• Consumer: Leave this
manual for future reference.

Page 2
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Warning:
Read this manual before installing, operating or troubleshooting this
appliance. Please retain this owner's manual for future reference.
Congratulations
Congratulations on selecting a Montigo gas replace, an elagent
and well designed gas replace built to your specications. The
Montigo gas replace you have selected is designed to provide
the utmost in safety, reliability, and engineering standards.
As the owner of this new replace, you'll want to read and care-
fully follow all the instructions contained in this Installation,
Operations and Maintenance manual. Pay special attention to all
cautions, warnings, and Important warnings.
This owner's manual should be retained for future reference. We
suggest that you keep it with all your other important documents
and product manuals.
The information contained in this owner's manual, unless noted
otherwise, applies to all models, and gas control systems.
Your new Montigo gas replace will give you years of durable,
reliable use. Welcome to the Montigo family of gas replace
products.
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
•Important: Used to address practices not related to personal injury.
Congratulations
Safety Alert Key
Introduction............................................................................... 3
Installation
Installing and Framing the Fireplace.............................. 4
Installing the Gasline...................................................... 5
Vent Installation.............................................................. 5
Installation Requirements .................................. 5
Installing the Remote Switch ............................. 5
Vent Terminations .............................................. 6
  InstallingtheNailingange................................ 6
Top Vent Runs.........................................................7 - 12
Side Vent Runs .......................................................8 - 13
 Finishingaroundthereplace
Fireplace Facing .............................................. 13
Mantels and Surrounds ................................... 13
Wiring ......................................................................... 14
Removing and Installing the Door................................ 15
Table Of Contents
Installing Logset ....................................................16 - 17
Operation .........................................................................16 - 20
Maintenance ....................................................................20 - 22
Troubleshooting.....................................................20 - 21
Spare Parts .................................................................. 22
Warranty ................................................................................. 23
Appendix
A. Termination Locations.............................................. 24
B State of Massachusetts / Amendment ..................... 25

Page 3
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Introduction
CAUTION!
Duetoitshigh operatingtemperatures,theapplianceshould
belocated outoftraffic &away fromfurniture and draperies.
Children and adults should be alerted to the hazards
of the high surface temperature, which could cause
burns or clothing ignition.
Young children should be carefully supervised when
they are in the same room as the appliance.
Clothing or other flammable materials should not be
placed on or near the appliance.
WARNING!
When this appliance is installed directly on carpeting, tile or any
combustiblematerialotherthanwoodooring,itmustbeinstalled
on a metal or wood panel extending the full width and depth of
the appliance.
Thank You for choosing a Montigo Gas Fireplace.
About this Fireplace:
The HW38DF isanPremiumreplacewithaDesignerLogSet.This
replacescanbeconvertedtobothaTopVentorRearVentapplication,
(seespecicsintheventingsectionofthisinstructionManual),andare
availableinthespecicmodelsbelow.
The HW38DFisrated forNaturalGasat 34,000Max.BTU/H (9.96)
Kilowatts Input and 30,000BTU/H for Liquid Propane.
► HW38DF; Top or Rear Vent convertible, Millivolt Pilot
► HW38DF-I; Top or Rear Vent convertible,IntermittentPilot(HSI)
► HW38DF-A; Top orRear Ventconvertible,(AmericanFlame Electronic
Ignition)
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. However, all installation and service work should be
performedbyaqualiedorlicensedinstaller,plumber,orgastterwho
isqualiedorlicensedbythestate,province,region,orgoverningbody
in which the appliance is being installed.
This manual covers all models and unless otherwise specied, the
designationHW38DFreferstoall variations of the modelabove.Sections
whicharespecictoaparticularvariationaremarkedwitha
symbol, plus the appropriate model number.
Warranty and Installation Information:
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
►   Modication of the replace and/or components including Direct-Vent
assembly or glass doors.
►UseofanycomponentpartnotmanufacturedorapprovedbyMontigoin
combinationwiththisMontigoreplacesystem.
►Installationotherthanasinstructedinthismanual.
Consult your local Gas Inspection Branch on installation requirements
forfactory-builtgasreplaces.Installation&repairsshouldbedoneby
aqualiedcontractor.
Installations in Canada must conform to the current CAN/CGAB-149.1
and .2 Gas Installation Code and local regulations. If the optional air-
circulatingfankit isinstalled,itmustbeelectricallygroundedinaccordance
with CSA C22.1 Canadian Electrical Code Part 1 and/or Local Codes.
Installations in the USA must conform to local codes, or in the absence
of local codes to the National Fuel Gas Code, ANSI Z223.1-1988. If the
optional air-circulating fan is installed, it must be grounded in accordance
with local codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70-1987. See Appendix for installation
within the State of Massachusetts. Thisreplacemustcomplywith
NFPA-54 Chapter 10.

Page 4
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
HW34DF 337
/ 8331 / 2313 / 8223 / 43 / 821 10 26
37
7
/
8361
/
2351
/
411
/
425 181
/
225 11 28
40 401
/
239 11
/
4293
/
433
1
/ 4
17
20
1
1
1
110 4
8
8
8
740
28
217
/
8
1
/ 4
17
37
11
/ 4
11 /
4
313
/ 8
4834
HW38DF
HW42DF
1
/
2
1
/
2
12
5
5
5
ACEGIK
BDFHJL
7
/
8
3
/
4
Installing The Fireplace Shell
The HWDF-Seriesreplacemaybeinstalledinanylocationthatmain-
tains proper clearances to air conditioning ducts, electrical wiring and
plumbing.Safety,aswellasefciencyofoperation,mustbeconsidered
whenselectingthereplacelocation.Trytoselectalocationthatdoes
notinterferewithroomtrafc,hasadequateventilation,andoffersan
accessible pathway for Direct Vent installation. Refer to page 4 - Vent
Installation for more information.
Thereplacedimensionsareshownbelow:
When installing a shelf over the top of  the replace, the following
guidelines must be adhered to: For Rear Vent applications the
minimumclearancefromthetopofthereplacetoashelfis9".For
Top Vent applications, the minimum clearance is 17 1/2". (Minimum
2" clearance must still be maintained around the vent pipes.)
Figure 4. Framing for shelves over the replace.
Top Vent
Figure 3. Minimum Corner framing dimensions, using a 45° elbow.
Figure 2. Framing dimensions.
* When sheetrock is
not used behind the
fireplace, framing
depth may be reduced
by 5/8"
Framing
WARNING:
When this appliance is installed directly on carpeting, tile or
anycombustiblematerialotherthanwoodooring,itmustbe
installed on a metal or wood panel extending the full width and
depth of the appliance.
Rear Vent
* Clearance from top of the Fireplace to a combustible ceiling within the fireplace
enclosure.
** Refer to Pages, 10 & 11.
22 1/8”
37 3/4”
42 1/2”
Top View
Front View Side View
Clearances
These clearances apply to all dimensions except the framed opening,
where the clearance to combustibles is 0".The HWDF-Series clearance
tounprotectedcombustiblewallswhichareperpendiculartothereplace
opening, must not project beyond the shaded area shown in Fig. 24.
For protection against freezing temperatures, it is recommended that
outer walls of the chase be insulated with a vapor barrier. This will reduce
thepossibilityofacold-airconvectioncurrentonthereplace.
The HWDF Series clearances to combustible materials are:
Figure 1. Fireplace dimensions.
G
H
JK
C
L
I
C
L
K
J
G
B
K
J
L
Not Available
Top - Rear Vent * 10"
Top - Top Vent 17 1/2”
Back 3"
Sides 1"
Floor 0"
Mantle** 4"
HW38DFHW34DF
9"
17 1/2”
3"
1"
0"
4"
9"
1"
1"
0"
4"
17 1/2”
HW42DF
Not
Available
Not Available
Not
Available
N.G. 4/7
L.P. 5/8
N.G. 5/8
L.P. 4/7
N.G. 4/7
L.P. 5/8
N.G. 5/8
L.P. 4/7
42 1/2 45
9”
37
Header Header
Shelf
MELS hort
Shelf
2
8 3/4
42 1/2
17 1/2”
18” Max
62 1/2
0" c
l
earance
to corners only
37 3/4
47 1/2”
B
A
C
DD
D
F
6 1/4”
5 1/4”

Page 5
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Vent Installation
This section covers the installation of direct venting and terminations.
Installation Requirements
■ HW38DFreplacesis certiedforusewithMontigoStandardSeries(4"/7"
TOPONLY)or(5"/8")ventingcomponents.
■ Minimumclearancetocombustibleconstructionaroundtheventpipeis1"
on all sides, except on horizontal venting where the top of the pipe must
haveaclearanceofatleast2".
■ UseonlycertiedMontigoventcomponents.(Useofotherpartswillvoid
theMontigowarranty,andmayimpedetheoperationofthereplace.)
■All joints must be secured with a minimum of two screws per joint
■Vent terminations must not be recessed in walls or siding
■Horizontal runs must be supported by a minimum of two supports per hori-
zontal run. A minimum of one screw on each side of support is also required
■Flex vent sections may be stretched up to 50% of their total length (eg. a
24"sectionmaybestretchedto36")
■Flex vent sections over 6 feet must fall within the limits set by the venting
graphandmusthaveaminimumverticalriseof3inchesperfootofex.
■Solid vent sections may be cut less than half way from the female end
■Venting components can be used in any combination of solid/rigid pipe or
expipeandinanyorientation(Maleconnectorscanfaceinanydirection)
Vent Terminations
Selecting A Termination Location
Choosing your vent termination location will help to determine whether
youneedtouseatopventorrearventreplace.Figure6a,below,shows
typicalreplacelocationsandtheventingoptionstheyprovide.
For a more detailed diagram of allowed termination locations, see Ap-
pendix A.
Cautions:
■ Vent terminations can be very hot. If the termination is less
than7feetaboveapublicwalkway,itshouldbettedwitha
certiedMontigoHeatGuard.(Partno.MTKOG/PTKOG).
■Donotobstruct,orattempttoconceal,theventtermination.
Theseactionswillaffecttheoperationofthereplace,
and may be hazardous.
■In heavy snow areas, take extra care to prevent snow
buildup from obstructing the vent termination.

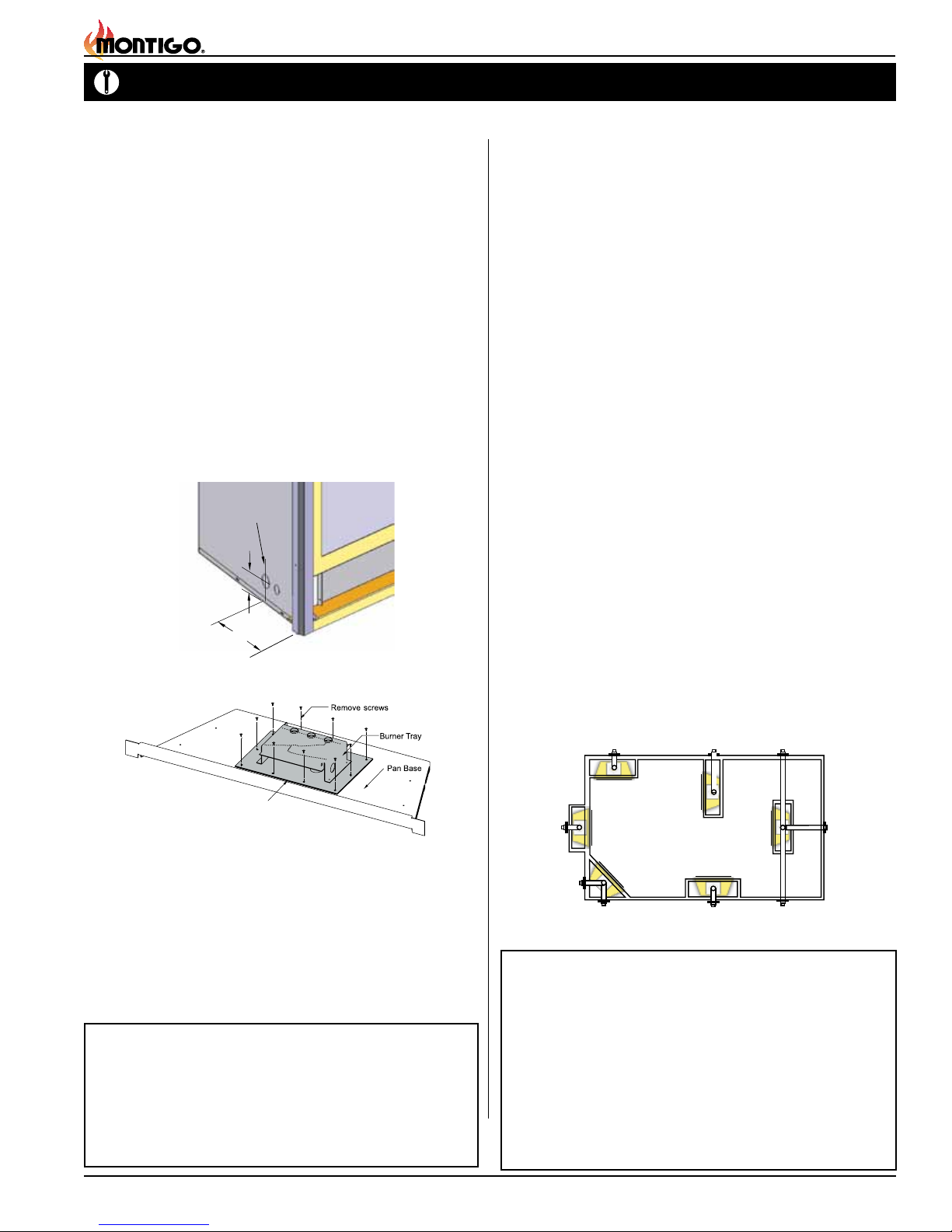

Figure 6a. Fireplace locations and vent terminations.
Installing The Gas Line
ThegaslinemustbeinstalledbeforenishingtheHW38DF Fireplace.
Natural Gasrequiresaminimuminletgassupplypressureof5.5"W.C.
&amanifoldpressureof3.5"W.C.Propane Gas requires a minimum
inletgassupplypressureof11"W.C.&amanifoldpressureof10"W.C.
Provisionmustalsobemadefora1/8"N.P.T.pluggedtappingandbe
accessible for test gauge connection immediately upstream of the gas
supplycontrolstotheappliance.Thereplacegasconnectionandthe
main operating gas valve is located behind the removable trim at the
bottom of the unit and need only be attached to the gas line with an
approvedtting,asrequiredbytheapplicable installation codes.
To access the replace gas connection the main burner must be
removed as shown below in gure 5b.
•Onlyusegasshut-offvalvesapprovedforusebythestate,province,
region, or governing body, in which the appliance is being installed, or
as required by the applicable installation codes.
•Flexiblegasconnectorsmustnotexceed3feetinlength,unlessitis
allowable within applicable installation codes.
Note: After gas line is connected, each appliance connection,
valve and valve train must be checked while under normal
operating pressure with either a liquid solution, or leak
detection device, to locate any source of leak. Tighten any
areas where bubbling appears or leak is detected until
bubbling stops completely or leak is no longer detected.
DO NOT use a flame of any kind to test for leaks.
Figure 5a. Gas line access.
The appliance and its individual shut-off valve must be disconnected
from the gas supply piping system during any pressure testing of that
systemattestpressuresinexcessof1/2psig(3.5kPa).
The appliance must be isolated from the gas supply piping system by
closing its individual manual shut-off valve during any pressure testing
of the gas supply piping system at test pressures equal to or less than
1/2psig(3.5kPa).
Burner Tray Gasket
Figure 5b. Gas line access.
Gasline Acces
0.875 dia.
7
to center
2

Page 6
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Installing Terminations with Built-In Frames
Installing Terminations with MSR Frames
1. Frametheterminationopeningto12"x12".
2. Fasten the termination to the studs using a minimum of 4 screws.
1. Frametheterminationopeningto11"x11".
2. Fasten the termination to the studs using a minimum of 4
screws.
Installing Terminations with MOSR Frames
MOSR
1. Frametheterminationopeningto12"x12".
2. Fasten the MOSR frame to the interior side of the studs using a
minimum of 4 screws.
3. Insert the termination into the MOSR frame as shown here, and
attach by screwing through the four pilot holes in the termination.
MSR
MTO-3 (4"/7")
PTO-3 (5"/8")
MTO-3F (4"/7")
PTO-3F (5"/8")
MTO-3 (4"/7")
PTO-3 (5"/8")
MTKOG (4"/7")
PTKOG (5"/8")
1. Ensure that the two long mounting brackets are facing the bottom
ofthetermination.(Seeinset).Thiswillprovidemoreheatprotection
at the top of the termination, where temperatures are highest.
2. Attach to the faceplate of the termination using four sheet metal
screws.
Installing Heat Guards over Terminations
Installing The Standoffs
To avoid elevated mantel temperatures, all HW38DF gas
replaces are required to have the supplied standoffs installed.
The replace is supplied with two standoffs. Bend and install these
standoffsontopofthereplaceensuringthattheheightofthestandoff
maintainsa6.5"clearance.
Figure 6b. Installing the stando's.
Installing the Nailing Flange
Extension, or Non-Combustible
material
The Nailing Flange Extension is supplied with all Montigo Flush face
gasreplaces.ThisExtensionisrequired,unlessNon-combustible
materialsareusedinitsplace,(seeFigure25).
Oncethereplaceismovedintotheframedopening,thesupplied
nailing extension, or Non-combustible material must be placed along
thetopedgeofthereplace.Thiscanbenailedorscrewedinplace
to the framing, as illustrated below.
Figure 5a. Installing a MTO / PTO termination.
Figure 5b. Installing a MTO / PTO termination with the MSR frame.
Figure 5c. Installing a MTO / PTO termination with the MOSR frame.
1212
12
Figure 5d. Installing a PTO termination heat guard.
11
11
12
12
Figure 6c. Installing the Nailing Flange Extension, or Non-combusti-
ble materials above replace.

Page 7
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Figure 8a. Flue cap installation for Rear Vented replace.
Figure 8b. Flue collar installation for Rear Vented replace.
Important: Natural Gas and Propane equipped models
may be installed using Top or Rear Vent applications.
5”Inner Flue Cap
8”Outer Flue Cap
5”Inner Flue Collar
8”Outer Flue Collar
Figure 7b. Flue collar installation, Top Vented HW38DF replace.
5”Inner Flue Cap
8”Outer Flue Cap
5”Inner Flue Collar
8”Outer Flue Collar
Figure 8b. Flue collar installation, Rear Vented L38DF replace.
Converting to Top Vent/ Rear Vent
HW38DF Top Vent
Use the following instructions to convert a HW38DF,for Top Vent use:
1. Installthe5"inneruecapontherearueoutletandsecurethe
capinplacewithvescrews,asshowningure7a.
2. Installthe8"outeruecapontherearueoutlet,andsecureit
withvescrews,asshowningure7a.
3. Installtheuegasketmaterialanduecoverplateontherearvent
outlet . Fasten the plate with four screws, as illustrated below.
4. Installthe5"inneruecollarandthe8"outeruecollarinplace
on the top vent outlet using 5 screws, as illustrated below.
HW38DF Rear Vent
Use the following instructions to convert an HW38DF, for Rear Vent use:
1. Installthe5"inneruecaponthetopueoutletandsecurethe
capinplacewithvescrews,asshowningure8a.
2. Installthe8"outeruecaponthetopueoutlet,andsecureit
withvescrews,asshowningure8a.
3. Installtheuegasketmaterialanduecoverplateonthetopvent
outlet.Fastentheplatewithfourscrews,asillustratedingure8b.
4. Installthe5"inneruecollarandthe8"outeruecollarinplace
on the rear vent outlet using 5 screws, as illustrated below.

Page 8
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 84" and the horizontal run to
the wall flange of the vent termination is 36", this would be an acceptable
installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 90" and the horizontal run to
the wall flange of the vent termination is 126", this would be an acceptable
installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the floor of the fireplace is 74" and the
horizontal run to the wall flange of the vent termination is 108", this would
NOT be an acceptable installation.
NOTES: All dimension lengths for vertical or horizontal runs are
measured from centre of the vent pipe.
Venting runs must fall within the limits set by the venting
graph(seeFigure7).
Figure 9b. HW38DF Top Vent Venting Graph
Top Vent Venting Runs
(may use 4"/7" Top Vent ONLY)
For the HW38DF Top Vent, there are two types of installations:A)
Through-The-Wall Installations and B) Vertical (Through-The-Roof)
Installations.
A) Through-The-Wall Installations
Before you install any venting, you must determine whether the venting
runwillbeacceptable.Unacceptableventingcanaffectthereplace's
combustion.
The Venting Graph
Measuretheverticalheightfromthereplacehearthtothecentreof
theterminationandthehorizontalrunfromthefromthereplaceue
collartothewallangeofthetermination.PlotontheVentingGraph
(Fig.9a)withan'X'.
Ifthe'X'fallsonorabovethetopboundaryoftheshadedarea,the
installation is acceptable.
B
C
A
36” LP
24” NG
42”
36
5/8 NG
60” NG
4/7 NG
5/8 LP
Power Vent models, LDVPV47
EDVRSPV58, and EDVWSPV58
to be used within the shaded area of
graph. (See Index of this guide for
applicable Product page).

Page 9
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
PEL
Available Top Vent Components
The following venting components are available for the HW38-DF,
Top Vent:
4" / 7" Venting 5" / 8" Venting
A - Termination MTO-3(3"Length)
MTO-3F(3"Length)
PTO-3(3"Length)
PTO-3F(3"Length)
B - Stucco Kits MSR(StuccoFrame)
MOSR(StuccoCan)
BSR(BrickCan)
MSR(StuccoFrame)
MOSR(StuccoCan)
BSR(BrickCan)
C - Flex Sections MFL-1(12"Section)
MFL-2(24"Section)
MFL-3(36"Section)
MFL-4(48"Section)
PFL-1(12"Section)
PFL-2(24"Section)
PFL-3(36"Section)
PFL-4(48"Section)
D - Rigid
Sections
MEXT-1(12"m/fSection)
MEXT-2(24"m/fSection)
MEXT-3(36"m/fSection)
MEXT-4(48"m/fSection)
PEXT-1(12"m/fSection)
PEXT-2(24"m/fSection)
PEXT-3(36"m/fSection)
PEXT-4(48"m/fSection)
E - Elbows MEL-90MM(m/m90°Elbow)
MEL-90FF(f/f90°Elbow)
MEL-90FM(f/m90°Elbow)
PEL-90MM(m/m90°Elbow)
PEL-90FF(f/f90°Elbow)
PEL-90FM(f/m90°Elbow)
NOTES: All dimension lengths for vertical or horizontal runs are
measured from centre of the vent pipe.
Venting runs must fall within the limits set by the venting
graph(seeFigure7).
Example 1:
ForourshortestventingcongurationusecomponentsAandE(see
Figure 10).
Figure 10. Typical Top Vent installation. If the 90° elbow is installed
directly on the replace, for height to the center of the
termination see chart on page 3.
Important:
Aninspectionoftheexplosionreliefappersanddoormustbe
madepriortolightingthereplace.Thiswillensurethedoorgas-
keting material will provide an adequate seal during operation.
Horizontal Venting
Figure11. Typical Top Vent installation. The solid sections can be used in
various combinations to obtain the desired vent run. The vent
run must fall within the limits set by the venting graph.
90° Elbow
MEXT Section
PEXT Section
Termination
Example 2:
Rigidsectionsandanelbowusedinconjunctionwith3ft.exsection
(MFL-3)will,whenextendedinavefootchase,allowforamaximum
horizontalrunoftwelveandone-halffeetfromthecentreofthereplace
tooutsidewallandaminimumof7'6"whenretractedinoppositedirection
(see Figure 12 and 13).
"C"exsectionsand"D"rigidsectionsmaybeusedinconjunctionwith
one another to obtain different possible horizontal length installations.
NOTE: Flex section with no vertical rise must not exceed maximum
horizontal length of 3 feet (see Figure 14). Flex runs over 3 feet must
fall within the limits set by the venting graph, and must have a minimum
verticalriseof3"perfootofex.
Installation

Page 10
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Figure 12. Extended Installation using a combination of solid and ex
venting. Use the vent graph to determine your allowable
run, then select appropriate components.
Figure 13. Retracted Installation using a combination of solid and ex
venting. Use the vent graph to determine your allowable
run, then select appropriate components.
Figure 14. Horizontal ex installation with no vertical rise.
B. Vertical (Through-The-Roof) Installations
 Minimumclearances2"fromventtoallcombustiblematerialsmust
be maintained.
A maximum of two offsets (each offset has two 90° bends) may be
made and shall not exceed total length of 25% of the vertical vent
height, when measured center to center of piping.
Example: Typical vent installation.
20' vertical vent
2 - 2' offsets required
25% of 20' = 5' max. offset allowed
This venting configuration meets requirements.
4" / 7" Venting 5" / 8" Venting
A - Termination MVTK-1 PVTK-1
B - Flex Sections MFL-1(12"Section)
MFL-2(24"Section)
MFL-3(36"Section)
MFL-4(48"Section)
PFL-1(12"Section)
PFL-2(24"Section)
PFL-3(36"Section)
PFL-4(48"Section)
C - Rigid Sections MEXT-1(12"m/fSection)
MEXT-2(24"m/fSection)
MEXT-3(36"m/fSection)
MEXT-4(48"m/fSection)
PEXT-1(12"m/fSection)
PEXT-2(24"m/fSection)
PEXT-3(36"m/fSection)
PEXT-4(48"m/fSection)
D - Support Ring
&Plate
MSPXT-8 PSPXT-8
E - Firestop FS-8 PS-8
F - Roof Flashing MRF-7(1/12-7/12pt.)
MRF-12(7/12-12/12pt.)
PRF-7(1/12-7/12pt.)
PRF-7(7/12-12/12pt.)
G - Adaptor / Vent
Reducer
PVA5487(5"/8"to4"/7")
Figure 15. Straight, vertical venting showing required MXT-10/PXT-10
adaptor (supplied with the MVKT-1/PVTK-1 termination).
MEXT/PEXT
MEXT/PEXT
MXT-10/PXT-10
45”
Min.
2’ max. 4”/7”
6’ max. 5”/8”

Page 11
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Figure 17. Vertical venting with 2 osets (1 oset= two 90° bends).
Figure 16. Vertical venting with 1 oset (1 oset= two 90° bends).
Figure 19. Extended installation.
Rear Vent Venting Runs
The HW38-DF Rear Vent has three possible installations which do not
require vertical lift, all of these installations require that you install the
RHS101 heat shield.
Heat Shield
Theheatshield(RHS101)mustbeusedonall installations straight
through the wall, at the point where the vent pipe connects to the
termination. With the heat shield, proper vent clearances can be
maintained. The heat shield is not included with the replace.
To installthe heat shield,slide one sectionover thevent pipe onthe inside
of the wall opening, with the circular portion inside the wall cavity. Screw
the shield in place over the wall opening. Install the second section on
the outside of the wall opening sliding the circular portion into the wall
opening. Refer to Figure 19.
Figure 19. Heat Shield. Install by sliding over the vent pipe where it
passes through combustible construction.
1. Straight Installation.
The height from the hearth to the center of the termination is 28
3/4".Forstraightinstallationsusea18"extensionpipe(PXT-18)
with female/female connections. For shorter installations, cut the
PXT-18tothedesiredlength.Refertogure19.
Ensure that the RHS101 heat shield is installed before attaching
the pipe to the termination.
Note: For Rear Vent models, maximum horizontal run with no
verticalliftmustneverexceed18".
RHS101 Heat Shield
5/8, PXT18 ONLY
Flue Collar

Page 12
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Figure 21a. Corner installation. (Installation Not Available for L.P.)
Figure 21b. Flex installation. (Installation Not Available for L.P.)
Note: Through the wall venting kits are also available for both
the Straight and the Corner Installation. The Kit includes a
heatsheild,anPFL-20(f/f)exiblepipe,andaterminationwithor
without a mounting frame.
2. 45° Corner Installation.
 AttachanPEL-45(45°elbow)directlyontotheuecollar.Cutthe
PXT-20tosuit,andattachittothePEL-45.Slidethereplaceinto
position and attach to the termination.
3. Corner Installation — 45° or less.
 UseanPTO-3terminationandanPFL-2(12"or24"compressed
length)andaframe,ifappropriate. Flex may be turned to obtain
desired degree of angle required but must not exceed 45°.
Important:
For Rear Vent units use 5/8 Vent ONLY
B. Multi-Elbow Installations
Formoredifcultinstallationsituations,theHW38-DFRearVentmaybe
installedwithtwo-90°elbowsandupto15'ofhorizontalrun.Ifusing
this installation option, you must adhere to the following guidelines:
 therst90°elbowmustbeplaceddirectlyontheuecollar
 youmusthaveaminimumverticalliftof50"(measuredfromthe
hearth)
your vent run must fall within the limits set by Figure 22b.
Before you install any venting, you must determine whether the venting
runwillbeacceptable.Unacceptableventingcanaffectthereplace's
combustion.
The Venting Graph
Measuretheverticalheightfromthereplacehearthtothecentreofthe
terminationandthehorizontalrunfromthereplaceuecollartothewall
angeofthetermination.PlotontheVentingGraph(Fig.22b)withan'X'.
Ifthe'X'fallsonorabovethetopboundaryoftheshadedarea,the
installation is acceptable.
Example A: (Acceptable Installation)
Iftheverticaldimensionfromthehearthis84"andthehorizontal
runtothewallangeoftheventterminationis36",thiswouldbe
an acceptable installation.
Example B: (Acceptable Installation)
Iftheverticaldimensionfromthehearthis90"andthehorizontal
runtothewallangeoftheventterminationis126",thiswouldbe
an acceptable installation.
Example C: (Unacceptable Installation)
Iftheverticaldimensionfromtheoorofthereplaceis78"and
thehorizontalruntothewallangeoftheventterminationis108",
this would NOT be an acceptable installation.
Figure 22b. HW38D-F Multi-Elbow Venting Graph.
PEL-45 Elbow
PXT-12
28 3/4”
A
C
B
18”
5/8”NG & LP
Power Vent models, EDVPV47
LDVPV47, EDVRSPV47, and
EDVWSPV47 to be used within the
shaded area of graph. (See BELOW for
applicableProductinformation).

Page 13
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Figure 23. Multi-elbow installation. (The vent run ("L") must comply
with the Vent Graph, Figure 22b).
NOTES: All dimension lengths for vertical or horizontal runs are
measured from center of the vent pipe.
Venting runs must fall within the limits set by the venting
graph(seeFigure22b).
Installation Of Rear Vent DV
The following venting components are available for an HW38-DF in a
Rear Vent installation:
4" / 7" Venting 5" / 8" Venting
A - Termination MTO-3(3"Length)
MTO-3F(3"Length)
PTO-3(3"Length)
PTO-3F(3"Length)
B - Stucco Kits MSR(StuccoFrame)
BSR-4(4"BrickFrame)
BSR-6(6"BrickFrame)
MOSR(StuccoCan)
MSR(StuccoFrame)
BSR-4(4"BrickFrame)
BSR-6(6"BrickFrame)
MOSR(StuccoCan)
C - Flex Sections MFL-1(12"Section)
MFL-2(24"Section)
MFL-3(36"Section)
MFL-4(48"Section)
PFL-1(12"Section)
PFL-2(24"Section)
PFL-3(36"Section)
PFL-4(48"Section)
D - Rigid
Sections
MEXT-1(12"m/fSection)
EXT-18(18"f/fsection)
MEXT-2(24"m/fSection)
MEXT-3(36"m/fSection)
MEXT-4(48"m/fSection)
PEXT-1(12"m/fSection)
PXT-20(20"section)
PEXT-2(24"m/fSection)
PEXT-3(36"m/fSection)
PEXT-4(48"m/fSection)
E - Elbows MEL-90MM(m/m90°Elbow)
MEL-90FF(f/f90°Elbow)
MEL-90FM(f/m90°Elbow)
EEL-45(f/m45°Elbow)
PEL-90MM(m/m90°Elbow)
PEL-90FF(f/f90°Elbow)
PEL-90FM(f/m90°Elbow)
PEL-45FM(f/m45°Elbow)
Finishing Around the Fireplace
Combustible mantels and mouldings may be safely installed over the
topandonthefrontofthereplaceprovidedthattheydonotproject
beyond shaded area shown in Figure 24.Sidewallclearancesare3".
Combustiblesurroundsmaybeinstalledwith3"clearancetotheside
ofthereplaceasshowninFigure 25.
Fireplace Facing
Whenselectingthenishmaterialforyourreplace,itisimportantto
remember the following:
Ifthesurroundofthereplaceistobepaintedtomatchtheroomdecor,
heat-resistant paint must be provided . Also, decorative facing must not
extendpastthereplaceopeningatall,becauseitwillinterferewiththe
access to retainers for removal of glass door and access to the lower
compartment.
18"
50" min.
L Multi-elbow
Vent run.
Figure 23a. Installing the VSS Vinyl Shield.
Non-Combustible
Facing Material
Figure 24. Combustible mantles and facings.
Horizontal Run (in)
Mantels & Surrounds
NOTE: National Canadian Gas Association mantel test requirements
areforrehazardpreventiontocombustiblematerials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
replaceswhicharehot,fuelandenergyefcient.
Please be aware; temperatures over the mantel will rise above normal
roomtemperatureandwallsabovereplacemaybehottotouch.
Warning:
Whencoveringtheuppermetalportionofthereplace,upto6"(as
shown, Fig.24 & Fig.25)withanon-combustiblematerialPleaseNote:
Thedecorative facing materialsmaybesubjecttotemperaturesinexcess
of 250° F. This should be considered when selecting facing materials.
We recommend careful consideration be given to the effects of elevated
mantel temperatures which may be in excess of product design, for
example:candles,plasticorpictures. Thiscancausemelting,deformation,
discoloration or premature failure of T.V. and radio components.

Page 14
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Mantels & Surrounds
NOTE: National Canadian Gas Association mantel test requirements
areforrehazardpreventiontocombustiblematerials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
replaceswhicharehot,fuelandenergyefcient.
Please be aware; temperatures over the mantel will rise above normal
roomtemperatureandwallsabovereplacemaybehottotouch.
Figure 25. Combustible surrounds.
Wiring
Gas Control and Pilot Wiring
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector Fuse
Limit
Switch Wall
Switch
Fan Plug
Receptacle
Junction Box
Junction Box Cover
White
Black
Green
40 VA
Transformer
115VAC
24VAC
Grnd Screw
Figure 26. Wiring for the HW38-DF-I with Honeywell gas control and pilot.
Non-Combustible
Facing Material
Header
Drywall/
Sheetrock
6”
Wiring for the optional Fan Kit
All HW38DF replaces may be equipped with optional fan kits  for
circulating heat into the living space.
Installations in Canada which employ the fans must be electrically
grounded in accordance with CSA C22.1 Canadian Electrical Code
Part 1 and/or Local Codes.
Installations in the USA which employ the fans must be grounded in
accordance with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70-1987.
For more information see the Fan Kit Installation Guide included with
the fan kit.
NOTE: If any of the original wire supplied with the appliance is replaced, it
must be replaced with the same type, or its equivalent.
Figure 27a. Wiring schematic for optional fans.
G
L2-WH
L1-BLK
p g
Quick Connect
lu to motor
5/1/60 Supply
G L1 L2

Page 15
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Removing and Installing
the Door
Removing the door:
The H3W8DF Series door is removed in a few simple steps. Follow these
Steps below to remove the Horizontal access panel, unlatch the door
buckles and, remove the door. Replace in reverse order.
Figure 28a. Loccate the door buckles. (Both Sides Typical)
Door Latch Hook
Door Latch Slot
Hand-hold
Release the Door Buckles
Figure 28. Removing and installing the the Horizontal Acess Panel
Locate the Door Buckles:
Figure 28b. Door buckle Tool
1
Step 4:
Firmly grasp hand-hold
end of Door buckle tool
and place the machined
end in the slot under door
frame.(asshown)
Figure 28c.
Step 2:
Step 3:
Step 1:
Remove the Horizontal cover
byplacingngersinbothnger
holes, then pushng away from
you and lifting out. Place it
aside during maintenance or
cleaning.
Install in reverse order.
Installed Gas
Valve Cover
Finger Holes
Remove the Horizontal Access Panel:
To install the door, hook the top edge of the door frame into place. Lower
thedoor intopositionandfollow theprevious stepsshown in reverseorder.
Installing the Door:
2
Step 5:
Ensurethetoolisrmly
in the lower end of the
slot,(asshown),Thenpull
toward you (Caution: hold
thetoolsecurely).
3
Step 6:
Pull hard if necessary to
release the spring ten-
sion. (Caution: The latch
springs back with force,
holdthetoolsecurely).
4
Step 7:
Remove the tool from
the latch slot. Ensure the
latches are hanging freely,
the hook end is released
from the bottom of the door.
(Repeat all 4-steps for the
remaininglatches).
Figure 28d.
Figure 28e.
Figure 28f.
Step 8:
Grasp the Door on either side, usually midway and lift upward, lift
thedoorcarefullyupandawayfromthefrontofthereplace.See
gures 28g. Place the Door aside in a safe place while maintenance
and / or cleaning is being performed.
Figure 28g. Removing and installing the glass doors. (Both Sides
Typical)
Removing the Door:

Page 16
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Installation
Log 'D'
Cautions:
■If logs are not placed properly, excessive sooting
will result.
■The surface of the logs will crack due to the heat from
theames.Thisisanormaloccurrence.
Installing the Log Set
Installing the Logs:
The HW38-DF issuppliedwithveceramicbrelogs.Unpackthelogs
and handle them very carefully.
3. Place the top right log as shown below in figure 29d. Align the
tab on the underside of the log, far right end, with the provided
notch in the bottom right log, Figure 29c.
Figure 29b. Bottom left & right log placements.
Figure 29d. Top right log placement.
Figure 29e. Completed log placement.
Base Log
Log Base
Bottom Left Log Bottom Right Log
Back Left Log
Mounting Tray
Bottom Right Log
Mounting Tray
Bottom Left Log
Mounting Tray
Figure 29a. Log mounting base, placement locations.
Figure 29c. Back Left log placement.
AllceramicbreLogshavebeendesignedtoenablequickandeasy
placement. Please follow the instruction below.
Back Left Log
1. Place the bottom left and right logs as shown above in figure
29b.
2. Place the back left log on top of the bottom left log, while resting
the right side of the log on the mounting tray. As shown in figure
29c.
Notch
Notch
4. Rest the top log in the provided notch on top of the Top right log,
figure 29d.
5. Place the left end of the log as shown below in figure 29e.
Top Left Log
Top Left Log
WARNING!
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass etching
may cause premature glass failure.
Donotoperatethisreplacewithouttheglassdoor,orwitha
broken glass door.

Page 17
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Operation - Model HW38DF
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.
■If you cannot reach your gas supplier, call the Fire
Department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
don't try to repair it, call a qualified service technician. Force
or attempt to repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system, and
any gas control which has been under water.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
What To Do If You Smell Gas:
■Do not try to light any appliance.
■Do not touch any electrical switch; do not use any phone
in your building.
■Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
To Turn Off Gas To Appliance:
3. Push in gas control knob slightly and turn clockwise to
"Off". Do not force.
4. Flip up the lower trim.
1. Turn off remote switch.
2. Flip down the lower trim.
1. STOP! Read the safety information above on this label.
2. Flip down the lower trims.
3. Push in gas control knob and turn clockwise to "OFF."
4. Wait five (5) minutes to clear out any gas. Smell for gas,
including near the floor. If you then smell gas, STOP! Follow
"B" in the safety information above on this label. If you don't
smell gas, go to the next step.
5. Locate pilot burner (See illustration at right.) and follow steps
below.
6. Turn knob on gas control counter clockwise to "PILOT."
7. Push in gas control knob completely and hold. Light with Piezo
Igniter button. Continue to hold the control knob in for about
(1) minute after the pilot is lit. Release the knob and it will pop
back up. Pilot should remain lit. If it goes out repeat steps 3
through 8.
■Ifknobdoesnotpopupwhenreleased.Stopandimmediately
call your service technician or gas supplier.
■If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call your service technician or
gas supplier.
8. Push in gas control knob and turn counter-clockwise to
"ON."
9. Flip up the lower trim.
10.Turn on remote switch to ignite fire.
Lighting Instructions:
with Continuous Pilot
For Your Safety - READ BEFORE LIGHTING:
NOTE: Gas control knob cannot be turned from
"PILOT"to"OFF"unlessknobispushed
in slightly. Do not force.
Gas Control Knob
(Shown in "Pilot" postion.)

Page 18
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Operation - Model HW38DF-I
For Your Safety - READ BEFORE LIGHTING:
To Turn Off Gas To Appliance:
Lighting Instructions:
■If you cannot reach your gas supplier, call the Fire
Department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualified service technician.
Force or attempt to repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system,
and any gas control which has been under water.
A. This appliance is equipped with an ignition system that
lights the pilot burner automatically. Do not attempt to
light the pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
What To Do If You Smell Gas:
■Do not try to light any appliance.
■Do not touch any electrical switch; do not use any
phone in your building.
■Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
1. Turn off remote switch.
2. Flip down the lower trim.
3. Turn the switch on the gas control to "Off".
4. Flip up the trim.
1. STOP! Read the safety information above on this label.
2. Flip down the lower trims.
3. Turn switch on the gas control to OFF".
4. Wait 5 minutes to clear out any gas. If you smell gas,
STOP! Follow "B" in the safety information above on this
label. If you don't smell gas, go to the next step.
5. Turn switch on the gas control to "ON". NOTE: This unit is
equipped with an ignition system that lights the pilot burner
automatically. Do not attempt to light the pilot by hand.
6. Turn on wall switch.
7. Flip up the lower trim.
8. If the fireplace does not operate, follow the instructions "To
Turn Off Gas To Appliance" and call your service technician
or gas supplier.
with Honeywell Electronic Ignition
Gas
Inlet
Gas Control Switch
Shown in "On" Position
WARNING: If you do not follow these instructions exactly, a re or explosion may
result causing property damage, personal injury or loss of life.

Page 19
HWDF-Series Gas Fireplace
Part No. XG0190 - 071409
Operation - Model HW38-DF-F
Operation - Model HW38DF-F
To Turn Off Gas To Appliance:
1. Turn off remote switch.
2. Remove the lower Horizontal access panel.
3. Turn the incoming gas control valve to "Off".
4. Replace the lower Horizontal access panel.
with American Flame Electronic Ignition
For Your Safety - READ BEFORE LIGHTING:
with Proflame SIT Electronic Ignition
Lighting Instructions:
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand,don'ttrytorepairit,callaqualiedservicetechnician.
Forceorattempttorepairmayresultinareorexplosion.
D. Do not use this appliance if any part has been under
water.Immediatelycallaqualiedservicetechnicianto
inspect the appliance and to replace any part of the control
system, and any gas control which has been under water.
A. This appliance is equipped with an ignition system that
lights the pilot burner automatically. Do not attempt to light
the pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area for
gas.Besuretosmellnexttotheoorbecausesomegas
isheavierthanairandwillsettleontheoor.
What To Do If You Smell Gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
 Immediatelycallyourgassupplierfromaneighbour's
phone.Followthegassupplier'sinstructions.
If you cannot reach your gas supplier, call the Fire
Department.
1. STOP! Read the safety information above on this label.
2. Remove the lower Horizontal access panel.
3. TurnIncominggasvalvetotheON"position.
4. Wait 5 minutes to clear out any gas. If you smell gas,
STOP!Follow"B"inthesafetyinformationaboveonthis
label.Ifyoudon'tsmellgas,gotothenextstep.
5. Turnwallswitch"ON".
6. If the Fireplace does not light, the System will cycle through
two trials, (one minute audible clicking, thirty seconds of
silence,andthenanotheroneminuteofaudibleclicking).
Ifthesystemlocksoutduetoinadequategasow,referto
"Troubleshooting",Page20.
7. After completion of the information in the Troubleshooting
section, Repeat step 5.
8. If the system will not function correctly, follow the instruc-
tions"ToTurnOffGasToAppliance"andcallyourservice
technician or gas supplier.
EV1 (Pilot
burner)
EV2 (Main
burner)
Pilot Adjust Screw
Lockout Reset Key
Diagnostic Terminal
Power
Command (Wall
switch)
Pilot Sensor
Igniter
Ground
EV1 (Pilot burner)
EV2 (Main burner)
Gas "Out"
Gas "In"
Incoming Gas
Line, Shut-off
Valve
To fireplace
Main burner
WARNING: If you do not follow these instructions exactly, a re or explosion may result
causing property damage, personal injury or loss of life.

Page 20
HW-Series Gas Fireplace
Part No. XG0190 - 071409
Maintenance
WARNING:
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass
etching may cause premature glass failure.
CAUTIONS
■Fireplace gas control must be in the “OFF” position
and pilot and main burners extinguished when cleaning
appliance with a vacuum.
■Doors and logs can get very hot. Handle only when
cool.
General
■Have the replace and installation inspected yearly.Theinspection
must include, but is not limited to, the following:
• A visual check of the entire vent system and termination.
• An inspection of  the explosion relief appers and the door
gasketing to ensure a proper seal.
•An inspection of the burner, venturi, and primary air openings.
•  Aninspectionofthegasvalve,gascomponents,andpilotame.
Foryourconveniencea1/8"manifoldpressuretapissupplied
on the gas valve for a test gauge connection. See Figure 32.
• Ensure proper log placement as per this manual.
• Inspection of all optional equipment; fans, thermostats, etc.
■For Natural Gas this appliance requires a minimum inlet pressure
of5.5"W.C.andamanifoldpressureof3.5"W.C.
■For Propane Gas this appliance requires a minimum inlet pressure
of11"W.C.andamanifoldpressureof10"W.C.
■ Alwayskeepthereplaceareaclearandfreeofcombustiblematerials,
aswellasgasolineandotherammablevaporsandliquids.
■Donotusethisapplianceifanyparthasbeenunderwater.Immediately
callaqualiedservicetechniciantoinspecttheapplianceandto
replace any part of the control system and any gas control which
has been under water.
Operation
Lighting Instructions
See pages 15 and 19.
Burner Adjustment
The HW38DF is equipped with an adjustable burner, allowing you to
raiseorlowertheames.Toadjusttheames,locatetheblackknob
marked'Hi-Lo',inthecentreofthegascontrolvalve(SeeFigure32).
The front burners are not adjustable.
■ Toraisetheameheight,turntheblackknob(locatedbehindthe
lowertrim)counter-clockwise.
■ Tolowertheameheight,turnclockwise.
Cleaning
Whenthereplaceisrstactivated,theremaybesomesmokingand
avisiblelmmaybeleftontheglass.Thisisanormalcondition,andis
the result of burning of protective coatings on new metal.
■ Glassmustbecleanedperiodically to remove any lm (whichis
a normal by-product of combustion) which may be visible. Film
can easily be removed by removing the door, as shown on page
15. Handle the door carefully, and clean it with non-abrasive glass
cleaners. One of the most effective products is Kel Kem.
■ Siliconesealsoninnerdoorduringinitialringwill"offgas",leaving
a visual deposit of a white substance on combustion chamber walls.
This can easily be removed using normal household products.
■Use a vacuum cleaner or whisk broom to keep the control
compartment,burner,andreboxfreefromdustandlint.
■Logs may be cleaned periodically with a vacuum to remove soot or
other contaminates.
Note: HW38-DF-I models (electronic ignition) do not feature hi/lo
adjustment.
Gas Control Knob
(Shown in "Pilot" postion.)
'Hi-Lo' Adjustment Knob
