Montpelier MSC60FW User manual
60cm Single Cavity Ceramic Cooker
MSC60FW - White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Thank you for choosing this Montpellier Freestanding Cooker.
Our Cookers has been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Freestanding Cooker to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Freestanding Cooker is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your Cooker,
you can rest assured that you are fully protected against the cost of repairs for the
first 24 months . Please note that any claim must be accompanied by the model
reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This can be
found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
3
Description
of
the
Appliance
Cooktop
Control Panel
Handle Oven
Door
t
de-
Oven Ligh
Rack Gui
Grill pan
handles et
Oven Sh elf
,--
-
-
-
-
ll
�
-
I
..
�
_J
�)
4
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance
5
Section
1.
Installation
-Remove all packaging and protective film from the appliance.
-Position the appliance in a dry atmosphere.
-The following image is provided as a guide for installation – your installer will carry out
the installation in accordance with the current regulations.
-Your installer will connect the power cable in accordance with the current regulations.
To install this appliance, please proceed as follows:
1.1. Choosing a location for your oven
When choosing a location for your oven, ensure that there are no flammable or
combustible materials in the close vicinity, such as curtains. You may be required to
make changes to the area surrounding your oven.
You must ensure a minimum gap of 50mm between the edge of the hotplate and an
adjacent wall. You must ensure a minimum distance of 750mm between the hotplate
and overhanging cupboards or a cooker hood (see below image).
Note: Do not site your oven next to a cooling appliance.
6
1.2. Electrical Connection
Power Output
Ring Element
Grill Element
2 x 145mm Heaters
2 x 180mm Heaters
-2000W
-1400W
-2 x 1200W
-2 x 1700W
This appliance has a power rating in excess or 3000W and therefore
must be ‘hard wired’ to a suitable fused point adjacent to the appliance
housing and protected with a 25 amp fuse. Please note that a switchable
spur should be accessible above the work surface to allow the power to
be turned off by the consumer.
Your installer will connect this appliance in accordance with current
regulations using the correct grade of electrical cable and making a
suitable connection between the fused spur and the electrical
connection block on the rear of the appliance.
7
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect
installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with
the appliance.
-This appliance must only be used for cooking/heating foods and liquids.
Do not use it for any other purpose.
-If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical circuit is not
overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot surfaces.
-Following installation make sure that the power cable is not trapped
underneath the appliance.
-Keep the appliance surfaces clean. Failure to do this could lead to the
appliance malfunctioning.
-The surface of this appliance will get hot during use. The surface of this
appliance will remain hot after it has been turned off.
-If the power supply cord is damaged, it must be replaced by a qualified
person in order to avoid a hazard.
8
Section 3. Operating the Appliance
3.1. Control Panel
3.2. Oven Functions
You are able to select various difference Oven Functions (explained below) by
adjusting the Oven Function knob on the control panel (shown above).
(I)
I Defrost Function
The oven's warning lights will be turned on, the fan starts operating.
To use the defrost function, take your frozen food and place it in the oven on a shelf placed
in the third slot from the bottom. It is recommended that you can place an oven tray
under the defrosting food, to catch the water accumulated due to melting ice. This function
will not cook or bake your food, it will only help to defrost it.
(I)
I Turbo Function
The oven's thermostat and warning lights will be turned on, the ring heating element and fan
will start operating.
The turbo function evenly disperse the heat in the oven. All foods on all racks will be
cooked evenly. It is recommended to pre-heat the oven about 10 minutes.
9
3.2 Oven Functions continued.
3.3. Selecting a Temperature
Once you have selected an Oven Function, simply adjust the oven temperature knob
to the desired temperature.
8 I Grilling Function
Warning: °
� I Grill and Fan Function
Warning: °
10

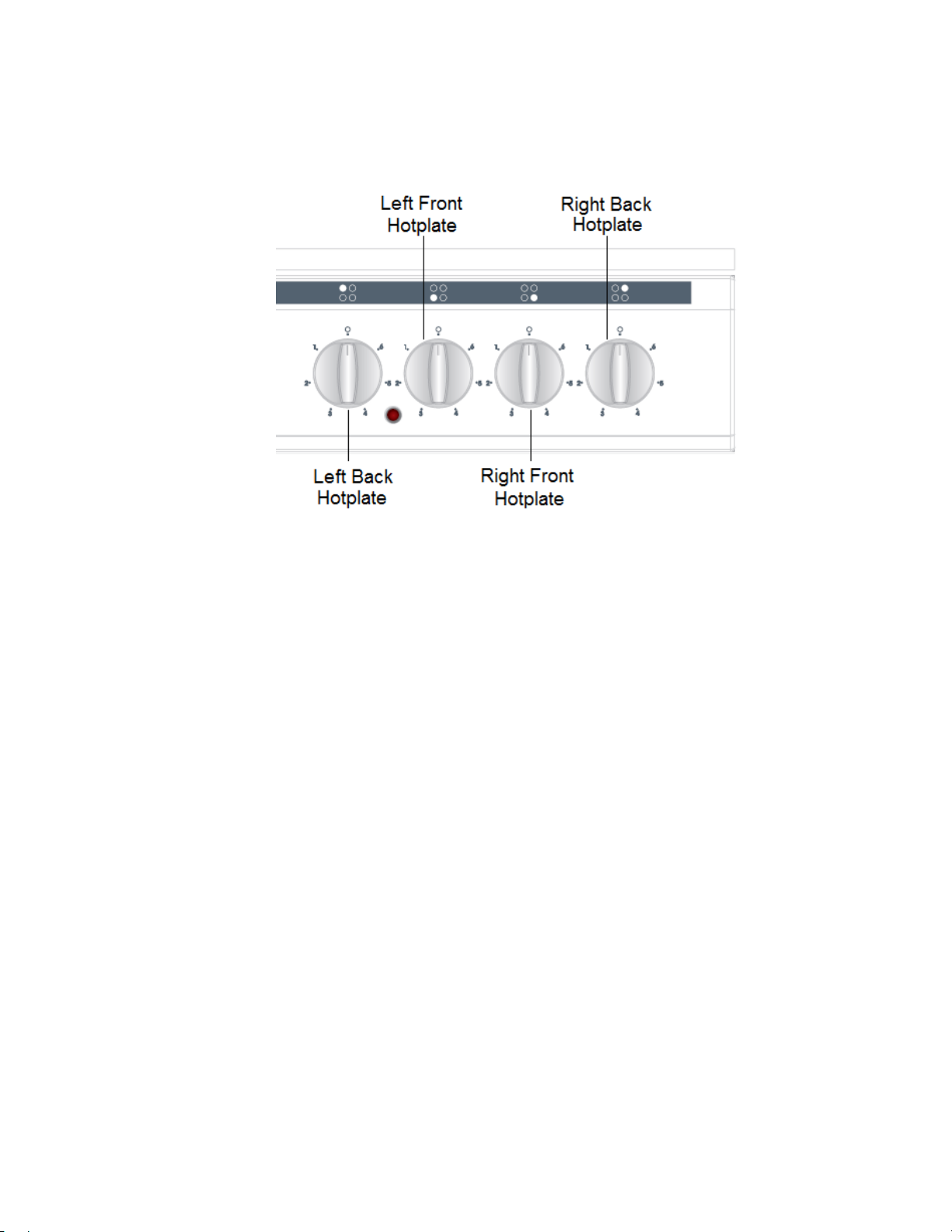

3.4. Heater Usage
The four heaters are controlled by individual knobs on the ovens control panel.
Each hotplate offers 7 different levels of heat, which are as follows:
0
1
2/3
4/5/6
–Off
–Keeps hotplate warm
–Low cooking temperature
–High cooking temperature
To operate, turn the heater control knob clockwise to the required heat level.
When finished, turn the control knob to the off position.

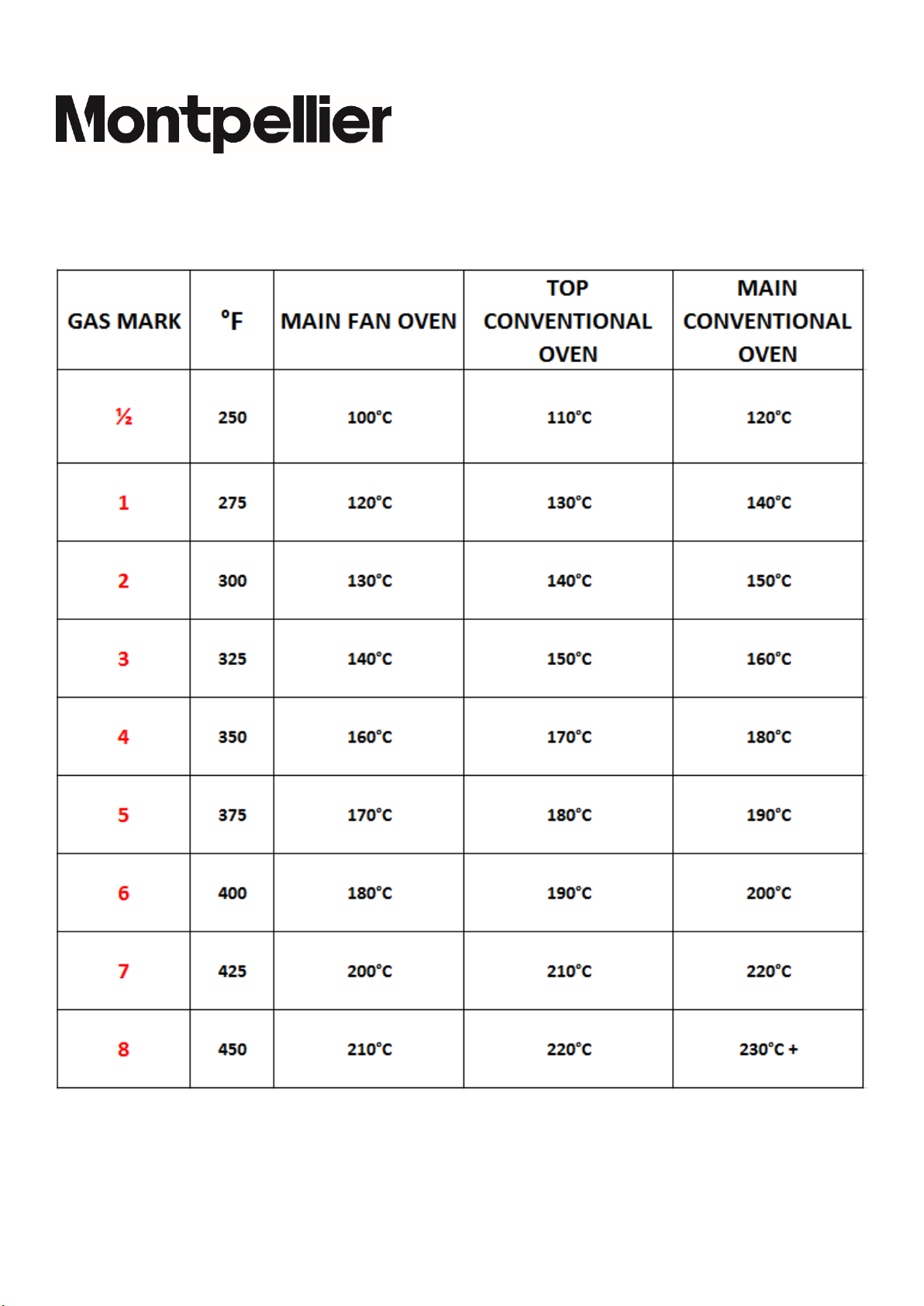

Gas Mark to °F & °C – Temperature Conversion
11
All timings given are purely as a guide. Timings may always vary due to personal methods, size of food being
prepared and the temperature of said food stuffs. We always recommend following the cooking guidelines on
your meat products and packets. For additional information, please call Montpellier on 03333 234 474.
Food Type Rack
Position Temperature Cooking Time
Small Cakes 1 to 3 180 - 200°c 15-20 mins
Biscuits 3 180 - 200°c 12-15 mins
Fruit Cakes 3 135-145°c 4hrs - 4hrs 45 mins
Sponge Cakes 2 180 - 200°c 50 mins
Bread 2 or 3 190°c 20-30 mins
Rolls 3 200°c (5) 180°c (15-20) 5 mins/15-20 mins
Beef Rib (Bone in/out) - 4 - 8
pounds (lb) 3 140-150°c
23-30/39-43 mins min per lb - Allow
to rest for 3-5 mins.
Beef - Eye round roast - 2 - 3
pounds (lb) 3 140-150°c 20-22 mins min per lb - Allow to rest
for 3-5 mins.
Beef Tenderloin Roast - 4 - 6
pounds (lb) 3 200°c 35 - 45 mins Total
Roast Lamb 3 140-145°c
20 - 26 mins per lb - Allow to rest for
at least 3 mins
Roast Chicken (Whole Chicken) 4
-8 pounds (lb) 3 170°c
20 - 30 mins per lb - Check the
internal temperature in the
innermost part of the thigh,
innermost part of the wing & thickest
part of the breast.
Roast Turkey 3 170°c
20 - 30 mins per lb - Check the
internal temperature in the
innermost part of the thigh,
innermost part of the wing & thickest
part of the breast.
Roast Pork: Loin, Shoulder, Leg -
Bone In 3 140°c 20-25 mins per lb - Allow to rest for
at least 3 mins
Roast Pork: Loin, Shoulder, Leg -
Boneless 3 140°c 22-33 mins per lb - Allow to rest for
at least 3 mins
Roast Potatoes 2 or 3 180°c 55 mins
Roasted Vegetables 2 or 3 160°c 25 - 35 mins
Casseroles/Bakes 2 or 3 140-150°c 2 - 3 hours
Fish (Whole) 3 180°c 20-30 mins
Pasta Bake 2 or 3 180°c 25-35 mins
We always recommend Pre-Heating. Firstly, set the required temperature and allow the oven to get to
temperature (up-to 15 minutes) before placing food in the cavity.
12
13
Section 4. Maintenance
Before any maintenance or cleaning work is carried out, DISCONNECT the appliance
from the ELECTRICITY supply and ensure that the appliance is completely cool.
4.1. Cleaning the interior of the oven
Clean spillages from inside the oven as soon as possible after use.
Ensure the oven is turned off before cleaning. You will obtain the best cleaning results
if you clean the oven interior while it is slightly warm. To clean, wipe your oven with a
soft piece of cloth dampened with soapy water. After this wipe the oven with another
soft piece of cloth, dampened with water, once complete, dry the oven interior.
Do not use other abrasive cleaners and/or wire wool etc as this may damage the
interior of your oven.
4.2. Replacing the Oven Bulb
Warning!
Only ever remove/replace the oven bulb when the oven is cold and
turned off!
The oven bulb can be replaced and should be done so with a “like for like” 230V 25
watt bulb having the same fitment.
4.3. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
The oven does not heat:
-Check that the temperature of the oven thermostat has been correctly set.
The oven is not cooking food evenly:
-Adjust the shelf locations, cooking time and heat values accordingly.
Mopellier Mopellier
MSC60FW
MSC60FW
14
Here For You
Here For You
After-sales assistance
If you continue to experience problems with your Integrated Dishwasher, please call the Montpellier customer
service helpline on: 03333 234 473.
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
rst 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
• Any defect caused by accident, misuse, unauthorised modication or inexpert repair.
•Cost of Call-out where a fault cannot be found with the appliance.
• Cost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of lters or
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures carried
out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by Repairtech and/or carried out by a non-approved
Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK & ROI.
To register your appliance simply complete the card in your appliance pack and return it with a stamp axed or
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 03333 234 473.
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city oce, your household waste disposal service or the shop where you purchased the product.
www.montpellier-appliances.com
Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway Lane,
Tewkesbury, Gloucestershire GL20 8JU
Table of contents
Other Montpelier Cooker manuals
