AD/AP8C-9, AD/AP16CH2, AP16CH1 _
Fixed Tubular Camera Housing:
AD8C-9
Dust proof outdoor housing, 24Vac input.
Three liquid tight ttings for wiring
AP8C-9
Pressurized outdoor housing, 24Vac input
AP16CH2
16” dust-proof tubular housing, 24Vac input.
Includes an integrated heater/defogger MCL 16”
(Maximum Camera Length)
AP16CH1
Pressurized outdoor housing,115Vac input
SPECIFICATIONS:
Camera Specications
Image Sensor:
¼” interline transfer CCD
Output:
NTSC
Number of Effective Pixels:
Approx. 380,000 pixels
Resolution:
470 (H) x 400 (V) TV lines
Lens:
23x optical (f=3.6mm - 82.8mm)
Digital Zoom:
10x (230x with optical zoom)
Angle of View:
(H) 54° (wide) to 2.5° (tele)
Minimum Illumination Color:
B&W:
3 lux @ 1/60s, .2 lux @ 1/4s
0.02 lux (1/4s, IR cut lter removed)
S/N ratio:
50 dB
Electronic Shutter:
Auto/Manual (manual 1/2s - 1/30000s)
White Balance:
Auto/Manual
Automatic Gain Control:
Auto/Manual (-3 to 28 dB, 16x 2 dB steps)
Iris Control:
Auto/Manual
Backlight Compensation:
On/Off
Focusing System:
Auto/Manual
Low Light IR Mode:
Auto/Manual
PriVacy Zone:
On/Off
© 2011, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
AD/AP8C-9, AD/AP16CH2, AP16CH1_
Tubular Camera Housing:
AD16CH2
Dust proof outdoor housing with heater, 24Vac input

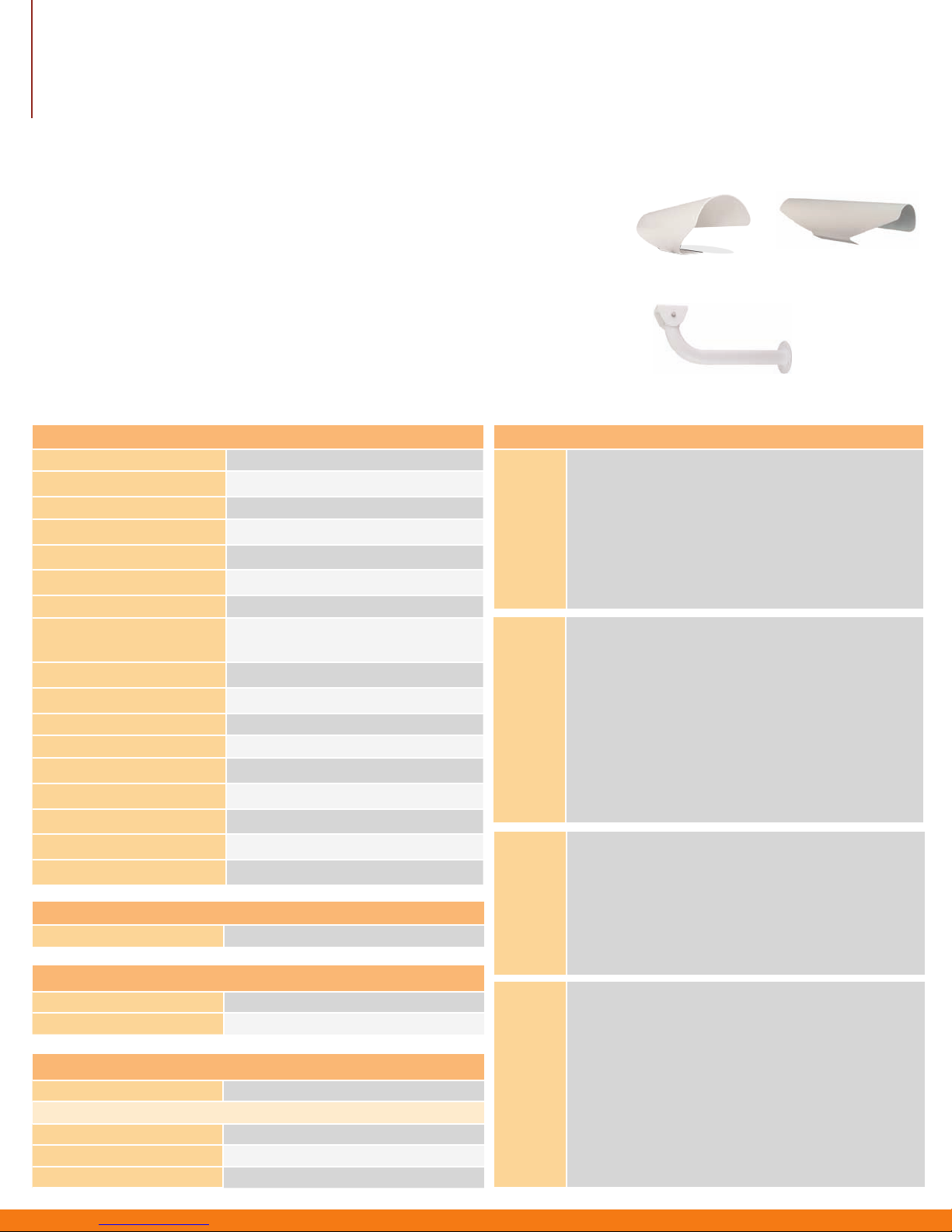

ACCESSORIES:
VLAY8
Sunshield
WM1600
Wall Mount for all
tubular housings
VLAY16
Sunshield
AP8C-9:
The AP8C-9 environmental, pressurized housing is constructed from .16” (4mm) thick aluminum.
The camera housing has been sealed on both ends by radial pressure O-rings to create a tight seal.
Front to back motion is prevented by a retaining ring in the front and screws in the back. Chemically
strengthened glass has been used for the faceplate. The housings contain a single corrosion resistant
connector for power, video, and external sync, and a mating connector is provided for the camera.
The xed high resolution color camera has a 23x zoom, auto iris lens. The camera has a horizontal
resolution of 470 horizontal TV lines. Input power 24Vac. A camera cradle assembly allows for easy
installation and access to the camera and internal equipment. The housings is tted with a standard
Schraeder valve for pressurization with 5 Lbs. positive pressure of dry nitrogen. An over pressurization
safety relief valve has been mounted on each unit. An integral heater/defogger is standard in each
unit mounted to the camera cradle to allow heat transfer to the window to minimize fogging in high
humidity and/or freezing under cold temperature conditions. The temperature range -40˚F to 120˚F.
An aluminum sunshield is available as a separately boxed items. This unit is FCC Part 15 approved.
Engineering Specications
AD8C-9:
The AD8C-9 environmental, dust free housing is constructed from .16” (4mm) thick aluminum. The
camera housing is designed to prevent dust from entering the unit. Chemically strengthened glass
has been used for the faceplate. Three liquid tight ttings (2 NPT ½” and 1 NPT 3/8”) are included
for cable entry. The camera has a xed high resolution color with 23x zoom, auto iris lens. The
camera has a horizontal resolution of 470 horizontal TV lines. Input power 24Vac. A camera cradle
assembly allows easy installation and access to the camera and internal equipment. An integral
heater/defogger is standard in each unit and is mounted to the camera cradle to allow heat transfer to
the window to minimize fogging in high humidity and/or freezing under cold temperature conditions.
The temperature range -40˚F to 120˚F. An aluminum sunshield is available as a separately boxed
items. This unit is FCC Part 15 approved.
AP16CH2:
The AP16CH2 environmental, pressurized housing shall be constructed from .16” (4mm) thick
aluminum. The camera housing shall be sealed on both ends by radial pressure O-rings to create a
tight seal. Front to back motion shall be prevented by a retaining ring in the front and screws in the
back. Chemically strengthened glass shall be used for the faceplate. The housings shall contain a
single corrosion resistant connector for power, video, and external sync, and a mating connector shall
be provided for the camera. A camera cradle assembly shall be included to allow easy installation
and access to the camera and internal equipment. The housings are tted with a standard Schraeder
valve for pressurization with 5 Lbs. positive pressure of dry nitrogen. An over pressurization safety
relief valve shall be mounted on each unit. An integral heater/defogger shall be standard in each unit
and shall be mounted to the camera cradle to allow heat transfer to the window to minimize fogging
in high humidity and/or freezing under cold temperature conditions. The temperature range shall be
-40˚F to 120˚F. An aluminum sunshield shall also be available as a separately boxed items.
AD16CH2:
The VideoKit™ AD16CH2 environmental, dust free housing is constructed from .16” (4mm) thick
aluminum. The camera housing is designed to prevent dust from entering the unit. Chemically
strengthened glass used for the faceplate. Three liquid tight ttings (2 NPT ½” and 1 NPT 3/8”)
is included for cable entry. A xed high resolution color camera included, and features an auto iris
5-50mm lens. A camera cradle assembly is included to allow easy installation and access to the
camera and internal equipment. An input power of 24Vac. An integral heater/defogger is standard
in each unit and is mounted to the camera cradle to allow heat transfer to the window to minimize
fogging in high humidity and/or freezing under cold temperature conditions. The temperature range
shall be -40˚F to 120˚F. An aluminum sunshield is available as a separately boxed items.
Environmental Specications
Operating Temperature:
-40ºF to 122ºF (-29°C to 49°C)
Electrical Specications (AD-AP16CH2)
Power Requirements:
24Vac
Power Consumption
Camera:
5W (208mA)
Heater:
10W (417mA)
Total:
15W (625mA)
Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA 1.800.554.1124 www.videolarm.com
500-702 12-12-2011
Electrical Specications (AD-AP8C-9)
Power Input:
24Vac, 50/60 Hz
Power Consumption:
18W (750mA)
