moon 300 D User manual

Owner’s Manual
MOON Series
300 D
Digital-to-Analog Converter

MOON 300D Digital-to-Analog Converter
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or another apparatus that produces
heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for safety. If the provided plug does not fit into the outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments and accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as when the power cord or plug has been damaged; liquid has been spilled or objects have fallen into the
apparatus; or the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. No naked flame sources, such as candles, should be placed on the apparatus.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
____________________________________________________________________________________

MOON 300D Digital-to-Analog Converter
Important Safety Instructions (cont’d)

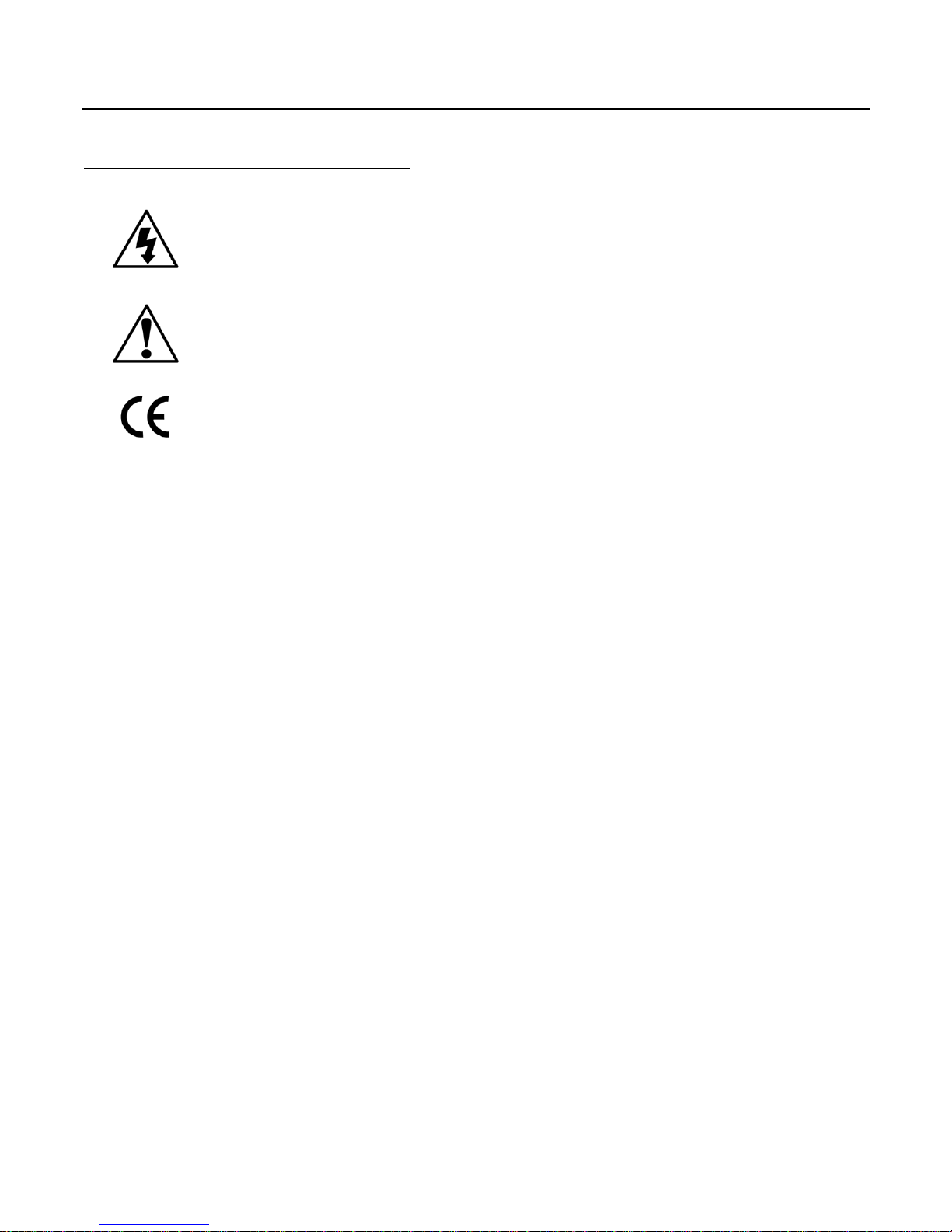

The lightning flash with the arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Marking by the “CE” symbol (shown left) indicates compliance of this device with the
EMC (Electromagnetic Compatibility) and LVD (Low Voltage Directive) standards of the
European Community
Please read all instructions and precautions carefully and completely before
operating your Simaudio MOON 300
D Digital-to-Analog Converter.
1. ALWAYS disconnect your entire system from the AC mains before connecting or disconnecting any cables,
or when cleaning any component.
2. The MOON 300D must be terminated with a three-conductor AC mains power cord which includes an earth
ground connection. To prevent shock hazard, all three connections must ALWAYS be used. Connect the
MOON 300 D only to an AC source of the proper voltage; Both the shipping box and rear panel serial
number label will indicate the correct voltage. Use of any other voltage will likely damage the unit and void
the warranty
3. AC extension cords are NOT recommended for use with this product.
4. NEVER use flammable or combustible chemicals for cleaning audio components.
5. NEVER operate the MOON 300D with any covers removed. There are no user-serviceable parts inside. An
open unit, especially if it is still connected to an AC source, presents a potentially lethal shock hazard. Refer
all questions to authorized service personnel only.
6. NEVER wet the inside of the MOON 300D with any liquid. If a liquid substance does enter your MOON 300
D, immediately disconnect it from the AC mains and take it to your MOON dealer for a complete check-up.
7. NEVER spill or pour liquids directly onto the MOON 300D.
8. NEVER block air flow through ventilation slots or heatsinks.
9. NEVER bypass any fuse.
10. NEVER replace any fuse with a value or type other than those specified
11. NEVER attempt to repair the MOON 300D. If a problem occurs contact your MOON dealer.
12. NEVER expose the MOON 300D to extremely high or low temperatures.
13. NEVER operate the MOON 300D in an explosive atmosphere.
14. ALWAYS keep electrical equipment out of reach of children.
15. ALWAYS unplug sensitive electronic equipment during lightning storms.
____________________________________________________________________________________

MOON 300D Digital-to-Analog Converter
Table of Contents
Congratulations ............................................... 5
Unpacking and Warnings ................................... 5
Introduction .................................................... 6
Installation & Placement ................................... 6
Front Panel Controls ......................................... 7
Rear Panel Connections ..................................... 8
Operating the 300D ......................................... 9
Specifications .................................................10
www.simaudio.com
Revision no.: 20100513
____________________________________________________________________________________

MOON 300D Digital-to-Analog Converter
Congratulations!
Thank you for selecting the MOON 300D Digital-to-Analog Converter (DAC) as a part of your hi-fi reproduction system.
This DAC has been designed to offer state-of-the-art high-end performance in an elegant package, while retaining all the sonic
hallmarks on which Simaudio has made its reputation. We have spared no effort to ensure that it is amongst the finest
Digital-to-Analog Converters available in its class. We have been building high-performance audio equipment for 30 years,
and the know-how gained through our cumulative experience is an important reason why MOON digital audio components
are so musically satisfying.
The performance of your 300D will continue to improve during the first 400 hours of listening. This is the result of a “break-
in” period required for the numerous high quality electronic parts used throughout this DAC.
Before setting up your new MOON 300 D, we encourage you to please read this manual thoroughly to properly acquaint
yourself with its features. We hope you enjoy listening to the MOON 300 D DAC as much as the pride we have taken in
creating this fine audio product. We understand the power and emotion of music and build our products with the goal of
faithfully capturing these elusive qualities.
The information contained in this manual is subject to change without notice. The most current version
of this manual is available on our official website at http://www.simaudio.com/manuals.htm
Unpacking
The MOON 300D DAC should be removed from its box with care. The following accessories should be included inside the
box with your DAC:
9 AC power cable
9 This owner’s manual
9 Warranty and product registration information (USA and Canada only)
As soon as the DAC is safely removed from its box and placed down, perform a thorough physical inspection and report any
physical damage to your dealer immediately. We suggest that you keep all of the original packaging, storing it in a safe, dry
place in the event that you’re required to transport the DAC. The customized packaging is specially designed to protect the
MOON 300D DAC from potential damage that may occur during shipping.
Please write the serial number of your new Simaudio MOON 300Din the space provided below for future reference.
Serial No.: ________________
____________________________________________________________________________________
Congratulations / Unpacking 5

MOON 300D Digital-to-Analog Converter
Introduction
Your MOON 300D DAC incorporates many significant design features to achieve its “world class” level of performance. This
is an abbreviated list of the more important features:
Over-sized power supply with 8 stages of voltage regulation
Internal upsampling which uses 24-bit/352.8kHz processing.
BurrBrown PCM1793 high-resolution 24-bit/192-kHz Digital-to-Analog Converter and 8X oversampling digital filter
IR input for external control.
Accurate digital clocking system for exceptionally low intrinsic jitter levels
Single-ended RCA and Balanced XLR analog outputs
Advanced analog signal path using a DC servo circuit and proprietary analog filter
Pure copper circuit board tracings with extremely low impedance characteristics.
Extremely rigid chassis construction to minimize the effects of external vibrations.
Accurate matching of the very finest high quality electronic components in a symmetrical circuit design.
Designed to be powered up at all times for optimal performance.
Low operating temperature for a longer than normal life expectancy.
Installation & Placement
The MOON 300Drequires reasonable ventilation to maintain an optimum and consistent operating temperature. As a result,
it should be placed in a location with empty space around it for proper heat dissipation. As well, it should be placed on a solid
level surface. You should avoid placing it near a heat source as this could compromise the DAC’s performance and reliability.
The 300Duses a toroidal transformer; even though it is well shielded, you should not place the player too close to source
components sensitive to EMI, such as turntables and phono preamplifiers.
You should never place another component directly
on top of this DAC.
____________________________________________________________________________________
Introduction / Installation & Placement 6

MOON 300D Digital-to-Analog Converter
Front Panel Controls

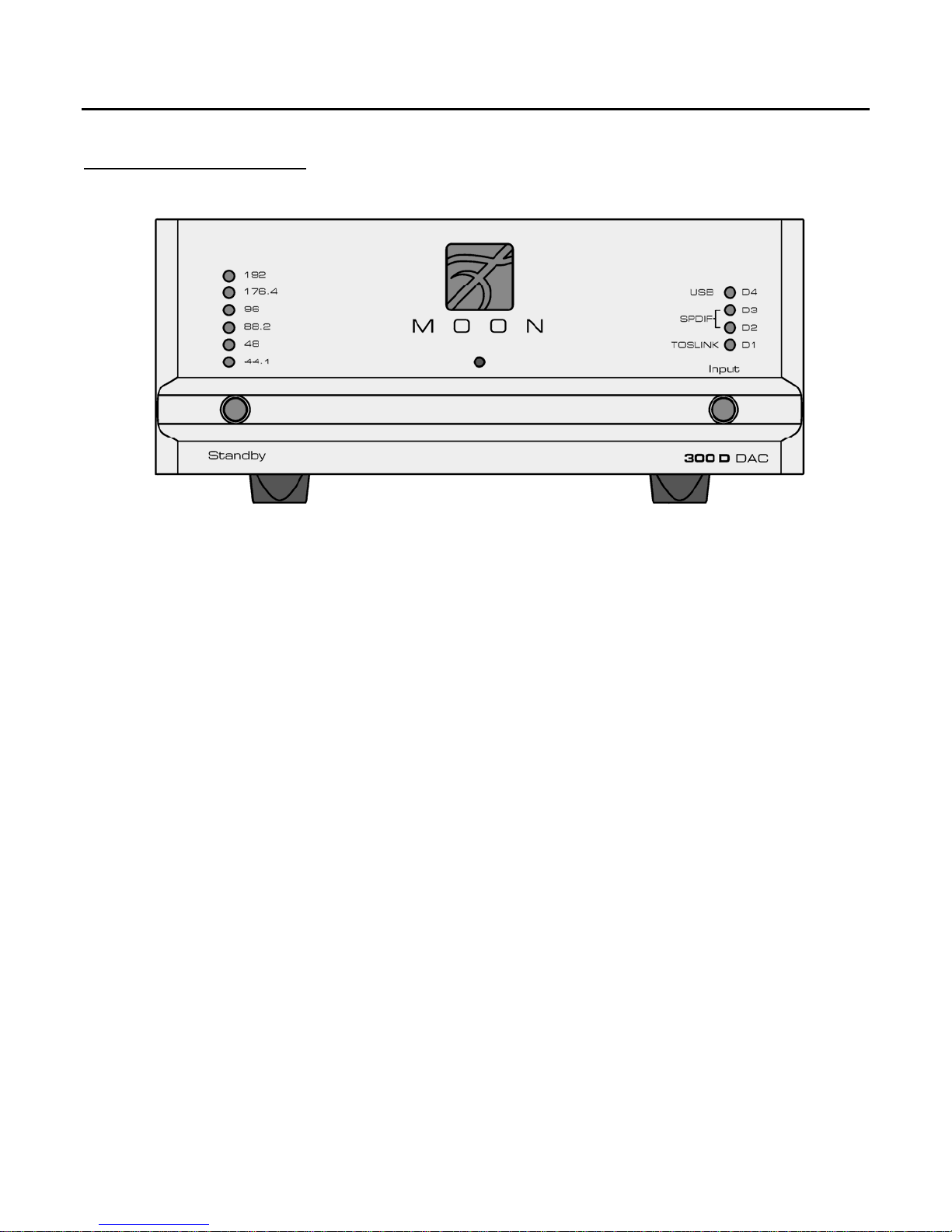

Figure 1: MOON 300D Front panel
The front panel will look similar to Figure 1 (above). The “Standby” button is located in the lower left corner and toggles the
MOON 300Dbetween standby mode and operational mode. When in “Standby” mode, the 300D’s output signal is muted,
however, all digital and analog audio circuitry remains powered up to help maintain optimal performance. As well, the blue
LED on the 300Dwill no longer be illuminated when the player is in “Standby” mode.
Directly above the “Standby” button is a vertical array of six (6) red LED’s to indicate the sampling frequency of the digital
input signal: 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz and 44.1kHz. Only when the MOON 300D has successfully locked
onto an input signal will one of these LED’s illuminate.
The “Input” button, located in the lower right corner, allows you to sequentially scroll through the four (4) different digital
inputs; each time you press the “Input” button, the 300Dscrolls to the next input. Directly above the “Input” button are four
(4) red LED’s to indicate the selected input:
D1 TosLink
D2 S/PDIF
D3 S/PDIF
D4 USB
In the event that the 300Dcannot successfully lock onto the digital signal from the selected input, a sampling frequency LED
will not illuminate. This may be the result of i) no digital source component connected to the selected input ii) a faulty digital
audio cable between 300 Dand your digital source component, your digital source iii) your digital source component not
being powered up or iv) your digital source component malfunctioning.
When you put the MOON 300Dinto “Standby”mode, the currently selected input will remain the same when you put the unit
back into operational mode. However, when the AC power is interrupted, the 300 Dwill automatically default to the “D1”
input upon powering up.
____________________________________________________________________________________
FrontPanelControls 7

MOON 300D Digital-to-Analog Converter
Rear Panel Connections
Figure 2: MOON 300D Rear panel
The rear panel will look similar to Figure 2 (above). The top left section has four (4) digital inputs – “D1” is an optical Toslink
connector and is intended for use with devices equipped with a digital Toslink output such as a DVD player or digital satellite
recevier; Both “D2” and “D3” are S/PDIF on a coaxial RCA connector and are meant to be used with devices equipped with an
S/PDIF output such as music servers and disc transports. note: you should use a 75Ωdigital audio cable terminated with RCA
connectors to make an S/PDIF connection. “D4” uses a USB (type-B) connector and is intended for use with a computer.
Directly below the digital inputs, are two (2) pairs of analog output connectors; There is one pair of single-ended RCA analog
audio output connectors that you should connect to a stereo analog input on your preamplifier or integrated amplifier. Don’t
hesitate to use good quality interconnect cables. Immediately beside each RCA analog output is an XLR balanced outputs. We
strongly recommend that you use the balanced XLR connectors on your 300Dto maximize its level of performance:
When using an unbalanced interconnect, the audio signal runs through both the center wire and the shield/ground wire. Any
noise picked up by this interconnect (ie. nearby magnetic fields such as an AC power cord) will be reproduced by the
amplifier and heard through the loudspeakers. Conversely, a balanced interconnect has three separate conductors; one for
the ground and two for the actual signal. These two signals are identical except that one is 180 degrees out of phase with
the other. For example, when one conductor is carrying a signal of +4 Volts, the other will be carrying a signal of –4 Volts.
When these two inverted signals on a balanced line are input into a differential preamplifier, any noise picked up by the
interconnect will be eliminated since a differential circuit amplifies only the difference between these two signals: Noise on a
balanced interconnect will be equal on both conductors and therefore not be processed.
Your MOON 300Dis equipped with a 1/8” mini jack input for use with aftermarket infrared remote control receivers. The
“IR in” connector is located to the right of the analog audio outputs. Finally on the right side is the “AC Power” section with a
main power switch (“0”=off, “1”=on) and IEC receptacle for the included AC power cord.
All rear panel connectors have been chosen because they provide the best possible connections for your unit. A poor contact
will degrade the signal substantially, and plugs and sockets should all look clean and free of dirt and corrosion. The easiest
way to clean them is to remove the cables from their sockets and push them back in again. This procedure requires that your
DAC and the rest of your components be completely turned off. Not heeding this warning may result in serious damage to
your equipment. Special contact cleaning fluids and enhancers should not be used, as they deposit a difficult to remove
residue which degrades the performance of your components.
____________________________________________________________________________________
Rear Panel Connections 8

MOON 300D Digital-to-Analog Converter
Operating the MOON 300D
We recommend that you leave your MOON 300 DDAC powered up at all times to maintain optimal performance. In the
event that you plan to be away from your home for a few days, switching the 300Dinto “Standby” mode may not be a bad
idea. Once fully “broken-in”, please keep in mind that your 300Dwill require several hours of playing time before it reaches
its peak performance after you’ve powered it up again.
Making the AC Connection
Connect the supplied AC power cable to the IEC receptacle, located on the rear panel of the DAC’s chassis. Ensure that the
AC wall outlet you use has a functioning ground. For the best sonic performance, it is preferable that you plug your MOON
300D directly into a dedicated AC outlet and avoid using an extension cord.
In order to obtain the maximum performance from your audio system, we strongly recommend that the detachable power
cord not come into physical contact with any of the interconnect cables running to and from your 300D. In the event that
this can’t be avoided, you should ensure that any cables coming into contact with each other are crossed at ninety degree
angle to minimize the contact area.
Powering up your MOON 300Dfor the first time
Since this Digital-to-Analog Converter is not equipped with an on/off power switch, when connecting/disconnecting the AC
power cord you are actually turning the unit on/off. Prior to making the AC connection for the first time, make sure that every
cable is properly connected to avoid any problems. Once the 300 Dis connected to an AC source it will be in “Standby
mode”. When you press the “Standby” button on the front panel, the 300 Dwill be ready for use and the blue LED will
illuminate.
On and Off Sequence
To avoid having any annoying noises (ie. “thumps” and “pops”) emanate from your speakers when powering your 300D on
or off, you should
1) Always power up your 300D before powering up your preamplifier and/or integrated amplifier.
2) Always power down your 300Dafter powering down your preamplifier and/or integrated amplifier.
___________________________________________________________________________
Operating the 300D 9

MOON 300D Digital-to-Analog Converter
Specifications
Type ....................................................................... Solid State
Power Supply Transformer ....................................... 10VA
Power Supply Capacitance ...................................... 13,200µF
Digital Input Types .................................................. S/PDIF (RCA) x 2 USB x 1 TosLink x 1
Digital Input Impedance (S/PDIF) ........................... 75 ohms @ 0.5 Volts
DAC / Digital Filter ................................................... BurrBrown PCM1793
Bit-depth range – S/PDIF, Optical ............................ 16 - 24 bits
Bit-depth range – USB ............................................. 16 bits
Sampling Frequency Rates – S/PDIF, Optical.............. 44.1, 48, 88.2, 96, 176.4 and 192kHz
Sampling Frequency Rates – USB ............................. 44.1 and 48kHz
Frequency Response (audible) ................................ 20Hz - 20kHz +0/-0.2dB
Frequency Response (full range) ............................ 2Hz - 72kHz +0/-3dB
THD @ 1kHz, 0dBFS (A-weighted) ......................... < 0.001 %
IMD ....................................................................... < 0.004 %
Dynamic Range ...................................................... > 116dB
Signal-to-noise ratio ............................................... > 115dB @ full output
Slew Rate .............................................................. 50V/µs
Channel Separation ................................................ > 115dB
Low Level Linearity ................................................. ±1.0dB to below 120dBFS
Intrinsic Jitter ......................................................... < 25 picoseconds RMS
Single-ended Analog Output (RCA) ........................... 1 pair
Balanced Analog Output (XLR) ................................. 1 pair
Max. Analog Output @ 0dBFS - Standard ............... 2.0 Volts RMS
Output Impedance – Single-Ended ........................... 100Ω
Output Impedance – Balanced ................................ 100Ω
IR Input................................................................... 1/8” Mini jack
Power Consumption @ idle ..................................... 5 Watts
AC Power Requirements ......................................... 120V / 60Hz or 240V / 50Hz
Shipping Weight ..................................................... 7 lbs / 3 Kgs
Dimensions (W x H x D, inches) .............................. 7.5 x 3.25 x 11
Balanced Pin Assignment: Pin 1................................ Ground
Pin 2................................ Positive
Pin 3 .............................. Negative
Fuse Replacement: For the 120V version use a 0.2A slow blow (5 x 20mm size).
For the 230V version use a 0.1A slow blow (5 x 20mm size).
____________________________________________________________________________________
Specifications 10
