MORDOMUS iZRC-2 User manual

Z-Wave Remote iZRC-2/8/P

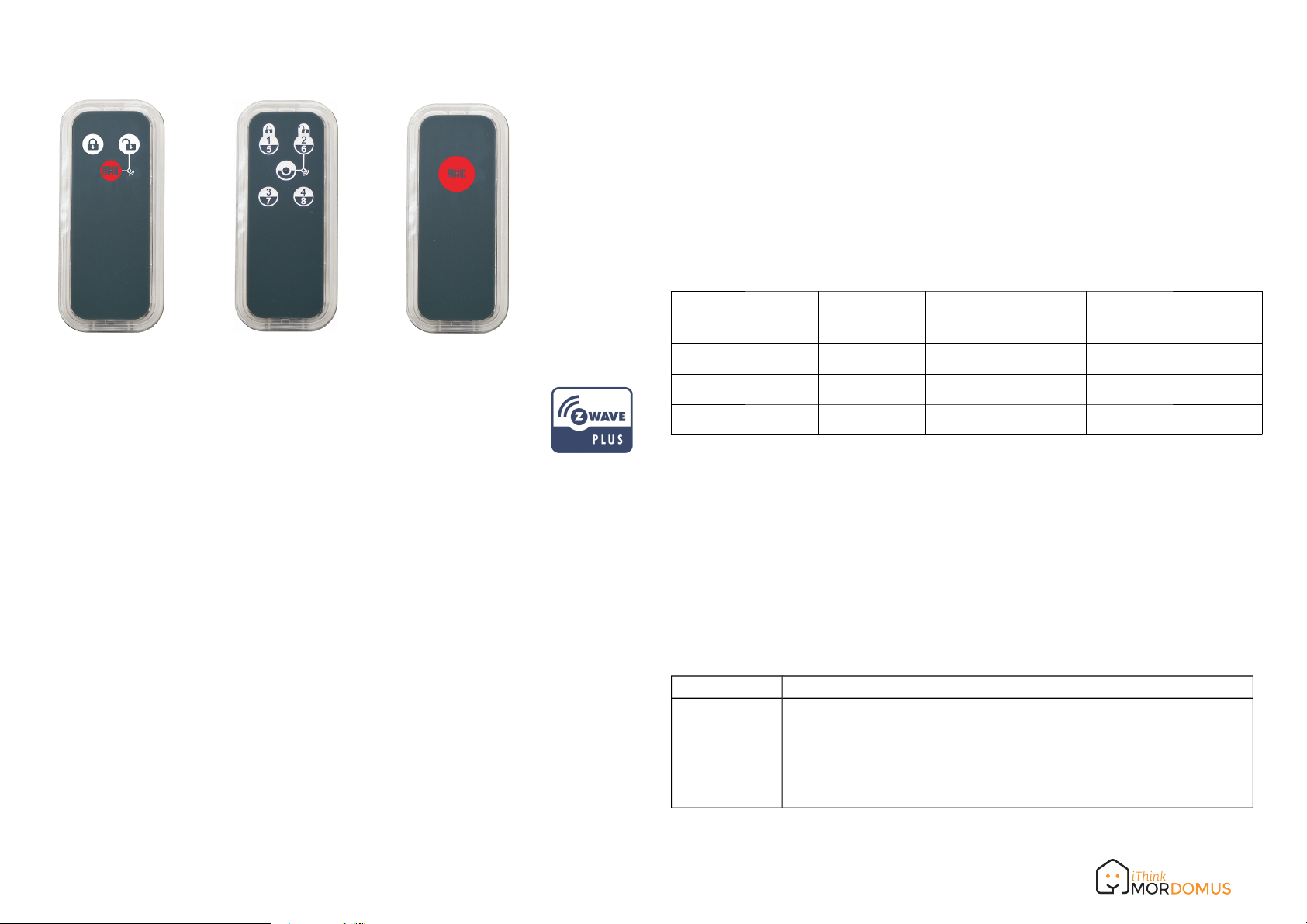

iZRC-2 iZRC-8 iZRC-P
The Remote PSR03 is a simple control can control AV device through Z-
Wave-to-IR extender and it can also controls 8 lighting groups ON/OFF
via basic set based on Z-WaveTM technology.
It is the Z-WaveTM plus product it support the security OTA... Those
newest features of the Z-WaveTM technology. Z-WaveTM is a wireless
communication protocol designed for home automation specifically to
remotely control applications in residential and light commercial
environments. The technology uses a low-power RF radio embedded or
retrofitted into home electronics devices and systems such as lighting
home access control entertainment systems and household appliances.
This product can be included and operated in any Z-WaveTM network
with other Z-WaveTM certified devices from other manufacturers and/or
other applications. All non-battery operated nodes within the network
will act as repeaters regardless of vendor to increase reliability of the
network.
The device adopts the Z-WaveTM 500 series chip when your Z-WaveTM
network system is all made by Z-WaveTM 500 series devices. The
network system will have the advantages as below.
•Concurrent multi-channel support reduces external interference.
•Better RF range improve about 10 meters in indoor.
•Support 100 Kbps transmit speed speed up communication.
Function Compare 2/8/P
Group
Control
AV Control Panic
iZRC-2
V V V
iZRC-8
V V V
iZRC-P
V
Adding to Z-WaveTM Net ork
In the first time activate the device through micro USB then it can be
added into the Z-WaveTM network. First make sure the primary
controller is in the add mode. And then power on the device. The
device will auto start the NWI (Network Wide Inclusion) mode. And it
should be added in 5 seconds. You will see the LED light ON one
second.
Function Description
Add 1. Have Z-WaveTM Controller entered add mode.
2. Hold down the central key then press the top-right
key three times within 1.5 seconds to enter the add
mode.
Note: iZRC-P is added by pressing panic key
1
www.mordomus.com

three times.
3. After add successful the device will wake to
receive the setting command from Z-WaveTM
Controller about 20 seconds.
Remove
1. Have Z-WaveTM Controller entered remove mode.
2.
Hold down the central key then press the top-right
key three times within 1.5 seconds to enter the
remove mode.Node ID has been excluded.
Note: iZRC-P is removed by pressing panic key
three times.
Reset
Notice: Use this procedure only in the event
that the primary controller is lost or
other ise inoperable.
1.
Hold down the central key then press the top-right
key four times within 1.5 seconds and do not
release the top-right key in the 4th pressed and the
LED will light ON.
Note: iZRC-P is reset by pressing panic key four
times within 1.5 seconds and do not release the
top-right key in the 4th pressed.
2. After 3 seconds the LED will turn OFF after that
within 2 seconds release the keys. If successful
the LED will light ON one second. Otherwise the
LED will flash once.
3. IDs are remove and all settings will reset to factory
default.
Association 1. Have Z-WaveTM Controller entered association
mode.
2. Hold down the central key then press the top-right
key three times within 1.5 seconds to enter the
association mode.
Note: iZRC-8 supports 9 groups. Group 1 is for
receiving the report message like AV controls battery
status. Group 2 to group 9 are for lighting group
control the device will send the “Basic Set” command
to these groups. And each group support 4 nodes
maximum.
iZRC-2 supports 3 groups. The group 1 is for
receiving the report message. Group 2 3 are for
lighting group control. Each group supports 4 nodes.
•Including a node ID allocated by Z-WaveTM Controller means
“Add” or “Inclusion”. Excluding a node ID allocated by Z-
WaveTM Controller means “Remove” or “Exclusion”.
•Failed or success in including/excluding the node ID can be
viewed from Z-WaveTM Controller.
Notice 1: The device can not work normally in the first time. Please
activate the battery before the first use.
Notice 2: Always RESET a Z-WaveTM device before trying to add it to a
Z-WaveTM network.
Notice 3: When the device into NWI mode the NWI mode will timeout
after 30 seconds. You can Hold down the central key then press the
top-right key three times within 1.5 seconds to abort the NWI mode.
2
www.mordomus.com
Specifications
Power by Li 602025 battery.
Signal (Frequency):
868.40 MHz 869.85 MHz(EU)
908.40 MHz 916.00 MHz(US)
922~927 MHz(JP/TW)
921.40 MHz 919.80 MHz(ANZ)
869.00 MHz(RU)

865.20 MHz(IN)
916.00 MHz(IL)
Range:
Minimum 40 meters indoor
100 meters outdoor line of sight.
Operating Temperature: 0oC ~ 40oC
For indoor use only.
Specifications subject to change without notice due to continuing
product improvement.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and if not installed and used in
accordance with the instructions may cause harmful interference to
radio communications. However there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception which
can be determined by turning the equipment off and on the user is
encouraged to try to correct the interference by one of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Warning
Do not dispose of electrical appliances as unsorted municipal waste
use separate collection facilities. Contact your local government for
information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps hazardous substances
can leak into the groundwater and get into the food chain damaging
your health and well-being.
When replacing old appliances with new once the retailer is legally
obligated to take back your old appliance for disposal at least for free
of charge.
