Morphy Richards IB40702 User manual

Comfigrip iron steam/spray/shot
Please read and keep these instructions
getting the best from your
new iron...
•Safety first
Caution must be used when handling this appliance as it does get
very hot. Always switch off the unit and allow to cool before
cleaning or storing.
•Jet cleaning
Your iron will give the best ironing results and will last longer if you
apply jet cleaning after each period of ironing.
UK
Helpline: 0870060 2615
Replacement parts: 0870 167 6646
Ireland 1800 409119
www.morphyrichards.com
For replacement parts, help with using your Morphy Richards
products and lots more, contact us by phone or through our website
40701 rev 1 3/1/06 2:50 PM Page 1

Important safety
instructions
The use of any electrical appliance
requires the following common sense safety
rules.
Primarily there is danger of injury or
death and secondly the danger of damage
to the appliance. These are indicated in the
text by the following two conventions:
WARNING: Danger to the person!
IMPORTANT: Damage to the appliance! In
addition we offer the following safety
advice.
Location
•Do not use outdoors.
Children
•Close supervision is necessary when any
appliance is used near children.
Personal safety
•WARNING: Burns can occur from
touching hot metal parts, hot water
or steam. Use caution when you
turn a steam iron upside down,
there may be hot water in the water
tank.
•WARNING: To protect against the
risk of electric shock do not put the
appliance in water or in any other
liquid.
•Do not use the vertical steam feature on
clothes that are being worn.
•Do not leave the iron unattended whilst
plugged in or on an ironing board. Never
allow the mains lead to over hang the
work surface.
•The socket should always be off before
plugging or unplugging from the socket.
Never yank the cord to disconnect from
the socket, instead, grasp plug and pull
to disconnect.
•Do not allow the cord to touch hot
surfaces. Let the iron cool completely
before putting away. Loop cord loosely
around the iron before storing.
Other safety considerations
•Use the iron only for its intended use.
•Always disconnect the iron from the
electrical socket when filling with water
or emptying, and when not in use.
•Do not operate the iron with a damaged
cord or if the iron has been dropped or
damaged. To avoid the risk of electric
shock, do not disassemble the iron, but
telephone Morphy Richards for advice.
Incorrect reassembly can cause a risk of
electric shock when the iron is used.
Special instructions
•If your iron does not work, check the
following points:
Has the temperature control been set to
the required temperature? Is the plug in
its socket? Is the plug itself or the
socket faulty? (Check by plugging in
another appliance).
•WARNING: When not in use, your
iron should never be placed flat and
left on an ironing board.
•To prevent damage to the textile being
ironed, follow the temperature guide
carefully. (Test the inside of the hem of
the garment).
•When ironing is complete, remove the
plug from the socket, empty any
remaining water from the tank, and allow
to cool before storage.
•If you drop or severely knock your iron
this could cause internal damage even if
the outside appears alright. Have it
checked by a qualified electrician.
•It is recommended that you use up one
beaker of water by operating your iron’s
steam and shot of steam functions
before ironing any clothes as some
dripping may occur while your irons
steam system is activated.
2
40701 rev 1 3/1/06 2:50 PM Page 2

3
Electrical
requirements
Check that the voltage on the rating
plate of your appliance corresponds with
your house electricity supply which must be
A.C. (Alternating current).
If the socket outlets in your home are
not suitable for the plug supplied with this
appliance the plug should be removed and
the appropriate one fitted.
WARNING : The plug removed from
the mains lead, if severed, must be
destroyed as a plug with a bared
flexible cord is hazardous if engaged
into a live socket outlet.
Should the fuse in the 13 amp plug
require changing a 13 amp BS1362 fuse
must be fitted.
WARNING: This appliance must be
earthed.
Instructions for use
Temperature guide
Heat setting markings on the adjustable control dial of all Morphy Richards irons match
those of the International Textile Care Labelling Code.
Symbol
(120˚C Max) Cool (160˚C Max) Warm (210˚C Max) Hot
Control knob
positions
Do not
iron at all
Fabric Nylon, Acetates
e.g. Acrilan
Courtelle, Orlon
Triacetates, e.g.
Tricel/Polyester
Wool, Polyester
mixtures e.g.
Polyester/Cotton
Cotton, Linen
Rayon, Rayon
mixtures,
e.g. Rayon/Linen
Ironing Iron on wrong side
if moisture required
use damp cloth
(Not Acetate)
Fabrics requiring this
setting usually require
steam pressing for heavy
cotton, denim etc.
With water in tank Dry and spray Steam/spray/shot of steam
Jet clean
Without water in tank Dry ironing
40701 rev 1 3/1/06 2:50 PM Page 3

4

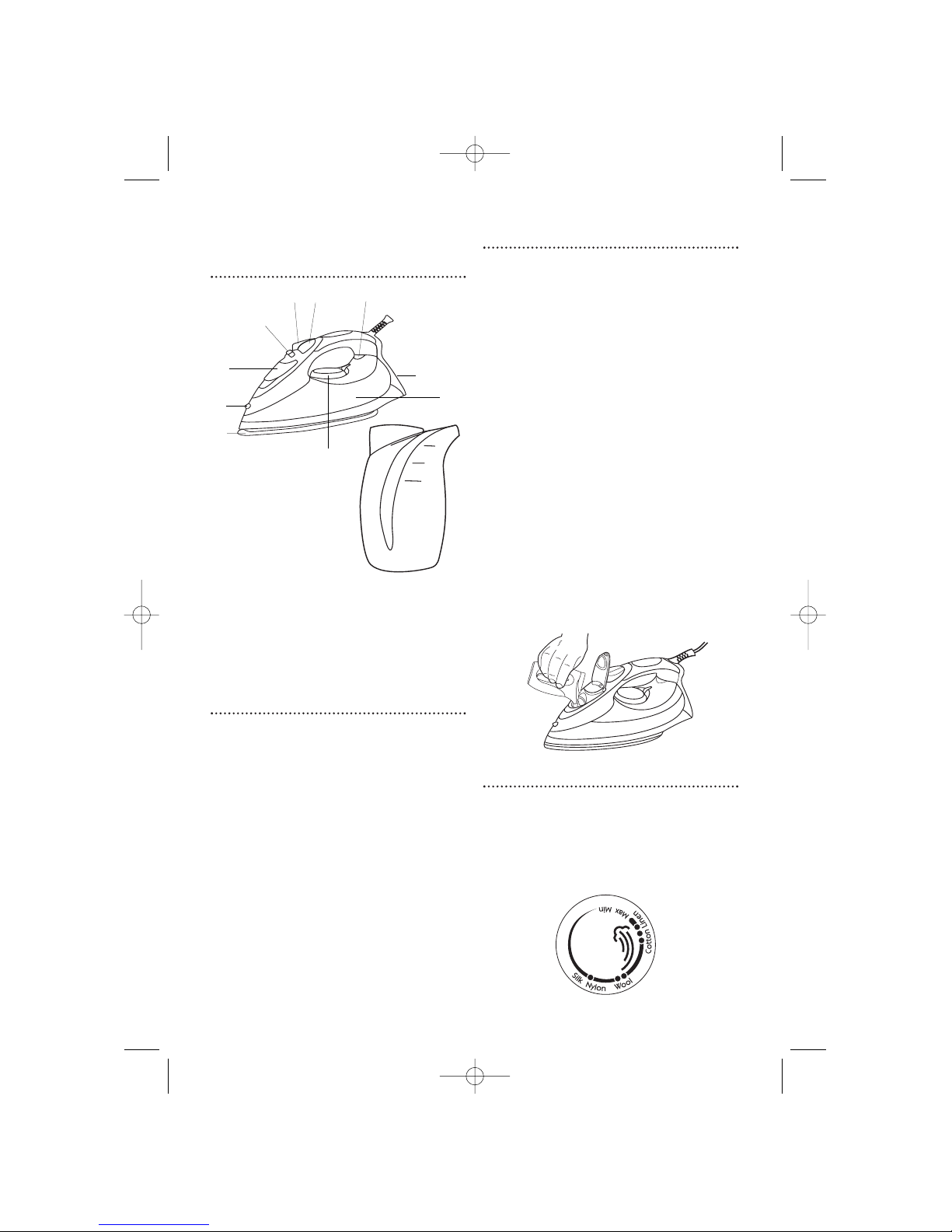

Components of your
iron
⁄ Variable steam button
¤ Shot of steam button
‹ Spray button
› Filling hole with cap
fi Spray nozzle
flSoleplate
‡ Temperature control dial with indicator
· Water tank (Illuminated on certain models)
‚ Life long anti-scale (certain models only)
„ Temperature indicator light (red)
‰Graduated filling beaker
Before use
Note: The steam facility should only be
used on garments which are suitable for
ironing at the 2 and 3 dot settings.
When ironing with the steam facility at the
2 dot setting, the steam output should be set
at the lower end of the steam range (see
variable steam section).
Textiles and clothes are supposed to
carry ironing instructions. If they don’t you
should follow the fabric guide on page 3, but
be sure to test the temperature by ironing the
hem of the garment or similar area first.
If you turn the control dial down from a
hot setting to a cooler setting, wait until the
iron temperature has stabilised before you
continue ironing.
Filling
1Make sure that the iron is not plugged in
and then set the variable steam control ⁄
to the ‘0’ position before filling the iron
with water.
2Lift up the fill cap and fill the water
through the filling hole ›into the water
tank ·, using the beaker provided. A
After filling replace the fill cap. In hard
water areas the use of distilled or
demineralised water is recommended.
WARNING: Never use battery topping
up fluid or water containing any
substances like starch, or sugar, or
defrosted water from a refridgerator.
3Always pour out the remaining water after
use.
WARNING: When filling your iron with
tap water always use the beaker
provided. Never fill directly under the
tap.
Tank capacity
Models 40701 and 40707 - 400ml
Model 40711 - 350ml
Temperature control
Plug in the iron and switch on. Set the
temperature control dial Bto the
temperature required, but don’t start ironing
immediately.
⁄
¤‹
›
fi
fl
‡
·
‚
„
B
A
400
300
350 ‰
40701 rev 1 3/1/06 2:50 PM Page 4

If you wait a few minutes, the iron will
stabilise at the required setting. Your
Morphy Richards iron is fitted with an
indicator light „which will go on and off
while you are ironing.
This is perfectly normal as it shows that
the iron is maintaining the heat setting you
have chosen.
It is always a good idea to begin with
cool fabrics and work up to higher settings.
An iron heats up quicker than it cools
down so you’ll save time and electricity.
Features of your iron
Temperature indicator light
The indicator light shows that the iron is
warming up. When the required temperature
is reached the light will go out and will cycle
on-off during operation.
Dry ironing
You can use your iron as a dry iron only.
Make sure the variable steam control ⁄is
set to the ‘0’ symbol.
Any temperature setting may be used
depending on the garment. The spray
feature may be used provided there is water
in the tank (see filling section). You do not
need to put any water in the tank when dry
ironing only.
Spray
Press the spray button ‹and aim the
spray of water at stubborn creases. You can
do this whilst dry ironing
providing there is water in the
tank. When using the water
spray it may be necessary to
push the button a few times to
get the spray pump primed.
Variable steam
Fill the iron with water as described in
‘Filling’, page 4 and insert the plug into the
electrical socket.
The steam output can be varied from
low to high by turning the variable steam
control C. When using the iron at 2-Dot,
the steam output should be adjusted to the
low setting.
The steam facility should only be used
on garments which are suitable for ironing
at 2 and 3 dot setting.
Shot of steam
Press the shot of steam button ¤to
obtain a burst of extra steam for ironing out
creases in heavy material such as denim
etc.
The shot of steam can be used whilst
dry ironing, providing there is water in the
tank, and the temperature
control is set within the
steam range.
Do not use shot of steam
at temperatures below the
steam range shown on the
control dial.
Note: For optimum steam
quality, do not operate the shot more than
three times in succession.
5
C
Lower sream
Higher steam
40701 rev 1 3/1/06 2:50 PM Page 5

Vertical steam
Hold the iron in a vertical position
between 1cm and 2cm away from the item
D. Press the shot of steam button ¤, this
will create vertical steam. This feature is
especially useful for removing creases from
hanging clothes, curtains, wall hangings, etc.
Note; For optimum steam quality, do not
operate the shot more than three times in
succession.
No drip system
Your iron is fitted with a no drip system
which is designed to prevent water escaping
from the soleplate when the iron is too cold.
During use, the no drip system may emit
a loud click, particularly during heat-up or
whilst cooling down. This is perfectly normal
and indicates that the system is functioning
correctly.
Auto shut-off
(certain models only)
If your iron is fitted with the auto shut-off
function it will automatically shut down after
a set period.
If the iron is left unattended in the
horizontal position it will shut down after 1
minute.
If it is left in the vertical position it will
shut down after 8 minutes.
Flashing tank lights indicate the product
is on shut down mode.
To reactivate the iron gently shake it, the
temperature indicator light will come on
indicating the iron is warming up and wait for
the iron to heat-up as normal.
Life long anti-scale
system
(certain models only)
The life long anti-scale system reduces
scale deposits and helps prolong the life of
the iron.
Emptying and storing
When you have
finished ironing,
unplug your iron.
Ensure that the
variable steam control
is set at the ‘0’
position, lift up the fill
cap and empty any
remaining water out of
the filling hole.
Do not store in the box, but in an upright
position, so that any drops of water
remaining cannot leak out
and discolour the soleplate.
Important: The flex can
be damaged if wound too
tightly around the iron after
use. Make a loose loop with
the flex and wrap it around
the iron. The iron must be
cool before winding the flex
and storing on its heel.
6
D
40701 rev 1 3/1/06 2:50 PM Page 6

7
Maintenance
Jet cleaning
Your iron has a built in cleaning system
designed to keep the water valve, steam
chamber and steam vents clear of lint and
loose mineral deposits. The ‘jet clean’ should
be operated after each period of ironing.
To operate, ensure that there is little water
in the tank, place the iron on its heel and turn
the temperature control dial to the maximum
setting. Wait for the temperature indicator
light to go out, then unplug the iron and hold
it about 6’’ (150mm) above the sink in the
ironing position. Press the shot of steam
button about 10 times in succession.
After this cleaning operation, empty out
any remaining water.
WARNING: Do not attempt to descale
the soleplate with descaling products.
To clean a stainless steel soleplate
To keep the soleplate of your iron clean
and free of limescale, we recommend that
you use one of the gentle chrome, silver or
stainless steel cleaners that are generally
available. Always follow the manufacturers
instructions. To clean off melted man-made
fibres set the iron at 3 dot position and pass
it over a clean piece of cotton which will
draw the deposit off the surface.
To clean the exterior
Allow the iron to cool and wipe over with
a damp cloth and mild detergent, then wipe
with a dry cloth.
Helpline
If you have any difficulty with your
appliance, do not hesitate to call us.
We are more likely able to help than the
store from where you bought it.
Please have the following information
ready to enable our staff to deal with your
query quickly.
•Name of the product
•Model number as shown on the underside
of the appliance.
For electrical products sold within
the European Community.
At the end of the electrical products
useful life it should not be disposed of
through household waste.
Please recycle where facilities excist.
Check with your Local Authority or retailer
for recycling advice in your country.
40701 rev 1 3/1/06 2:50 PM Page 7

Your two year guarantee
It is important to retain the retailers
receipt as proof of purchase. Staple your
receipt to this back cover for future
reference.
Please quote the following information if
the product develops a fault. These numbers
can be found on the base of the product.
Model no. Serial no.
All Morphy Richards products are
individually tested before leaving the factory.
In the unlikely event of any appliance proving
to be faulty within 28 days of purchase it
should be returned to the place of purchase
for it to be replaced.
If the fault develops after 28 days and
within 24 months of original purchase, you
should contact the Helpline number quoting
Model number and Serial number on the
product, or write to Morphy Richards at the
address shown. You may be asked to return
a copy of proof of purchase.
Subject to the exclusions set out below
(see Exclusions) the faulty appliance will then
be repaired or replaced and dispatched
usually within 7 working days of receipt.
If for any reason this item is replaced
during the 2 year guarantee period, the
guarantee on the new item will be calculated
from original purchase date. Therefore it is
vital to retain your original till receipt or
invoice to indicate the date of initial
purchase.
To qualify for the 2 year guarantee the
appliance must have been used according to
the manufacturers instructions. For example
kettles should have been regularly descaled.
EXCLUSIONS
Morphy Richards shall not be liable to
replace or repair the goods under the terms
of the guarantee where:
1The fault has been caused or is
attributable to accidental use, misuse,
negligent use or used contrary to the
manufacturers recommendations or where
the fault has been caused by power
surges or damage caused in transit.
2The appliance has been used on a voltage
supply other than that stamped on the
products.
3Repairs have been attempted by persons
other than our service staff (or authorised
dealer).
4Where the appliance has been used for
hire purposes or non domestic use.
5Morphy Richards are not liable to carry
out any type of servicing work, under the
guarantee.
6Plastic filters for all Morphy Richards
kettles and coffee makers are not covered
by the guarantee.
This guarantee does not confer any rights
other than those expressly set out above and
does not cover any claims for consequential
loss or damage. This guarantee is offered as
an additional benefit and does not affect your
statutory rights as a consumer.
•This guarantee is valid in the UK and
Ireland only.
Morphy Richards products are intended for
household use only.
Morphy Richards has a policy of continuous
improvement in product quality and design.
The company, therefore reserves the right
to change the specification of its models at
any time.
The After Sales Division
Morphy Richards Ltd, Mexborough
South Yorkshire, England, S64 8AJ
Helpline (office hours)
UK 0870 060 2615
Republic of Ireland 1800 409119
RN40701M UK Rev 1 1/06
40701 rev 1 3/1/06 2:50 PM Page 8
