POWER SPRAYER
Model: S151 and S201
Operator’s Manual

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14
Bartell Morrison Inc.
375 Annagem Blvd.
Mississauga, Ontario, Canada
L5T 3A7
Toll Free (N.A.): [phone]
Phone: [phone]
Facsimile: [phone]
ORIGINAL LANGUAGE OPERATING INSTRUCTIONS FOR
MORRISON POWER SPRAYERS © 2008 BY
BARTELL MORRISON INC.
ALL RIGHTS RESERVED.
Revision Rev. Date Details
A
pproved
0 07-15-2008 Initial document release
A
.L.
1 08-17-2009 Relocation D.M.
2 12-21-2010 La
y
out R.L.
3 02-19-2013 Update to add S151 Spra
y
er
A
.L.
4 06-10-2014
A
ddress Update M.L.
No part of this work ma
y
be reproduced or transmitted in an
y
form or by any means, electronic or mechanical, including
photocopying and recording, or by any information storage or
retrieval system without the prior written permission of Bartell
Morrison Inc. unless such copying is permitted by federal
copyright laws.
Address inquiries or reference permissions care of:
Bartell Morrison Inc., 375 Annagem Blvd., Mississauga,
Ontario, Canada, L5T 3A7

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14
Table of Contents
1.0 Introduction …………………………………..…………...Page 4-6
1.1 Morrison Power Sprayer…...…………………… Page 4
1.2 Options………………………….………………… Page 4
1.3 Dimensions………………………...……...………Page 5
1.4 Sprayer Main Components………………………Page 6
2.0 Safety Instructions…………………...…………………...Page 7-9
2.1 Read Operating Instruction………………………Page 7
2.2 Product Safety Hazard and Alert System………Page 7
2.3 Fueling Warning…………………………..………Page 8
2.4 Safety Rules………………………….……………Page 8
3.0 Safety and Operational Labels…………………………. Page 10
4.0 Sprayer Assembly………………………………………...Page 12
5.0 Sprayer Operating Instructions………………………….Page 13-15
6.0 Pump Pressure Adjustment…………………………….. Page 15
7.0 Operating Tips and Reminders………………………….Page 15
8.0 Maintenance……………………………………………… Page 16
8.1 Sprayer……………………………………………. Page 16
8.2 Engine…………………………………………….. Page 16
9.0 Warranty………………………..………………………….Page 17
Declaration of Conformity………………………………………. Page 18
Notes……………………………………………………………… Page 20
Important Information:
Date of Purchase:
Dealer:
Model Number:
Serial Number:

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14
1.0 INTRODUCTION
TO THE OPERATOR:
DO NOT OPERATE THE BARTELL MORRISON POWER SPRAYER UNLESS
YOU HAVE READ AND STUDIED THIS MANUAL CAREFULLY.
REMEMBER THAT YOU ARE THE KEY TO SAFETY. GOOD SAFETY
PRACTICES NOT ONLY PROTECT YOU, BUT ALSO THOSE WORKING
AROUND YOU. MAKE THIS MANUAL A WORKING PART OF YOUR SAFETY
PROGRAM.
For safe operation of the power sprayer, you must be a qualified and authorized
operator. To be qualified, you must understand these written instructions, have
training, including actual operation of the power sprayer and know the safety rules
and regulations for your particular job site.
An operator should never use drugs, alcohol or any other substance which can
change his/ her alertness or coordination.
This manual is complied from information available and current at time of approval for
printing. Bartell Morrison Inc. reserves the right to improve its products without giving
prior notice or incurring any obligation
1.1 MORRISON POWER SPRAYER
The Morrison Power Sprayer is ideal for spraying all types of curing compound on
bridge decks, highways, floor slabs, drainage channels, etc, after finishing work is
completed. Easily handles form oils, pigmented curing compounds, bond
breakers, soaps and detergents, pest control liquids, and most liquid type
material.
It is powered by a dependable Honda engine and comes with 25’ (7.6m) of 3/8”
(0.95cm) hose with an adjustable spray nozzle.
1.2 OPTIONS
Hose Lengths: 50’ (15.2m), 75’ (22.7m), 100’ (30.5m)
Fan Spray Nozzle
Hand Cart
Tow Cart

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14

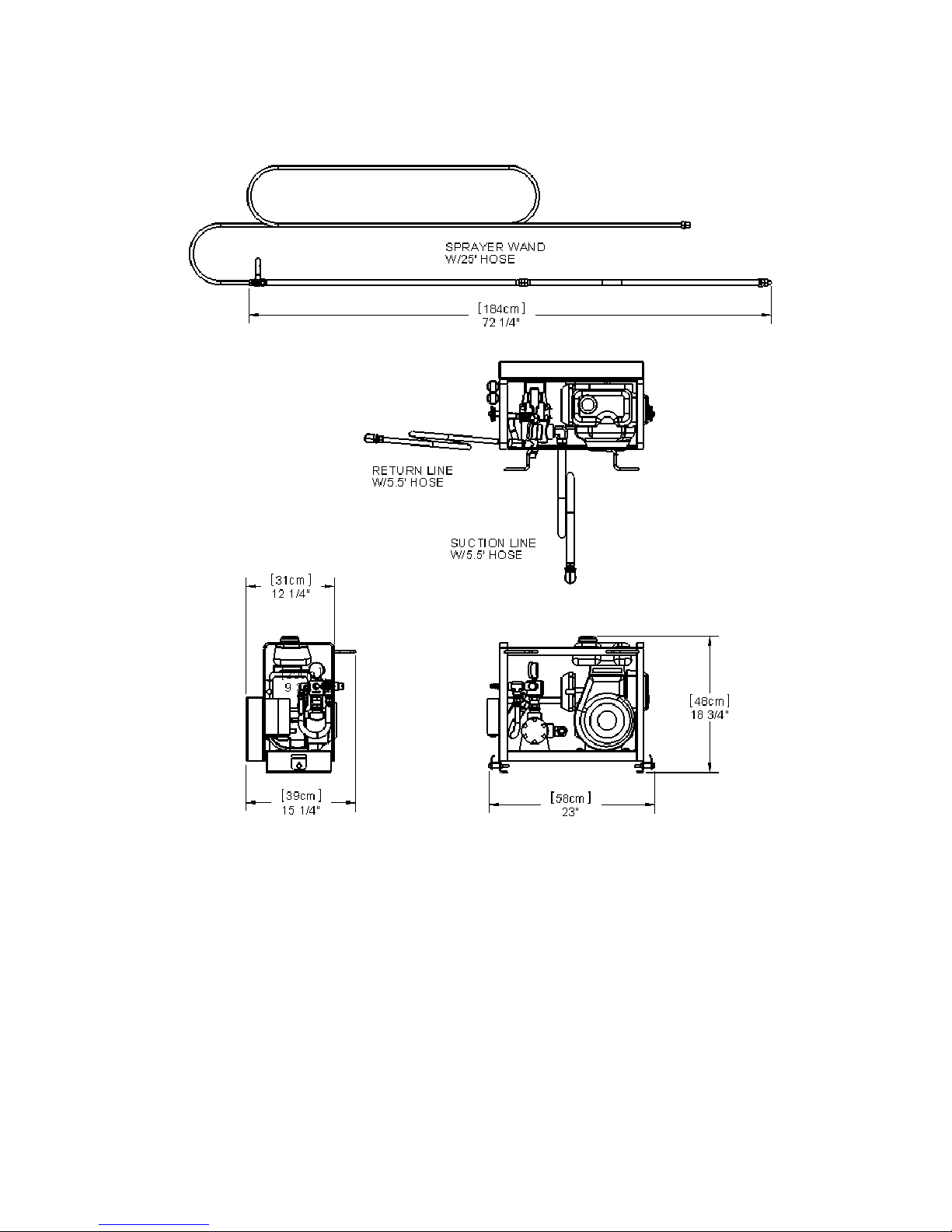

1.3 Dimensions
Fig. 1

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14

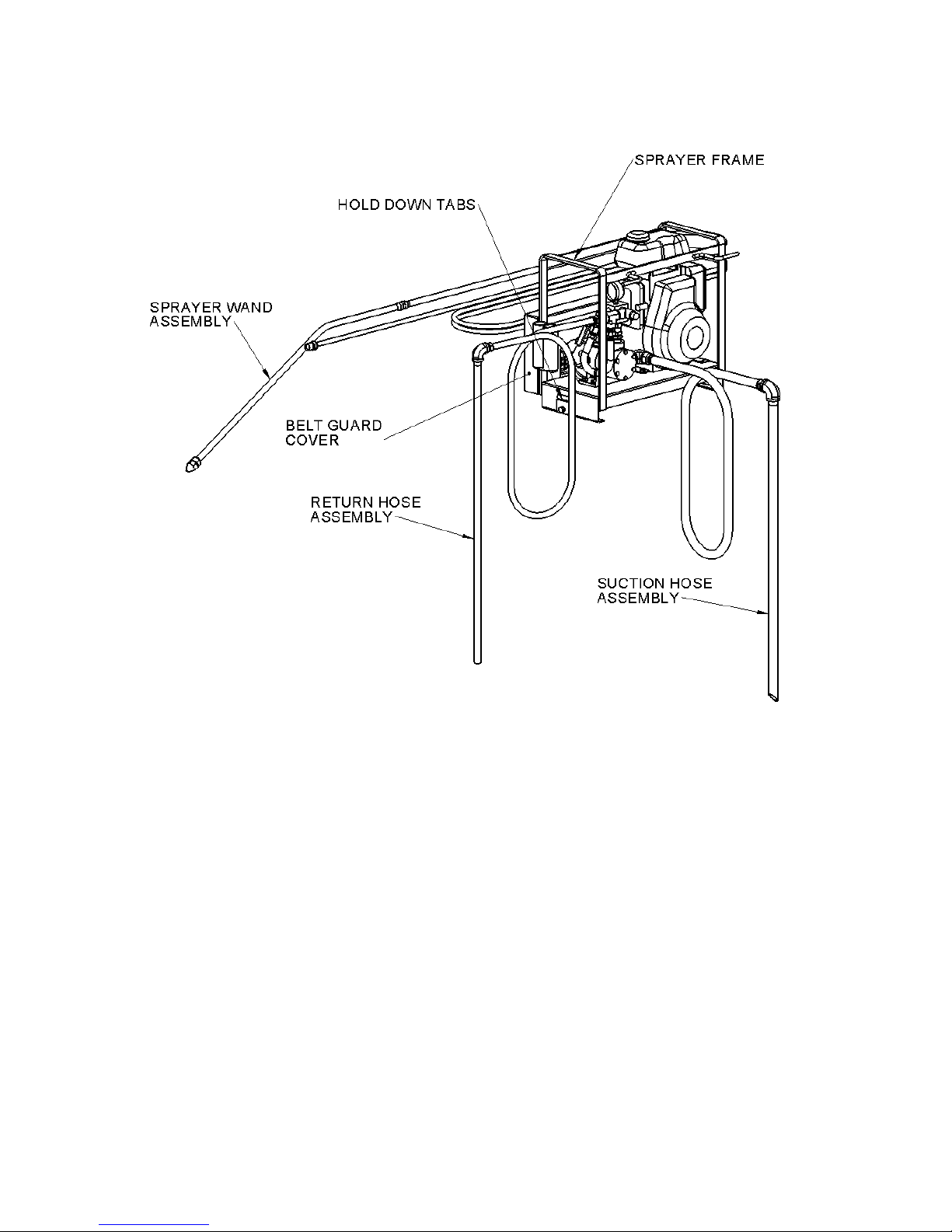

1.4 Sprayer Main Components
Fig. 2

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14
2.0 SAFETY INSTRUCTIONS
2.1 READ OPERATING INSTRUCTIONS
Read and understand this entire manual before attempting to operate or
service the equipment described herein. Failure to follow these operating
instructions could result in serious injury or death. Store this manual with
the machine and ensure it is apparent and available to any users.
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.

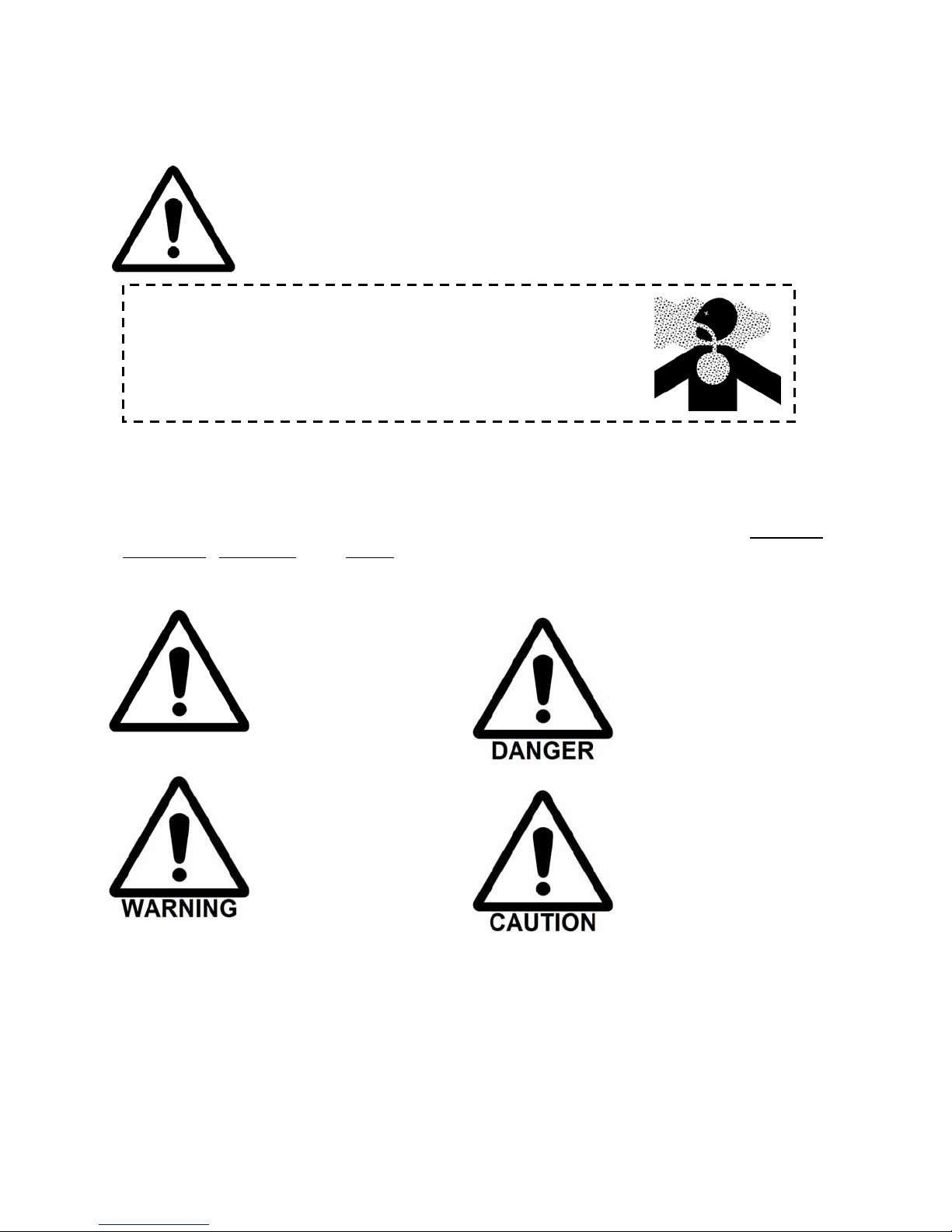

2.2 PRODUCT SAFETY AND HAZARD ALERT SYSTEM:
This Operating Manual presents Product Safety and Hazard Alert Information in accordance
with American National Standards Institute and International Organization for Standardization
recommendations as laid out in ANSI Z535 and ISO 3864. The callouts of DANGER,
WARNING, CAUTION, and NOTE must be followed to reduce or avoid the potential for
personal injury, equipment damage, or service-related equipment failures.
Safety Hazard Alert:
Alerts the reader to
personal injury hazards
and other important,
potentially life-saving
information.
DANGER:
Beware of a hazardous
situation that WILL result in
serious personal injury or
untimely death.
WARNING:
Beware of a hazardous
situation that COULD
result in serious personal
injury or even death.
CAUTION:
Beware of a hazardous
situation that could result in
minor personal injury or
equipment damage.

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14
2.3 FUELING WARNING
ALWAYS handle fuel with care. It is highly
flammable.
DO NOT refuel while smoking or when near
open flame or sparks.
ALWAYS stop engine before refueling. Fill
fuel tank outdoors.
2.4 SAFETY RULES
The instructions provided in this manual are done so to
ensure the operator’s safety as well as that of other
workers, the equipment, and the job site. Failure to abide
by these guidelines can lead to serious personal injury and
even death. The operator and any service personnel
should read and understand the entire manual before
working with or servicing the power sprayer.
The operator’s manual should be kept at all times in a place that is accessible
to any persons working with the machine. Replacement manuals can be
purchased from the equipment manufacturer or from your local dealer.
Only use parts and attachments supplied or approved by your Bartell Morrison
equipment dealer. The consequences of modifying the design of this
equipment can include personal injury, equipment failure, and voiding your
warranty. If you are unsure about a repair or an apparent malfunction, contact
your Bartell Morrison dealer or the technical support line at the bottom of each
page of this manual.
NEVER use the power sprayer in an enclosed space with
poor air flow, such as a basement or small room. The
gasoline engine produces, among other things, toxic carbon
monoxide gas. Without proper ventilation, this gas will build
up and cause health effects such as organ damage and
death to anyone in the vicinity.
The operator should always be lucid and aware of his/her surroundings.
NEVER operate the power sprayer while under the influence of drugs, alcohol,
fatigue, sickness, hangover, extreme depression, anti-depressants, or
emotional distraction.
ALWAYS wear appropriate personal protective equipment while operating the
Power Sprayer. This includes (but is not limited to) safety glasses, hearing
protection, protective footwear, and heavy or padded gloves. Other safety gear
may be job-site appropriate.
Fig. 3

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14
NEVER leave the power sprayer unattended while running.
Children and small animals should NEVER be present in the work area during
operation of the power sprayer.
ALWAYS check your power sprayer for loose or missing nuts
and bolts before starting. Tighten any loose fasteners and replace
missing or broken parts.
Perform all routine maintenance as described within this manual. Failure to do
so will void your warranty and will eventually result in premature equipment
failure.
NEVER perform maintenance on a running piece of equipment. Shut down the
engine and allow it to cool before servicing the power sprayer, including
mechanical work or lubrication.
ALWAYS replace missing, damaged or unclear safety
labels to ensure operator awareness and safety.
NEVER operate the power sprayer with missing or
damaged safety guards. Replace immediately with
appropriate Morrison parts.
NEVER put hands, feet, or other appendages inside the
belt guard while the engine is running, even at idle or
with protective clothing, as serious injury may result.
NEVER wear loose fitting clothing or jewelry around rotating equipment such
as the power sprayer as it may become entangled in the machinery, resulting
in serious injury.
ALWAYS refuel the power sprayer in a well-ventilated area,
away from ignition sources such as sparks, flames, and lit
cigarettes. Smoking while fuelling the equipment may result in
explosion.
Ensure the engine has cooled sufficiently before refueling to
avoid igniting gasoline fumes.
NEVER operate the power sprayer in explosive environments
such as paint fumes, methane, natural gas, fine particulate,
aerosol propellant, or solvent fumes.
NEVER smoke near the power sprayer as stray gasoline fumes
may ignite. Operating the power sprayer around an open flame
may also result in explosion.
ALWAYS shut down the engine and allow it to cool off before lifting or
transporting the power sprayer.
ALWAYS tie down the power sprayer when being transported in a truck or on
a flatbed. Empty the fuel tank if transporting it over long distances.

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX [phone]
Created: 07/04
Revised: 06/14

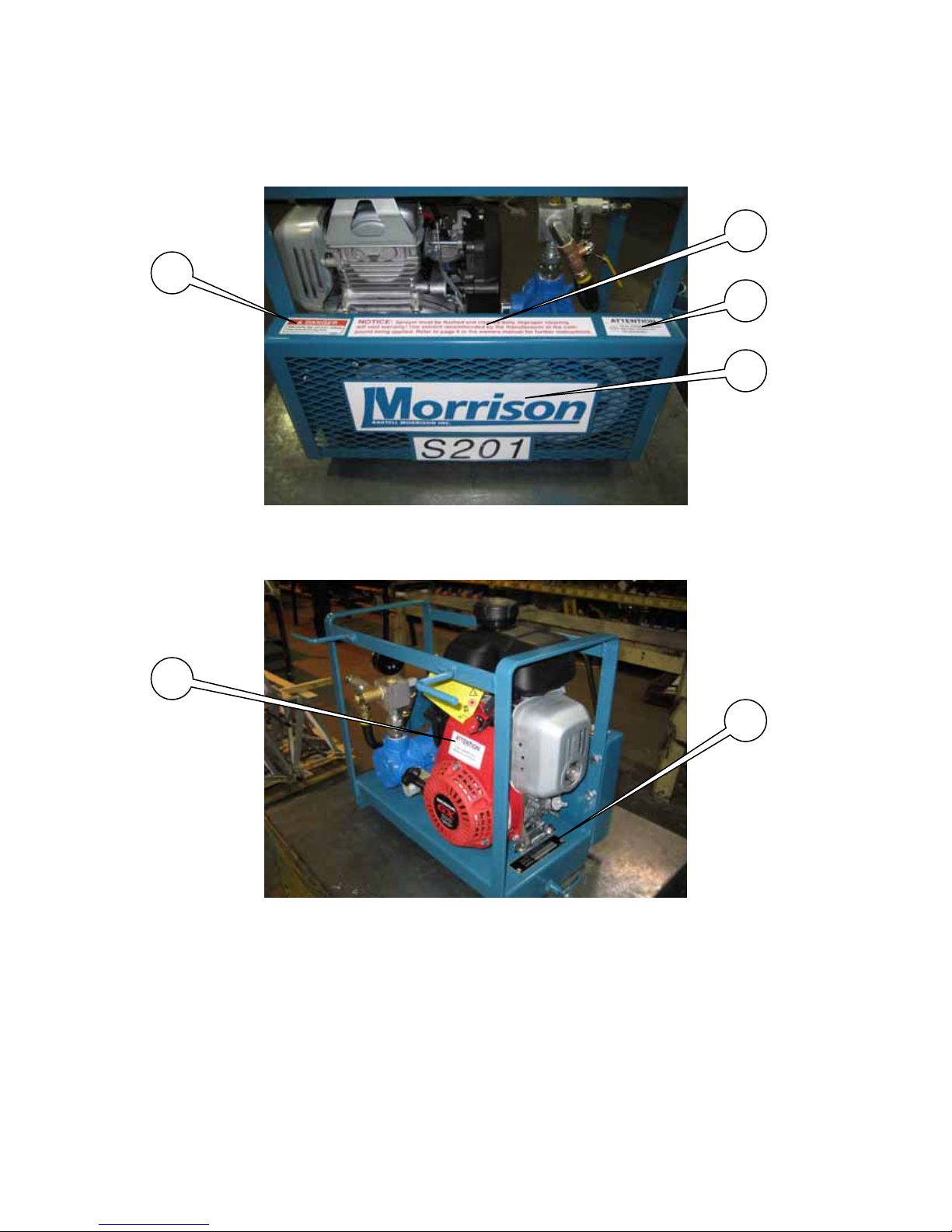

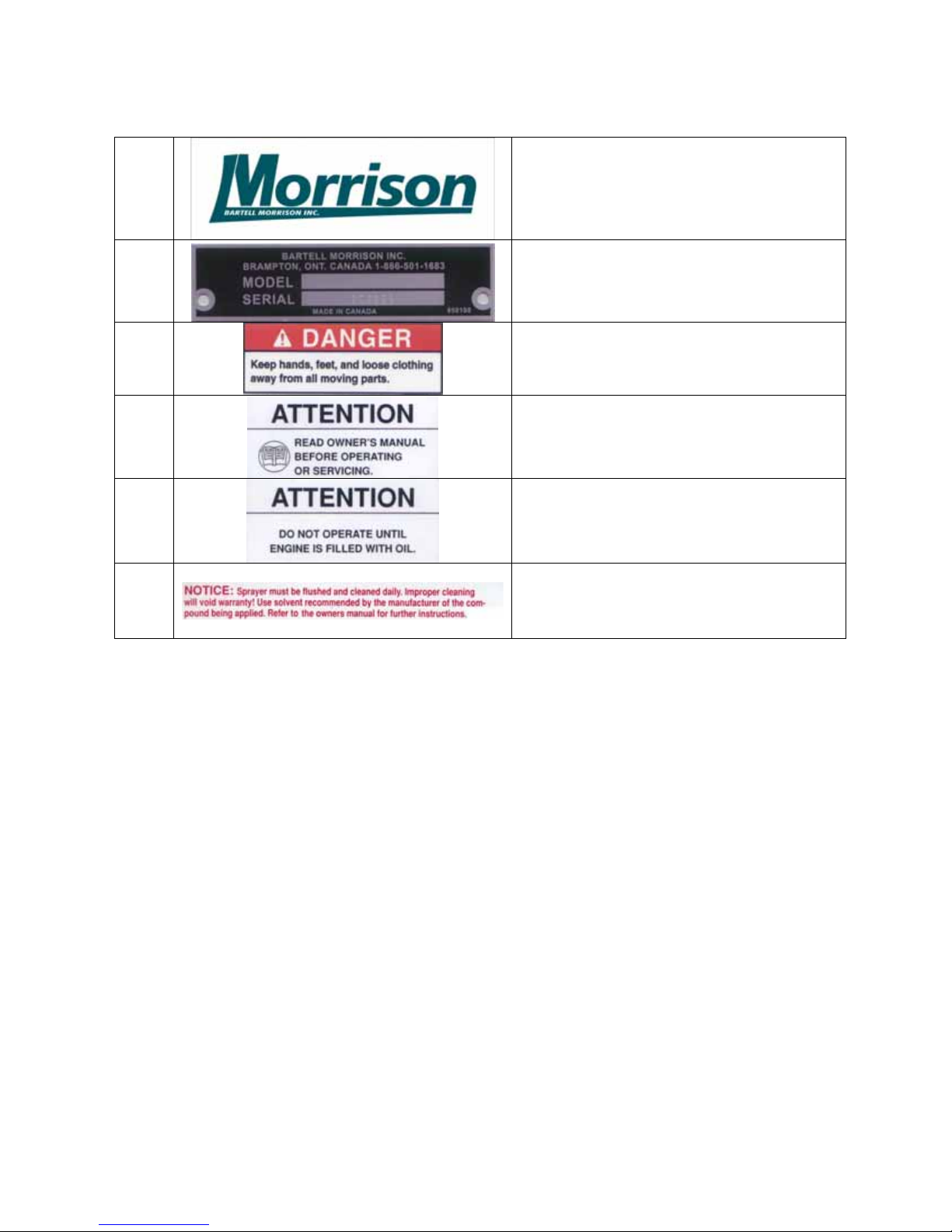

3.0 SAFETY AND OPERATIONAL LABELS
2
6
3
1
4
6
