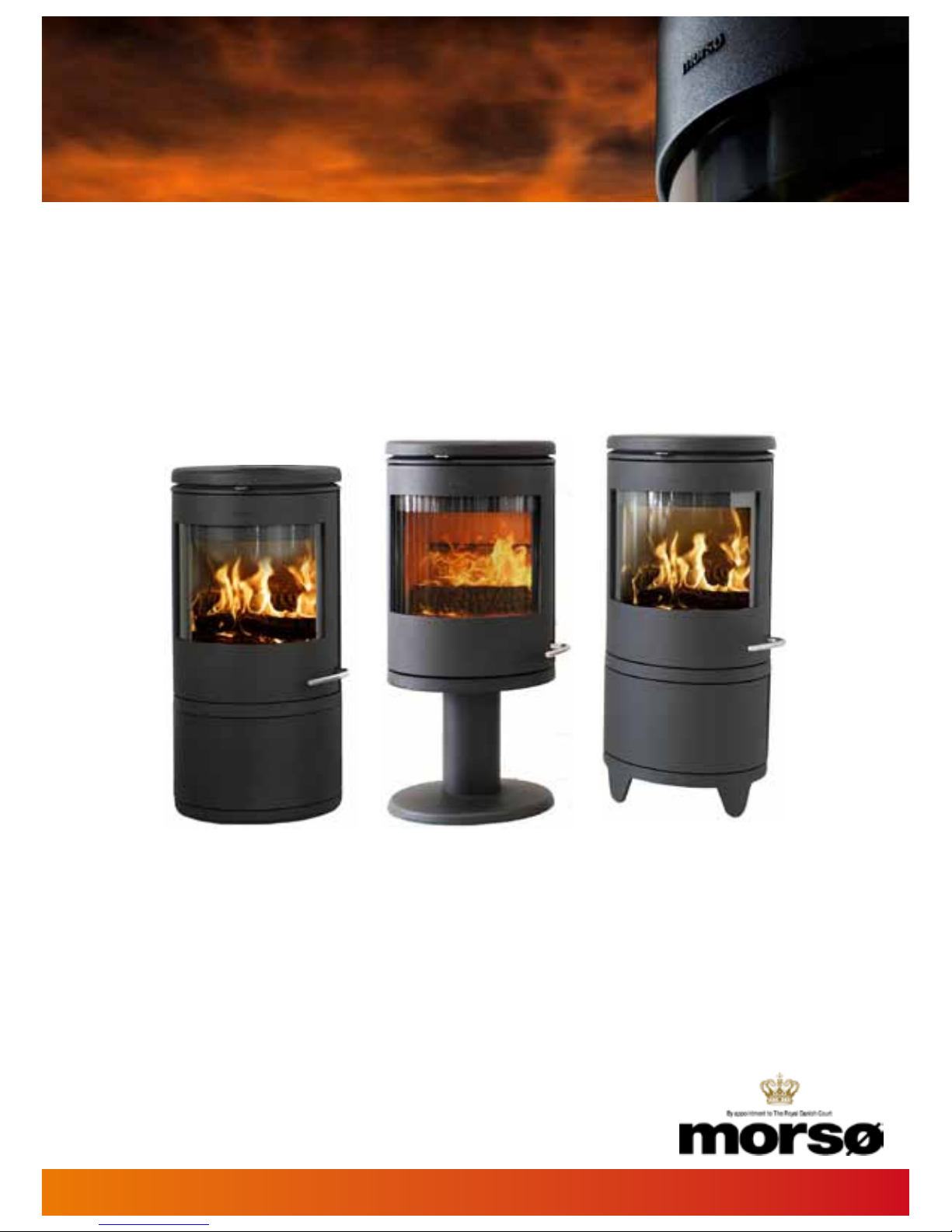

Morso 7600 series User manual

Instructions for installation and use
7600 series
Design Monica Ritterband
AS/NZS 4012/4013 (1999)
Read this entire manual before you install and use your new room heater. If this room heater is not properly
installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Failure to
follow instructions may result in property damage, bodily injury, or even death.
Contact local building officials about restrictions and installation inspection-equirements in your area.
Save these instructions
Distributed by: Castworks · 8 Roosevelt St.
North Coburg ·VIC 3058 · Australia
www.morsoe.com

2
Sprog
1.0 Installing your Morsø stove 3
1.1 Unpacking the stove 3
1.2 Installing the stove 3
1.3 Chimney sweep 3
1.4 Location of the stove/distance requirements 3
1.5 The chimney 4
1.6 Pipe connections 5
1.7 Connecting to a brick chimney 6
1.8 Connecting to a steel chimney 6
1.9 Draught 7
2.0 Firing/using the stove 8
2.1 Lighting instructions and fuelling intervals 9
3.0 Routine stove maintenance 12
3.1 External maintenance 12
3.2 Internal maintenance 12
3.3 Cleaning the stove 13
Additional accessories
We offer a comprehensive line of chimney, floor plate and accessory products that can facili-
tate the daily operation and maintenance of your Morsø stove.
Likewise, for this stove we have developed a range of accessories designed by Monica Rit-
terband.
Cast iron
Cast iron is a live material. There are no two ovens that are identical. This is partly due to the
tolerances of the casting process, partly because the ovens are a work of craftsmanship.
Enjoy your new Morsø stove!
Morsø, the biggest stove company in the Danish
market, has been making wood-burning stoves of
the highest quality since 1853. Just follow the in-
structions below, and we are certain that you will
be able to use and enjoy your new stove for many
years to come.

3
Sprog
1.1 Unpacking the stove
The Morsø 7600 stoves weigh between 130 and 160 kg. In order to avoid damage when un-
packing and assembling the stove, we recommend that this job be undertaken by 2 people.
Remove the top cover, which is lying loose, before lifting the combustion chamber off the
wooden pallet. Place the stove carefully in position, centrally on the base plate.
1.2 Installing the stove
National and local regulations regarding the installation of wood-burning stoves must be ob-
served, as must local regulations regarding chimney connections and chimney installation.
You may want to ask your chimney sweep for advice. However, it is you, your technical ad-
viser or workman, who is responsible for compliance with the applicable national and local
regulations.
1.3 Chimney sweep
As stated, it may be wise to consult your local chimney sweep before installing the stove.
In any event, the chimney sweep must be notified once the wood-burning stove has been
installed. The chimney sweep will inspect the installation, and reach an agreement with you
regarding sweeping intervals. If your chimney has not been used for some time, it should be
inspected for cracks, bird nests, etc., before it is used.
1.4 Location of the stove/distance requirements
Distance requirements apply only if the stove is placed near flammable materials. Your new
stove can be positioned as specified on the authorisation sign on the back of the stove if the
walls are made of flammable material.
1.0 Installing your Morsø stove

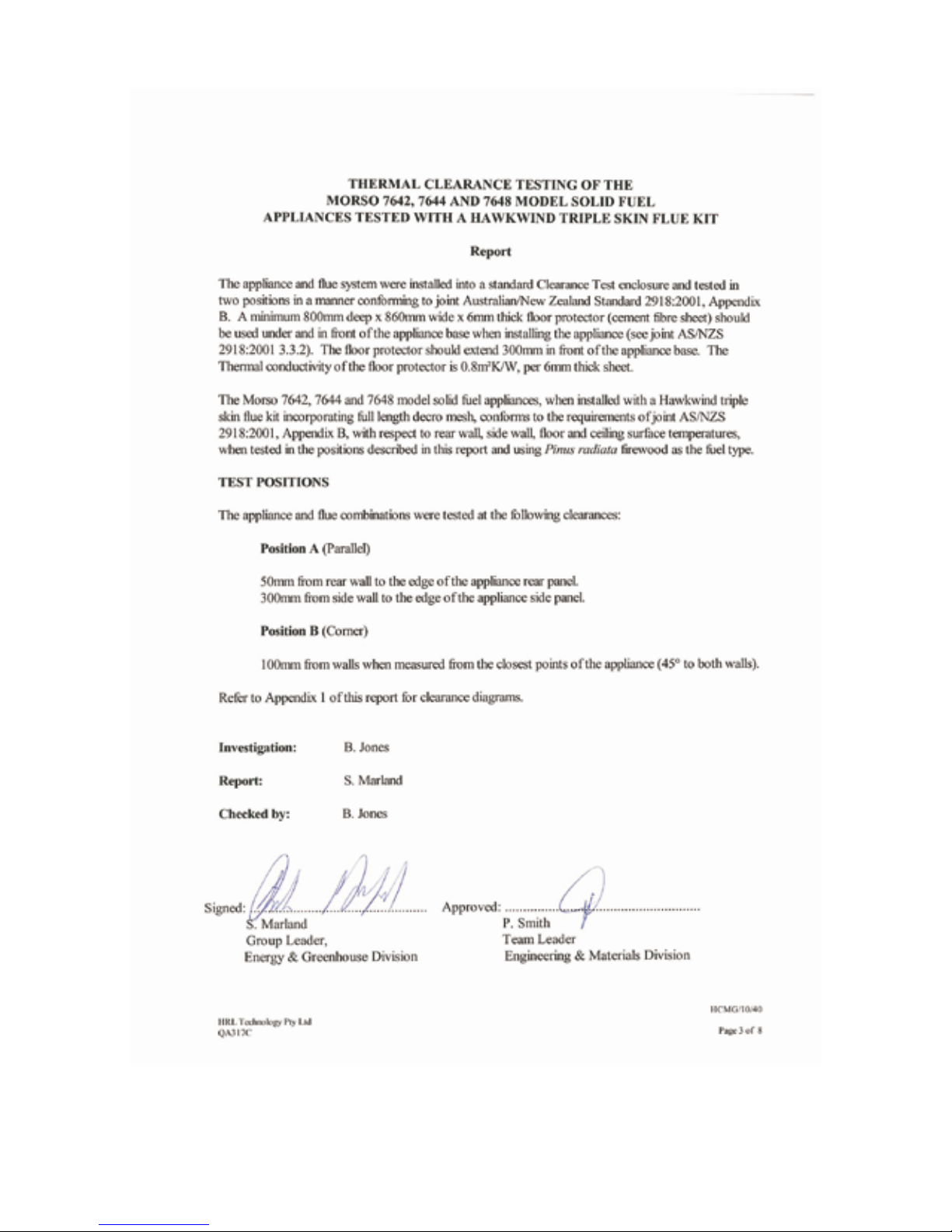

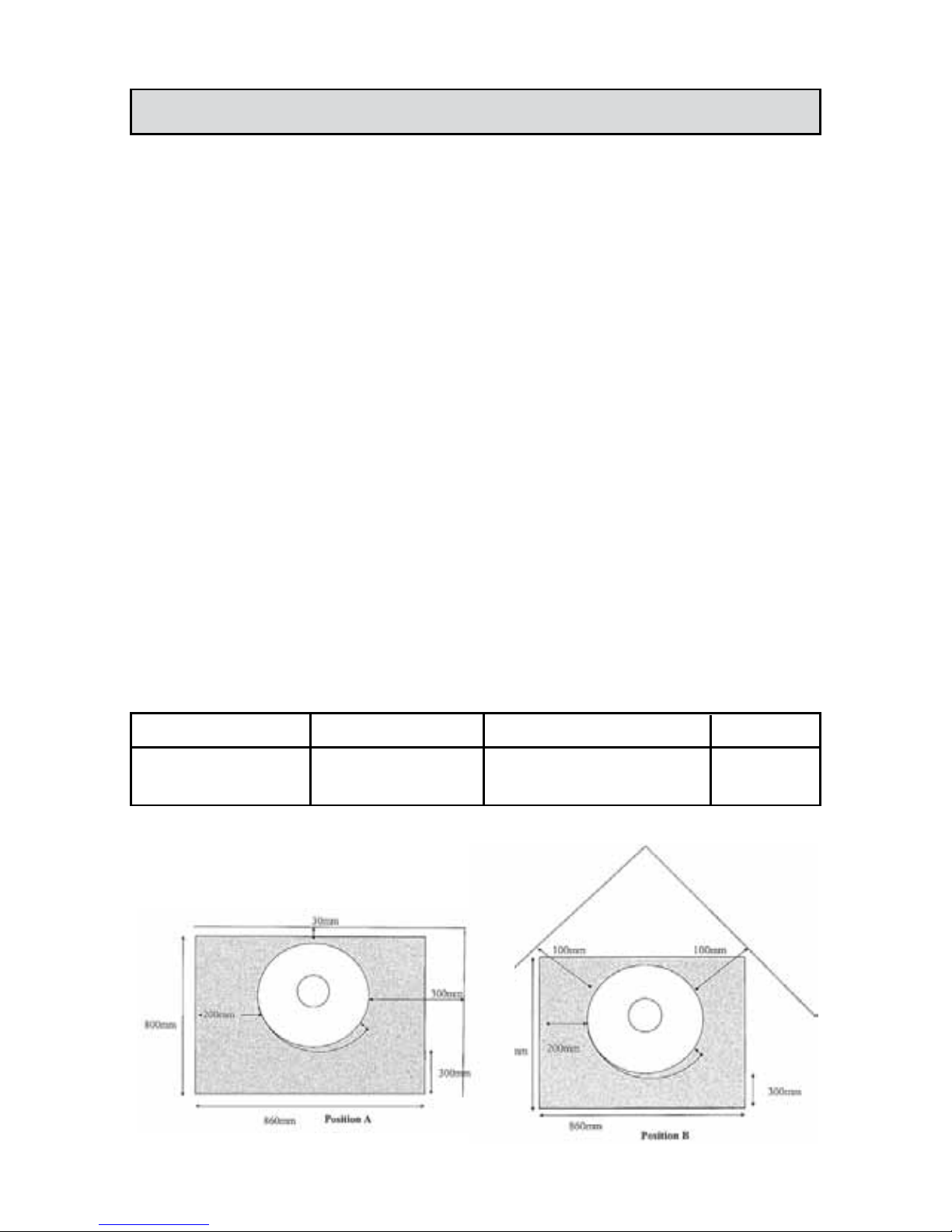

Minimum distances from flammable material:
Type of stove Behind the stove To the sides of the stove To furniture
Morsø 7600
uninsulated flue pipe 30 mm 300 mm 1200 mm
The floorprotector consist of 6 mm thick cement fibre sheet which had a thermal resistance
of 0,8 m²K/W, per 6 mm. thickness.

4
Sprog
We recommend that the stove be installed at least 10 - 15 cm from masonry, in order to allow
heat to circulate and to facilitate the cleaning of the inside and outside of the stove. A layer of
wallpaper on a brick wall is normally viewed as non-flammable material.
The floor
If the stove is installed on a flammable floor, national and local regulations must be observed
with regard to the size of the non-flammable underlying surface that must cover the floor be-
neath the stove. The underlying surface must naturally be able to bear the weight of the stove
and, if applicable, the steel chimney.
Distance to furniture
The minimum clearance to combustible materials in front of the stove is 1200 mm. The mini-
mum distance to combustible materials must be observed; furthermore, it should be consid-
ered whether furniture and other items will dry out if placed near the stove.
A wood-burning stove gets hot when it is fired. Caution must therefore be observed, particu-
larly with regard to children touching the stove.
1.5 The chimney
If local regulations permit, the stove may be connected to a chimney already serving another
fireplace (such as an oil-burning stove or another wood-burning stove). Attention should be
paid to any requirements concerning the location of flue pipes if two or more fireplaces are
connected to the same chimney.
The wood-burning stove must never be connected to a chimney to which a gas-burning stove
is already connected.
An efficient, modern stove places great demands on the chimney, so you should get the
chimney sweep to evaluate chimney.
The aperture of the chimney must comply with national and local regulations. In general, the
aperture area should measure at least 175 cm2 (150 mm diameter) for wood-burning stoves.
An overly large chimney aperture will mean that too much energy will be required to heat
the chimney sufficiently to achieve an acceptable draught in the chimney. If you have a brick
chimney with a large aperture, we recommend that you install an insulating chimney liner of
the proper diameter. This will increase the draught, and improve the fuel economy.
There are no requirements with respect to specific chimney heights, but a chimney must be
tall enough to provide a good draught, and to ensure that the smoke does not cause any
problems. As a general rule, there will be a satisfactory draught if the chimney extends 4 me-
tres above the stove and at least 80 cm above the spine of the roof. If the chimney is located
along the side of the house, the top of the chimney should never be lower than the spine of
the roof or the highest point on the roof. Please note that there are often national and local
regulations concerning the location of chimneys in houses with thatched roofs. Please see
section 1.9 on Draught.
The chimney and the flue pipe must be fitted with cleaning doors, which must be at least the
same size as the chimney’s aperture area.
The chimney must be accessible for external inspection, and it must be possible to access
the cleaning doors and the chimney if it is to be cleaned from the top (e.g. steel chimneys).

5
Sprog
1.6 Connecting the flue pipe
Lift the upper cast iron top plate off the stove.
Note: the round cast iron cover plate in the top plate must remain mounted if the stove is
being installed with the flue pipe to the rear, but unscrewed from the upper top plate if the
flue pipe is being installed pointing upwards.
Mounting the flue collar pointing upwards
From the factory, the stove is prepared for installation with the included flue collar (1) poin-
ting upwards with included ball stop and screws. The ball stop, which prevents the chimney
sweep from damaging the stove’s baffle plates while sweeping, is the 178 mm long rod that
is provided.
Mounting the flue collar to the rear
If the stove is being installed with the flue pipe to the rear, the round plate fixed with two
screws on the back of the stove is dismounted. The iron piece on the inside convection back
panel is knocked out with light, firm taps with a hammer next to the small ”bridges” holding
the piece.
The cast iron cover is removed from the back panel by turning it anticlockwise and mounted
on the inside top plate by pressing it down and turning it clockwise. The lid can act as a
cleaning cover, and facilitate access for the annual cleaning of the stove. The flue collar is
centred and screwed onto the back of the stove with the clamps and screws provided. The
ball stop is not used when installing the flue collar to the rear.

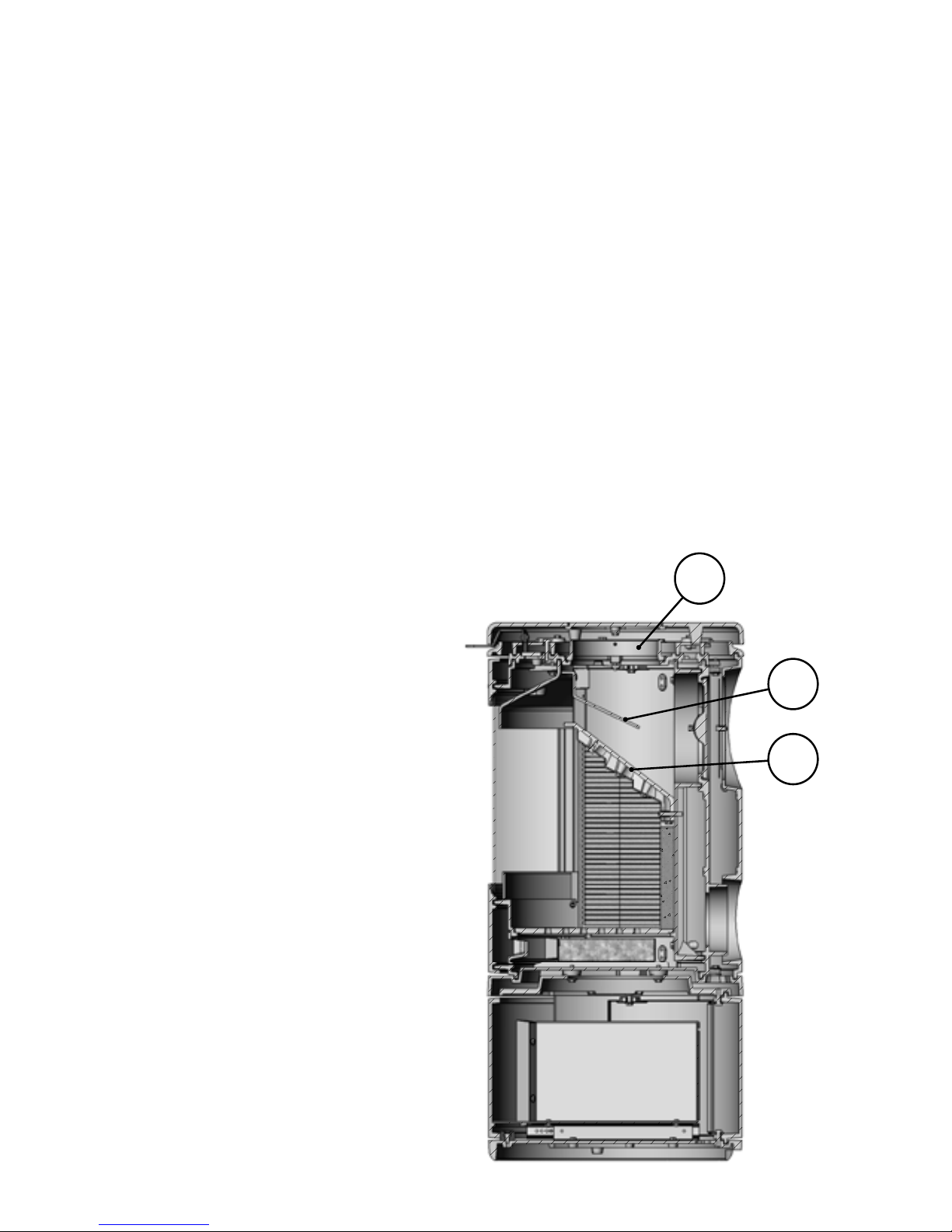

The location of the baffles
The baffles (2) and (3), which are made
from vermiculite, are mounted at the fac-
tory.
Make sure that the baffles are correctly
assembled before lighting the stove
(please see the sketch.)
A
A
A-A
1
2
3
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:5
Snit til vejledning
7600 NA
Morsø 7600
RSV
16.11.2010
A4
Date of print: 16-11-2010
C:\UDV\tegninger\7600\7600 Assembly.SLDASM
7600-162 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

6
Sprog
Be aware of the following:
Discuss the cleaning options with your chimney sweep.
If there is insufficient draught in the chimney, it may be a good idea to install
the flue pipe straight up, so as to minimise smoke migration in the actual com-
bustion chamber.
Avoid having any more bends than necessary, and limit the length of the flue
pipe so as not to reduce the draught.
Fresh air supply
A wood-burning stove requires air for combustion. As a result, firing a wood-
burning stove will help to create a healthy climate in your house. If the house
is very tightly sealed, and particularly if there is a cooker hood or ventilation
system in the house, it may be necessary to install an air grate in the room in
which the wood-burning stove is installed. Otherwise there may not be enough
draught in the chimney, which may result in the stove not being able to burn
properly, and smoke may come out of the stove when the fire door is opened.
If it is necessary to install air grates, they must be positioned so that they can-
not be obstructed.
1.7 Connecting to a brick chimney
Brick a flue bushing securely into the wall, and insert the flue pipe into it. The pipe must not
extend into the actual chimney opening, but only to the inside of the chimney aperture. The
joints between the stove/pipe and pipe/wall bushing must be sealed with the glass tape pro-
vided. It is not normally necessary to seal between any pipe joints.
If the flue pipe transitions from horizontal to vertical, it is a good idea to install it with a gentle
bend so as to avoid any loss of draught.
The flue pipe must be dimensioned in accordance with national and local regulations. Morsø
recommends, however, that flue pipes be made of 2 mm sheet steel, as this will extend the
service life.
1.8 Connecting to a steel chimney
If your installation involves routing the chimney straight up through the ceiling, it must comply
with national and local regulations concerning the distance of the chimney from flammable
ceiling material. The chimney must be sealed at the smoke outlet using the glass tape provid-
ed. It is important to install the chimney with a roof support, so that the stove does not bear
the weight of the chimney. (See the chimney manufacturer’s instructions). Heavy weights on
the stove’s top plate may cause it to crack. The Morsø warranty does not cover the top plate
if the chimney is installed without a roof support.
If a chimney fire should occur as a result of incorrect operation of the stove or prolonged use
of wet fuel, close the vents completely and contact the fire brigade.

7
Sprog
1.9 Draught
If smoke comes out of the stove when the fire door is opened, it will be due to the poor
draught in the chimney. This type of stove requires at least 12 PA of chimney draught to
achieve satisfactory combustion, and to prevent smoke from escaping. Smoke may, however,
escape in any event, if the stove door is opened during very vigorous burning, so this should
be avoided.
The flue gas temperature at the rated output is 282°C relative to 20°C.
If in doubt, you may want to get your chimney sweep to measure the draught in the chimney.
Draught
The draught in the chimney is the result of the difference between the high
temperature in the chimney and the cooler temperature outside. Other factors
that determine whether enough negative pressure can be produced to create a
draught include the length and insulation of the chimney, and wind and weather
conditions.
The draught will be reduced when:
- The temperature difference is too low, e.g. in connection with a poorly insulated
chimney. If the chimney is cold, it may help to light (burn up) a rolled-up news-
paper in the chimney’s cleaning door.
- The outside temperature is too high, for example during the summer.
- There is no wind.
- The chimney is not tall enough, with the result that it sits in the lee of the roof
surface or tall trees. These conditions are also associated with the greatest risk
of smoke coming back down the chimney.
- Air is entering the chimney in undesired places, e.g. through cracked joints or
leaks in the cleaning door or the flue pipe.
- Unsealed, unused fireplaces are connected to the chimney.
- The flue pipe and chimney are clogged up with soot, due to inadequate clea-
ning.
- The house is too tightly sealed (please see the section on Fresh air supply).
- Too little air is getting in.
A good draught is achieved when:
- There is a big difference between the temperature in the chimney and outside
during firing, i.e. when the need for heating is greatest.
- The weather is clear and there is a good wind.
- The chimney is of the proper height, i.e. at least 4 metres above the stove, and
clear of the spine of the roof.

8
Sprog
N.B!
Wood is a material that contains a great deal of gas (approximately 75 %). The gases
are released when the wood is lit and heated up. For this reason, it is important that
the gases are ignited quickly after stoking. If the wood just lies smouldering, espe-
cially after re-stoking, a lot of smoke is created, which, in the worst case, may cause
an explosive ignition of the gasses, resulting in damage to the stove.
In order to ignite the gases that are released from the wood, and to keep clear, lasting
flames during the combustion process, it is important to let in the required quantity
of oxygen (air supply) at all times. The setting of the air supply, the method of igni-
tion and the lighting intervals depend on the draught in the chimney, the wind and
weather, the amount of heat required, the fuel, etc. This means that it may take some
time before you get to know the correct functioning of the stove under any given cir-
cumstances.
Although you can fire your Morsø stove with almost all kinds of wood, you should not
fire with wet wood, or unseasoned wood. Wood ought to be stored under a roof for at
least 1 year, and preferably 2 years, with free access to wind. Wood should be chop-
ped as soon as possible after felling if it is to dry quickly. The wood can be used once
the moisture content is less than 20%. During the EN test, all stoves are tested with
wood with a moisture content of (16 ± 4)%.
Never use driftwood, as it usually has a high salt content, which damages both the st-
ove and the chimney. Impregnated and painted wood and chipboard emit poisonous
smoke and fumes, so they should not be used as fuel either.
Please note that liquid fuel may not be used in the stove.
Pieces of wood with a diameter greater than 10 cm should always be chopped.
The pieces of wood should be short enough to be able to lie flat over the layer of em-
bers, with air at both ends.
The maximum length of fuel in the stove is 30 cm.
The maximum quantity of fuel is 2 kg/hour (max. 2 pieces of wood each time you re-
stoke).
The first few times you light the stove, the fire should be moderate, so that the heat-
resistant paint can harden before firing more vigorously. During the hardening phase,
the paint may develop obnoxious smoke and smell the first time it is lit, which is very
normal. Make sure that the room is well ventilated during this period.
2.0 Firing/using the stove
Your stove is constructed with air inlets in two places.
Pre-heated, fast-moving combustion air is added to the fire above the glass window, and is
regulated using the handle above the door. The combustion air is let in when the handle is
pushed to the right, and shut off when the handle is pushed to the left.
Another air inlet provides a constant, pre-heated air supply which cannot be adjusted, and
which comes into the combustion chamber just above the fire. This helps to burn off the last
few gasses emitted by the wood whilst it is being heated up.
The stove’s rated heat output is 5 kW. Your new Morsø stove is AS/NZS-tested for firing with
wood, and is suitable for intermittent use.

9
Sprog
1. A layer of embers will form rapidly if the stove is lit with 2 -
4 fuel tablets or 7 - 10 rolled up sheets of newspaper un-
derneath 1-2 kg of dry kindling.
2. Open the air supply as much as possible. This is done using
the handle above the door.
3. After the paper/solid alcohol tablets have caught fire, lea-
ve the fire door ajar about 5 - 10 cm, so that the chimney
draws well.
4. When you can see that the chimney is hot enough to draw
(after 5 - 10 minutes), close the door. If all the necessary
conditions are met, a thick layer of embers will have been
formed in the combustion chamber after another 15 - 20
minutes, and there will be a high temperature in the com-
bustion chamber, which is necessary in order to be able
to continue the combustion.
2.1 Lighting and fuelling intervals
A lot of air is needed when lighting the stove. If you are starting with a cold stove, the door
should be left ajar for the first few minutes, and the combustion air supply opened to maxi-
mum. Always keep approximately 1 cm of ash in the bottom of the combustion chamber. This
will have an insulating effect, and ensures good combustion.
(pictures below: The actual stove model may look slightly different)

10
Sprog
5. If the condition in step 4 is met, place max. 2 pieces of
wood with a total weight of 1.5-2 kg and a length of 25-
30 cm over the embers in a single layer, with a distance of
approximately 1 cm.
6. Open the air supply to maximum, and close the door.
The fresh wood will be lit within 2-3 minutes.
If it does not light, open the door slightly to allow in enough
air to ignite the wood.
Close the door again once the wood has caught.
7. Reduce the amount of combustion air to the desired posi-
tion, and the optimal combustion will continue. Make sure
that there is always enough air (oxygen) to maintain clear,
lasting flames when, and after, reducing the amount of
combustion air.
During the official test, the stoking interval was 70-80 mi-
nutes.
8. Once the fire has been reduced to a thick layer of embers,
a new portion of wood can be added by repeating steps 5
& 7.

11
Sprog
We would strongly recommend that you do not leave your stove alit at night. It
harms the environment, and constitutes very poor use of the wood, as the ga-
ses in the wood do not ignite at the low temperature, but settle as soot (unbur-
ned gases) in the chimney and stove. Extreme conditions, such as poor draught
in the chimney, large quantities of wood or wet wood, may, in the worst-case
scenario, cause an explosive ignition.
When firing in the summer period, when there is minimal need for heat, the
combustion will be poor. The stove provides too much heat, so the combustion
should be reduced. But always remember to make sure that there are lasting
flames until the wood becomes charcoal. If you want a weaker fire, stoke up
using less wood.
If you fire the stove using wet wood, a lot of the fuel’s thermal energy will be
spent forcing the water out of the wood, without releasing any heat to the sto-
ve. This incomplete combustion results in a layer of soot being left in the stove,
pipe and chimney.
Comparison between firing with wood and oil
Type of wood (moisture content 20%) No. of cubic metres per 1000 l oil
Oak 7.0
Beech 7.0
Ash 7.2
Sycamore 7.5
Birch 8.0
Elm 8.9
Common spruce 10.4
Silver fir 10.9
The stove door must be opened gently the first 2 - 3 centimetres, then you should wait until
the pressure has equalised before opening the door all the way. This technique will prevent
smoke from getting out, particularly when there is a poor draught.
The stove door should never be opened when the stove is being fired vigorously.
Once the wood has burned out, it becomes glowing charcoal. If a good layer of embers has
already formed on top of a sufficient layer of ash, the stove can keep warm for a very long
time, not least due to the favourable qualities of the cast iron.

12
Sprog
3.1 External maintenance
The cast surface of the stove is painted with heat-resistant Senotherm paint. It is best main-
tained by simply vacuuming it with a soft brush attachment or wiping it down with a dry, dust-
free cloth.
If the stove is used too vigorously, the painted surface may assume a greyish tinge over time,
but the stove can easily be freshened up with Morsø spray paint, which is available from your
local retailer.
Morsø stoves are painted in Morsø charcoal. The paint is available either as a spray or in tins.
3.2 Internal maintenance
Glass window
If the stove is used correctly, very little or no soot will be deposited on the ceramic glass
window. If soot does form on the glass as the stove is being lit, it will burn away once normal
combustion begins in the stove. If the glass window becomes thoroughly covered in soot due
to incorrect operation, the soot can be easily removed using Morsø Glass Cleaner. The glass
must be cold when you clean it. Avoid stoking the stove with pieces of wood that are so long
that they press against the glass window when the door is closed.
Only use Morsø Glass Cleaner.
Ceramic glass replacement
Ceramic glass cannot be recycled because it has a higher melting point that ordinary glass.
If ceramic glass is mixed with ordinary glass, the raw material is spoiled, and the reclaiming
process may be halted. Take care that the ovenproof glass does not end up among ordinary
recycled waste. That will be a great benefit to the environment.
Note: Should be handed in to a recycling station as ceramic glass.
Internal cast-iron parts and/or wearing parts
The baffles and other components that come in direct contact with the fire and glowing fuel
are all wearing parts. As a result, they will be particularly susceptible to burn-through. When
used correctly, these parts will last for many years, but overly vigorous use will naturally ac-
celerate the burn-through. Such parts are all easily replaced.
If the baffles are damaged and are not replaced in time, the top plate will be exposed to such
high temperatures that it may be damaged as well.
Please note that no unauthorised alterations of the design may be undertaken, and that
any parts that are replaced must be replaced with original Morsø parts.
3.0 Routine stove maintenance
Reasons for overly rapid wear of internal parts
- Stove fired too vigorously
Use of very dry wood (wood from old furniture)
- Too much soot on top of the baffles (please see the section on Cleaning)
- Too much ash in the ash pan (please see the section on Ash)
Reasons for sooty glass window:
- The fuel is too wet
- The pieces of fuel are too big/uncut wood
- The combustion temperature is too low
- There is not enough air

13
Sprog
Gaskets
The gaskets in the door will wear out over time, and should be replaced as required in order
to prevent runaway combustion. Use the original Morsø gasket kit.
NOTE: Normal wearing parts are not covered by Morsø’s extended warranty.
A selection of maintenance products (spare parts, glass cleaner, paint, gasket kit, etc.) is
available from your Morsø dealer.
3.3 Cleaning the stove
A layer of ash and soot will form as a result of the draught in the chimney and after sweeping,
particularly on the top of the upper baffle. This ash will have an insulating effect, which may
speed up the burn-through of the baffles.
Nowadays the chimney sweep must remove the soot in the stove, in addition to sweeping the
chimney and cleaning the flue pipe.
The number of annual sweepings/cleanings of the stove should be determined in consultation
with your chimney sweep.
Spare parts for the 7600
Description Product no.
Cast grate 34761200
Glass window 79760100
Right side brick panel 79760300
Left side brick panel 79760400
Rear brick 79760700
Ash
As noted above, there should be a layer of approximately 1 cm insulating ash in the bottom
of the combustion chamber in order to achieve a high combustion temperature. If the layer of
ash is too thick, it can be brushed down into the ash pan.
Empty the ash pan before it gets completely full, so that the ash does not insulate around the
grate, and thereby speed up the burn-through.
In most cases, the ash will need to be taken away by the waste disposal company. Because
embers may be concealed in the ash pan for several days, it may be necessary to store the
ash in a container made of non-flammable material before pouring it into a rubbish bag.
Ash from a wood-burning stove will not be of any benefit to your garden as fertiliser. If you
have burned colour brochures, or painted or treated wood, etc., in the stove, the resulting ash
must not be poured onto soil, as it may contain heavy metals.

Morsø Jernstøberi A/S - 2011.03.28 - 72762500
www.morsoe.com
