Mosaic SRGF11634 Owner's manual

28” Kingsland Gas Fire Pit
Please keep this instruction manual for future reference
Assembly Instructions
& User’s Manual
READ INSTRUCTION MANUAL BEFORE ATTEMPTING TO ASSEMBLE OR
OPERATE THIS PRODUCT.
Adult assembly required.
Keep screws and parts out of reach of children.
Customer Service: [phone], 8:00am to 8:00pm,
Monday thru Friday Eastern Standard Time
Customer Service: [phone] 7:00 am to 12:00 am CST (daily)
Live Chat at: www.academy.com
Email: [email protected]
(Made in China)
Warning:
--------------------------------------OR-------------------------------------
ITEM NO.: FSMVPT5018
MODEL NO.: SRGF11634

If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
DANGER WARNING: For Outdoor Use
Only.
CAUTION:
Installer: Leave the instruction manual
to the user for future use.
Consumer: Please keep this manual
for future reference.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
WARNING
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNINGS AND CAUTIONS
Read the instructions before use. This appliance must be installed in accordance with such
regulations as are enforced.
•Do not try to light the appliance.
•Do not touch any electrical switch; do not use any phone in the vicinity of this product.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the fire department.
WARNING:
CARBON MONOXIDE HAZARD
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Read the installation, operation and
maintenance instructions thoroughly before installing or servicing this
equipment.
WHAT TO DO IF YOU SMELL GAS?
Installation and service must be performed by a qualified installer, service agency or gas
supplier.
!
This appliance can produce carbon monoxide which has
no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
Page 2 of 19

TABLE OF CONTENTS
Warnings and Cautions...................................................................2,4-5
Table of Contents..................................................................................3
Tools, Parts and Hardware....................................................................7
Assembly Instructions.......................................................................8-11
Installation Instructions ........................................................................12
Operation........................................................................................13-15
Locating Heater For Use......................................................................16
Maintenance and Storage...............................................................17-18
Trouble Shooting..................................................................................19
Warranty Information............................................................................19
REMINDER
BEFORE ASSEMBLY
Verify that all parts are included with your heater BEFORE you begin assembly by checking the Parts and
Hardware List. For your convenience, some parts may be pre-assembled or attached to heater components.
If all parts are not included, do not attempt to assemble heater. Call the toll free number on the cover
page for replacement parts.
Leave hardware installed HALF-TIGHTENED on the heater during assembly until unit is completely
assembled, then finish tightening all hardware installed.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference – it contains important instructions and
procedures for safety and maintenance.
Page 3 of 19
Exploded View......................................................................................6

WARNINGS AND CAUTIONS
NOTE:PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
!
The installation must comform with local codes or, in the absence of local codes, with the
CAN/CGA-B 149.2, Propane Installation Code.
This appliance requires 20 lb (9 kg) LP gas supply cylinder.
The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner shall be that specified by the manufacturer.
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners,
and circulating air passageways of the appliance be kept clean.
Always place the appliance on a firm and level surface.
Do not burn solid fuels in this gas appliance.
Use the appliance outdoors in a well-ventilated space only, not in a building, garage, or any other
enclosed area.
When using the appliance, keep the appliance area clear and at least 50 inches from combustible
materials, gasoline and other flammable liquid and vapors. Certain items or materials, when stored
under the appliance or nearby, will be subjected to radiant heat and could be seriously damaged.
Inspect the gas connections of appliance prior to each use. Do not operate the unit if there is gas
leak. A qualified service person should inspect the appliance annually.
Alert children and adults to the hazards of high surface temperatures and keep them away
to avoid burns or clothing ignition.
Carefully supervise children and pets when they are near the appliance.
Replace and guard or other protective device removed for servicing.
Do not hang clothing or other flammable materials on or near the appliance.
Do not use the appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
The LP-gas supply cylinder to be used must be: Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT); or the
Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and
Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder to be used must be provided with a listed overfilling prevention device;
and provided with a cylinder connection device compatible with the connection for the appliance.
Use only a cylinder supply system arranged for vapor withdrawal, and the cylinder must include a
collar to protect the cylinder valve.
Page 4 of 19

This appliance is designed to operate with a standard 20 Ib propane cylinder with Approved
Cylinder Connection.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Perform a leak test with a soapy solution:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.
WARNINGS AND CAUTIONS
WARNING:
This product can expose you to chemicals including lead, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.ca.gov.
SPECIFICATION
Certification CSA
Rated Heat Input 50000 BTU/HR
Fuel LP
Gas Supply 20 lb (9 kg) LP gas cylinder
Manifold Pressure 11” W.C.
Injector Size(diameter) 2.22mm
Gas Supply Pressure
Max. 250PSI, Min. 5PSI
Page 5 of 19

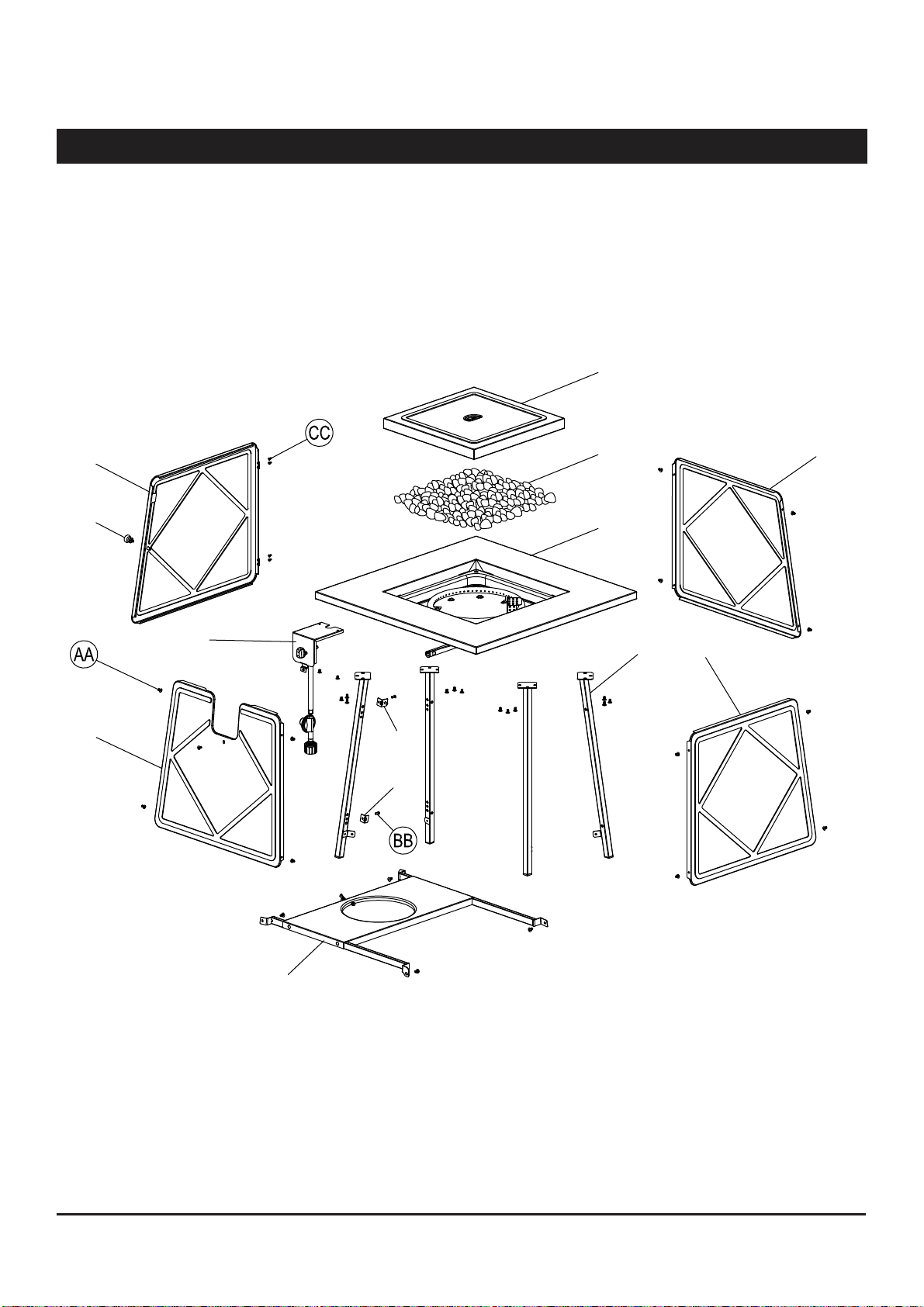

EXPLODED VIEW
Page 6 of 19
Please check the contents of the packaging to ensure all parts are included. If missing parts
please contact customer service.
A
C
D
E
F
F
G
H
I
J
K
L
B

AA M5 x 10 Bolt
BB
CC
31
2
4
M5 x 12 Bolt
M4 x 6 Bolt
Parts Description Quantity Picture
TABLE TOP
A
QTY.DESCRIPTION
Please check the contents of the packaging to ensure all parts are included.
ITEM
1
CONTROL PANELB 1
LEGC 4
CYLINDER HOLDER
ASSEMBLY
D1
FRONT PANELE 1
SIDE PANELF 2
MAGNET ASSEMBLYG 1
DOOR STOPPERH 1
DOORI 1
DOOR HANDLEJ 1
COVER LIDK 1
LAVA ROCKSL 1
TOOLS AND PARTS
HARDWARE
Page 7 of 19
TOOLS NEEDED: (NOT INCLUDED)
Philips screwdriver
Estimated time for assembly: 30 minutes.

Step 1
Place the table top (A) upside down to the
soft, level surface. Attach control panel (B)
B
A
to the table top (A) with (2) M5 x 10 bolts
(AA) as illustrated.
Insert valve into the injection pipe of burner
as illustrated. (Position A)
Insert the end of electrode wine into valve
as illustrated. (Position B)
Step 2
Attach (4) legs (C) to the table top (A)
with (12) M5 x 10 bolts (AA) as illustrated.
Choose a good, cleared assembly area and get a friend to help you put your gas fire pit together. Lay
cardboard down to protect gas fire pit finish and assembly area.
ASSEMBLY INSTRUCTIONS
Page 8 of 19
AA M5 x 10 bolt 2 pcs
Hardware Used
Hardware Used
Step 1
Step 2
AA
AA M5 x 10 bolt 12 pcs
C
AA A
Injection Pipe
Electrode Wire
Valve
Position B
Position A

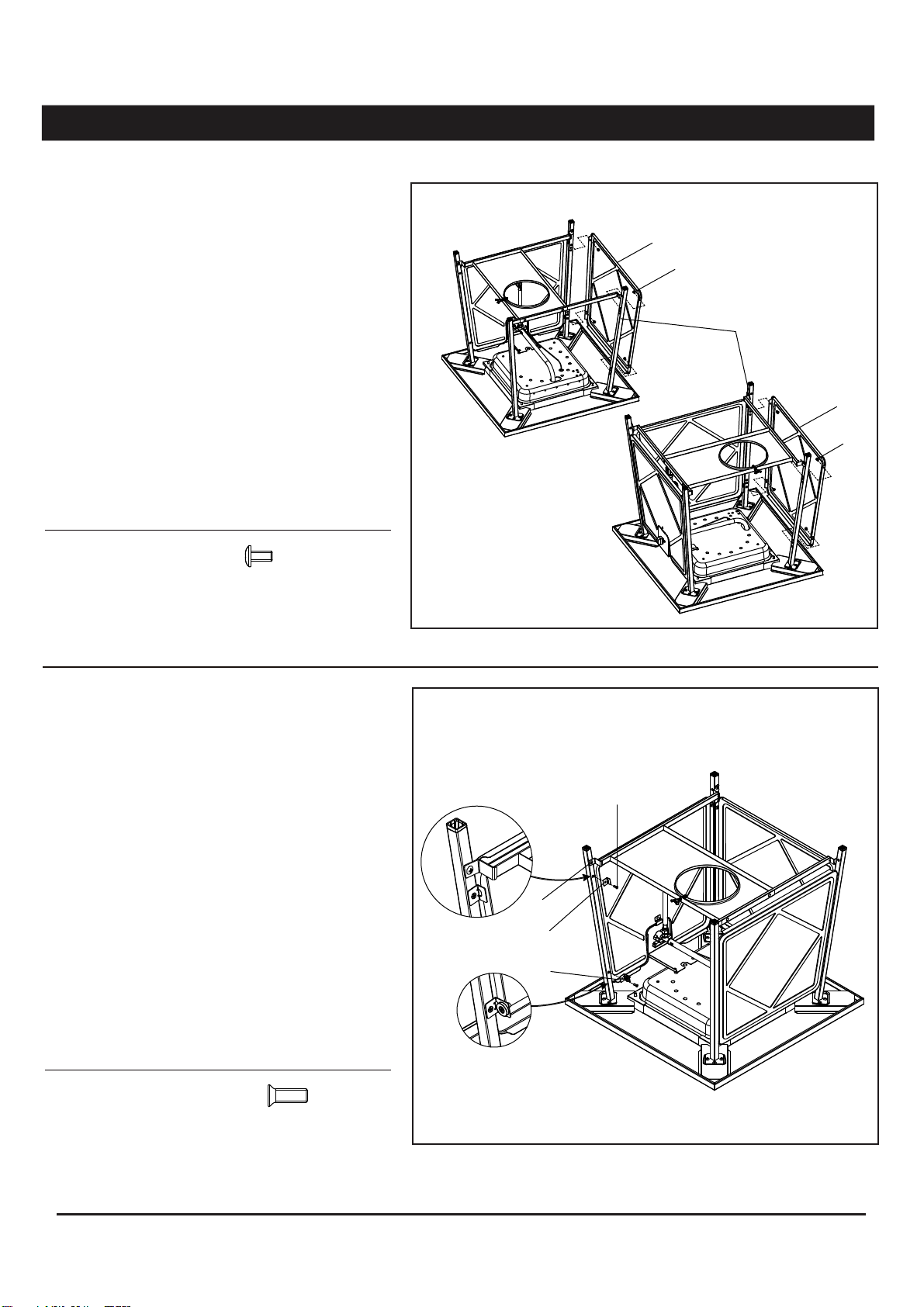

Step 3
Attach cylinder holder assembly (D) to
legs (C) with (4) M5 x 10 bolts (AA) as
illustrated.
D
AA
Step 4
Cnnect the control panel (B) to the front panel (E)
with (1) M5 x 10 bolt (AA) first, then attach the front
panel (E) to the legs (C) with (4) M5 x 10 bolts (AA)
as illustrated.
Note: With the help of a friend, turn the gas fire pit
into upright position after this step finished.
ASSEMBLY INSTRUCTIONS
Page 9 of 19
AA M5 x 10 bolt 4 pcs
Hardware Used
Hardware Used
Step 3
Step 4
AA M5 x 10 bolt 5 pcs
B
C
AA
E
C

Step 5
Step 6
Step 5
Attach (2) side panels (F) to legs (C) with
(8) M5 x 10 bolts (AA) as illustrated.
Step 6
Attach the magnet assembly (G) and door
stopper (H) to the leg (C) with (2) M5 x 12
bolts (BB) as illustrated.
ASSEMBLY INSTRUCTIONS
Page 10 of 19
AA M5 x 10 bolt 8 pcs
Hardware Used
F
F
AA
AA
G
H
BB M5 x 12 bolt 2 pcs
Hardware Used
C
C
BB

Step 7
Screw the door handle (J) to the door (I),
then attach the door (I) to the leg (C) with
(4) M4 x 6 bolts (CC) as illustrated.
J
Step 7
ASSEMBLY INSTRUCTIONS
Page 11 of 19
K
L
I
CC M4 x 6 bolt 4 pcs
Hardware Used
Step 8
Put the lava rocks (L) on the burning area
of the table top (A).
Note: Place the cover lid (K) onto the table
top (A) when not in use.
Step 8
A
CC

9
10
lava rocks (max 9.9 lb) onto the fire pit.
Open the door panel (I)
(Fig. 9)
4. Turn the cylinder locking bolt clockwise to secure the gas
cylinder. (Fig. 10)
11
12
6
INSTALLATION INSTRUCTIONS
Your gas fire pit has been checked at all connections at the
factory for leakage.
In transportation and handling some connections may have
loosened. Follow these steps to check the hose/
regulator/cylinder connections:
1) Make leakage solution by mixing 1 part liquid dish soap and 3
parts water.
2) Spoon or brush several drops (or use squirt bottle) of the
solution onto hose/regulator/cylinder connection.
3) Turn on gas cylinder. Inspect the connections and look for
bubbles.
4) If no bubbles appear, the connection is safe.
5) If bubbles appear, there is leakage. Loosen and re-tighten this
connection. If there is still a leak, please call customer service:
1-866-814-0585,1-888-922-2336.
Note:
1) The cylinder supply system must be arranged for vapor
withdrawal.
2) The cylinder used must include a collar to protect the cylinder
valve.
The hose assembly must be replaced prior to the appliance being
put into operation if there is evidence of excessive abrasion or
wear, or if the hose is damaged.
At least once a year, a complete inspection of the entire gas path
components should be performed.
If there is need to replace parts, proceed to leak test after
reassembly (These procedures should be performed by a profes-
sional technician).
11
12 P2
P1
Tighten
regulator & cylinder
connection
Page 12 of 19

WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS . FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
WARNING
WARNING
WARNING
FOR YOUR SAFETY:
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Lighting operations should comply
with Lighting Instruction section.
Improper lighting operations will
cause serious injury and explosion.
Before turning gas supply ON
Your
fire pit was designed and approved for OUTDOOR
USE ONLY. DO NOT use it inside a building or any other
enclosed area.
Make sure surrounding areas are free of combustible
materials, gasoline, and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
FOR YOUR SAFETY:
WARNING!!!
Do not use an open flame to check for leakage.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas
cylinder is replaced.
NOTE:
U
se only the pressure regulator supplied with this fire pit.
Replace them with those specified by the manufacturer
only.
OPERATION
If at any time you are unable to
light burner and smell gas, wait 5
minutes to allow gas to dissipate
before attempting to light gas
appliance. If after1 minute, you
are unable to light burner, wait 5
minutes and allow flammable
vapors to dissipate before
attempting to light gas appliance.
Page 13 of 19

ATION
Before Lighting
The gas fire pit should be thoroughly inspected before each
use, and by a qualified service person at least annually.
If relighting a hot gas fire pit, always wait at least 5 minutes.

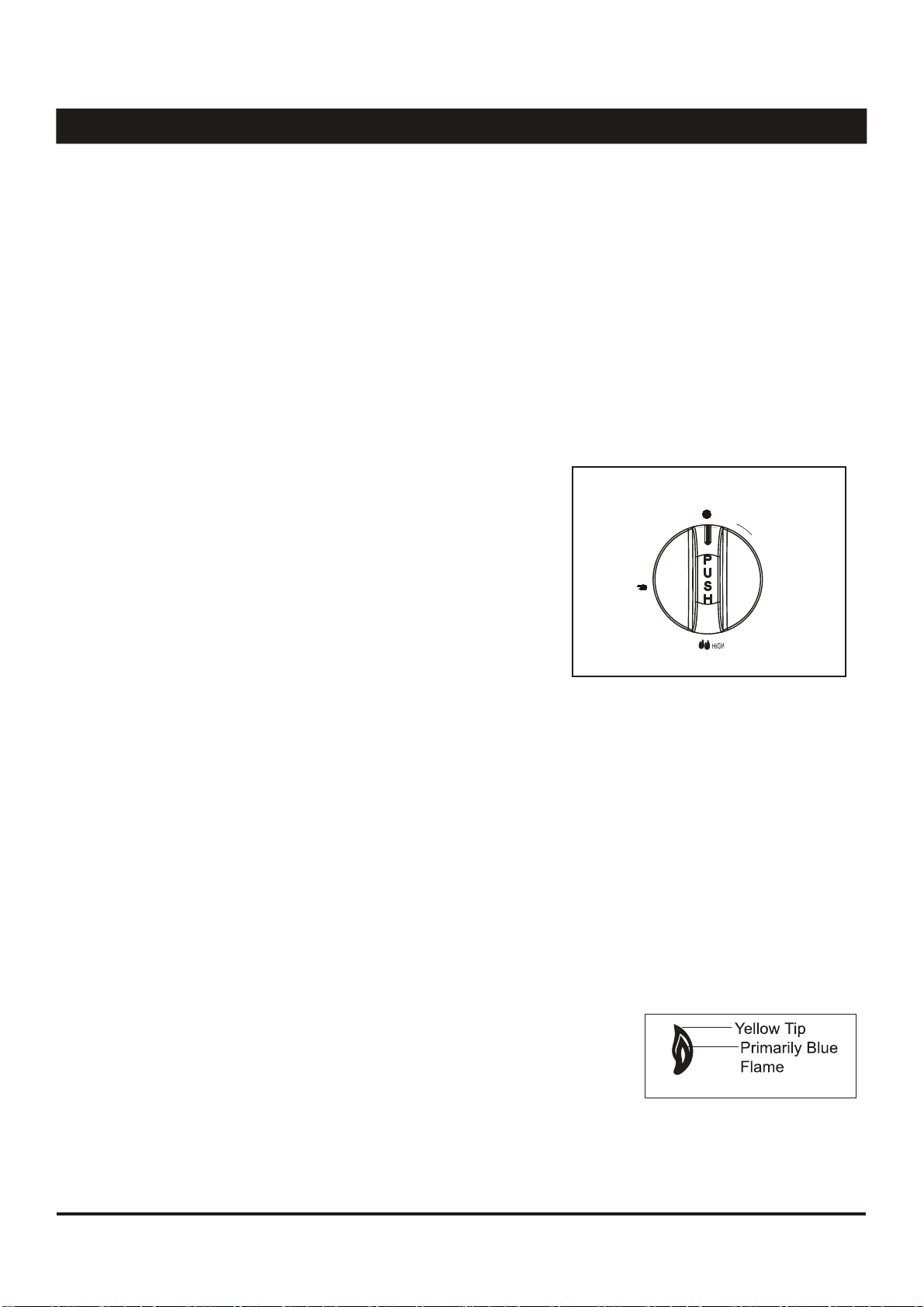

Lighting instructions
1. Make sure control knob is in the “OFF” position.
2. Turn LP cylinder gas valve to fully open position.
3. Press down control knob and turn it counter clockwise
to "LOW" position.
4. If the burner is not lit, press down the control knob
and turn clockwise to "OFF" position, repeat from step
3 after 5 minutes.
5. When burner is lit, turn the control knob to desired heat output position between "LOW"
and "HIGH".
6. Press down and turn the control knob clockwise to "OFF" position to shut down the appliance.
Turn off cylinder gas valve.
Flame Characteristic
Normally the burner flame is yellow.
If the burner flame is blue and very small, please check the
gas cylinder, as it may be low gas pressure or empty. If there
is enough gas in the cylinder, please contact customer service
to change the burner of the gas fire pit.
If flames lift away from burner or backfire happens, or produce
thick black smoke, the fire pit should be turned off immediately.
The fire pit should not be operated again until the unit is serviced
and/or repaired by a qualified service technician.
WARNING: DO NOT ATTEMPT TO OPERATE THIS HEATER UNTIL YOU HAVE READ
AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN
PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH.
OPERATION
O
F
F
P
u
s
h
t
o
t
u
r
n
L
O
W
Page 14 of 19

CAUTION: AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE.
SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL
APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30
MINUTES. THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE.
NOTE:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the
LOW position. Then, turn the knob to the level of heat desired.
Operation pressure checked:
If the flame is very small, this is because the supply
pressure is not enough. Please refill gas cylinder.
Re-light:
2)
1) Turn the control knob to "OFF " position.
3) Repeat steps beginning with step 3 of the lighting
instruction.
Shut down instructions:
1) Push in and turn control knob clockwise to "OFF"
position.
2)
2) Turn LP cylinder valve to "OFF" position.
The Event of Gas Leakage:
1) Turn the control knob to "OFF" position.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call gas supplier.
WARNING : Gas appliance will be hot after use.
Handle with extreme care.
Wait five (5) minutes before attempting to relight appliance.
Turn LP cylinder gas valve clockwise to OFF position
when appliance is not in use.
OPERATION
Page 15 of 19

CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT ABOVE, BESIDE OR UNDER
THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE
SERIOUSLY DAMAGED.
This gas fire pit is primarily used for the heating
of outdoor patios, decks, spas, pools and open
working areas.
Always make sure that adequate fresh air
ventilation is provided. Follow the spacing
tolerances shown in Figure 13 at all times.
This gas fire pit must be placed on level, firm
ground.
13
Never operate in an explosive atmosphere.
Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.
LOCATING HEATER FOR USE
Page 16 of 19
36” 36”
”85

T
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Allow all burner elements to cool
before touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environmentsuch as
near an oceancorrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
Wait until gas appliance is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
gas fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner dry at all times. If the gas control is
exposed to water in any way, do NOT try to use it. It
must be replaced.
Keep the appliance area free and clean from combustible
Check if there are cracks or worn sections on WKHhose.
,Iyes, please call our customer service to replace hose.
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Gas fire pit does NOT reach the desired temperature.
Gas fire pit glow is excessively uneven.
Gas fire pit makes popping noises.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage gas fire pit and render
it unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
MAINTENANCE AND STORAGE
Page 17 of 19

NOTE:
Wait until the appliance is
cool before covering.
Store the fire pit indoors during the winter if it will be subjected to
freezing temperatures.
Disconnect and remove the cylinder from the appliance before the
appliance can be stored indoors.
STORAGE
Turn the control knob to "OFF" position.
,esuretfanwodloocotfire pitehtrofsetunim54tsaeltawollA
Turn LP cylinder to OFF position.
then disconnect and remove the cylinder.
Cylinder must be stored outdoors in a well-ventilated area out of
the reach of children. When the cylinder is disconnected, tightly
,gnidliubanitierotstonoddna,sgulpevlavdedaerhtehtllatsni
garage or any other closed area.
You may store product indoors ONLY if the cylinder is
disconnected and removed.
,slairetamelbitsubmocmorfeerfdnaraelcaerafire pitehtpeeK
gasoline and other flammable vapors and liquids.
secafrusroiretxetcetorpottirevocfire pitehtgnisutonerauoyfI
and to help prevent build up in air passages.
Store gas fire pit in an area sheltered from direct contact with
sleet, hail, snow, dust and debris).n,iarsahcus(rehtaewtnemelcni
Aqualified service person should install and repair the fire pit and
inspect it annually.
It might be necessary to clean this fire pit frequently. You must
passageways clean.
MAINTENANCE AND STORAGE
keep the control compartment, burner and circulating air
Page 18 of 19

WARRANTY INFORMATION
The appliance has been manufactured under the highest standards of quality and workmanship. We
warrant to the original consumer/purchaser that all aspects of this product will be free of defects in
material and workmanship for one (1) year from the date of purchase. A replacement for any defec-
tive part will be supplied free of charge for installation by the consumer. Defects or damage caused
by the use of other than genuine parts are not covered by this warranty. This warranty shall be effec-
tive from the date of purchase as shown in the purchaser’s receipt.
This warranty is valid for the original consumer/purchaser only and excludes industrial, commercial
or business use of the product, product damage due to shipment or failure which results from altera-
tion, product abuse, or product misuse, whether performed by a contractor, service company, or con-
sumer. We will not be responsible for labor charges and/or damage incurred in installation, repair or
replacement, nor for incidental or consequential damage.
Gas leak
Low gas pressure
Clogged or dirty burner ports
Gas odor
Delayed ignition
Incorrect burner
flame
PROBLEM
OBSERVED
POSSIBLE CAUSE
Incorrect gas supply or pressure
Clogged or dirty burner ports
CORRECTIVE MEASURES
Check all gas connections
Check gas supply pressure
Clean burner parts--see manual
"CLEANING AND MAINTENANCE" section
Check gas supply pressure
Clean burner parts
TROUBLE SHOOTING
Page 19 of 19
Need help?
call our toll free number at:
1 (866)-814-0585 or 1 (888)-922-2336
e-mail us at:
[email protected]
