MODEL # SRGF11634-11
PROPANE PATIO FIRE PIT
Lowe’s Item No.: 0919105
RONA Item No.: 11875029
Questions, problems, missing parts?
STYLE SELECTIONS and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
AS21633

WARNINGS AND CAUTIONS
Read the instructions before use. This appliance must be installed in accordance with such
regulations as are enforced.
•Do not try to light the appliance.
•Do not touch any electrical switch; do not use any phone in the vicinity of this product.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the fire department.
WHAT TO DO IF YOU SMELL GAS?
Installation and service must be performed by a qualified installer, service agency or gas
supplier.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has
no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
INSTALLER: Leave this manual with
the appliance.
CONSUMER: Retain this manual for
future reference.
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area
immediately.
After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion,
which could cause property damage,
personal injury, or death.
DANGER
●
●
●
●
WARNING:For Outdoor Use Only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
WARNING
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
!
2

TABLE OF CONTENTS
Warnings and Cautions...................................................................2, 4-5
Table of Contents...................................................................................3
Tools and Parts...................................................................................6-7
Assembly Instructions.......................................................................8-14
Installation Instructions ........................................................................15
Operation.........................................................................................16-18
Locating Fire Pit For Use......................................................................19
Maintenance and Storage................................................................20-21
Trouble Shooting..................................................................................22
Warranty Information............................................................................23
Replacement Parts List........................................................................24
REMINDER
BEFORE ASSEMBLY
Verify that all parts are included with your gas fire pit BEFOR E you begin assembly by checking the Tools and
Parts List. For your convenience, some parts may be pre-assembled or attached to fire pit components.
If all parts are not included, do not attempt to assemble fire pit. Call the toll free number on the cover
page for replacement parts.
Leave hardware installed HALF-TIGHTENED on the gas fire pit during assembly until unit is completely
assembled, then finish tightening all hardware installed.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference – it contains important instructions and
procedures for safety and maintenance.
3

WARNINGS AND CAUTIONS
IMPORTANT SAFETY INFORMATION
•The installation must conform with local codes or, in the absence of local codes, with either the
Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling
Code, CSA B 149.2.
•Always place the appliance on a firm and level surface.
•Do not burn solid fuels in this gas appliance.
•Use the appliance outdoors in a well-ventilated space only, not in a building, garage, or any other
enclosed area.
•When using the appliance, keep the appliance area clear and at least 50 inches from combustible
materials, gasoline and other flammable liquid and vapors. Certain items or materials, when stored
under the appliance or nearby, will be subjected to radiant heat and could be seriously damaged.
•
Inspect the gas connections of appliance prior to each use. Do not operate the unit if there is gas leak.
•
Inspect the hose before each use of the appliance. The hose assembly must be replaced prior to the
appliance being put into operation if there is evidence of excessive abrasion or wear or if the hose is
damaged. The replacement hose assembly shall be that specified by the manufacturer.
A qualified service person should inspect the appliance annually.
•Alert children and adults to the hazards of high surface temperatures and keep them away
to avoid burns or clothing ignition.
•Carefully supervise children and pets when they are near the appliance.
•Any guard, barrier, or other protective device removed for servicing the appliance shall be
replaced prior to operating the appliance.
•Do not hang clothing or other flammable materials on or near the appliance.
•Do not use the appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
•
•
Use only a cylinder supply system arranged for vapor withdrawal, and the cylinder must include a
•The LP-gas supply cylinder to be used must be: Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT); or the Standard
for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission,
CAN/CSA-B339, as applicable;
The LP-gas supply cylinder to be used must be provided with a listed overfilling prevention device;
and provided with a cylinder connection device compatible with the connection for the appliance.
collar to protect the cylinder valve.
•This appliance requires 20 lb (9 kg) LP gas supply cylinder.
•The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner shall be that specified by the manufacturer.
•Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners,
and circulating air passageways of the appliance be kept clean.
4

WARNINGS AND CAUTIONS
This appliance is designed to operate with a standard 20 Ib propane cylinder with Approved
Cylinder Connection.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Perform a leak test with a soapy solution:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.
WARNING:
This product can expose you to chemicals including soot, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information, go to:
www.P65Warnings.ca.gov.
!
SPECIFICATION
Certification CSA
Rated Heat Input 50, 000 Btu/h (14.65kW)
Fuel Propane
Gas Supply 20-lb. LP - gas cylinder
Manifold Pressure 11 in wc (2.74kPa).
Injector Size(diameter) 2.22mm
Min. gas supply for input adj. 25PSI (175kPa)
Max. gas supply 250PSI (1750kPa)
5

TOOLS NEEDED: (NOT INCLUDED)
Philips screwdriver
Estimated time for assembly: 30 minutes.
A
C
C
C
DL
E
F
F
G
I
J
K
H
B

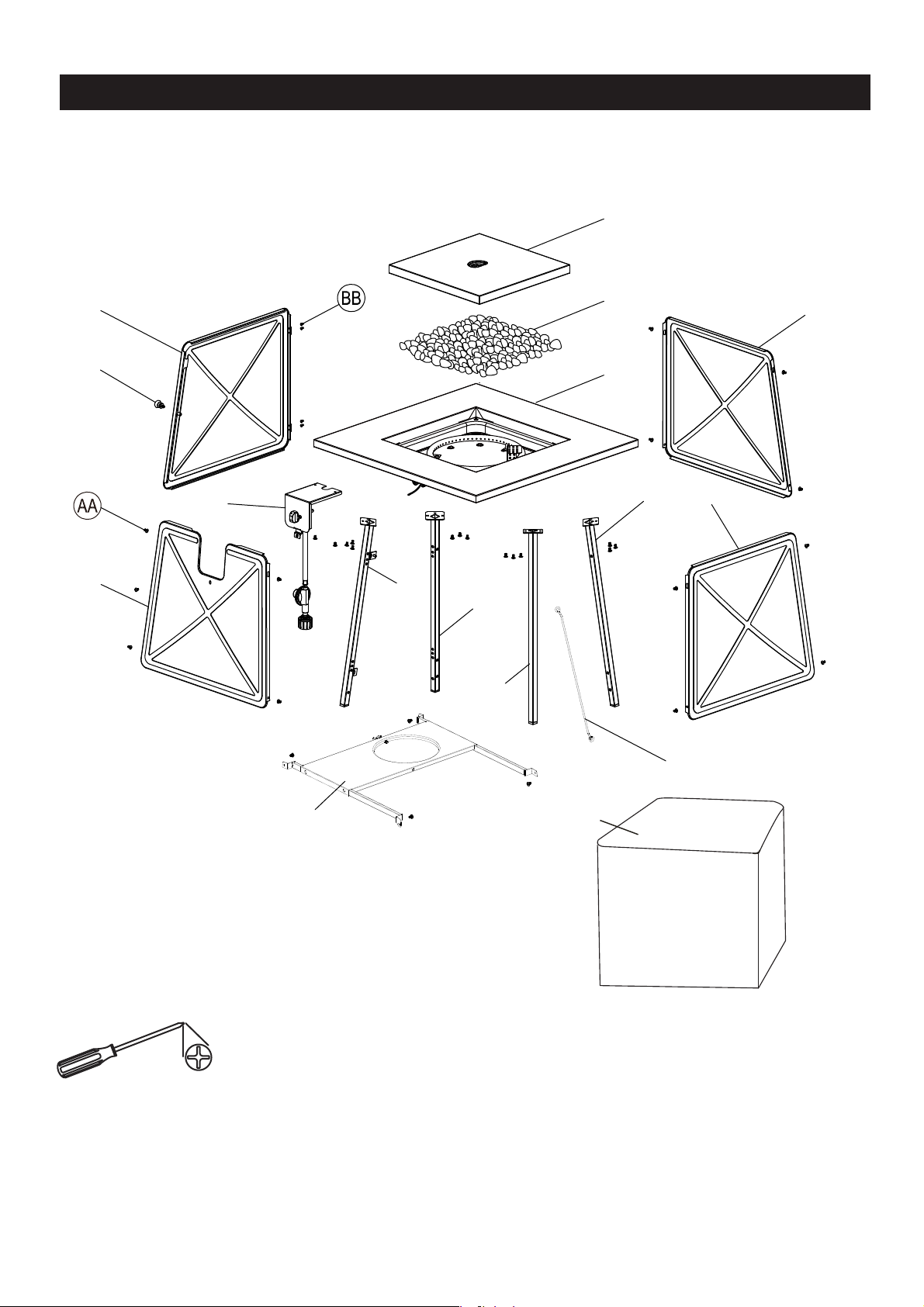

TOOLS AND PARTS
M
6

TOOLS AND PARTS
Leg B
Lava Rock
Door
PVC Cover
Cover Lid
Door Handle
Side Panel
Control Panel Assembly
PART DESCRIPTION QUANTITY
1A
1B 3C
D
E
F
G
H
I
L
J
1
1
2
1
1
1
1
K
Leg A
Cylinder Holder Assembly
Table Top Assembly
Front Panel
HARDWARE CONTENTS (shown actual size)
M4 x 10 Flat Bolt
Qty. 4
M5 x 10
Bolt Qty. 32
AA BB
1
1
M
1
Cylinder block wire
7

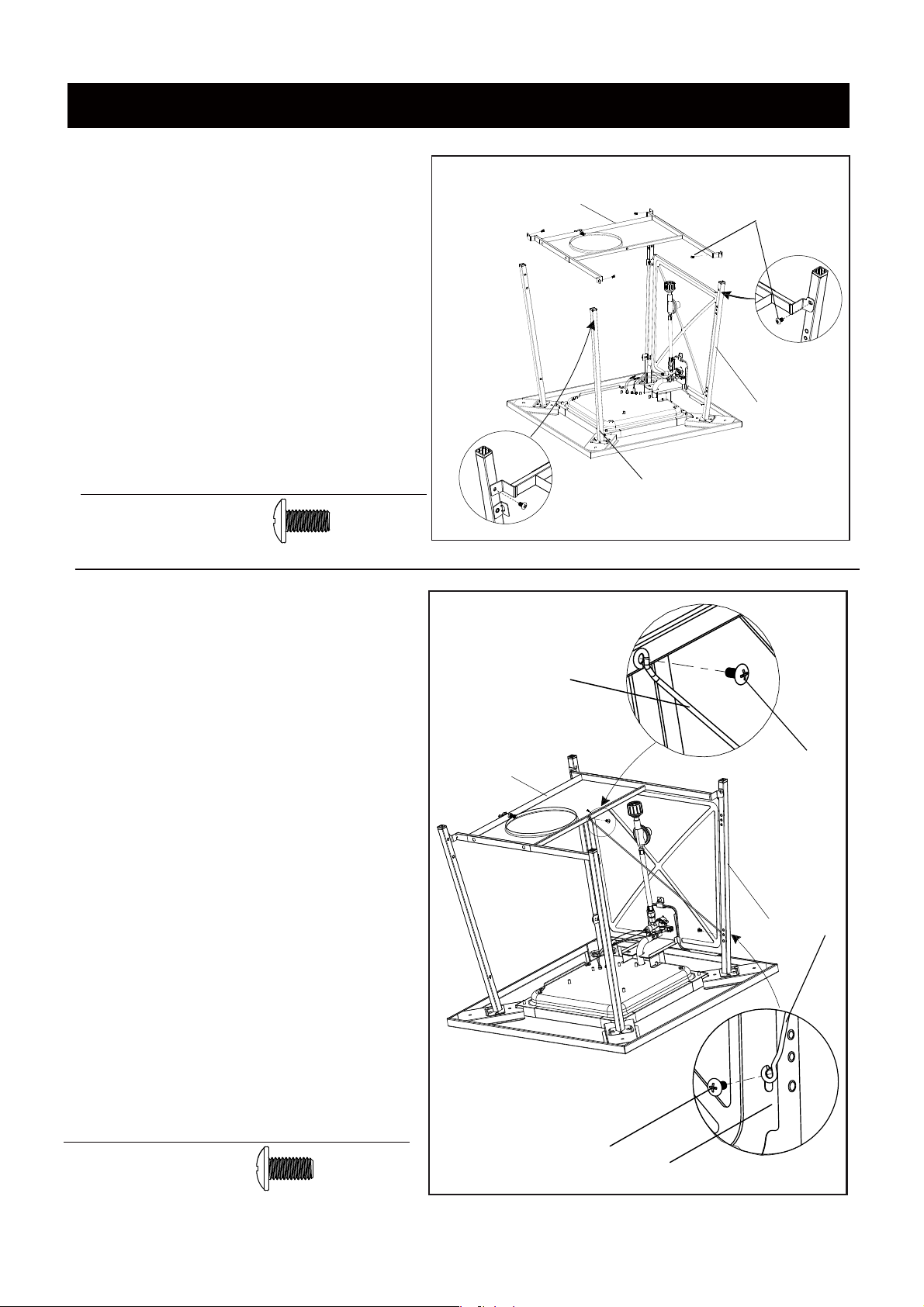

Step 1.1
With assistance, place the table top
assembly (A) upside down on a soft,
level surface. Attach the control panel
assembly (B) to the table top assembly
(A) by first inserting the tip of the valve
into the end of the burner tube. Next
use (2) M5 x 10 bolts (AA) to secure the
control panel assembly (B) to the table
top assembly (A) as position 1 illustrated.

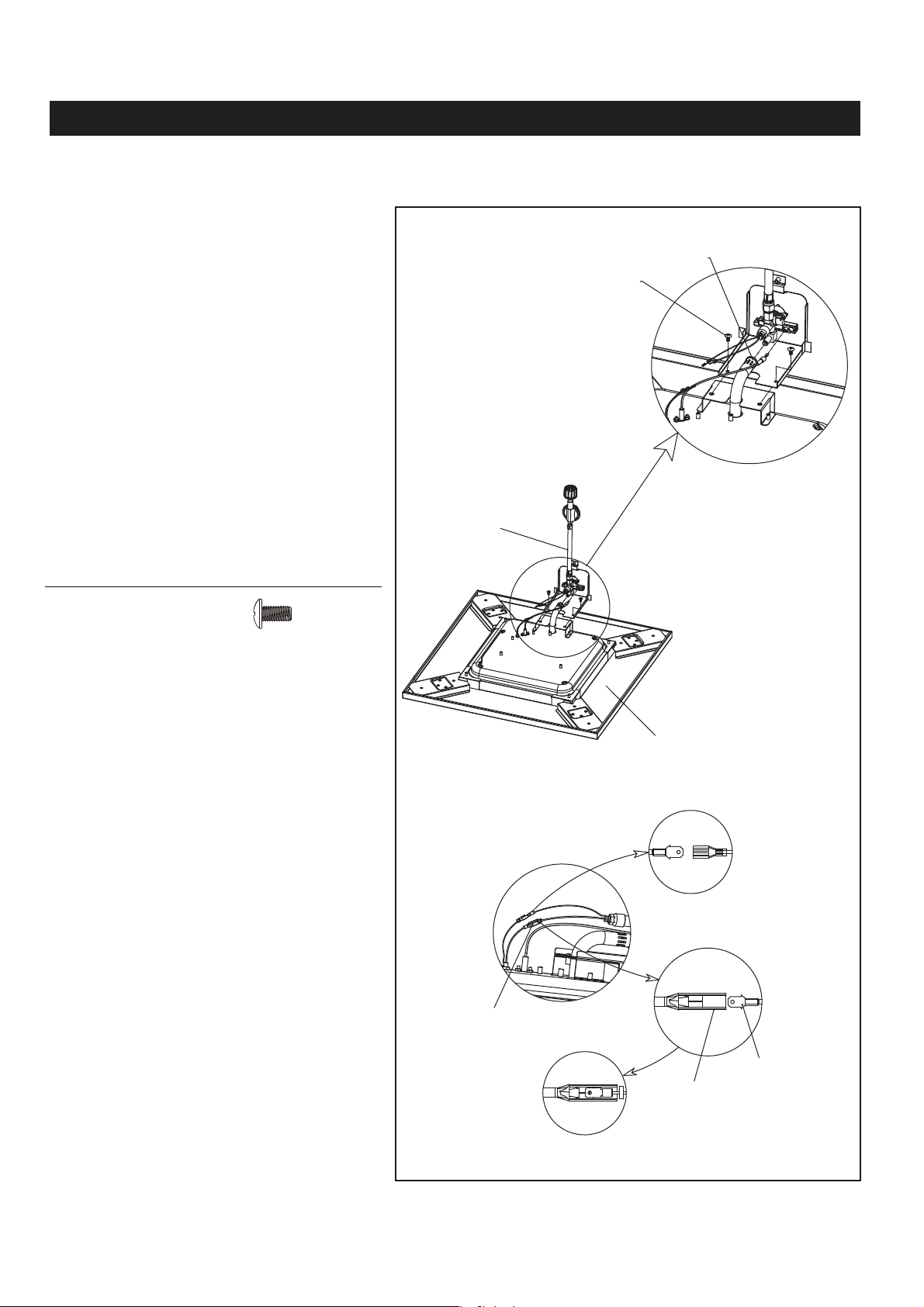

Step 1.2
Connect control panel's earth wire and
thermocouple wire onto the bottom of
fire bowl's as position 2 illustrated.
Note: Make sure the connection is
secured and protected by the
transparent insulated cover.
Choose a good, cleared assembly area and get a friend to help you put your gas fire pit together. Lay
cardboard down to protect gas fire pit finish and assembly area.
Assembly Instructions
AA M5 x 10 Bolt 2 pcs
Hardware Used
Step 1.1
Step 1.2
AA
Position 1
B
A
Position 2 Earth Wire
Thermocouple
Transparent Insulated Cover
Connection
completed
Transparent
Insulated
Cover
Make sure the
male terminal is
inserted to the
bottom.
8

B
A
Position 3
Blade
Connector
Insulated
Terminal
Electrode Wire
Rubber sleeve
Electrode
Wire

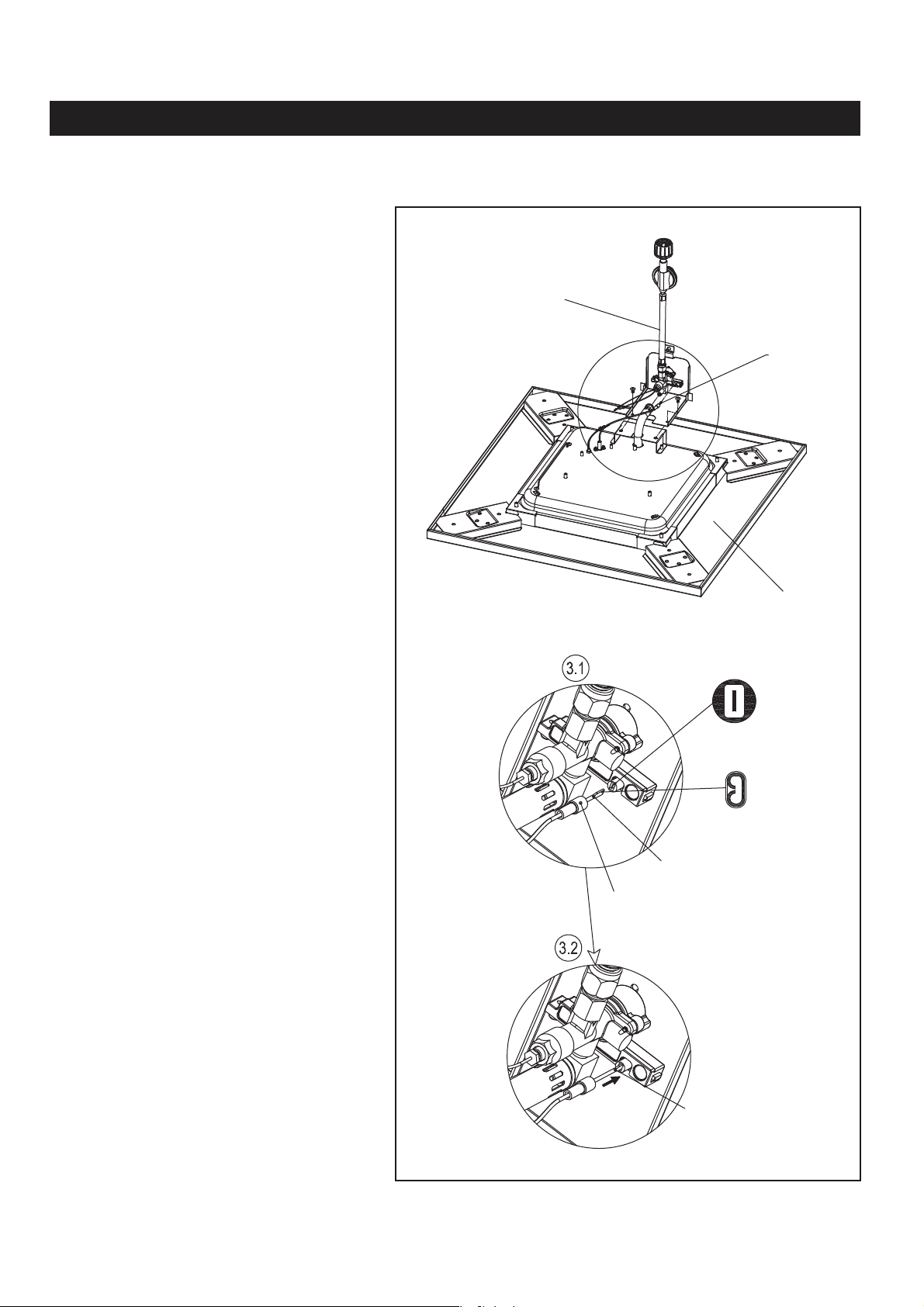

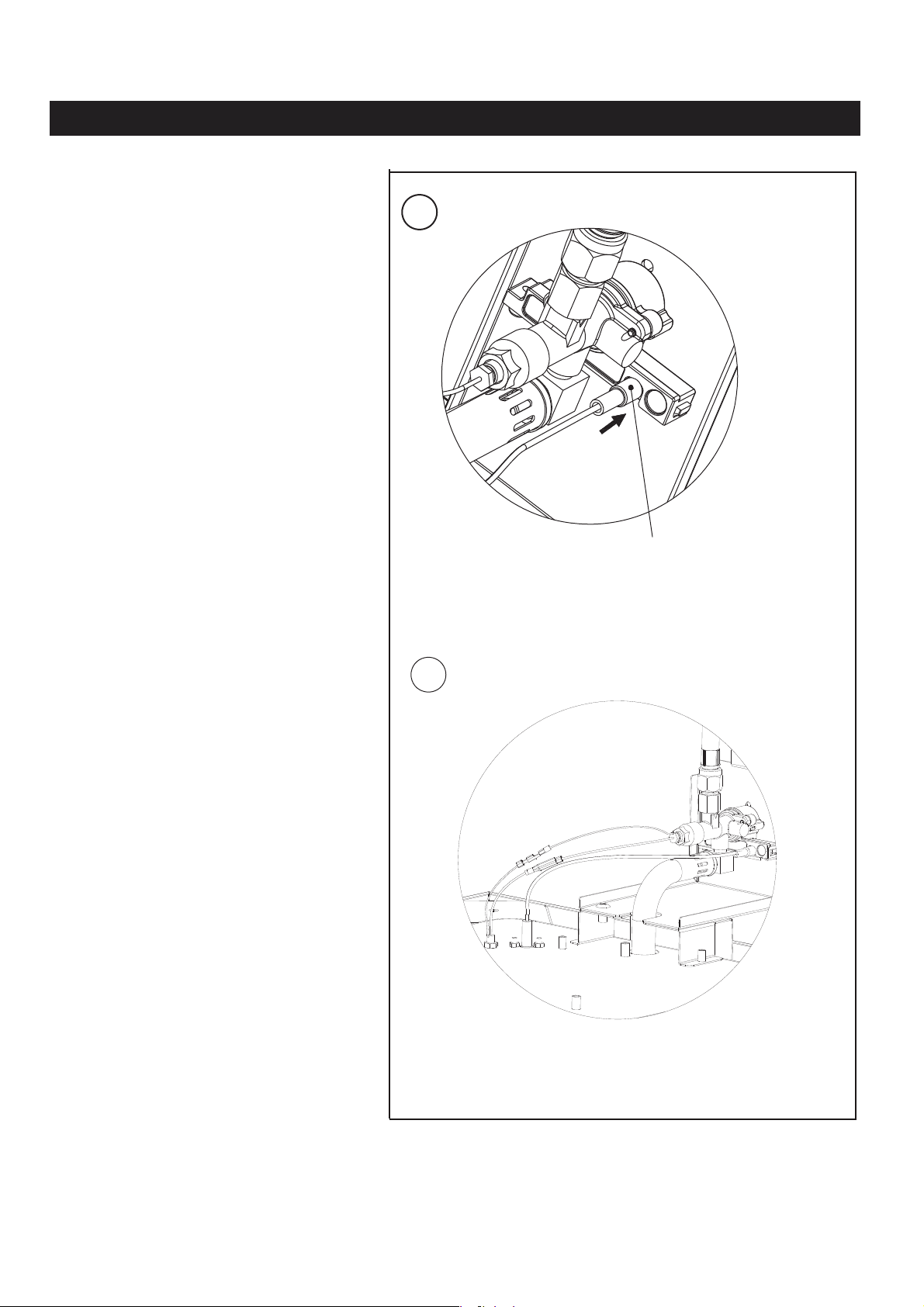

Step 1.3
Insert the Insulated terminal of electrode
wire into the blade connector on the
control panel as position 3.1 & 3.2
illustrated.
Assembly Instructions
Step 1.3
9

Finally, insert the rubber sleeve to
cover the electrode wire as position 3.3
illustrated, then finished as 3.4.
Assembly Instructions
Rubber Sleeve
3.3
Finished
3.4
10

Assembly Instructions
Step 3
3
Hardware Used
Step 3
4
Step 2
Hardware Used
Step 2
the leg B
legs A
11

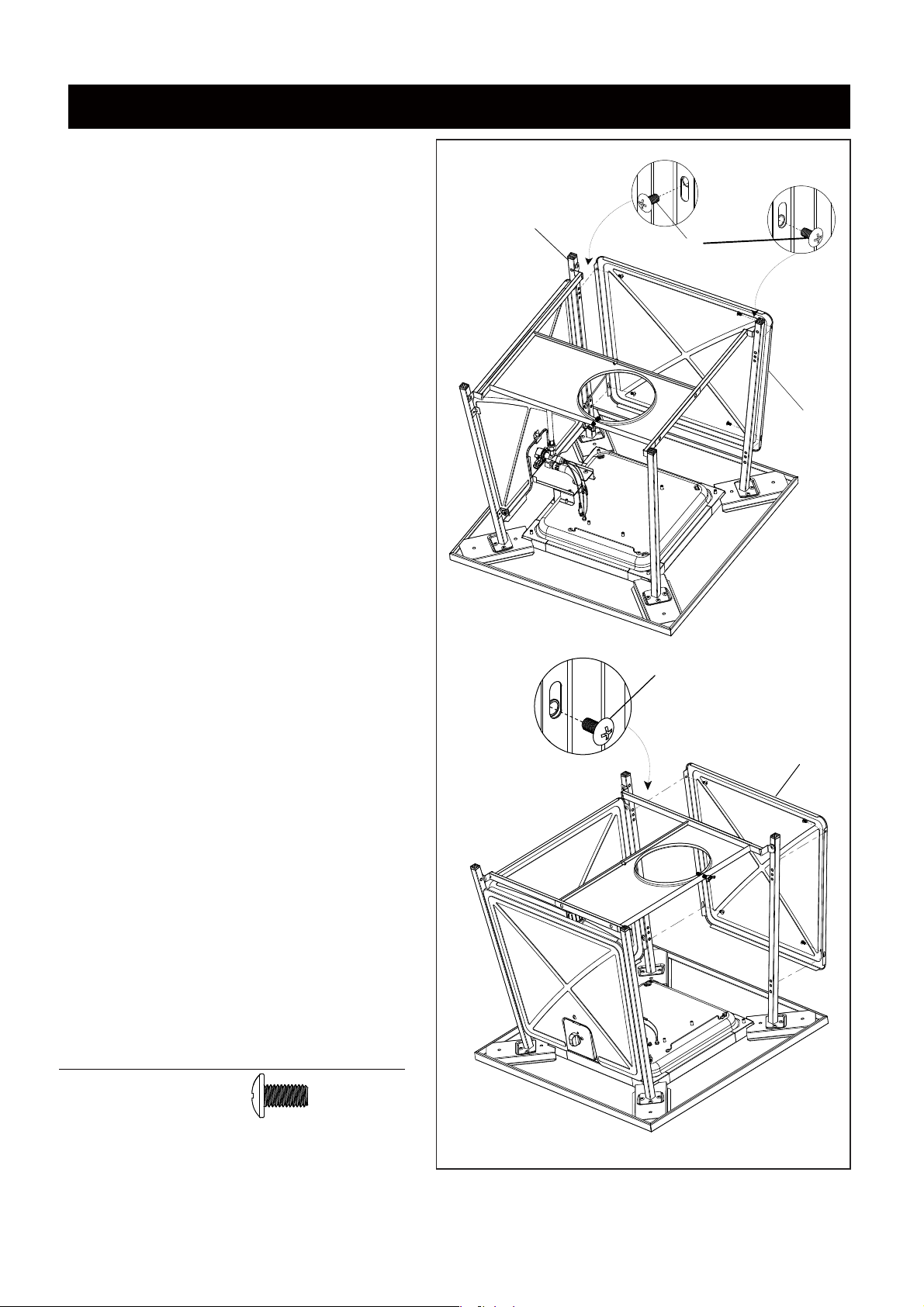

Step 4
Attach the cylinder holder assembly (D) to
(3) legs A (C) and the leg B (G) with (4)
M5 x 10 bolts (AA) as illustrated.
AA M5 x 10 bolt 4 pcs
Hardware Used
Assembly Instructions
Step 5
AA M5 x 10 bolt 2 pcs
Hardware Used
Attach Cylinder block wire (M) to
cylinder holder assembly (D) and
through the front panel (E) to the leg
A (C) with (2) M5 x 10 bolts (AA) as
illustrated.
Step 4
AA
D
G
C
C
DAA
M
AA
M
E
12

Assembly Instructions
Step 6
Attach (2) side panels (F) to (3) legs A (C) with
(8) M5 x 10 bolts (AA) as illustrated.
Hardware Used
AA M5 x 10 bolt 8 pcs
AA
C
F
F
AA
Step 6
13

Assembly Instructions
K
H
Step 8
A
J
I
BB
Step 7
Screw the door handle (J) to the door (I),
then attach the door (I) to the leg A (C)
with (4) M4 x 10 flat bolts (BB) as
illustrated.
Note: With the help of a friend, turn the gas
fire pit into upright position after this step
finished.
Step 7
BB M4 x 10 flat bolt 4 pcs
Hardware Used
Step 8
Put the lava rocks (H) on the burning area
of the table top assembly (A).
Note:
To avoid ignition failure, do not cover the
shield with lava rocks.
Then place the cover lid (K) onto the table
top assembly (A) when not in use.
WARNING: Failure to position the parts in
WARNING:
If exposed to water lava
rocks may pop when fire is ignited. To
prevent, please replace cover lid after each
use.
accordance with these diagrams or failure to
use only parts specifically approved with this
appliance may result in property damage or
personal injury.
shield
14
!

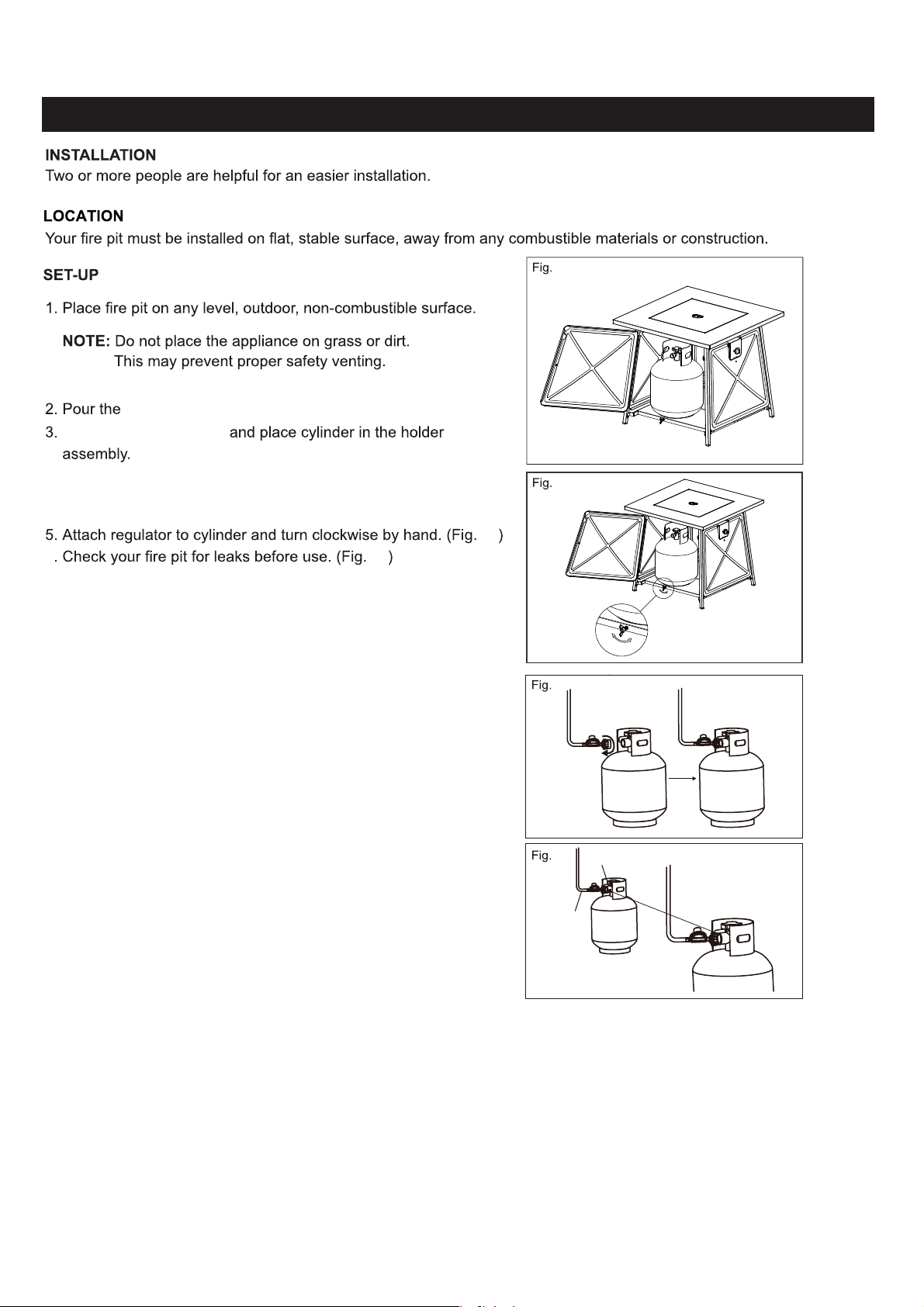

INSTALLATION INSTRUCTIONS
9
10
lava rocks onto the fire pit.
Open the door panel (I)
Make sure the valve outlet of cylinder is facing outward.
4. Turn the cylinder locking bolt clockwise to secure the gas
cylinder. (Fig. 10)
11
12
6
Your gas fire pit has been checked at all connections at the
factory for leakage.
In transportation and handling some connections may have
loosened. Follow these steps to check the hose/
regulator/cylinder connections:
1) Make leakage solution by mixing 1 part liquid dish soap and 3
parts water.
2) Spoon or brush several drops (or use squirt bottle) of the
solution onto hose/regulator/cylinder connection.
3) Turn on gas cylinder. Inspect the connections and look for
bubbles.
4) If no bubbles appear, the connection is safe.
5) If bubbles appear, there is leakage. Loosen and re-tighten this
connection. If there is still a leak, please call customer service:
1-877-888-8225.
Note:
1) The cylinder supply system must be arranged for vapor
withdrawal.
2) The cylinder used must include a collar to protect the cylinder
valve.
The hose assembly must be replaced prior to the appliance being
put into operation if there is evidence of excessive abrasion or
wear, or if the hose is damaged.
At least once a year, a complete inspection of the entire gas path
components should be performed.
If there is need to replace parts, proceed to leak test after
reassembly (These procedures should be performed by a profes-
sional technician).
11
12 P2
P1
Tighten
regulator & cylinder
connection
(Fig. 9)
15

WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
WARNING
WARNING
WARNING
FOR YOUR SAFETY:
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Lighting operations should comply
with Lighting Instruction section.
Improper lighting operations will
cause serious injury and explosion.
Before turning gas supply ON
Your
fire pit was designed and approved for OUTDOOR
USE ONLY. DO NOT use it inside a building or any other
enclosed area.
Make sure surrounding areas are free of combustible
materials, gasoline, and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
FOR YOUR SAFETY:
WARNING!!!
Do not use an open flame to check for leakage.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas
cylinder is replaced.
NOTE:
U
se only the pressure regulator supplied with this fire pit.
Replace them with those specified by the manufacturer
only.
OPERATION
If at any time you are unable to
light burner and smell gas, wait 5
minutes to allow gas to dissipate
before attempting to light gas
appliance. If after 1 minute, you
are unable to light burner, wait 5
minutes and allow flammable
vapors to dissipate before
attempting to light gas appliance.
16

ATION

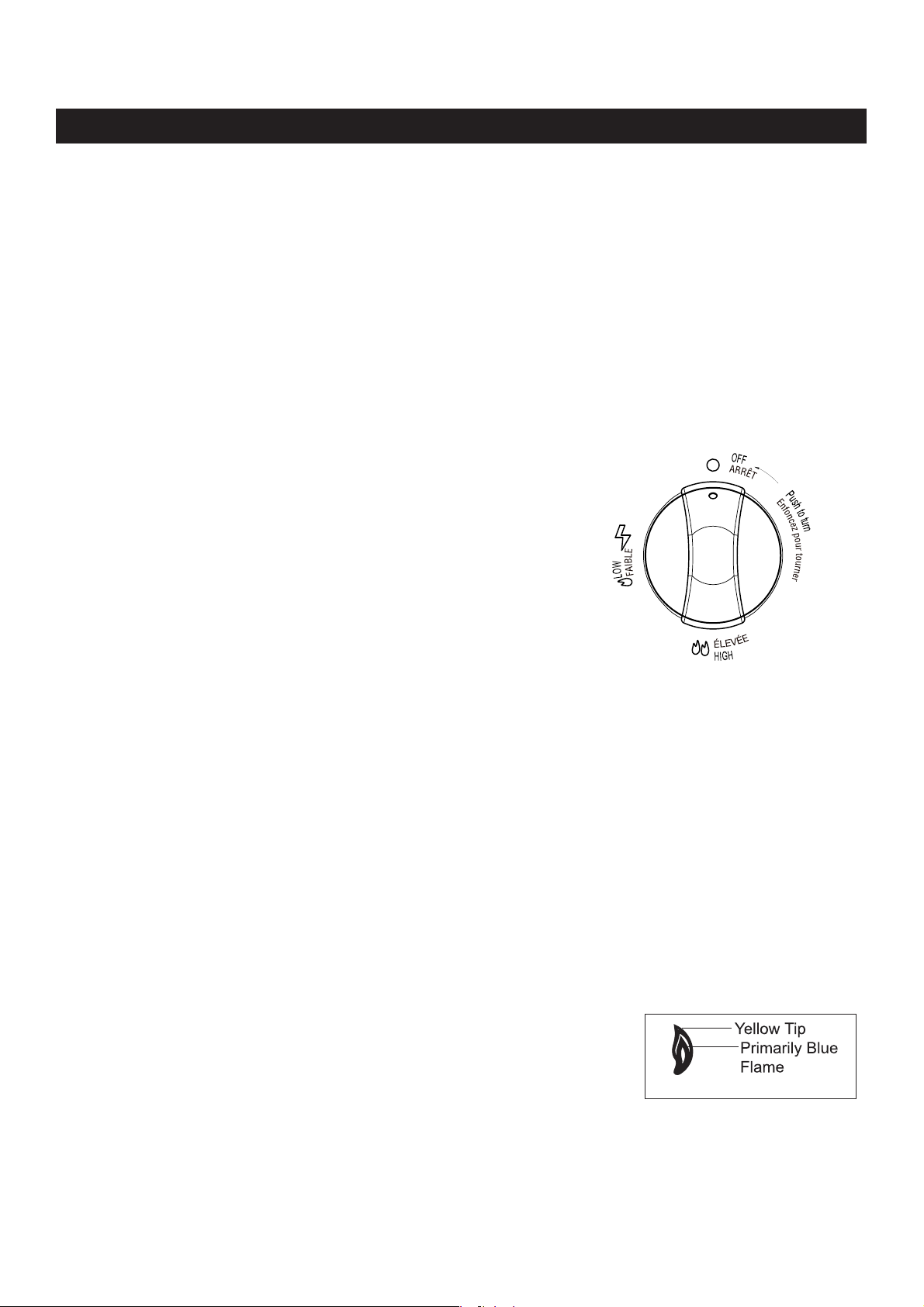

Before Lighting
The gas fire pit should be thoroughly inspected before each
use, and by a qualified service person at least annually.
If relighting a hot gas fire pit, always wait at least 5 minutes.
Lighting Instructions
1. Make sure control knob is in the “OFF” position.
2. Turn LP cylinder gas valve to fully open position.
3. Press down control knob and turn it counter clockwise
to "LOW" position, this will light the burner. (You will hear 1
clicking noise.)
4. If the burner is not lit immediately (within 5 seconds), press
down the control knob and turn clockwise to "OFF" position,
repeat from step 3 after 5 minutes.
5. When burner is lit, turn the control knob to desired heat output position between "LOW"
and "HIGH".
Flame Characteristic
Normally the burner flame is yellow.
If the burner flame is blue and very small, please check the
gas cylinder, as it may be low gas pressure or empty. If there
is enough gas in the cylinder, please contact customer service
to change the burner of the gas fire pit.
If flames lift away from burner or backfire happens, or produce
thick black smoke, the fire pit should be turned off immediately.
The fire pit should not be operated again until the unit is serviced
and/or repaired by a qualified service technician.
WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
OPERATION
17

CAUTION: AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE.
SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL
APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30
MINUTES. THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE.
NOTE:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the
“LOW” position. Then, turn the knob to the level of heat desired.
Operation pressure checked:
If the flame is very small, this is because the supply
pressure is not enough. Please refill gas cylinder.
Re-light:
.noitisop"FFO"otbonklortnocehtnruT)1
2)
3) Repeat steps beginning with step 3 of the lighting
instruction.
Shut down instructions:
1) Push in and turn control knob clockwise to "OFF"
position.
2)
2) Turn LP cylinder valve to "OFF" position.
The Event of Gas Leakage:
1) Turn the control knob to "OFF" position.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call gas supplier.
WARNING : Gas appliance will be hot after use.
Handle with extreme care.
Wait five (5) minutes before attempting to relight appliance.
Turn LP cylinder gas valve clockwise to "OFF" position
when appliance is not in use.
OPERATION
18

CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT ABOVE, BESIDE OR UNDER
THIS APPLICANCE WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND
COULD BE SERIOUSLY DAMAGED.
This gas fire pit is primarily used for the heating
of outdoor patios, decks, spas, pools and open
working areas.
Always make sure that adequate fresh air
ventilation is provided. Follow the spacing
tolerances shown in Fig. 13 at all times.
This gas fire pit must be placed on level, firm
ground.
Fig. 13
Never operate in an explosive atmosphere.
Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.
LOCATING FIRE PIT FOR USE
36”36”
58”
19

T
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Allow all burner elements to cool
before touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environment such as
near an ocean, corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
Wait until gas appliance is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
gas fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner dry at all times. If the gas control is
exposed to water in any way, do NOT try to use it. It
must be replaced.
Keep the appliance area free and clean from combustible
Check if there are cracks or worn sections on the hose. If
yes, please call our customer service to replace hose.
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Gas fire pit does NOT reach the desired temperature.
Gas fire pit glow is excessively uneven.
Gas fire pit makes popping noises.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage gas fire pit and render
it unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
MAINTENANCE AND STORAGE
20
This manual suits for next models
2
Table of contents
Languages:
Other Style selections Outdoor Fireplace manuals
Popular Outdoor Fireplace manuals by other brands

Jensen
Jensen 300LP owner's manual

Outdoor GreatRoom Company
Outdoor GreatRoom Company Denali DENBR-1242 installation instructions

Seaside Casual
Seaside Casual AURA Fire Table Assembly instructions

Outdoor GreatRoom Company
Outdoor GreatRoom Company NAPA-VALLEY-1224-K installation instructions

Sunjoy
Sunjoy L-FT039PSS-A Assembly instructions

hillvert
hillvert HI-FIP-003 user manual
