INSTRUCTION MANUAL
42 Inch Gas Fire Pit AF005
842-146 EN C000000
封面封底

We thank you sincerely for your purchase!
After unpacking and before every use, check whether the item
shows any damages. In addition, check that you have all parts
and hardware assembly. If there is any damage to the unit or if
parts are missing, please your provider us ASAP.
Please read all instructions before using the gas fire unit. This
furniture is intended for outdoor use. Please use the item only
as directed in this operating manual and be mindful of the
inherent risks of open flames. We accept no liability for damages
caused by improper use.
INTRODUCTION
反面
The manufacturer warranty will be voided by, and manufacturer disclaims any
responsibility for, the following actions:
· Modification of the unit and/or components including the gas valve assembly.
· Use of any component part not manufactured or approved by the manufacturer.
· Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.
12
US
001-877-644-9366
[email protected]

14
11
Problem Cause Solution
Igniter pin and burner are wet
Igniter battery is
incorrectly inserted
Igniter pin is broken
Electrode wire is loose
or disconnected
Electrode wire is
shorting between
valve and igniter pin
Dry off with a soft cloth
Check which direction the battery is
inserted
Contact Bond Manufacturing for a
replacement part
Reconnect wire to the igniter box located
inside the table behind the igniter box
Contact Bond Manufacturing for a re-
placement part
No gas ow Check that the gas tank isn’t empty
Regulator isn’t connected
securely to the tank
Tighten regulator connection to the
gas tank
Gas ow is obstructed Check all hoses for kinks and bends
Burner ports are clogged
Turn all gas ow connections off.
Insert an opened paperclip (or similar
item) into each of the burner ports to
clear them out.
Flame is obstructed at
burner ports
Check that all burner ports are free of any
small lava rocks/pumice stones pieces
Regulator hose is kinked Straighten hose of all bends or kinks
No gas ow Check that the gas tank isn’t empty
Excess ow safety valve
has been activated
Turn the control knob to the ‘off’ posi-
tion. Close the tank valve and disconnect
propane gas tank. Turn the control knob
to ‘high’; wait 1 minute. Turn the control
knob back to the ‘off’ position. Recon-
nect propane gas tank. Light the re unit
as indicated in the ‘To Light’ section of
this manual.
High or gusting winds Increase ame to ‘high’
No gas ow Check that the gas tank isn’t empty
Excess ow safety valve
has been activated See ‘sudden drop in gas ow’ above
Heating unit
won’t light
Burner won’t
light while using
a match
Heating unit
emits a lot of
black smoke
Sudden drop
in gas ow
Flame blows
out easily
1
5
6
9
9
10
11
12
Warning
Parts
Assembly Instructions
Light
Extinguish
Maintenance
Common Problems & Solutions
Customer Service
CONTENTS
-------------------------------------------
-------------------------------------------------
-----------------------------------------------
----------------------------------------
-------------------------------------
-------------------------
------------
-------------------------------
COMMON PROBLEMS & SOLUTIONS

2 3
01 10
30 INCH GAS FIRE PIT AF001
842-146

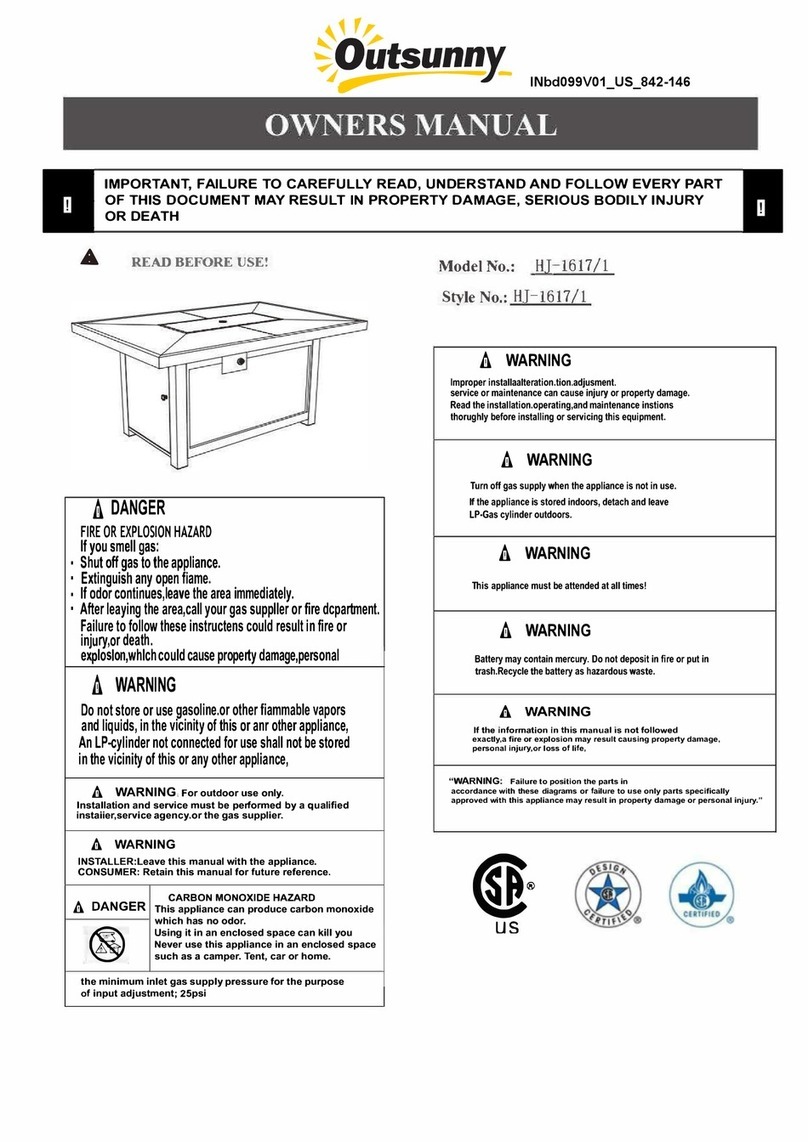

DANGER
WARNING
WARNING
WARNING
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read the owner’s manual thoroughly before installing or servicing this
equipment. If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
Save these instructions for future use. If you are
assembling this unit for someone else, give this
manual to him or her and read and save for the
future.
For outdoor use only.
Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so may result in a fire, explosion, injury
or death.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
MAINTENANCE
· Before performing any maintenance always disconnect propane gas tank.
· Visually inspect burner for obstructions and keep tank enclosure free and
clear from debris.
· Use a soft brush to get rid of the mild stains, loose dirt and soil after the
burner and pumice stones/ lava rocks are completely cooled
down. Wipe down with a soft cloth.
· Harsh weather conditions may cause stubborn stains, discoloration and
possibly rust pitting.
· Permanent damage may occur if powder or solvent comes in contact with
painted or plastic components on this heating unit.
· Keep the heating unit stored away from direct sunlight.
· If storing this unit inside, disconnect the propane gas tank from the gas
valve.
· Always place lid (if applicable) or protective cover on heating item when
not in use.

· The installation of this unit must adhere to local codes or either the National
Fuel Gas Code, ANSI Z223. 1/NFPA54, OR CAN/CGA-B149.1, National
Gas and Propane Installation Code.
· THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY!
· This unit is to be used with propane gas only! (sold separately)
· When igniting this unit, stay away from the burner.
· Do not use any more than 1/4in depth lava rocks/pumice stones above the
burner holes. Doing so will suffocate the flame.
· The max. inlet supply pressure: max. Gas supply 11 in w.c. (2.74kPa)
· LP propane tank: diameter 12 in, height
18 in - capacity 20 lbs.
· Must use a propane tank that has a collar to protect the gas valve.
· DO NOT fill tank over 80 percent full.
· The tank system must be set up for vapor withdrawal.
· Always ensure that lava rocks/pumice stones are completely
dry before use. Otherwise will cause them to crack or pop.
· This unit is not intended for cooking.
· If the flame goes out while burning, turn the gas valve off. Wait 5 minutes
before repeating the initial lighting procedure. Once you have a flame started,
hold down the control knob for 1 minute.
LIGHT
1. Make sure the control knob (N) is in the “off” position.
2. Open the door (C) and slowly open the valve on the propane gas tank by
turning the knob counterclockwise.
3. Close the door (C) on the body.
4. Push and hold in the electronic ignitor to create sparks within the electrode,
continue to hold.
5. Push in the control knob (N) and turn to the “high” position. Keep holding
down the control knob (N) to allow gas to flow for 15 seconds.
6. If ignition doesn’t occur within a few seconds release the control knob (N)
and rotate to the “OFF” position. Wait for 5 minutes for gas to clear and then
repeat the above lighting instructions.
7. Once the fire product is lit, the fame intensity may be controlled by turning
the control knob (N) between the “low” and “high” positions.
EXTINGUISH
1. Turn control knob (N) clockwise to the “high” position; let the knob
pop
up and continue turning the control knob (N) to the “off” position.
2. Close the cylinder valve on the propane gas tank if you don’t intend to use
it for a long time.
WARNING
09 02

9. Remove the rubber cap on the
electronic ignitor(R) by unscrewing
and slide battery (M) into the battery
slot. Make sure the positive side of
the battery faces outwards. Screw
the electronic ignitor cap (R) over
the battery tightly.
10. Pour the box of lava rocks (J)
into the fire bowl (P).
To ensure proper function, the screen
(O) on this burner (Q) should be free
of lava rocks at all times.
WARNING
M
R
O
J
· Do not operate unit if any part has been under water.
· Check for leaks after not using the unit for long periods of time. If occur,
turn the gas valve off, disconnect propane gas tank and do not use the appliance
until the leak is repaired.
· Children should never operate this unit. Children must be supervised while
near this unit.
· The maximum gas supply pressure is 250psi.
· The gas supply tank should be constructed and marked with the
specifications for the LP gas tanks of the U.S. Department of Transportation
or the National Standard of Canada CAN/CSA-B339, LP gas tanks, spheres
and tubes for Transportation of Dangerous Goods; and Commission.
· The LP gas tank must have a listed overfilling prevention device and a QCCI or
Type I, (CGA810) LP gas tank connection.
· Clothing or other flammable materials should not be placed on or near
the appliance.
· Installation and repair should be done by a qualified service person.
· The appliance should be inspected before use and at least annually by a
qualified service person.
· It is imperative that the control compartment, burners and circulating airways
of the appliance are kept clean.
03 08

8. Turn the cylinder valve on the tank
clockwise to close the propane tank.
Attach the preassembled regulator
from the table top (B) to the cylinder
valve by turning the regulator coupling
nut clockwise. Make sure it is fastened
securely and tighten connections by hand
only.
CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULATOR
turn clockwise to connect
turn clockwise
to reseal
Door Knob 1pc Washer 1pc
M4 x 8 Screw 1pc
C
5. Insert the door (C) to right front leg
and attach door knob to the door
using M4 screw and washer.
6. Attach hose of regulator tightly to
the bracket.
7. Place propane gas tank (not included)
into the metal stand. Make sure the gas
tank sits on the metal stand completely.
Turn the preassembled wing screw on
the outer part of metal stand clockwise
to secure the propane gas tank tightly.
Min. Clearance
48 in (121.9cm)
Min. Clearance
48 in (121.9cm)
Min. Clearance
48 in (121.9cm)
Min. Clearance
48 in (121.9cm)
Combustible materials should not be
within 72inches of the top of the unit,
or within 48 inches around the entire
unit.
IF APPLICABLE:
· Allow heating item to cool completely before placing on lid.
· DO NOT use heating item while lid is installed. Always remove the lid while
heating item is in use.
Only use the regulator and hose assembly provided with this unit. Replacement
parts must be supplied directly by NUU GARDEN Corp.
Inspect the burner before use of this unit. If the burner shows any kind of damage,
do not operate the appliance.
NOTE: You must follow all steps to properly assemble this heating
item. Make sure the gas valve is turned “OFF” before assembling.
Do NOT attempt to assemble without proper tools.
07 04

A
B
C
D
E
F
G
H
I
K
L
M
J
O
P
Q
N
R
Item Description Qty
1
1
1
1
2
2
1
1
1
1 box
1
1 Package
1
1
1
1
1
Lid
Table Top
Door
Front Panel
Side Panel
Left Leg
Right Front Leg
Right Back Leg
Metal Stand
Lava Rocks
PVC Cover
Hardware Package
Battery(AAA)
Control Knob (preassembled)
Guard (preassembled)
Fire bowl (preassembled)
Burner (preassembled)
Electronic Igniter (preassembled) 1
GH
F
M6x10 4pcs
I
1. Check that the control knob (N) for the
gas supply system is turned to the
“OFF” position before starting any
2. Attach right front leg (G), right back leg (H)
and 2pcs left legs (F) to the metal stand (I)
using 4pcs M6x10 screws.
3. Attach 2pcs side panels (E) and front
panel (D)to the legs using 12pcs M6x10
screws and 12pcs M6 nuts.
4. Attach steel base to the bottom part of the
table top (B) using 8pcs M6x10 screws.
PARTS ASSEMBLY INSTRUCTIONS
05 06
D
E
E
M6x10 12pcs M6 Nut 12pcs
N
M6x10 8pcs
B
A
B
C
D
I
L
M
E
F
G
H
J
K
QPO
NR
