MOTOR CM-08

.1
.2
.3
Check rotational direction
2
WARNING: risk of damage. Stop the blind before reaching the end positions.
.1
.2
Up
Down

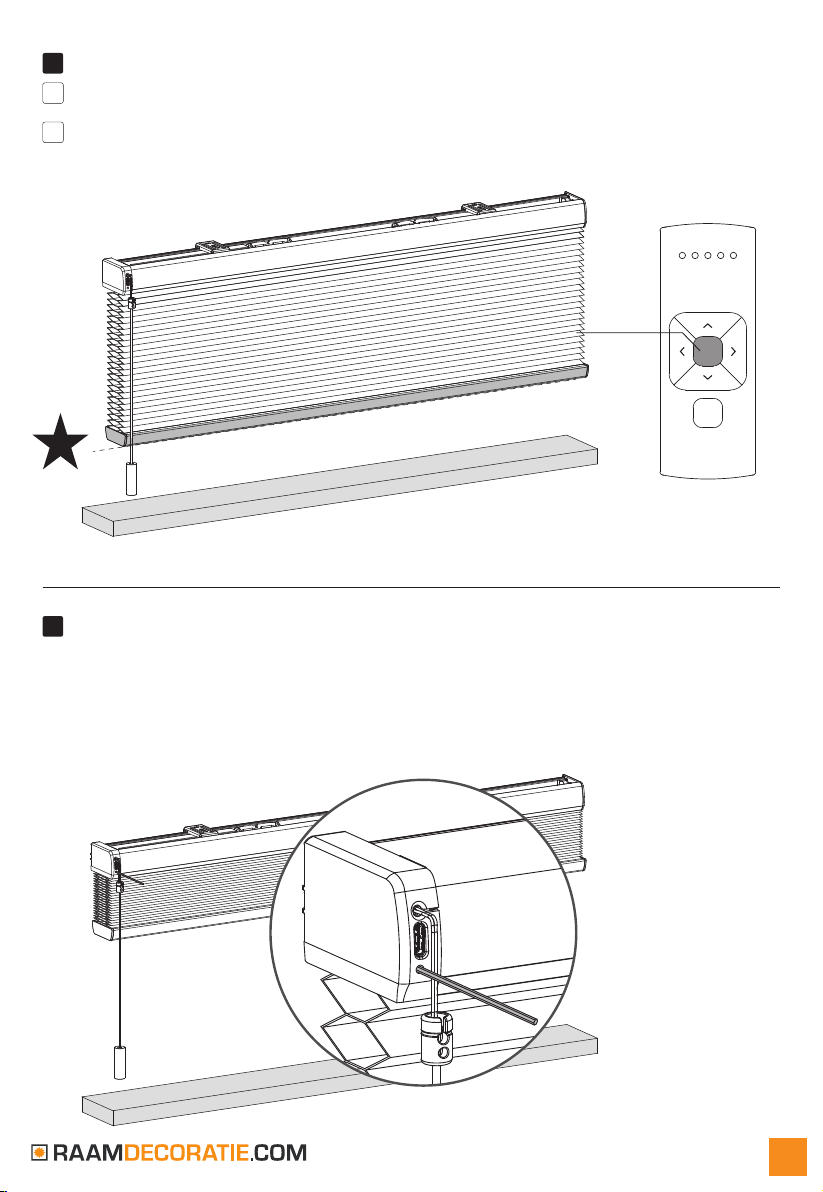

Pair a remote control
1
Any MOTION Blinds remote can be connected to your blind.
Select a channel on the remote and press the program button on the motor to activate program mode.
The blind will start stepping up and down.
Press the pair button on the back of the remote control to pair the blind with the selected channel.The
blind will shortly stop stepping, indicating that the remote has been paired to the blind.
Shortly press the program button to deactivate program mode. The blind stops stepping and can be
operated.
Shortly press the down button to check if the blind unrolls the right way. If the blind moves up, the
rotational direction must be changed.
Simultaneously press the up and down button to change the rotational direction.
Pair
button
Pair
button
CM-11
CM-12
CM-13 CM-15
Pair
button
CM-17
2/9
© Copyright

Up
Centre
Save bottom position
3
4
Simultaneously hold the centre and the up button until the blind stops
stepping and starts stepping again.
The bottom position has been saved.

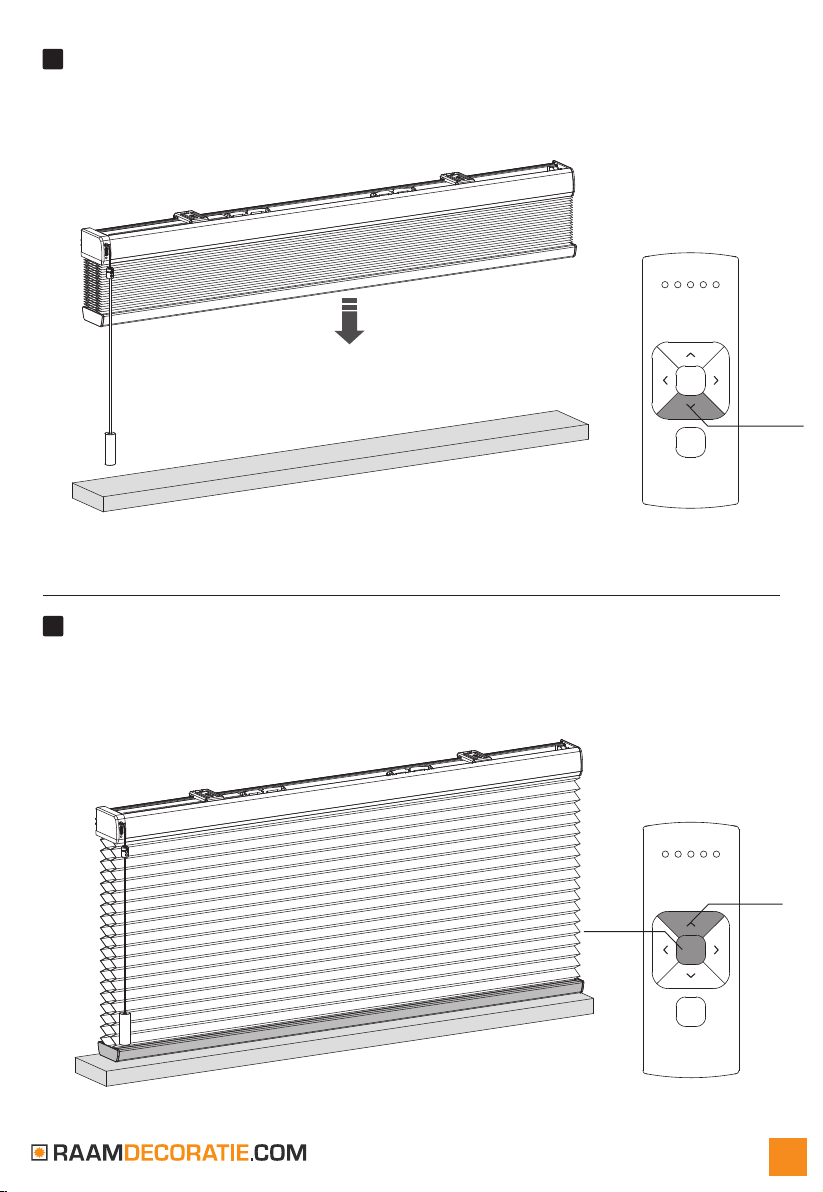

Set bottom position
Press and hold the down button until the blind reaches the desired
bottom position. WARNING: risk of damage.
Slowly approach the bottom position.
Down
3/9
© Copyright

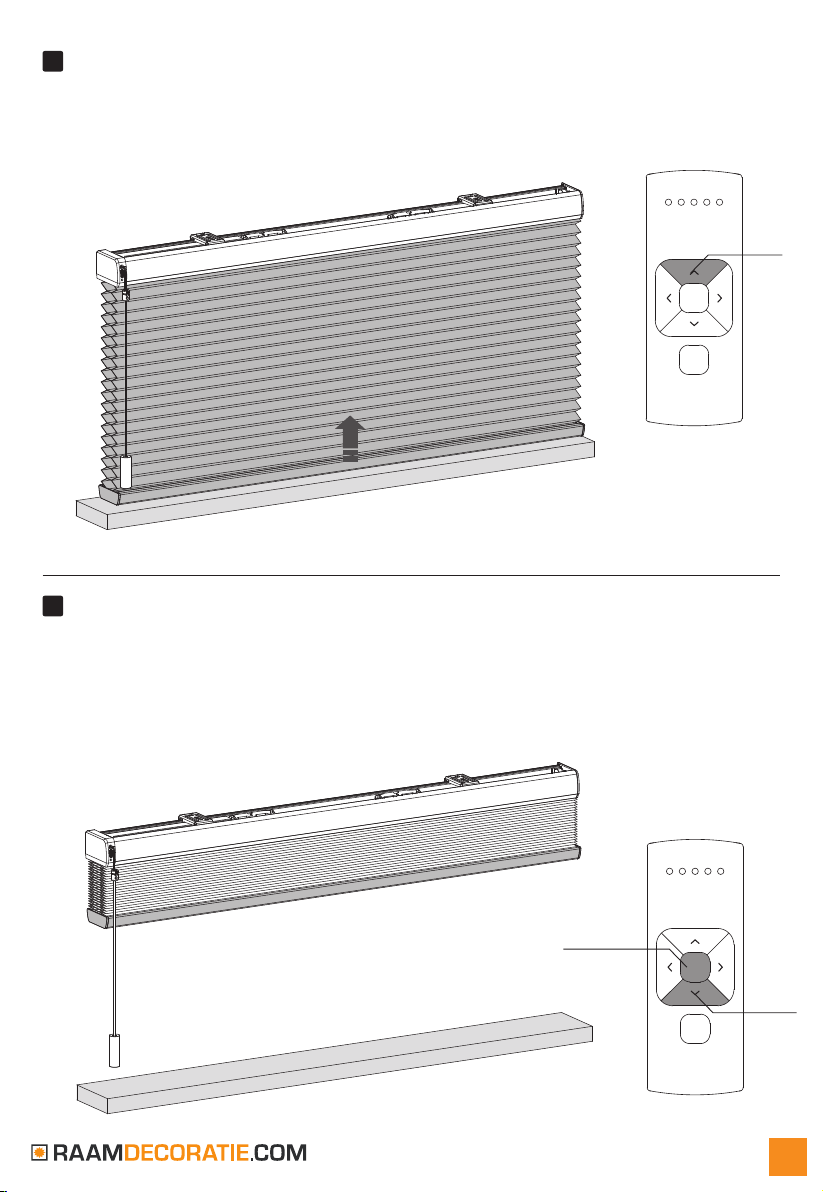

Up
Save top position
6
Down
Centre
Set top position
5
Press and hold the up button until the blind reaches the desired bottom position.
WARNING: risk of damage.
Slowly approach the top position.
Simultaneously hold the centre and the down button until the blind stops stepping and starts
stepping again.
The top position has been saved.
4/9
© Copyright

Set favorite position (optional)
7
.1
.2
Centre
Deactivate program mode
8
Shortly press the program button to deactivate program mode. The blind stops stepping and
can be operated.
Move the blind to a desired favourite position.
Hold the centre button to save this Favourite position. The blind shortly stops stepping indicating the
favourite position has been saved.
5/9
© Copyright

Deactivate direct control for remote control
When pressing the up or down button on the remote control, the blind directly moves to
its end positions (direct control). To operate the blind with smaller steps using the up and
down button, direct control can be deactivated. Now, the blind only directly moves to its end
positions when the up or down button is held longer than two seconds.
.1
.2
Press the program button on the motor to activate program mode. The blind starts stepping.
Hold the program button until the blind stops stepping (approximately 5 seconds) to deactivate or
reactivate direct control.
5 s
6/9
© Copyright

.1
.2
.3
Pair the bottom rail motor to an empty channel on the remote. (see step 1)
Check the direction of rotation of the bottom rail (see step 2) and move the bottom rail to the desired
top position. Simultaneously hold the centre and the down button on the remote until the blind stops
stepping and starts stepping again. The top position has been saved
Move the bottom rail to the desired bottom position. Program the bottom position of the bottom bar.
Simultaneously hold the centre and the up button on the remote until the blind stops stepping and
starts stepping again. The bottom position has been saved
Up
Centre
Down
Centre

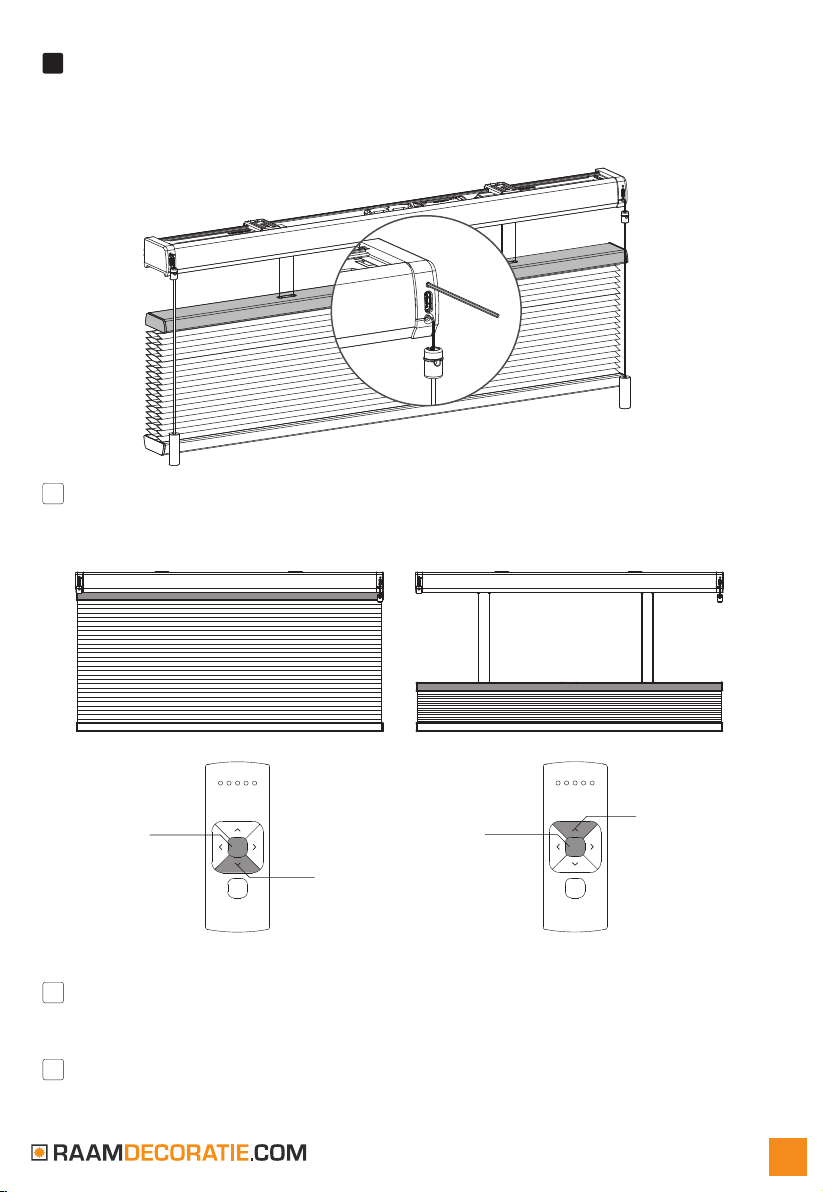

Top-down/bottom-up (bottom rail)
1
Top-down/bottom-up blinds are powered by two motors: one for the bottom rail and one for
the middle rail. The motors need to be programmed individually: rst
the bottom rail motor and then the middle rail motor.
7/9
© Copyright

Top-down/bottom-up (middle rail)
2
.2
.3
.1
Check the direction of rotation of the middle rail (see step 2) and move the bottom rail to the desired
top position. Simultaneously hold the centre and the down button on the remote until the blind stops
stepping and starts stepping again. The top position has been saved
Move the middle rail to the desired bottom position. Program the bottom position of the bottom bar.
Simultaneously hold the centre and the up button on the remote until the blind stops stepping and
starts stepping again. The bottom position has been saved
Pair the middle rail motor to an empty channel on the remote. (see step 1)
Up
Centre
Down
Centre
8/9
© Copyright

.1
+
2x
Activate / deactivate the motor (Transport mode)
Hold the program button and pull twice to activate or deactivate the motor.
To prevent the blind from getting damaged, the motor has a transport mode that
makes sure the blind will not be activated before installation.
Problem Cause Solution
Blind does notwork.
Motor is in transport mode. Activate the motor. See page 2/22.
Motor battery is empty. Charge the motor. See page 10.
Remote battery is empty.(LEDS of remote are
ashing rapidly.)
Replace the battery in the remote.
See the manual of the remote.
Remote battery is inserted incorrectly.Replace the battery in the remote.
See the manual of the remote.
Radio-frequency interference Make sure thatthe antenna of the motor is out of
the way of metal objects.
The distance from the phone/bridge/remote to
the motor is too far.
Move closer to the motor.
The remote is not connected to
the blind.
Pair the remote with the motor.
See page 9.
Motor LED ashes red.The battery of the motor is empty. Charge the motor. See page 10.
Blind is not charging.Charger is not plugged in or does not work. Try a dierent charger or make sure the charger is
plugged in the outlet.
Multiple blinds respond to a
remote.(Unable to program a
single blind)
Multiple blinds are paired with a single channel.Pair the blind with a free channel to program or use
single select to program the blind.
Blind moves in small steps. 1) No endlimits are programmed.
2) Direct control is deactivated.
1) Programend limits. See page 7, 15-16.
2) Activate direct control. See page 18.
Favourite position can not
be programmed.
No endlimits are programmed. Programend limits.
See page 7,14-15, 23-24.
Blind lowers too far.End limits are programmed incorrectly. Reprogramend limits. See step 7, 15-16.
Blind moves in the opposite
direction.
The rotational direction has been
set incorrectly.
Change the rotational direction.
See page 14.
The blind keeps moving up
and down. The blind is in program mode. Press the program button onthe motor to exit program mode.
The blind rmware will not
update to the latest version. The blinds bluetooth connection is not stable.
1) Close the appand reconnect with your motor.
2) De-activate the motorandre-activate the motor
and try to update again. See page 22
9/9
