MANUAL CM-34-120
Smart switch wired motor
English

Conforms to
UL Std. 325
Certified to
CSA Std. C22.2#247
Smart switch wired motor CM-34
is intended to be mounted into a
standard in-wall console, behind power
sockets and light switches in order to
control wired motors. For the latest information and updated manuals, visit rtube.nl/cm-34
Motor features
Bi-directional
Two-way
communication for
real-time response
AC Motor
Alternating
current motor
230V
Powered by 230V
mains electricity
Control options Support
Remote Control
Operate with a
remote controls
App Control
Operate with the
MOTION app
Connectivity
Compatible with
home and building
automation
Video
How to install,
program and operate
rtube.nl/red1441
2

Conforms to
UL Std. 325
Certified to
CSA Std. C22.2#247
Safety
WARNING: Important safety instructions. Follow all instructions,
since incorrect installation can lead to severe injury.
Do not let children play with the blind and/or remote control.
Take care that the blind can move freely and is not blocked by any
objects.
Do not paint the device.
Keep the device dry.
Do not drop, knock, or shake the device. Rough handling can break
internal circuit boards.
Service & Support
Do not perform repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding the
limited warranty. No user-serviceable parts are inside.
Warranty Service
First follow the advice in this manual. If the product appears to be
damaged or does not function properly, go to your local dealer for
instructions on how to obtain warranty service.
Recycle
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return
and collec-tion systems or contact the retailer where the product
was purchased. They can take this product for environmental safe
recycling.
3

EU Declaration
Hereby, Coulisse declares that the radio equipment type CM34 is in
compliance whith directive 2014/53/EU. The full text of the EU dec-
laration of conformity is available at the following internet address:
www.my.coulisse.com
4

FCC Manual I FCC ID: ZY4CM34
Regulatory Information
1 FCC Information for User
This product does not contain any user-serviceable components
and is to be used with approved antennas only. Any product
changes or modifications will invalidate all applicable regulatory
certifications and approvals.
2 FCC Electronic Emission Notices
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation.
3 FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses
and can radiate radio-frequency energy and, if not installed and
5

used in accordance with the instructions, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area may cause
harmful interference, in which case the user will be required to
correct the interference at their own expense. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna
Increase the distance separating the equipment and receiver
Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
6
To satisfy FCC RF exposure requirements, a separation
distance of 20 cm or more should be maintained between
the antenna of this device and persons during device
operation.To ensure compliance, operations at closer
than this distance is not recommended.

7

CAUTION! Danger of electrocution. The mounting/installation of the smart switch should be done by a
qualified person (electrician).
CAUTION! Danger of electrocution. Even when the smart switch is turned off, it is possible there is voltage
across its clamps. Every change in the connection of the clamps has to be done after ensuring all local
power is powered off/disconnected.
CAUTION! Do not connect the Device to appliances exceeding the given max load!
CAUTION! Connect the Device only in the way shown in these instructions. Any other method
could cause damage and/or injury.
CAUTION! Before beginning the installation please read the accompanying documentation carefully
and completely. Failure to follow recommended procedures could lead to malfunction, danger to your life or
violation of the law.
CAUTION! Use the Device only with power grid and appliances which comply with all applicable regulations.
short circuit in the power grid or any appliance connected to the Device may damage the Device.
CAUTION! Do not wire two or more motors to the smart switch.
Live line for external switch
8

49mm
45mm
24mm
L L N N S1 S2
49mm
45mm
24mm
L L N N S1 S2
Input live line
Live line for external switch
Input neutral line
Motor neutral line
Down line of external switch
Up line of external switch
Motor down line
Motor up line
Program button LED
9

L
L
L N N S1 S2
L
N
M
120 V
60 Hz
Max. 10mm
1
Mains Cable
CM-09/CM-10
230V
Neutral Blue
Direction 1 Brown
Direction 2 Black
Ground Green
L = Input live line
L = Live line for external switch
N = Input neutral line
N = Motor neutral line
↑= Motor up line
↓= Motor down line
S1 = Up line of external switch
S2 = Down line of external switch
Maximum motor output power : 200W
Before installing the smart switch ensure that the grid is turned off (turned
down breakers). Connect the smart switch with the power grid according the
schedule below. (The cables can be inserted without pressing the buttons.)
Install the smart switch
10

2
2.1
2.2
Shortly press the program button on the smart switch. The blind will start
stepping and the LED on the smart switch will start blinking, indicating that
program mode has been activated.(The blind remains stepping until the program
mode is de-activated.)
Repeat steps 2.1 - 2.2 to remove a blind from a channel.
Press the pair button on the back of the remote control to pair the blind to the
selected channel.The blind will shortly stop stepping indicating that the remote
has been paired to the blind.
Pair a remote For the following steps the power grid shoud be turned on. It is recommended to
first program the end limits of your wired motor before programming the smart
switch. Please see the manual of your motor how to program the end limits.
(Max. 10 remotes can be paired to the switch.)
Pair
button
Before installing the smart switch ensure that the grid is turned off (turned
down breakers). Connect the smart switch with the power grid according the
schedule below. (The cables can be inserted without pressing the buttons.)
11

3
3.1
3.2
3.3
Check direction of rotation The direction of rotation can be changed in two ways: by
remote or by changing the wiring (option 2).
Up
Down
Option 1
Shortly press the program button on the smart switch. The blind will start stepping and the LED on the
smart switch will start blinking, indicating that program mode has been activated.(The blind remains
stepping until the program mode is de-activated.)
Shortly press the down button to check if the blind unrolls the right way. If the blind moves up, the
rotational direction must be changed.
Simultaneously press the up and down button to change the rotational direction.
12

4
4.1
4.2
Remove the motor up line and the motor
down line by press and holding the button
above the electronic terminal and gently
pull the motor cable out of the terminal.
Interchange the motor up line and the
motor down line and the blind direction
will be changed.
Please make sure the grid is turned off when changing the
cables (down breakers need to be turned off).
Check direction of rotation
Option 2
13

5
5.1
5.2
Change favorite position: To change your favorite position move the blind to a new desired
favourite position. Press the program button on the smart switch to activate program
mode. The blind start stepping. Repeat step 5.2 and afterwards turn off program mode by
pressing the program button.

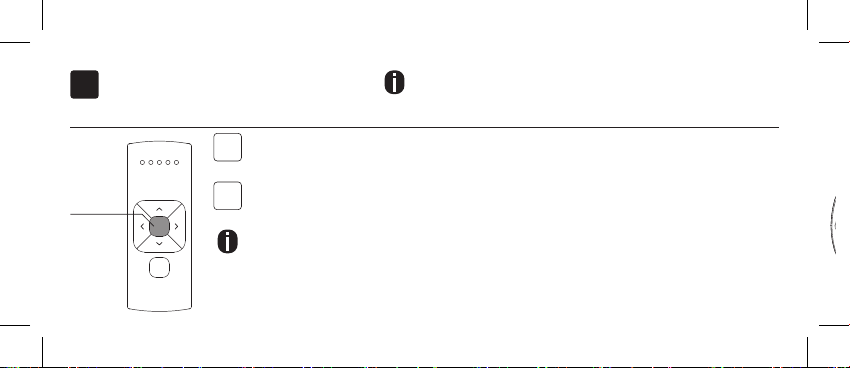

Move the blind to a desired favourite position.
Hold the center button to save this favourite position. The blind shortly stops stepping
indicating the favourite position has been saved.
Center
Before programming a favorite position, the blind needs to be moved
from its top position to its bottom position twice. This is necessary to
save the favorite position. Do not stop the blind during this process.
Set favourite position
14
(optional)

6
6.1
6.2
Before programming a favorite position, the blind needs to be moved
from its top position to its bottom position twice. This is necessary to
save the favorite position. Do not stop the blind during this process.
Shortly press the program button on the smart switch. The blind will start stepping and
the LED on the smart switch will start blinking, indicating that program mode has been
activated.
Hold the program button until the blind stops stepping (approximately 5 seconds) to
de-activate or re-activate direct control.
When pressing the up or down button on the remote control the blind directly moves to
its end positions (direct control). To operate the blind with smaller steps using the up and
down button, direct control can be de-activated. Now, the blind only directly moves to its end
positons when the up or down button is held longer than two seconds.
De-activate
direct control
15

7
Remote control: Choose the channel to which the blind has been paired using the channel
button. Press the up or down button to operate the blind. Press the center button to stop
the blind. Hold the center button to move the blind to the favourite position.
Up
Down
Center
Channel
Selection
Operate the blind
Option 1
16

7Operate the blind
Option 2
Down Up
Switch control: Turn the external switch to the up or down
position to operate the blind.
17

7
7.1 Shortly press the program button on the smart switch. The blind will start stepping and the LED on the
smart switch will start blinking, indicating that program mode has been activated.(The blind remains
stepping until the program mode is de-activated.)
It is possible to only delete end limits or to do a factory reset.Factory reset will delete
the end limits and remove the connection to any paired remote.
Delete end limits: To delete the end limits of the blind hold the program button until the blind stops
stepping for the first time, keep holding the button until the blind stops stepping for the second time.
(approximately 10 seconds)
Factory reset: To reset the blind to factory defaults hold the button for at least 20 seconds.The blind
will stop stepping twice. After the second stop the blind will give one extra step to confirm factory
reset.
Reset the blind
18

Shortly press the program button on the smart switch. The blind will start stepping and the LED on the
smart switch will start blinking, indicating that program mode has been activated.(The blind remains
stepping until the program mode is de-activated.)
Problem Cause Solution
Switch is not responding
Power supply is not connected. Connect the wiring according to step 1.
Remote battery is empty. Replace the battery in the remote.
Remote battery is inserted incorrectly. Replace the battery in the remote.
Radio interference / shielding. Make sure that the antenna of the switch is out
of the way from metal objects.
The distance from the remote to the switch is too far. Move closer to the smart switch.
The remote is not connected to the switch. Pair the remote to the smart switch. See step 2.
Frequently Asked Questions
Delete end limits: To delete the end limits of the blind hold the program button until the blind stops
stepping for the first time, keep holding the button until the blind stops stepping for the second time.
(approximately 10 seconds)
Factory reset: To reset the blind to factory defaults hold the button for at least 20 seconds.The blind
will stop stepping twice. After the second stop the blind will give one extra step to confirm factory
reset.
19

Frequently Asked Questions
20
Motor moves in small
steps.
Direct control is de-activated. Activate direct control. See step 6.
Favorite position can not
be programmed.
No end limits are programmed. First let the smart switch calculate the end limits.
See step 5.
The blind keeps moving
up and down.
The blind is in program mode. Press the program button on the smart switch to
de-activate program mode.
This manual suits for next models
1
Table of contents
Languages:
Popular Switch manuals by other brands

Extron electronics
Extron electronics SW4 12G HD-SDI Setup guide

Girard Systems
Girard Systems 98GC661B Installation

Alcatel
Alcatel OmniStack 6300-24 Getting started guide

D-Link
D-Link DMS-3130 Series Hardware installation guide

Phoenix Contact
Phoenix Contact FL SWITCH SMCS 14TX/2FX Installation notes for electricians

Orro
Orro Simple Multiway installation guide
