MOTO GUZZI V1000 I-Convert User manual

I I I
I ~ ,' CONVERT

This motorcycle has been designed and all · components selec ted by I/Ie manufacturer
to form a
balanced, safe and mechanically cohesive motor vehicle. Any alteration to
the frame, fork,
other mechanical components 01" the use 6f unauthorized parts may
alter the geometry, stefJring and handling qualities of the veh icle . Elfery owner of this
motorcycle is cautioned against making these prohibited chang es. or alter a tions which
may result in damage or injury for whic}1 neither the Manufactu rer , tmport er or Dealer
will be responsible .
Code 18900020 • 5· 77 - 500 -Printed in Italy -Mariani -Alma-Bergamo

Dear rider,
First
of all we wish to thank you for choosing this motorcycle of aur
production.
By following all instructions outlined in this manual you will ensure your
bike a long and troublefree life.
Before riding, please read thoroughly this manual in order to know your
motorcycle's features and how to operate it safely.
All major checking and overhauling jobs are ber:;t carried out by our
dealers who have the necessary facilities to quickly and competently
repair your Moto Guzzi.
Repairs or adjustments made by others than Guzzi dealers during the
warranty
period could invalidate the warranty right.

INDEX
5 Main features
12 Controls and accessor ies
14 I dent ific ation data
14 Spare parts
14 Warranty
15 Instruments and controls
22 Riding instructions
25 Running in
26 Maintenance and adjustments
33 Removal of wheels
36 Lubrication and maintenance
38 Lubrication
43 Carburetion
46 V'alve ge i aring
47 Ignition
50 Electrical equipment
54 Changes for U.S. A. Police model "LAPD"
56 Maintenance and adjustments
Wiring diagram (Europe model)
Wiring diagram (U.S.A. model)
Wiring diagram (LAPD)

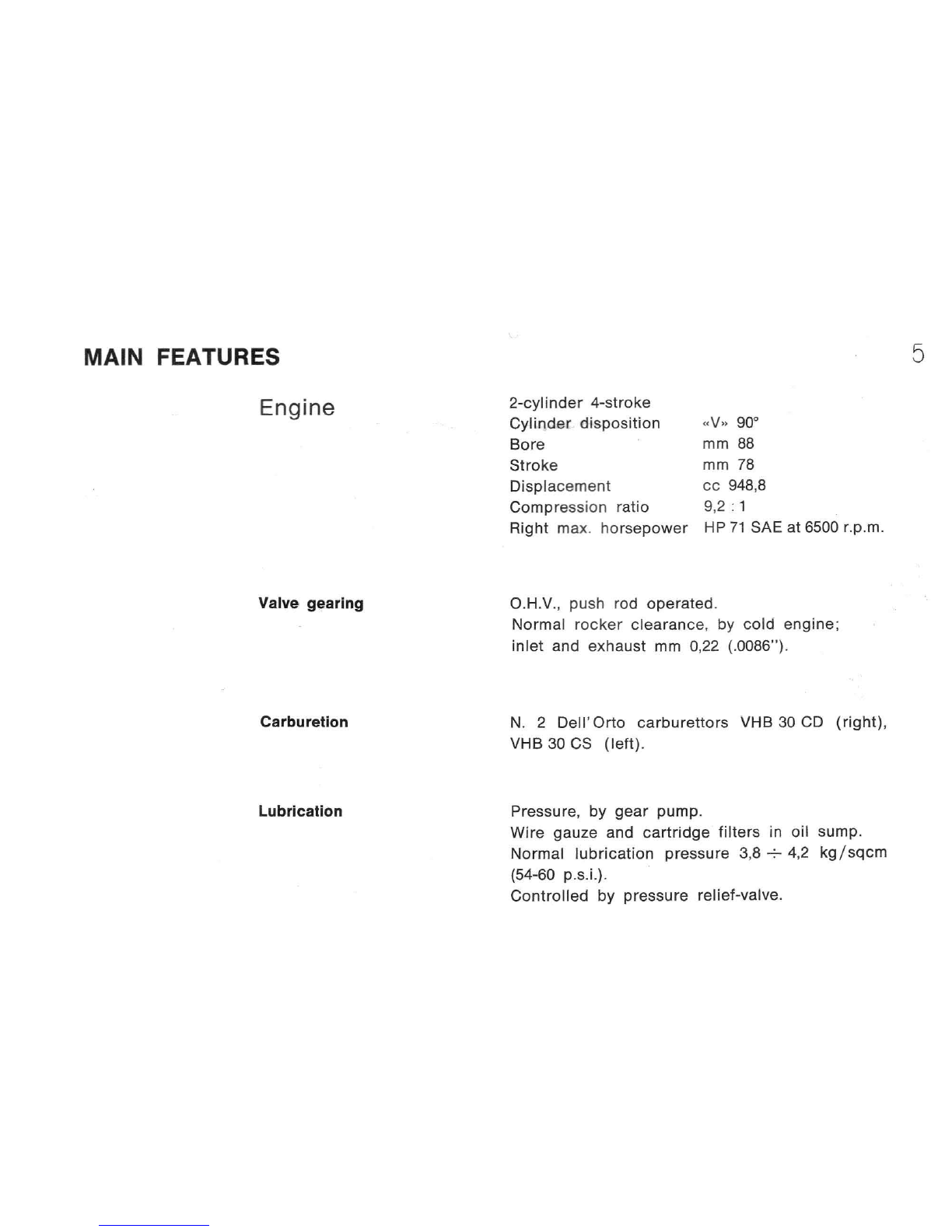

MAIN FEATURES
Engine
Valve gearing
Carburetion
Lubrication
2-cylinder 4-stroke
Cylinder disposition «V" 90°
Bore mm 88
Stroke mm 78
Displacement
cc 948,8
Compression ratio 9,2 : 1
Right max.
horsepower HP 71 SAE at 6500 r.p. m.
O.H.V ., push rod operated.
Normal
rocker clearance , by cold engine;
inlet and exhaust mm 0,22 (.0086").
N. 2 Dell' Orto carburettors VHB 30 CD (right),
VHB 30 CS (left) .
Pressure, by gear pump.
Wire gauze and
cartridge filters in oil sump.
Normal
lubrication pressure 3,8 -7- 4,2 kg/sqcm
(54-60 p.s.i.).
Controlled by pressure relief-valve.
5

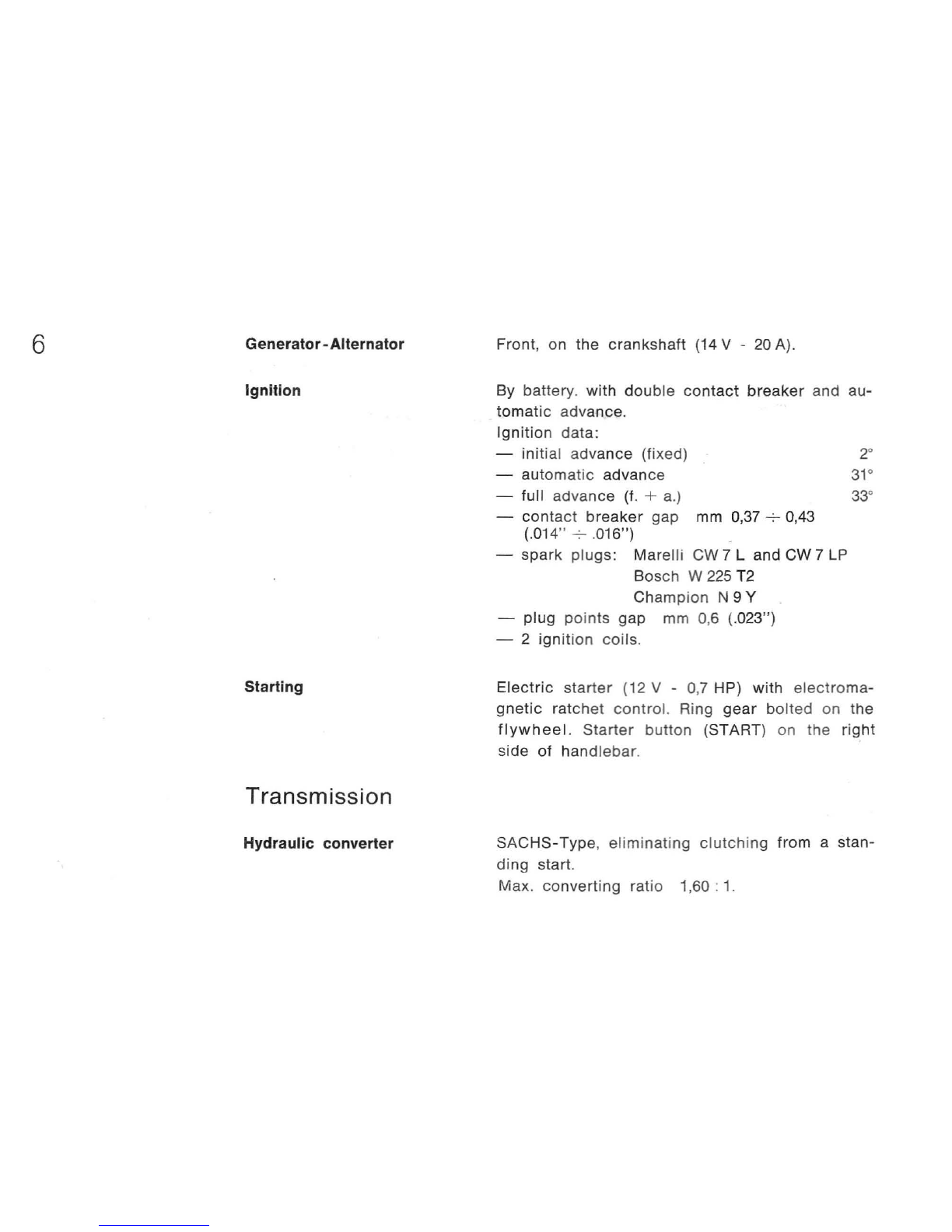

6 Generator-Alternator
Ignition
Starting
Transmission
Hydraulic converter
Front , on the crankshaft (14 V - 20 A).
By battery.
with doubl e contact breaker and au-
tomat ic advance.
Ignitio n data:
-
init ial adva nce (fixed) 2'
-automatic advance 31 '
-full advance (t. + a .) 33 '
- contact bre aker gap mm 0,37 -7- 0, 43
(.014" -7- .016")
- spark plugs: Marelli CW 7 Land CW 7 LP
Bosc h W 225 T2
Champ ion N 9 Y
-
plug po ints gap mm 0, 6 (. 023")
- 2 ignition c oils .
Electric sta rter (12 V - 0,7 HP) with electroma-
gnetic ratche t control. Ring gear bolted on the
flywheel. Starter button (START) on the rig ht
side of han dlebar .
SACHS- Type , eliminating clutching from a stan-
ding start.
Max.
converting ratio 1,60 : 1.

Clutch
Primary drive
Gear box
Secondary drive
Frame
Wheels
Dry type,
multiplate . Hand controlled by lever on 7
the left side of handlebar.
By gears . Ratio: 1/ 1,157 (Z = 19/22).
Two speed , foot operated from the left side of
the bike .
Gear ratio : first gear
2nd gear
(Z = 18/ 24)
(Z = 22/22)
By
cardan shaft, bevel gear set.
Ratio : (Z = 9/ 34) 1 : 3,788
Overall ratio (engine-wheel) .
1st
gear (Low) 1 : 6,12
2nd
gear (Drive) 1 : 4,58
Duplex cradle, tubular structure.
1 : 1,333
1 : 1
Spoked rims, WM 3/ 2,15 -18 " front and rear'.

8 Tyres
Brakes
Front and rear: 4,
10H18" or 110/ 90H18 ".
Tyre pressure:
front , solo or with pillion
rear, solo
with pillion
2,1 kg /sqcm (31 p.s.i.)
2,4 kg /sqcm (32 p .s. i.)
2,6 kg/sqcm (38 p.s.i.)
The above data is suggested for normal riding
(cruising speed).
If using the motorcycle at constant high speed,
or on high ways, it is recommended to increase
pressure by 0,2 kg/sqcm
(3 p,s.i.).
Front wheel.
Twin disc brake, two ind ependent cont rols with
hydraulic hoses and double cylinder calipe rs .
Controls .
Right
front bra ke, hand c ontrolle d by means ' of
the lever joined to master cylinder on the right
handle bar .
Left
front brake, foot controlled to gether with
rear brake.
Disc 0 mm 300.
Cylinder 0 mm 38 .
Master cylinder 0 mm 12, 7.

Dimensions and weights
Rear wheel.
Disc brake, foot controlled from the right side
of
the motorcycle , hyd raulic hose and double cy-
linder calipe r.
Rear brake and left front brake are connected
through hy draulic circuit. Both brakes are ac-
tuated by same ped al on the right side of the
mot orcycle .
Disc 0 mm 242.
Cylinder 0 mm 38 .
Master cyli
nder 0 mm 15,875.
Parking brake.
Mechan ical brake, acting on hydraulic rear wheel
brake . The load given by a parked vehicle on
its side stand
comes to block up the rear bra-
king disc through a lever transmission system.
Wheelbase m 1,470 (58")
Max. length m 2,200 (86,5")
Max. width
m 0,850 (33")
Max. height m 1,100 (46")
Min. ground clearance m 0,150 (6")
Curb weight (without
accessories)
kg
261
(572 Ibs.)
approx .
9

10
Performances
Fuel and oil capacities
Group or part Quantities
Fuel tank 24 I
Reserve (warned
by light)
41
Engine oil sump
31
Gear box
0,600 I
Converter circuit
1, 5-1,7 I
Converter circuit (filling
quantity after eventual
overhauling)
Rear drive box
\ 0,230 I
I 0,020 I
Front fork (each leg) 0,050 I
Braking circuits
(front and rear)
Maximum speed in each gear , solo riding .
1st
gear (Low) km / h 130 ( 82 mi./ h)
2nd gear (Dr 'ive) km / h 174 (108 mi ./ h)
Fuel consumption I 6 a. x 100 km
(a
ppro x. 35 m.p.g.)
Recommendation
(6.6 U. S. gls)
l.-
I
Petr ol 98/100 NO-RM
(1.0 U.
S. gls) i
(appr ox . 3 qts.) Oil Agip Sint 2000 SAE 10W /50
(20 oz.) Oil
Agip F.1 Rotra MP SAE 90
(approx. 1 112 -Agip F.1 ATF Dexron
13 14 qts.)
(8 oz .)
Agip F.1 Rotra MP SAE 90
(approx . 314 oz.)
Molyko te Oil type A
(1 3/. oz.)
Agip F.1 ATF De xro n
Agip F.1 B rake Fluid - SAE J 1703

Checking of accelerating ability
To obtain proper results set the engine at ma-
ximum revs with thrott le fully opened and brakes
fully eng aged ; release then the brake con trols
quickly .
Do not opera te the c lutch , during this ch eck i ng .
Passing ability (U.S. Standards)
Pass ing of a 55 feet long
truck , trav
elling at
20 m. p. h.
-
Time
5,5 seconds
- Distance travelled 339
feet
Passing of
a 55 feet long truck , travelling at
50 m.p.h.
-
Time
6,8 seconds
- Distance travelled 673
feet
The above includes a safety distance of 40 and
100 feet respectively be tween the passing and
pace vehicle at the beginning and end of the
maneuver .
Braking ability
Stopping distance from 60 m.p.h.
(solo, using the three brakes)
Stopp ing dis tance fr om 60 m.p.h.
(with pillion, using the three brakes)
11
177 feet
190 feet

12 CONTROLS AND ACCESSORIES
(fig. 2)
Reservoir (master cylinder), right front brake
2 Control lever, right
front brake
3
Throttle control grip
4 Starter and engine emergency stop
5 Control pedal,
front left and rear brakes
6 Light and
ignition switch
7 Fuel filler cap
8 Footboard, rider
9 Reservoir (master cylinder ) front left and
rear brakes
10 Rear safety bar
11 Headlight
12 Instrument panel with warning lights
13 Speedometer (U.S .) Km-Counter (Europe)
14 Front safety bar
15 Clutch control lev er
16 Control button, horn -flashing light -turn
signal flasher
17 lJighting switch
18 Starter con tro l lever
19 Gear c ontrol pedal
20 Side stand and parking brake control
21 Converter , reservoir
22 Tail and stop lights
23 Number plate light

13
1 2 4 5 6 7 8 9
10
22 23
2

14 IDENTIFICATION DATA
(fig. 3)
Every motorcycle is identified by an identification
plate on the frame downtube and one serial num-
ber stamped on the engine crankcase.
The identif , ication plate number is also mentio -
ned in the motorcycle log - book and identifies
the motorcycle to all legal effects.
SPARE PARTS
In case of part repla cem ents . ensure that " Ori-
ginal Moto Guzzi Spare Parts» only are used
The use of non-genuine parts invalidates every
warranty right.
WARRANTY
The warranty is valid for a period of 6 months
with a limitation to 10000 km from the selling
date and expires in case of modifications to
the motorcycle or participation to racing com-
petitions.
Tyres as well as parts or accessories which are
not manufactured in the .. Seimm - Moto Guzzi
Factories» are out of warranty .
Each new
motorcycle is supplied with a " cou-
pon-book». It has to be car efull y kept with all
other circulation papers as this is the on ly docu-
ment entitling the owner of the motorcycl e to be
recognized of the warranty right from "Seimm
Moto Guzzi » according the general sale con-
3 ditions .

INSTRUMENTS AND CONTROLS
(fig. 4)
Speedomet er . Km or Mile counter.
2 Warning li
ght (green). left turn signal.
3 Warning lig ht (green). right turn signal.
4 Warning li ght (red -U.S.). high beam.
(blue -Europe). high beam.
S Warning light (orange)
signalling the disen-
gage
of transmission power and supply of engine
starting relay.
4
5
6 Warning light (red)
indicating current delivery 15
from generator. It must go out when the engine
reaches a certain
number of revs.
7 Warning
light (red) oil pressure gauge . It goes
out when oil pressu re is sufficient for normal
engine lubrification . Should it not go out, this
means that oil pressure is
not correct. In this
case the engine has to be
stopped and suitable
checkings are to be carried out.
8 Warning light (green)
indicating parking brake
engaged. This warning light flashes by turning

16 the ignition key in position «2» (see fig. 5) . If the
side stand is not withdrawn , the engine cannot
be started .
9
Warning light (red - U.S .) indicating parking
i ight and low beam on.
Warning light (green - Europe ) indicating town
driving light or low beam on.
10 Warning l ight (red) indicating incorrect fluid
level in
front left and rear brake reservoir. When
this
warning light is on, top up the fluid level and
check that braking circuit has no leakages.
11 Warning light (red) ,. fuel reserve. To use the
reserve fuel, bring the tap lever on the right fuel
tank in position «R" (fig. 10).
12 Courtesy light switch (available).
13 Switch , right and left rear emergency fla-
shers.
14 adometer or Km counter reset.
Ignition key (fig. 5)
The key has three positions :
"a" Vertical , standstill -key not removable .
" 1,, Turned counterclo ckwise, standstill , button
"A" (Lights) in line with "Park" (parking
light ) - key removable .
"2 ,, Turned clockwi se, all contr ols are in; key
not
removable . After makin g sure that the
side s tand is in re st-positio n ( warning li ght
"Park" out) and po wer transmission is di-
senga
ged (warnin g light "N" on) start the
engin e by means of button "Start" (fig. 7) .
Lighting switch (lights) (fig. 6)
It is locat ed on the right handlebar and has four
positions:
«1» OFF L
ights out.
« 2 )) PARK P
ark ing lig ht
( town driv ing).
«3» L L
ow beam.
«4» H High beam.
Light selection is obtained by tu rn ing swi tch "A"
(Lights) in the above po si tions .
To go from posi tion "2 ,, ( Park ) to position ,,1>-
(aff) it is necessar y to shift safety button "5 ,, to
the left.

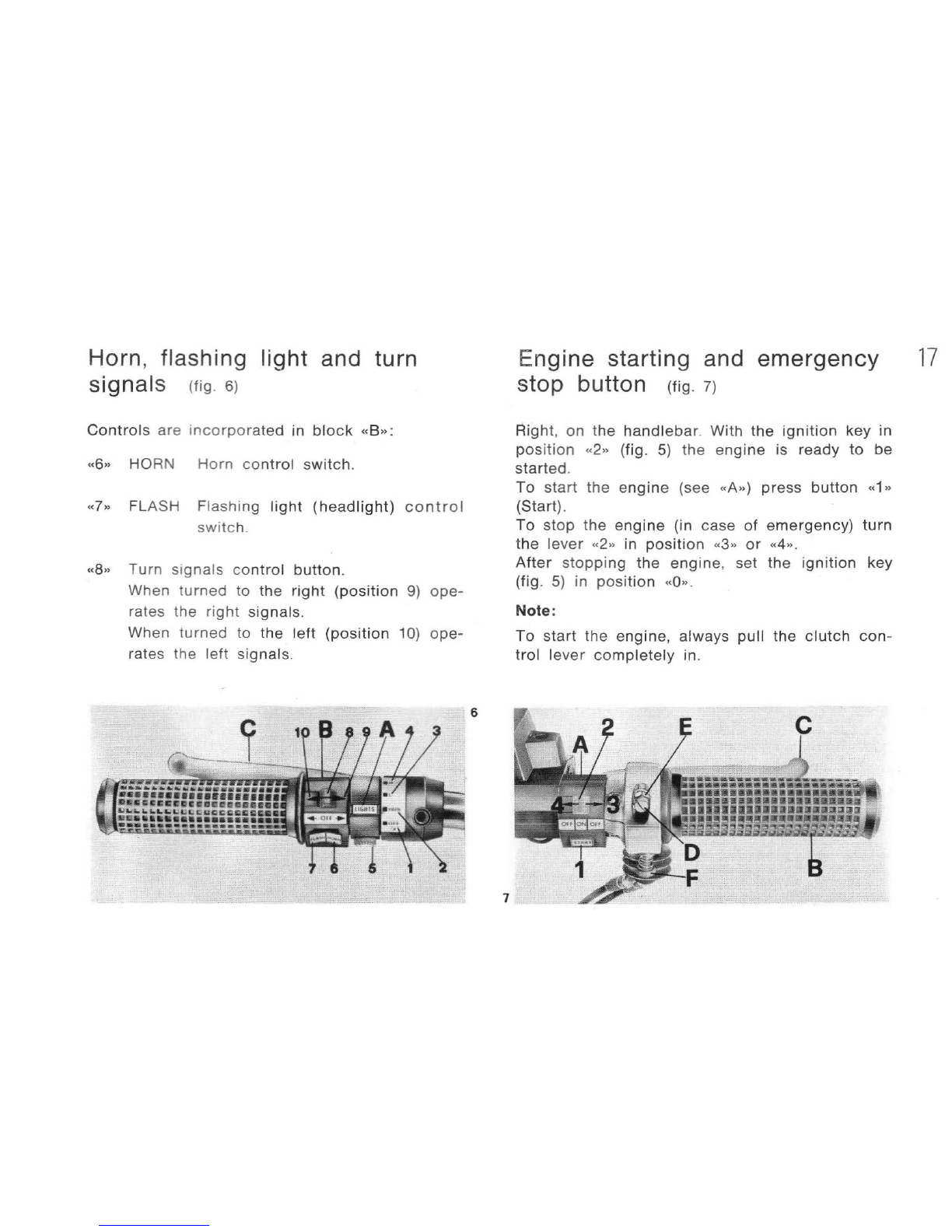

Horn, flashing light and turn
signals (fig. 6)
Control s are incorpo rated in block «B,,:
«6» HORN
Horn co ntrol s wit ch.
«7» FLASH Flashing light (headlight) control
switc h.
«8» Turn sig nals co ntrol button .
When turned to the right (position 9) ope-
rates the right signals .
When t urned to the left (position 10) ope-
rates the left signals.
6
7
Engine starting and emergency
stop button (fig. 7)
Right, on t he handleba r. With the ignition key in
pos ition « 2» (fig. 5) the eng ine is ready to be
started .
To
start the e ngine (see «A ») press button ,, 1»
(Start ).
To stop the engine (in case of emergency) turn
the lever «2» in positi on «3» or «4 ».
After stopping the engine , set the ignition key
(fig. 5) in
position ,, 0 ».
Note:
To start the engine, always pull the clutch con-
trol lever completely in.
17

18 Carburettor starter control lever
(fig. 29)
The control lever for starting a co ld engine is
located near the left cyl, inder head cover.
«8» Starting position.
«C» Riding position.
Throttle control grip (<< 8» in fig. 7)
Right , on the handlebar. Throttle is opened by
turning towards the r· ider and closed vicever sa.
Clutch control lever (<<G» in fig. 6)
Left, on the handlebar . To be used only by star-
ting of the engine and when gearshifting from
«Low» to «Drive» or viceversa.
The presence of a hydraulic converter in the
transmission system das not exclude absolutely
to use the clutch during speed change. For a
proper use of the clutch see paragraph «On the
way » page 23. 8
Right front brake control lever
(<<G » in fig. 7)
Right , on the handle bar, connected with fluid
reservoir (mas ter cyl inde r) . It operates the right
front brake .
Twin brake control, front left
and rear brakes (fig. 16)
The control pedal is locate d on the right side
of the motorcycle and is link connected to the
fluid reser voir (master cylinder) group.
It operates both front left and rear brakes at
the same
time .
