Motomaster Eliminator 11-1880-2 User manual

Solar Power
Panel
1.8 W / 125 mA
11-1880-2
Solar Power
Panel
5 W / 350 mA
11-1881-0
Solar Panel Instructions
Installation
Placement:
Securely place the solar panel in a high-sunlight
area. If permanent installation is desired, use the
four stainless steel mounting screws included. To
increase heat dissipation, a heat-resistant spacer
should be used between the panel and the surface.
Connection through the cigarette lighter:
Attach the cigarette adaptor to the unit. Plug the
male-end of the cigarette adaptor (12 V plug) into
the female cigarette socket making sure that both
ends are secure and aligned correctly. For optimal
charging power, ensure the panel (solar cell up) is
directly facing the sun.
Connection to a battery:
Attach the clips to the unit. Connect the red positive
clip (+) to the red positive terminal (+) on the
battery. Connect the black negative clip (-) to the
black negative terminal (-) on the battery.
WARNING: The clips MUST be placed on to the
battery in the aforementioned order—wrong
connections may cause sparking or explosion. For
optimal charging power, ensure the panel (solar cell
up) is directly facing the sun.
Connection to Power Pack:
Connect using barrel connector included.
FAQ
What types of batteries can this solar panel
charge?
Any 12 V battery used in cars, boats, RV’s,
motorcycles, etc.
Can I use this solar panel outdoors?
Yes, this solar panel has been weatherproofed. The
weatherproofing includes UV protection and
protects from weather effects of -35°F to 175°F.
How long does it take to charge a battery?
This solar panel generates 5 W of power per hour,
which is equal to 350 mA of current under ideal
conditions. For example, under ideal conditions,
the panel will generate 5 W x 7 hours per day x 7
days per week for a total of 245 W of power.
Do I need a Motomaster® Eliminator Battery
Charge Controller (11-1890-0)?
No, a Battery Charge Controller is only need for
panels 15 W or greater.
Can I extend the wire?
Without loss of power or voltage, the 12’ wire can
be extended up to a maximum of 25’ with a 16-
gauge wire. Ensure proper connections.
Can I start/drive my vehicle while the unit is
connected to the battery or cigarette lighter?
No, please make sure that this panel is not in use
while you are using your vehicle.
TROUBLESHOOTING:
Problem: My panel is not functioning.
Solution:
-Ensure battery is operational.
-Ensure that the distance of the wires are not
longer than 25’ and all connections are secure.
-Measure the panel voltage with a voltmeter. The
voltage reading should be between 16 to 25 V in
the sun.
READ this manual BEFORE and
DURING the use of this product.
FAQ
What types of batteries does this solar panel
maintain?
Any 12 V battery used in cars, boats, RVs,
motorcycles, etc.
How long does it take to charge a dead battery?
This solar panel is ideal for trickle charging all
types of vehicle batteries and power packs. If the
battery or power pack is completely drained, use
a larger Solar Power Panel (11-1881-0 or 11-
1882-8).
Can I use this solar panel outdoors?
No, this solar panel is not weatherproofed. If this
solar panel is weathered, the warranty will
become void.
Do I need a Motomaster® Eliminator Battery
Charge Controller (11-1890-0)?
No, a Battery Charge Controller is only need for
panels 15 W or greater.
Can I start/drive my vehicle while the unit is
connected to the battery or cigarette lighter?
No, please make sure that this panel is not in use
while you are using your vehicle.
Can I extend the wire?
Without loss of power or voltage, the 12’ wire can
be extended up to a maximum of 25’ with a 16-
gauge wire. Ensure proper connections.
NOTE:
This solar panel has a built-in blocking diode that
protects the battery from reverse discharge. The
use of the panel is not recommended while the
vehicle is in use. The panel is not weatherproofed. If
panel is weathered, the warranty will become void.
Solar Power
Panel
15 W / 1 A
11-1882-8
Installation
Placement:
Securely place the solar panel in a high-sunlight
area. If permanent installation is desired, use the
four stainless steel mounting screws included. To
increase heat dissipation, a heat-resistant spacer
should be used between the panel and the surface.
Connection through the cigarette lighter:
Attach the cigarette adaptor to the unit. Plug the
male-end of the cigarette adaptor (12 V plug) into
the female cigarette socket making sure that both
ends are secure and aligned correctly. For optimal
charging power, ensure the panel (solar cell up) is
directly facing the sun.
Connection to a battery:
Attach the clips to the unit. Connect the red positive
clip (+) to the red positive terminal (+) on the
battery. Connect the black negative clip (-) to the
black negative terminal (-) on the battery.
WARNING: The clips MUST be placed on to the
battery in the aforementioned order—wrong
connections may cause sparking or explosion. For
optimal charging power, ensure the panel (solar cell
up) is directly facing the sun.
Connection to Power Pack:
Connect using barrel connector included.
FAQ
What types of batteries can this solar panel
charge?
Any 12 V battery used in cars, boats, RV’s,
motorcycles, etc.
How long does it take to charge a depleted
battery?
In direct sunlight, this solar panel produces 1 A/hr.
By adding up to 10 solar panels, the time needed
for charging would decrease. For example, under
ideal conditions, one panel will generate 15 W x 7
hours per day x 7 days per week for a total of 735
W of power.
How can I run 120 V AC appliances with my
Solar Power Panel (11-1882-8)?
Connect the battery to a power inverter that
converts DC power to AC power.
Can I overcharge my battery?
Yes, it is strongly recommended that a Battery
Charge Controller (11-1890-0; sold separately)
be used to prevent overcharging.
Can I use this Solar Power Panel outdoors?
Yes, this Solar Power Panel has been
weatherproofed. The weatherproofing includes
UV protection and protects from weather effects
of -35°F to 175°F.
Can I extend the wire?
Without loss of power or voltage, the 12’ wire can
be extended up to a maximum of 25’ with a 16-
gauge wire. Ensure proper connections.
Can I start/drive my vehicle while the unit is
connected to the battery or cigarette lighter?
No, please make sure that this panel is not in use
while you are using your vehicle.
Installation
Placement:
Insert the suction cups into the predrilled ends of the
solar panel ensuring that they are securely placed.
Choose a clean, dry surface that is facing the sun,
then lubricate the suction cups (using saliva or
petroleum jelly) and mount to vehicle's dash or
windshield.
Connection through the cigarette lighter:
Attach the cigarette adaptor to the unit. Plug the
male-end of the cigarette adaptor (12 V plug) into
the female cigarette socket making sure that both
ends are secure and aligned correctly. For optimal
charging power, ensure the panel (solar cell up) is
directly facing the sun.
Connection to a battery:
Attach the clips to the unit. Connect the red positive
clip (+) to the red positive terminal (+) on the
battery. Connect the black negative clip (-) to the
black negative terminal (-) on the battery.
WARNING: The clips MUST be placed on to the
battery in the aforementioned order—wrong
connections may cause sparking or explosion. For
optimal charging power, ensure the panel (solar cell
up) is directly facing the sun.
Connection to Power Pack:
Connect using barrel connector included.
NOTE:
This solar panel has a built-in blocking diode that
protects the battery from reverse discharge. It is
strongly recommended that a Motomaster®
Eliminator Battery Charge Controller (11-1890-0;
sold separately) be used to prevent overcharging.
READ this manual BEFORE and
DURING the use of this product.
READ this manual BEFORE and
DURING the use of this product.
NOTE:
This solar panel has a built-in blocking diode that
protects the battery from reverse discharge.

Battery Charge Controller
11-1890-0
General Info
How do solar cells generate electricity?
Solar panels, also known as photovoltaics (PV), can
be thought of as a direct current (DC) generator
powered by the sun. When light photos of
sufficient energy strike a solar cell, they “knock”
electrons free in the structure forcing them
through an external circuit (battery or direct DC
load), and then returning them to the other side
of the solar cell to start the process all over
again.
Will solar panels work in my location?
Solar panels work in any outdoor location depending
on the irradiance. Irradiance is a measure of the
sun’s power available at the surface of the earth
and it averages about 1000 W/m2.
What is the difference between amorphous
and polycrystalline cells?
These panels are amorphous solar panels.
Amorphous solar panels contain no cells, but
are created through a deposition process that
actually forms the silicon material directly on
the glass substrate. Amorphous panels are
made up of an interconnecting “thin-film” of
laser-patterned silicon. The amount of silicon
used is up to a 100 times thinner than that of a
polycrystalline cells. Amorphous panels are
better at generating electricity.
Installation of Multiple
Panels
Eliminator Power Panel Instructions
Installation
Connection to a battery:
Attach the Battery Charge Controller
positive (+) wire to the positive (+)
battery terminal. Then connect the
Battery Charge Controller negative
(-) wire to the negative (-) battery
terminal. WARNING: The clips
MUST be placed on to the battery in
the aforementioned order—wrong
connections may cause sparking or
explosion.
Connect to Solar Panel:
Strip the solar panel wires. Connect
positive (+) to positive (+) and
negative (-) to negative (-). Ensure
the connections are secure.
Operation:
Green light indicates a full-charged
battery. When the battery reaches
14.2 V, the Battery Charge
Controller will cutout voltage
thereby ensuring no overcharging.
Yellow light indicates a battery that
is being charged. When the battery
reaches 13 V, the Battery Charge
Controller will cut-in and charging
will begin.

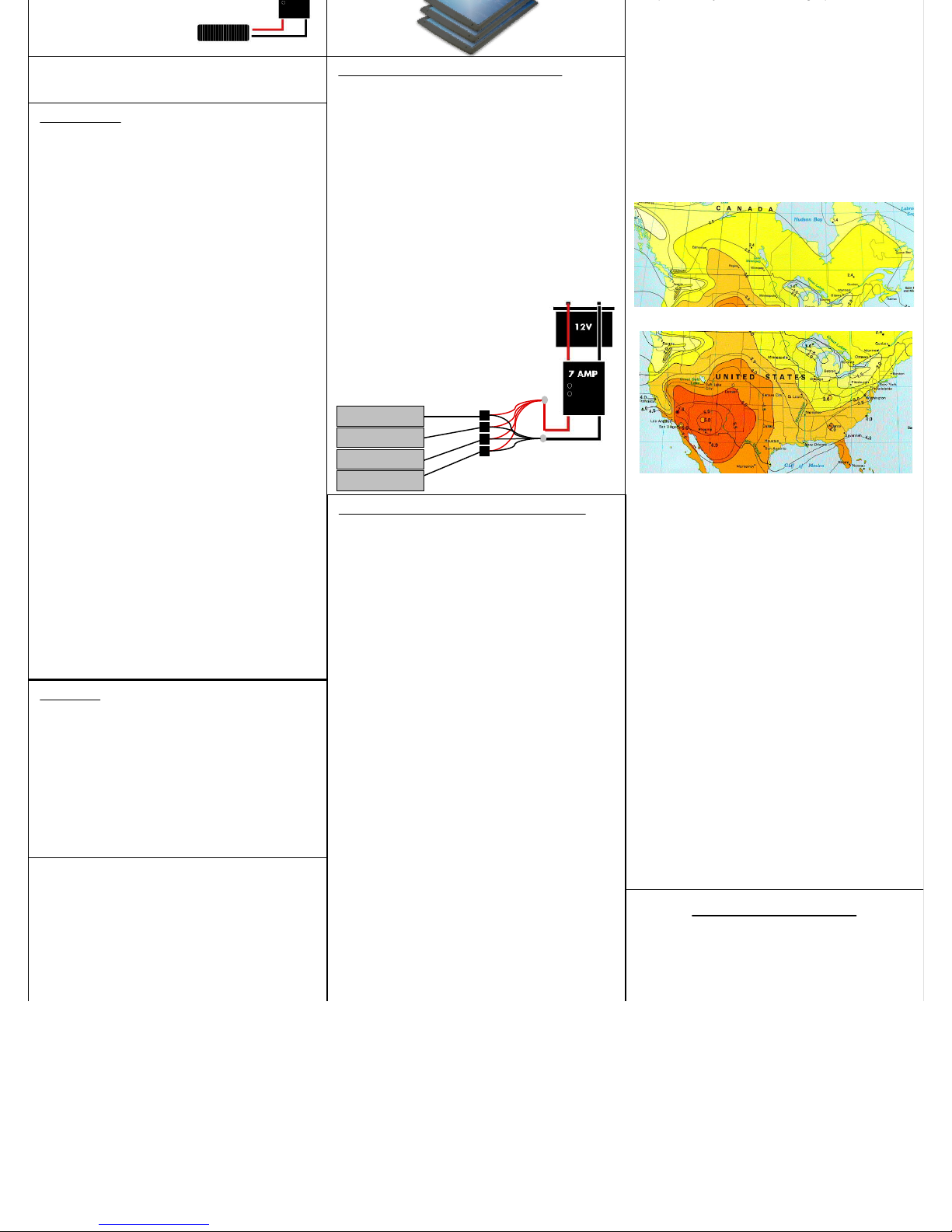

Installation of Multiple Panels:
• Use the inc luded connector plug
whic h quick connects striped wires
to each 15W utilized
• Join all positive wires and all
negative wires. Ensure all
connections are tight. Use of
included wire nut connector.
Insulating materials may also
prove helpful.
• Keep positive to positive and
negative to negative to ensure
12V usage
• Use a 7 Amp Solar Charge
Controller to prevent Battery
Overcharge
FAQ
1. How many panels can I connect to my 7 Amp
Solar Charge Controller?
A. You can connect up to 105 Watts of Solar Power
to the 7 Amp Solar Charge Controller. Panels
should be connected in parallel – positive to
positive, negative to negative.
2. When will the Charging Indication light (green)
light up?
A. The charging controller indication green light will
light up when the battery voltage reaches 14.2
Volts and the SCC will prevent the solar panels
from overcharging the battery. It is normal for
the SCC LED to light on and off as the battery
voltage cuts in and out.
5-year Warranty
This Motomaster®
Eliminator product carries a
five (5) year warranty
against defects in
workmanship and
materials. Motomaster®
Canada agrees to replace
the defective product free
of charge, within the stated
warranty period, when
returned by the original
purchaser with proof of
purchase. This product is
not guaranteed against
wear or breakage due to
misuse and/or abuse.
NOTES:
• It is normal for both lights to flicker on and off
during normal operation. The Battery Charge
Controller should be placed within 5’ of the battery
in a dry, well-ventilated area. This Battery Charge
Controller can support up to 100 W and up to 7 A of
array current. All connections should be parallel to
ensure 12 V (positive to positive and negative to
negative).
GENERAL TESTING PROTOCOL
Alway s test outdoors under optimal
sunlight conditions.
A. Test Solar Panels for Voltage.
Connect Voltmeter to each indiv idual
panel separately and observ e Open
Voltage. Open Voltage can range f rom
16 Volts to 24 Volts. Once all panels test
f or v oltage, proceed to step B.
B. Test Connection to Charge Controller
for Voltage.
Reconnect Solar Panels, and connect to
charge controller as per instructions.
Measure open circuit Voltage at the
battery side of the charge controller.
Open circuit v oltage should read 5-10%
lower than without charge controller.
Open circuit measurement will read
between 15 and 23.5.
C. Connect charge controller to battery
First, disconnect solar panels and
connect charge controller to battery .
Alway s connect charge controller to
battery f irst and remov e last. Observ e
polarity – positiv e to positiv e and
negativ e to negativ e.
D. Reconnect Solar Panels to Charge
Controller.
If battery v oltage is 14.2 or higher, the
GREEN light should be on. If battery
v oltage is between 13 and 14.2, the
YELLOW LED should be on.
If battery v oltage is 13 or lower, the
YELLOW LED should be on.
If all testing results within the abov e
indicated ranges, solar sy stem is in
acceptable range. If Voltage reading
indicate lower ranges, repeat abov e
connections and retest. Finally , it is
common to hav e 12V Battery issues
such as dead cells or non-rechargeable
battery problems.
SOLAR
SOLAR
PANEL
SOLAR
PANEL
READ this manual BEFORE and
DURING the use of this product.
