Motorline professional MR30 Use and care manual

v2.1
REV. 09/2021
MR30MR30 EN
USER'S AND INSTALLER'S MANUAL

1A 1B
1B
4A
4A
4B
6A
5
6A
6B
7B
7B
6B
8A
7A
7A
7A
8B
9
ENEN
00. CONTENT 01. SAFETY INSTRUCTIONS
INDEX ATTENTION:
01. SAFETY INSTRUCTIONS This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances
in electrical and electronic equipment and with Delegated
Directive (EU) 2015/863 from Commission.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where
they purchased this product or the National Environment
Agency for details on where and how they can take these
items for environmentally safe recycling. Business users
should contact their vendor and check the terms and
conditions of the purchase agreement. This product and
its electronic accessories should not be mixed with other
commercial waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
theproductandobserveallsafetyproceduresinthismanual.
MR30
TECHNICAL CHARACTERISTICS
DIMENSIONS
DIP SWITCH SETTINGS
02. THE PRODUCT
03. INSTALLATION
04. CONFIGURATION
INSTALLATION AND CONNECTIONS
QUANTITY OF DETECTION LINES
PRESENCE TIMER
DETECTION AREA ADJUSTMENT
TURN ON RADAR
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED TECHNICIANS
05. PROGRAMMING
06. TROUBLESHOOTING
FREQUENCY
SENSITIVITY ADJUSTMENT
SAFETY OUTPUT
OPERATING MODE
INPUT TEST
SELFMONITORING

2EN
01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•This manual is intended firstly for specialized technicians, and does
not invalidate the user’s responsibility to read the “User Norms”
section in order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any
action, unless explicitly requested by specialized technicians to do
so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and
other mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
theproduct mustbedisconnectedfrompowersupply. Alsoincluding
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical, sensorial or mental capacities are lower, or by persons
without any knowledge of the product, provided that these are
supervision and instructions given by persons with experienced in
terms of usage of the product in a safe manner and who understands
the risks and dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you
have all the devices and materials necessary to complete the
installation of the product.
•YoushouldnoteyourProtectionIndex(IP)andoperatingtemperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know
how to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door,
a door locking mechanism must be installed while the gate is in
motion.
•Do not install the product “upside down” or supported by elements
do not support its weight. If necessary, add brackets at strategic
points to ensure the safety of the automatism.
•Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if
the necessary mechanical stops are in the appropriate places.
•The central must be installed on a safe place of any fluid (rain,
moisture, etc.), dust and pests.
•You must route the various electrical cables through protective
tubes, to protect them against mechanical exertions, essentially on
the power supply cable. Please note that all the cables must enter
the central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m
from the ground or other level of access, the minimum safety and

3EN
01. SAFETY INSTRUCTIONS
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information
health requirements for the use of work equipment workers at the
work of Directive 2009/104/CE of European Parliament and of the
Council of 16 September 2009.
•Attach the permanent label for the manual release as close as
possible to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the
electrical panel, must be provided on the product’s fixed power
supply leads in accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manualina safeplaceto be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it
must immediately disconnect from the power supply to avoid short
circuits, and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•If the system requires any repair or modification, unlock the
automatism, turn off the power and do not use it until all safety
conditions have been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult
this manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in
in motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if
the product is in motion.
RESPONSABILITY
•Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
•Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
•In these cases, the warranty is voided.

4A 4B
.





ENEN
02. THE PRODUCT 02. THE PRODUCT

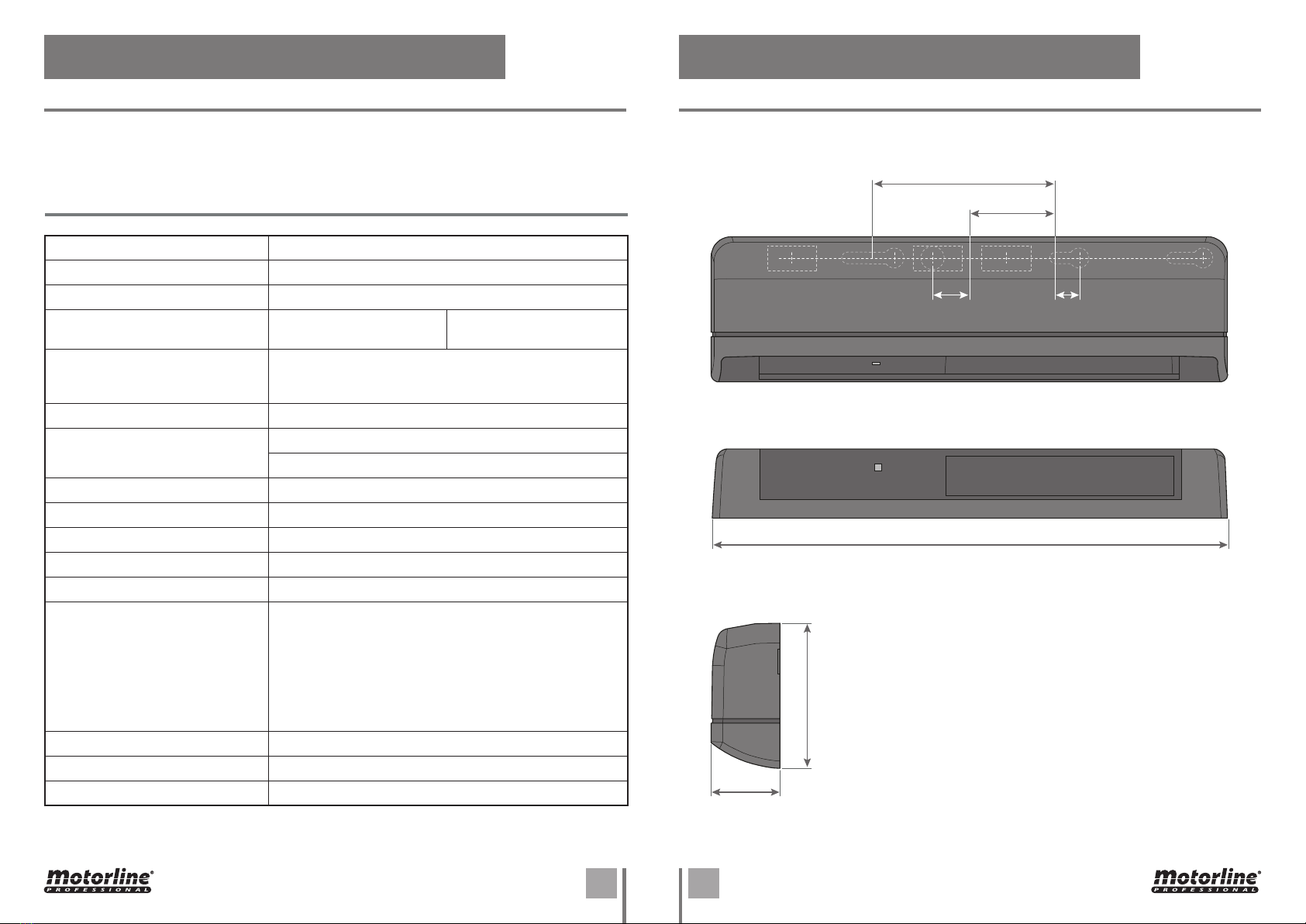

MR30 DIMENSIONS
• Power supply 12-24 Vac/dc 50/60Hz
• Detection method Active infrared detection
• Maximum installation height 3 meters
• Consumption 12Vac: 1.3VA max.
24Vac: 1.5VA max. 12Vdc: 65mA max. 24Vdc: 35mA max.
• Output Relay contact 50Vdc 0.1A (resistance charge)
fail-safe system
• Output waiting time Approximately 0.5 seconds
• Depth adjustment Angle: 0˚ / + 5˚
Line: R1 - R4
• Width adjustment Wide / narrow
• Presence timer 2s / 30s / 60s / 
• Frequency 2 frequencies
• Monitor mode Normal / Snow
• Self-monitoring ON/OFF
• LED indicator
Standby: Green LED
R1 and R2 Detection line to be detected: red LED
R3 and R4 Detection line to be detected: Blue LED
Door movement detected: orange LED
Dipswitch change: orange LED flashing fast
Internal Sensor Error: Green LED flashing fast
Infrared signal reflected by the floor very low: green and red
LED flashing fast
• Operating temperature -20C to 60C
• Weight Approximately 180g
• Protection Level IP54
The MR is an infrared radar with pedestrian safety and a detection area that is easily adjustable with
precision to prevent false door openings.
Dimensions in mm
TECHNICAL CHARACTERISTICS

5
< 3000mm
4
7
8
1
2
5
5
3
EN
03. INSTALLATION

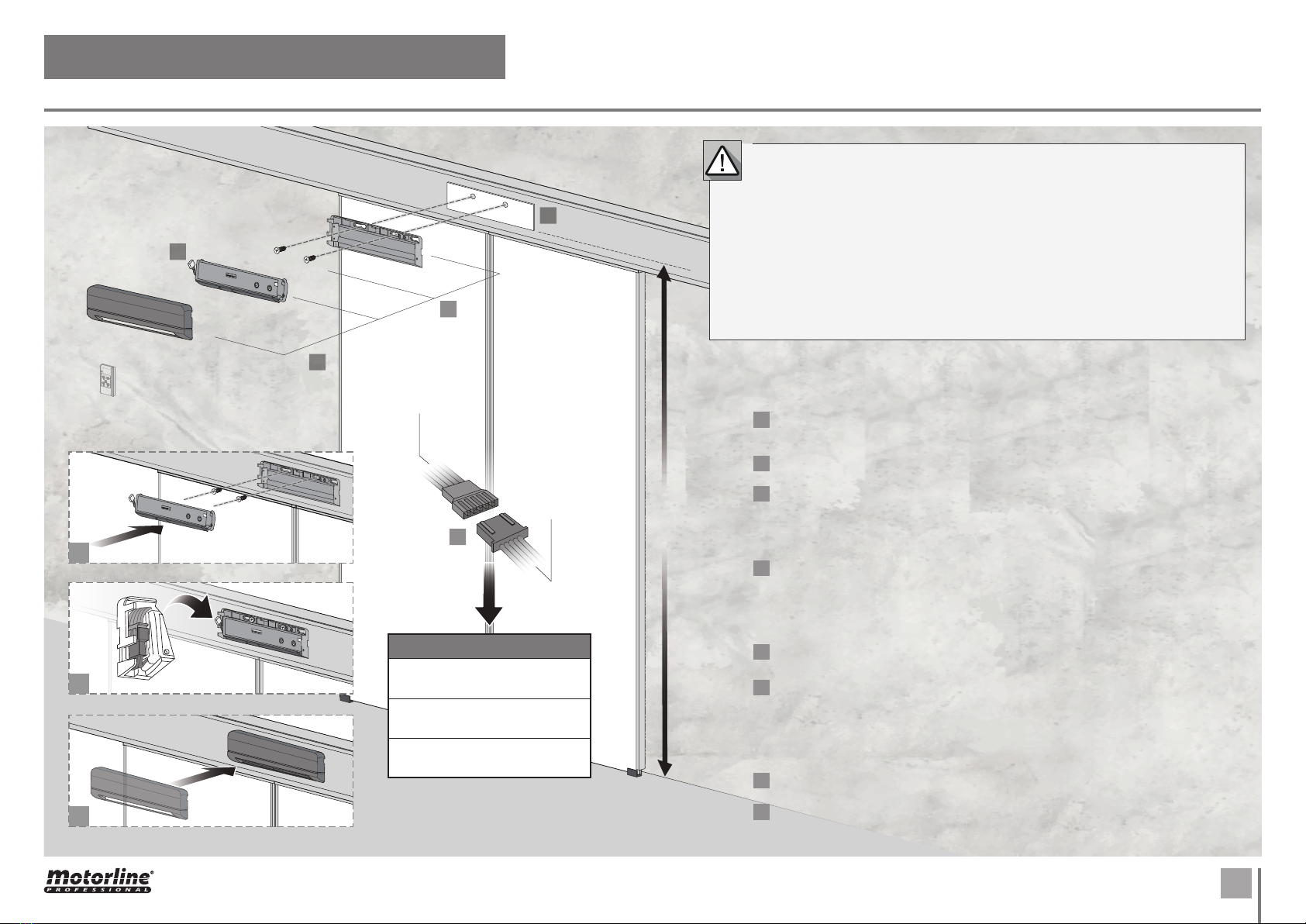

INSTALLATION AND CONNECTIONS
To ensure that the MR works correctly, please observe the following instructions:
• Prevent the installation area from accumulating snow or water on the ground;
• Install in a protected area where rain or snow does not fall directly on the device.
If the sensor has to be exposed, install it with a protection;
• Install at a maximum height of three meters;
• Install in a place where there is no vibration;
• At the time of installation, check that there are no moving objects in the detection
area;
• Ensure the minimum of sunlight reflected from the floor.
• DRILLING
• FIXING THE RADAR
• CONECTIONS
Determine the location for mounting the device and position the mounting
template. Drill holes for fixing the device and passing cables.
Remove the device cover.
Remove the screws and the mounting body from the base.
Install the base with the mounting screws and mount the radar body on the
base.
Connect the cables (see table)
Set the following parameters:
•• Set the DIPPER'S in the detection area (page 6A);
•• Set the radar detection pattern (page 7B);
•• Turn on and test the radar (page 7B);
(If necessary, increase the sensitivity on the radar)
Fit the connector inside the device.
Place the cover on the radar and clean.
4
5
6
7
8
3
2
1
Cable
Connector
Cable Connection
Power supply:
Red and Black
Activation Output:
Green and White (NO)
Safety Output:
Yellow and Blue (NO / NC)*
*See page 7A.

6A 6B
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON OFF
ENEN

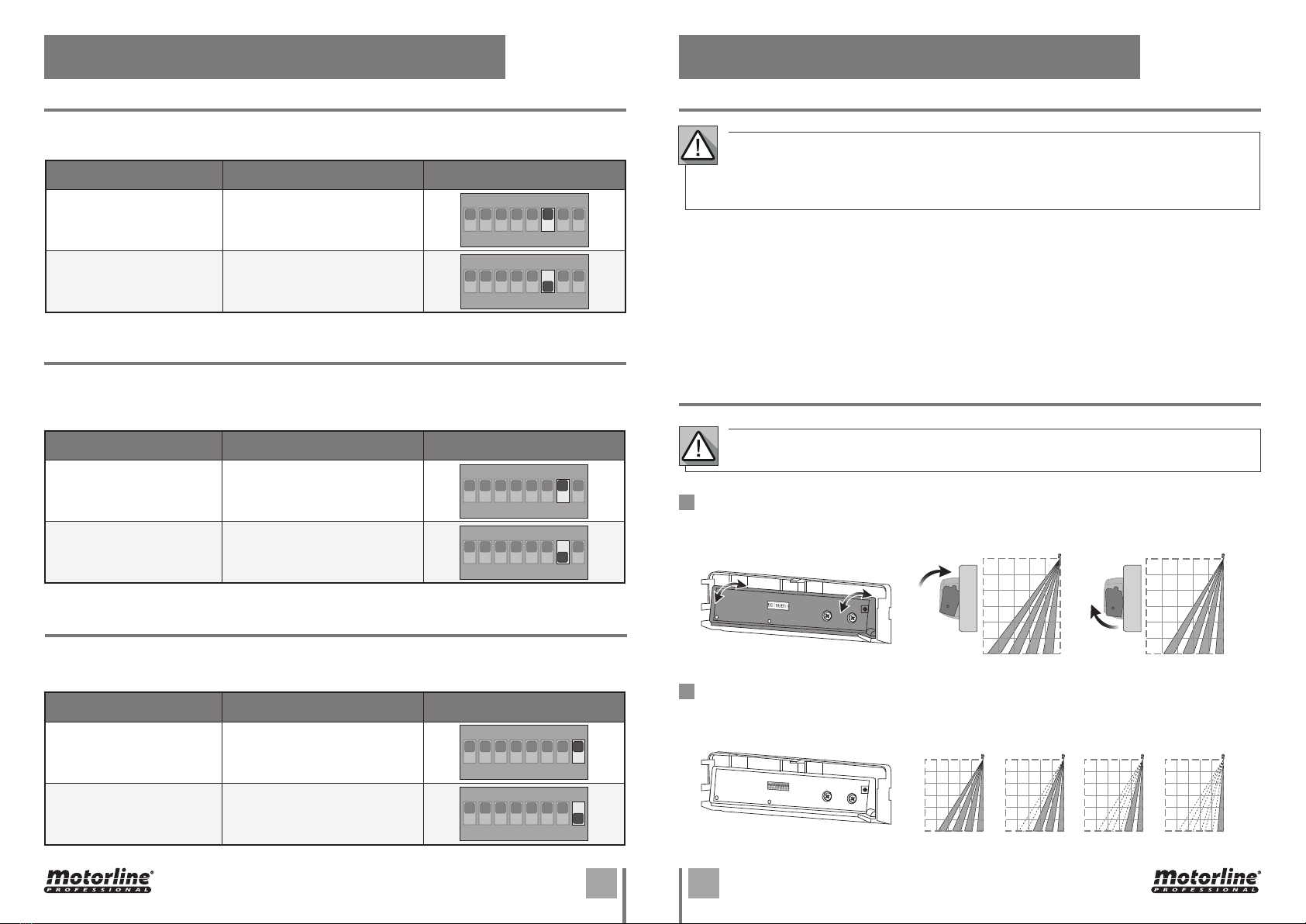

04. CONFIGURATION 04. CONFIGURATION
PRESENCE TIMER
DIP SWITCH SETTINGS
If you change the setting of the dip switch when the power is on, the sensor will be reset in
approximately  seconds.
QUANTITY OF DETECTION LINES
FREQUENCY
The number of detection lines is made using the dip switch [] and [].
The number of detection lines can be set to 4, 3, 2, 1, depending on the requirements of the detection
area.
The sensor will detect a static object only for the time defined by the Presence Timer.
When more than two sensors are used in close proximity to each other, select a different frequency
setting for each sensor to avoid interference.
(Configuration A or B = maximum of 2 radars).
Detection lines Dip switch [] Dip switch [] Dip switch
ON ON
2OFF ON
3ON OFF
4
(factory value) OFF OFF
Time Dip switch [] Dip switch [] Dip switch
ON ON
60 seconds OFF ON
30 seconds ON OFF
2 seconds
(factory value) OFF OFF
Sensors Dip switch [] Dip switch
A
(factory value) OFF
BON
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8

7A 7B
ENEN
04. CONFIGURATION 05. PROGRAMMING
SAFETY OUTPUT TURN ON RADAR
Set to "snow" if there is the possibility of activating the door opening due to the presence of wind with
snow, leaves or garbage, close to the door detection area. Note that sensitivity of pedestrian detection
can also be reduced.
INPUT TEST
OPERATING MODE
In automation with radar test you can use this function to check if the radar is turned on. It is performed
automatically whenever the radar is started.
It is possible to define what type of contact the safety output will have.
Before turning on the power, connect the door controller to the sensor. If there is a moving
object in the detection area after initialization/reset, the sensor will be in motion detection
mode. If there is no moving object in the detection area after initialization/reset, the sensor
will be in presence detection mode.
DETECTION AREA ADJUSTMENT
Check that the internal detection line does not detect movement of the door.
4 ON lines
0°+5°
2.5 2.0 1.5 1.0 0.5 0 2.5 2.0 1.5 1.0 0.5 0
0.5
1.0
1.5
2.0
2.5
3.0
0.5
1.0
1.5
2.0
2.5
3.0
[m] [m]
3 ON lines 2 ON lines 1 ON line
Safety output Dip switch [] Dip switch
NC contact
(factory value) ON
NO contact OFF
Mode Dip switch [] Dip switch
Snow ON
Normal
(factory value) OFF
Teste "Input" Dip switch [] Dip switch
On ON
Off
(factory value) OFF
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
01 • Connect the DOOR CONTROLLER to the sensor. After 2 sec. will activate motion detection.
02 • After 7 seconds, sesnor will detect "moving object" or "no object". If there is no object, the sensor
will enter presence mode automatically.
03 • If there is an "object in motion" remove it so that the sensor after 7 seconds enters presence mode
and exits motion detection mode.
04 • Place or remove a mat in the detection area.
05 • You can now adjust the body angle, the width of the detection area, and the sensitivity.
ANGLE ADJUSTMENT
Adjust the detection pattern 0˚ or 5˚ by moving the body angle.
DEPTH ADJUSTMENT
By setting the dip switch to exclude or add detection lines.
1
2

8A 8B
ENEN
05. PROGRAMMING 05. PROGRAMMING
DETECTION AREA ADJUSTMENT
The detection range varies according to the installation environment, the detected object
and the settings, etc. (clothes and floor materials and sensitivity adjustment).
LimitExtend
SENSITIVITY ADJUSTMENT
Adjust the appropriate sensitivity for the operation.
After installation and the various configurations, check that the detection range and
sensitivity are suitable for the operation. If it is difficult to detect or false activations occur,
readjust the detection range and sensitivity settings.
The table below is an estimate.
Medium
Low
High H
H
L
L
Sensitivity
If self-monitoring determines that the sensor is not functioning properly, the relay output will cause the
door to open and the green/red LED to flash. In that case, replace the sensor immediately.
Output wave form (abnormal case)
LED indicator flashes red and green.
1 cycle
12s
Pause
SELF-MONITORING
2.0 1.5 1.0 0.5 0 0.5 1.0 1.5 2.0 2.0 1.5 1.0 0.5 0 0.5 1.0 1.5 2.0
[m] [m]
0.5
1.0
1.5
2.0
2.5
3.0
0.5
1.0
1.5
2.0
2.5
3.0
12s60s
01 • Please adjust the sensitivity to your height.
02 • If the sensors do not detect the presence of a person entering the detection area, increase the
sensitivity.
03 • If this sensor detects something, even if no one is in the detection area, decrease the sensitivity.
WIDTH ADJUSTMENT
Adjust the detection width by turning the area tuner with a screwdriver.
3
Height (m) Estimated
sensitivity
2.0 - 2.5 L - M
. - . M - H

9EN
06. TROUBLESHOOTING
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED TECHNICIANS
Anomaly Cause Procedure
The door does not work
• The connector is not connected correctly. • Tighten or reconnect the connector.
• Incorrect supply voltage. • Apply the appropriate voltage to the sensor (12-24Vac / dc).
The door operates
intermittently
• Dust, frost or water droplets on the sensor lens. • Clean the detection window and install a weather cover if necessary (chemicals such as
thinner or alcohol use are forbidden).
• Very low sensitivity. • Increase sensitivity.
• Inadequate detection area. • Adjust the detection area.
The door opens and
closes for no apparent
reason
• The sensor detects the movement of the door. • Adjust the detection depth away from the door.
• The assembly is distorted. • Adjust the sensor assembly.
The door operates
alone
• There is a moving object in the detection range. • Adjust the detection area. Remove the moving object.
• Detection area too far from the door, detecting people passing away. • Adjust the detection area.
• Very high sensitivity. • Decrease sensitivity.
• Another sensor is too close. • Change the frequency for each sensor.
• The condition of the detection area varies due to dust, dirt, snow or the presence of
other elements.
• Change the presence timer settings (decrease value).
• Adjust the operating mode.
After the solutions presented, if the problem persists, contact us or your reseller.
