Brief Operating Instructions
Micropilot FMR67B
PROFIBUS PA
Free space radar
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
KA01610F/00/EN/02.23-00
71627294
2023-09-01

Micropilot FMR67B PROFIBUS PA
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Micropilot FMR67B PROFIBUS PA Table of contents
Endress+Hauser 3
Table of contents
1 Symbols .......................................................................... 4
1.1 Safety symbols ........................................................................ 4
1.2 Symbols for certain types of information and graphics ........................................... 4
2 Requirements for personnel ...................................................... 5
3 Intended use ...................................................................... 5
4 Workplace safety ................................................................. 6
5 Operational safety ................................................................ 6
6 Product safety .................................................................... 6
7 Incoming acceptance .............................................................. 7
8 Product identification ............................................................. 7
8.1 Nameplate ........................................................................... 7
8.2 Manufacturer address ................................................................... 8
9 Storage and transport ............................................................. 8
9.1 Storage conditions ..................................................................... 8
9.2 Transporting the product to the measuring point ............................................... 8
10 Mounting ......................................................................... 8
10.1 General instructions .................................................................... 8
10.2 Mounting requirements ................................................................. 9
10.3 Mounting the measuring device ...........................................................11
10.4 Post-mounting check .................................................................. 17
11 Electrical connection ............................................................ 18
11.1 Connecting requirements ............................................................... 18
11.2 Connecting the device .................................................................. 20
11.3 Ensuring the degree of protection ......................................................... 26
11.4 Post-connection check ..................................................................26
12 Operation ....................................................................... 27
12.1 Reading off the device locking status ....................................................... 27
12.2 Reading off measured values ............................................................. 27
12.3 Adapting the device to process conditions ................................................... 27
12.4 Heartbeat Technology (optional) .......................................................... 27
13 Commissioning .................................................................. 28
13.1 Preliminaries ........................................................................ 28
13.2 Function check ....................................................................... 28
13.3 Connecting via FieldCare and DeviceCare ................................................... 28
13.4 Setting the operating language ........................................................... 29
13.5 Configuring the device ................................................................. 30
13.6 Recording the Echo curve ............................................................... 31
13.7 "Simulation" submenu .................................................................. 31

Symbols Micropilot FMR67B PROFIBUS PA
4 Endress+Hauser
1 Symbols
1.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2 Symbols for certain types of information and graphics
Permitted
Procedures, processes or actions that are permitted
Preferred
Procedures, processes or actions that are preferred
Forbidden
Procedures, processes or actions that are forbidden
Tip
Indicates additional information
Reference to documentation
Reference to graphic
Notice or individual step to be observed
1.
,
2.
,
3.
Series of steps
Result of a step
1, 2, 3, ...
Item numbers
A, B, C, ...
Views
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions

Micropilot FMR67B PROFIBUS PA Requirements for personnel
Endress+Hauser 5
2 Requirements for personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Personnel must be authorized by the plant owner/operator.
‣Personnel must be familiar with federal/national regulations.
‣Before starting work: personnel must read and understand the instructions in the manual
and supplementary documentation as well as the certificates (depending on the
application).
‣Personnel must follow instructions and comply with general policies.
3 Intended use
Application and media
The measuring device described in these Operating Instructions is intended for continuous,
non-contact level measurement primarily in bulk solids. Due to its operating frequency of
approx. 80 GHz, a maximum radiated peak power of <1.5 mW and an average power output
of <70 µW, unrestricted use outside of closed, metallic vessels is also permitted (for example
over heaps). Operation does not pose any danger whatsoever to humans and animals.
If the limit values specified in the "Technical data" and the conditions listed in the instructions
and additional documentation are observed, the measuring device may be used only for the
following measurements:
‣Measured process variables: level, distance, signal strength
‣Calculable process variables: volume or mass in any shape of vessel
To ensure that the measuring device remains in proper condition for the operation time:
‣Use the measuring device only for media to which the process-wetted materials are
sufficiently resistant.
‣Observe the limit values in the "Technical data".
Incorrect use
The manufacturer is not liable for damage caused by improper or non-intended use.
Avoid mechanical damage:
‣Do not touch or clean device surfaces with pointed or hard objects.
Clarification of borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability.
Residual risks
Due to heat transfer from the process as well as power loss in the electronics, the temperature
of the electronics housing and the assemblies it contains (e.g. display module, main
electronics module and I/O electronics module) may rise to 80 °C (176 °F). When in operation,
the sensor may reach a temperature close to the medium temperature.

Workplace safety Micropilot FMR67B PROFIBUS PA
6 Endress+Hauser
Danger of burns from contact with surfaces!
‣For elevated fluid temperatures, ensure protection against contact to prevent burns.
4 Workplace safety
When working on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
‣Switch off the supply voltage before connecting the device.
5 Operational safety
Risk of injury!
‣Operate the device only if it is in proper technical condition, free from errors and faults.
‣The operator is responsible for interference-free operation of the device.
Hazardous area
To eliminate the risk of danger to persons or the facility when the device is used in the
approval-related area (e.g. explosion protection, pressure equipment safety):
‣Check the nameplate to verify if the device ordered can be put to its intended use in the
approval-related area.
‣Observe the specifications in the separate supplementary documentation that is an integral
part of this manual.
6 Product safety
This device is designed in accordance with good engineering practice to meet state-of-the-art
safety requirements, has been tested, and left the factory in a condition in which it is safe to
operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.

Micropilot FMR67B PROFIBUS PA Incoming acceptance
Endress+Hauser 7
7 Incoming acceptance
DELIVERY NOTE
1 = 2
A0016870
Check the following during incoming acceptance:
• Is the order code on the delivery note (1) identical to the order code on the product sticker
(2)?
• Are the goods undamaged?
• Do the data on the nameplate correspond to the order specifications and the delivery note?
• Is the documentation provided?
• If required (see nameplate): are the Safety Instructions (XA) provided?
If one of these conditions is not met, please contact the manufacturer's sales office.
8 Product identification
The following options are available for identification of the device:
• Nameplate specifications
• Extended order code with breakdown of the device features on the delivery note
‣Device Viewer(www.endress.com/deviceviewer); manually enter the serial number from
the nameplate.
 All the information about the measuring device is displayed.
‣Endress+Hauser Operations app; manually enter the serial number indicated on the
nameplate or scan the 2D matrix code on the nameplate.
 All the information about the measuring device is displayed.
8.1 Nameplate
The information that is required by law and is relevant to the device is shown on the
nameplate, e.g.:
• Manufacturer identification
• Order number, extended order code, serial number
• Technical data, degree of protection

Storage and transport Micropilot FMR67B PROFIBUS PA
8 Endress+Hauser
• Firmware version, hardware version
• Approval-related information, reference to Safety Instructions (XA)
• DataMatrix code (information about the device)
8.2 Manufacturer address
Endress+Hauser SE+Co. KG
Hauptstraße 1
79689 Maulburg, Germany
Place of manufacture: See nameplate.
9 Storage and transport
9.1 Storage conditions
• Use the original packaging
• Store the device in clean and dry conditions and protect from damage caused by shocks
9.1.1 Storage temperature range
See Technical Information.
9.2 Transporting the product to the measuring point
LWARNING
Incorrect transport!
The housing or sensor can be damaged or pull off. Risk of injury!
‣Transport the device to the measuring point in its original packaging or by the process
connection.
‣Always secure lifting equipment (slings, eyes, etc.) at the process connection and never lift
the device by the electronic housing or sensor. Pay attention to the center of gravity of the
device so that it does not tilt or slip unintentionally.
10 Mounting
10.1 General instructions
LWARNING
Loss of protection rating if the device is opened in a wet environment.
‣Only open the device in a dry environment!

Micropilot FMR67B PROFIBUS PA Mounting
Endress+Hauser 9
1. Install the device or turn the housing so that the cable entries do not point upwards.

A0029263
2. Always firmly tighten the housing cover and the cable entries.
3. Counter-tighten the cable entries.
4. A drip loop must be provided when laying the cables.
10.2 Mounting requirements
10.2.1 Internal vessel fittings
α
A0031814

Mounting Micropilot FMR67B PROFIBUS PA
10 Endress+Hauser
Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings,
heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α.
10.2.2 Avoiding interference echoes
A0031817
Metal deflector plates, installed at an angle to scatter the radar signals, help prevent
interference echoes.
10.2.3 Vertical alignment of antenna axis
Align the antenna so that it is perpendicular to the product surface.
The maximum reach of the antenna can be reduced, or additional interference signals
can occur, if the antenna is not installed perpendicular to the product.
10.2.4 Radial alignment of the antenna
Based on the directional characteristic, radial alignment of the antenna is not necessary.

Micropilot FMR67B PROFIBUS PA Mounting
Endress+Hauser 11
10.2.5 Optimization options
Mapping
Measurement can be optimized by electronically suppressing interference echoes.
See the Confirm distance parameter.
10.3 Mounting the measuring device
10.3.1 Horn antenna 65 mm (2.56 in)
Information about the mounting nozzle
The maximum nozzle length Hmax depends on the nozzle diameter D.
Maximum nozzle length Hmax as a function of the nozzle diameter D
D Hmax
Hmax
øD
80 to 100 mm (3.2 to 4 in) 1 700 mm (67 in)
100 to 150 mm (4 to 6 in) 2 100 mm (83 in)
≥ 150 mm (6 in) 3 200 mm (126 in)
In the case of longer nozzles, reduced measuring performance must be expected.
Please note the following:
• The end of the nozzle must be smooth and free from burrs.
• The edge of the nozzle should be rounded.
• Mapping must be performed.
• Please contact the manufacturer's support department for applications with nozzles
that are higher than indicated in the table.

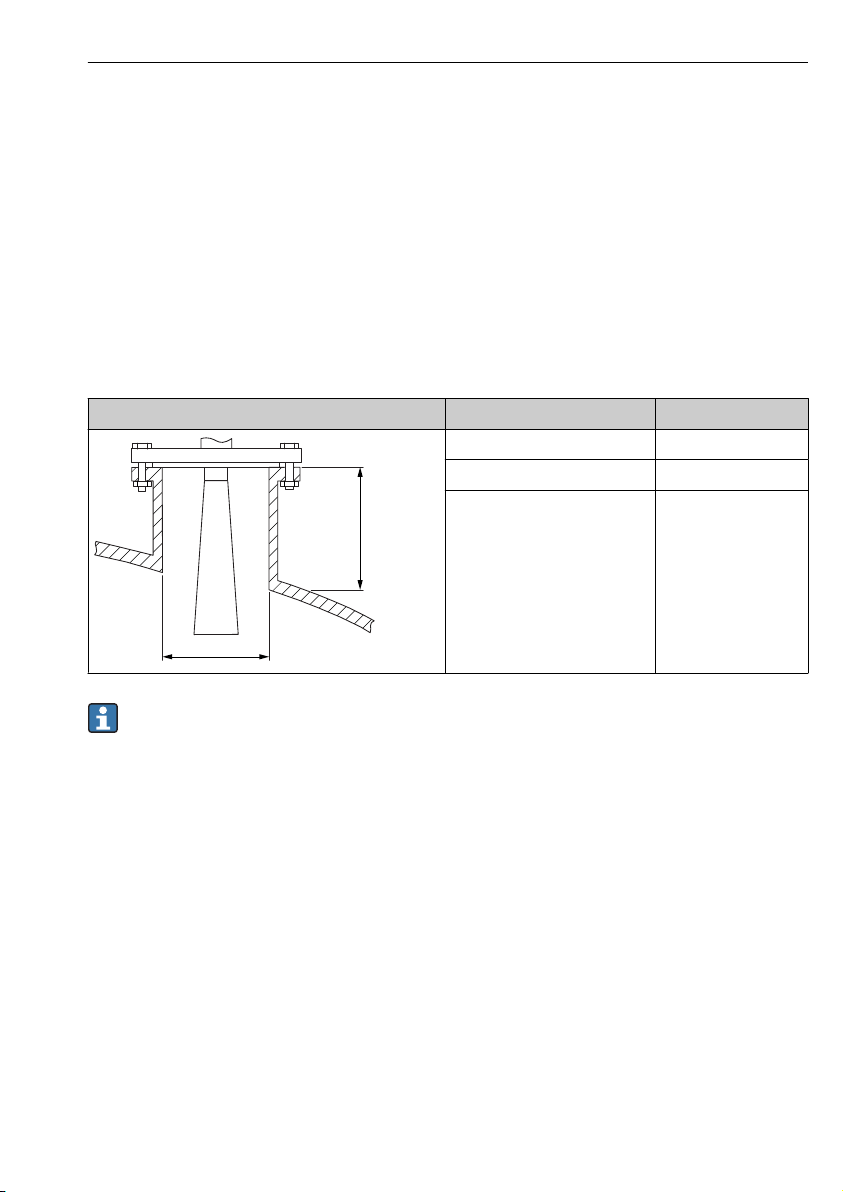

10.3.2 Horn antenna 65 mm (2.56 in) with alignment unit
UNI flanges with an integrated alignment unit are available for the horn antenna
65 mm (2.56 in). An angle of inclination of up to 15 ° in all directions can be set for the
antenna axis using the alignment unit. The alignment unit is used to optimally align the
measuring signal to the bulk solids.

Mounting Micropilot FMR67B PROFIBUS PA
12 Endress+Hauser
A0048891
 1 Horn antenna with alignment unit
Information about the mounting nozzle
The maximum nozzle length Hmax depends on the nozzle diameter D.
The maximum nozzle length Hmax depends on the nozzle diameter D
D Hmax
Hmax
øD
80 to 100 mm (3.2 to 4 in) 1 700 mm (67 in)
100 to 150 mm (4 to 6 in) 2 100 mm (83 in)
≥ 150 mm (6 in) 3 200 mm (126 in)
In the case of longer nozzles, reduced measuring performance must be expected.
Please note the following:
• The end of the nozzle must be smooth and free from burrs.
• The edge of the nozzle should be rounded.
• Mapping must be performed.
• Please contact the manufacturer's support department for applications with nozzles
that are higher than indicated in the table.

Micropilot FMR67B PROFIBUS PA Mounting
Endress+Hauser 13

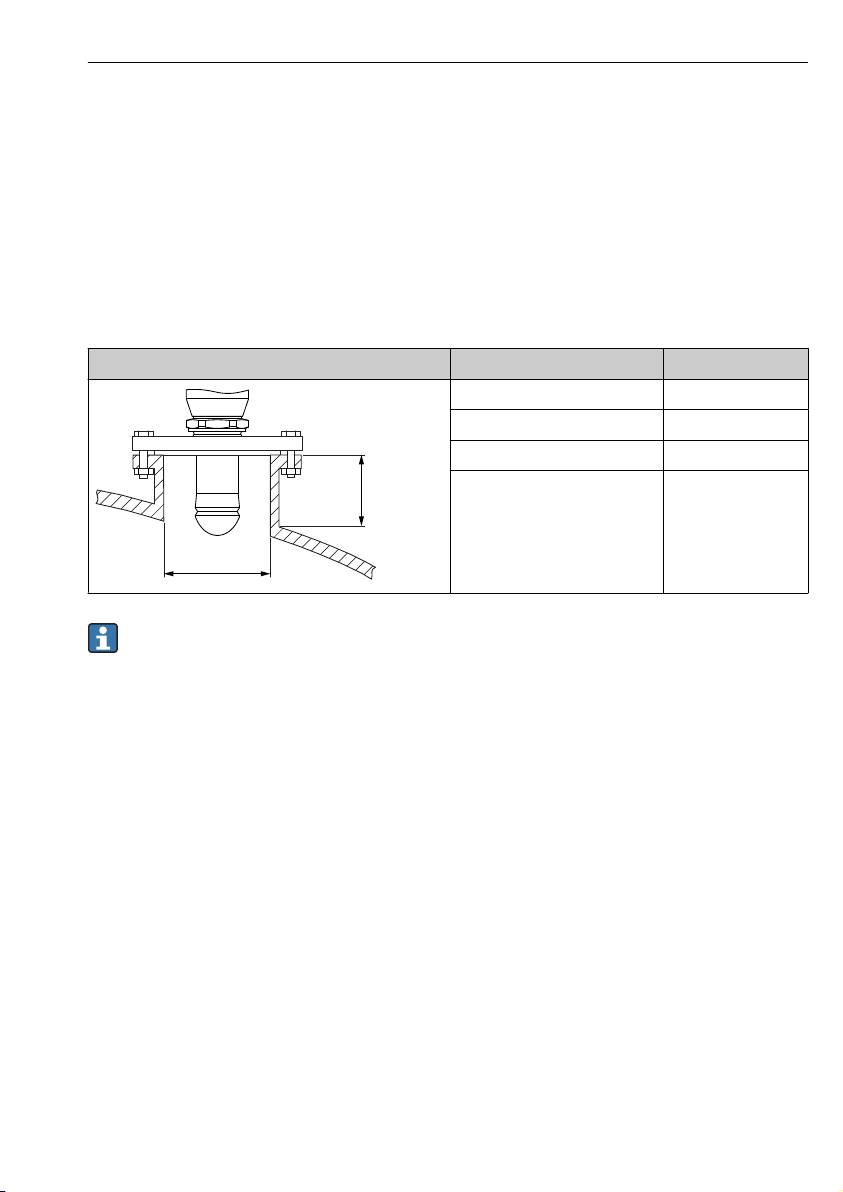

10.3.3 Drip-off antenna PTFE 50 mm (2 in)
Information concerning threaded connections
• When screwing in, turn by the hex bolt only.
• Tool: open-ended wrench 55 mm
• Maximum permissible torque: 50 Nm (36 lbf ft)
Information about the mounting nozzle
The maximum nozzle length Hmax depends on the nozzle diameter D.
Maximum nozzle length Hmax as a function of the nozzle diameter D
D Hmax
H
øD
max
50 to 80 mm (2 to 3.2 in) 750 mm (30 in)
80 to 100 mm (3.2 to 4 in) 1 150 mm (46 in)
100 to 150 mm (4 to 6 in) 1 450 mm (58 in)
≥150 mm (6 in) 2 200 mm (88 in)
In the case of longer nozzles, reduced measuring performance must be expected.
Please note the following:
• The end of the nozzle must be smooth and free from burrs.
• The edge of the nozzle should be rounded.
• Mapping must be performed.
• Please contact the manufacturer's support department for applications with nozzles
that are higher than indicated in the table.
10.3.4 Antenna, flush mount 80 mm (3 in)
Information about the mounting nozzle
The maximum nozzle length Hmax depends on the nozzle diameter D.

Mounting Micropilot FMR67B PROFIBUS PA
14 Endress+Hauser
Antenna nozzle mounting, flush mount 80 mm (3 in)
ØD Hmax
H
øD
max
80 to 100 mm (3.2 to 4 in) 1 750 mm (70 in)
100 to 150 mm (4 to 6 in) 2 200 mm (88 in)
≥ 150 mm (6 in) 3 300 mm (132 in)
In the case of longer nozzles, reduced measuring performance must be expected.
Please note the following:
• The end of the nozzle must be smooth and free from burrs.
• The edge of the nozzle should be rounded.
• Mapping must be performed.
• Please contact the manufacturer's support department for applications with nozzles
that are higher than indicated in the table.

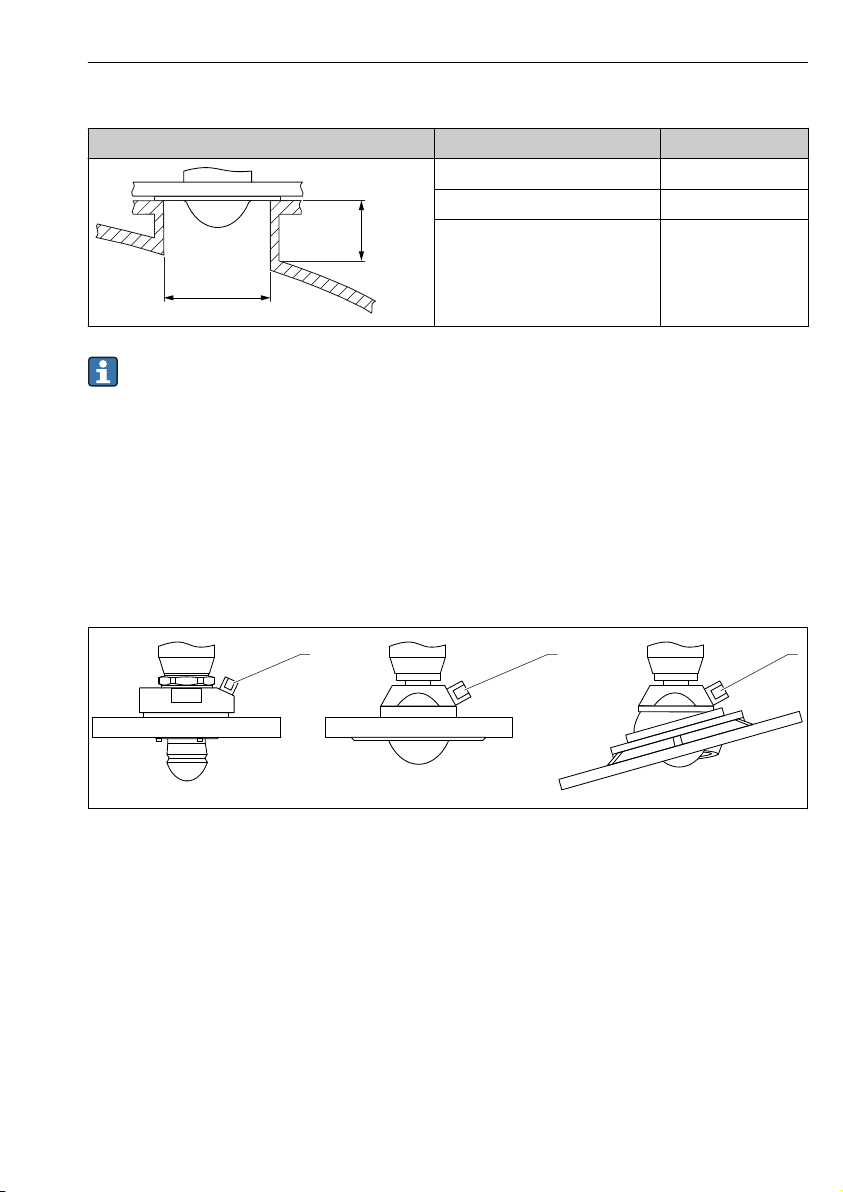

10.3.5 Antenna flush mount 80 mm (3 in) with alignment unit
UNI flanges with an integrated alignment unit are available for the antenna flush mount
80 mm (3 in). An inclination of the antenna axis of up to 15 ° in all directions can be set with
the help of the alignment unit. The alignment unit is used to optimally align the measuring
signal to the bulk solids.
A0046592
 2 Antenna flush mount with alignment unit
Information about the mounting nozzle
The maximum nozzle length Hmax depends on the nozzle diameter D.

Micropilot FMR67B PROFIBUS PA Mounting
Endress+Hauser 15
The maximum length of the nozzle Hmax depends on the nozzle diameter D
D Hmax
H
øD
max
min. 80 to 100 mm (3 to 4 in) 1 450 mm (57 in)
100 to 150 mm (4 to 6 in) 1 800 mm (71 in)
≥ 150 mm (6 in) 2 700 mm (106 in)
In the case of longer nozzles, reduced measuring performance must be expected.
Please note the following:
• The end of the nozzle must be smooth and free from burrs.
• The edge of the nozzle should be rounded.
• Mapping must be performed.
• Please contact the manufacturer's support department for applications with nozzles
that are higher than indicated in the table.
10.3.6 Purge air connection
In applications with strong dust emissions, the integrated purge air connection can prevent
the antenna from becoming clogged. Pulse operation is recommended.
11 1
A0046593
 3 Antenna with purge air adapter
1 Purge air connection NPT 1/4" or G 1/4"
Purge air pressure range
•Pulse operation :
Max. 6 bar (87 psi)
•Continuous operation:
200 to 500 mbar (3 to 7.25 psi)

Mounting Micropilot FMR67B PROFIBUS PA
16 Endress+Hauser
Purge air connection
• Tool:
• Open-ended wrench 13 mm (G 1/4")
• Open-ended wrench 14 mm (NPT)
• Open-ended wrench 17 mm (NPT "adapter")
• Min. torque: 6 Nm (4.4 lbf ft)
• Max. torque: 7 Nm
• Always use dry purge air
• In general, purging should only be performed to the extent necessary as excess purging
can cause mechanical damage (abrasion)
10.3.7 Turning the housing
The housing can be rotated up to 380° by loosening the locking screw.
Your benefits
• Easy installation due to optimum alignment of housing
• Easily accessible device operation
• Optimum readability of the local display (optional)
11 1
BCD
AE
A0046660
A Plastic single compartment housing (no locking screw)
B Aluminum single compartment housing
C Single compartment housing, 316L, hygiene (no locking screw)
D Dual compartment housing
E Dual compartment housing, L-form
1 Locking screw
NOTICE
The housing cannot be unscrewed fully.
‣Loosen the external locking screw by a maximum of 1.5 turns. If the screw is unscrewed
too much or completely (beyond the screw anchor point), small parts (counter disk) can
become loose and fall out.
‣Tighten the securing screw (hexagon socket 4 mm (0.16 in)) with maximum
3.5 Nm (2.58 lbf ft) ± 0.3 Nm (0.22 lbf ft).

Micropilot FMR67B PROFIBUS PA Mounting
Endress+Hauser 17

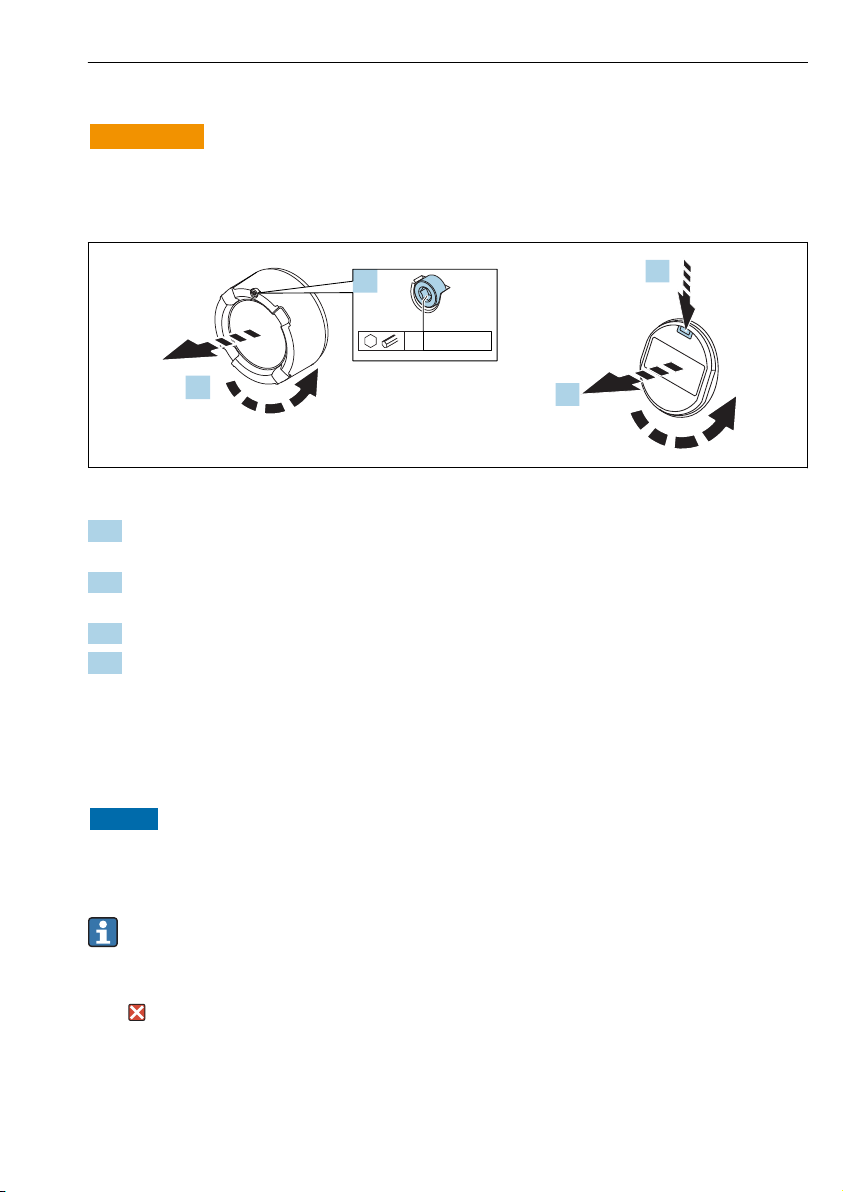

10.3.8 Turning the display module
LWARNING
Supply voltage switched on!
Risk of electric shock and/or explosion!
‣Switch off the supply voltage before opening the measuring device.
2.
1.
40.7 Nm
3.
4.
A0038224
1. If fitted: release the screw of the cover lock for the electronics compartment cover using
the Allen key.
2. Unscrew the electronics compartment cover from the transmitter housing and check the
cover seal.
3. Press the release mechanism and remove the display module.
4. Turn the display module to the desired position: maximum 4 × 90 ° in each direction. Fit
the display module on the electronics compartment in the desired position until it clicks
into place. Screw the electronics compartment cover back onto the transmitter housing.
If fitted: tighten the screw of the cover lock using the Allen key 0.7 Nm (0.52 lbf ft)
±0.2 Nm (0.15 lbf ft).
10.3.9 Closing the housing covers
NOTICE
Thread and housing damaged from dirt!
‣Remove dirt (e.g. sand) on the cover and housing thread.
‣If you encounter resistance when closing the cover, check the thread for dirt and clean it.
Housing thread
The threads of the electronics and connection compartment can be coated with an anti-
friction coating.
The following applies for all housing materials:
Do not lubricate the housing threads.
10.4 Post-mounting check
 Is the device free from damage (visual inspection)?
 Are the measuring point identification and labeling correct (visual inspection)?

Electrical connection Micropilot FMR67B PROFIBUS PA
18 Endress+Hauser
 Is the measuring device protected against precipitation and sunlight?
 Are the securing screws and cover lock tightened securely?
 Does the measuring device comply with the measuring point specifications?
For example:
•  Process temperature
•  Process pressure
•  Ambient temperature
•  Measuring range
11 Electrical connection
11.1 Connecting requirements

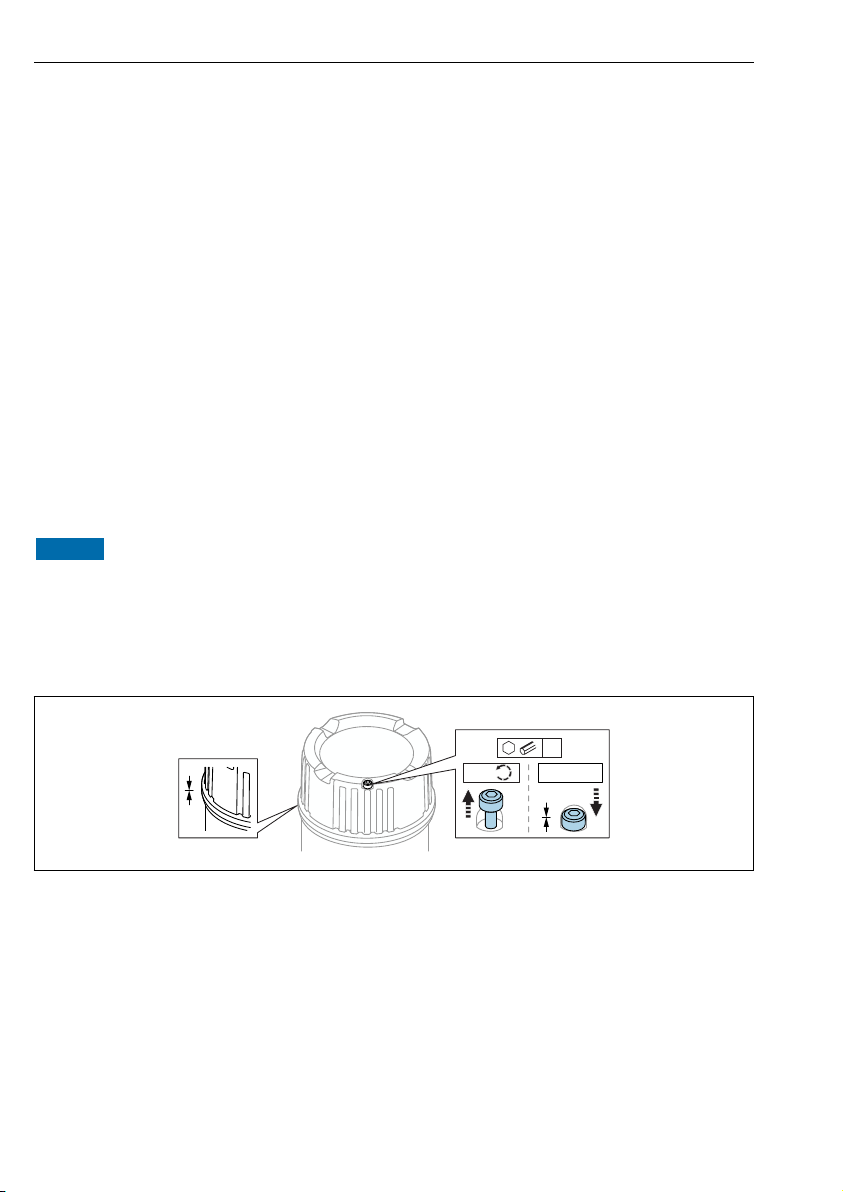

11.1.1 Cover with securing screw
The cover is locked by a securing screw in devices for use in hazardous areas with certain
explosion protection.
NOTICE
If the securing screw is not positioned correctly, the cover cannot provide secure sealing.
‣Open the cover: slacken the screw of the cover lock with a maximum of 2 turns so that the
screw does not fall out. Fit the cover and check the cover seal.
‣Close the cover: screw the cover securely onto the housing, making sure that the securing
screw is positioned correctly. There should not be any gap between the cover and housing.
2 x 0.7 Nm
4
A0039520
 4 Cover with securing screw

Micropilot FMR67B PROFIBUS PA Electrical connection
Endress+Hauser 19
7 x 0.7 Nm
4
A0050983
 5 Cover with securing screw; hygienic housing (only for dust explosion protection)
11.1.2 Potential equalization
The protective ground on the device must not be connected. If necessary, the potential
matching line can be connected to the outer ground terminal of the transmitter before the
device is connected.
1
B
1
D
1
A
1
E
1
C
A0046583
A Single compartment housing, plastic
B Single compartment housing, aluminum
C Single compartment housing, 316L hygiene (Ex device)
D Dual compartment housing
E Dual compartment housing, L-form
1 Ground terminal for connecting the potential matching line
LWARNING
Explosion Hazard!
‣Please refer to the separate documentation on applications in hazardous areas for the
safety instructions.
For optimum electromagnetic compatibility:
• Keep the potential matching line as short as possible
• Observe a cross-section of at least 2.5 mm2 (14 AWG)

Electrical connection Micropilot FMR67B PROFIBUS PA
20 Endress+Hauser

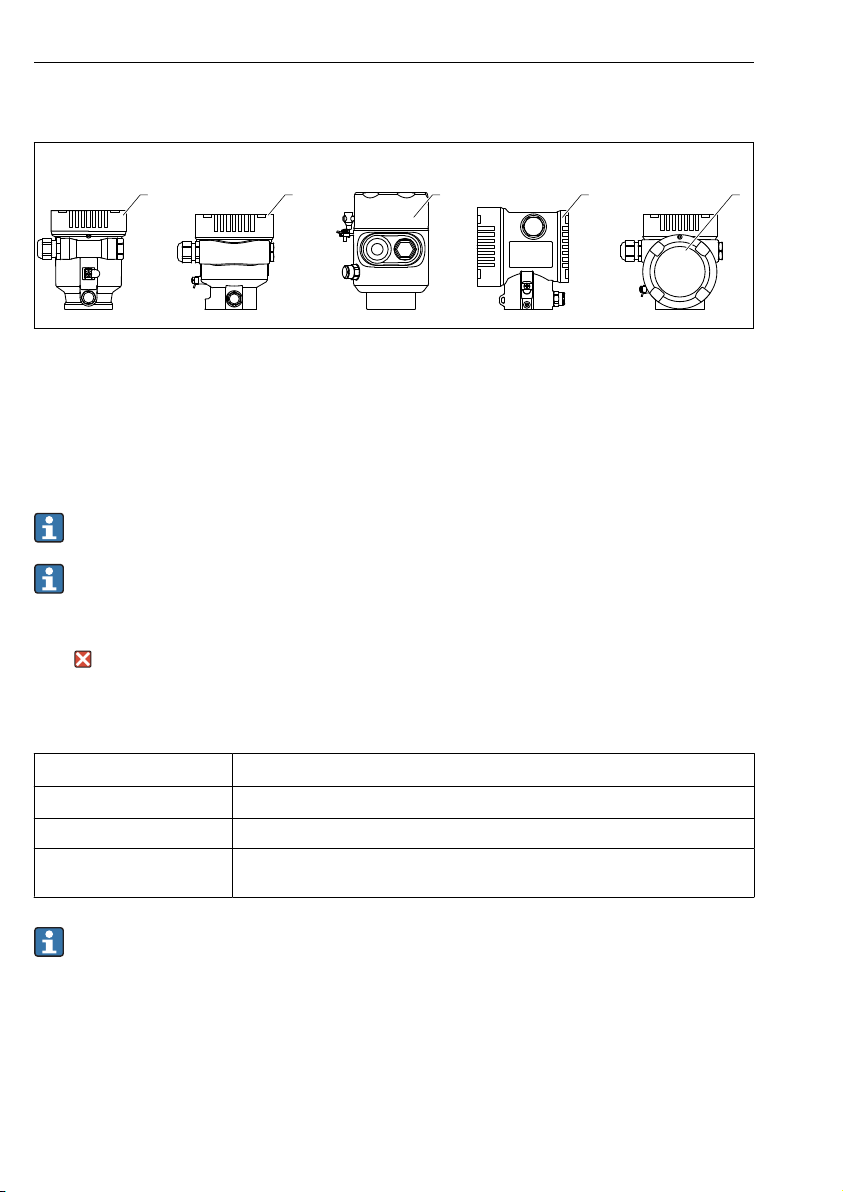

11.2 Connecting the device
11
BCD
1 1
AE
1
A0046659
A Plastic single compartment housing
B Aluminum single compartment housing
C Single compartment housing, 316L hygiene
D Dual compartment housing
E Dual compartment housing, L-form
1 Connection compartment cover
Devices with a single compartment housing, 316L hygiene, and conduit gland must be
connected as end-of-line devices. Only one conduit entry must be used.
Housing thread
The threads of the electronics and connection compartment can be coated with an anti-
friction coating.
The following applies for all housing materials:
Do not lubricate the housing threads.
11.2.1 Supply voltage
The supply voltage depends on the selected type of device approval
Non-hazardous, Ex d, Ex e 9 to 32 VDC
Ex i 9 to 30 VDC
Nominal current 14 mA
Failure current FDE (Fault
Disconnection Electronic)
0 mA
• Use only suitable and certified Profibus PA components (e.g. DP/PA segment coupler)
for the power supply
• FISCO/FNICO-compliant according to IEC 60079-27
• The supply is not polarity-dependent
Device display and Bluetooth
The display background lighting and Bluetooth function (order option) is guaranteed across
the entire supply voltage range. The Bluetooth function can be restricted at high ambient
temperatures.
