Furuno WR2120 User manual

S2E-17-0209_IM_WR2120_C
i
INSTALLATION
MANUAL
MODEL: WEATHER RADAR
TYPE: WR2120
www.furuno.com

S2E-17-0209_IM_WR2120_C
ii
SAFETY INSTRUCTIONS
The operator and installer must read the appropriate safety instructions before attempting to
install or operate the equipment.
Indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.
Warning, Caution Prohibitive Action Mandatory Action
DANGER
Radio Frequency Radiation Hazard
The radar antenna emits the electromagnetic radio frequency (RF) energy which can be harmful,
particularly to your eyes. Do not look at the Antenna Unit from a close distance while the radar is
in operation, or expose yourself to the transmitting antenna at a close distance.
The distances at which RF radiation levels of 10 W/m 2 exist are shown in the table below.
DO NOT approach closer than 9.1m (Safety standard is 10 W/m2) when radar is transmitting.
NOTE: This value is applied when radar is installed in a public space. Value is defined as on
human body surface over a 6-minute period with the flux density averaged from the
measurement. Moreover, this measured value is measured by pointing the center of the antenna
towards a human. However this is the worst value, definition required by actual regulation is
written here as on safe side.
Distance from Antenna
9.1m
Power flux density
10 W/m 2
WARNING
Do not open the radome.
Electrical shock can occur. Only qualified personnel should work inside the equipment.
Turn off the circuit breaker in the JCU if opening the radome is required.
Wear a hard hat and safety belt when mounting the Antenna Unit.
Serious injury or death can result from falls or dropped items while installing or servicing the
radar components.
Do not use any other power except 100 to 240 VAC.
Connection of an incorrect power supply can cause fire or damage the equipment.
Turn off the power immediately if water leaks into the
equipment or smoke or fire is coming from the equipment.
Failure to turn off the equipment can cause fire or electrical shock.
Do not operate the equipment with wet hands.
Electrical shock can occur.
WARNING
DANGER
CAUTION

S2E-17-0209_IM_WR2120_C
iii
WARNING LABEL
Warning labels are attached to the equipment. Do not remove any label.
If a label is missing or damaged, contact us for the replacement.
WR2120 restrictions
There are restrictions frequency band as follows to use at Switzerland, Lithuania and Slovakia.
Operate the WR2120 using one of the following four channels:
CH1: 9422.5MHz, CH2: 9427.5MHz, CH3: 9432.5MHz, CH4: 9437.5MHz
POWER SUPPLY LABEL
100-240 VAC
SINGLE PHASE, 50/60 Hz
POWER CONSUMPTION: MAX. 350W
RATED AMPERE: 3.5-2.4A (100-150VAC)
1.8-1.5A (200-240VAC)
Do not disassemble or modify the equipment.
Fire or electrical shock can occur.
Use only the specified power cable.
Fire or damage to the equipment can result if a different cable is used.
Use the power supply grounded certainly.
Electrical shock or defect of operation can occur.
When a thunderbolt is expected, do not approach a system or
do not touch a hand.
There is a possibility of receiving an electric shock.
A worker's safety is guaranteed however the radar’s internal protection devices only
protect against indirect lightning and surges to the radar components. In case of a direct
lightning strike these protection devices may not protect radar or surrounding personnel.
Attach securely protective earth to the unit.
The protective earth (grounding) is required to the AC power supply to prevent electrical
shock.
CAUTION
Do not put liquid-filled containers on the top of the equipment.
Fire or electrical shock can occur if a liquid spills into the equipment.
Establish best possible surrounding space for apparatus.
This helps eliminate performance degradation and failure.
Do impact the LCD glass.
Serious injury may occur due to broken glass.
Name: Radiation Warning Label
Type: 03-142-3201-0
Code No.: 100-266-890-10

S2E-17-0209_IM_WR2120_C
TABLE OF CONTENS
SAFETY INSTRUCTIONS .................................. i
1. SYSTEM SUMMARY ..................................... 1
1.1. Type of Radar Bands .......................... 1
1.2. Anatomy of Weather Radar ................. 2
1.3. Mechanical Operation ......................... 2
1.4. Multi-radar System .............................. 3
1.5. Side Lobe ............................................ 4
1.6. Location of Radar Installation .............. 6
1.7. Radar System Certificate .................... 7
1.8. Requirement of Calibration ................. 8
1.9. Peripheral Devices .............................. 8
2. SPECIFICATIONS
2.1. Antenna Unit ........................................ 9
2.2. Signal Processing Unit ...................... 10
2.3. Data Processing Unit ......................... 11
2.4. Accessories ......................................... 12
2.5. Construction Materials List ................ 13
3. PRIOR CONFIRMATION
3.1. Confirmation Items .............................. 14
3.2. Power Equipment .............................. 14
3.3. Measurements ................................... 14
3.4. LAN Equipment ................................. 14
3.5. Peripherals Equipment ...................... 15
4. PRECAUTIONARY ITEM ............................ 16
5. CONSTRUCTION
5.1. Antenna Unit ...................................... 17
5.1.1. Method to divide the unit ........ 17
5.1.2. Method of transport ................ 19
5.1.3. Lifting tool ............................... 19
5.1.4. Mount the antenna unit ........... 20
5.1.5. Leveling the antennaunit ........ 21
5.1.6. Open the radome temporary .. 23
5.1.7. Box connector ......................... 28
5.2. Signal Processing Unit ...................... 31
5.3. Data Processing Unit ......................... 33
6. INITIAL SETTING OF AZIMUTH ................. 34
7. ANTENNA POINTING ADJUSTMENT
7.1. Software Items ..................................36
7.2. PC Time Setting ................................36
7.3. Solar Position Simulator ....................36
7.4. Antenna Position Analysis .................37
7.5. Solar Observation ..............................37
7.6. Antenna Pointing Adjustment ............38
7.7. Uninstall the Software ....................... 39
7.8. Conclusion ........................................ 39
8. Outline Drawing ......................................... 40
9. System Diagram ......................................... 44
APPENDIX:
A: LIGHTNING PROTECTION ASSESSMENT 46
B: COMMUNICATION NETWORK ................. 57
C: STORAGE MEDIA ...................................... 59
D: UPS SETTING ............................................ 60
E: TEAMVIEWER ............................................ 61

S2E-17-0209_IM_WR2120_C
1
1. SYSTEM SUMMARY
RADAR (Radio Detection and Ranging) developed during World War II as a method to detect the
presence of ships and aircraft (the military considered weather targets as noise). Since WWII, there
have been many advances in radar technology (e.g., Doppler techniques). It is used on land, sea,
and in space for both research and operational needs.
1.1. Type of Radar Bands
There are several different categories according to the wavelength of using on radar in the world.
Type of bands are L, S, C, X, and K band.
L band radars: “L” for “long”. This band is mostly used for clear air turbulence studies. It
operates on 15-30 cm wavelength and a frequency of 1-2 GHz.
S band radars: “S” for “short”. It is not easily attenuated and is useful for near and long range
weather observation. It operates on 8-15 cm wavelength and a frequency of 2-4
GHz. Some weather services use it on a wavelength of just over 10 cm. The
drawback to this band of radar is that it requires a large antenna dish and large,
complex motors to power it. It is not uncommon for an S band dish to exceed
7.62 m in diameter.
C band radars: “C” for “compromise”. The dish size does not need to as large so it is more
affordable for TV stations. It operates on 4-8 cm wavelength and a frequency of
4-8 GHz. It is best used for shorter range weather observation because the
signal is more easily attenuated by dry weather and rain. The frequency allows C
band radars to create a narrower beam width using a smaller dish. C band
radars also do not require as much power as an S band radar.
X band radars: “X” is derived from the XX2 secret band. It uses smaller wavelength, is more
sensitive and can detect smaller particles. It operates on 2.5-4 cm wavelength
and a frequency of 8-12 GHz. These radars are used for studies of cloud
development because they can detect the tiny water particles and also used to
detect light precipitation such as snow. X band radars also attenuate very easily
so they are used for only shorter range weather observation. Also due to the
small size of the radar it can easily transported, like the “Doppler on Wheels”
radar. Most commercial airplanes are equipped with X band radar to pick up
turbulence and other weather phenomenon.
K band radars: “K” for “kurz (German for short). This band is split down the middle due to a
strong absorption line in water vapor and it is similar to the X band but is just
more sensitive. It operates on 0.75-1.2 cm or 1.7-2.5 cm wavelength and a
corresponding frequency of 27-40 GHz and 12-18 GHz.
Figure 1.1: 3 general types of weather radar band

S2E-17-0209_IM_WR2120_C
2
1.2. Anatomy of Weather Radar
Antenna: The main purpose of the antenna is to focus the transmitted power into a small pencil
beam and also to receive and collect the returned signal.
Radome: Protects the antenna from high winds, dusts, and rain.
Sub reflector: Directs the signal from the transmitter onto the antenna and also directs the return
signal from the antenna to the receiver.
Receiver: Detects the signal returned from a target.
Transmitter: Generates the microwave signal at the correct phase and amplitude. For X-band
weather radar, the wavelength of the signal is approximately 3cm.
Radome
Sub reflector
Receiver
Transmitter
Antenna
70km
Figure 1.2: Antenna Type
Types of Parabolic antenna -- Wikipedia

S2E-17-0209_IM_WR2120_C
3
1.3. Mechanical Operation
This system observes the development of rain clouds outputs the intensity of precipitation, the
speed of rain clouds (Doppler speed) and observes rainfall phenomena. It is capable of high
resolution rain observation, rain cloud, precipitation density and speed observation. The
solid-state transmitter replaces previous aging devices such as a magnetron.
The area sampled by the radar increases with distance. The wider the beam the greater the
likelihood of sampling a mixture of precipitation types and also a greater the likelihood of
sampled both inside and outside a cloud. Obstacles can also block a portion of the radar beam
resulting in an artificially high power return.

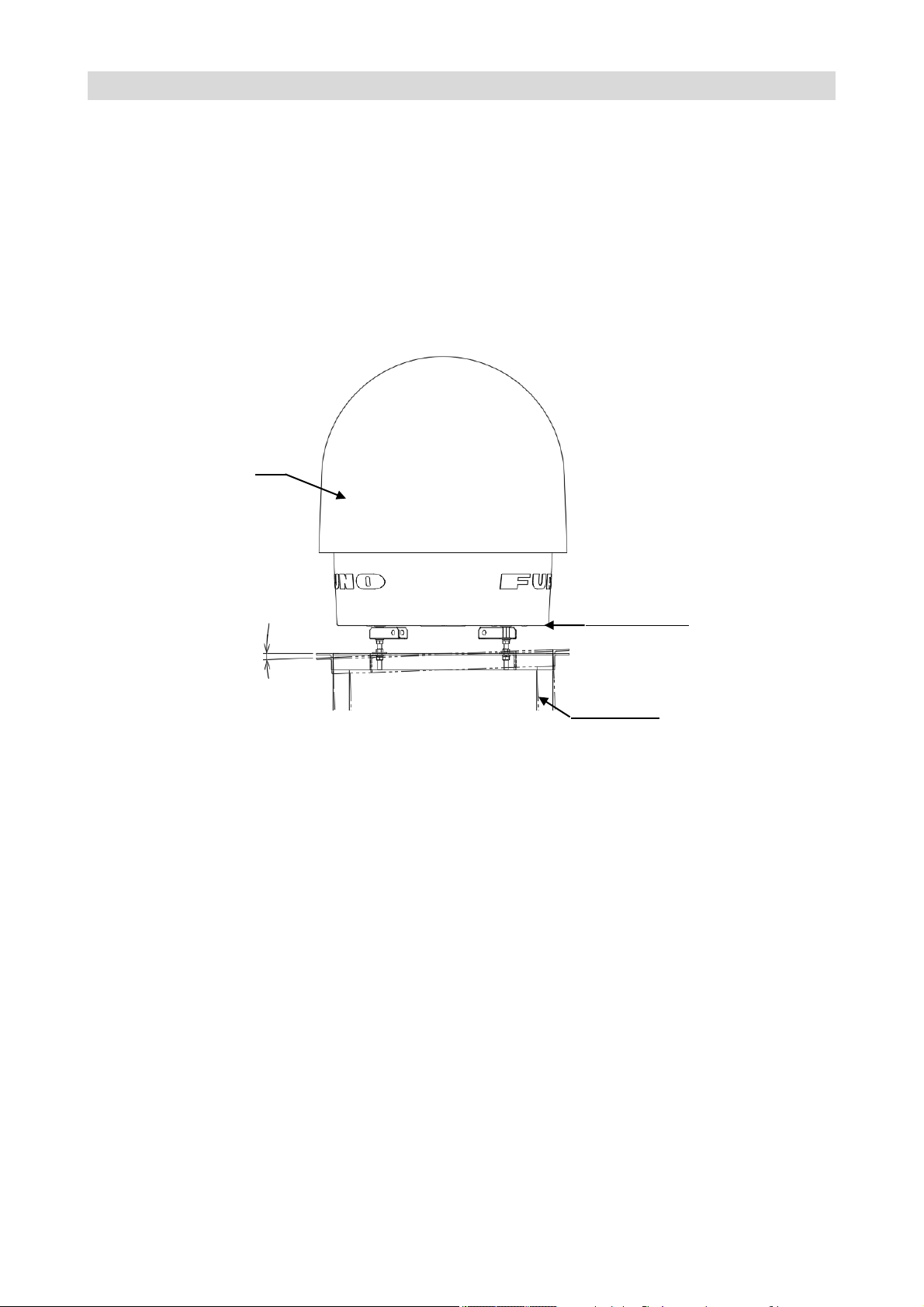

NOTE: Required accuracy for leveling
Although 0.4 degrees is an acceptable
level, it may cause a 209.4m difference at
a 30km distance from radar. For best
target accuracy make mount level 0.0 to
0.1 degrees.

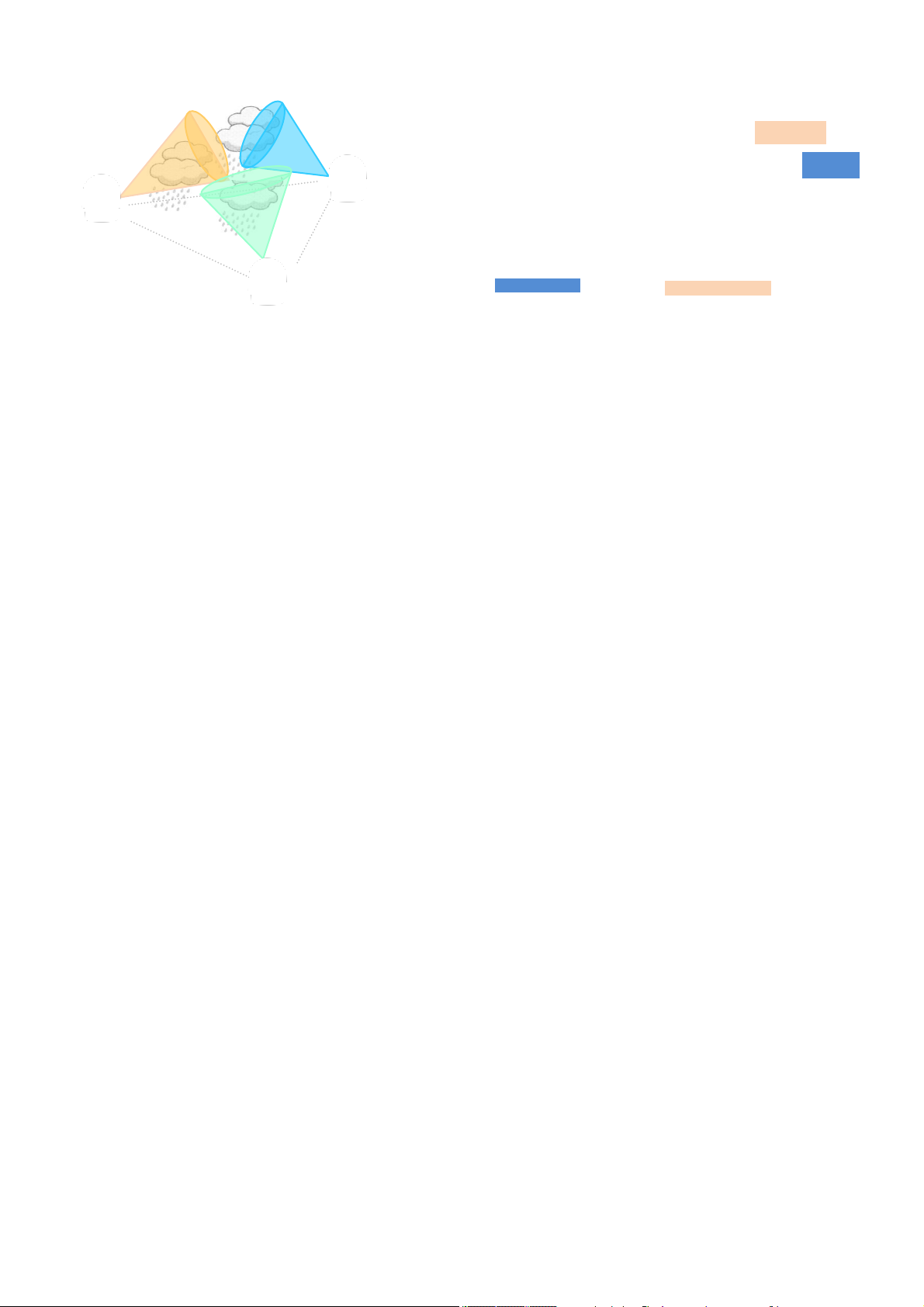

1.4. Multi-radar System
The single X-band weather radar can be difficult to avoid problems with blind areas due to
buildings, mountains or strong signal extinction by heavy rain.
Furuno provide multi-radar system that consists of three radar systems. While two radar systems
are detecting and tracking rain clouds and observing their movements, the other one is working as
RHI sector scan mode at high speed and cutting through the clouds to observe their internal
structures. It is very difficult to complete signal processing of all the radar systems on single PC
because of the CPU performance. Therefore signal processing is distributed among the PC of
each radar system, and all the data are gathered on the central PC and composited into one
synchronized image.
The diagram shows the comparison between ground surface and height of
radar beams
Upper radar beam
Ground surface
Ground projection point
Ground projection point
Middle radar beam
Lower radar beam
Radar unit
mounting point
Observation area
Observation point
Elevation Angle
Azimuth Angle
Ground clutter
Ice crystal snowflake
raindrop
hail
graupel
Rain gauge

S2E-17-0209_IM_WR2120_C
4
1.5. Side Lobe
The energy radiated from an antenna forms a field having a definite radiation pattern. A radiation
pattern is a way of plotting the radiated energy from an antenna. This energy is measured at
various angles at a constant distance from the antenna. The shape of this pattern depends on the
type of antenna used.
To plot this pattern, two different types of graphs, rectangular-and polar-coordinate graphs are
used. The polar-coordinated graph has proved to be of great use in studying radiation patterns.
In the polar-coordinate graph, points are located by projection along a rotating axis (radius) to an
intersection with one of several concentric, equally-spaced circles. The polar-coordinate graph of
the measured radiation is shown in Figure 1.7.
The main beam (or main lobe) is the region around the direction of maximum radiation (usually
the region that is within 3 dB of the peak of the main beam). The main beam in Figure 1.7 is
northbound.
The side lobes are smaller beams that are away from the main beam. These side lobes are
usually radiation in undesired directions which can never be completely eliminated. The side lobe
level (or side lobe ratio) is an important parameter used to characterize radiation patterns. It is the
maximum value of the side lobes away from the main beam and is expressed in Decibels. One
side lobe is called back lobe. This is the portion of radiation pattern that is directed opposing the
main beam direction.
The now following graph shows the rectangular-coordinated graph for the same source. In the
rectangular-coordinate graph, points are located by projection from a pair of stationary,
perpendicular axes. The horizontal axis on the rectangular-coordinate graph corresponds to the
circles on the polar-coordinate graph. The vertical axis on the rectangular-coordinate graph
corresponds to the rotating axis (radius) on the polar-coordinate graph. The measurement scales
in the graphs can have linear as well as logarithmic steps.
Beam Width:
The angular range of the antenna pattern in which at least half of the maximum power is still
emitted is described as a „Beam With”. Bordering points of this main lobe are therefore the points
at which the field strength has fallen in the room around 3 dB regarding the maximum field
strength. This angle is then described as beam width or aperture angle or half power (- 3 dB) angle
- with notation Θ (also φ). The beam width Θ is exactly the angle between the 2 red marked
directions in the upper pictures. The angle Θ can be determined in the horizontal plane (with
notation ΘAZ) as well as in the vertical plane (with notation ΘEL).
Main and Side Lobes (Minor Lobes):
The pattern shown in the upper figures has radiation concentrated in several lobes. The radiation
intensity in one lobe is considerably stronger than in the other. The strongest lobe is called main
lobe; the others are (minor) side lobes. Since the complex radiation patterns associated with
arrays frequently contain several lobes of varying intensity, you should learn to use appropriate
terminology. In general, main lobes are those in which the greatest amount of radiation occurs.
Side or minor lobes are those in which the radiation intensity is least.
Front-to-Back Ratio:
The front-to-back ratio of an antenna is the proportion of energy radiated in the principal direction
of radiation to the energy radiated in the opposite direction. A high front-to-back ratio is desirable
because this means that a minimum amount of energy is radiated in the undesired direction.
Cumulonimbus
early detection
from low
altitudes
Start of
detection with
FURUNO radar
Start of detection with
conventional radar
Conventional
radar
FURUNO
radar
FURUNO radar
Conventional radar
Figure 1.4: FURUNO radar detects cumulonimbus
cloud faster than conventional radar
Figure 1.3: Image of using 3 radars

S2E-17-0209_IM_WR2120_C
5
Figure 1.7 shows the high level echo that
appears side lobes.
 Azimuth direction:
Antenna side lobes show both P0N
(unmodulated pulse emission for radars)
and Q0N (frequency modulation within
each pulse) covered area.
 Range direction:
Pulse compression (Range) side lobes
show Q0N only. It improves sensitivity of
long pulse but increase bling range.
However this blind area can recover
using un- modulated pulse.
Pulse compression is useful for weather radar to increase the average transmitted power by
transmitting a longer pulse but without reducing the range resolution of the radar.
Side lobe suppression is helping to eliminate the problem. For a radar pulse signal after
compression, the narrower pulse main lobe is always accompanied by higher side lobes. So, all
pulse compression radars suffer from range side lobes which cause energy from strong
reflections to leak into adjacent range cells. High suppression of side lobes is not required in
some other non-meteorological radar, but is important for meteorological radar because weather
phenomena can have significant reflectivity gradients, and ground clutter echo can be much
larger than medium rain. Furthermore, the side lobes of strong signal will falsely be recognized as
an existence of small target. Therefore, range side lobes must be suppressed by a large amount
to prevent contamination in adjacent range cells.
Figure 1.7: High level echo with side lobes
Antenna
Side lobe
Range
Side lobe
Figure 1.5: Antenna pattern in a
polar-coordinate graph
Figure 1.6: The same antenna pattern in a
rectangular-coordinate graph
-20dB
Beam width
Side lobe
ratio
Front to back ratio
Radartutorial.eu
Front to back ratio
Beam width
-23dB
-20dB
Main lobe

S2E-17-0209_IM_WR2120_C
6
1.6. Location of Radar Installation
1. Confirm the observed region in relation the topography features:
In this example the radar must cover an altitude of 1500 meters maximum and a 70km distance
radius within the rainfall forecast area. Therefore there should not be any structures or objects
higher than radar around the installation point.
2. When installing antenna on building rooftop or a tall tower in urban area.
Mount the radar on the stand or tower, NOTE: it must be higher than any surrounding
obstruction (building, structure) for proper radar operation. The tower must be designed
strong enough to withstand heavy storms, winds and severe weather conditions.
Also note that a crane or aerial work platform vehicle might be necessary to mount the radar
and install the tower. It is important to consider any additional space required for crane
operation during installation or repair.
3. Lightning protection and grounding considerations:
Provide a lightning rod near or around the radar area to improve lightning protection
performance based on JIS A 4201, JIS Z 9290 and IEC 62305. Refer to APPENDIX A.
The protection systems should include surge protectors/absorbers.
The grounding system will typically consist of an underground grid, radials, or rods which
provide a ground resistance of not more than 1 ohm. It should have a connection point at the
base of the tower. Refer to APPENDIX A for more detail.
Power
Power
Range Side Lobe
Suppression
Ratio
Figure 1.8: Ideal Condition
Figure 1.9: Actual Condition
Observe area
NOT GOOD
GOOD
Side view
Top view
2
.
7
deg
GOOD
NOT GOOD
-3deg
0m
0.62m
m
12m
50m
-2m
0m
Figure 1.10: Distance of main lobe
Main lobe threshold: -20dB
0m
Main beam
Return produces ground clutter
Main lobe

S2E-17-0209_IM_WR2120_C
7
4. Survey antenna surroundings:
Ensure no interference to any surrounding antenna (e.g.: Broadcast, mobile (cell) phone
station, radio, BS/CS, etc.) and no obstacles should be around the antenna.
Moreover, secure a service space of 1 m or more around the antenna. In addition, strong
reflections can damage the receiver if there are obstacles nearby.
5. Power supply requirements:
Radar needs 100VAC (up to 240VAC), single phase 50/60Hz with GND. The minimum electric
current must be installed for voltage used, 100V is 10A, and 240V is 4.2A.
6. Telecommunication line and internet requirements:
Use telecommunication line for transferring weather observation data and operating the radar
by remote. The minimum require continuous speed to transfer all data in real time is 8 Mbps
or faster. A wireless network may have enough speed for just operating the system but we
recommend you to use a fast speed network like a fiber optic network when possible.
7. Building/ground structure:
The installed location of the radar must have proper load bearing resistance and durability to
support a tower or stand. However a structural plan from a professional architect and any
required permits may still be required for building or ground installation of the radar
tower/mount.
8. Human health considerations:
Build the radar stand at least 2 meters high if the radar is installed where people have easy
access to radar. A sign board must also be placed at the entrance or ladder at radar access
point.
9. Heating and cooling system:
Air conditioning is necessary to keep temperature stability for the room/cabinet (rack) of DPU.
10. Pseudo echo:
Set the sector blank to the obstacle direction nearby. When transmitting in the direction of the
obstacle, some pseudo echoes will be indicated due to reflections, therefore set the sector
blank until the pseudo echo disappear.
Note: DO NOT look at the antenna closer than noted below while radar is in operation. This energy
can be extremely damaging to the human body, especially the eyes. Furthermore DO NOT
points the antenna at any individuals closer than noted below while transmitting.
* As shown in Installation manual preface warnings (Table on page i, Radio Frequency Radiation
Hazard), the danger distance of transmit radio wave is set to 10W/m2 value for safe standard,
therefore do not go closer than 9.1m to the radar.
1.7. Radar System Certificate
Most countries by law have specific certificates for operating radar as a radio station. The radar
frequency is in a shared radio spectrum with many other radio services, providing functions
ranging from air traffic control to amateur radio operations. Although the radio frequency spectrum
is not a physical resource, the use of a frequency at a given location usually precludes that same
frequency from being used by others in the same geographic area. This need to have exclusive
geographic use to prevent harmful interference has led to the current spectrum regulations and
established spectrum use rules. Such rules grant licenses for spectrum use, and partitioning of
spectrum for shared use between radio services.
These certifications are approved by the Ministry of Internal Affairs and Communications (Japan),
Federal Communications Commission (USA), or other agencies of the specific country. It is
important to apply when deciding the radar location because it will take time to get certification
approval. It sometimes takes up to a year.

S2E-17-0209_IM_WR2120_C
8
1.8. Requirement of Calibration
Calibration is the activity of checking or measuring and comparing with a specific standard
reference instrument. It may also include adjustment of the system to bring it into alignment with
the standard.
1.9. Peripheral Devices
- External HDD (Hard Disk Drive): Useful for saving large amounts of data. Use USB3.0 device
type to transfer the data at high speed. Recommendations include using a 6TB storage device
to save around one half years data (compressed).
- UPS (Uninterrupted Power Supply): Avoid risk of DPU crash by instantaneous power failure
due to electric power company trouble, facility power or natural disaster such as
thunderstorms. When possible use an outlet ON/OFF type selection device that allows
individual device power to be set ON or OFF remotely via the internet.
Sample images:

S2E-17-0209_IM_WR2120_C
9
2. SPECIFICATIONS
2.1. Antenna Unit
Parameter
Descriptions
Remarks
Unit name
WR2120-ATU
Operating Frequency
9.4 GHz band
Carrier Frequency
Maximum range
70km
Displayable observation level : 70km
Doppler measurement
Max. ±64m/sec
Power supply
100 to 240VAC, Single Phase,
50/60 Hz
Power consumption
Below 250W
Max. 350W
Rated Ampere
1.5 to 3.5A
Size
Φ980mm×H1068mm
Radome size
Weight
68kg (149.9 lb)
Weight of radome only: Upper 15kg,
Bottom 11kg(incl. 12pcs of M10x35
stopper hexagon bolt)
Weight of radar only: 42kg
Operating Temperature
-10 to +50 °C
Humidity 93% without condensation
Storage Temperature
-40 to +70°C
Water & Dust proof
IP55
Maximum wind survival
90 m/sec
Occupied Band Width
Below 6 MHz
Type of Emission
P0N, Q0N, V0N
Amplifier
Solid state module
Peak Power
100 W
each Horizontal and Vertical
Duty Ratio
Up to 10 %
Pulse Width
Below 50μs
Pulse Repetition
Frequency
Below 2000 Hz
Frequency Shift
Below 4 MHz
Except P0N
Antenna Type
Gregorian
Refer to Figure 2.1
Aperture Size
Φ750 mm
Antenna Gain
more than 33.0 dBi
Antenna Polarity
Dual polarimetric
Horizontal, Vertical
Beam Width
2.7 degree
Pencil beam
AZ Rotation Speed
0.5 to 16 rpm
Adjustable
Horizontal Scan Angle
360 degrees
Continuously-rotating
Vertical Scan Angle
-2 to 182 degrees
Adjustable
Resolution of Angle
0.1 degrees
Precision of Angle
0.2 degrees
*1 P0N : Sequence of pulses without modulation.
*2 Q0N : Sequence of pulses, frequency modulation within each pulse.
*3 V0N : Combination of P0N and Q0N.

S2E-17-0209_IM_WR2120_C
10
2.2. Signal Processing Unit
Parameter
Descriptions
Remarks
Unit name
WR2120-SPU
Data Output*1
Rainfall intensity R (mm/h), Reflectivity
factor Zh (dBZ),
Doppler velocity V (m/s), Doppler
velocity spectrum width W (m/s),
Cross polarization difference phase
φdp (deg), Specific differential phase
KDP (deg/km), Co-poral correlation
coefficient ρHV, Differential reflectivity
ZDR
Scan modes
PPI, Volume scan, PPI/RHI (Sector
Scan also availiable)
Ground clutter Rejection
Enable
Data Correction
Distance attenuation, Rain
attenuation, Excessive Doppler
velocity, Suppression of signal returns
from lan, Clutter suppression
Interface
LAN 1 port, Ethernet 1000 Base-T
(Cat5e or more)
Power supply
100 to 240VAC, Single Phase, 50/60
Hz
Power consumption
Max. 650W include Antenna Unit
Rated Ampere
2.7 to 6.5A
Size
W756mm×D300mm×H750mm
Weight
50kg (111lb)
Operating Temperature range
-10 to +50°C
Storage Temperature range
-20 to +60°C
Water & Dust proof
IPX5
*1: Detail of processing by the main unit.

S2E-17-0209_IM_WR2120_C
11
2.3. Data Processing Unit
Receive data from Antenna Unit (ATU) to indicate a picture of rainfall in real time.
Hardware
Parameter
Descriptions
Unit name
WR2120-DPU
Power supply
100t to 125VAC, 50/60Hz
Note: Bundled AC power cable (Socket IEC C13 / Plug type B) is only for US
and Japan. Do not use the bundled cable in other area, it may cause fire or
damage the equipment. Please prepare AC cable by user to fit the site.
Power Voltage
100-240VAC
Power consumption
Max. 150W
Rated Ampere
0.8 to 2.0A
OS
Windows 10 IoT Enterprise 64bit
Internal LAN
2 port, 1000base-T
I/O
USB3.0×6 port
Size
W205 x D227x H88 (mm ), Power supply unit: W141 x D193x H91 (mm )
Weight
2.5kg
Temp. range
0 to +50 °C
LAN Adapter
1000base-T adapter
Display Software
For weather observation system
Name
RainMap, RainPlay
Data indication
Rainfall intensity R (mm/h), Reflectivity factor Zh (dBZ),
Doppler velocity V (m/s), Doppler velocity spectrum width W (m/s),
Status display
Indicate ATU and DPU status
File output
Save and output one scan period of data
For remote maintenance
Name
TeamViewer GmbH
Version
TeamViewer Host (For remote server) 12
Function
Remotely operate the software, view and download the observation data.
Requirement
It must be connecting to internet
Notice of the data communication:
Condition of the data communication (Transfer efficiency: 50%)
Baud rate
Cycle (Data transmission possibilities)
1Mbps/min or more
4 elevations/ 5min.
4Mbps/min or more
2 elevations/ 1min.
8Mbps/min or more
4 elevations / 1min.

S2E-17-0209_IM_WR2120_C
12
2.4. Accessories
Cables & Tube
Antenna Unit (radome) --- Signal Processing Unit
Items
Descriptions
Length
Qty
LAN cable
100Base-T (STP Cat5e or better), Length depends on
measure value. Incl. LAN connector w/ cover
5m(*1)
2
AC Power cable
Shielded VCTF 2sq 3core or equivalent
Incl. crimped Terminal
5m(*1)
1
Control cable
26pin cable (Both HDR-26pin)
5m(*1)
1
Control cable
14pin cable (Both HDR-14pin)
5m(*1)
1
Signal cable
3D-2W (Both SMA-P Connector)
5m(*1)
3
Protective tube
Protective tube conduit Inner diameter : 28 mm, IP65
10m(*2)
1
Box connector
IP65(Water/Dust proof) φ28
-
4
Accessories for installation (Fixed radome and stand)
Items
Descriptions
Qty
Security Lock
For SPU box with keyx2
1
M16 Hex Nut
Material : SUS304
12
M16 Flat Washer
Material : SUS304
12
M16 Split Lock Washer
Material : SUS304
8
M16x200mm Hexagon Bolt
Material : SUS304
4
M16 Large Flat Washer
Material : SUS304
4
M16x40mm High Nut
Material : SUS304
4
Lifting Tool
Material : SUS304
4
PXI Philips Screwdriver #1
1
SMA torque wrench
7mm
1
Accessories for maintenance
Items
Descriptions
Qty
Maintenance tool box
Size: L410x150x100 [mm]
1
M10 x400 Maintenance bolt
Holding the radome cover up above in order to access inside
the radome when maintenance
8
M10 Hex nut
Fix the length of maintenance bold for lifting up the radome
8
Spring clamp
Holding the radome cover up above in order to access inside
the radome when maintenance
8
Handle
Lifting radar out/in from radome
4
*1) Basic length of cable between ATU and SPU is 5m, NOTE: there are 10m, 15m and 20m options.
These cables have extra length for inside equipment. (e.g.: 5m cable = 5m + approx.2m)
*2) Cut the tube into two pieces to adjust a length between ATU and SPU.
Note: For tower radar installations this depends on the overall installation environment and consultation
will be necessary.
Figure 2.1: Maintenance tool

S2E-17-0209_IM_WR2120_C
13
2.5. Construction Material list (Local contractor/client supply)
Cables & Tube
Signal Processing Unit --- Data Processing Unit
Items
Descriptions
Length
Qty
LAN cable
1000Base-T (STP Cat5e or better), Length depends on
measure value. Incl. LAN connector w/ cover
by measure
2
AC power cable
Shielded VCTF 2sq 3core or equivalent.
Incl. crimped Terminal
by measure
1
Protective tube
PF tube conduit Inner diameter: φ28 mm,
IP55 (Water/Dust proof) or better
by measure
1
Box connector
IP65(Water/Dust proof) φ28
-
2
Basic expendable supplies
Items
Descriptions
Qty
Heavy Duty Cable Tie (2 types)
Nylon 6/6 w/ weather resistance 100mm, 150mm
Multi
Crimp terminal 2sq
φ4.3 for electric cable
Multi
LAN connector
RJ45 for LAN cable
Multi
Power cable 3 cores
For electric supply
Multi
LAN cable
1000Base-T, CAT5e or better, STP
Multi
Basic construction tools
Items
Descriptions
Hex key (Ball-head type)
M4 (3mm)
Ratcheting Wrench
M5 (8mm), M12 (19mm), M16 (24mm),
Adjustable wrenches (up to 30mm)
Socket Wrench
M10 (17mm) for fixing radome top/bottom
Exclusive Philips Screwdriver #1
Multiuse
Philips Screwdriver #2
Multiuse
Slotted Screwdriver 3mm
Multiuse
Cable/Wire cutting scissors
Multiuse
Flat nippers
Multiuse
Wire Strippers
For electric wiring work
Ratchet Wire Crimper 2sq
For electric wiring work
LAN cable strippers
For LAN cable work
LAN Ratchet Crimper
For LAN cable work
LAN cable tester
For LAN cable work

S2E-17-0209_IM_WR2120_C
14
3. PRIOR CONFIRMATION
3.1. Confirmation Items
1) The mount plate must be installed properly for Antenna Unit (radome).
2) Power cable (AC100V-240V) must be routed safely.
3) Power cable gauge should be selected depending on its length.
4) Frequency of AC power source must be 50Hz or 60Hz sine wave and single-phase current.
5) All engineers must wear safety appliances including helmet and safety shoes during an
installation of Antenna Unit. It is dangerous that antenna could hit an individual by turning.
6) Secure a service space of 1 m or more around the radome. In addition, strong reflections can
damage the receiver if there are obstacles nearby.
7) Set the sector blank to the obstacle direction nearby. When transmitting in the direction of the
obstacle, some pseudo echoes will be indicated due to reflections, therefore set the sector
blank until the pseudo echo disappear.
Note: DO NOT look at the antenna closer than noted below while radar is in operation. This energy
can be extremely damaging to the human body, especially the eyes. Furthermore DO NOT
points the antenna at any individuals closer than noted below while transmitting.
* As shown in Installation manual preface warnings (Table on page i, Radio Frequency Radiation
Hazard), the danger distance of transmit radio wave is set to 10W/m2 value for safe standard,
therefore do not go closer than 9.1m to the radar.
3.2. Power Equipment
1) This equipment requires 1KVA x1 power line with grounded outlet (3 pin type).
2) The AC power cable attached to the DPU power supply is shipped with items conforming to
the PSE standard (Japan) and UL standard (US). Please prepare the power cable according
to the safety standards of the area to be equipped on the customer side.
3.3. Measurements
Notice: Measure the main AC power before powering on the radar.
Items
Descriptions
Remarks
Digital Multimeter
Voltage
AC : 85 to 240V
DC : 1 to 50V
Current
AC : 1 to 10 A
DC : 1mA to 1A
Resistor
0.1 to 10M ohm
Tester
Lead Cables
3.4. LAN Equipment
1) Use Cat5e (or better grade) of 100Base-Tx LAN cable for transferring data from the Data
Processing Unit to the output equipment.
2) Prepare a high speed broadband connection (approx.100Mbps) for remote maintenance
access.
*Low speed broadband may cause slow access on remote support system.

S2E-17-0209_IM_WR2120_C
15
3.5. Peripherals Equipment
It has to be prepared by the local contractor or client supply.
1. Wired router
Router is using for internet purposes.
Function
Connect with an external network
WAN port
1000BASE-T, 1 port, MDI/MDI-X auto switch
LAN port
1000BASE-T, 4 port or more, MDI/MDI-X auto switch
Input voltage
AC100V-240V, Single phase, 50/60 Hz
Remarks
YAMAHA RTX810 or equivalent
2. SW HUB
Switching hub is for expanding network to several devices purpose.
Function
Connect with LAN
LAN port
1000BASE-T, 5 port or more, MDI/MDI-X auto switch
Input voltage
AC100-240V, Single phase, 50/60 Hz
Remarks
ELECOM EHC-G05MN-HJ or equivalent
3. Uninterrupted Power Supply
It provides enough power to keep the system running for few minutes when
instantaneous voltage occurs and it will automatically shut down the pc safely. Some UPS
can support by remote network.
Function
Connecting with all devices to keep the power safe.
Output voltage
More than 1,000VA
Input voltage
AC100-240V, Single phase, 50/60 Hz
Remarks
APC Smart-UPS series w/ network, Tripp Lite Smart 1000RMXL2U
(AC83-147V) / SMX1000RT2U (AC182-278V) or equivalent
4. External data storage device
It is a purpose for saving more data.
Function
Save scan data
Capacity
3TB or more
Interface
USB3.0 (Note: Plug in USB3.0 cable in to the USB3.0 port of DPU)
Input voltage
AC100-240V, Single phase, 50/60 Hz
Remarks
WD 3TB or equivalent
Note: Disable automatic sleep function (also called ECO mode). It
is unsuitable for weather radar and will cause data loss. This is
because is sleep mode initiates between data transfer intervals
data will not transfer. Also the DPU cannot wake storage device
from sleep mode. DPU would require restart before storage device
will recover from sleep mode.
Please refer to UPS, Router, and other equipment documents separately.

S2E-17-0209_IM_WR2120_C
16
4. PRECAUTIONARY ITEM
1) Use only single phase 100-240VAC commercial power supply.
2) DO NOT overhaul or modify.
3) DO NOT work on during electrical storm.
4) DO NOT scratch, cut, forcedly bend, pull, twist, bundle, or damage the power cable. Also do not
put heavy items on top or around.
5) DO NOT touch inside equipment with a wet hand.
6) Connect ground conductor for equipment protection and electric shock prevention from lightning
induction and ground leakage.
7) Cleaning instructions: Use dry soft cloth to wipe the surface. If it is difficult to remove stains use
the cloth soak with a neutral detergent to clean surfaces. Please DO NOT use an alcohol or an
organic solvent (e.g.: thinner) to clean surfaces.
8) When install the radar stand, level of stand should be within ±0.2 degrees.
Radar stand
ATU
Leveling ±0.2°
(Radar)
Leveling ±2°
(Radar stand)
Figure 4.1
